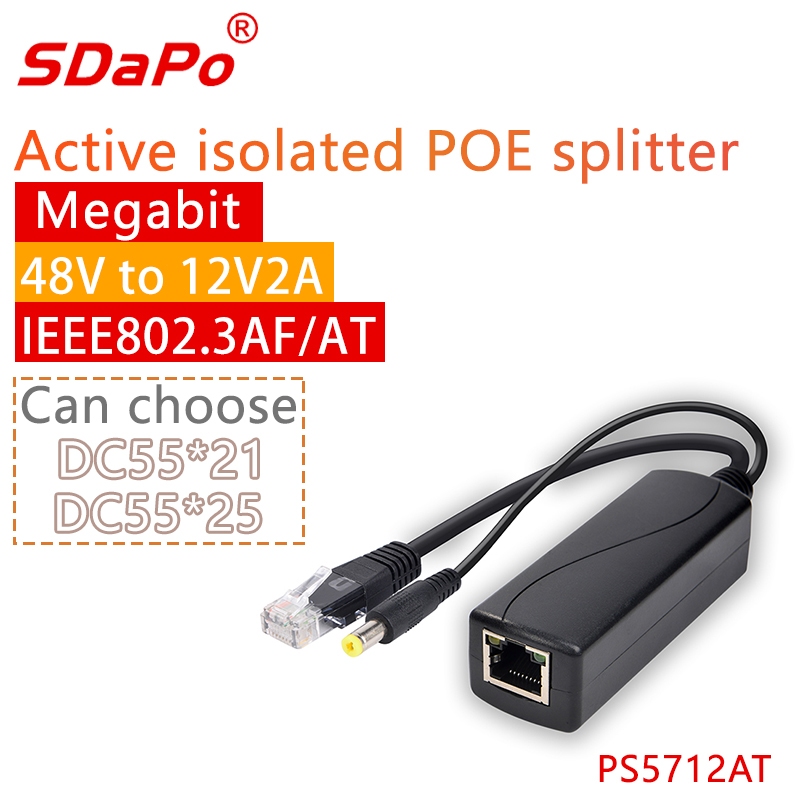

PS5712AT 100Mbps 12V 2A PoE Splitter
You are here: Home » Products » POE Splitter » Megabit POE Splitter » PS5712AT 100Mbps 12V 2A PoE Splitter
PS5712AT 100Mbps 12V 2A PoE Splitter
PS5712AT 100Mbps 12V 2A PoE Splitter PS5712AT 100Mbps 12V 2A PoE Splitter
SDAPO PS5712AT12V 2A IEEE802.3 af/at 48v 30w isolated poe splitter SDAPO PS5712AT12V 2A IEEE802.3 af/at 48v 30w isolated poe splitter
SDAPO PS5712AT12V 2A IEEE802.3 af/at 48v 30w isolated poe splitter SDAPO PS5712AT12V 2A IEEE802.3 af/at 48v 30w isolated poe splitter
PS5712AT 100Mbps 12V 2A PoE Splitter PS5712AT 100Mbps 12V 2A PoE Splitter
PS5712AT 100Mbps 12V 2A PoE Splitter PS5712AT 100Mbps 12V 2A PoE Splitter

loading

PS5712AT 100Mbps 12V 2A PoE Splitter

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1) 100Mbit each port
2) DC Jack:5.5*2.1mm or DC Jack:5.5*2.5mm connector available
3) IEEE802.3at/af Standard
4) PoE/IN:44-57V(30W)
5) ModeA or ModeB ISO:1.5KV
6) DC/OUT:12V/2A(24W)
7) Size: 81*28*24mm
8) total power:24W
9) 1500V high voltage isolation

  • PS5712AT

  • SDaPo

Interface Option:
PS5712AT-DC55*21
PS5712AT-25 DC55*25
Availability:
Quantity:
Inquire Add to Basket

100/1000Mbps PoE Splitter

 DSC_0738-3 DSC_0738-3 DSC_0738-4 HWS_1208-2-800 DSC_0738-3 DSC_0738-3 HWS_1208-2-800 BLA_0519-2
Model No.
 PS0502G PS0503G PS0504G PS0504G Metal Shell
 PS5712G PS5712TG PS1248G PS1260G
Transfer Rate 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps 100/1000Mbps
DC Output 5V 2.4A 5V 3A 5V 4A 5V 4A 12V 1A 12V 2A 12V 4A 12V 5A
PoE Protocol IEEE802.3af IEEE802.3af/at IEEE802.3af/at IEEE802.3at 4Pair IEEE802.3af IEEE802.3af/at IEEE802.3at 4Pair IEEE802.3af/at/bt
Power 13W 15W 20W 20W 13W 24W 48W 60W
Interface Type

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

 DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.5

100Mbps PoE Splitter

Picture DSC_0738-3 DSC_0738-4 DSC_1211-2 DSC_0738-3 DSC_0738-3 DSC_0738-3 DSC_0738-3
Model No. PS0502
 TYPEC0503
 FS5712
 PS5712P
 PS5712AT
 PS5712AT High-effect PS5724AT
Transfer Rate 100Mbps 100Mbps 100Mbps 100Mbps 100Mbps 100Mbps 100Mbps
DC Output 5V 2.4A 5V 3A 12V 1A 12V 1A 12V 2A 12V 2A 24V 1A
PoE Protocol IEEE802.3af IEEE802.3af/at IEEE802.3af IEEE802.3af IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at
Power 13W 24W 13W 13W 24W 24W+ 24W
Interface Type

DC5.5x2.1mm

Type-C

Micro USB

Type-C

DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

100/1000/2500Mbps PoE Splitter

Picture PS1224G (1) PS1224G (1) PS1224G (1) PS1224G (1) DSC_0738-3 DSC_0738-3
Model No. PS1224G-5V3A PS1224G-5V4A PS1224G-12V2A PS1224G-24V1A PS5724TG PS5712BG
Transfer Rate 100/1000/2500Mbps 100/1000/2500Mbps 100/1000/2500Mbps 100/1000/2500Mbps 100/1000/2500Mbps 100/1000/2500Mbps
DC Output 5V 3A 5V 4A 12V 2A 24V 1A 24V 1A
 12V 3A
PoE Protocol IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at/bt
Power 15W 20W 24W 24W 24W 36W
Interface Type DC5.5x2.1mm DC5.5x2.1mm DC5.5x2.1mm DC5.5x2.1mm

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB

DC5.5x2.1mm

DC5.5x2.5

Type-C

Micro USB




*The Main Board of this PoE Splitter is 12V 2A Output.

*Data Transfer Rate is 10/100bps.

*2 Interface Connection Methods for You to Choose :

DC Jack 5.5*2.1mm (PS5712AT-DC55*21)

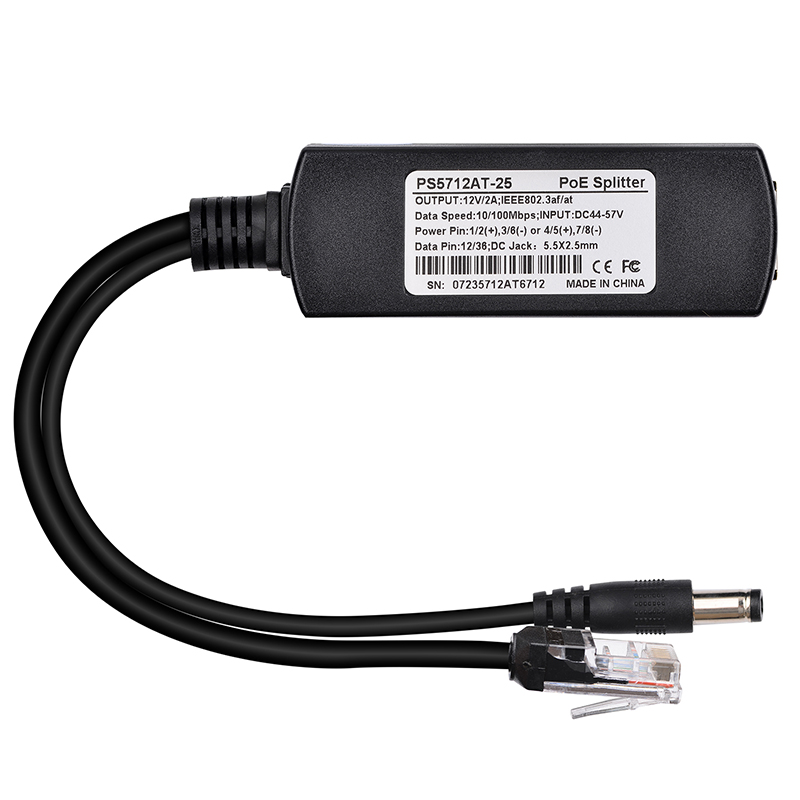

DC Jack 5.5*2.5mm (PS5712AT-25 DC55*25)

Overview

PoE splitter,it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Features

· Support international standard IEEE802.3 af/at(30W);

· Support 10/100Mdata transmission

· PD support 42.5V-57V voltage transmission,Automatically detects power supply from PSE power supply module

· 12V power output,easy to access Poe network for non-poe terminal

· Support the isolation circuit protection,can effectively protect electrical equipment.

· Support the short circuit,overvoltage protection

Technical Parameters

Model

PS5712AT

Transfer Rate

10/100M

Power

Input 42.5-57V/600mA , Output 12V/2A MAX

Standard

IEEE802.3 af/at(30W)

TRNF

1/2(+),3/6(-);4/5(+),7/8(-)

Interface Type

1 Input RJ45 port, 1 output RJ45 port, 1 DC output

Standard

IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af ， IEEE802.3at

LED

Yellow PoE lamp

Environment

Work within -20~50°,Storage within -30~60°

Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing

Dimension

93L * 34W *26H

Weight

0.06kg



3c761f584c62a07ffc8b5261744a788
