Product Description
Advanced PoE Solution

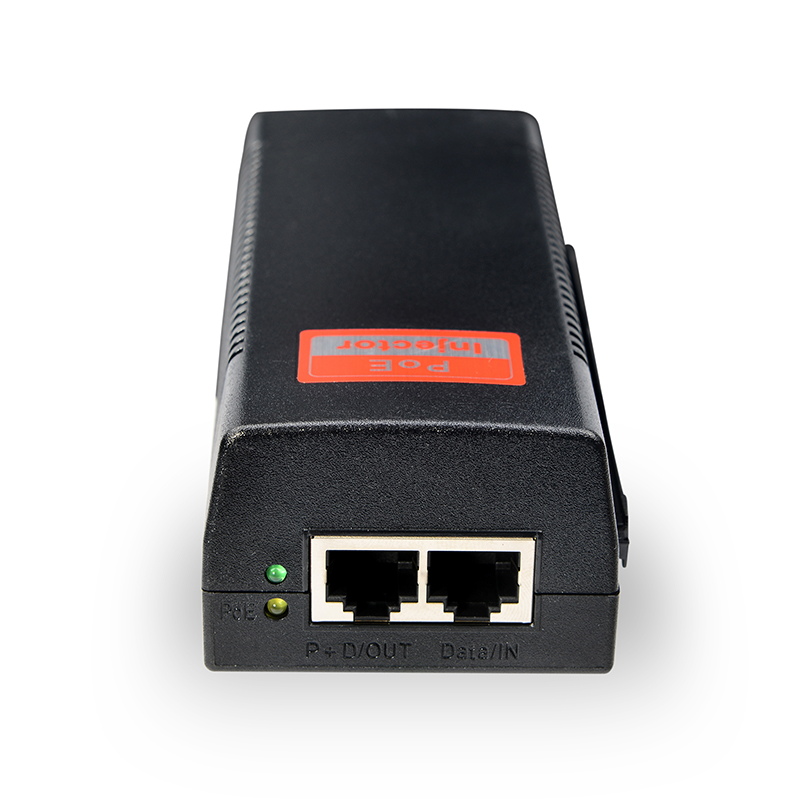

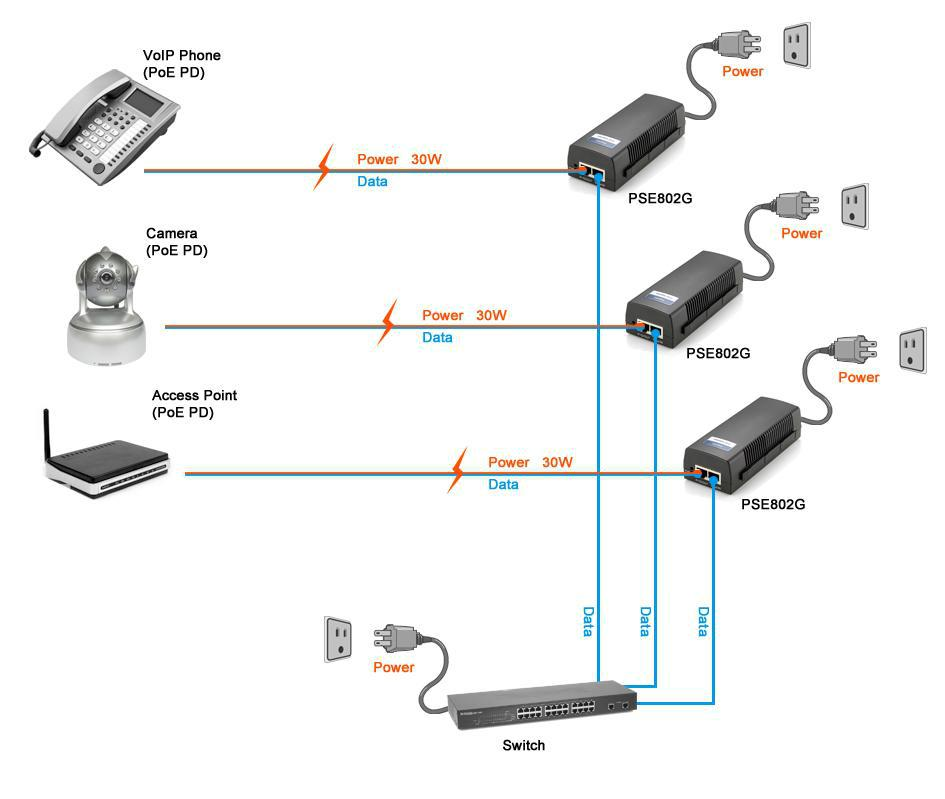

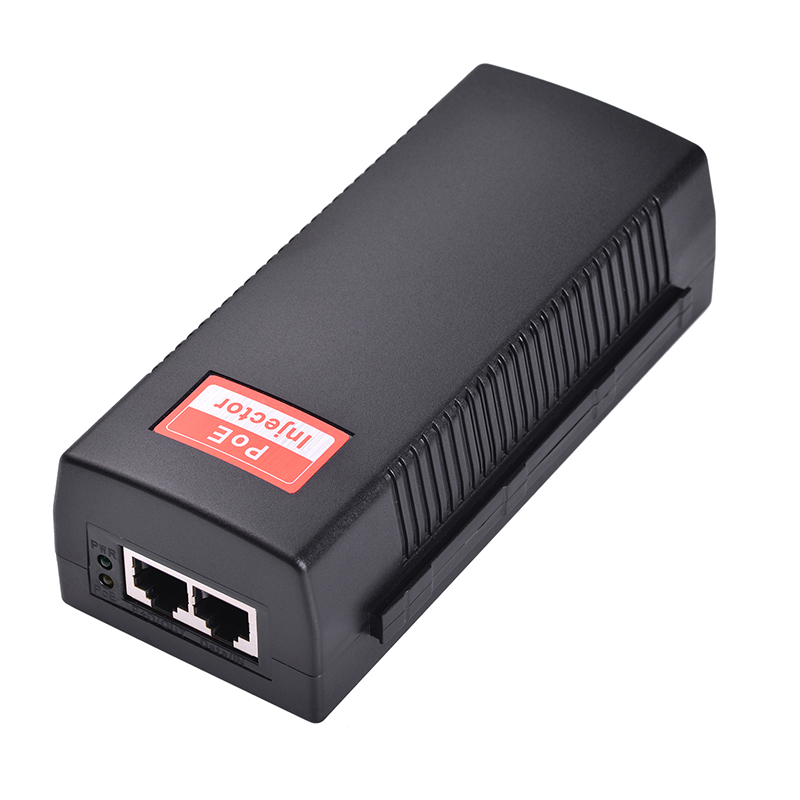

The PSE802G is a single port, highpower PoE PSE solution for remote PoE PD devices. Generating up to 30W PSE802G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backwards to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in PSE802G, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
Key Features
-Up to 30W of PoE Power
-IEEE 802.3at Compliant
-Compatible with IEEE 802.3af or Legacy PoE applications
-Safe on Low Power Devices Receive Only the Power They Need
-Safe and Reliable Power to WLAN Access Points
-Automatic Detection and Protection of Non–standard Ethernet Terminals
-Supports 10/100/1000Base-T LAN environnent and 2.5G
-Unique interlocking feature for easy installation
Works Well With: PS5712P / PS5712AT
Technical Specifications | Dimensions (L x W x H) / Weight |
Standards Compliance | 144mm x 57mm x 40mm (5.62in x 2.24in x 1.57in) |
IEEE 802.3 10Base-T Ethernet | 350g (0.77lbs) |
IEEE 802.3u 100Base-Tx Fast Ethernet | Indicators |
IEEE 802.3af Power over Ethernet | AC Power (Orange) / PoE (Green) |
IEEE 802.3at Power over Ethernet | Environmental Conditions |
Connector: RJ-45 10/100/1000 Mbps | Operating Temperature: -10~50°C |
PoE Power Output | Storage Humidity: |
Pin Assignment and Polarity: 1/2(+), 3/6 (-) | Maximum 95%, Non-condensing |
Output Power Voltage: 54 Vdc Maximal | Regulatory |
Power: 30 Watts Maximal | RoHS Compliant, CE/FCC |

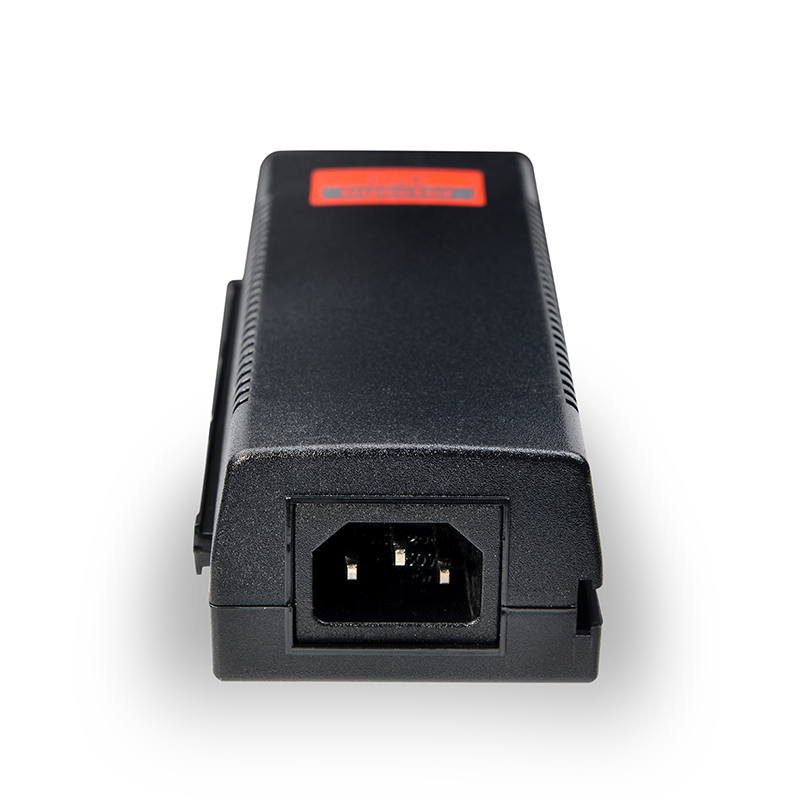

Input Power AC Input Voltage: 100~240 VAC | Safety Approvals |
Requirements AC Input Current: 0.8A@ 100-240 VAC | |
AC Frequency: 50~60 Hz |

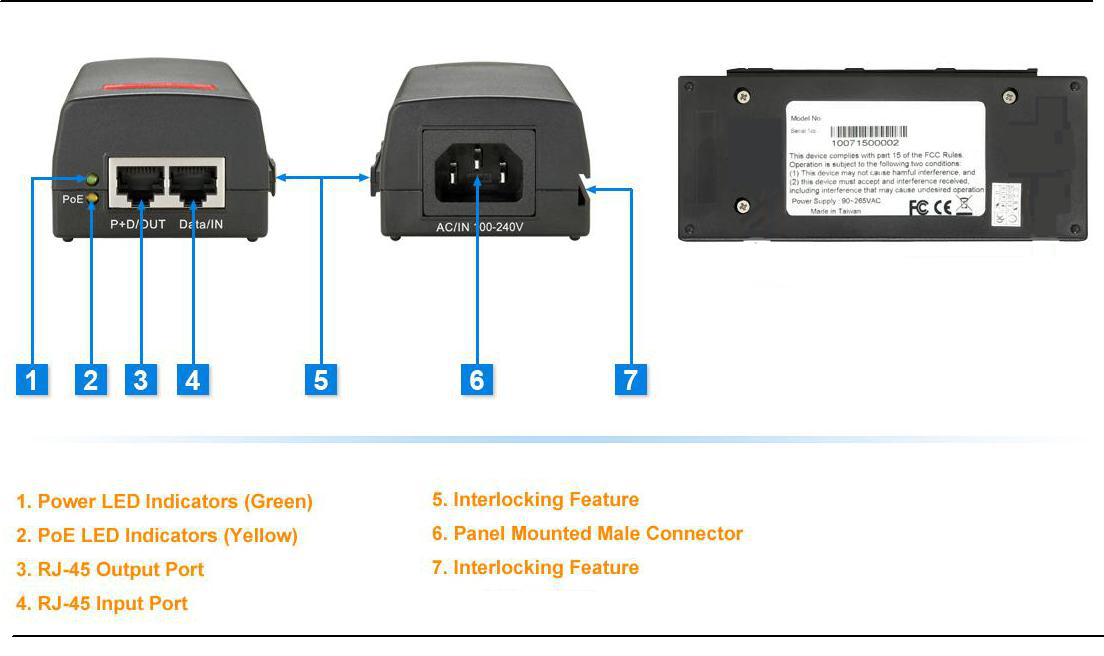

Product Diagram
