PS0503 100Mbps 5V 3A PoE Splitter

You are here: Home » Products » POE Splitter » Megabit POE Splitter » PS0503 100Mbps 5V 3A PoE Splitter

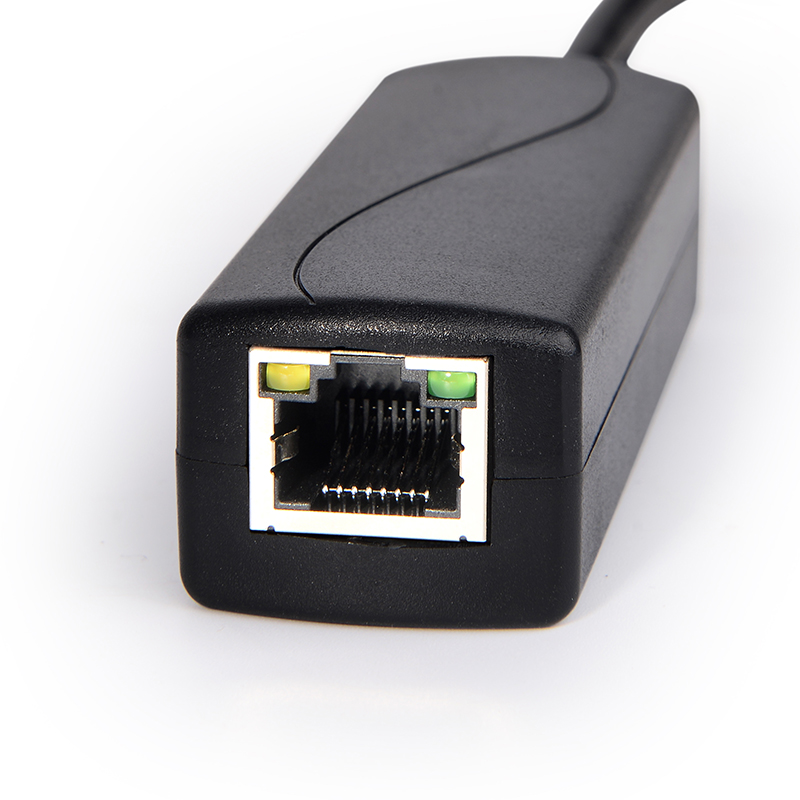

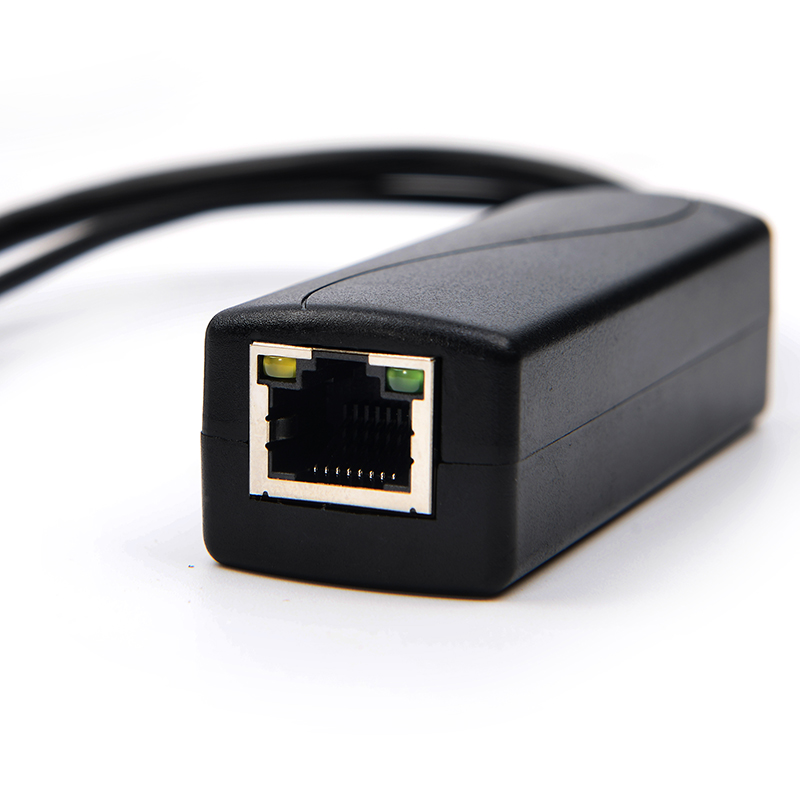

PS0503 100Mbps 5V 3A PoE Splitter

Name: PS0503 100Mbps 5V 3A PoE Splitter
Brand: SDaPo
SKU: 526201037
Rating: 5.0 (38 reviews)

1) 100Mbit each port
2) IEEE802.3af/at Standard
3) PoE/IN:44-57V(15.4W)
4) ModeA or ModeB ISO:1.5KV
5) DC/OUT:5V/3A(15W)
6) Size: 81*28*24mm
7) total power:15W
8) 1500V high voltage isolation
9) DC Jack:5.5*2.1mm（DC Jack:5.5*2.5mm / Type-C / Micro-USB connector available to choose）

Model:
PS0503
Brand:
SDaPo

Interface Option:	PS0503-DC5521 PS0503-25 DC5525 TYPEC0503 USB0503
Availability:

Quantity:



Inquire Add to Basket

Product Description

*The Main Board of this PoE Splitter is 5V 3A Output.

*Data Transfer Rate is 10/100Mbps.

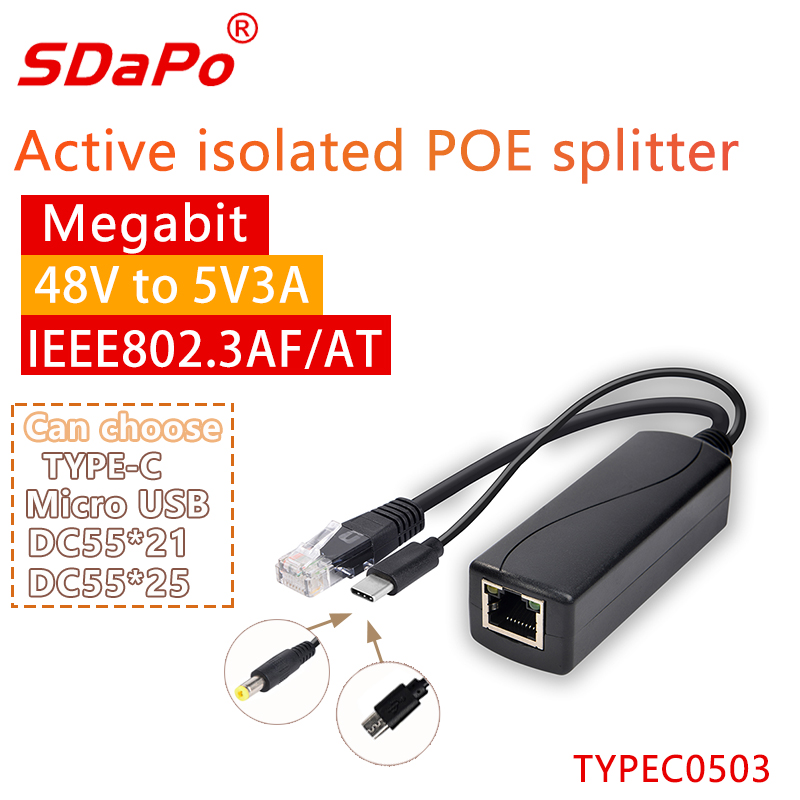

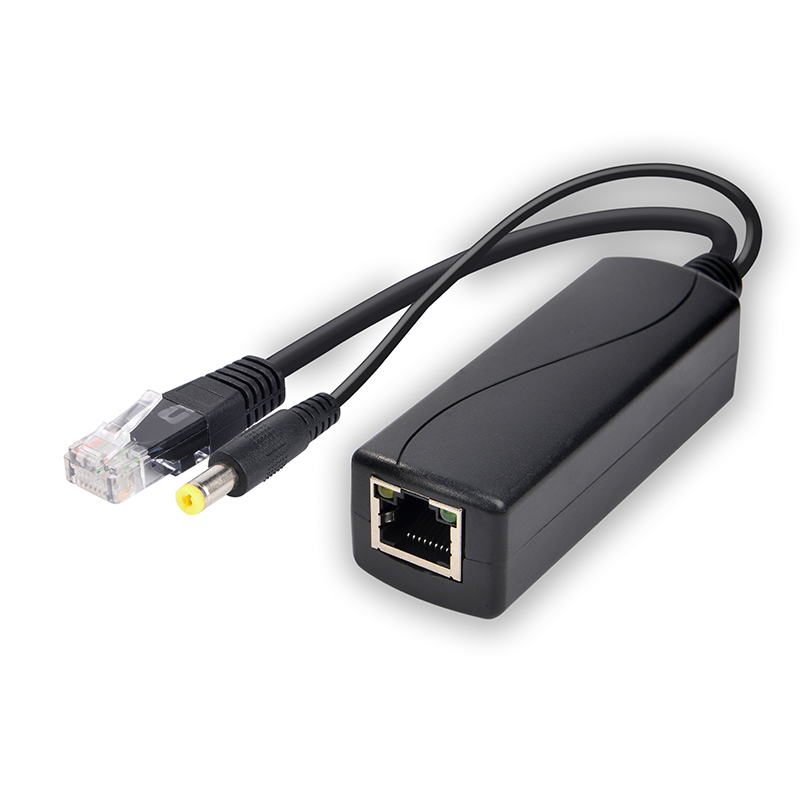

*4 Interface Connection Methods for You to Choose :

DC Jack 5.5*2.1mm (PS0503-DC55*21)

DC Jack 5.5*2.5mm (PS0503-25 DC55*25)

Type-C Jack (TYPEC0503)

Micro-USB Jack (USB0503)

Overview
TYPEC0503 PoE splitter,a new model: With RJ45 port and DC port with TYPEC. it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.
Features
* Support international standard IEEE802.3 af/at(30W);
* POE port Support 10/100Mdata transmission
* PD support 44V-57V voltage transmission,Automatically detects power supply from PSE power supply module
* 5V/3A power outputusing TYPEC ,the TYPEC port only for power-charging.
* Support the isolation circuit protection,can effectively protect electrical equipment.
* Support the short circuit,overvoltage protection
* 1500V high voltage isolation
Technical Parameters

Model	TYPEC0503
Transfer Rate	10/100M
Power	Input 48V DC /0.6A, Output 5V/3A
Standard	IEEE802.3 af/at (30W)
TRNF	1/2(+),3/6(-);4/5(+),7/8(-)
Interface Type	1 Input RJ45 port, 1 output RJ45 port, 1 DC output（TYPEC）
Standard	IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af/at
LED	Yellow PoE lamp
Environment	Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing
Dimension	68L * 25W *25H
Weight	0.05kg

The main parameters：

No.	Parameter	Symbol	Min	Typical values	Max	Unit
1	Input Voltage	Vin	44	48	57	V
2	output voltage	+VDC	4.9	5	5.1	V
3	output Current	PWR		3		A
4	Isolation Voltage	ISO	1.48	1.5	1.52	KV
5	Storage Temperature	Tj	-40	25	105	℃
6	Operating Temperature	Tstg	-20	25	70	℃

PoE Splitter Model Catalog

Gigabit PoE Splitter Model List
	IEEE802.3af		IEEE802.3af/at			at 4-pair Standard		IEEE802.3af/at/bt
	5V 2.4A	12V 1A	5V 3A	5V 4A	12V 2A	5V 4A	12V 4A	12V 5A
DC 5.5x2.1mm	PS0502G	PS5712G	PS0503G	PS0504G	PS5712TG	PS0504G Metal Shell	PS1248G	PS1260G
DC 5.5x2.5mm	PS0502G-25	PS5712G-25	PS0503G-25	PS0504G-25	PS5712TG-25			PS1260G-25
Type-C	TYPEC0502G	TYPEC5712G	TYPEC0503G	TYPEC0504G	TYPEC5712TG
Micro USB	USB0502G	USB5712G	USB0503G	USB0504G	USB5712TG

2.5Gbps PoE Splitter Model List
	IEEE802.3af/at					IEEE802.3af/at/bt
	5V 3A	5V 4A	12V 2A	24V 1A	24V 1A	12V 3A
DC 5.5x2.1mm	PS1224G	PS1224G	PS1224G	PS1224G	PS5724TG	PS5712BG
DC 5.5x2.5mm					PS5724TG-25	PS5712BG-25
Type-C					TYPEC5724TG	TYPEC5712BG
Micro USB					USB5724TG	USB5712BG

Megabit PoE Splitter Model List
	IEEE802.3af			IEEE802.3af/at
	5V 2.4A	12V 1A	12V 1A	5V 3A	12V 2A	12V 2A	24V 1A
DC 5.5x2.1mm	PS0502	PS5712P	FS5712		PS5712AT	PS5712AT-High-effect	PS5724AT
DC 5.5x2.5mm					PS5712AT-25	PS5712AT-25 High-effect	PS5724AT-25
Type-C	TYPEC0502			TYPEC0503	TYPEC5712AT	TYPEC5712AT High-effect	TYPEC5724AT
Micro USB	USB0502				USB5712AT	USB5712AT High-effect	USB5724AT

48V to 24V PoE Converter
Part Number	Interface Type	DC Output	PoE Standard	PoE IN	Ethernet Speed
PS5724AT-RJ	RJ45	24V 1A	IEEE802.3af/at	44V-57V	100Mbps
PS5724TG-RJ	RJ45	24V 1A	IEEE802.3af/at	44V-57V	Gigabit

PoE Splitter Options

3c761f584c62a07ffc8b5261744a788

100Mbps Video splitter Connector PoE Passive Cable 5V Splitter For CCTV Cameras SDAPO TYPEC0503 5V 3A PoE Splitter
