| Interface Option: | |
|---|---|
| Quantity: | |
*The Main Board of this PoE Splitter is 12V 4A Output.
*Data Transfer Rate is 1Gbps / 2.5Gbps.
*1 Interface Connection Methods :
DC Jack 5.5*2.1mm (PS1248G-DC55*21)
Tips :
Only the PS1248G PoE splitter is used with PSE60G/PSE156G PoE injector, and it is capable of providing a 12V 4A power output.
Others is a 12V 2A output.

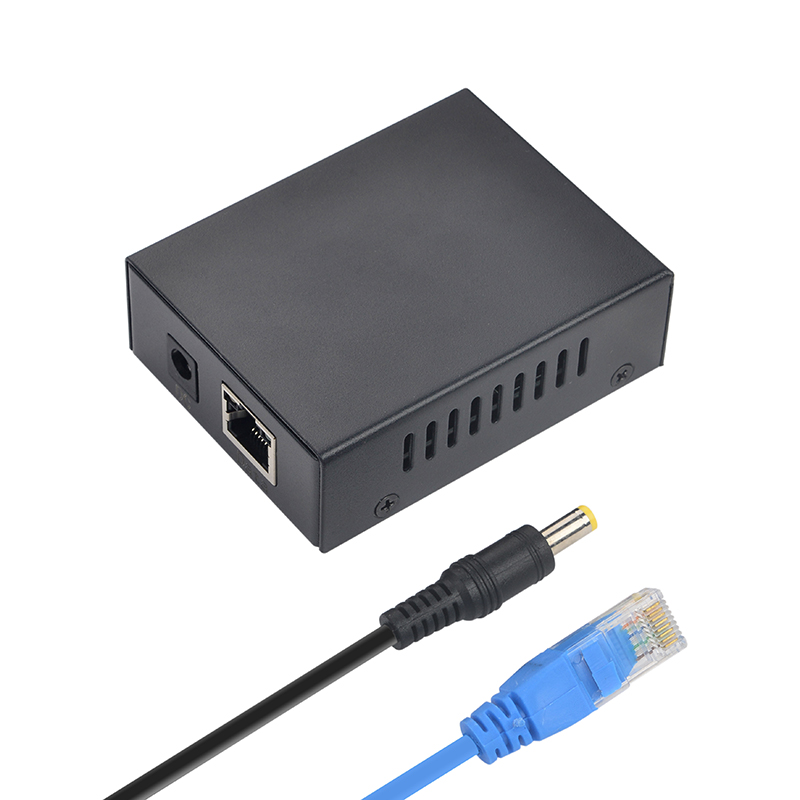

Power over Ethernet Splitter
OverView

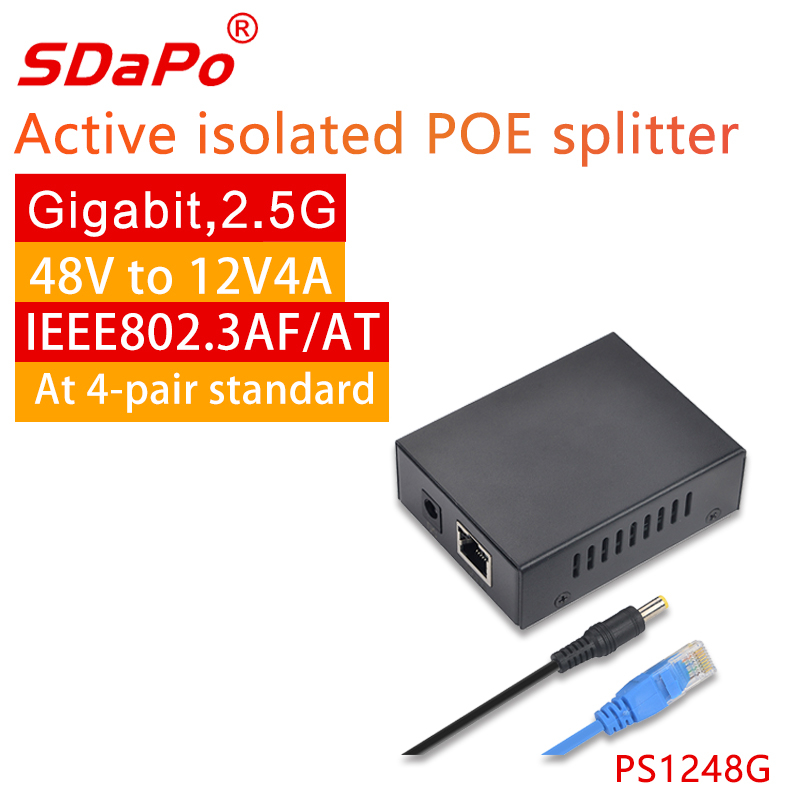

PS1248G 4Pairs High-Power active splitters enable data terminals that were not originally designed to accept power
from the Ethernet, to be powered by Power over Ethernet
midspans. The PDAS- PS1248-4P High Power splitter can
power devices such as WiMAX CPEs, small WiMAX
base-stations, 802.11n Access-Points, Thin- Clients,
PTZ (Pan/Tilt/Zoom) IP Cameras, Video-Phones and more.
High Power Splitter Solution
Many contemporary terminals are designed and deployed without the ability to accept power via their LAN input. Such devices can only accept power through their DC jack while their RJ45 input accepts only data. Moreover, such devices might only accept voltage levels lower than the PoE standard minimum voltage (44v in IEEE802.3af / 50v in 802.3at). Using the PS1248-4P high power splitter, these terminals immediately become PoE-ready without any modification required on their side. The splitter is identified as a powered device (PD) in front of the powering Midspan and after being detected and powered, it physically splits the data and power streams, arriving over a single cable, into wo separate cords (LAN & DC) which go directly to the data terminal. Voltage regulation is also performed to the level required by the terminal .
1. Technical Specifications

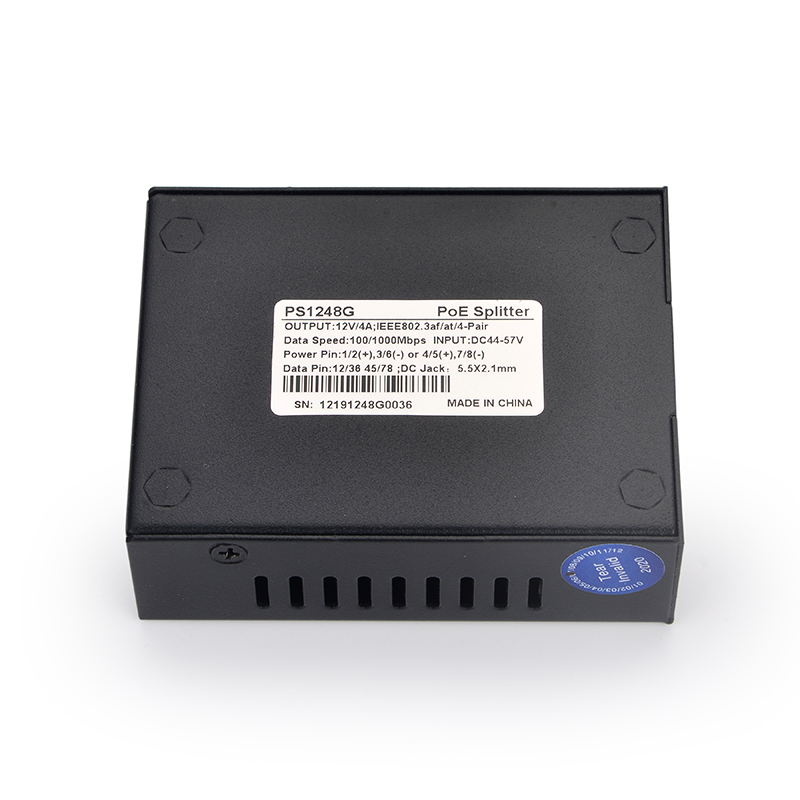

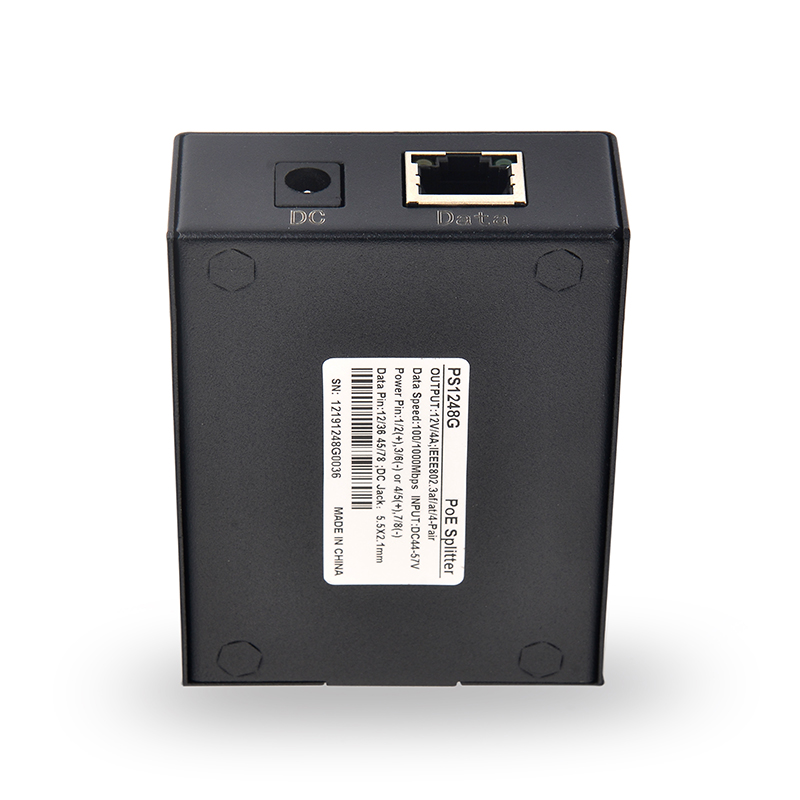

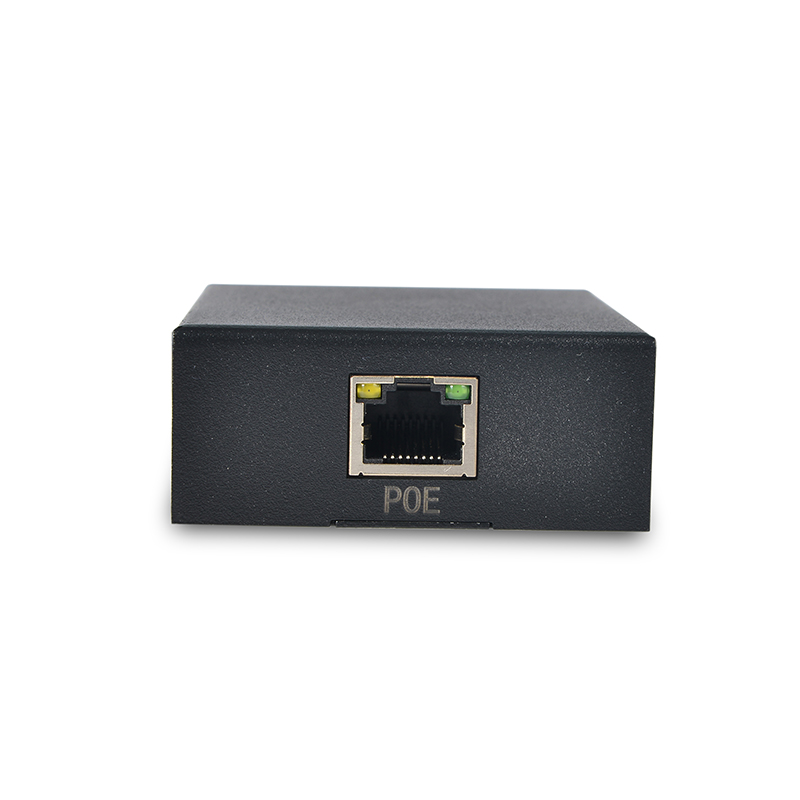

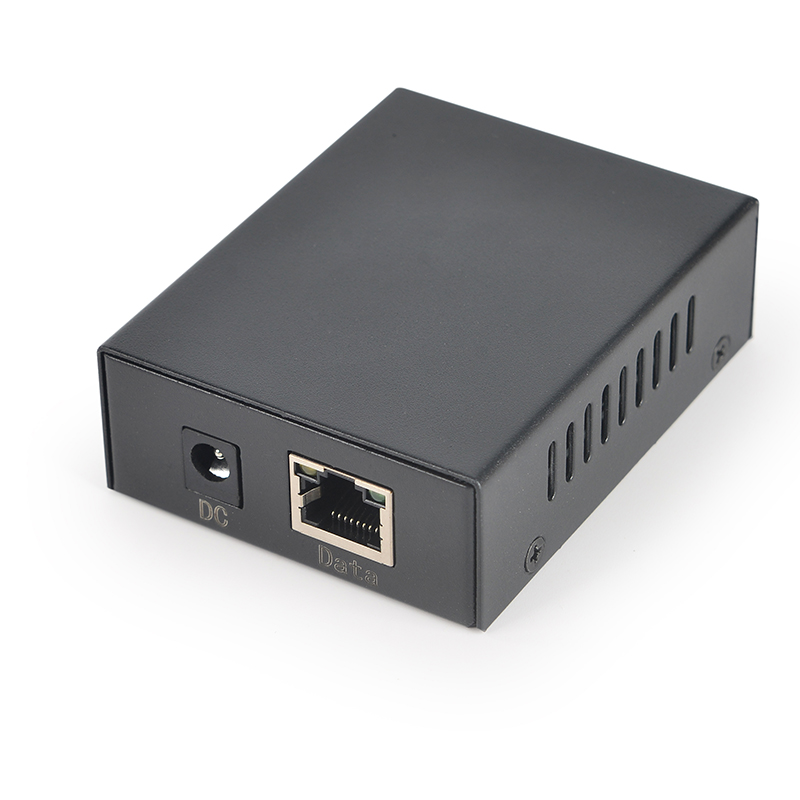

Connectors: 2 x RJ-45, shielded, EIA 568A and 568B DC Jacks On unit: 5.5X2.1mm
Data Rate: 10/100/1000
Electrical Pin Assignment & Polarity: 3/6 (+),1/2 (-) and 4/5 (+),7/8 (-)
Input voltage: 44 - 57 Vdc
Input power: 60W max
Output power: 51W max
Output Current: 4.2A@12V
Dimensions & Weight: mm (H) x mm (W) x mm (D)
200 gram
Indicators :Output Power Indicators: Green LED Environmental Operating Temp: -20 to 40°C
Storage Temp: -30 to 70°C
Operating Humidity: 10% to 90%, non-condensing
Storage Humidity: 5% to 95%, non-condensing
Electromagnetic Emissions FCC Part 15 Class A
& Immunity EN60950
Warranty :1-year
| data | Gigabit poe splitter |
| standard | at 4-pair Standard |
| PoE input voltage | 37-57V |
| Warranty | 60W |
| Power supply pins | 1,2 + / 3,6- and 4,5 + / 7,8- |
| DC/OUT | 12V/4A |
| Size | 81*61*26mm |
| version | High voltage isolation |
