PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter
You are here: Home » Products » POE Splitter » 2.5Gbps PoE Splitter » PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter
PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter
PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter
PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter
PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter
PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter

loading

PS5724TG 24V 1A 2.5Gbps Gigabit Ethernet PoE Splitter

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
1) Gigabit 2.5G poe splitter
2) DC Jack:5.5*2.1mm（DC Jack:5.5*2.5mm / Type-C / Micro-USB connector available to choose）
3) IEEE802.3at/af Standard
4) PoE/IN:44-57V(30W)
5) ModeA or ModeB ISO:1.5KV
6) DC/OUT:24V/1A(24W)
7) Size: 81*28*24mm
8) total power:24W
9) 1500V high voltage isolation

  • PS5724TG

  • SDAPO

Interface Type:
PS5724TG
PS5724TG-25
TYPEC5724TG
USB5724TG
Availability:
Quantity:
Inquire Add to Basket

Product Description

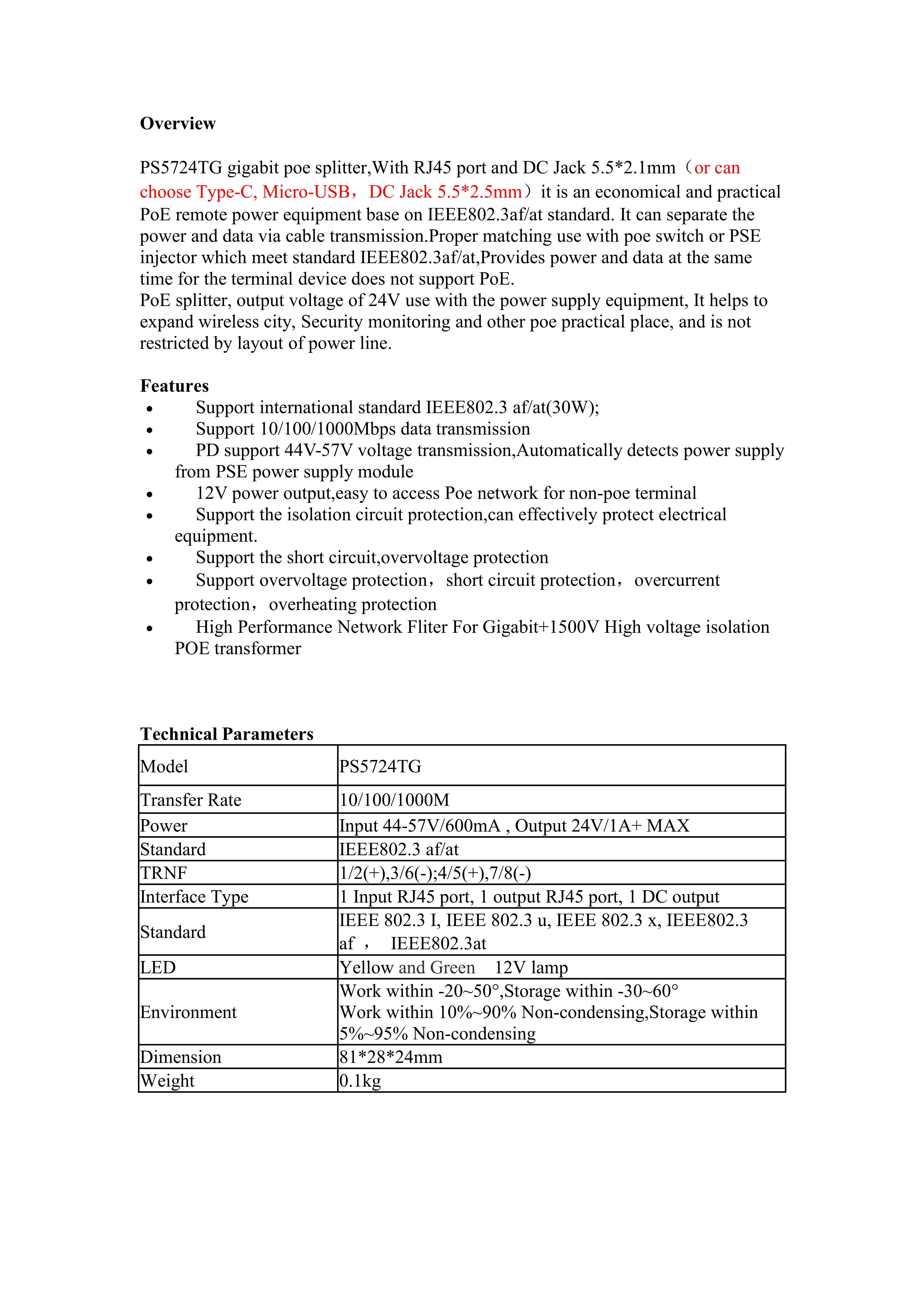

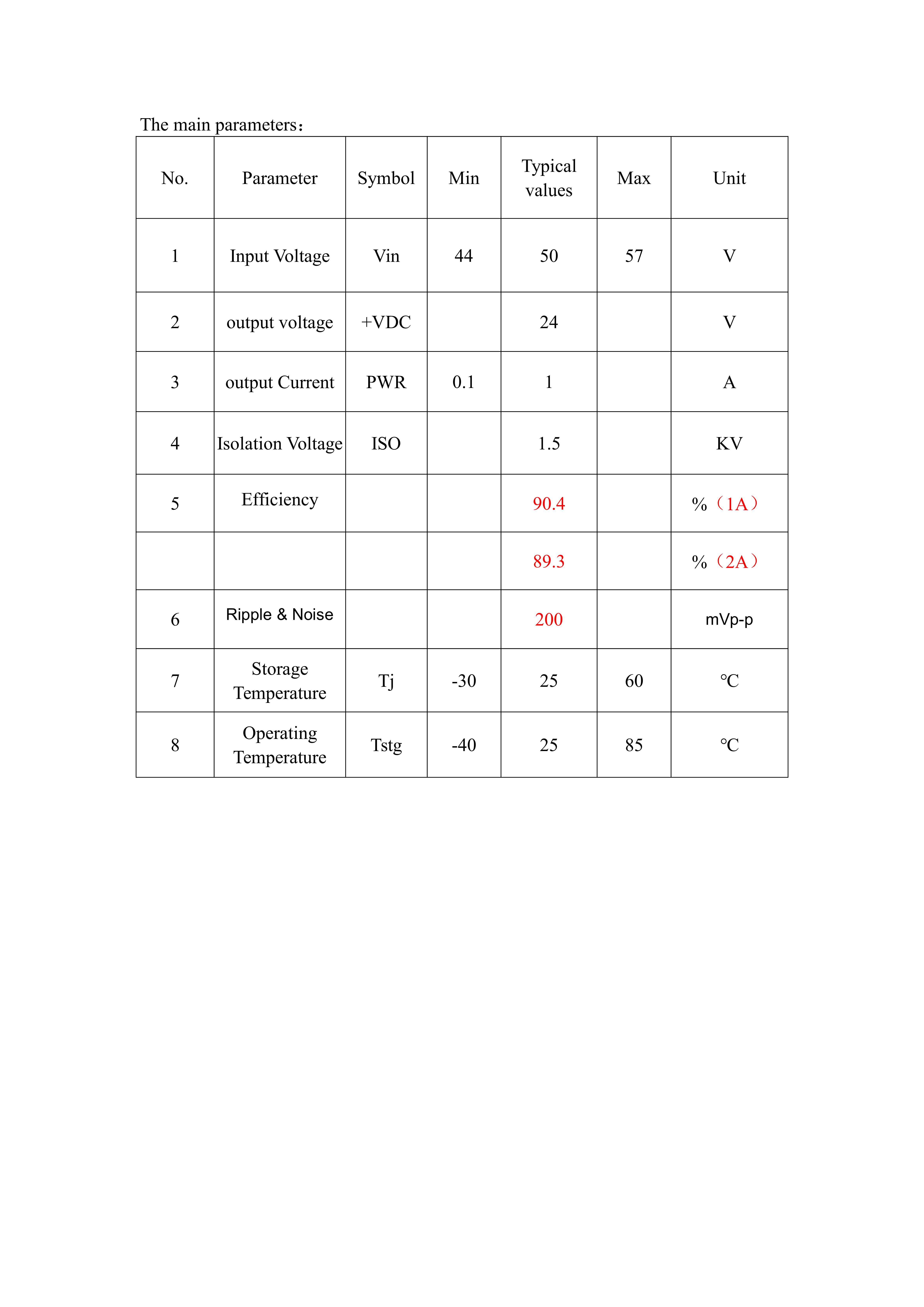

PS5724TG datasheet_1 PS5724TG datasheet_2
