DP5700 12V2A PoE Module PD Module

You are here: Home » Products » POE Module » IEEE802.3at » DP5700 12V2A PoE Module PD Module

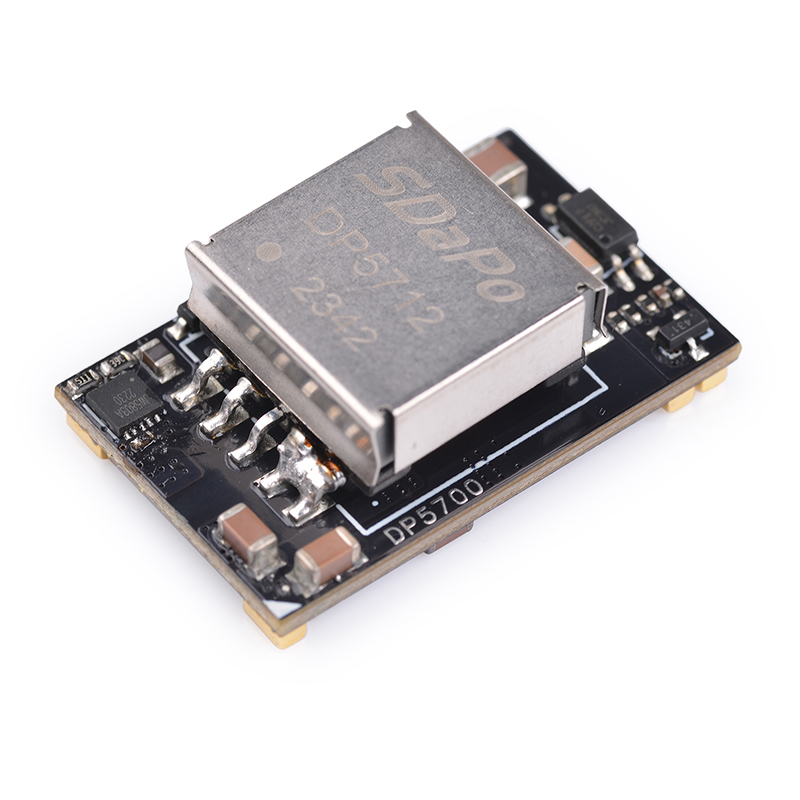

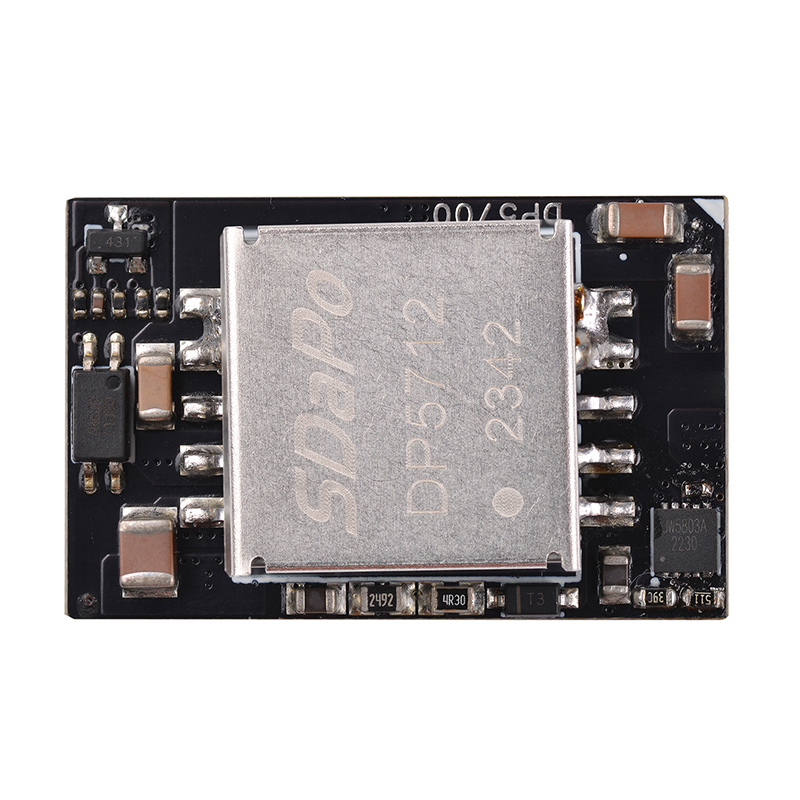

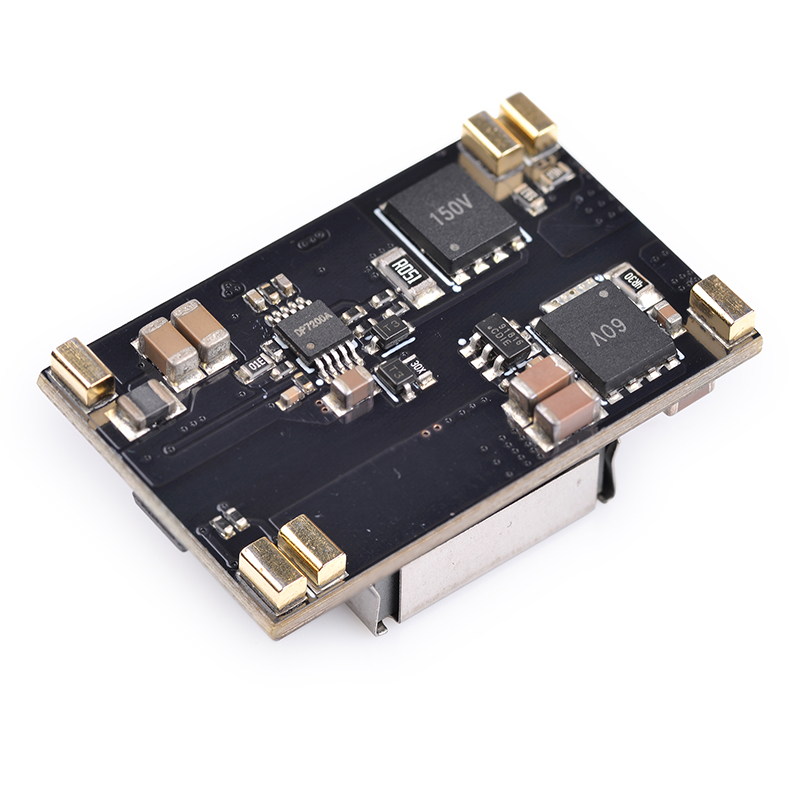

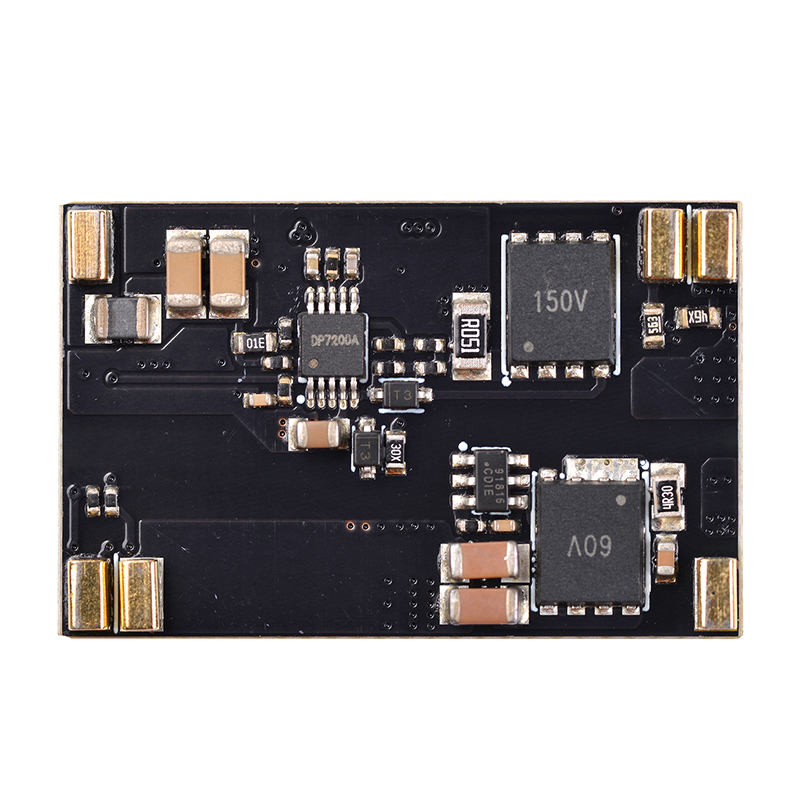

DP5700 12V2A PoE Module PD Module

Name: DP5700 12V2A PoE Module PD Module
Brand: SDaPo
SKU: 574349927
Rating: 5.0 (25 reviews)

- Fully IEEE 802.3af/at compliant
- 24 watt output load
- IEEE Power class programmable (Green)
- 1500 Volt DC isolation (Input to Output)
- 5V, 12V ,24V DC output voltage models
- Compact package minimum PCB footprint
- Minimal external components required
- Overload and short circuit protection
- Wide input voltage (36V to 57V DC)
- Adjustable output voltage
- Support PoE applications in both of Fast / Gigabit Ethernet environments.
- Low output ripple and noise
- Low cost

Model:
DP5700
Brand:
SDaPo

Output Vdc:	DP5700-12V2A
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

DP5700 Parameter

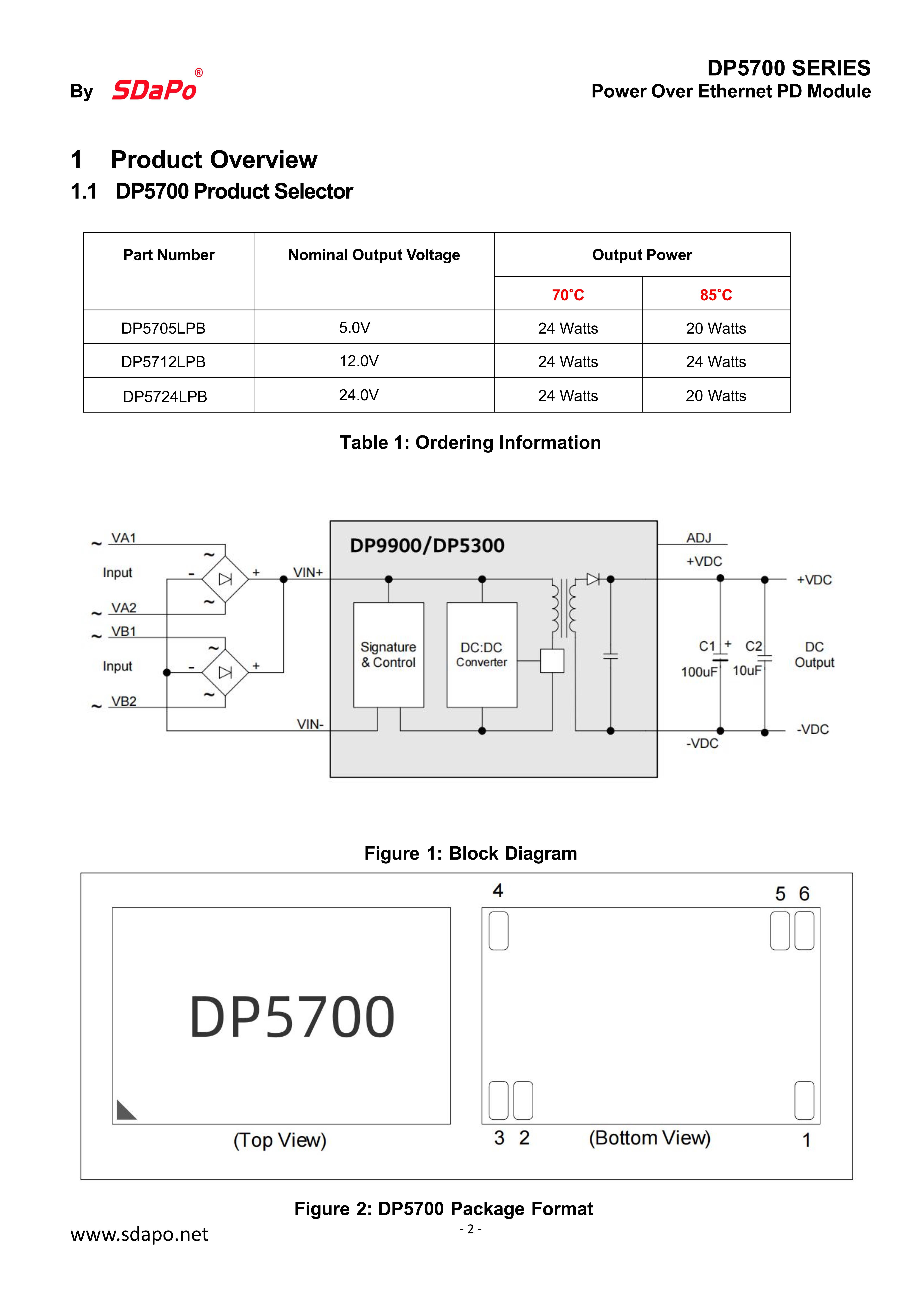

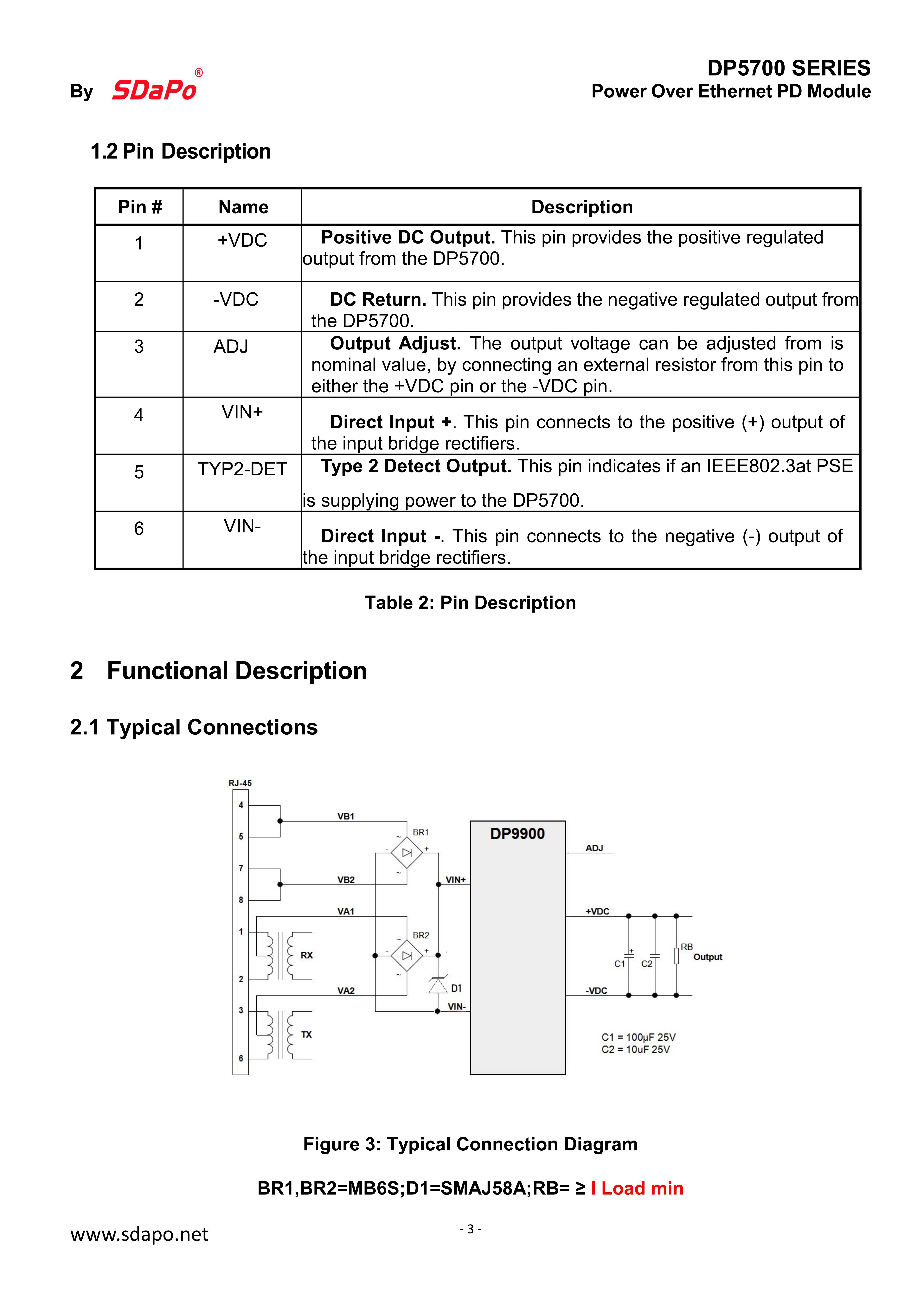

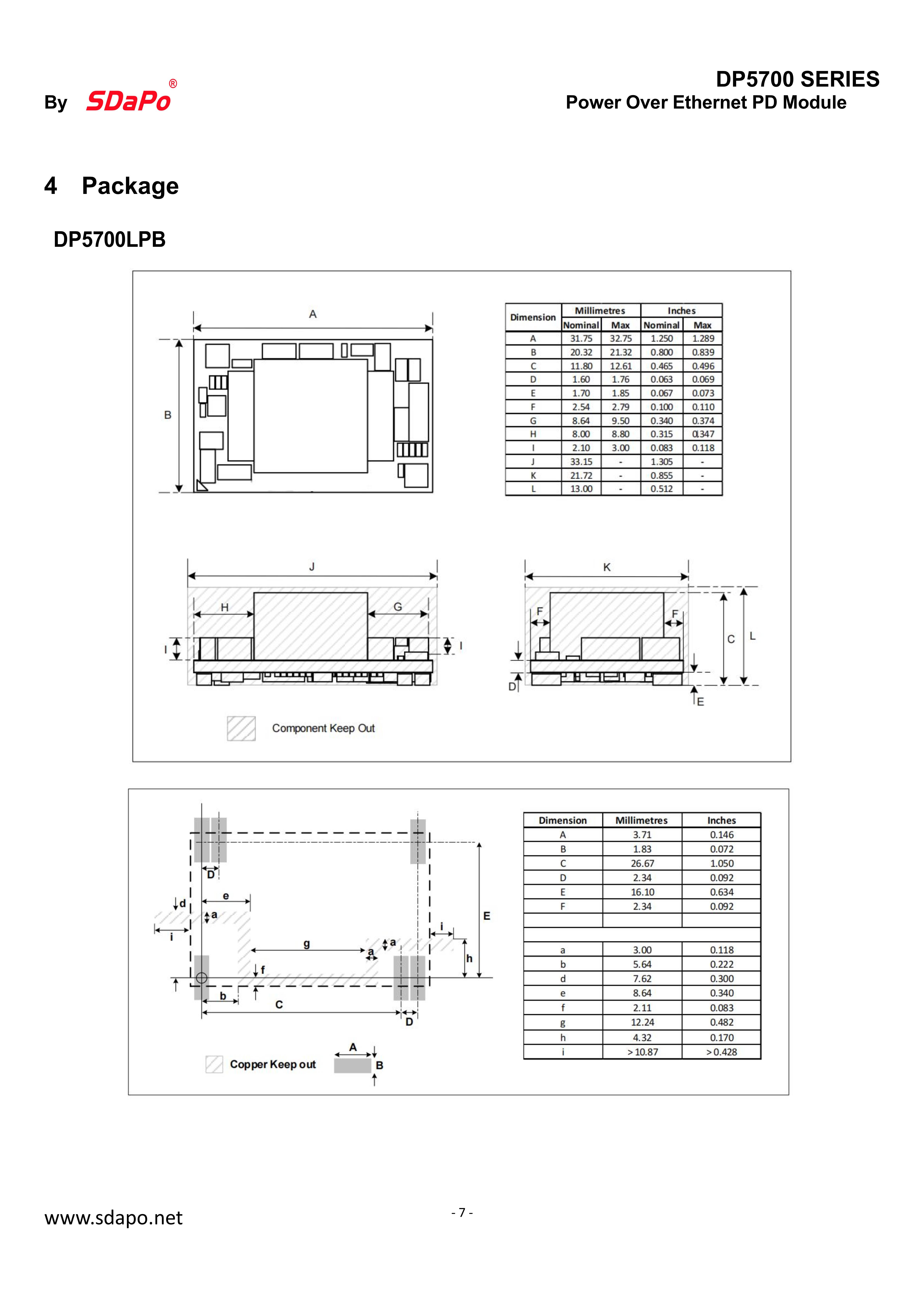

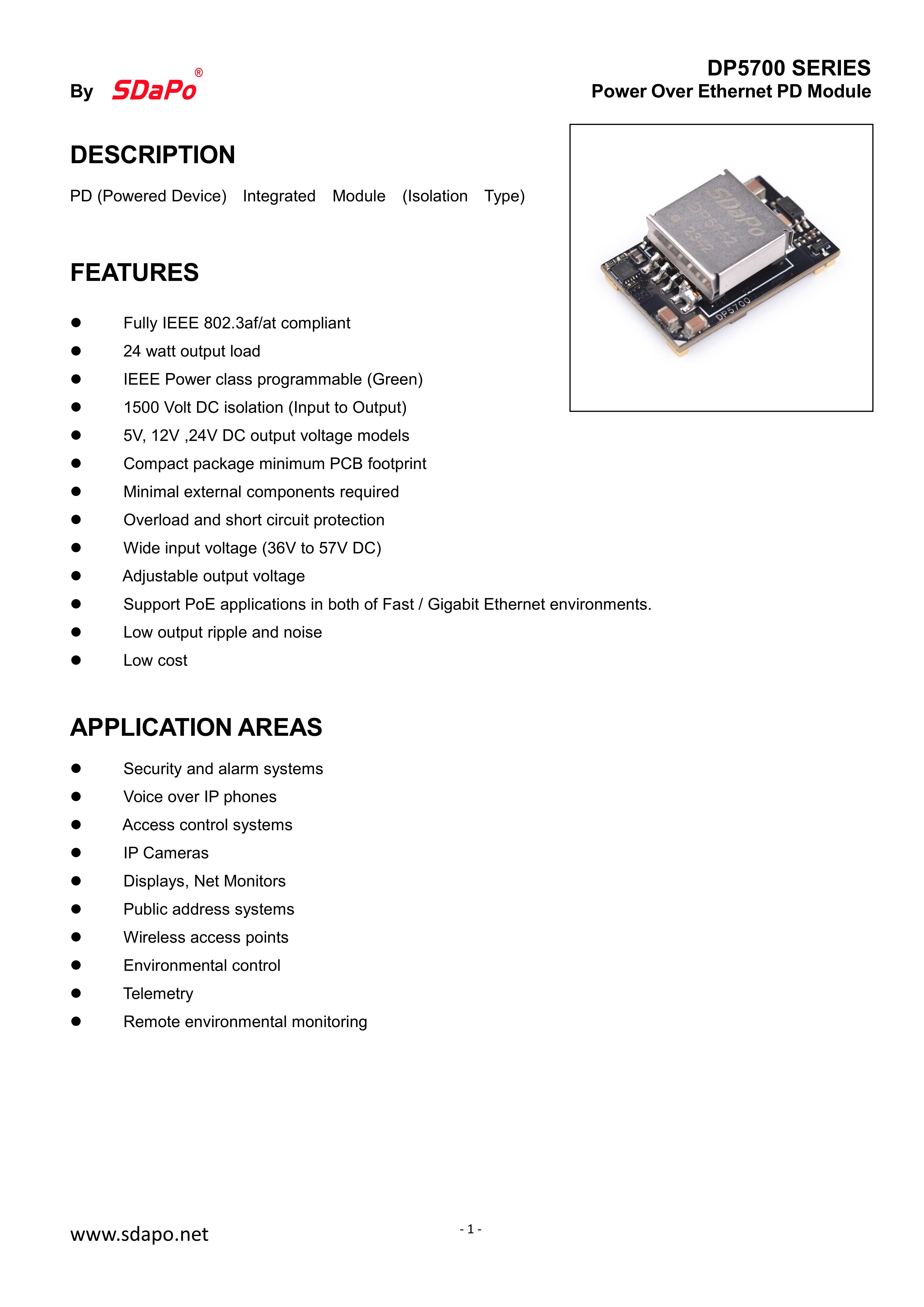

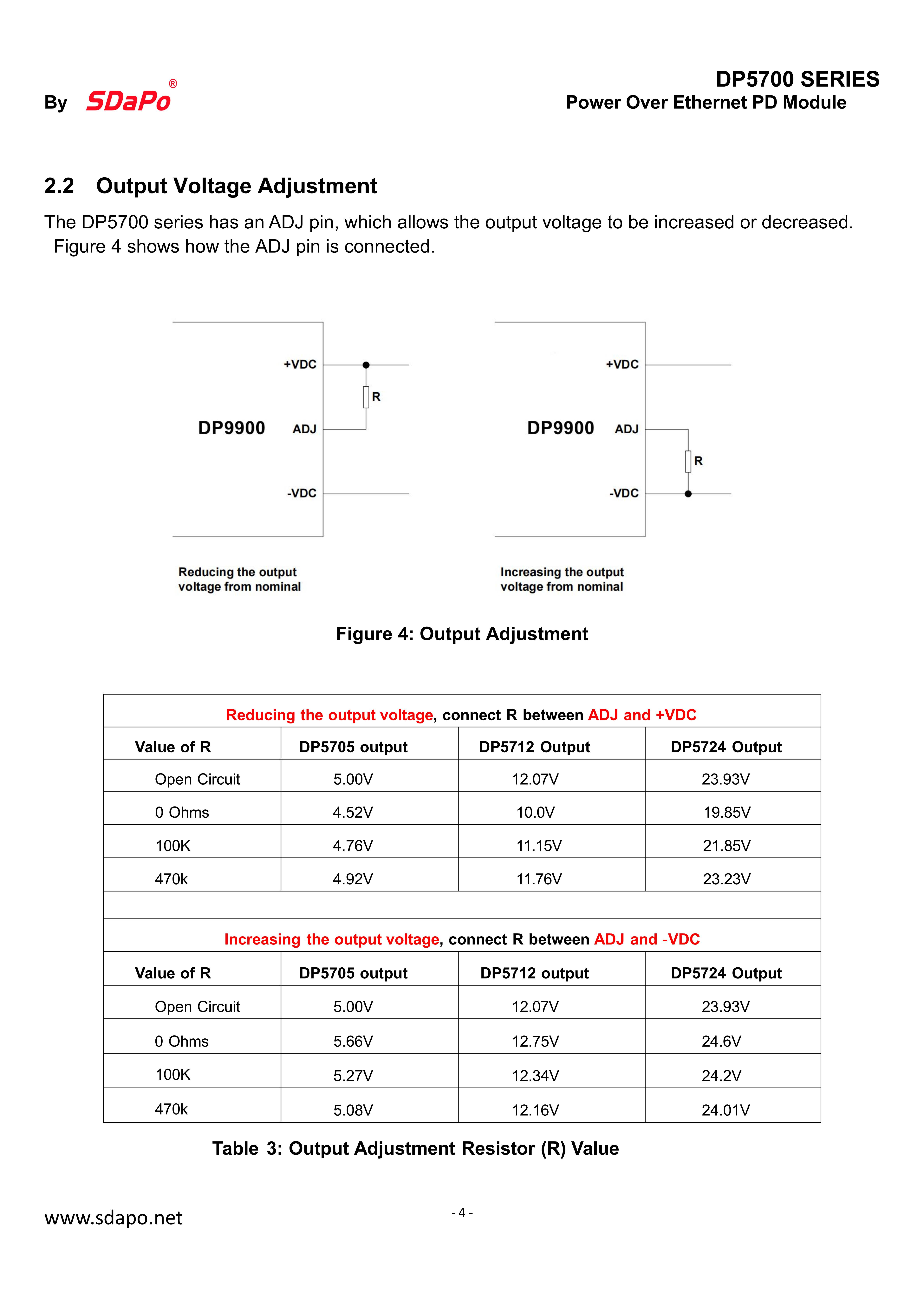

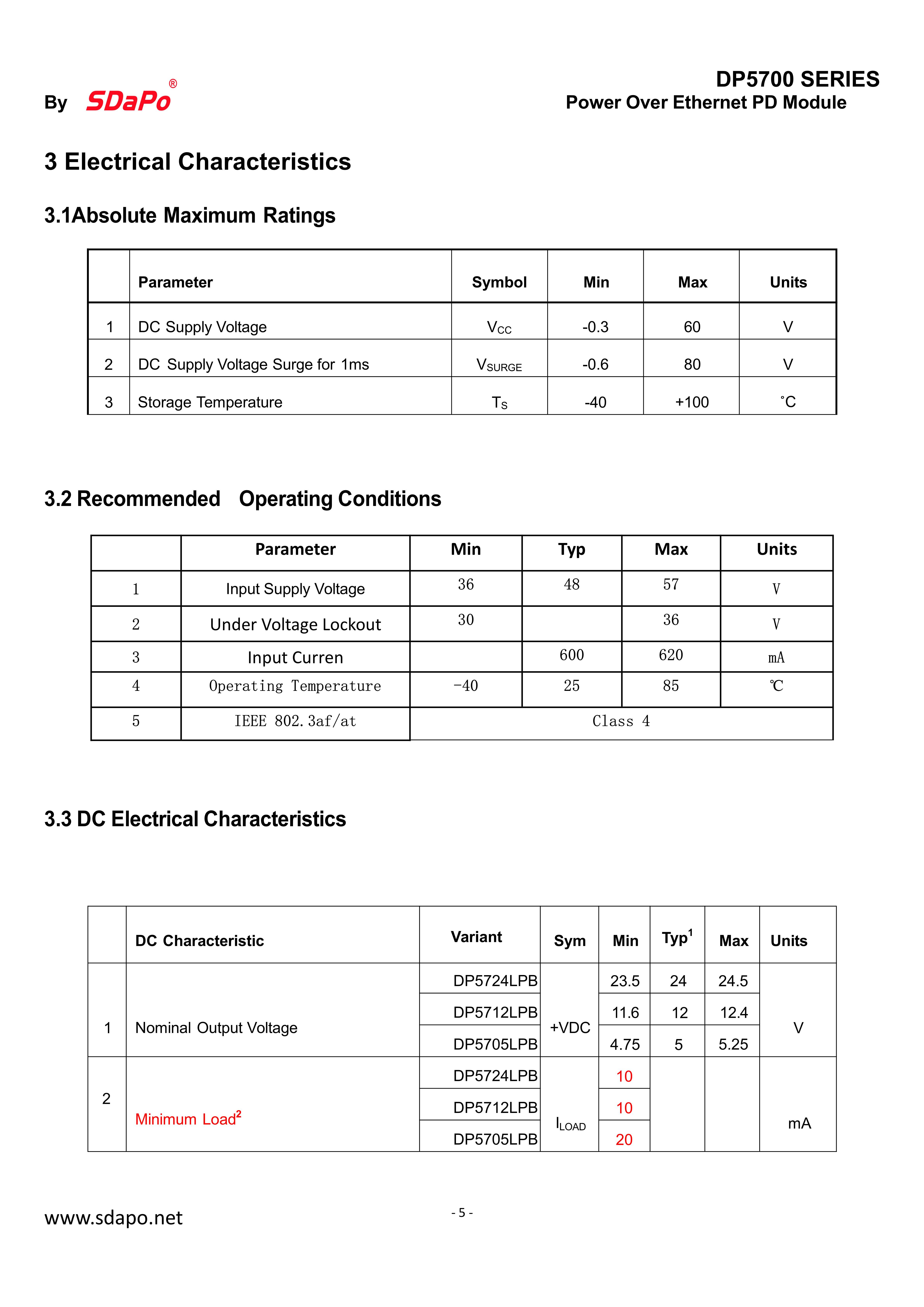

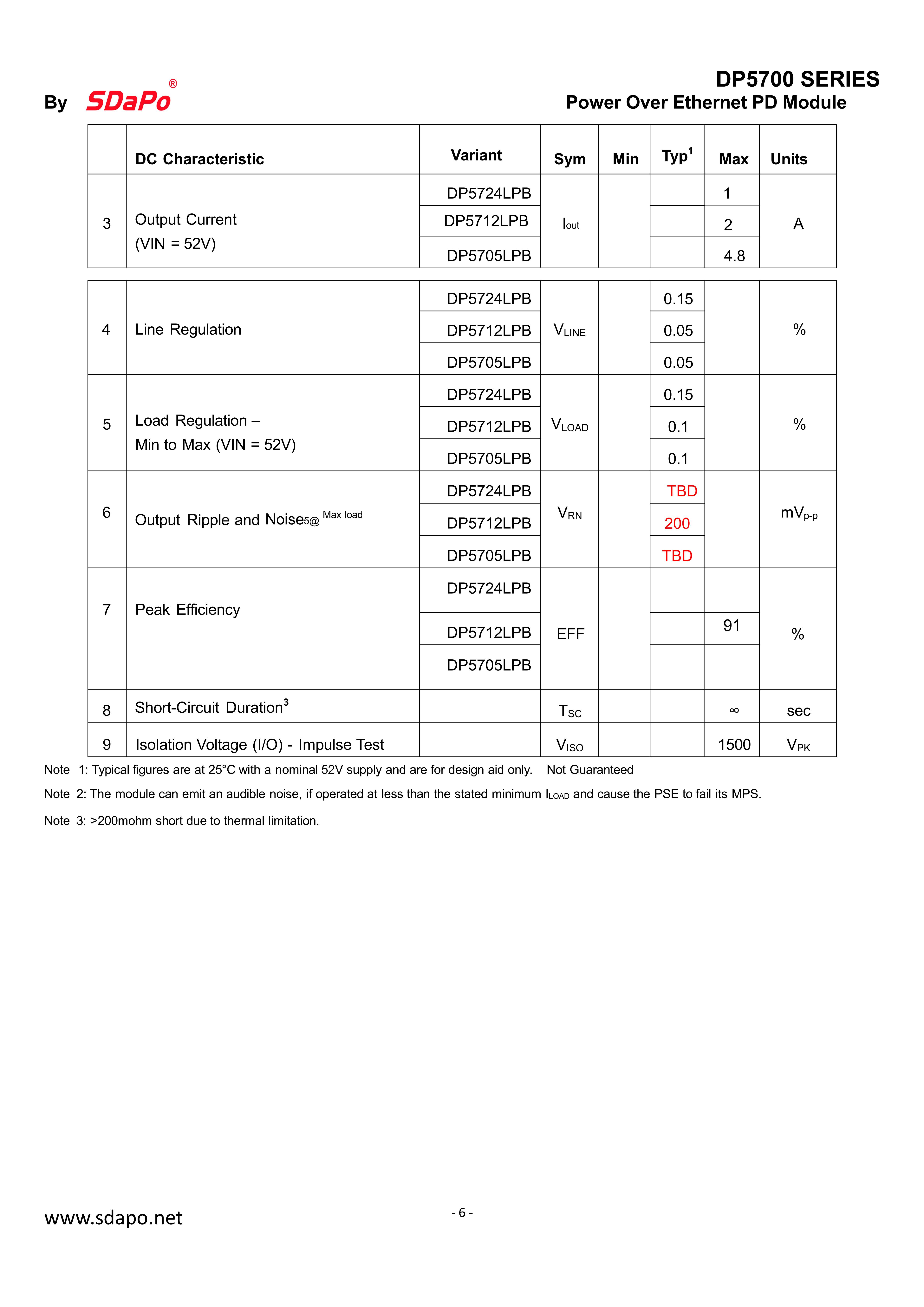

DP5700 Datasheet_1 DP5700 Datasheet_2 DP5700 Datasheet_3 DP5700 Datasheet_4 DP5700 Datasheet_5 DP5700 Datasheet_6 DP5700 Datasheet_7 DP5700 Datasheet_8

DP5700 Datesheet

DP5700 Datasheet.pdf

POE Module DP5700 12V2A PoE PD Module 12V2A PoE PD Module PoE PD Module
