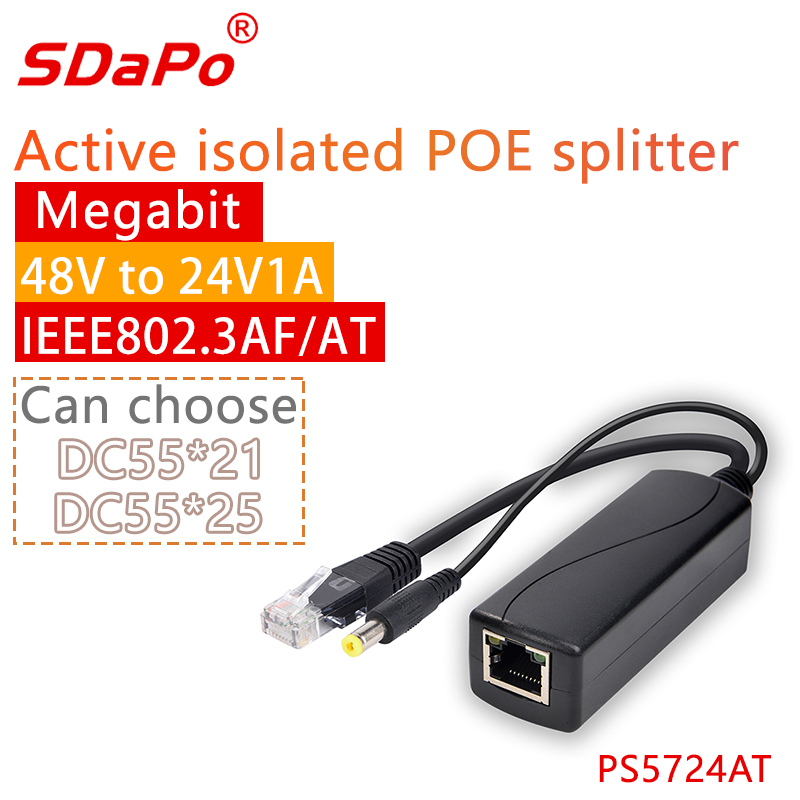

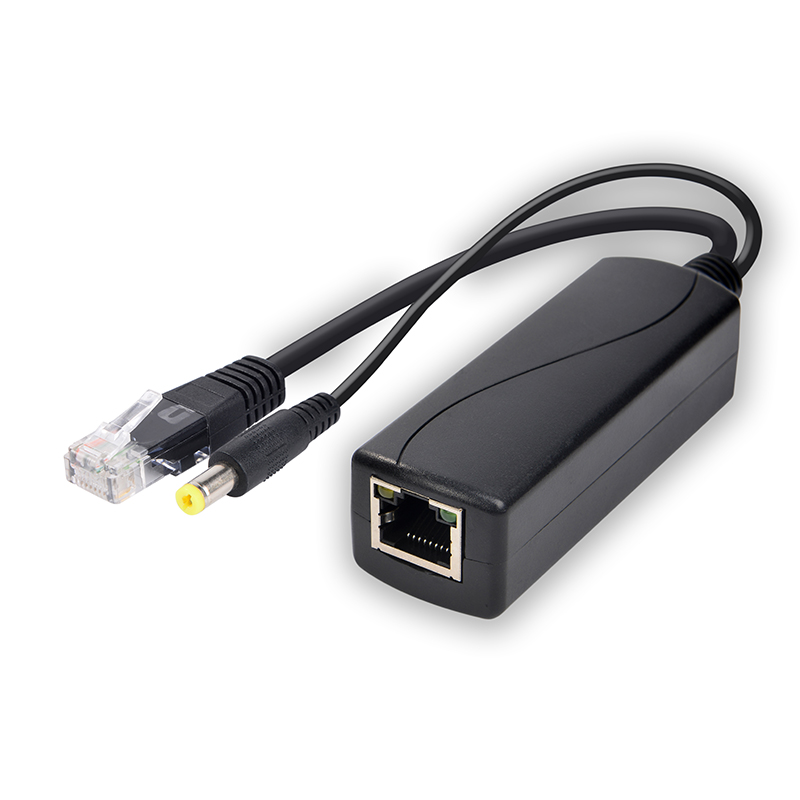

PS5724AT 100Mbps 24V 1A PoE Splitter
You are here: Home » Products » POE Splitter » Megabit POE Splitter » PS5724AT 100Mbps 24V 1A PoE Splitter
PS5724AT 100Mbps 24V 1A PoE Splitter
PS5724AT 100Mbps 24V 1A PoE Splitter PS5724AT 100Mbps 24V 1A PoE Splitter
PS5712AT 100Mbps 12V 2A PoE Splitter PS5712AT 100Mbps 12V 2A PoE Splitter
SDAPO PS5712AT12V 2A IEEE802.3 af/at 48v 30w isolated poe splitter SDAPO PS5712AT12V 2A IEEE802.3 af/at 48v 30w isolated poe splitter
SDAPO PS5712AT12V 2A IEEE802.3 af/at 48v 30w isolated poe splitter SDAPO PS5712AT12V 2A IEEE802.3 af/at 48v 30w isolated poe splitter

loading

PS5724AT 100Mbps 24V 1A PoE Splitter

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
1) 100Mbit each port
2) DC Jack:5.5*2.1mm(DC Jack:5.5*2.5mm / Type-C / Micro-USB connector available to choose
3) IEEE802.3at/af Standard
4) PoE/IN:44-57V(30W)
5) ModeA or ModeB ISO:1.5KV
6) DC/OUT:24V/1A(24W)
7) Size: 81*28*24mm
8) total power:24W
9) 1500V high voltage isolation
  • PS5724AT

  • SDaPo

Interface Option:
Availability:
Quantity:

Product Description


*The Main Board of this PoE Splitter is 24V 1A Output.

*Data Transfer Rate is 10/100bps.

*4 Interface Connection Methods for You to Choose :

DC Jack 5.5*2.1mm (PS5724AT-DC55*21)

DC Jack 5.5*2.5mm (PS5724AT-25 DC55*25)

TYPEC (TYPEC5724AT)

Micro USB (USB5724AT)


Technical Parameters

Model

PS5724AT

Transfer Rate

10/100M

Power

Input 42.5-57V/600mA , Output 24V/1A MAX

Standard

IEEE802.3 af/at(24W)

TRNF

1/2(+),3/6(-);4/5(+),7/8(-)

Interface Type

1 Input RJ45 port, 1 output RJ45 port, 1 DC output

Standard

IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af , IEEE802.3at

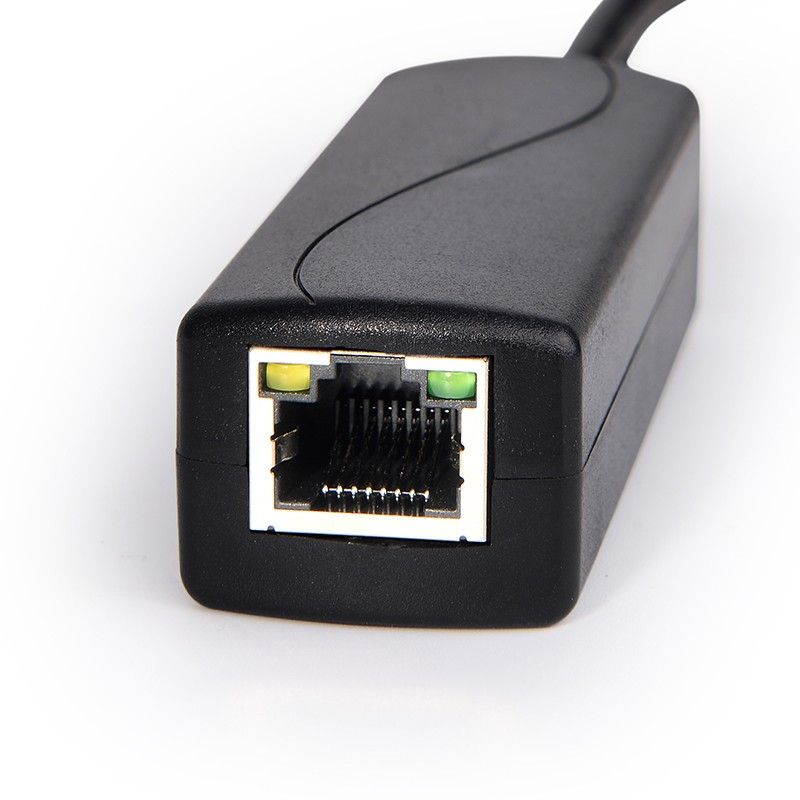

LED

Yellow PoE lamp

Environment

Work within -20~50°,Storage within -30~60°

Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing

Dimension

93L * 34W *26H

Weight

0.06kg



PoE Splitter Model List


Gigabit PoE Splitter Model List

IEEE802.3afIEEE802.3af/at
at 4-pair Standard
IEEE802.3af/at/bt

5V 2.4A
12V 1A
5V 3A
5V 4A12V 2A5V 4A
12V 4A12V 5A
DC 5.5x2.1mm
PS0502G
PS5712GPS0503G
PS0504G
PS5712TG
PS0504G Metal Shell
PS1248G
PS1260G
DC 5.5x2.5mm
PS0502G-25
PS5712G-25
PS0503G-25
PS0504G-25
PS5712TG-25


PS1260G-25
Type-C
TYPEC0502G
TYPEC5712GTYPEC0503G
TYPEC0504G
TYPEC5712TG



Micro USBUSB0502G
USB5712G
USB0503G
USB0504G
USB5712TG



2.5Gbps PoE Splitter Model List

IEEE802.3af/at
IEEE802.3af/at/bt

5V 3A
5V 4A12V 2A24V 1A24V 1A12V 3A
DC 5.5x2.1mmPS1224GPS1224GPS1224GPS1224GPS5724TG
PS5712BG
DC 5.5x2.5mm




PS5724TG-25PS5712BG-25
Type-C




TYPEC5724TG
TYPEC5712BG
Micro USB




USB5724TG
USB5712BG
Megabit PoE Splitter Model List

IEEE802.3afIEEE802.3af/at

5V 2.4A
12V 1A12V 1A5V 3A
12V 2A
12V 2A24V 1A
DC 5.5x2.1mm
PS0502PS5712PFS5712

PS5712ATPS5712AT High-effect
PS5724AT
DC 5.5x2.5mm




PS5712AT-25PS5712AT-25 High-effect
PS5724AT-25
Type-C
TYPEC0502


TYPEC0503TYPEC5712AT
TYPEC5712AT High-effect
TYPEC5724AT
Micro USB
USB0502



USB5712ATUSB5712AT High-effectUSB5724AT
48V to 24V PoE Converter
Part NumberInterface Type
DC Output
PoE Standard
PoE IN
Ethernet Speed
PS5724AT-RJ
RJ45
24V 1A
IEEE802.3af/at
44V-57V
100Mbps
PS5724TG-RJRJ4524V 1AIEEE802.3af/at44V-57VGigabit
