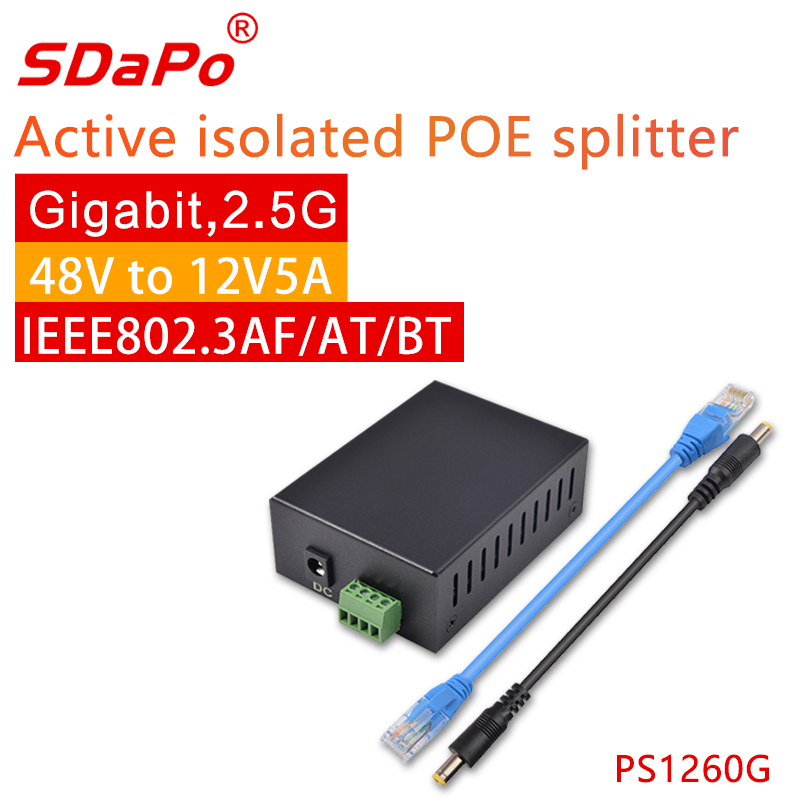

PS1260G 12V 5A 60W Gigabit Ethernet PoE Splitter

Name: PS1260G 12V 5A 60W Gigabit Ethernet PoE Splitter
Brand: SDaPo
SKU: 540501037
Rating: 5.0 (11 reviews)

1) Gigabit poe splitter
2) IEEE802.3bt Standard
3) PoE input voltage: 44-57V (60W)
4) Power supply pins: ModeA and ModeB
5) DC/OUT:12V/5A(60W)
6) Size:82*60*30mm
7) Total power：60W
8) 1500V High voltage isolation

Model:
PS1260G
Brand:
SDaPo

Interface Option:	PS1260G-DC5521 PS1260G-25 DC5525
Availability:

Quantity:



Inquire Add to Basket

Product Description

*The Main Board of this PoE Splitter is 12V 5A Output.

*Data Transfer Rate is 1Gbps / 2.5Gbps.

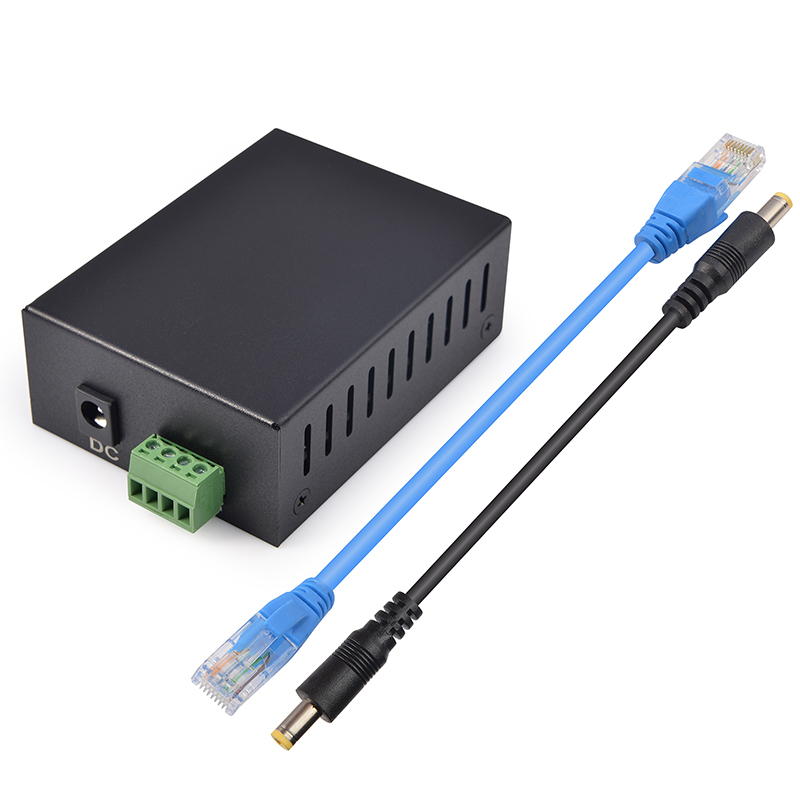

*2 Interface Connection Methods for You to Choose :

DC Jack 5.5*2.1mm (PS1260G-DC55*21)

DC Jack 5.5*2.5mm (PS1260G-25 DC55*25)

Items List

	Output 5Vdc				Output 12Vdc
	5V 2.4A	5V 3A	5V 4A	5V 4A	12V 1A	12V 2A	12V 3A	12V 4A	12V 5A
DC 5.5x2.1mm Jack	PS0502G	PS0503G	PS0504G	PS0504G-Metal Shell	PS5712G	PS5712TG	PS5712BG	PS1248G	PS1260G
DC 5.5x2.5mm Jack	PS0502G-25	PS0503G-25	PS0504G-25		PS5712G-25	PS5712TG-25	PS5712BG-25		PS1260G-25
Type-C Jack	TYPEC0502G	TYPEC0503G	TYPEC0504G		TYPEC5712G	TYPEC5712TG	TYPEC5712BG
Micro USB Jack	USB0502G	USB0503G	USB0504G		USB5712G	USB5712TG	USB5712BG

PoE Splitter Listing

IEEE802.3bt poe splitter Gigabit 12V/5A 60W 1500V High voltage isolation POE Splitter
