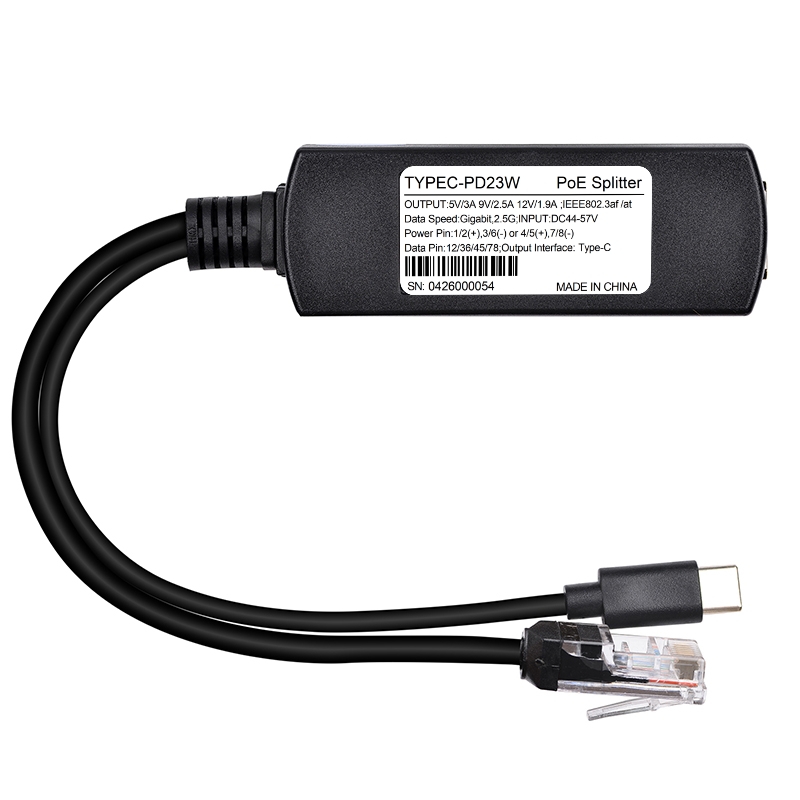

1) Gigabit 2.5G poe splitter
2) Support QC3.0 PD3.0 Fast Charging Standard Type-C / USB-C
3) IEEE802.3at/af Standard
4) PoE/IN:44-57V(30W)
5) ModeA or ModeB ISO:1.5KV
6) DC/OUT:5V/3A 9V/2.5A 12V/1.9A
7) Size: 81*28*24mm
8) total power:23W
9) 1500V high voltage isolation
10)Mobile phones, tablets and other devices that support TYPEC fast charging

  • TYPEC-PD23W

  • SDaPo

Interface Type:
TYPEC-PD23W
Availability:
Quantity:
Inquire Add to Basket

23W, 2.5G, IEEE802.3af/at Standard Type-C/USB-C Fast Charging PoE Splitter

Overview
TYPEC-PD23W PoE splitter is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission. Proper matching use with PoE switch or PSE injector which meet standard IEEE802.3af/at. Provides power and data at the same time for the Non-PoE terminal devices.

TYPEC-PD23W PoE splitter, output voltage of 5V/3A, 9V/2.5A, 12V/1.9A use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

It simultaneously supports the QC3.0 and PD3.0 fast charging protocols, and can deliver full-speed fast charging for multiple devices including iPhone, Android smartphones and iPad.

Features
 Support international standard IEEE802.3 af/at (23W)

 Supports QC 3.0 and PD 3.0 fast charging protocols

 Support 10/100/1000/2500M data transmission

 PD support 44V-57V voltage transmission,Automatically detects power supply from PSE power supply module

 5V/3A, 9V/2.5A, 12V/1.9A power output, easy to access PoE network for non-poe terminal devices

 Support the isolation circuit protection,can effectively protect electrical equipment

 Support the short circuit,overvoltage protection

Model

TYPEC-PD23W

Transfer Rate

10/100/1000/2500Mbps

Power

PoE Input Voltage : 44~57V;

DC Output : 5V/3A, 9V/2.5A, 12V/1.9A (23W)

Standard

IEEE802.3 af/at ; QC 3.0 and PD 3.0 fast charging protocols

TRNF

1/2(+),3/6(-);4/5(+),7/8(-)

Interface Type

1 Input RJ45 port, 1 output RJ45 port, 1 Type-C Fast Charging output

Standard

IEEE802.3I, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at

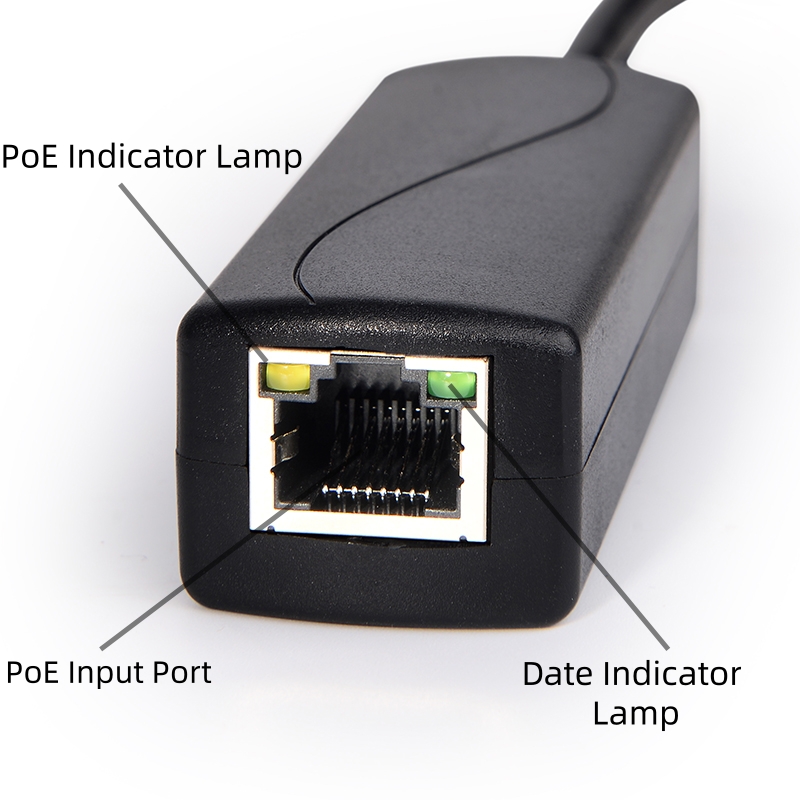

LED

Yellow PoE Lamp

Environment

Work within -40~85°,Storage within -40~85°

Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing

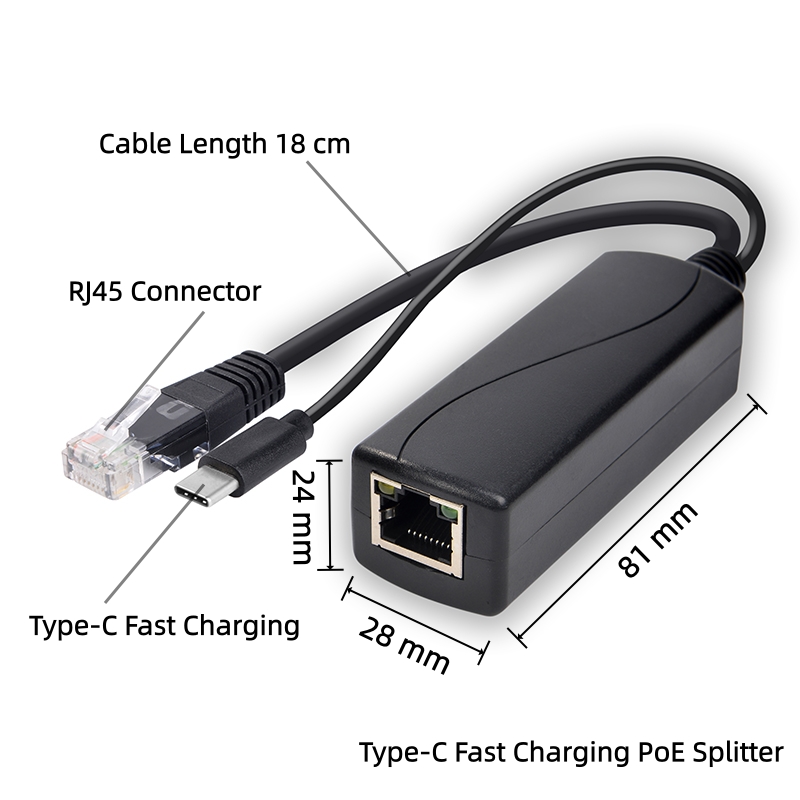

Dimension

81*28*24mm

Net Weight

50g

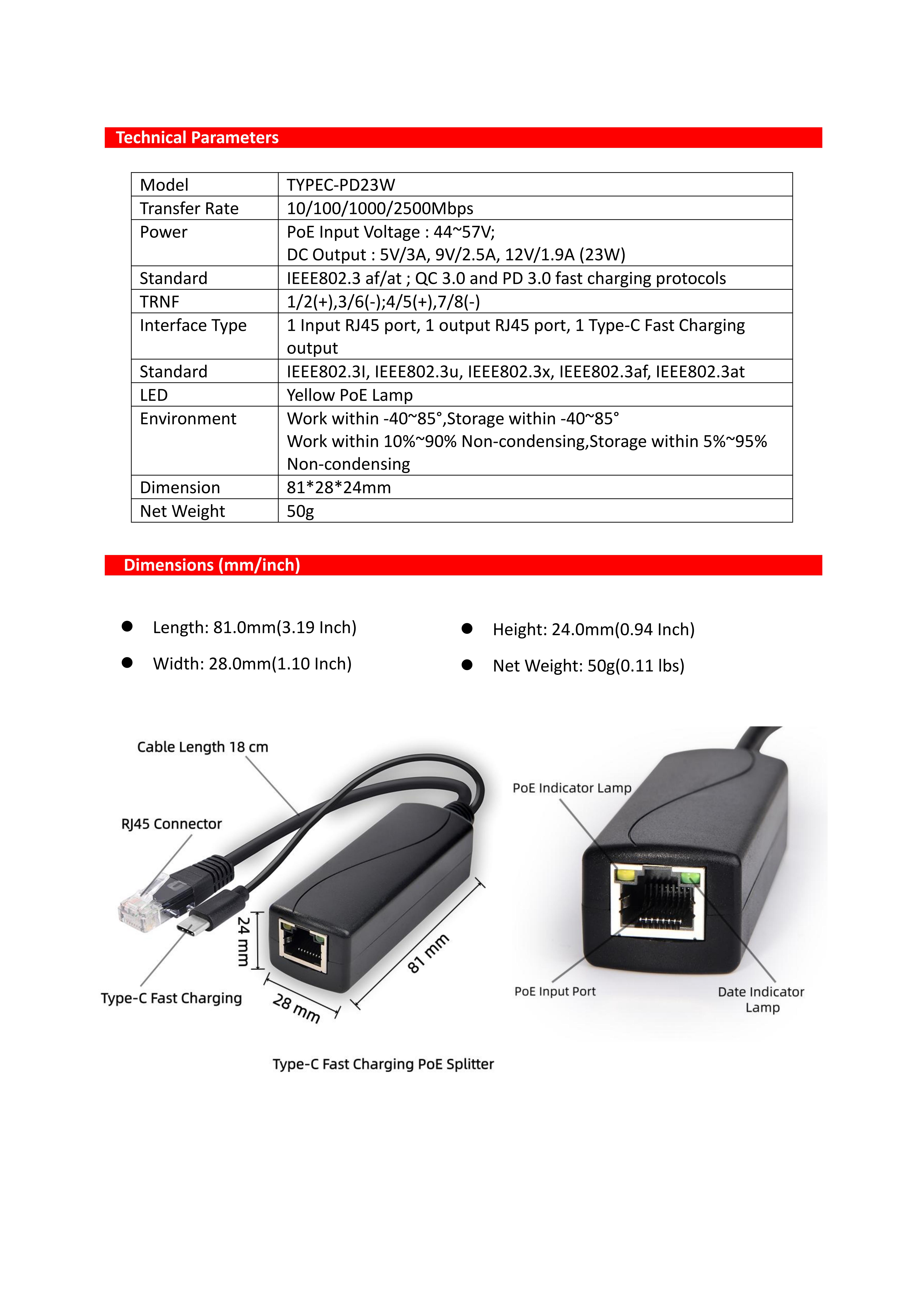

TYPEC-PD23W Datasheet 20260422_01.jpg

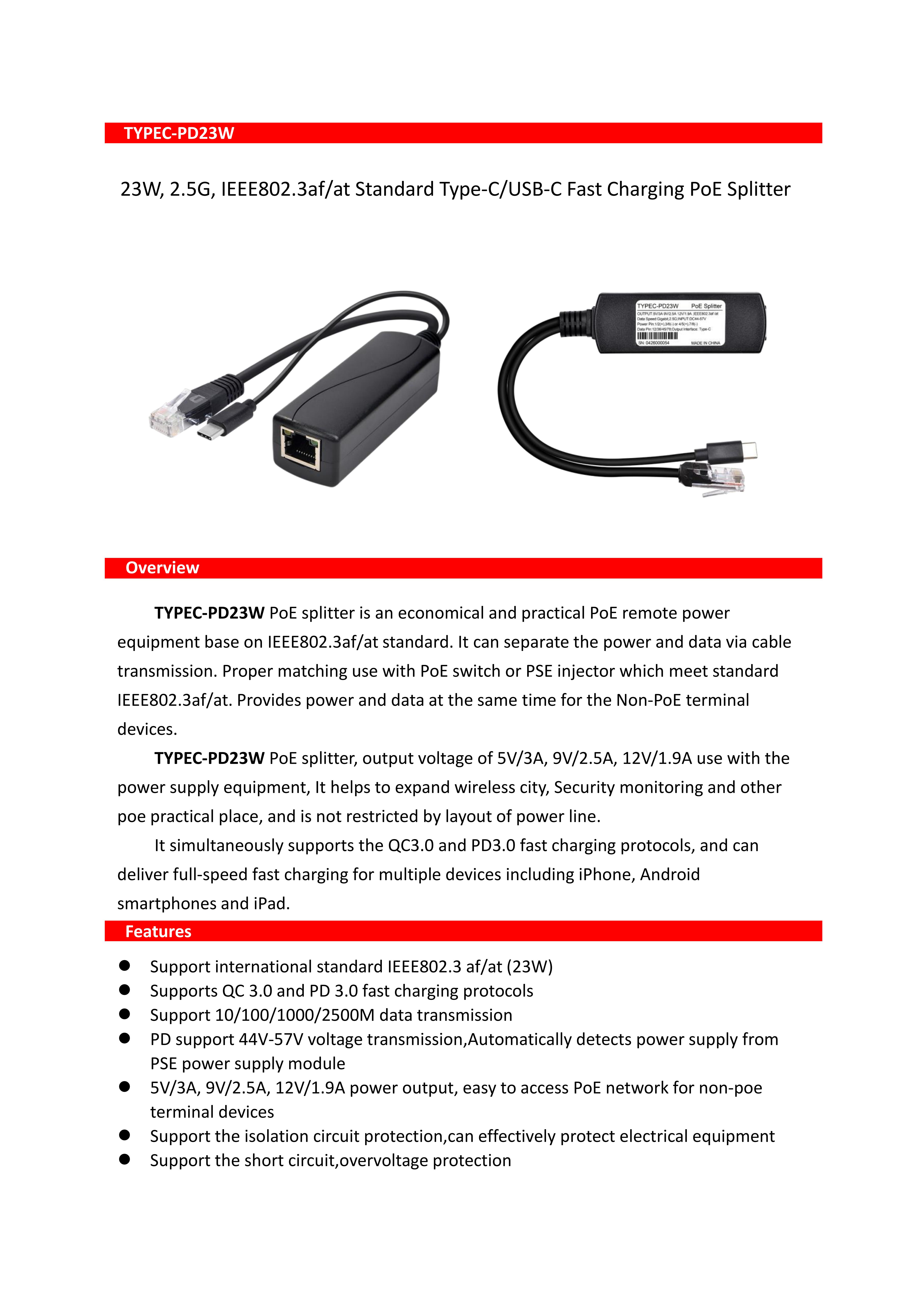

TYPEC-PD23W Datasheet 20260422_02.jpg
