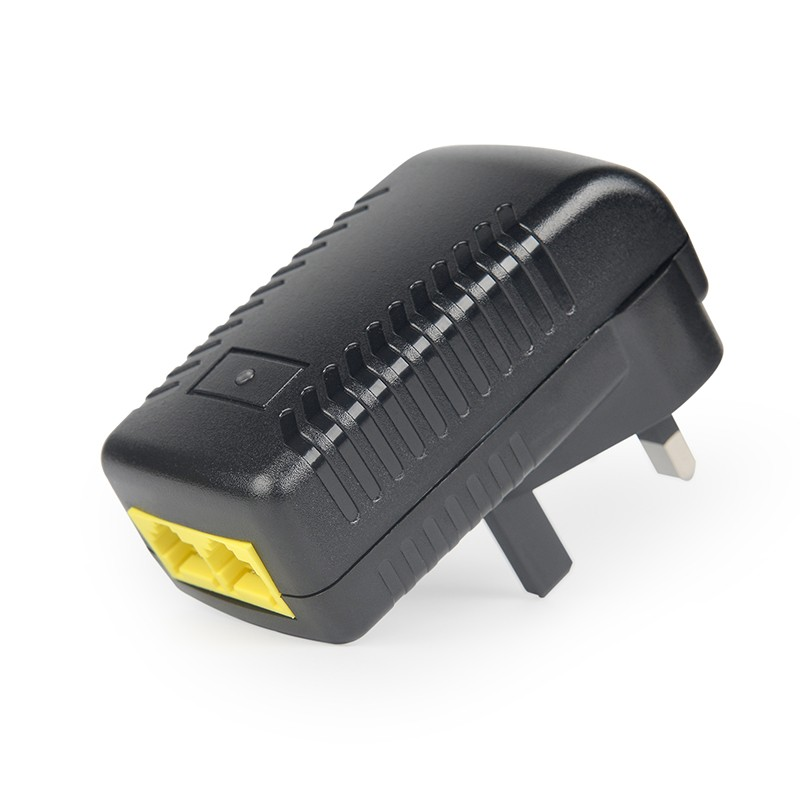

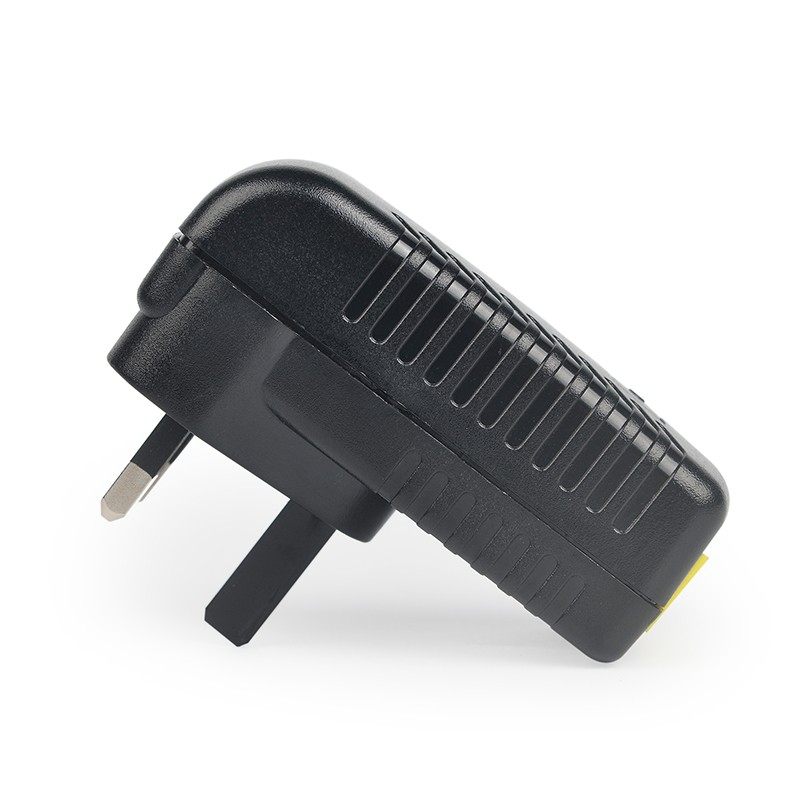

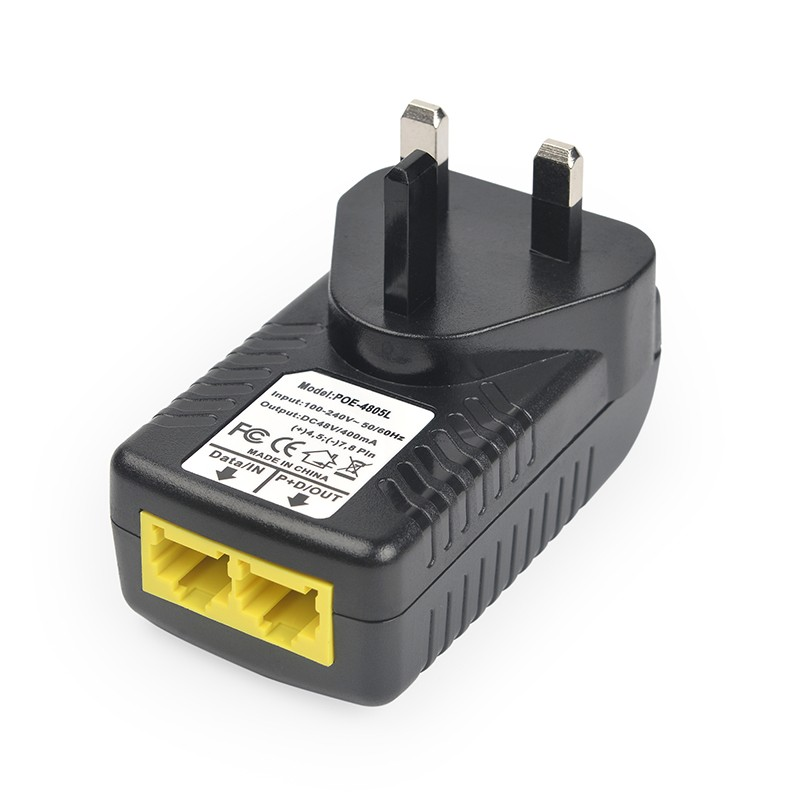

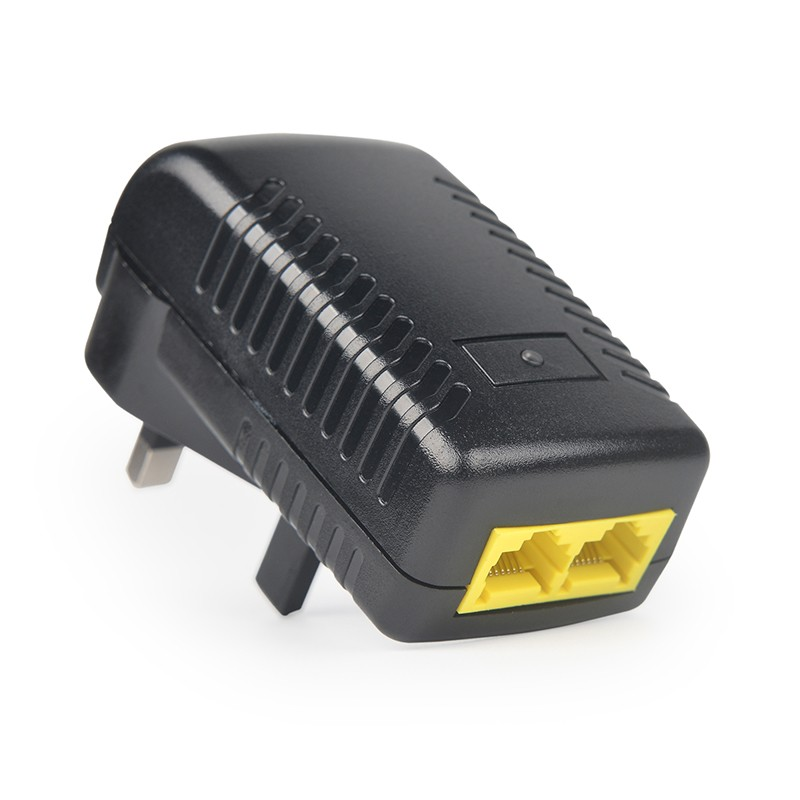

Passive UK standard plug-in 48V 0.5A POE4805 high working efficiency of 90-264VAC wide voltage input PoE Injector

Passive UK standard plug-in 48V 0.5A POE4805 high working efficiency of 90-264VAC wide voltage input PoE Injector

Passive UK standard plug-in 48V 0.5A POE4805 high working efficiency of 90-264VAC wide voltage input PoE Injector



This product is a special injector designed for network communication equipment; small output ripple, high working efficiency of 90-264VAC wide voltage input; small size, stable operation, high reliability, etc .; with output overcurrent, overpower, short circuit protection, etc Features.



<td valign="center" width="90" style="box-sizing: content-box; margin: 0px; padding: 0px; font-style: inherit; font-variant: inherit; font-stretch: inherit; font-size: 12px; line-height: inherit; font-family: inherit; flo

<tr style="box-sizing: content-box; margin: 0px; padding: 0px; font-style: inherit; font-variant: inherit; font-weight: inherit; font-stretch: inherit; font-size: 12px; line-height: inherit; font-

1.1

Input characteristics

Serial number

Item

skills requirement

Unit

Remark

1.1.1

Rated input voltage

100-240

Vac


1.1.2

PF value

/


Full load

1.1.3

Input voltage range

90-264

Vac

frequency:47-63Hz

1.1.4

Starting inrush current

≤5

A

Vin=115/230Vac,Cold state

1.1.5

Input current

≤0.4

A

Vin=115/230Vac

1.1.6

Efficiency (typical)

90%


Vin=230vac,Full load

1.1.7

Standby power consumption

≤0.5

W

No-load power consumption

1.2

Output characteristics

Serial number

Item

skills requirement

Unit

Remark

1.2.1

Output rated voltage

48

Vdc


1.2.2

Output voltage range

48.5-49.6

Vdc


1.2.3

Output rated current

0.5

A


1.2.4

Output minimum current

0

A


1.2.5

Peak output current

0.65

A


1.2.6

Load Regulation

±3%



1.2.7

Linear adjustment

±1%



1.2.8

Output start / rise time

Start time≤3s,Rise Time 50ms



1.2.9

Hold time

16ms(230Vac)/16ms(115Vac)


Full load</s
