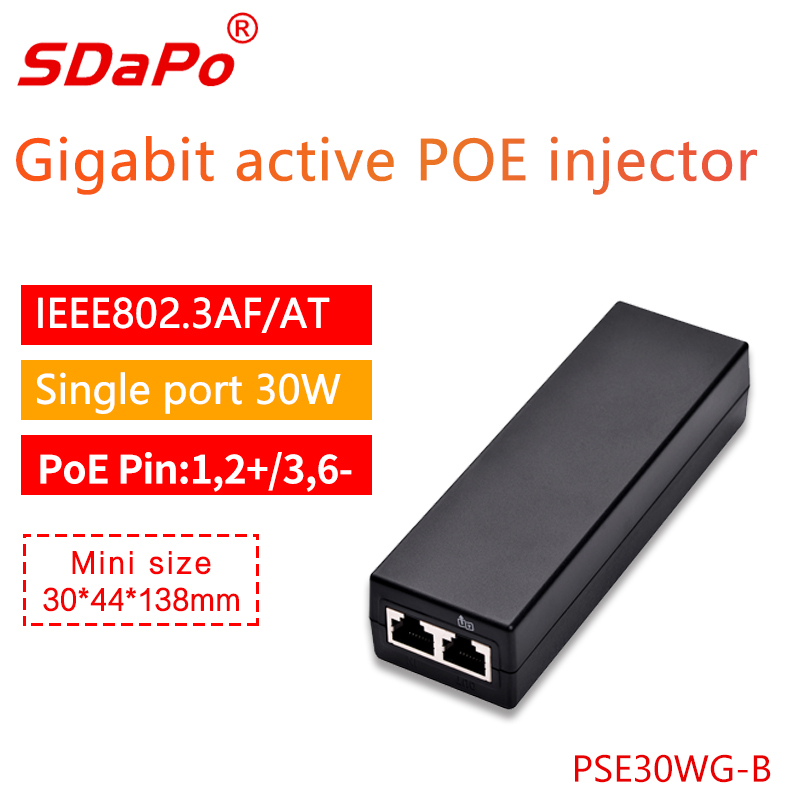

PSE30WG-B Gigabit 30W PoE Injectors

Name: PSE30WG-B Gigabit 30W PoE Injectors
Brand: SDaPo
Rating: 5.0 (29 reviews)

1) IEEE802.3af/at Standard
2) PoE Pin:1,2+/3,6-
3) Power:30 WattsMaximum
4) Input Power AC Input Voltage: 100~240VAC
5) PoE data & power transmission distance 100meter
6) Weight:300g
7) Size:30*44*138mm Mini size POE injector
8) Support 1G/2.5G one port

Model:
PSE30WG-B
Brand:
SDaPo

Availability:

Quantity:



Inquire Add to Basket

Product Selection Table

Model No.	Input Voltage	Network Transfer Rate	PoE Standard	Power
PSE24-30TG	DC10~30V	100/1000/2500Mbps	IEEE802.3af/at	30W
PSE30TG/PSE802G	AC100~240V	100/1000/2500Mbps	IEEE802.3af/at	30W
PSE60G/PSE156G	AC100~240V	100/1000Mbps	IEEE802.3at 4Pair	60W
PSE90G	AC100~240V	100/1000Mbps	IEEE802.3af/at/bt	90W
PSE90BT-10G	AC100~240V	1/2.5/5/10G	IEEE802.3af/at/bt	90W
PSE30WG-B	AC100~240V	1/2.5G	IEEE802.3af/at	30W
PSE30/PSE801	AC100~240V	100Mbps	Passive PoE 48V	30W
PSE30G/PSE801G	AC100~240V	100/1000Mbps	Passive PoE 48V	30W
POE4805	AC100~240V	100Mbps	Passive PoE 48V	20W

Product Description

Feathers

- IEEE802.3af/at Compliant

- PoE Pin:1,2+/3,6- (Mode A)

- Power:30 Watts Maximum

- Input Voltage: 100~240VAC

- Output Voltage: 54VDC

- Support 1Gbps/2.5Gbps

- PoE data & power transmission distance 100meter

- Full Over-Voltage and Over-Current Protection;

- Compact size

- 1-Year warranty

Mechanical Characteristics

- Length: 140.5mm(5.53inch)

- Width:45.5mm(1.79inch)

- Height:30.5mm(1.20inch)

- Weight:137g(4.83oz)

Output

Model	Data speed	DC output voltage	Load		Regulation
			Min.	Max.	Line	Load
PSE30WG-B	1Gbps/2.5gbps	54V	10mA	600mA	54V~57V

Applications

- IP Telephones

- Wireless Access Points

- Bluetooth Access Points

- Security Cameras

- IP Point Servers

- WiMAX Access Points

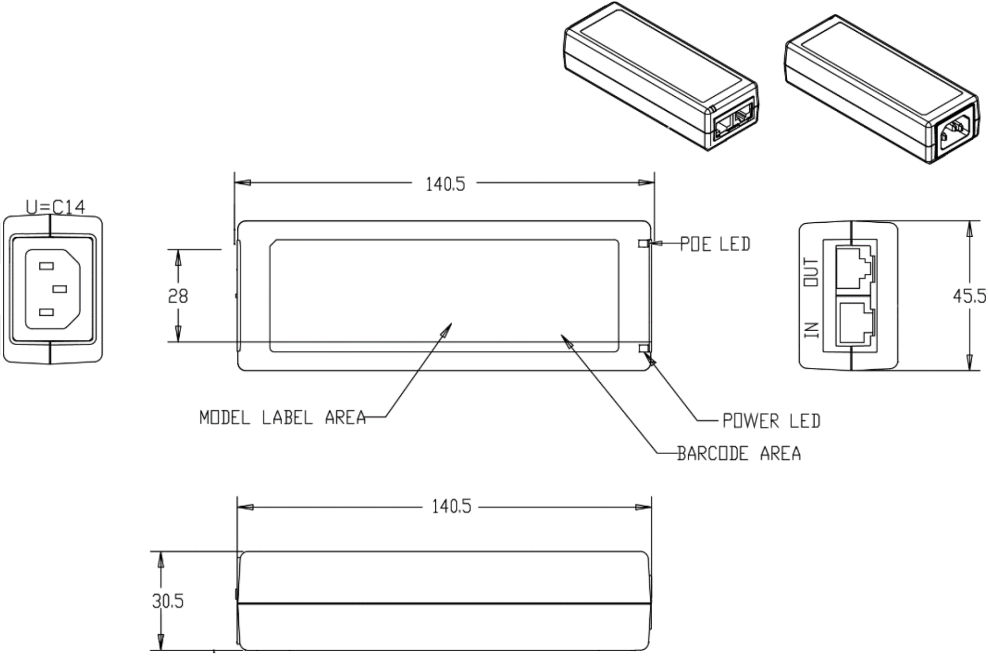

Dimensional Diagram: (Unit: mm)

Specification

PSE30WG-B datasheet(revised).pdf
