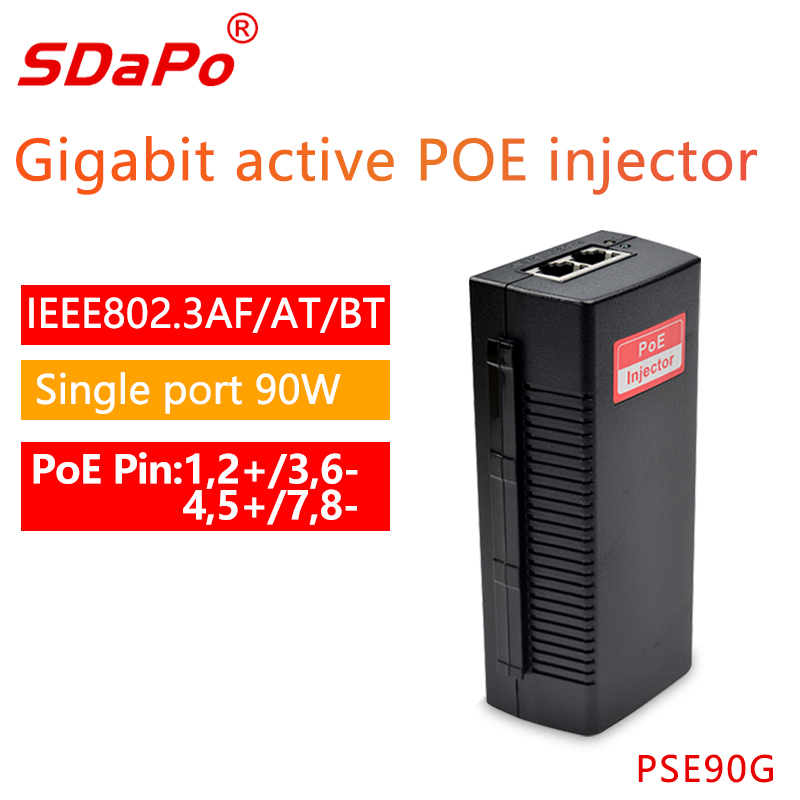

PSE90G Gigabit 90W PoE Injector

Name: PSE90G Gigabit 90W PoE Injector
Brand: SDaPo
Rating: 5.0 (88 reviews)

1) IEEE802.3af/at/bt Standard
2) PoE :1,2+/3,6- 4,5+/7,8-
3) Power: 90 WattsMaximum
4) Input Power AC Input Voltage: 100~240VAC
5) PoE data & power transmission distance 100meter
6) Weight:400g
7) Size:39*62.7*145mm
8) 10/100/1000 one port

Model:
PSE90G
Brand:
SDaPo

Availability:

Quantity:



Inquire Add to Basket

Product Selection Table

Model No.	PSE24-30TG	PSE30TG/PSE802G	PSE30WG-B	PSE60G/PSE156G	PSE90G	PSE90BT-10G	PSE30/PSE801	PSE30G/PSE801G	POE4805
Input Voltage	DC10~30V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V
Transfer Rate	100/1000/2500Mbps	100/1000/2500Mbps	100/1000/2500Mbps	100/1000Mbps	100/1000Mbps	1/2.5/5/10G	100Mbps	100/1000Mbps	100Mbps
PoE Protocol	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3at 4Pair	IEEE802.3af/at/bt	IEEE802.3af/at/bt	Passive PoE 48V	Passive PoE 48V	Passive PoE 48V
Power	30W	30W	30W	60W	90W	90W	30W	30W	20W

Product Selection Table

Model No.	Input Voltage	Network Transfer Rate	PoE Standard	Power
PSE24-30TG	DC10~30V	100/1000/2500Mbps	IEEE802.3af/at	30W
PSE30TG/PSE802G	AC100~240V	100/1000/2500Mbps	IEEE802.3af/at	30W
PSE60G/PSE156G	AC100~240V	100/1000Mbps	IEEE802.3at 4Pair	60W
PSE90G	AC100~240V	100/1000Mbps	IEEE802.3af/at/bt	90W
PSE90BT-10G	AC100~240V	1/2.5/5/10G	IEEE802.3af/at/bt	90W
PSE30WG-B	AC100~240V	1/2.5G	IEEE802.3af/at	30W
PSE30/PSE801	AC100~240V	100Mbps	Passive PoE 48V	30W
PSE30G/PSE801G	AC100~240V	100/1000Mbps	Passive PoE 48V	30W
POE4805	AC100~240V	100Mbps	Passive PoE 48V	20W

Product Description

Advanced PoE Solution
The PSE90G is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The PSE90G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3bt PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore. For all the function featured in PSE90G, people can get the benefit of flexible network installation at lower cost, less downtime.

Key Features
* Up to 90W of Power on3BT
* Safe on Low Power Devices Receive Only the Power TheyNeed
* Safe and Reliable Power to WLAN Access Points
* Automatic Detection and Protection of Non–standard EthernetTerminals
* Supports 10/100/1000Base-T LANenvironment

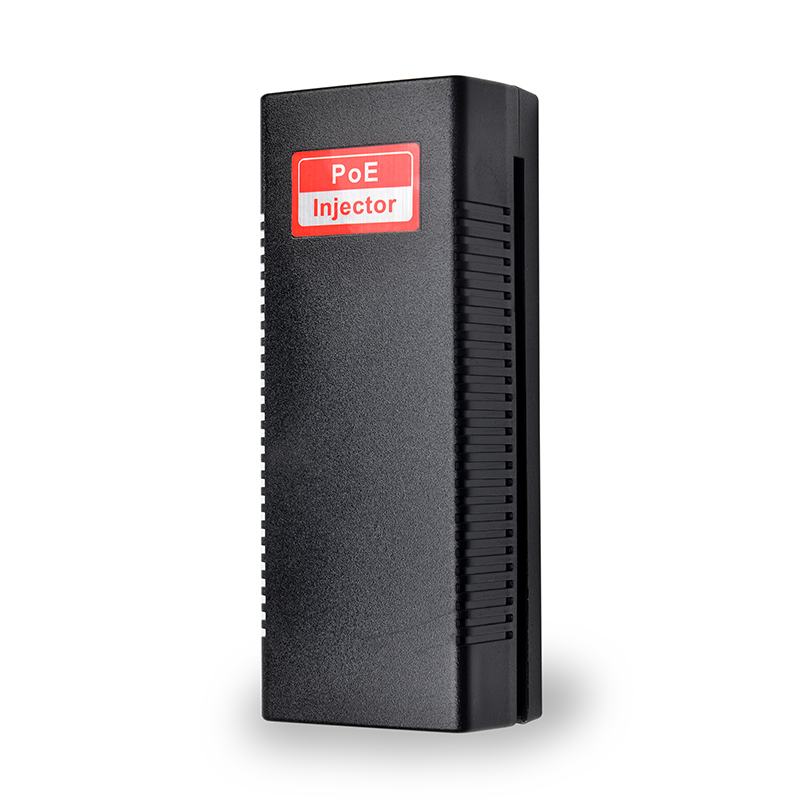

* Unique interlocking feature for easyinstallation

Technical Specifications Standards Compliance	Dimensions (L x W x H) / Weight 3962.7145mm
IEEE 802.3 10Base-T Ethernet	500g

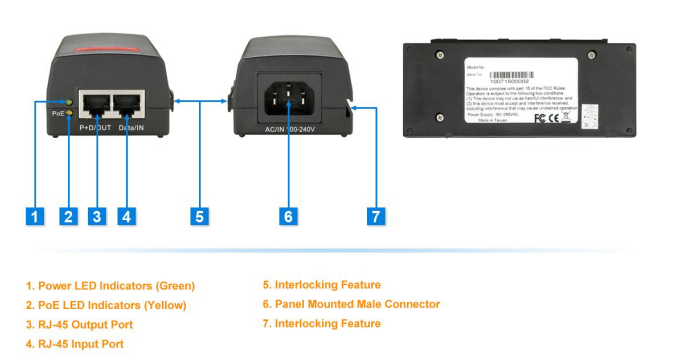

IEEE 802.3u 100Base-Tx Fast Ethernet	Indicators
IEEE 802.3af/at/bt Power over Ethernet	AC Power (Green)

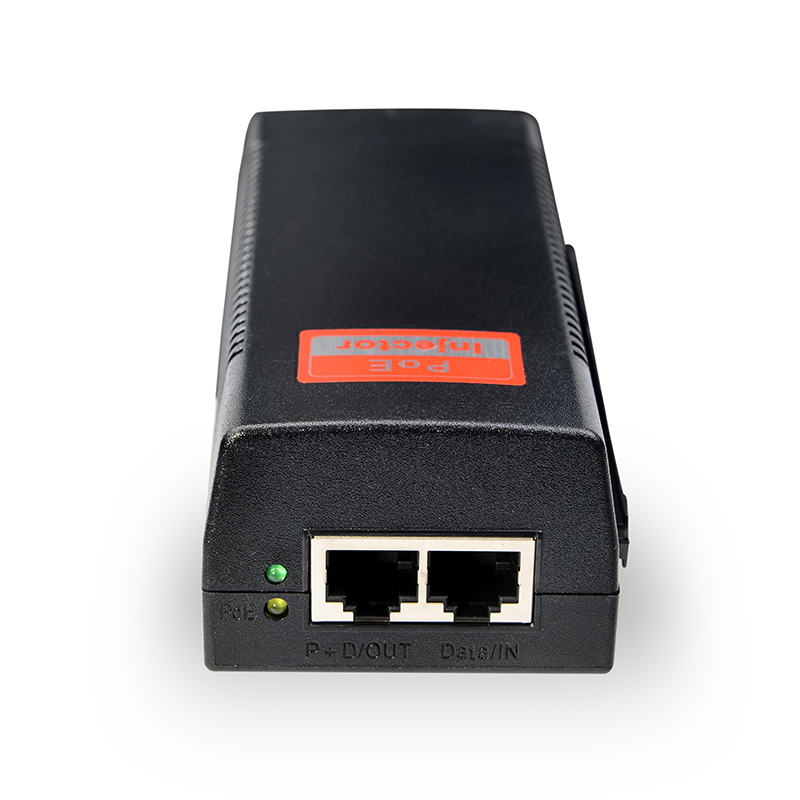

Connector: RJ-45 10/100/1000 Mbps	PoE (Orange)
PoE Power Output	Environmental Conditions
Pin Assignment and Polarity:	Operating Temperature: -20 ~55°C

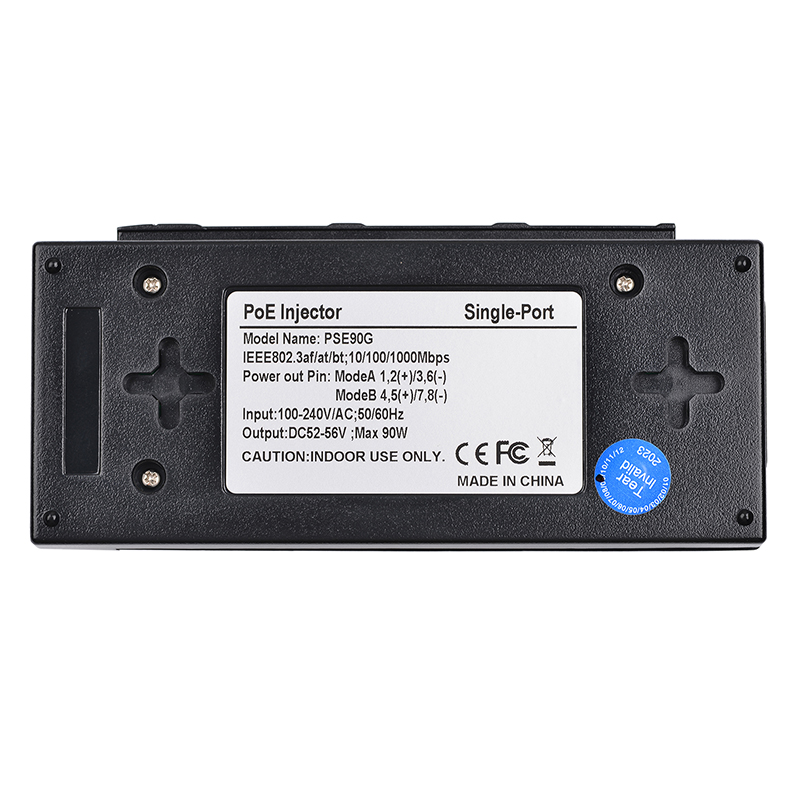

Data+Power Pairs 1/2 (+), 3/6 (-);4/5 (+), 7/8 (-)	Storage Temperature: -25 ~ 70°C
Output Power Voltage: 54-56 VDC	Storage Humidity:
Power: Mode-A+Mode-B 90 Watts Max.	Maximum 95%, Non-condensing

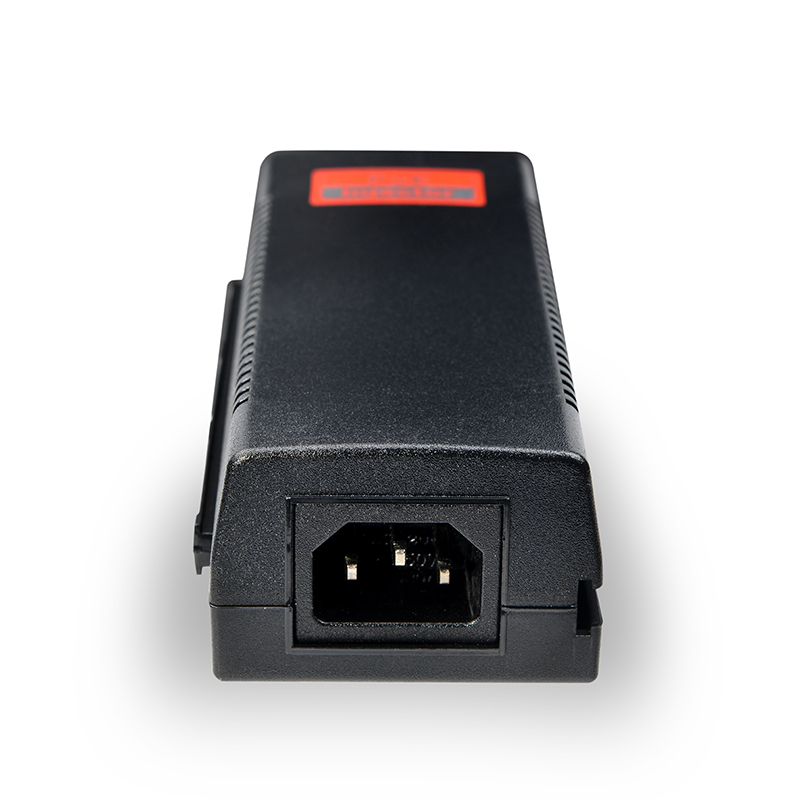

Input Power AC Input Voltage: 100~240VAC
Requirements AC Input Current: ≤1.5A @ 100~240 VAC

10/100/1000Mbps AC Input Voltage 100~240V Poe Injector SDAPO PSE90G PSE90G Gigabit 90W PoE Injector 90W poe injector PSE90G Gigabit 90W PoE Injector
