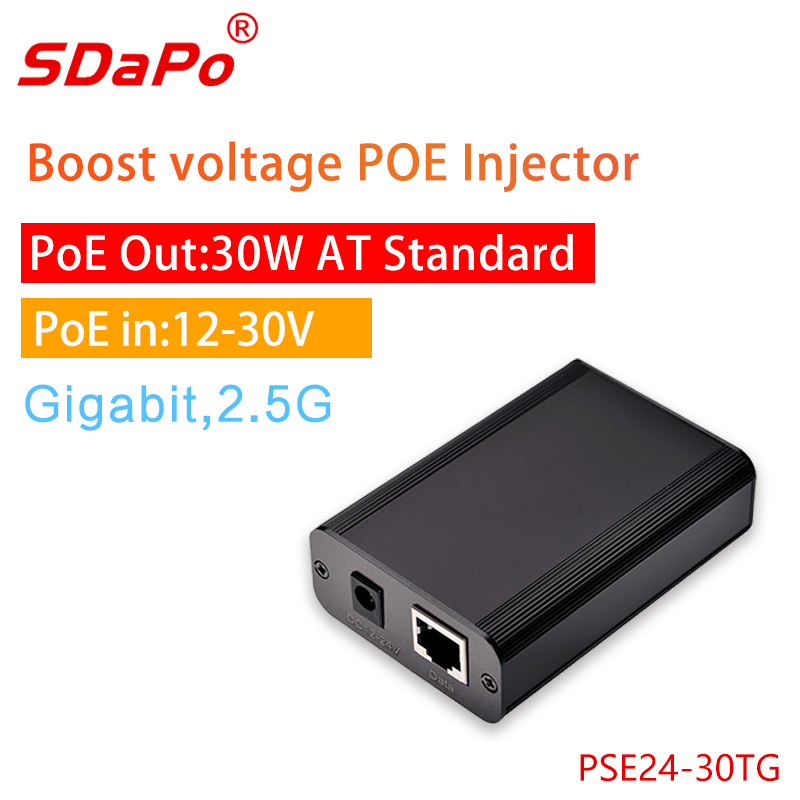

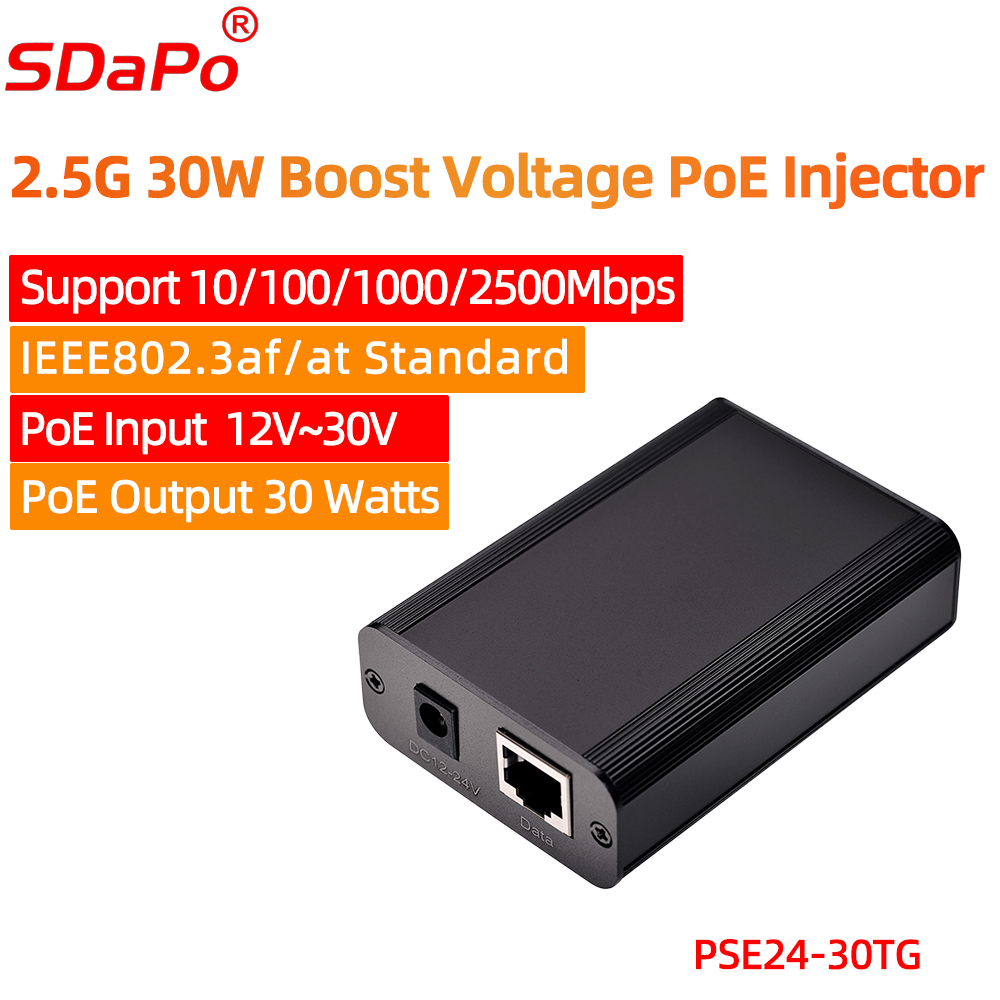

PSE24-30TG 1/2.5Gbps 30W PoE Injector

You are here: Home » Products » POE Injector » Active POE Injector » PSE24-30TG 1/2.5Gbps 30W PoE Injector

PSE24-30TG 1/2.5Gbps 30W PoE Injector

Name: PSE24-30TG 1/2.5Gbps 30W PoE Injector
Brand: SDaPo
Rating: 5.0 (74 reviews)

1) IEEE802.3af/at Standard
2) PoE In：10-30V
3) PoE Out:30W AT Standard
4) DC in, DC-POE out, boost voltage POE Injector
5) PoE data & power transmission distance 100meter
6) Weight:350g (0.77lbs)
7)support 1G/2.5G one port

Model:
PSE24-30TG
Brand:
SDaPo

Availability:

Quantity:



Inquire Add to Basket

Product Selection Table

Model No.	PSE24-30TG	PSE30TG/PSE802G	PSE30WG-B	PSE60G/PSE156G	PSE90G	PSE90BT-10G	PSE30/PSE801	PSE30G/PSE801G	POE4805
Input Voltage	DC10~30V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V
Transfer Rate	100/1000/2500Mbps	100/1000/2500Mbps	100/1000/2500Mbps	100/1000Mbps	100/1000Mbps	1/2.5/5/10G	100Mbps	100/1000Mbps	100Mbps
PoE Protocol	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3at 4Pair	IEEE802.3af/at/bt	IEEE802.3af/at/bt	Passive PoE 48V	Passive PoE 48V	Passive PoE 48V
Power	30W	30W	30W	60W	90W	90W	30W	30W	20W

Product Selection Table

Model No.	Input Voltage	Network Transfer Rate	PoE Standard	Power
PSE24-30TG	DC10~30V	100/1000/2500Mbps	IEEE802.3af/at	30W
PSE30TG/PSE802G	AC100~240V	100/1000/2500Mbps	IEEE802.3af/at	30W
PSE60G/PSE156G	AC100~240V	100/1000Mbps	IEEE802.3at 4Pair	60W
PSE90G	AC100~240V	100/1000Mbps	IEEE802.3af/at/bt	90W
PSE90BT-10G	AC100~240V	1/2.5/5/10G	IEEE802.3af/at/bt	90W
PSE30WG-B	AC100~240V	1/2.5G	IEEE802.3af/at	30W
PSE30/PSE801	AC100~240V	100Mbps	Passive PoE 48V	30W
PSE30G/PSE801G	AC100~240V	100/1000Mbps	Passive PoE 48V	30W
POE4805	AC100~240V	100Mbps	Passive PoE 48V	20W

Product Description

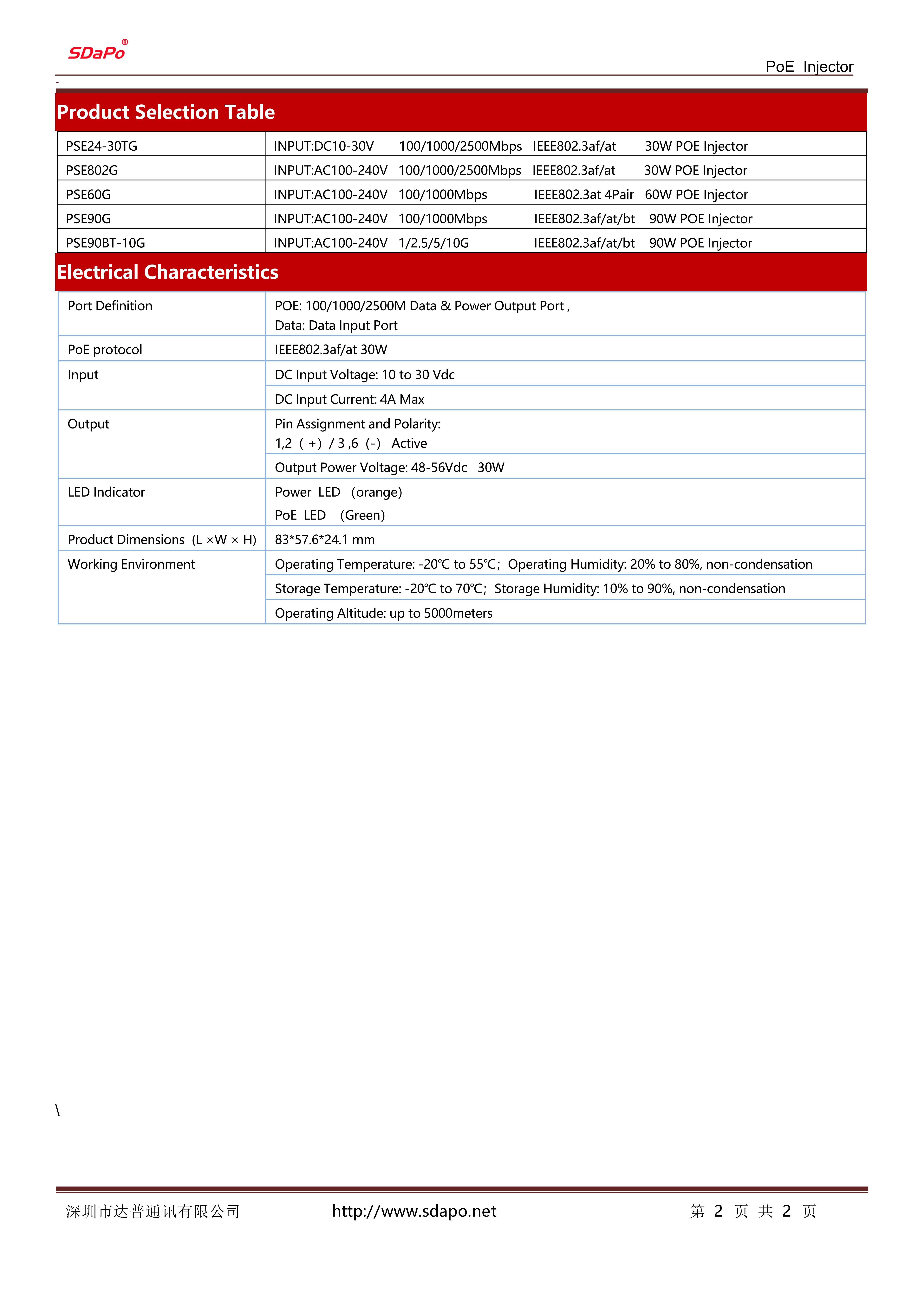

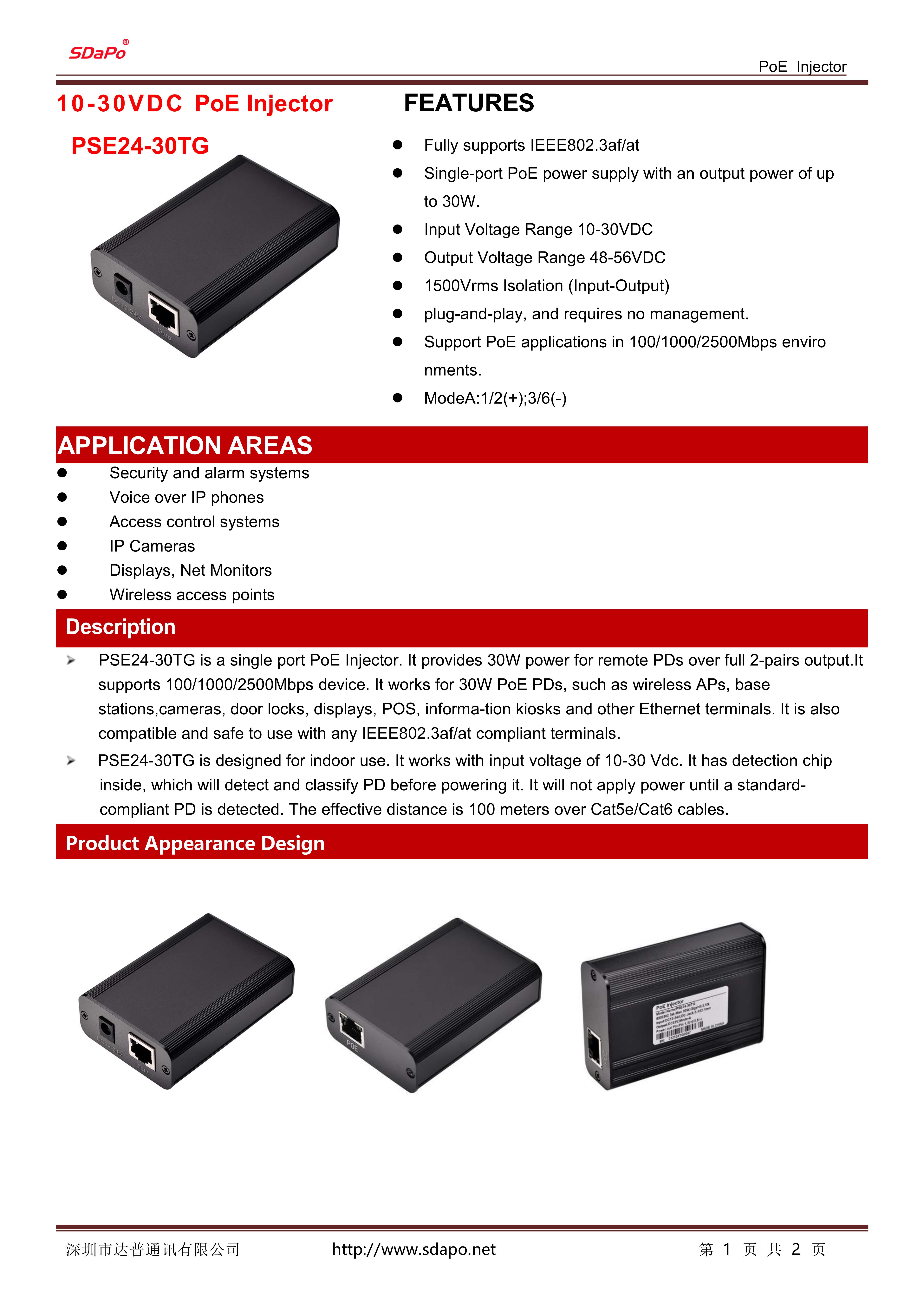

PSE24-30TG Datasheet_1 PSE24-30TG Datasheet_2

Datesheet Download

PSE24-30TG Datasheet.pdf

PSE24-30TG Video

POE injector standard 48V poe injector gigabit poe injector
