PSE90BT-10G PoE++ 10Gbps Single Port 90W PoE Active Injectors
You are here: Home » Products » POE Injector » Active POE Injector » PSE90BT-10G PoE++ 10Gbps Single Port 90W PoE Active Injectors

PSE90BT-10G PoE++ 10Gbps Single Port 90W PoE Active Injectors

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
1) IEEE802.3af/at/bt Standard
2) PoE :1,2+/3,6- 4,5+/7,8-
3) Power: 90 WattsMaximum
4) Input Power AC Input Voltage: 100~240VAC
5) PoE data & power transmission distance 100meter
6) Weight:400g , metal shell
7) Size:76*44*172mm
8) Support 1/2.5/5/10G one port
  • PSE90BT-10G

  • SDaPo

Availability:
Quantity:

Product Selection Table

Model No.Input Voltage
Network Transfer Rate
PoE Standard
Power

PSE24-30TG

DC10~30V100/1000/2500MbpsIEEE802.3af/at30W
PSE30TG/PSE802GAC100~240V100/1000/2500MbpsIEEE802.3af/at30W
PSE60G/PSE156GAC100~240V100/1000MbpsIEEE802.3at 4Pair60W
PSE90GAC100~240V100/1000MbpsIEEE802.3af/at/bt90W
PSE90BT-10GAC100~240V1/2.5/5/10GIEEE802.3af/at/bt90W
PSE30WG-BAC100~240V1/2.5GIEEE802.3af/at30W
PSE30/PSE801AC100~240V100MbpsPassive PoE 48V30W
PSE30G/PSE801GAC100~240V100/1000MbpsPassive PoE 48V30W
POE4805AC100~240V100MbpsPassive PoE 48V20W


Product Description

Feathers


l IEEE802.3af/at/bt Compliant

l PoE Pin:1,2+/3,6-;4,5+/7,8-

l Power:90 Watts

l Input Voltage: 100~240VAC

l Output Voltage: 54VDC~57VDC

l Support 1/2.5/5/10Gbps

l PoE data & power transmission distance 100meter

l Full Over-Voltage and Over-Current Protection;

l Compact size

l Metel housing


Mechanical Characteristics

- Length : 172.0mm(6.77inch)

- Width : 76.0mm(2.99inch)

- Height : 44.0mm(1.73inch)

- Weight : 660g(23.28oz)


Output

Model

Data speed

DC output voltage

Load

Regulation

Min.

Max.

Line

Load

PSE90G-10G

1/2.5/5/10Gbps

54V~57V

10mA

1.73A

54V~57V


Applications


- IP Telephones

- Wireless Access Points

- Bluetooth Access Points

- Security Cameras

- IP Point Servers

- WiMAX Access Points

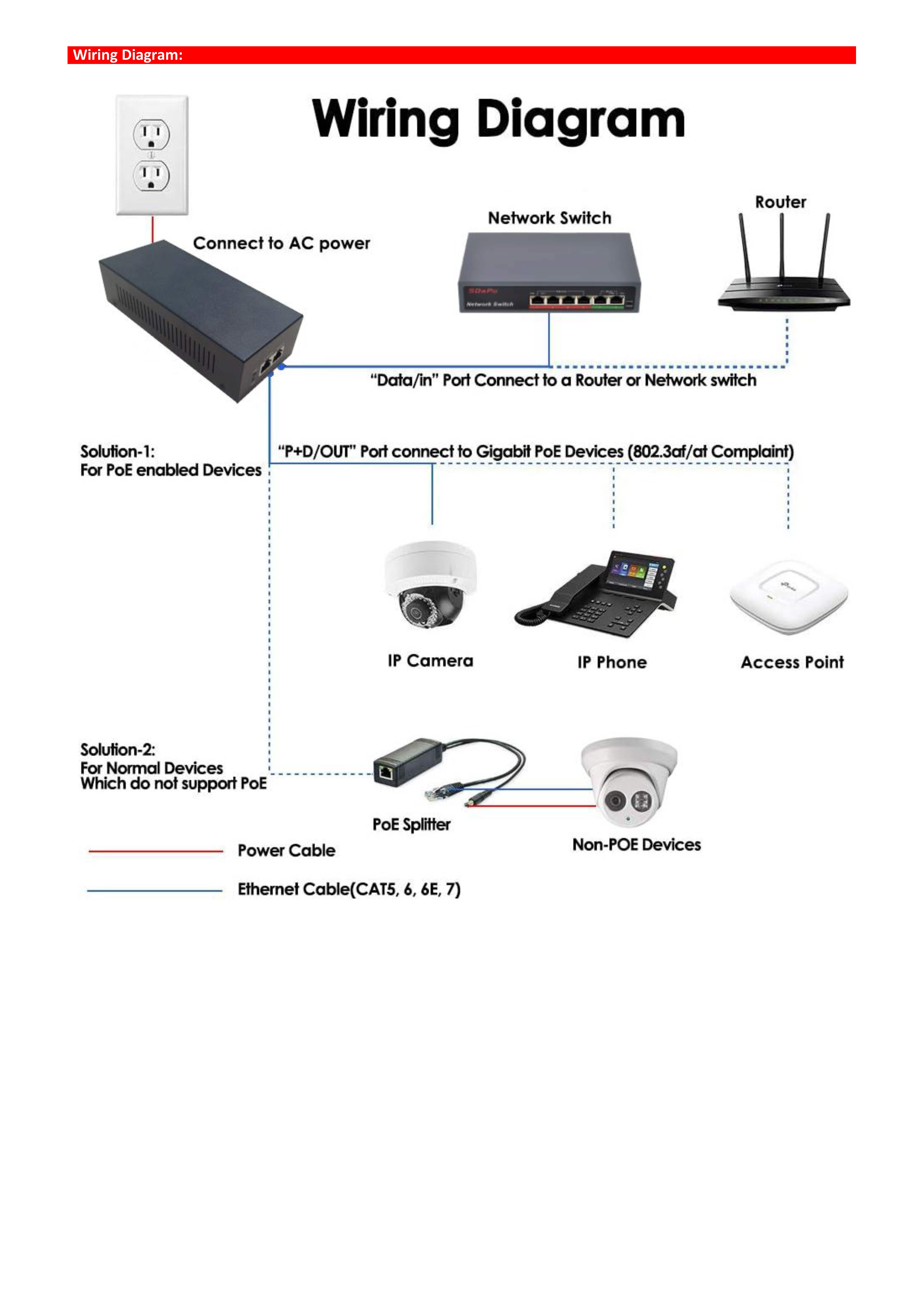

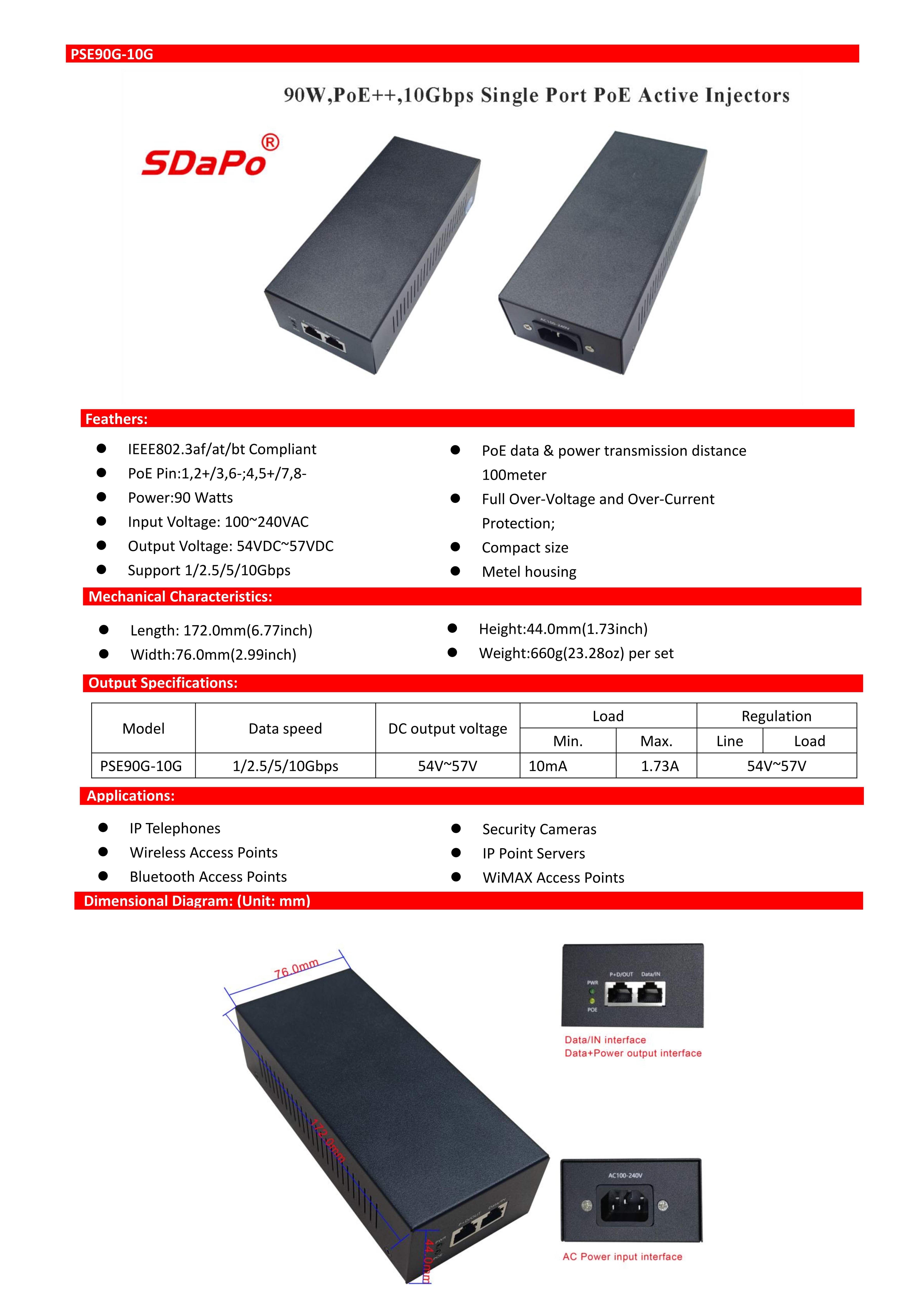

PSE90G-10G datasheet_1PSE90G-10G datasheet_2
