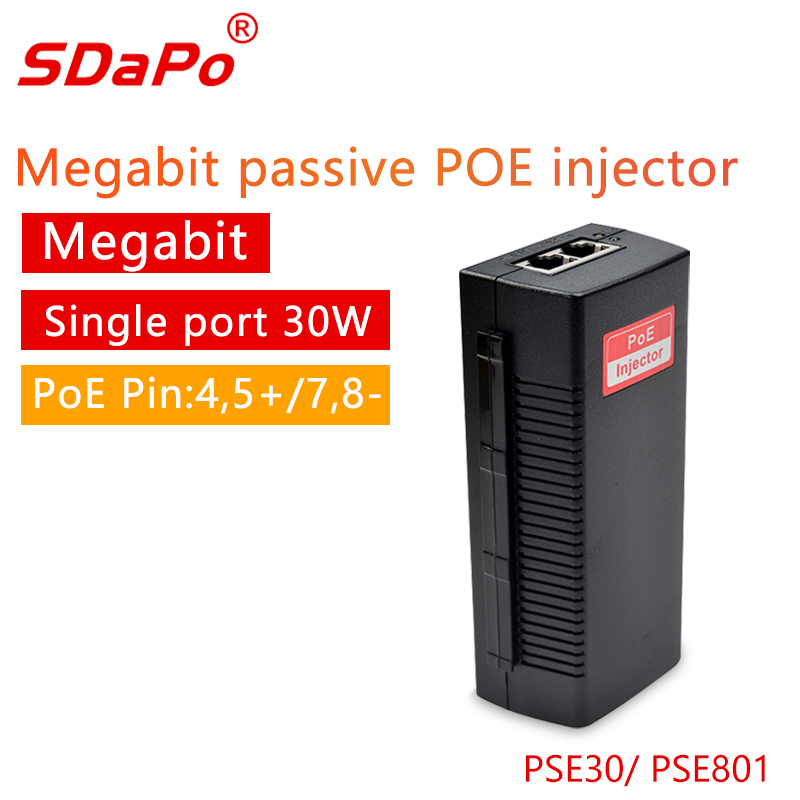

SDaPo PSE801 Passive POE 48V 10/100 one port 30 Watts Maximum PoE Injector

1) Passive POE 48V
2) PoE Pin:4,5+/7,8-
3) Power: 30 WattsMaximum
4) Input Power AC Input Voltage: 100~240VAC
5) PoE data & power transmission distance 100meter
6) Weight:350g (0.77lbs)
7) Size:39*62.7*145mm
8) 10/100 one port

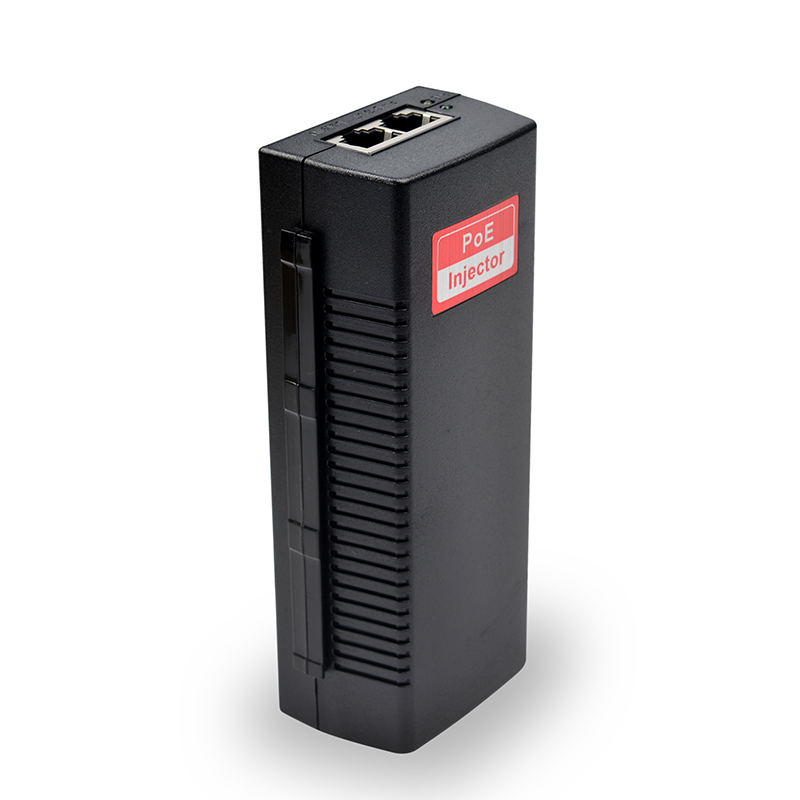

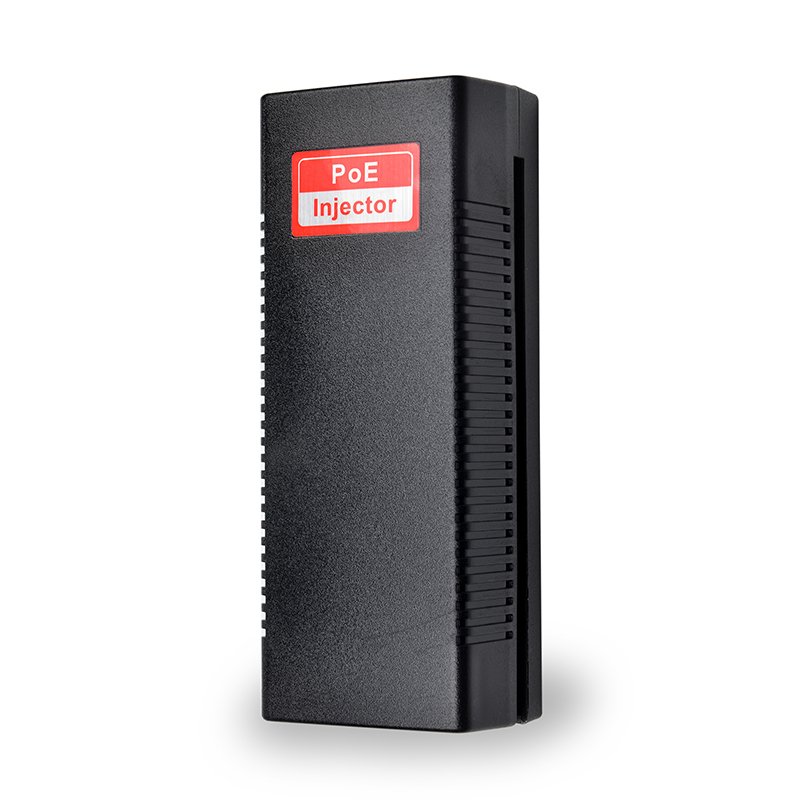

  PSE801

High quality SDAPO PSE801 input AC100-240V single port poe passive injector 52v

Product Description





Advanced PoE Solution

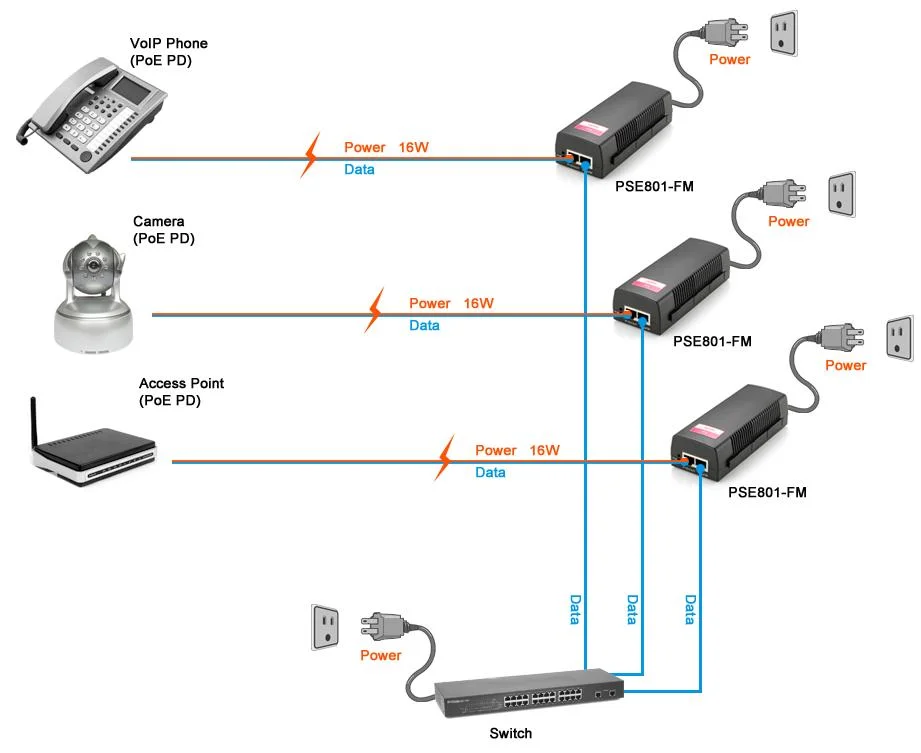

The PSE801 is a Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. This product can convert standard 100~240V/AC power into lowvoltage DC that runs over existing LAN cable to power up IEEE 802.3af compliant network accessories. It also features PoE awareness to verify whether the network device receiving power or only the data will be sent through LAN cable. By adding a PoE Splitter (POE5912) to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore.

High quality SDAPO PSE801 input AC100-240V single port poe passive injector 52v

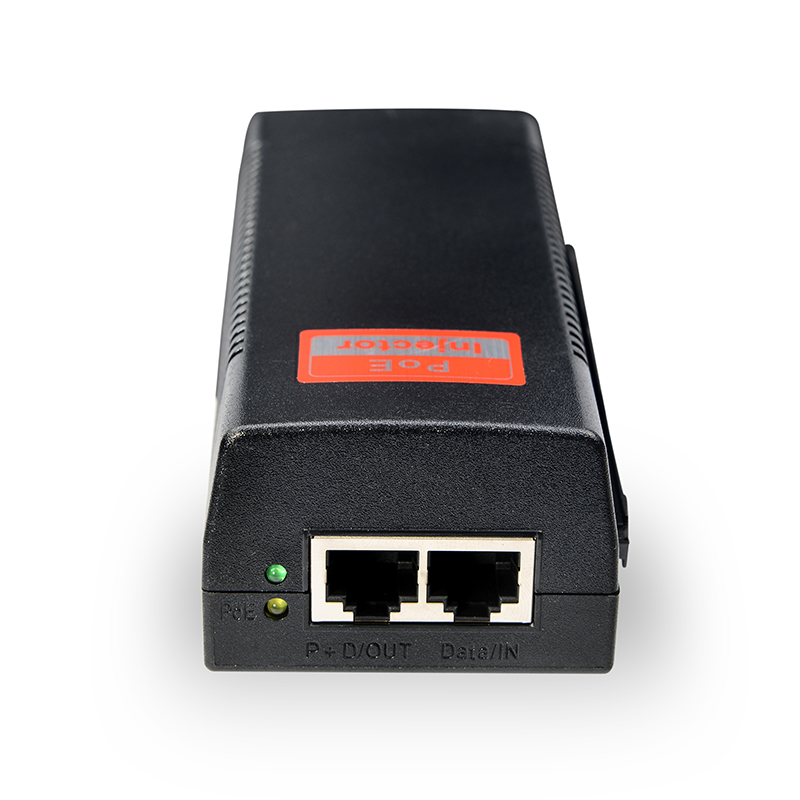

Attention how to connect:

P+D out must connect to POE IPC (IPC must have POE function)

 Data in connect to your normal switch



Key Features
- Minimize the need for a bulky power adapter and power line
- Delivering power and data to equipment via a single Ethernet cable
- Internal power supply
- High safety with surge protection
- Remote power feeding up to 100 meters
- PnP, Light Weight and compact size
- Unique interlocking feature for easy installation



Works Well With:
PS5712P

PS5712AT



Technical Specifications Standards Compliance IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTx
RJ-45 10/100
MbpPoE Power Output
Pin Assignment and Polarity: 4/5 (+), 7/8 (-) Output Power Voltage: 52 VDC Maximal Power: 30 WattsMaximum

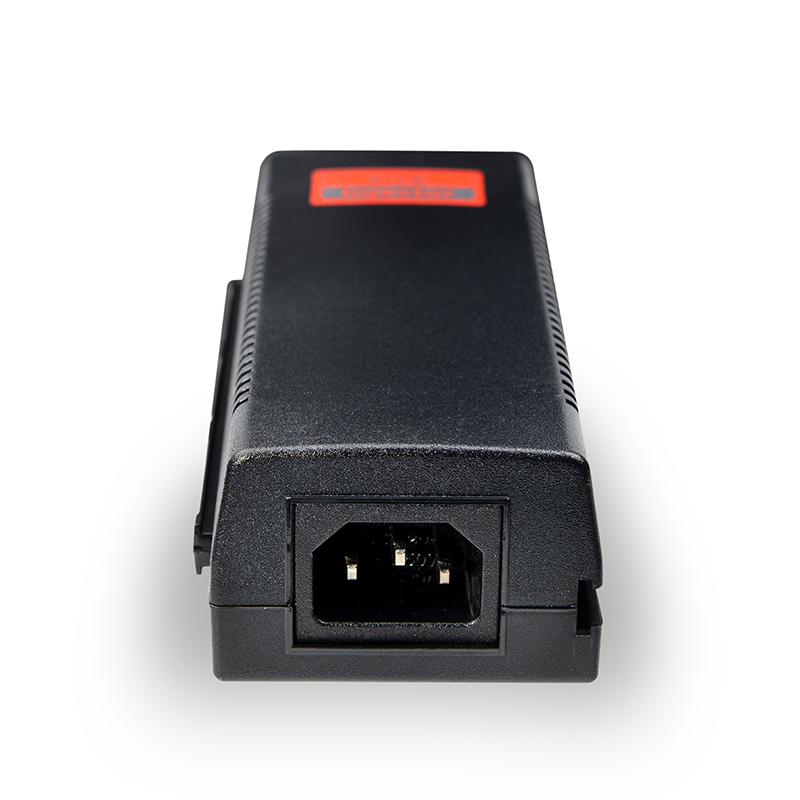

Input Power AC Input Voltage: 100~240VAC Requirements AC Input Current: 0.3A @ 100~240 VAC AC Frequency: 50~60 H
Dimensions (L x W x H) / Weight
87.9 x 51.3 x 166mm
350g (0.77lbs)

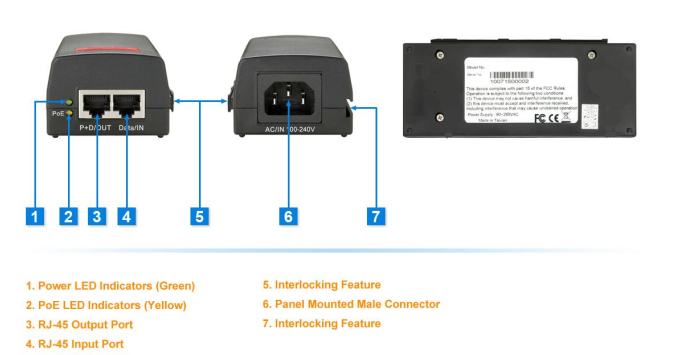

Indicators
AC Power (Orange) Environmental Conditions Operating Temperature: 0~45°C Storage Humidity:
Maximum 95%, Non-condensing
Regulatory
RoHS Compliant, CE/FCC
Safety Approvals
EN 60950:2006
