Product Description
Advanced PoE Solution

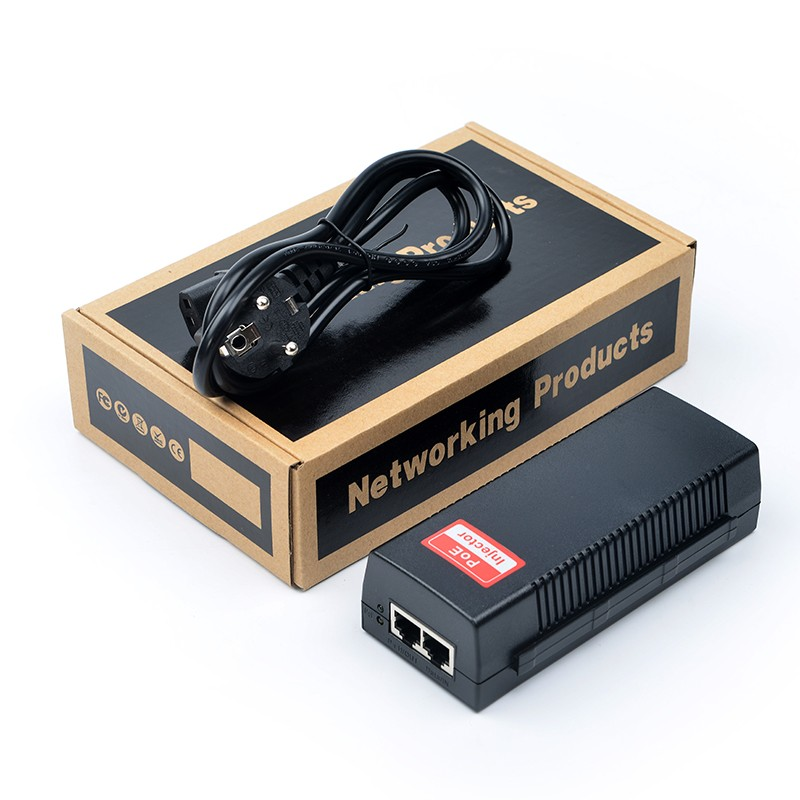

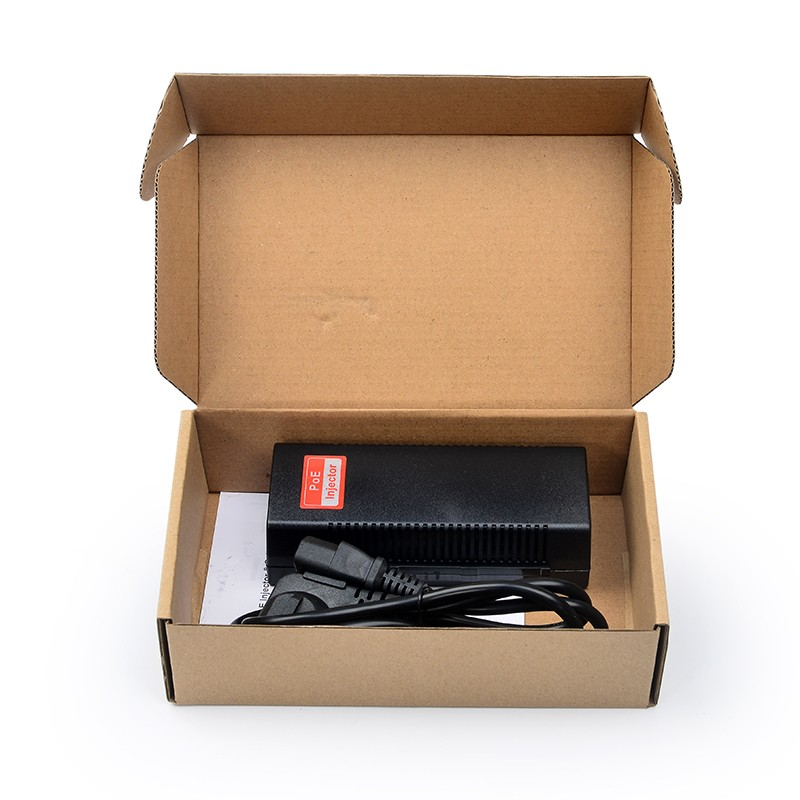

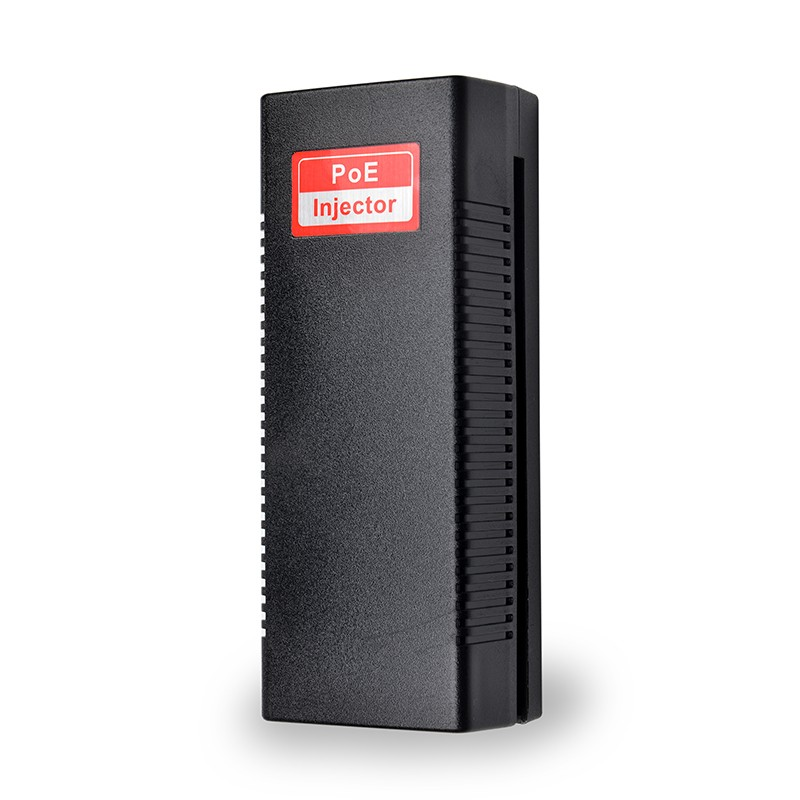

The PSE801 is a Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. This product can convert standard 100~240V/AC power into lowvoltage DC that runs over existing LAN cable to power up IEEE 802.3af compliant network accessories. It also features PoE awareness to verify whether the network device receiving power or only the data will be sent through LAN cable. By adding a PoE Splitter (POE5912) to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore.
Key Features
- Minimize the need for a bulky power adapter and power line
- Delivering power and data to equipment via a single Ethernet cable
- Internal power supply
- High safety with surge protection
- Remote power feeding up to 100 meters
- PnP, Light Weight and compact size
- Unique interlocking feature for easy installation
Works Well With:
PS5712P
PS5712AT
Standards Compliance IEEE 802.3 10BaseT IEEE 802.3u 100BaseTx
MbpPoE Power Output
Pin Assignment and Polarity: 4/5 (+), 7/8 (-)
Output Power Voltage: 52 VDC
Maximal Power: 30 WattsMaximum

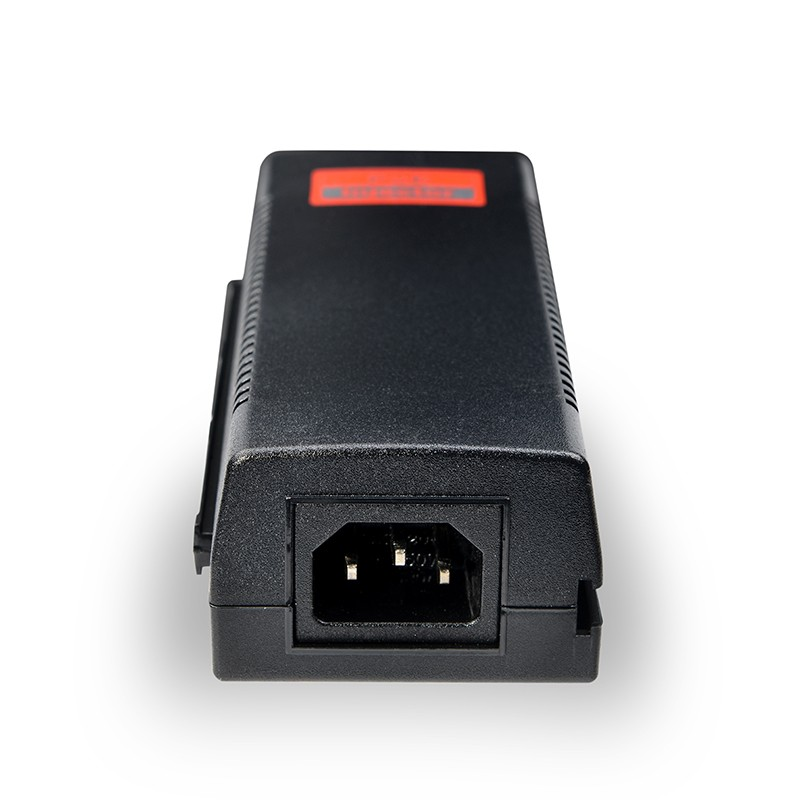

Input Power AC Input Voltage: 100~240VAC Requirements AC Input Current: 0.3A @ 100~240 VAC AC Frequency: 50~60 H
Dimensions (L x W x H) / Weight : 87.9 x 51.3 x 166mm 350g (0.77lbs)

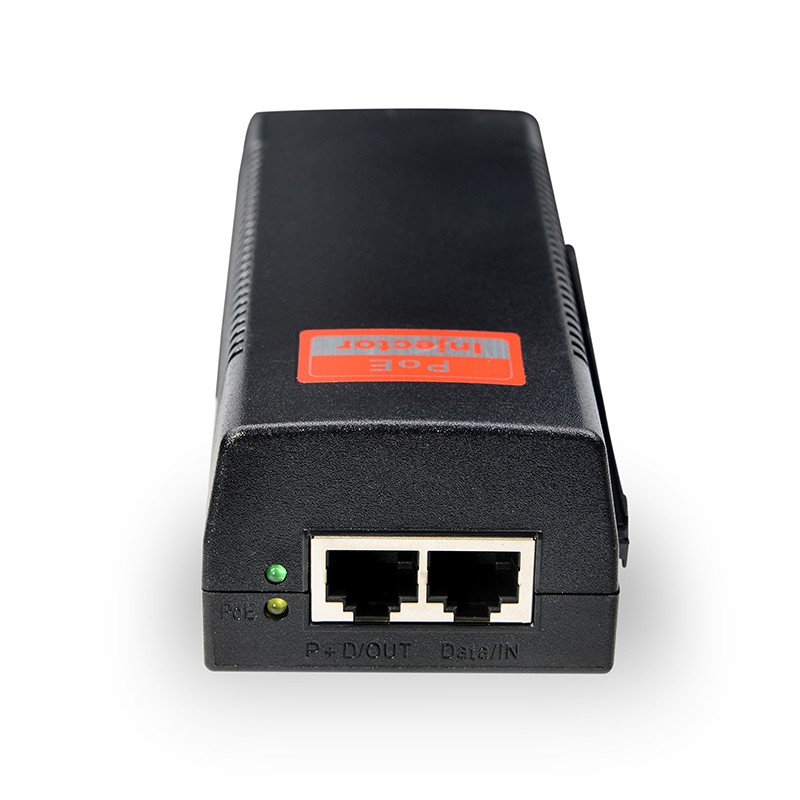

Indicators
AC Power (Orange) Environmental Conditions Operating Temperature: 0~45°C Storage Humidity:
Maximum 95%, Non-condensing
Regulatory
RoHS Compliant, CE/FCC
Safety Approvals : EN 60950:2006
