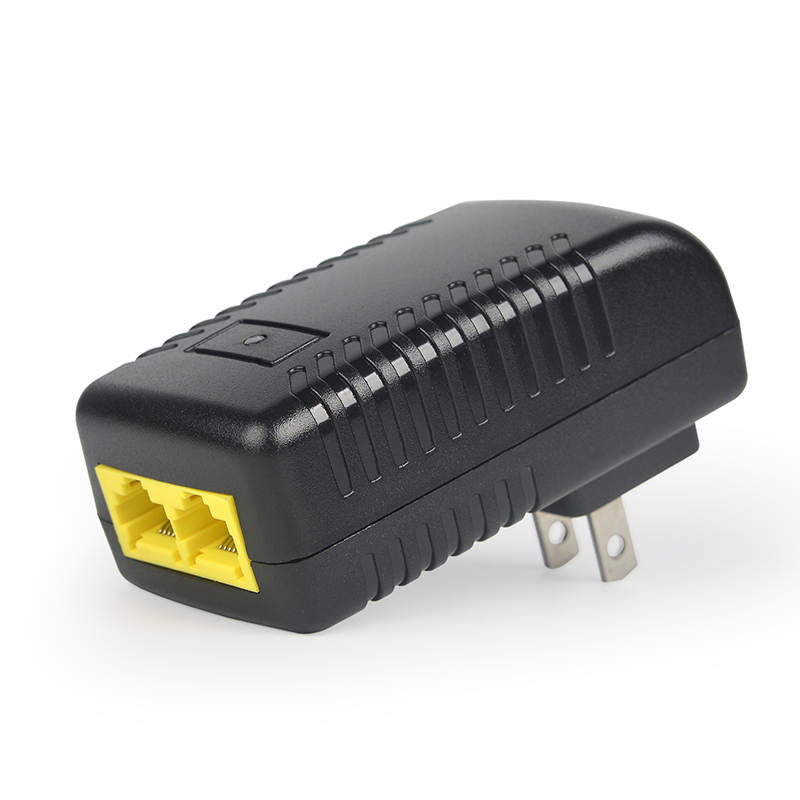

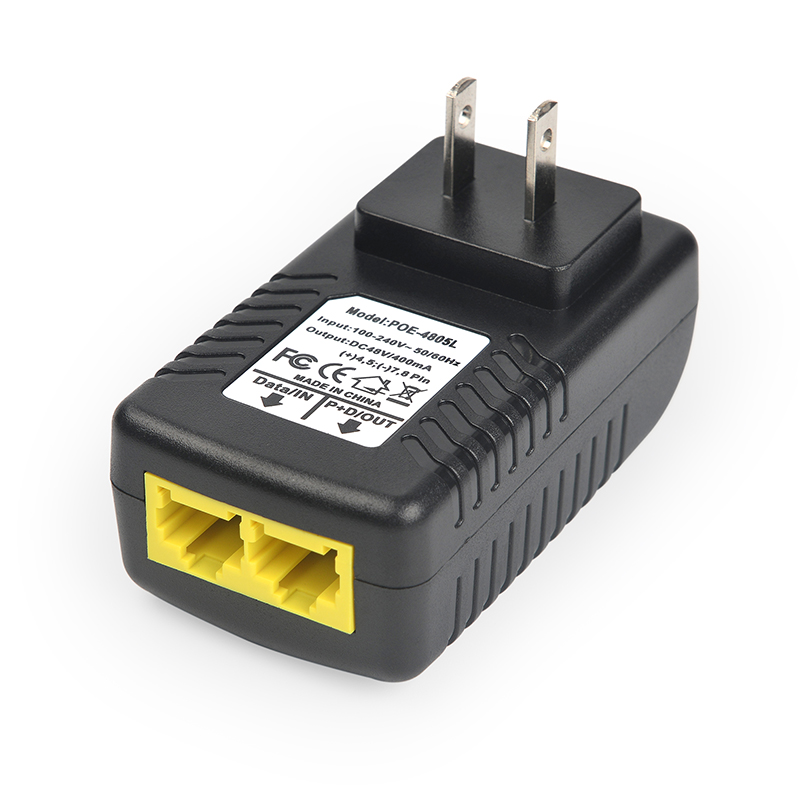

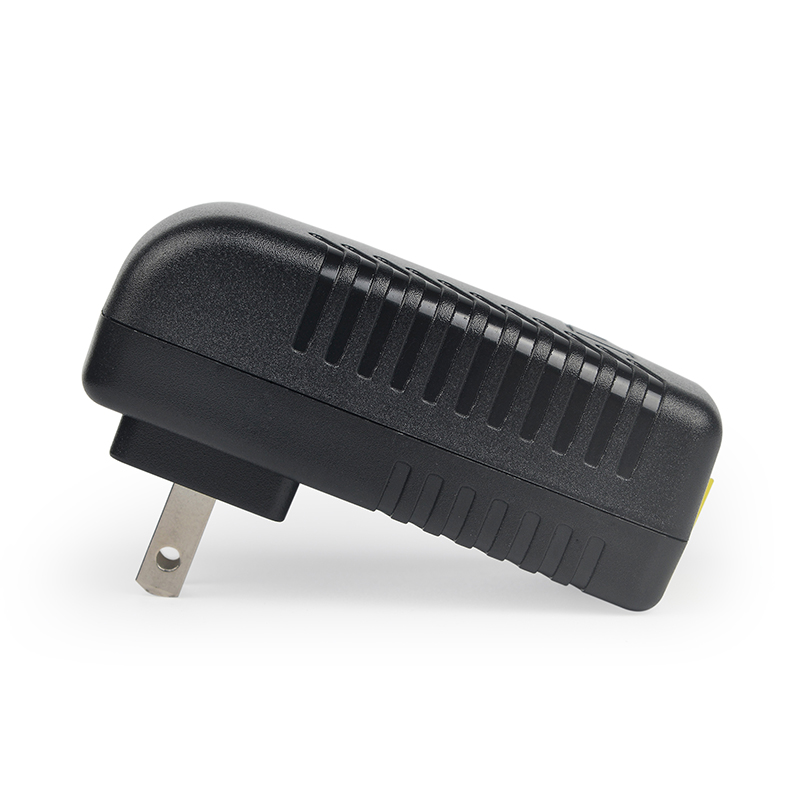

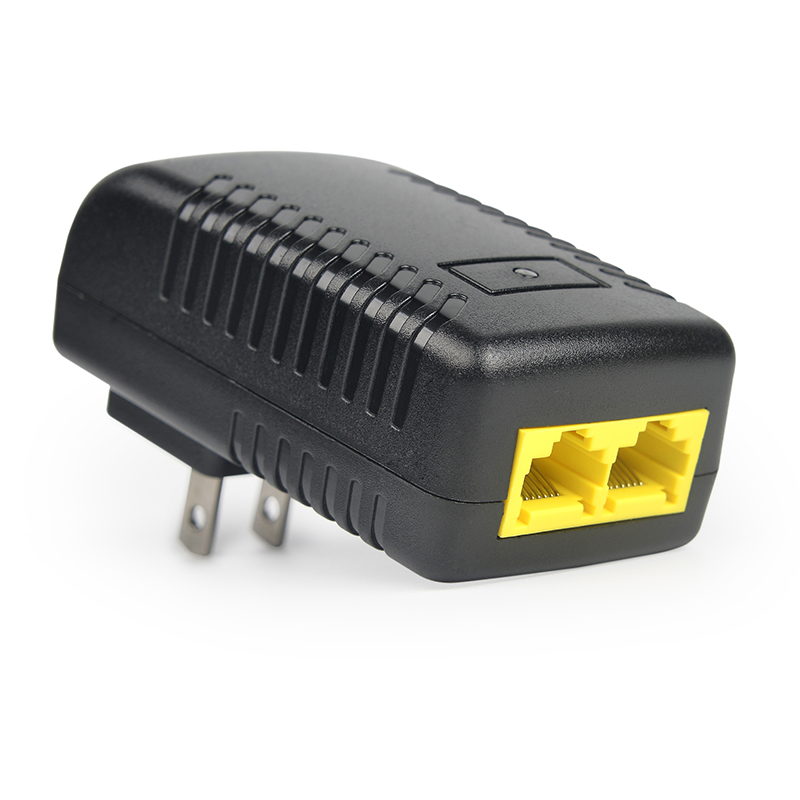

POE4805 US Standard Plug 48V 0.5A PoE Injector
You are here: Home » Products » POE Injector » Passive POE Injector » POE4805 US Standard Plug 48V 0.5A PoE Injector
POE4805 US Standard Plug 48V 0.5A PoE Injector
POE4805 US Standard Plug 48V 0.5A PoE Injector POE4805 US Standard Plug 48V 0.5A PoE Injector
POE4805 Passive 48V 0.5A high working efficiency of 90-264VAC wide voltage input PoE Injector with high quality POE4805 Passive 48V 0.5A high working efficiency of 90-264VAC wide voltage input PoE Injector with high quality
POE4805 Passive 48V 0.5A high working efficiency of 90-264VAC wide voltage input PoE Injector with high quality POE4805 Passive 48V 0.5A high working efficiency of 90-264VAC wide voltage input PoE Injector with high quality
POE4805 Passive 48V 0.5A high working efficiency of 90-264VAC wide voltage input PoE Injector with high quality POE4805 Passive 48V 0.5A high working efficiency of 90-264VAC wide voltage input PoE Injector with high quality
POE4805 Passive 48V 0.5A high working efficiency of 90-264VAC wide voltage input PoE Injector with high quality POE4805 Passive 48V 0.5A high working efficiency of 90-264VAC wide voltage input PoE Injector with high quality

loading

POE4805 US Standard Plug 48V 0.5A PoE Injector

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

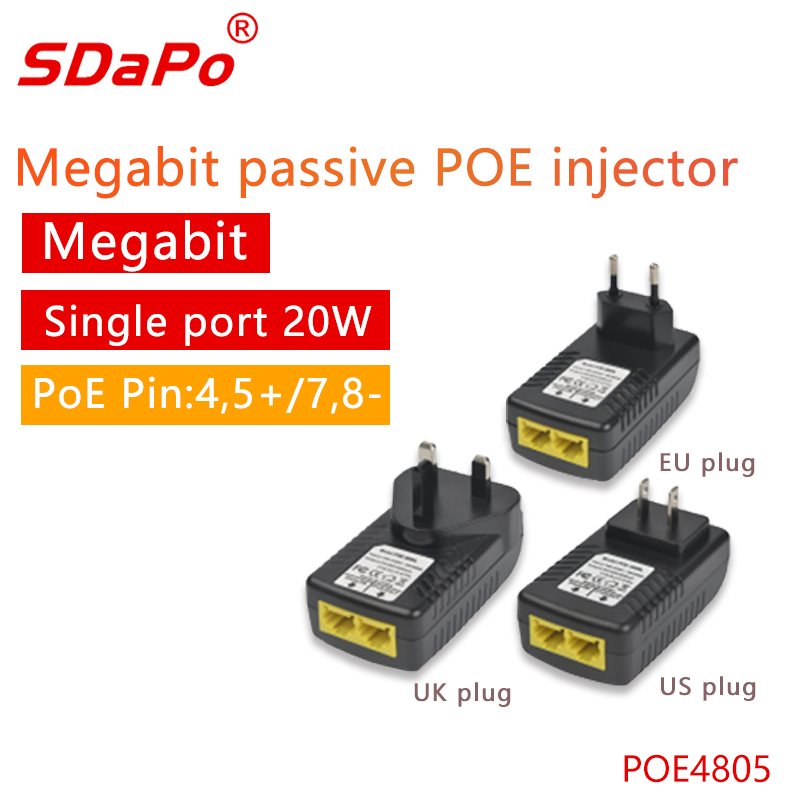

1) Passive 48V 0.5A
2) PoE :4,5+/7,8-
3) Power: 20 WattsMaximum
4) Input Power AC Input Voltage: 100~240VAC
5) Weight:85g
6) Size:83*47*53.5mm
7) 10/100 Mbps one port
8) US plug

  • POE4805 US Standard

  • SDaPo

Availability:
Quantity:
Inquire Add to Basket

Product Selection Table

 D (2) BLA_0896 拷贝 PSE30WG-B BLA_0896 拷贝 BLA_0896 拷贝 BLA_1420 拷贝 BLA_0896 拷贝 BLA_0896 拷贝 HWS_0726
Model No. PSE24-30TG PSE30TG/PSE802G
 PSE30WG-B PSE60G/PSE156G PSE90G PSE90BT-10G PSE30/PSE801 PSE30G/PSE801G POE4805
Input Voltage DC10~30V AC100~240V AC100~240V AC100~240V AC100~240V AC100~240V AC100~240V AC100~240V AC100~240V
Transfer Rate 100/1000/2500Mbps 100/1000/2500Mbps 100/1000/2500Mbps 100/1000Mbps 100/1000Mbps 1/2.5/5/10G 100Mbps 100/1000Mbps 100Mbps
PoE Protocol IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3at 4Pair IEEE802.3af/at/bt IEEE802.3af/at/bt Passive PoE 48V Passive PoE 48V Passive PoE 48V
Power 30W 30W 30W 60W 90W 90W 30W 30W 20W

Product Selection Table

Model No.Input Voltage
Network Transfer Rate
PoE Standard
Power

PSE24-30TG

DC10~30V100/1000/2500MbpsIEEE802.3af/at30W
PSE30TG/PSE802GAC100~240V100/1000/2500MbpsIEEE802.3af/at30W
PSE60G/PSE156GAC100~240V100/1000MbpsIEEE802.3at 4Pair60W
PSE90GAC100~240V100/1000MbpsIEEE802.3af/at/bt90W
PSE90BT-10GAC100~240V1/2.5/5/10GIEEE802.3af/at/bt90W
PSE30WG-BAC100~240V1/2.5GIEEE802.3af/at30W
PSE30/PSE801AC100~240V100MbpsPassive PoE 48V30W
PSE30G/PSE801GAC100~240V100/1000MbpsPassive PoE 48V30W
POE4805AC100~240V100MbpsPassive PoE 48V20W


Product Description

POE4805 Passive 48V 0.5A high working efficiency of 90-264VAC wide voltage input PoE Injector with high quality

This product is a special injector designed for network communication equipment; small output ripple, high working efficiency of 90-264VAC wide voltage input; small size, stable operation, high reliability, etc .; with output overcurrent, overpower, short circuit protection, etc Features.


1.1

Input characteristics

Serial number

Item

skills requirement

Unit

Remark

1.1.1

Rated input voltage

100-240

Vac


1.1.2

PF value

/


Full load

1.1.3

Input voltage range

90-264

Vac

frequency:47-63Hz

1.1.4

Starting inrush current

≤5

A

Vin=115/230Vac,Cold state

1.1.5

Input current

≤0.4

A

Vin=115/230Vac

1.1.6

Efficiency (typical)

90%


Vin=230vac,Full load

1.1.7

Standby power consumption

≤0.5

W

No-load power consumption

1.2

Output characteristics

Serial number

Item

skills requirement

Unit

Remark

1.2.1

Output rated voltage

48

Vdc


1.2.2

Output voltage range

48.5-49.6

Vdc


1.2.3

Output rated current

0.5

A


1.2.4

Output minimum current

0

A


1.2.5

Peak output current

0.65

A


1.2.6

Load Regulation

±3%



1.2.7

Linear adjustment

±1%



1.2.8

Output start / rise time

Start time≤3s,Rise Time 50ms



1.2.9

Hold time

16ms(230Vac)/16ms(115Vac)


Full load</s
