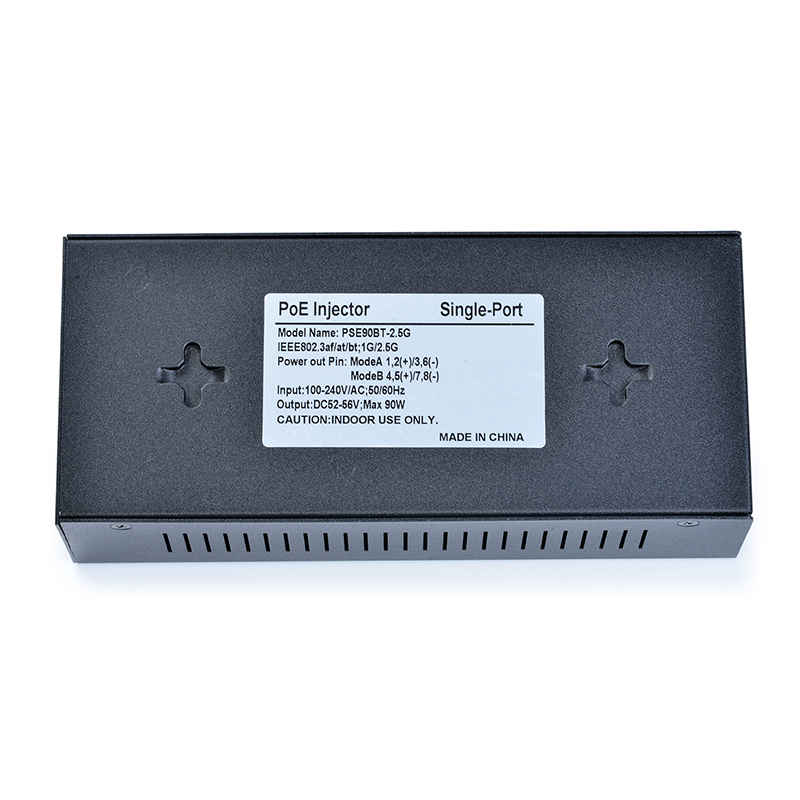

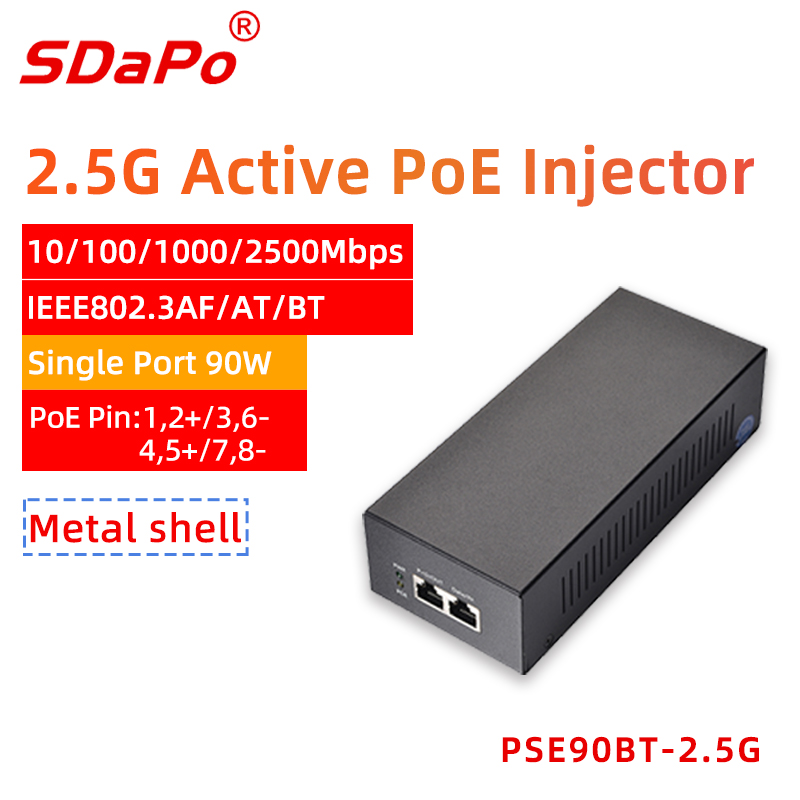

Upgrade your network infrastructure with the PSE90BT-2.5G PoE++ 2.5Gbps Single Port 90W PoE Active Injector, meticulously engineered to solve the most demanding power and data delivery challenges. When you handle this device, the cool, solid weight of its premium metal housing immediately communicates industrial-grade durability and expert craftsmanship. It operates completely silently, eliminating the distracting hum often associated with high-power networking equipment, ensuring a quiet environment for server rooms, office spaces, and broadcast studios alike.
By combining a massive 90-watt power output with lightning-fast 2.5Gbps data transmission, this injector eliminates the need for separate electrical power supplies near your end devices. This translates to significantly reduced installation times and lower labor costs for large-scale facility deployments. The sleek, compact footprint allows it to slide effortlessly into tight enclosures, while the precision-engineered RJ45 ports offer a satisfying, secure click when cables are connected, guaranteeing a stable physical link. Whether you are upgrading an entire campus network or outfitting a new commercial facility, this injector provides the reliable, continuous performance required to keep critical systems running without interruption.
Deploying advanced networking equipment requires infrastructure that can handle intense electrical and data demands without faltering. The PSE90BT-2.5G PoE++ Injector is meticulously designed to provide exactly that, offering a suite of features that streamline installation and maximize operational uptime.
l IEEE802.3af/at/bt Compliant
l PoE Pin:1,2+/3,6-;4,5+/7,8-
l Power:90 Watts
l Input Voltage: 100~240VAC
l Output Voltage: 54VDC~57VDC
l Support 10/100/1000/2500Mbps
l PoE data & power transmission distance 100meter
l Full Over-Voltage and Over-Current Protection;
l Compact size
l Metel housing
- Length : 172.0mm(6.77inch)
- Width : 76.0mm(2.99inch)
- Height : 44.0mm(1.73inch)
- Weight : 660g(23.28oz)
Output
Model | Data speed | DC output voltage | Load | Regulation | ||
Min. | Max. | Line | Load | |||
PSE90G-2.5G | 10/100/1000/2500Mbps | 54V~57V | 10mA | 1.73A | 54V~57V | |
Navigating international trade and project compliance requires hardware that meets the highest global standards. This PoE++ injector is backed by a comprehensive suite of authoritative certifications, ensuring smooth procurement and deployment.
FCC SDOC Certified: Guarantees compliance with North American electromagnetic interference standards, ensuring the device will not disrupt other critical wireless communications.
CE EMC Approval: Meets strict European Union directives for electromagnetic compatibility, facilitating seamless integration into EU-based projects and tenders.
RoHS Compliant: Manufactured without hazardous materials, aligning with modern environmental sustainability goals and corporate social responsibility mandates.
CB Scheme Verified: Provides a globally recognized foundation for safety, drastically simplifying the process of obtaining local certifications in various international markets.
Frictionless Importation: With all major test reports readily available, procurement teams can clear customs rapidly and avoid costly project delays.
The true value of a high-power PoE injector lies in its ability to adapt to a wide array of technological ecosystems. The PSE90BT-2.5G is engineered to be the versatile backbone for numerous modern applications.
- IP Telephones
- Wireless Access Points
- Bluetooth Access Points
- Security Cameras
- IP Point Servers
- WiMAX Access Points
To assist your engineering and procurement teams in their evaluation process, we have compiled answers to the most common technical inquiries regarding this high-power injector.
The PSE90BT-2.5G features an intelligent active detection mechanism. Before sending any power, it communicates with the connected device to verify its PoE compatibility and power class. If a non-PoE device is detected, it will only pass data, completely protecting your legacy equipment from electrical damage.
Yes, it is fully backward compatible. The active handshake protocol ensures that the injector will automatically scale down its power output to safely match the exact requirements of older 15.4W (af) or 30W (at) devices without any manual configuration.
The heavy-duty metal housing serves a dual purpose: it provides superior protection against physical impacts in industrial settings and acts as a highly efficient passive heatsink. This allows the unit to operate reliably under full 90W loads without requiring noisy, failure-prone internal cooling fans.
Absolutely. Provided you utilize high-quality Cat5e, Cat6, or Cat6a copper cabling, the injector is engineered to maintain full 2.5Gbps data integrity and 90W power delivery simultaneously up to the maximum standard distance of 100 meters.
The unit features a compact, standalone design ideal for desktop or shelf placement. For structured deployments, its standardized dimensions allow it to fit seamlessly into universal PoE injector rack-mount trays, which are readily available for organizing multiple units in a standard 19-inch rack.
