Have you ever wondered how devices without direct power sources stay functional? Enter the PoE injector, a game-changer in networking. This device simplifies power delivery to low-power devices, especially in hard-to-reach areas.
In this article, we’ll explore what a PoE injector is, its purpose, and why it’s essential for modern networking. You’ll learn about the benefits it offers, including cost-effectiveness and ease of installation.
Power Over Ethernet (PoE) is a technology that allows electrical power to be transmitted alongside data through standard Ethernet cables. This innovative solution eliminates the need for separate power cables, making installations simpler and more cost-effective. By using PoE, devices can receive both power and data over a single cable, streamlining setup in various environments.
PoE technology operates by utilizing existing network infrastructure. It sends power through specific pins in the Ethernet cable while data travels through the others. The typical voltage delivered is around 48V DC, which is sufficient for many low-power devices.
Here’s a quick overview of the different PoE standards:
Standard | Power Output | Data Rate | Common Uses |
IEEE 802.3af | 15.4W | 10/100 Mbps | IP cameras, VoIP phones |
IEEE 802.3at | 30W | 10/100/1000 Mbps | Wireless access points, PTZ cameras |
IEEE 802.3bt | 60W-100W | 10/100/1000 Mbps | High-power devices, advanced lighting |
PoE technology is widely used in various applications, particularly where installing separate power sources is impractical.
One notable manufacturer in this field is SDAPO Communication Co., Ltd. They specialize in PoE injectors and related products, providing reliable solutions for powering devices efficiently. Their injectors are designed to meet various standards, ensuring compatibility with a wide range of equipment.
By leveraging PoE technology, businesses can enhance their networking capabilities while reducing installation costs and complexity. This makes PoE injectors a valuable asset in modern technology infrastructures.
A PoE injector plays a critical role in powering devices over Ethernet cables. It combines data and electrical power into one cable, allowing devices like IP cameras and VoIP phones to function without separate power sources. Here’s how the power injection process works:
1. Connecting to Power: The injector is plugged into a standard AC power outlet, receiving the necessary electricity.
2. Data Input: An Ethernet cable connects the data source, such as a network switch, to the injector's Data In port.
3. Power Injection: The injector combines the incoming data signal with electrical power and sends this mixture through the Ethernet cable to the powered device.
The process is efficient, ensuring that devices receive both data and power seamlessly.
In an Ethernet cable, specific pins are designated for power transmission, while others carry data. This separation minimizes interference, ensuring reliable communication.
For example, in passive PoE models, power typically flows through pins 4, 5, 7, and 8, while the data travels through pins 1, 2, 3, and 6. This arrangement allows devices to operate effectively without sacrificing data integrity.
Understanding the components of a PoE injector helps clarify its operation. Here are the key parts:
● Transformer: This component converts AC voltage from the power outlet into a suitable DC voltage for the powered device. It ensures the output voltage matches the requirements, usually around 48V DC.
● Rectifier: The rectifier plays a crucial role in converting the AC power into DC power. This conversion is essential for the proper functioning of PoE devices.
The PoE injector features several important ports:
Port Name | Function |
Data In | Connects to the network switch or router, receiving data. |
PoE/Data Out | Delivers combined power and data to the powered device. |
By understanding these components and their functions, users can appreciate how PoE injectors streamline the installation of network devices. Companies like SDAPO Communication Co., Ltd. manufacture reliable PoE injectors, ensuring compatibility with various devices and standards. Their products are designed for efficiency, making them a popular choice in the industry.
A PoE injector primarily draws power from standard AC outlets. These injectors are designed to work with a voltage range of 100 to 240 VAC, making them compatible with global power standards. This versatility allows users to deploy PoE technology in various locations without worrying about power supply issues.
In some cases, you might encounter DC-powered models, such as the PSE24-30TG from SDAPO Communication Co., Ltd. These models are particularly useful in environments where AC power is not readily available, providing flexibility for different installation scenarios.
Once the injector receives power, it must convert AC to DC. This conversion is crucial for powering devices like IP cameras or VoIP phones. The typical output voltage is around 48V DC, which is ideal for most low-power devices.

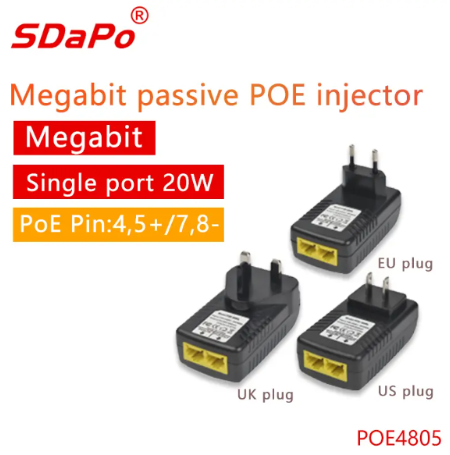

Voltage regulation is essential in this process to ensure that the output remains stable. For example, the SDAPO POE4805 model achieves an impressive 90% efficiency at full load, meaning it effectively delivers power while minimizing energy waste. This efficiency is vital for both performance and cost savings in long-term operations.
The power delivery mechanism in a PoE injector involves specific pin assignments for transmitting power through the Ethernet cable. For passive PoE models, power typically flows through Pins 4 and 5 for positive voltage, while Pins 7 and 8 handle the negative voltage.
Pin Assignment | Function |
Pins 4, 5 | Positive power (+) |
Pins 7, 8 | Negative power (-) |
In contrast, active PoE injectors, like the PSE30WG-B, can communicate with powered devices to ensure compatibility. This communication allows them to adjust power levels dynamically based on the device's needs. On the other hand, passive models like the POE4805 deliver a fixed amount of power regardless of the device's requirements, making them simpler but less adaptable.
Understanding these components and processes helps clarify how PoE injectors function effectively in various networking environments. By leveraging products from manufacturers like SDAPO, users can ensure they have reliable solutions to power their devices efficiently.
PoE injectors come equipped with advanced detection mechanisms to ensure compatibility with various devices. These injectors identify powered devices according to IEEE standards, which helps them determine if a device can safely receive power. This recognition is crucial; it prevents damage to both the injector and the connected device.
When a PoE injector powers up, it sends a small voltage signal through the Ethernet cable. If the connected device responds appropriately, the injector knows it can provide power. This process protects devices from receiving power they cannot handle, ensuring a safe and reliable operation.
In addition to detection, PoE injectors incorporate several protection mechanisms to safeguard both the equipment and users. Here are some key features:
● Overcurrent Protection: This feature prevents excessive current from flowing to the device, which could cause overheating or damage.
● Overpower Protection: It ensures that the injector does not supply more power than the device can handle, maintaining safe operating conditions.
● Short-Circuit Protection: In the event of a short circuit, this mechanism immediately cuts off power, preventing potential hazards.
Many models, such as SDAPO’s PSE30 and PSE801, also include additional safety features like surge protection and overheat protection. These enhancements provide an extra layer of security, ensuring that the injector operates reliably even in challenging conditions.
Protection Type | Description |
Overcurrent | Prevents excessive current flow |
Overpower | Limits power supply to safe levels |
Short-Circuit | Cuts off power in case of a short circuit |
Surge Protection | Guards against voltage spikes |
Overheat Protection | Shuts down the injector if it overheats |
By incorporating these safety features, PoE injectors not only enhance the reliability of network installations but also extend the lifespan of connected devices. This focus on safety is essential for businesses looking to implement robust networking solutions.
One of the standout benefits of using a PoE injector is the simplification of installation processes. By combining power and data transmission into a single Ethernet cable, PoE injectors significantly reduce cable clutter. This is particularly advantageous in environments where space is limited or where multiple devices need to be connected.
For instance, in challenging environments like warehouses or outdoor settings, running separate power lines can be cumbersome and costly. PoE injectors allow for a cleaner setup, making it easier to install devices like IP cameras or VoIP phones without the hassle of additional wiring.
PoE injectors offer remarkable flexibility and scalability, adapting to various environments and device requirements. Whether you're deploying devices in an office, a retail space, or an industrial site, PoE injectors can accommodate different power needs.
SDAPO Communication Co., Ltd. provides a range of PoE injectors designed for diverse applications. Their products can power everything from basic IP cameras to more demanding devices, ensuring that users can scale their networks as needed without overhauling existing infrastructure.
When comparing PoE injectors to traditional power solutions, the cost-effectiveness becomes evident. Traditional setups often require extensive electrical work, which can be both time-consuming and expensive. In contrast, PoE injectors streamline the process, leading to significant long-term savings.
Cost Comparison | Traditional Power Solutions | PoE Injectors |
Installation Cost | Higher due to wiring | Lower, less wiring |
Maintenance Cost | Ongoing electrical checks | Minimal maintenance |
Equipment Cost | Additional power supplies | Fewer components needed |
By reducing installation and maintenance costs, PoE injectors not only save money but also enhance the overall efficiency of network systems. This makes them an attractive option for businesses looking to optimize their operations while managing expenses effectively.
A: PoE injectors can power a variety of devices, including IP cameras, VoIP phones, and wireless access points.
A: Choose a PoE injector based on power requirements, device compatibility, and the specific IEEE standard supported.
A: Yes, using SDAPO PoE splitters allows non-PoE devices to connect and receive power.
A: Limitations include power output restrictions and distance constraints, typically up to 100 meters for effective operation.
A: There are active and passive PoE injectors. Active injectors negotiate power delivery, while passive injectors provide a fixed output, suitable for different device needs.
A PoE injector gets power from standard AC outlets, converting it for network devices. This process simplifies installations and reduces cable clutter.
PoE technology is vital for modern networking, enabling efficient power and data transmission.
Consider using PoE injectors, particularly from trusted manufacturers like SDAPO, to enhance your networking solutions.
