Have you ever wondered how to streamline your network setup while reducing clutter? Power over Ethernet (PoE) technology offers the perfect solution by combining power and data transmission into a single Ethernet cable. This technology is revolutionizing the way devices like VoIP phones, smart lighting, and IoT devices are installed.
In this article, we’ll explore the fundamentals of PoE cables and how to run them efficiently for a seamless setup. You’ll learn best practices, tips, and troubleshooting advice to ensure a smooth installation, optimizing both power delivery and data flow.
Mapping your cable path is one of the first steps in a successful PoE installation. The route you choose should minimize physical obstacles, avoid sources of electromagnetic interference, and keep the cable as short as possible to maintain performance.
Tip: In multi-floor buildings, running cables through walls or ceilings is often the most efficient approach. Use existing cable pathways or ducts to minimize additional work.
Choosing the right Ethernet cable is crucial for ensuring reliable PoE performance. The most common Ethernet cables used for PoE installations include Cat5e, Cat6, and Cat6a. Each of these cable types is capable of supporting PoE, but there are differences in their capabilities.
Cable Type | Maximum Bandwidth | PoE Compatibility | Recommended Use |
Cat5e | 100 MHz | PoE/PoE+ | Basic installations |
Cat6 | 250 MHz | PoE++ | Higher bandwidth and more power |
Cat6a | 500 MHz | PoE++ | High-performance installations with high power needs |
Sdapo, a leading manufacturer of PoE modules, provides PoE solutions that ensure both power and data transmission are handled efficiently. Their products are built with durability and high-performance standards in mind, making them an excellent choice for professional installations.
When choosing cables, always opt for solid copper cables instead of CCA (Copper-Clad Aluminum). Solid copper cables provide better power handling and ensure minimal loss, which is crucial for maintaining device performance, especially when running power-hungry devices.
To ensure a successful PoE installation, it’s essential to use cables that meet the necessary specifications and standards. Ethernet cables are categorized by their performance capabilities, and selecting the appropriate cable is crucial for ensuring that your devices receive sufficient power. While Cat5e cables are the minimum requirement for PoE, Cat6 and Cat6a are better options for higher power and performance needs.
PoE technology is governed by the IEEE standards, which determine the maximum power each cable type can deliver. These standards include:
PoE Standard | Maximum Power per Port | Use Case |
PoE (IEEE 802.3af) | Up to 15.4 watts | Ideal for low-power devices like IoT sensors |
PoE+ (IEEE 802.3at) | Up to 25.5 watts | Suitable for devices like smart building sensors |
PoE++ (IEEE 802.3bt) | Up to 100 watts | Supports high-power devices such as smart lighting |
Sdapo provides reliable PoE solutions that meet these industry standards, ensuring a seamless power supply to your devices while maintaining network stability.
Each PoE standard has different power delivery capacities. For instance:
● IEEE 802.3af (PoE) delivers up to 15.4 watts per port.
● IEEE 802.3at (PoE+) provides up to 25.5 watts per port.
● IEEE 802.3bt (PoE++ or Ultra PoE) can deliver up to 100 watts.
Choosing the right cable helps to maintain efficient power delivery and prevent issues like power loss or overheating, especially with high-power devices.
Tip: When deploying PoE systems, always consider the total power consumption of all connected devices and ensure the cable can handle the necessary load.
Before you start installing PoE cables, it's essential to prepare the installation area. Clear any obstacles and gather the necessary tools, such as fishing rods, fish tape, and cable ties. If you’re installing cables in a ceiling or through walls, make sure you have the right access points to make the process easier.
Using tools like fishing rods or fish tape can make running the cable through walls and ceilings much easier. These tools allow you to guide the cable through tight spaces without damaging the walls or ceiling. Ensure the cable is not pulled too tightly, as this can damage the internal wires.

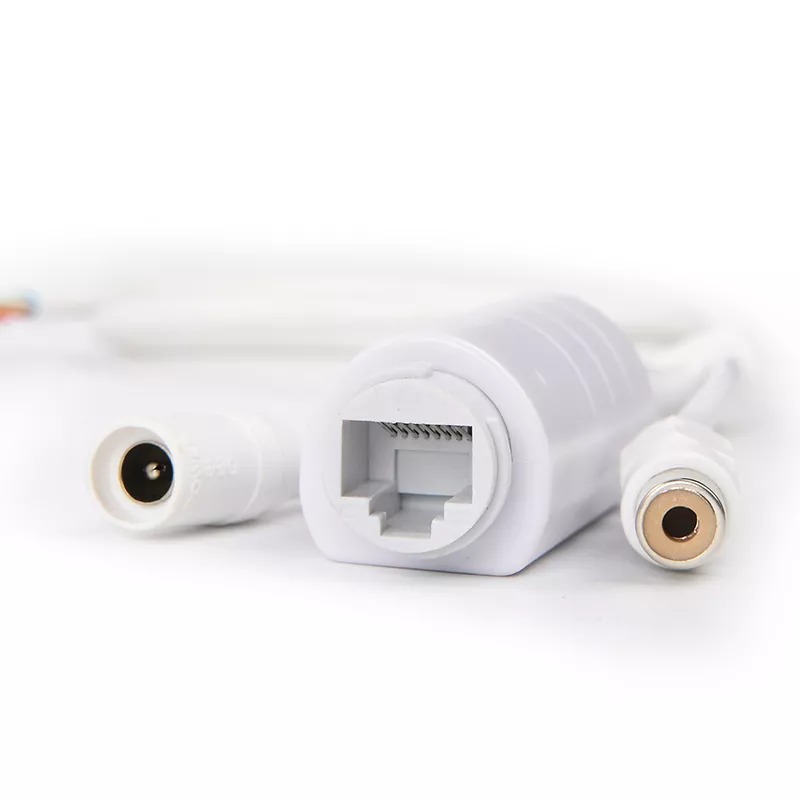

Once the cable is in place, it’s time to connect the PoE cable to a PoE injector or a PoE switch. PoE injectors are used when you have a standard network switch but need to add power, while PoE switches provide both data and power from the same device.
After the power source is connected, plug the other end of the PoE cable into the powered device, such as an IoT sensor, smart light, or any smart building device that supports PoE. Verify the device powers up and connects to the network.
PoE has a maximum cable length of 100 meters (328 feet). Beyond this distance, power delivery may suffer, and devices may not work correctly. Always measure the distance between the PoE source and the device to ensure it falls within this limit.
If your installation requires a cable run longer than 100 meters, PoE extenders can help. These devices amplify the power and data signals, allowing you to extend the reach of your PoE system without sacrificing performance.
Sdapo offers PoE extenders that are designed to maintain high power and data integrity over longer distances, making them ideal for larger installations.
When running PoE cables outside, weatherproofing is crucial. Use UV-rated, outdoor-rated Ethernet cables and waterproof junction boxes to protect the cables from the elements and prevent power loss or cable degradation.
Best Practice | Description |
Cable Length | Maximum length of 100 meters (328 feet). |
PoE Extenders | Amplify signals for runs longer than 100 meters. |
Weatherproofing | Use UV-rated and waterproof materials for outdoor cables. |
PoE cables naturally generate heat as they deliver power to connected devices. It’s important to manage heat dissipation to prevent damage to the cables and to ensure consistent performance. When dealing with high-wattage installations, using shielded cables and ensuring proper airflow can significantly reduce heat buildup, allowing the system to run more efficiently.
Bundling cables can restrict airflow, leading to overheating and reduced performance. If bundling is unavoidable, be sure to space the cables apart to ensure proper ventilation. Using cable trays or velcro ties instead of tight bundles can help maintain optimal airflow and prevent potential issues.
Best Practice | Description |
Managing Heat Dissipation | Use shielded cables and ensure proper airflow. |
Avoiding Bundling | Space cables apart for better heat dissipation. |
If a PoE device isn’t receiving power or data, several factors could be causing the issue. The most common reasons include excessive cable length, loose connections, or damaged wires. It’s important to check these aspects first before considering other potential problems.
A quick inspection of the power source, such as the PoE switch or injector, may also help identify the issue. Ensuring that everything is securely connected and within the appropriate distance can resolve many common problems.
Issue | Possible Cause | Solution |
No Power | Cable length exceeds 100 meters | Ensure the cable length is within limits. |
Poor Data Connection | Loose connections or damaged wires | Check and secure all connections. |
Device Not Powering On | Faulty PoE switch or injector | Inspect the PoE source and connections. |
By troubleshooting the length, connections, and power source, you can quickly resolve issues related to poor performance or no power in your PoE setup.
To verify that your PoE cable is delivering both power and data, use a PoE tester. This device can check the integrity of the connection and confirm that the power is correctly distributed across the cable, ensuring reliable performance, stable connections, and smooth operation for all connected devices.
Proper termination and safety are crucial for a successful PoE installation. Use high-quality RJ45 connectors for secure connections and follow safety guidelines to ensure safe handling of cables. Here are the key points:
● Termination and Connections: Use high-quality RJ45 connectors to prevent data and power loss.
● Safety Considerations: Ensure cables are insulated and follow safety protocols when working with live wires.
These simple steps ensure a stable and safe PoE installation.
Running PoE cables is a simple task with proper planning. Choosing the right cable and mapping the path efficiently are key to a successful installation. Managing cable length and avoiding overheating ensures optimal performance.
Proper PoE cable installation guarantees reliable power and data delivery, reducing the need for extra power outlets. It also allows easy network expansion. Sdapo Communication Co., Ltd offers high-quality PoE solutions, providing reliable power and data transmission for various devices, simplifying installations and supporting business growth.
A: A PoE cable is an Ethernet cable that carries both data and power to devices like VoIP phones, smart lighting, and IoT sensors. It simplifies installations by delivering both power and data over a single cable, eliminating the need for separate power sources.
A: To install a PoE cable, start by mapping the most efficient route for your cable. Use tools like fishing rods for running cables through walls or ceilings. Then, connect the cable to a PoE switch or injector to provide both power and data to the device.
A: Using the right PoE cable, such as Cat6 or Cat6a, ensures reliable power and data transmission. Higher quality cables handle higher power loads and provide faster speeds, minimizing performance issues and maintaining the integrity of your network.
A: The maximum recommended length for a PoE cable is 100 meters (328 feet). Beyond this distance, you may experience power loss or degraded data transmission. For longer runs, use PoE extenders or repeaters to maintain performance.
A: PoE cables reduce installation complexity and costs by eliminating the need for separate power cables and outlets. They provide a streamlined solution for devices in locations without easy access to power, simplifying setup and maintenance.
A: If your PoE device is not powering on, check the cable for damage, ensure it’s within the maximum length, and confirm that the PoE switch or injector is functioning correctly. You can also use a PoE tester to verify that power is being delivered properly.
