Product Selection Table
| Picture |  |  |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|---|---|
| Model No. | P2C5V | GP2C5V | PD2CAT | PD2CAT-20V | GPD2CAT-20V | 2.5GPD2CAT-20V | PD2CBT-20V | GPD2CBT-20V | 2.5GPD2CBT-20V |
| Transfer Rate | 100Mbps | 100/1000Mbps | 100Mbps | 100Mbps | 100/1000Mbps | 100/1000/2500Mbps | 100Mbps | 100/1000Mbps | 100/1000/2500Mbps |
| PoE Protocol | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at/bt | IEEE802.3af/at/bt | IEEE802.3af/at/bt |
| Power | 10W | 10W | 22.5W | 25W | 25W | 25W | 45W | 45W | 45W |
| Application | Mobile Phone | Tablet PC | Laptop (supports USB-C charging) | ||||||
Product Selection Table
| Model No. | Network Transfer Rate | PoE Protocol | USB Protocol | Output Parameter | PoE Power | Application |
|---|---|---|---|---|---|---|
| P2C5V | 100Mbps | IEEE802.3af/at | USB2.0 | 5V2A | 10W | Mobile Phone |
| GP2C5V | 100/1000Mbps | IEEE802.3af/at | USB2.0/3.0 | 5V2A | 10W | Mobile Phone |
| PD2CAT | 100Mbps | IEEE802.3af/at | USB2.0 | 5V3A 9V2.5A 12V1.9A | 22.5W | Tablet PC |
| PD2CAT-20V | 100Mbps | IEEE802.3af/at | USB2.0 | 5V3A 9V2.6A 12V2A 15V1.6A 20V1.25A self-adaptation | 25W | Tablet PC |
| GPD2CAT-20V | 100/1000Mbps | IEEE802.3af/at | USB2.0/3.0 | 5V3A 9V2.6A 12V2A 15V1.6A 20V1.25A self-adaptation | 25W | Tablet PC |
| 2.5GPD2CAT-20V | 100/1000/2500Mbps | IEEE802.3af/at | USB2.0/3.0 | 5V3A 9V2.6A 12V2A 15V1.6A 20V1.25A self-adaptation | 25W | Tablet PC |
| PD2CBT-20V | 100Mbps | IEEE802.3af/at/bt | USB2.0 | 5V3A 9V3A 12V3A 15V3A 20V2.25A self-adaptation | 45W | Laptop (supports USB-C charging) |
| GPD2CBT-20V | 100/1000Mbps | IEEE802.3af/at/bt | USB2.0/3.0 | 5V3A 9V3A 12V3A 15V3A 20V2.25A self-adaptation | 45W | Laptop (supports USB-C charging) |
| 2.5GPD2CBT-20V | 100/1000/2500Mbps | IEEE802.3af/at/bt | USB2.0/3.0 | 5V3A 9V3A 12V3A 15V3A 20V2.25A self-adaptation | 45W | Laptop (supports USB-C charging) |
Product Description

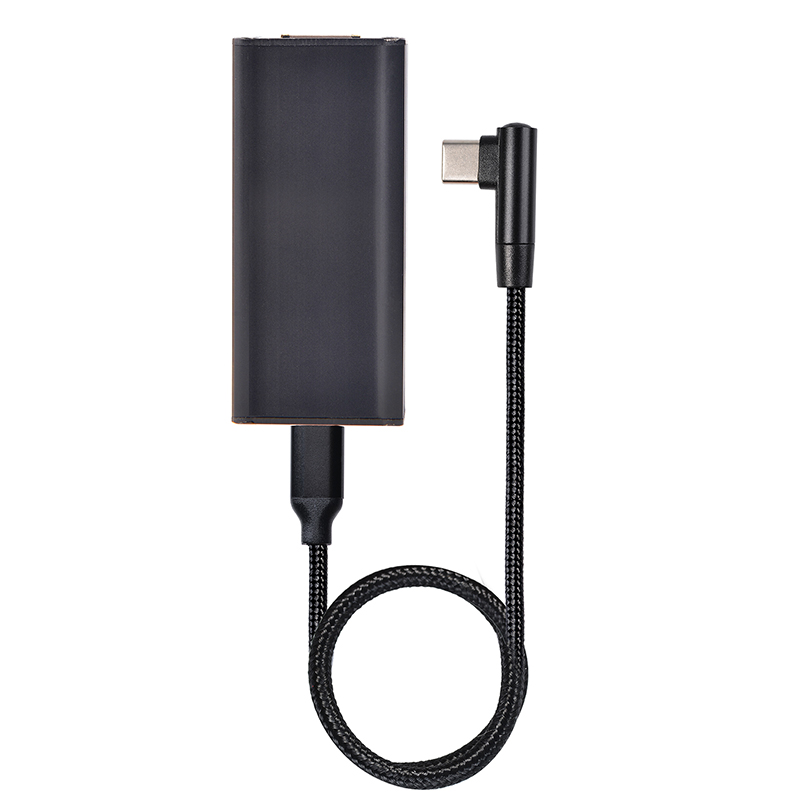

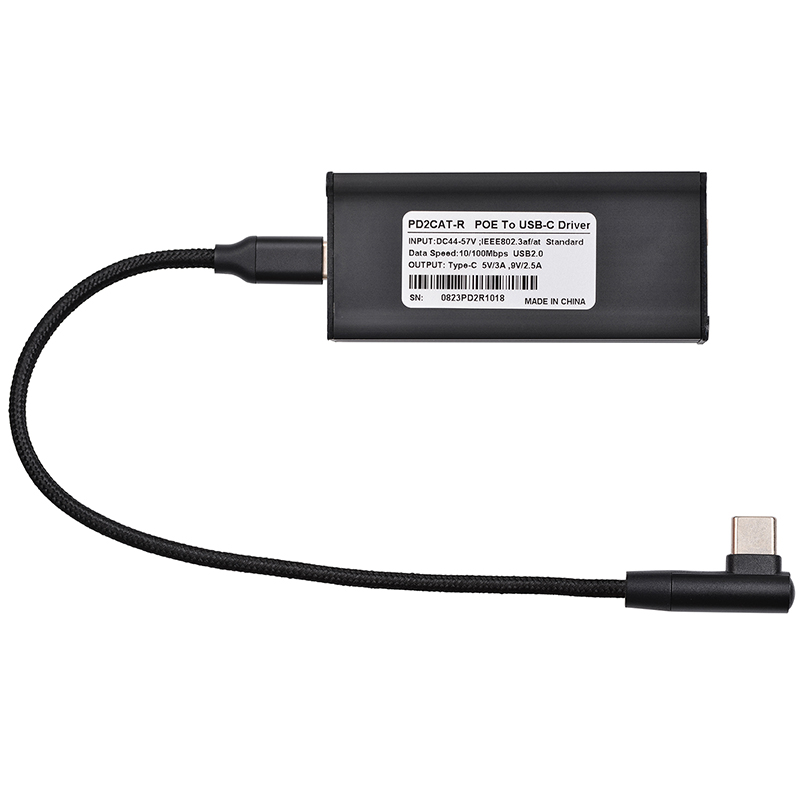

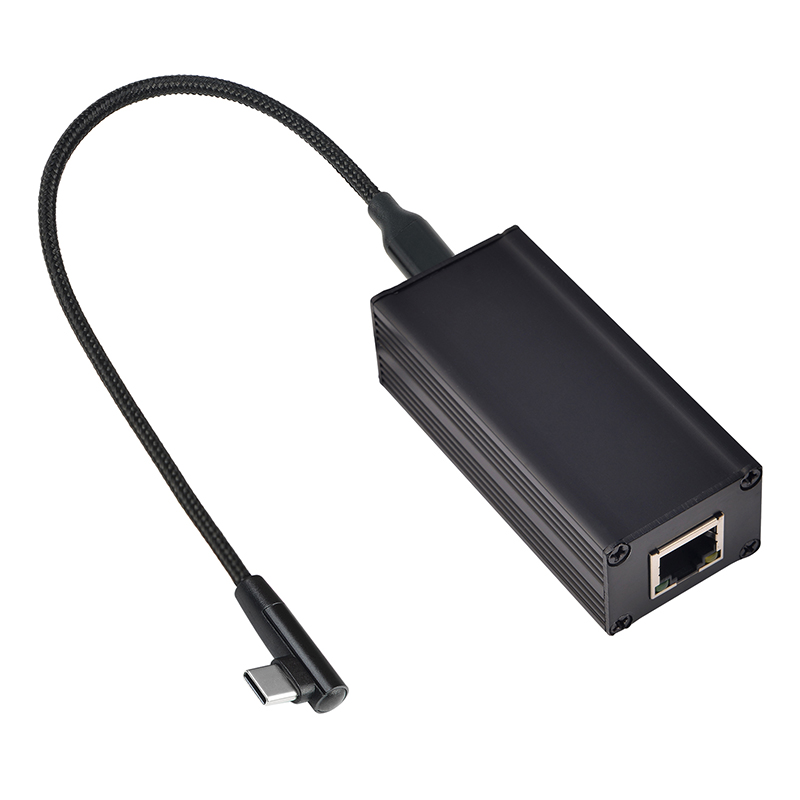

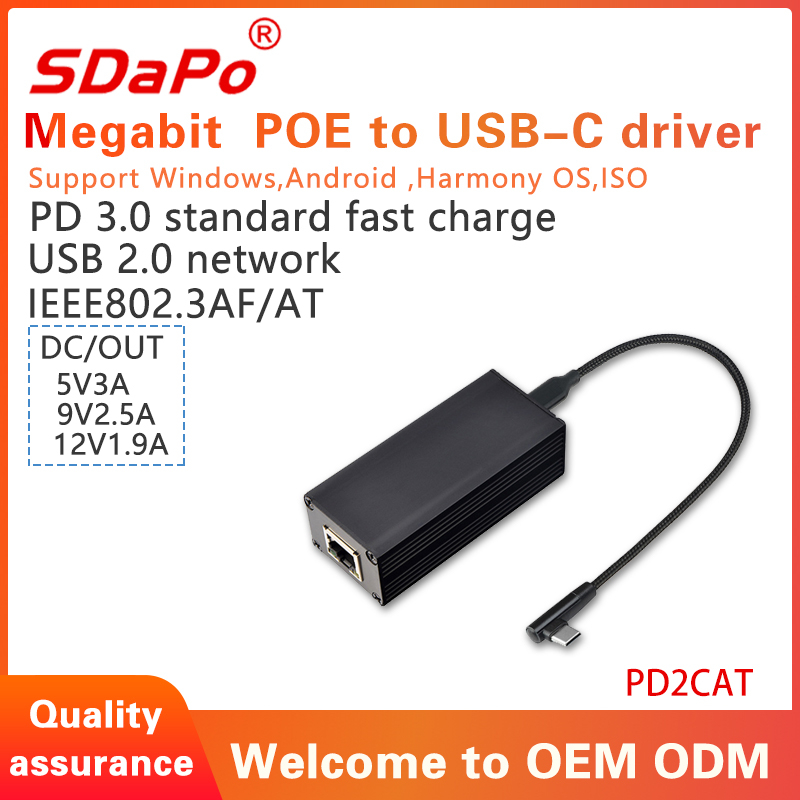

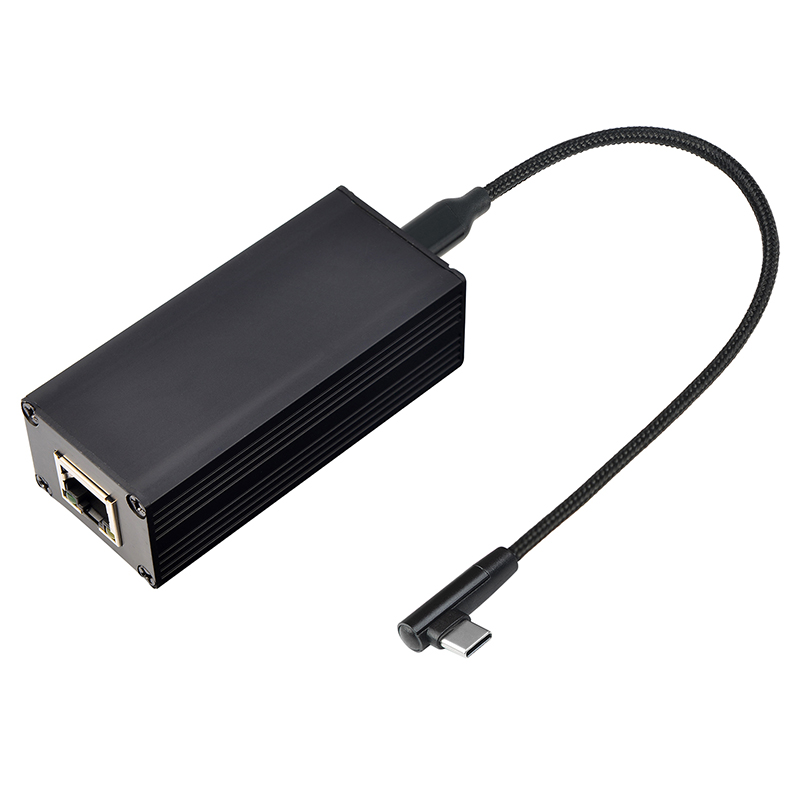

PD2CAT
POE To USB-C Driver
megabit poe network card
Developed by SDAPO POE To USB-C Driver
Applies to TYPEC interface devices with CC feet
PD3.0 standard fast charge
Usb 2.0 network
IEEE802.3af/at poe standard
Output 5V9V self-adaptation
Size:78*25*35mm
Support Android ,Harmony OS,IOS system.can use for Mobile phone The tablet and other devices
Mobile broadband Internet access, faster and more stable than WIFI, while supporting mobile phone charging
Mobile phone/tablet charging while surfing the Internet, wired network card, PD device charging, drive free plug and play
TYPEC mobile phone is connected to the network cable of this device, so the mobile phone can experience the wired broadband, and PD charging will no longer worry about the power shortage
Stable network, ultra-low delay, no delay in live broadcasting, faster and more stable Internet experience, get rid of the trouble of WIFI instability
Compact and portable
