Product Selection Table
| Picture |  |  |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|---|---|
| Model No. | P2C5V | GP2C5V | PD2CAT | PD2CAT-20V | GPD2CAT-20V | 2.5GPD2CAT-20V | PD2CBT-20V | GPD2CBT-20V | 2.5GPD2CBT-20V |
| Transfer Rate | 100Mbps | 100/1000Mbps | 100Mbps | 100Mbps | 100/1000Mbps | 100/1000/2500Mbps | 100Mbps | 100/1000Mbps | 100/1000/2500Mbps |
| PoE Protocol | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at/bt | IEEE802.3af/at/bt | IEEE802.3af/at/bt |
| Power | 10W | 10W | 22.5W | 25W | 25W | 25W | 45W | 45W | 45W |
| Application | Mobile Phone | Tablet PC | Laptop (supports USB-C charging) | ||||||
Product Selection Table
| Model No. | Network Transfer Rate | PoE Protocol | USB Protocol | Output Parameter | PoE Power | Application |
|---|---|---|---|---|---|---|
| P2C5V | 100Mbps | IEEE802.3af/at | USB2.0 | 5V2A | 10W | Mobile Phone |
| GP2C5V | 100/1000Mbps | IEEE802.3af/at | USB2.0/3.0 | 5V2A | 10W | Mobile Phone |
| PD2CAT | 100Mbps | IEEE802.3af/at | USB2.0 | 5V3A 9V2.5A 12V1.9A | 22.5W | Tablet PC |
| PD2CAT-20V | 100Mbps | IEEE802.3af/at | USB2.0 | 5V3A 9V2.6A 12V2A 15V1.6A 20V1.25A self-adaptation | 25W | Tablet PC |
| GPD2CAT-20V | 100/1000Mbps | IEEE802.3af/at | USB2.0/3.0 | 5V3A 9V2.6A 12V2A 15V1.6A 20V1.25A self-adaptation | 25W | Tablet PC |
| 2.5GPD2CAT-20V | 100/1000/2500Mbps | IEEE802.3af/at | USB2.0/3.0 | 5V3A 9V2.6A 12V2A 15V1.6A 20V1.25A self-adaptation | 25W | Tablet PC |
| PD2CBT-20V | 100Mbps | IEEE802.3af/at/bt | USB2.0 | 5V3A 9V3A 12V3A 15V3A 20V2.25A self-adaptation | 45W | Laptop (supports USB-C charging) |
| GPD2CBT-20V | 100/1000Mbps | IEEE802.3af/at/bt | USB2.0/3.0 | 5V3A 9V3A 12V3A 15V3A 20V2.25A self-adaptation | 45W | Laptop (supports USB-C charging) |
| 2.5GPD2CBT-20V | 100/1000/2500Mbps | IEEE802.3af/at/bt | USB2.0/3.0 | 5V3A 9V3A 12V3A 15V3A 20V2.25A self-adaptation | 45W | Laptop (supports USB-C charging) |
Product Description

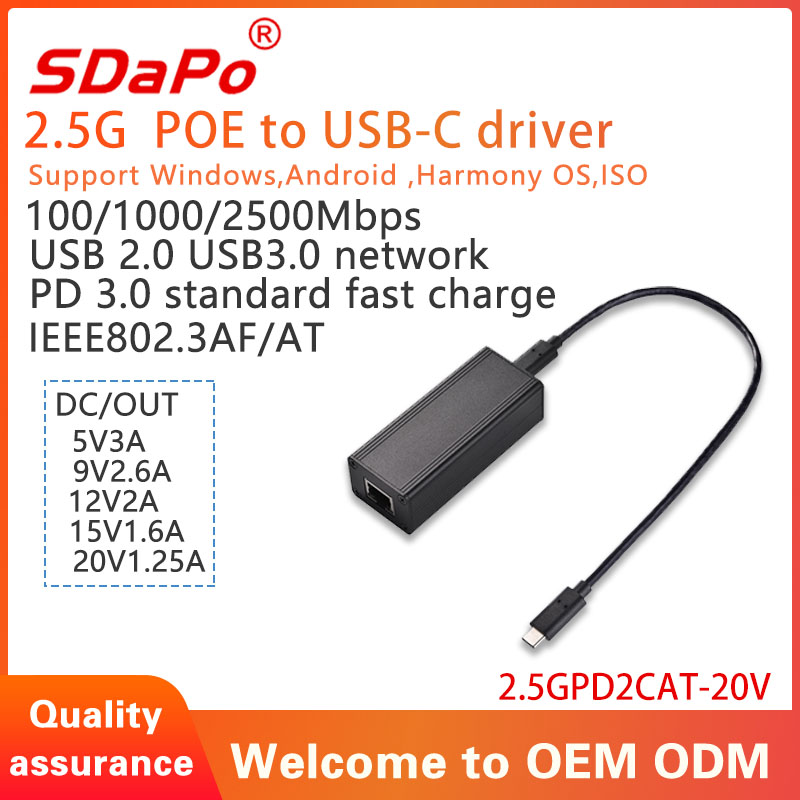

SDAPO 2.5GPD2CAT-20V PoE input voltage 44-57V Gigabit PoE to Type C Adapter Converter gigabit poe to USB-C driverPOE To USB-C Driver Gigabit poe network card Developed by SDAPO POE To USB-C Driver Applies to TYPEC interface devices with CC feet PD3.0 standard fast charge Usb 2.0 USB 3.0 network 2.5G IEEE802.3af/at poe standard Output self-adaptation 5V3A 9V2.6A 12V2A 15V1.6A 20V1.25A Size:78*25*35mm Support Android ,Harmony OS,IOS system.can use for Mobile phone The tablet and other devices Mobile broadband Internet access, faster and more stable than WIFI, while supporting mobile phone charging Mobile phone/tablet charging while surfing the Internet, wired network card, PD device charging, drive free plug and play TYPEC mobile phone is connected to the network cable of this device, so the mobile phone can experience the wired broadband, and PD charging will no longer worry about the power shortage Stable network, ultra-low delay, no delay in live broadcasting, faster and more stable Internet experience, get rid of the trouble of WIFI instability Compact and portable
