P2C5V 100Mbps IEEE802.3af Standard PoE Driver

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

- Megabit PoE to USB-C driver
- IEEE802.3af Standard
- PoE input voltage: 37-57V
- Power supply pins: ModeA or ModeB
- DC/OUT:5V/2A(10W)
- PD 2.0 standard,USB 2.0 network
- Size:: 81*28*24mm
- Support Android ,Harmony OS,IOS,Windows etc. Mobile operating system
- 1500V High voltage isolation
- Straight or bend TYPEC connect can choose

  • P2C5V

  • SDaPo

Interface Type:
Availability:
Quantity:

Product Selection Table

BLA_0091-2-800 BLA_0091-2-800 BLA_0496-2 BLA_0508-2 BLA_0508-2 BLA_4703拷贝 BLA_0496-2 BLA_0508-2 BLA_4703拷贝
Model No. P2C5V GP2C5V PD2CAT PD2CAT-20V GPD2CAT-20V 2.5GPD2CAT-20V PD2CBT-20V GPD2CBT-20V 2.5GPD2CBT-20V
Transfer Rate 100Mbps 100/1000Mbps 100Mbps 100Mbps 100/1000Mbps 100/1000/2500Mbps 100Mbps 100/1000Mbps 100/1000/2500Mbps
PoE Protocol IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at/bt IEEE802.3af/at/bt IEEE802.3af/at/bt
Power 10W 10W
22.5W 25W 25W 25W 45W 45W 45W
Application Mobile Phone Tablet PC
Laptop (supports USB-C charging)


Product Selection Table

Model No.Network Transfer RatePoE Protocol
USB Protocol
Output ParameterPoE Power
Application
P2C5V100MbpsIEEE802.3af/atUSB2.05V2A10WMobile Phone
GP2C5V100/1000MbpsIEEE802.3af/atUSB2.0/3.05V2A10WMobile Phone
PD2CAT100MbpsIEEE802.3af/atUSB2.05V3A 9V2.5A 12V1.9A22.5WTablet PC
PD2CAT-20V100MbpsIEEE802.3af/atUSB2.05V3A 9V2.6A 12V2A 15V1.6A 20V1.25A self-adaptation25WTablet PC
GPD2CAT-20V100/1000MbpsIEEE802.3af/atUSB2.0/3.05V3A 9V2.6A 12V2A 15V1.6A 20V1.25A self-adaptation25WTablet PC
2.5GPD2CAT-20V100/1000/2500MbpsIEEE802.3af/atUSB2.0/3.05V3A 9V2.6A 12V2A 15V1.6A 20V1.25A self-adaptation25WTablet PC
PD2CBT-20V100MbpsIEEE802.3af/at/btUSB2.05V3A 9V3A 12V3A 15V3A 20V2.25A self-adaptation45WLaptop (supports USB-C charging)
GPD2CBT-20V100/1000MbpsIEEE802.3af/at/btUSB2.0/3.05V3A 9V3A 12V3A 15V3A 20V2.25A self-adaptation45WLaptop (supports USB-C charging)
2.5GPD2CBT-20V100/1000/2500MbpsIEEE802.3af/at/btUSB2.0/3.05V3A 9V3A 12V3A 15V3A 20V2.25A self-adaptation45WLaptop (supports USB-C charging)




Product Description

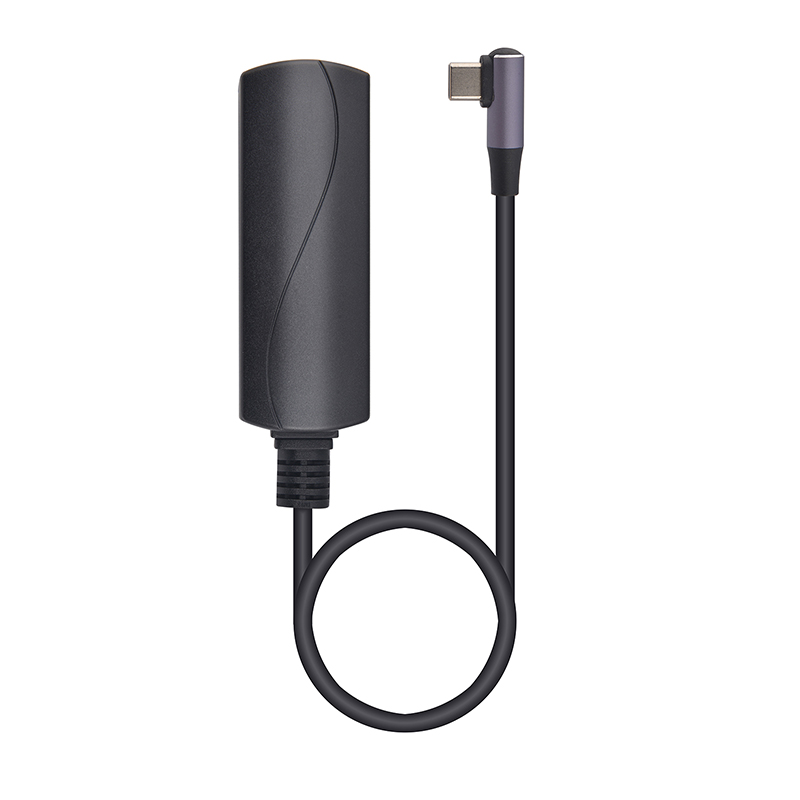

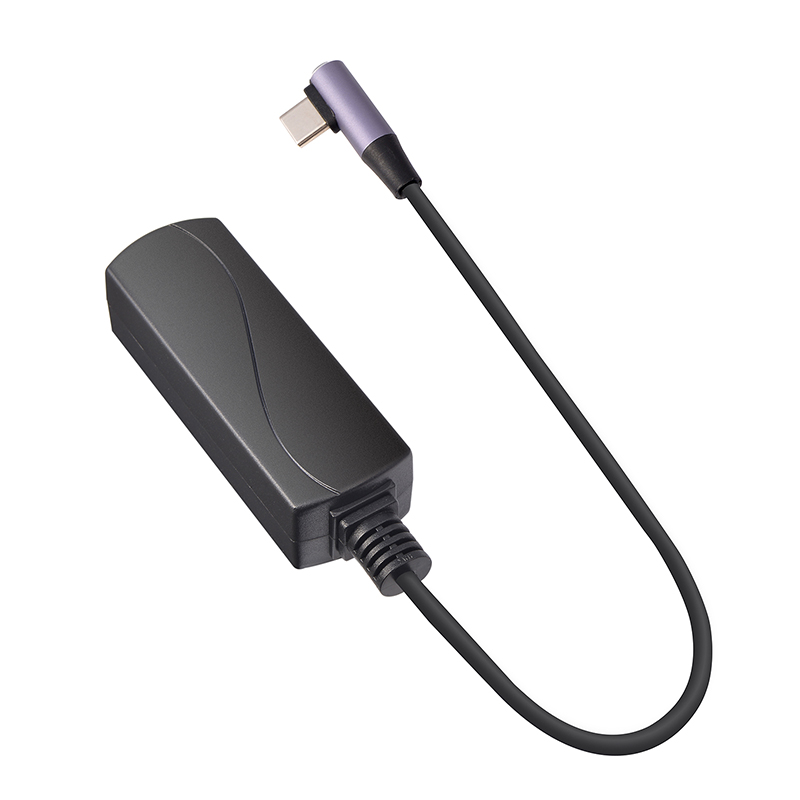

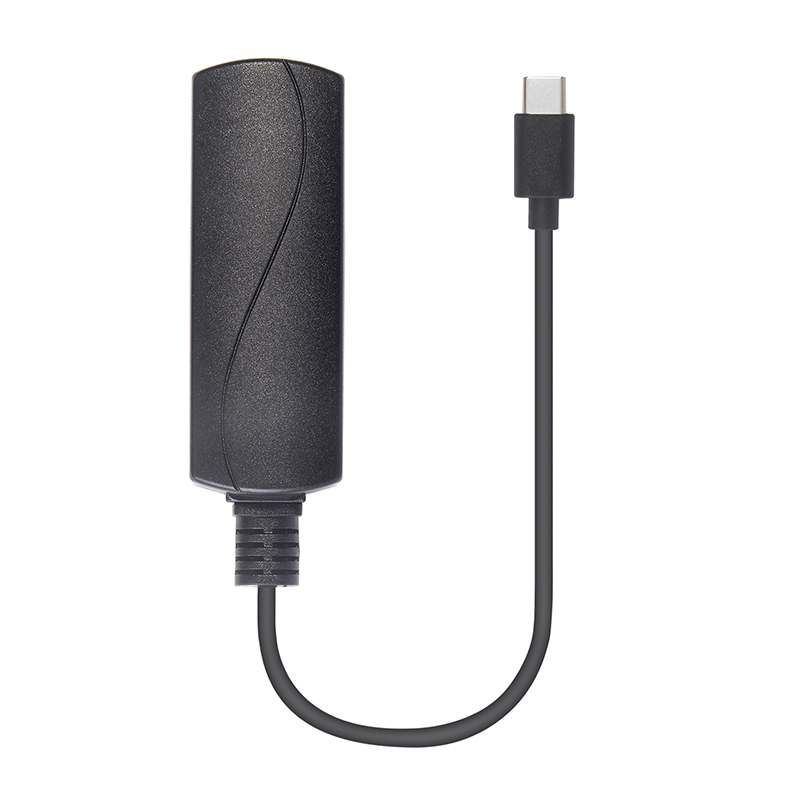

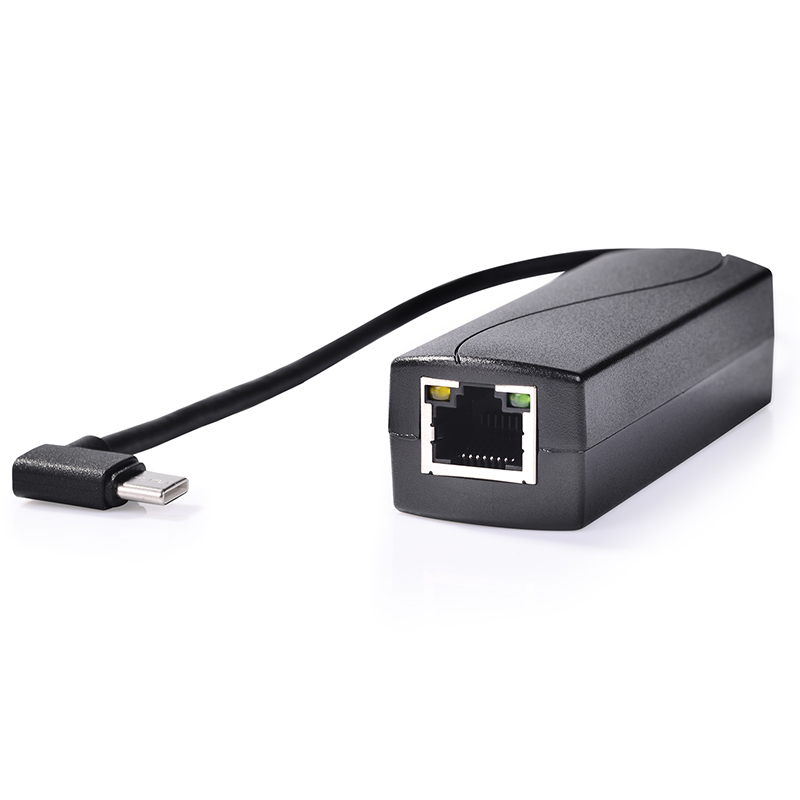

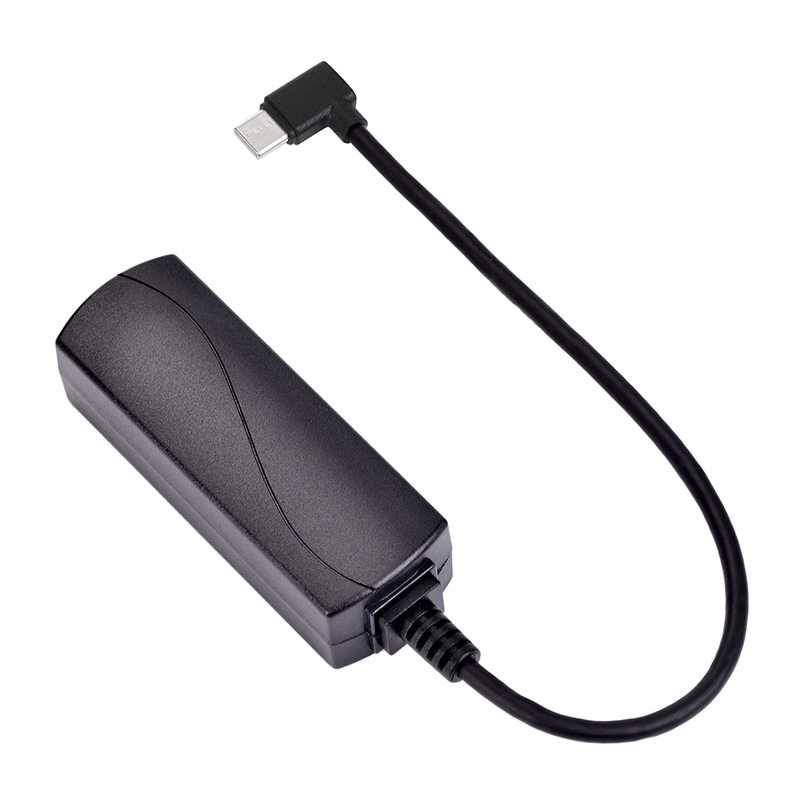

Bend TYPEC or straight TYPEC can choose

P2C5V
POE To USB-C Driver
Developed by SDAPO POE To USB-C Driver
Applies to TYPEC interface devices with CC feet
PD2.0 standard
Usb 2.0 network
IEEE802.3af poe standard
Output 5V2.4A
Support Android ,Harmony OS,IOS system.can use for Mobile phone The tablet and other devices
Mobile broadband Internet access, faster and more stable than WIFI, while supporting mobile phone charging
Mobile phone/tablet charging while surfing the Internet, wired network card, PD device charging, drive free plug and play
TYPEC mobile phone is connected to the network cable of this device, so the mobile phone can experience the wired broadband, and PD charging will no longer worry about the power shortage
Stable network, ultra-low delay, no delay in live broadcasting, faster and more stable Internet experience, get rid of the trouble of WIFI instability
Compact and portable
