| Output Vdc: | |
|---|---|
| Quantity: | |

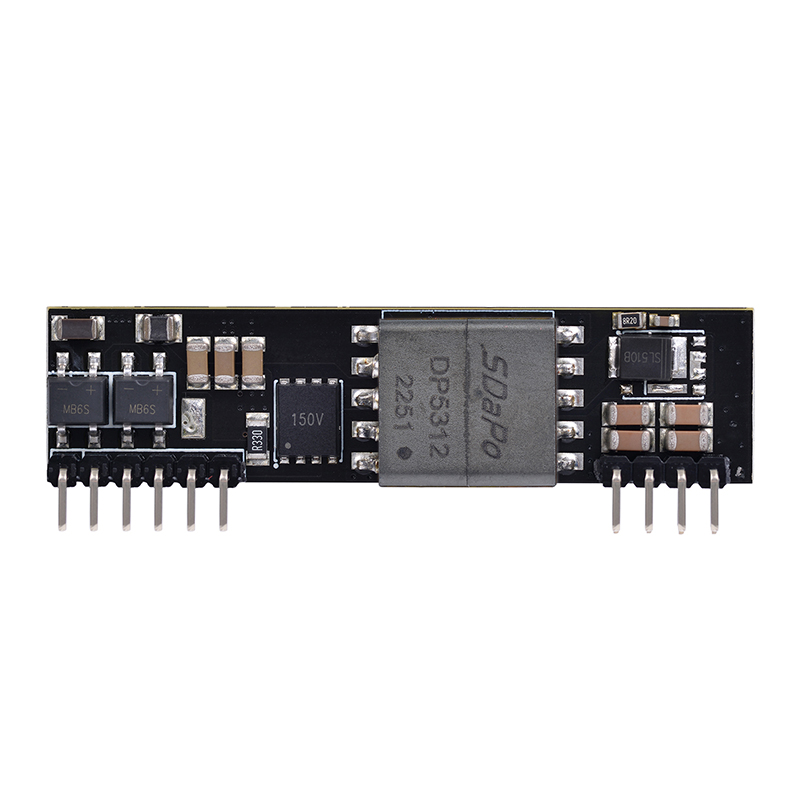

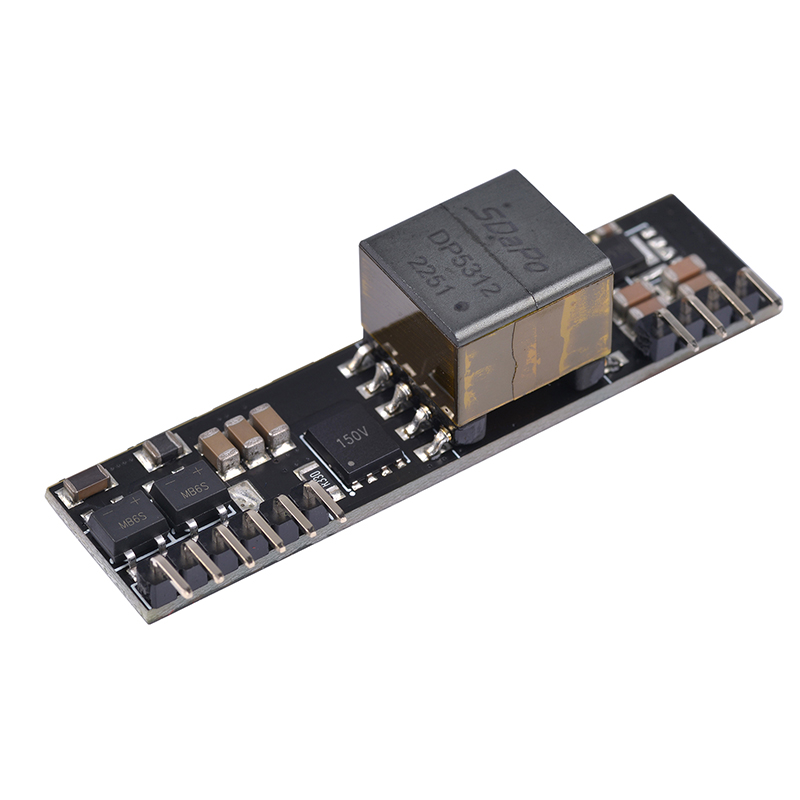

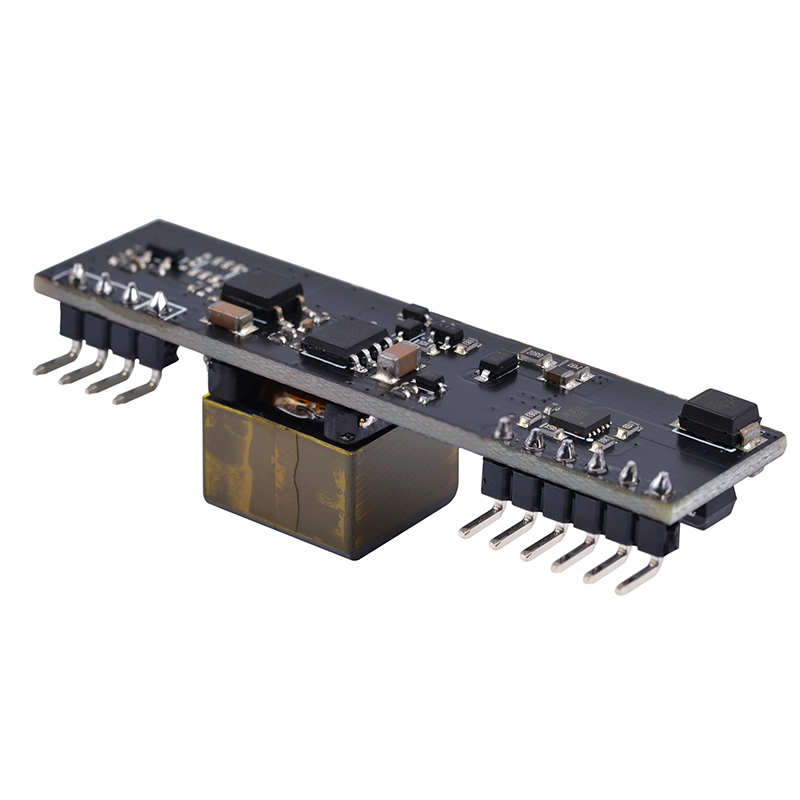

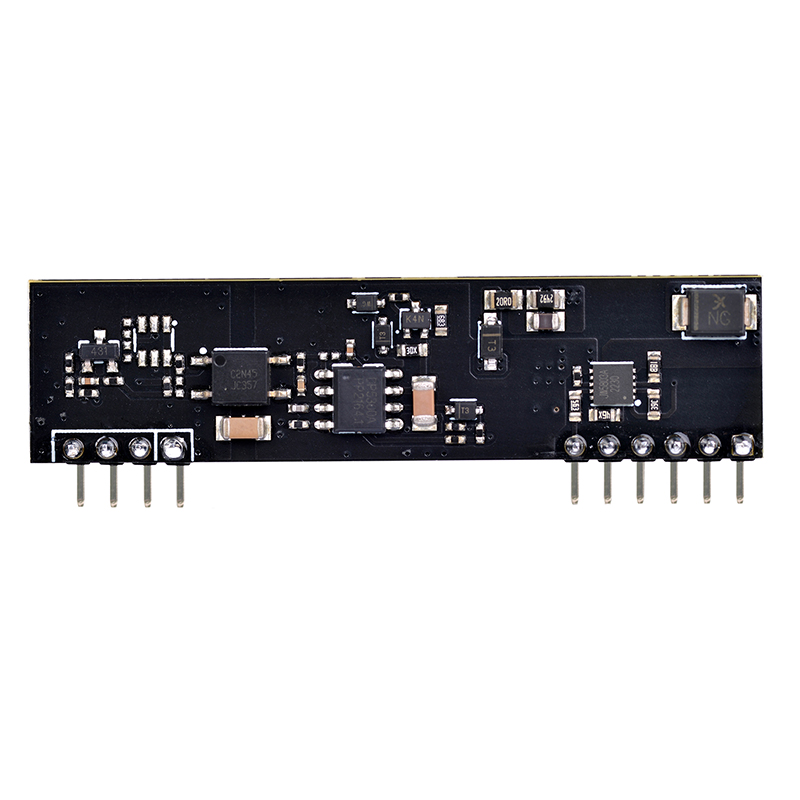

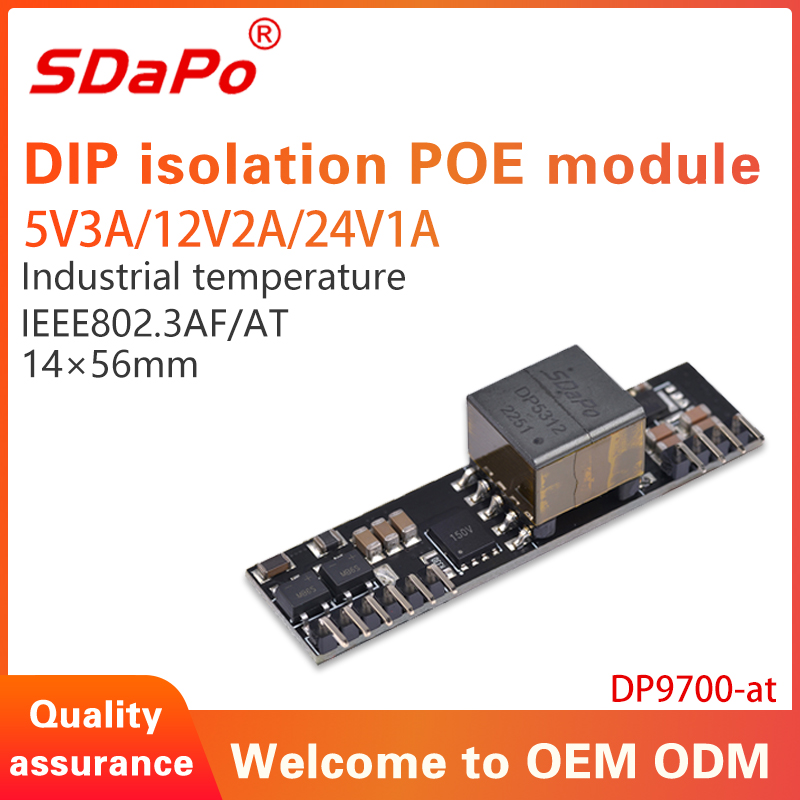

Product Description
You are welcome to customize the POE modules of various size and connector and function.
The layout is after receive the research and development fee.
After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.
It takes 7-10 days to produce samples.After the sample is qualified, batch production.
Product List
Part Number | Nominal Output Voltage / Current | Maximum Output Power | Nominal Input Voltage |
DP9700 at-5V4A | 5Vdc / 4A | 20W @ 25°C | 48Vdc |
DP9700 at-12V2A | 12Vdc / 2A | 24W @ 25°C | 48Vdc |
DP9700 at-24V1A | 24Vdc/1A | 24W @ 25°C | 48Vdc |
DP9700 at-5V3A | 5Vdc / 3A | 15W @ 25°C | 48Vdc |
PIN ASSIGNMENT
Pin | Name | Description |
1 | VA1 | RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive. |
2 | VA2 | TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive. |
3 | VB1 | Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive. |
4 | VB2 | Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive. |
5,6 | NC | No Connection |
7 | -VDC | DC Return. This pin is the return path for the +VDC output. |
8 | +VDC | DC Output. This pin provides the regulated output from the DC/DC converter. |
9,10 | NC | No Connection |
DP9700AT Parameter
DP9700AT Datesheet
