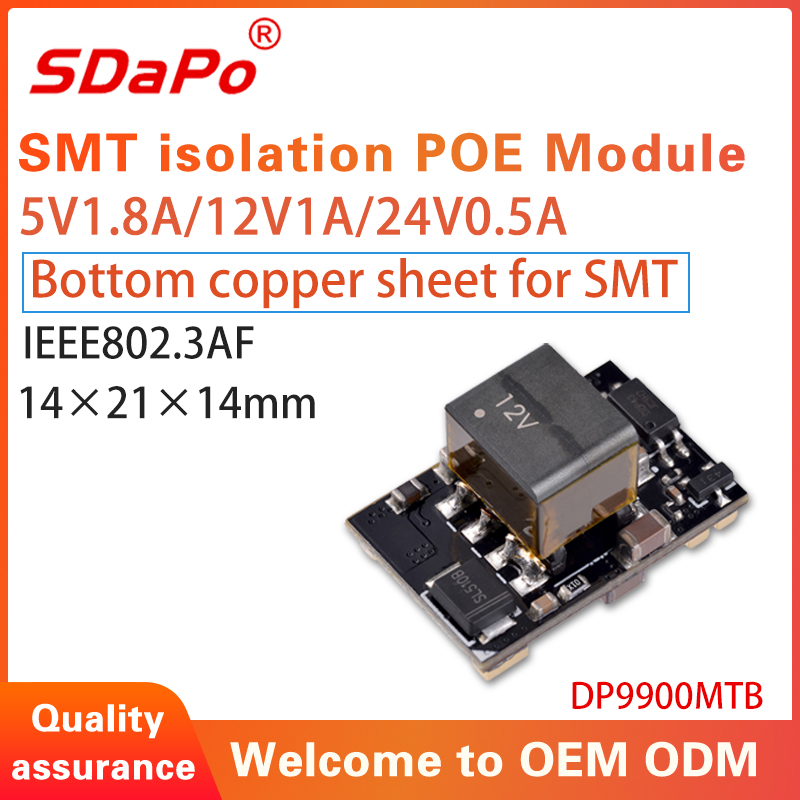

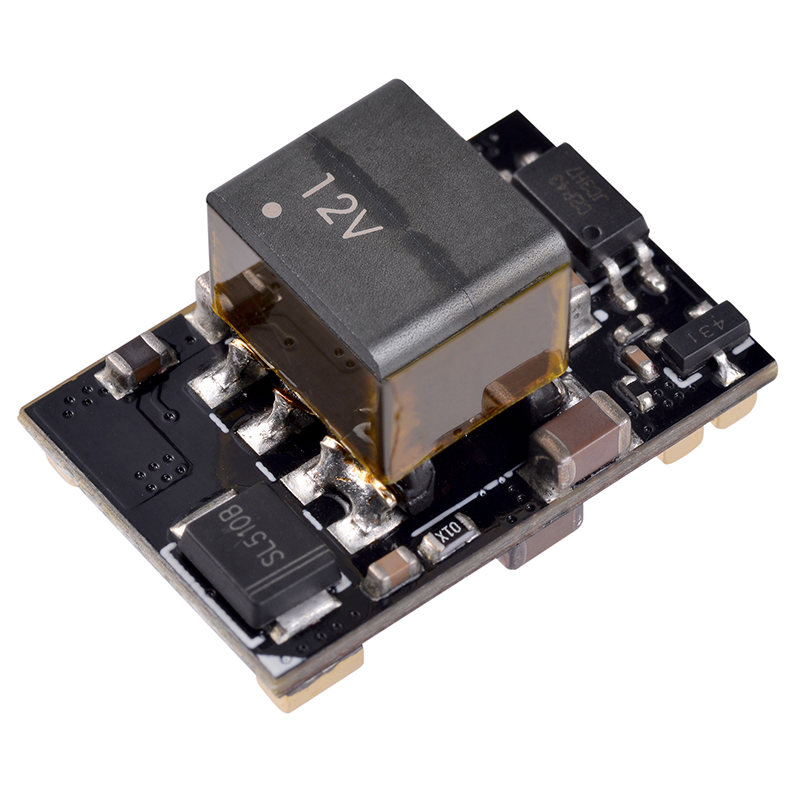

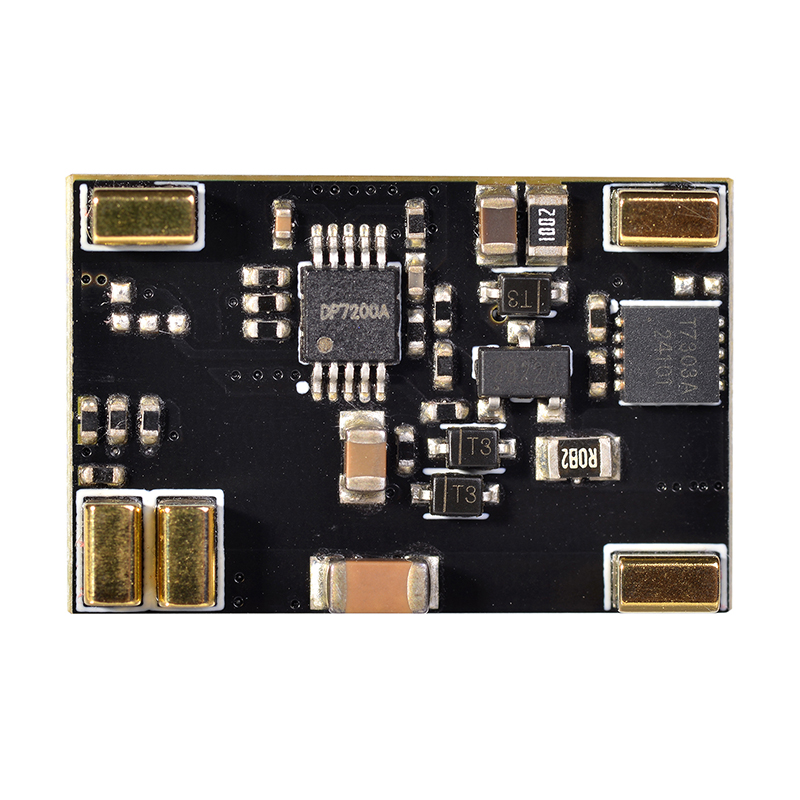

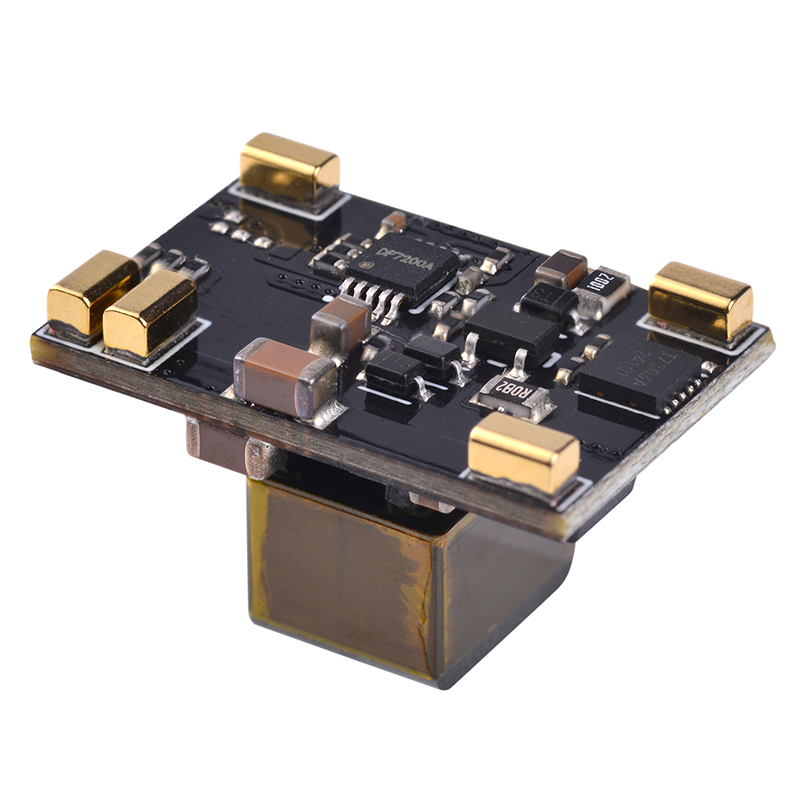

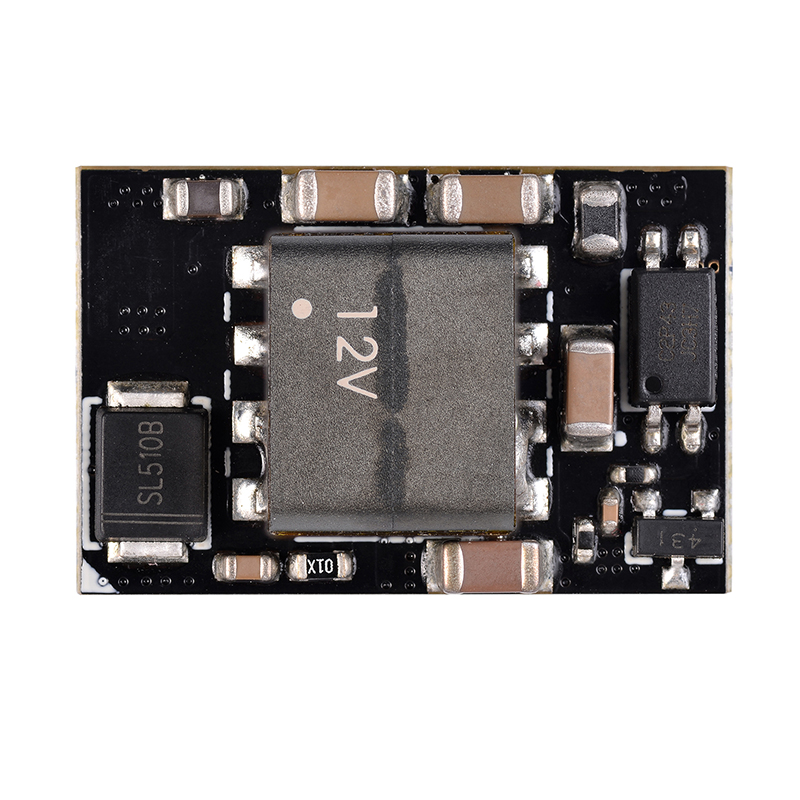

DP9900MTB 5V 12V 24V PoE PD Module

Name: DP9900MTB 5V 12V 24V PoE PD Module
Brand: SDaPo
SKU: 589471927
Rating: 5.0 (90 reviews)

- Fully Supports IEEE802.3af Compliant
- 12 Watts output load
- IEEE Power class programmable (Green)
- 1500 Volt DC isolation (Input to Output)
- 5V 12V 24V DC output voltage models
- Compact package minimum PCB footprint
- Overload and short circuit protection
- Wide input voltage (36V to 57V DC)
- Adjustable Output Voltage
- Support PoE applications in both of Fast / Gigabit Ethernet environments
- Low output ripple and noise
- Low cost
- RoHS Compliant

Model:
DP9900MTB
Brand:
SDaPo

Output Vdc:	DP9900MTB-5V1.8A DP9900MTB-12V1A DP9900MTB-24V0.5A
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

PD(Powered Device) Integrated Module (Isolation Type)

Part Number	Nominal Output Voltage / Current	Maximum Output Power	Nominal Input Voltage
DP9905	5Vdc / 1.8A	9W @ 25℃	48Vdc
DP9912	12Vdc / 1A	12W @ 25℃	48Vdc
DP9924	24Vdc / 0.5A	12W @ 25℃	48Vdc

PIN ASSIGNMENT

Pin #	Name	Description
1	+VDC	DC Output. This pin provides the regulated output from the DC/DC converter.
2	-VDC	DC Return. This pin is the return path for the +VDC output.
3	ADJ	Output Adjust. The output voltage can be adjusted from is nominal value, by connecting an external resistor from this pin to either the +VDC pin or the -VDC pin.
4	VIN+	Direct Input +. This pin connects to the positive (+) output of the input bridge rectifiers.
5	VIN-	Direct Input -. This pin connects to the negative (-) output of the input bridge rectifiers.

DP9900MTB Parameter

DP9900MTB Datesheet

DP9900 20250206Datasheet加炉温曲线.pdf
