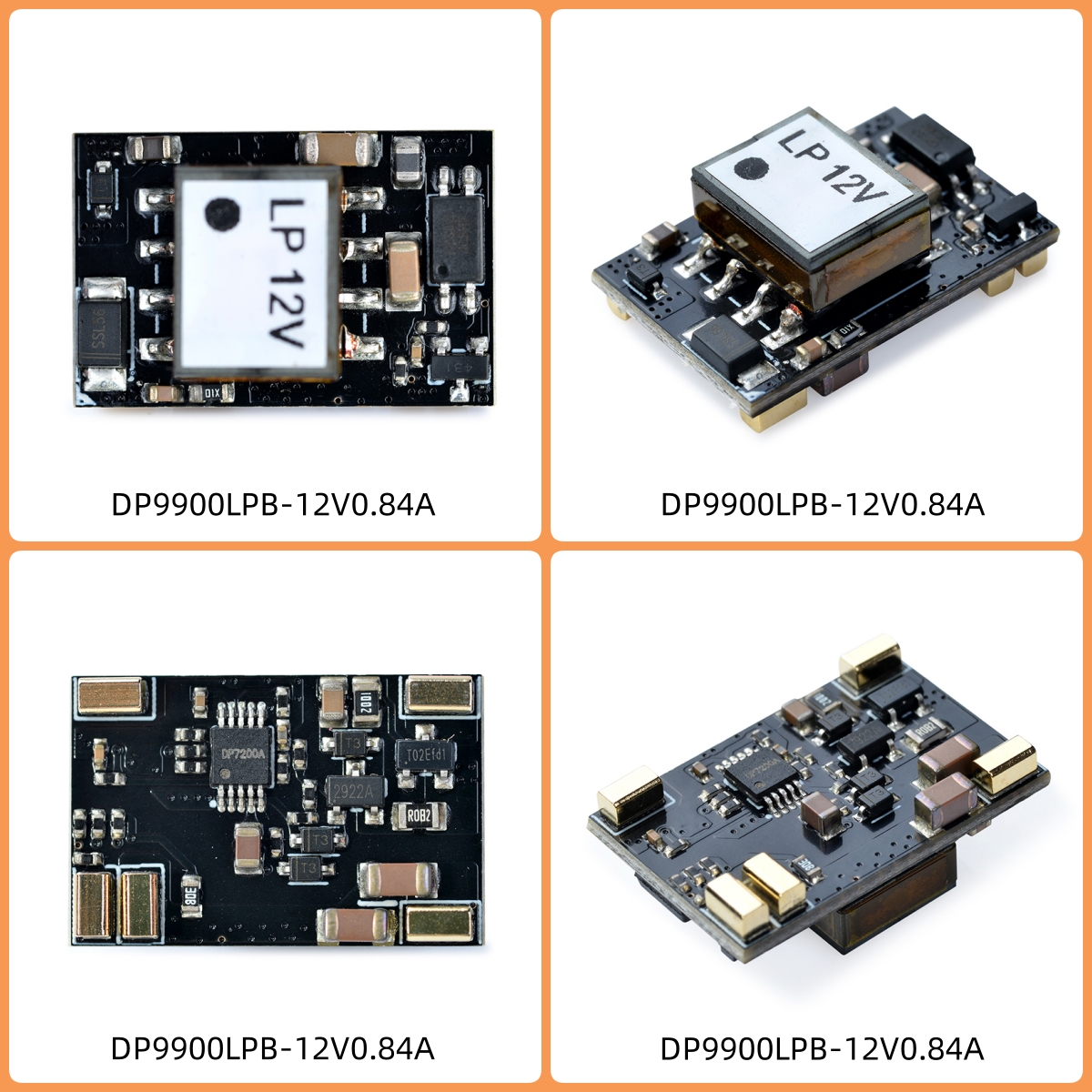

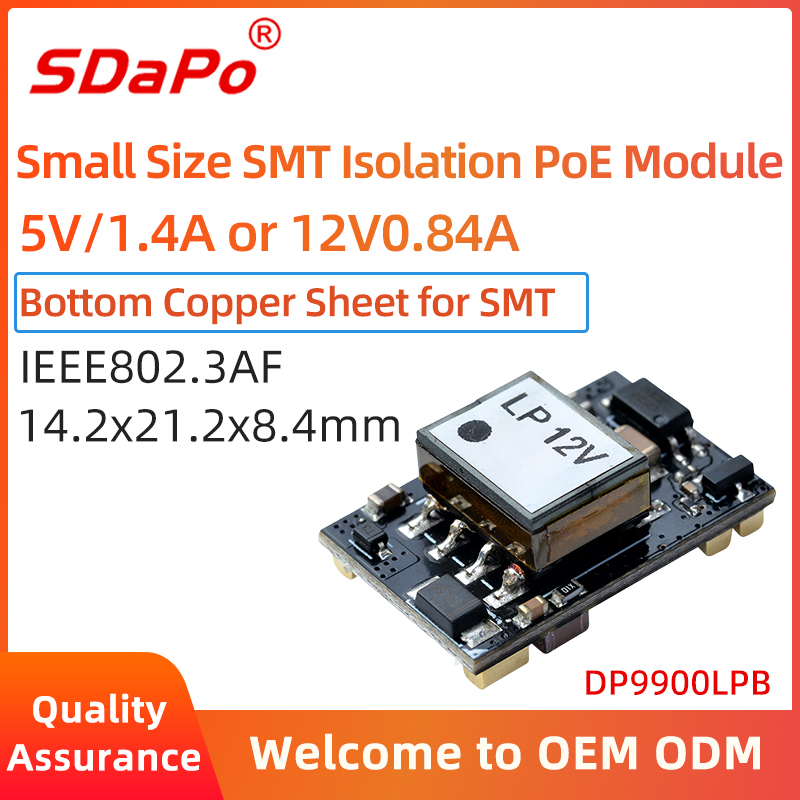

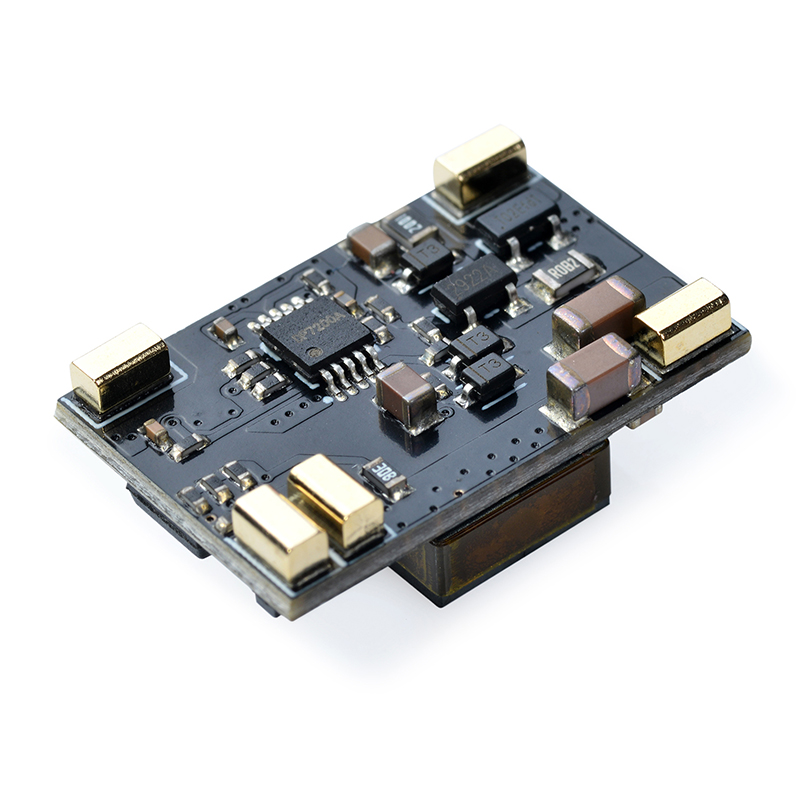

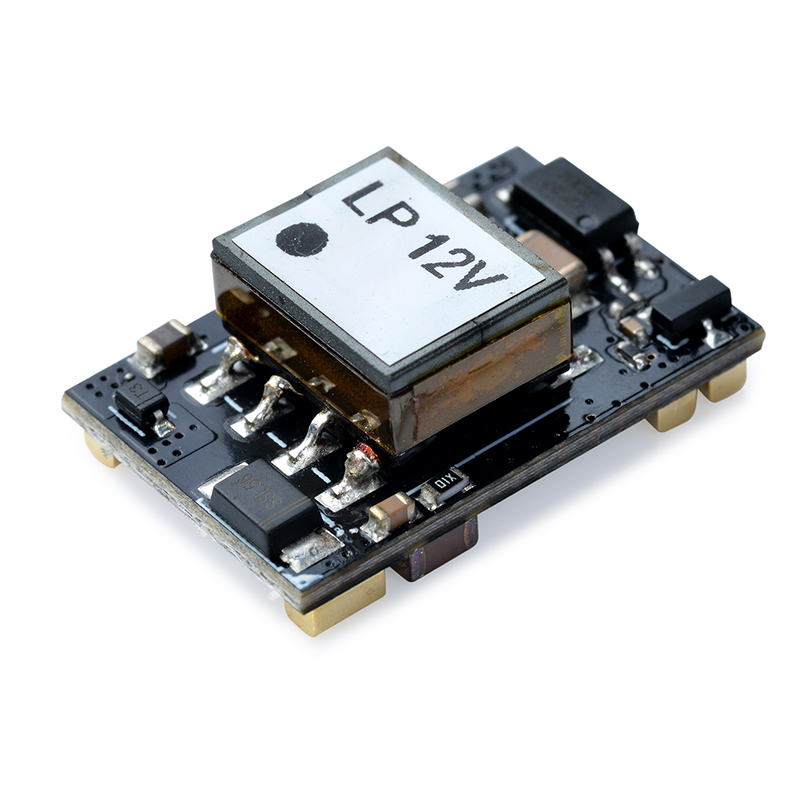

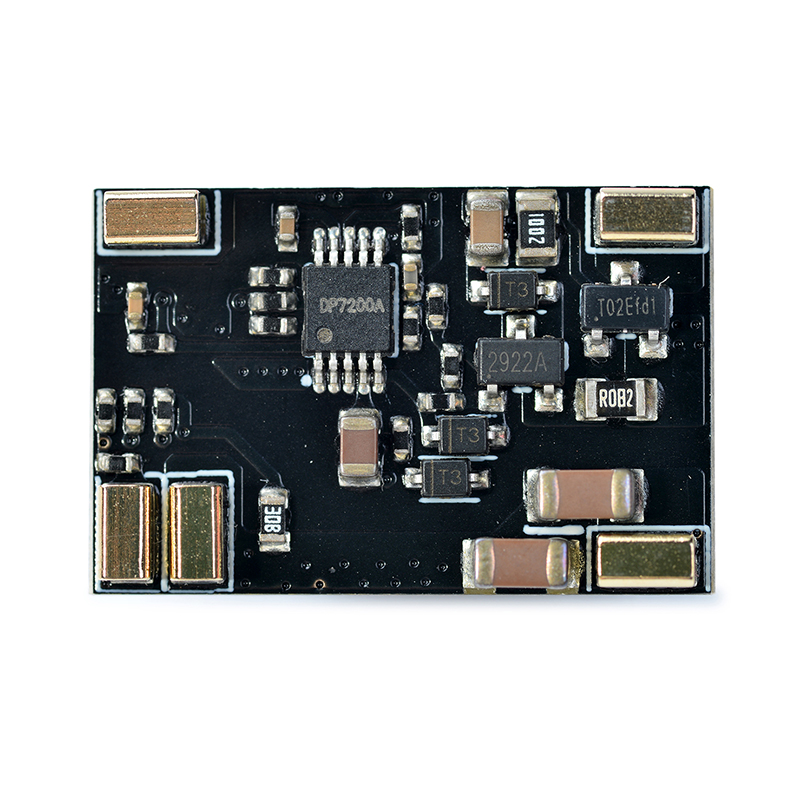

DP9900LPB 48V To 5V 12V PoE PD Module
You are here: Home » Products » POE Module » IEEE802.3af » DP9900LPB 48V To 5V 12V PoE PD Module
DP9900LPB 48V To 5V 12V PoE PD Module
DP9900LPB 48V To 5V 12V PoE PD Module DP9900LPB 48V To 5V 12V PoE PD Module
DP9900LPB 48V To 5V 12V PoE PD Module DP9900LPB 48V To 5V 12V PoE PD Module
DP9900LPB 48V To 5V 12V PoE PD Module DP9900LPB 48V To 5V 12V PoE PD Module
DP9900LPB 48V To 5V 12V PoE PD Module DP9900LPB 48V To 5V 12V PoE PD Module
DP9900LPB 48V To 5V 12V PoE PD Module DP9900LPB 48V To 5V 12V PoE PD Module
DP9900LPB 48V To 5V 12V PoE PD Module DP9900LPB 48V To 5V 12V PoE PD Module

loading

DP9900LPB 48V To 5V 12V PoE PD Module

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
- Fully Supports IEEE802.3af Compliant
- 5V1.4A 7Watts output load / 12V0.84A 10Watts output load
- 1500V DC isolation (Input to Output)
- 5V 12V DC output voltage models
- Compact package minimum PCB footprint
- Overload and short circuit protection
- Wide input voltage (36V to 57V DC)

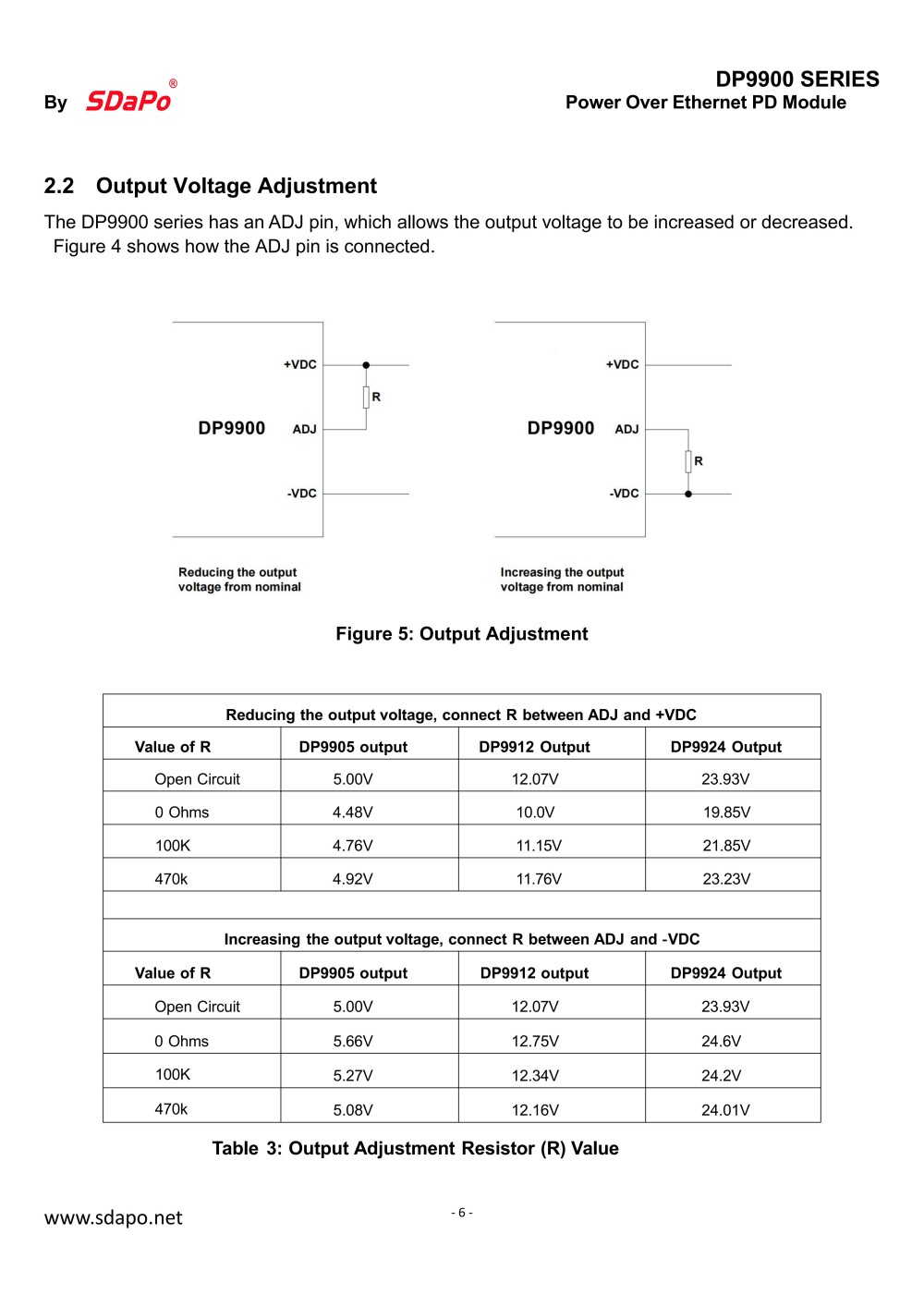

- Adjustable Output Voltage
- Support PoE applications in both of Fast / Gigabit Ethernet environments
- Low output ripple and noise
- Low cost
- RoHS Compliant

  • DP9900LPB

  • SDaPo

Output Vdc:

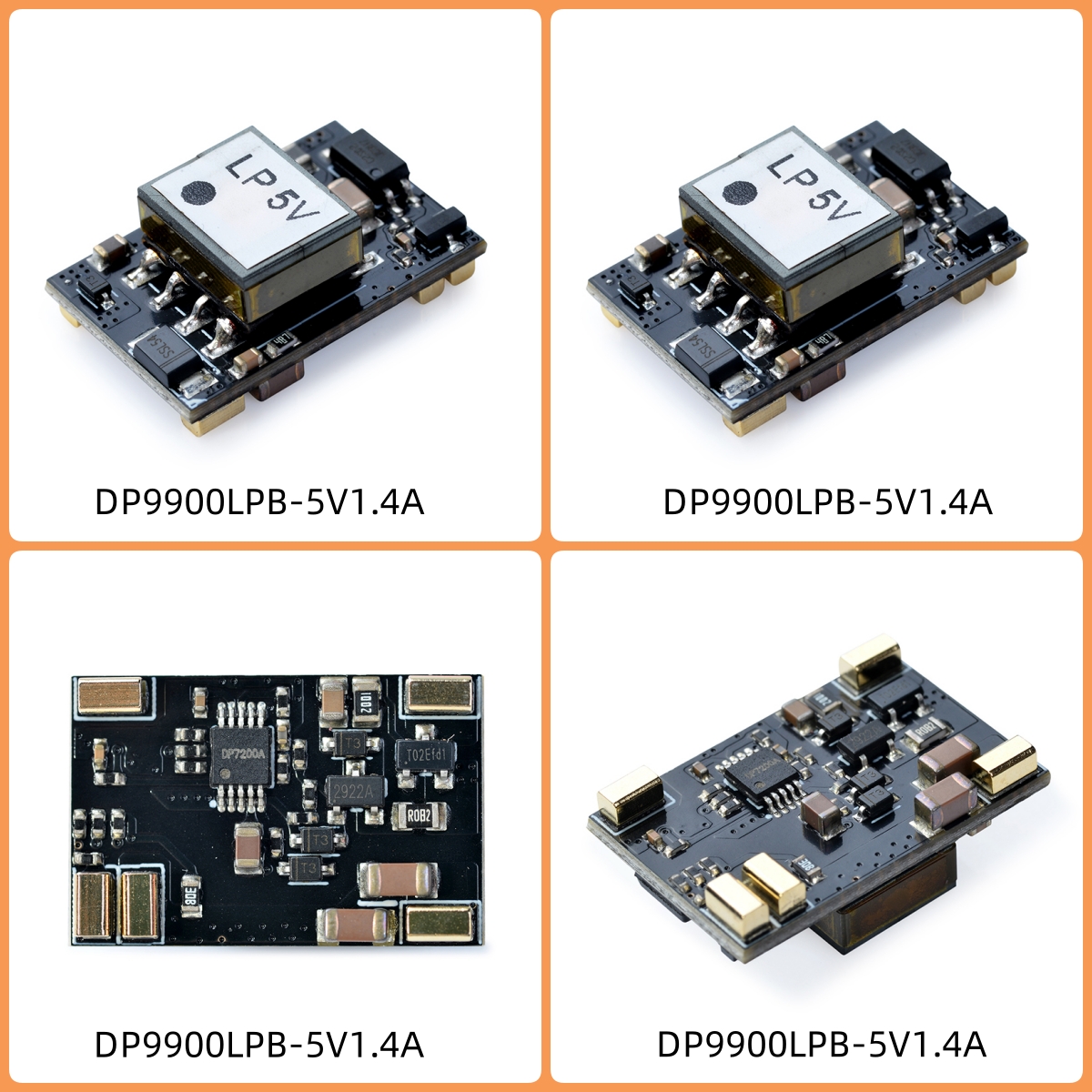

DP9900LPB-5V1.4A
DP9900LPB-12V0.84A
Availability:
Quantity:
Inquire Add to Basket

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the R&D cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the R&D cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

No.
 Part Number Nominal Output Voltage Output Power PoE Standard
 Temperature Range
 PoE Modes Isolation Voltage Buy Sampls
70℃ 85℃

1

 DP9900M-5V 5V 9W
 6W 802.3af Industrial Mode A / Mode B 1.5kVrms Inquiry us
2 DP9900M-12V 12V 12W 9W 802.3af Industrial Mode A / Mode B 1.5kVrms Inquiry us
3 DP9900M-24V 24V 12W 11W 802.3af Industrial Mode A / Mode B 1.5kVrms Inquiry us
4 DP9900LP-5V 5V 7W
 4.5W 802.3af Industrial Mode A / Mode B 1.5kVrms Inquiry us
5 DP9900LP-12V 12V 10W 6W 802.3af Industrial Mode A / Mode B 1.5kVrms Inquiry us
6 DP9900MTB-5V 5V 9W 6W 802.3af Industrial Mode A / Mode B 1.5kVrms Inquiry us
7 DP9900MTB-12V 12V 12W
 9W 802.3af Industrial Mode A / Mode B 1.5kVrms Inquiry us
8 DP9900MTB-24V 24V 12W 11W 802.3af Industrial Mode A / Mode B 1.5kVrms Inquiry us

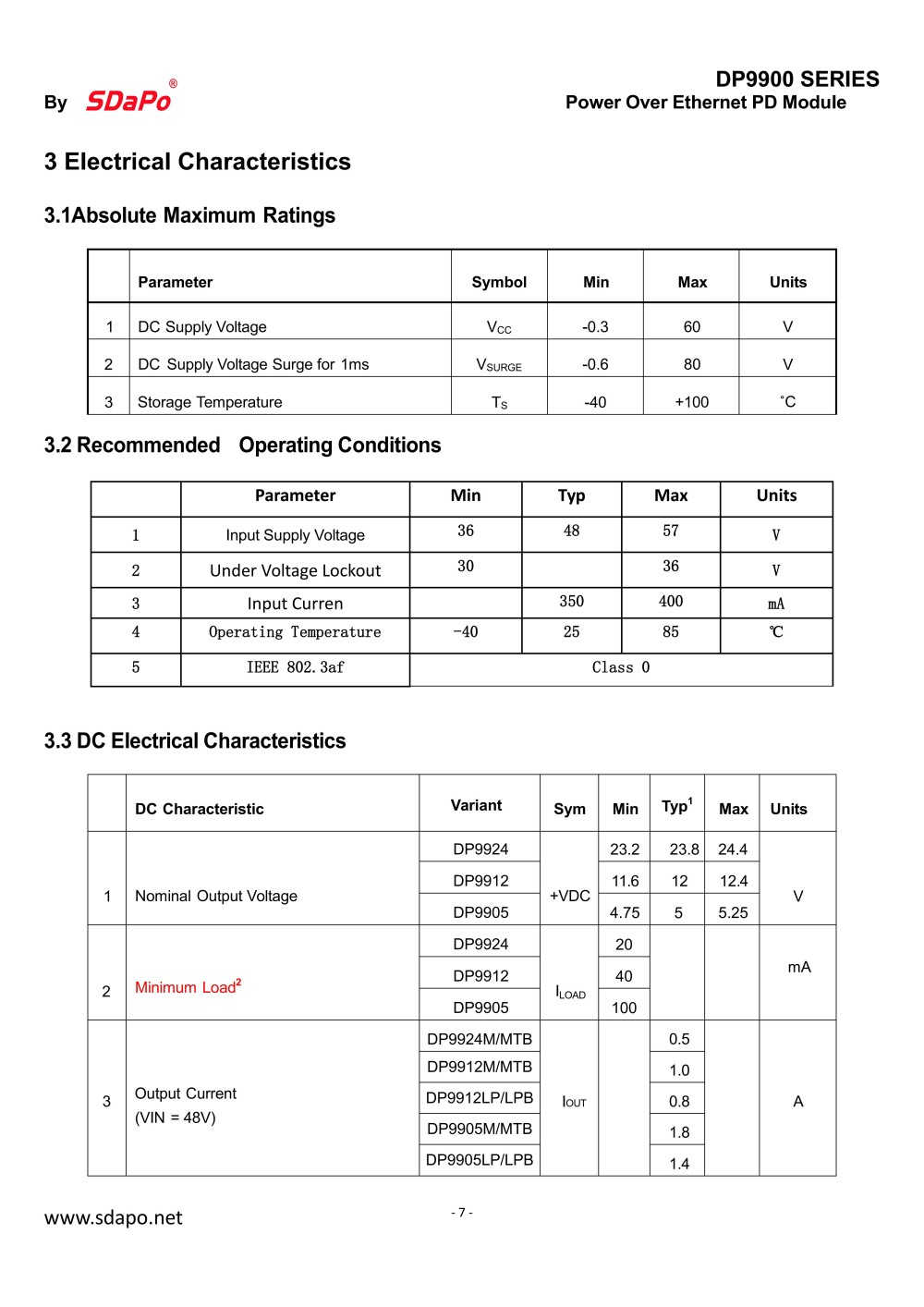

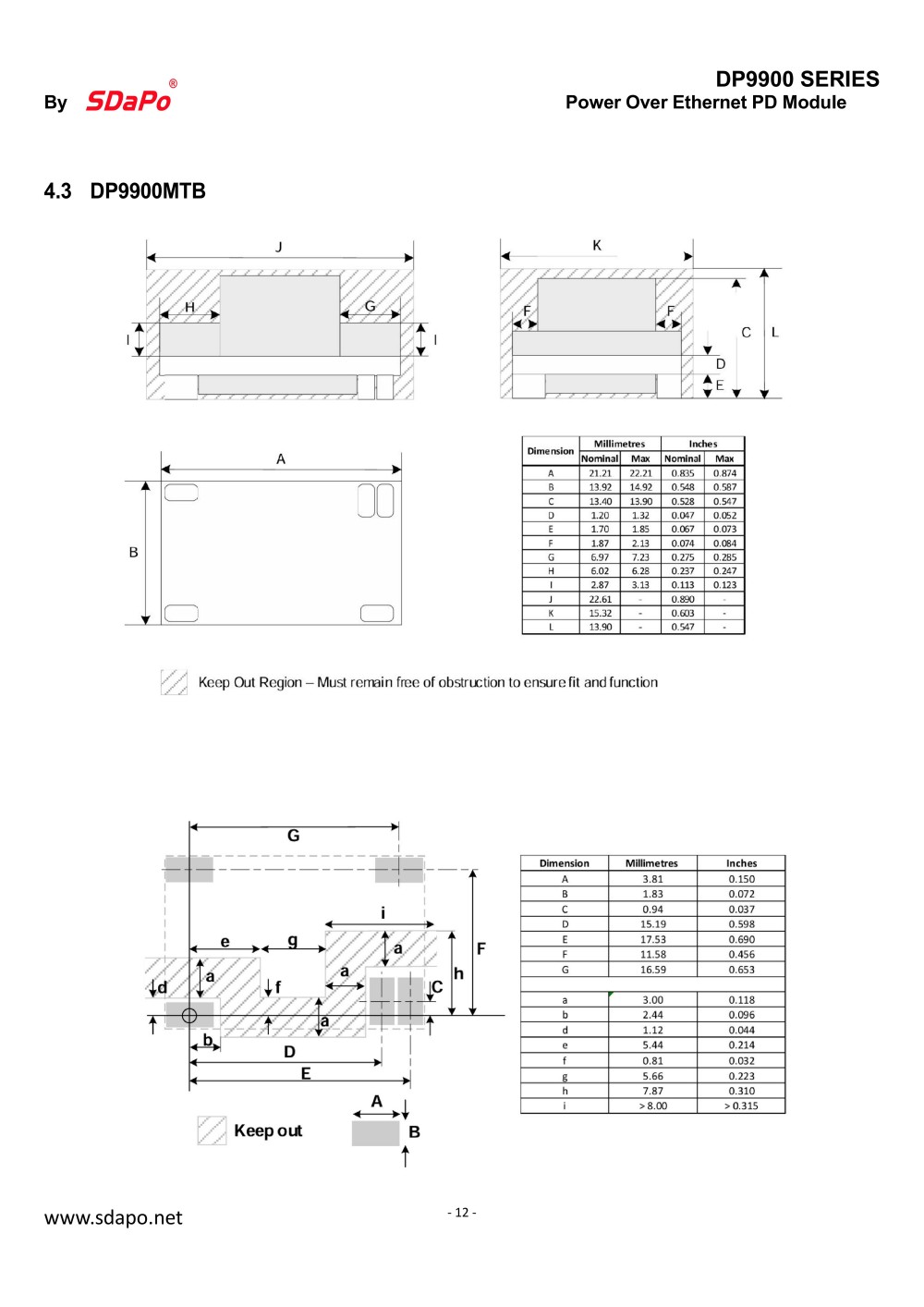

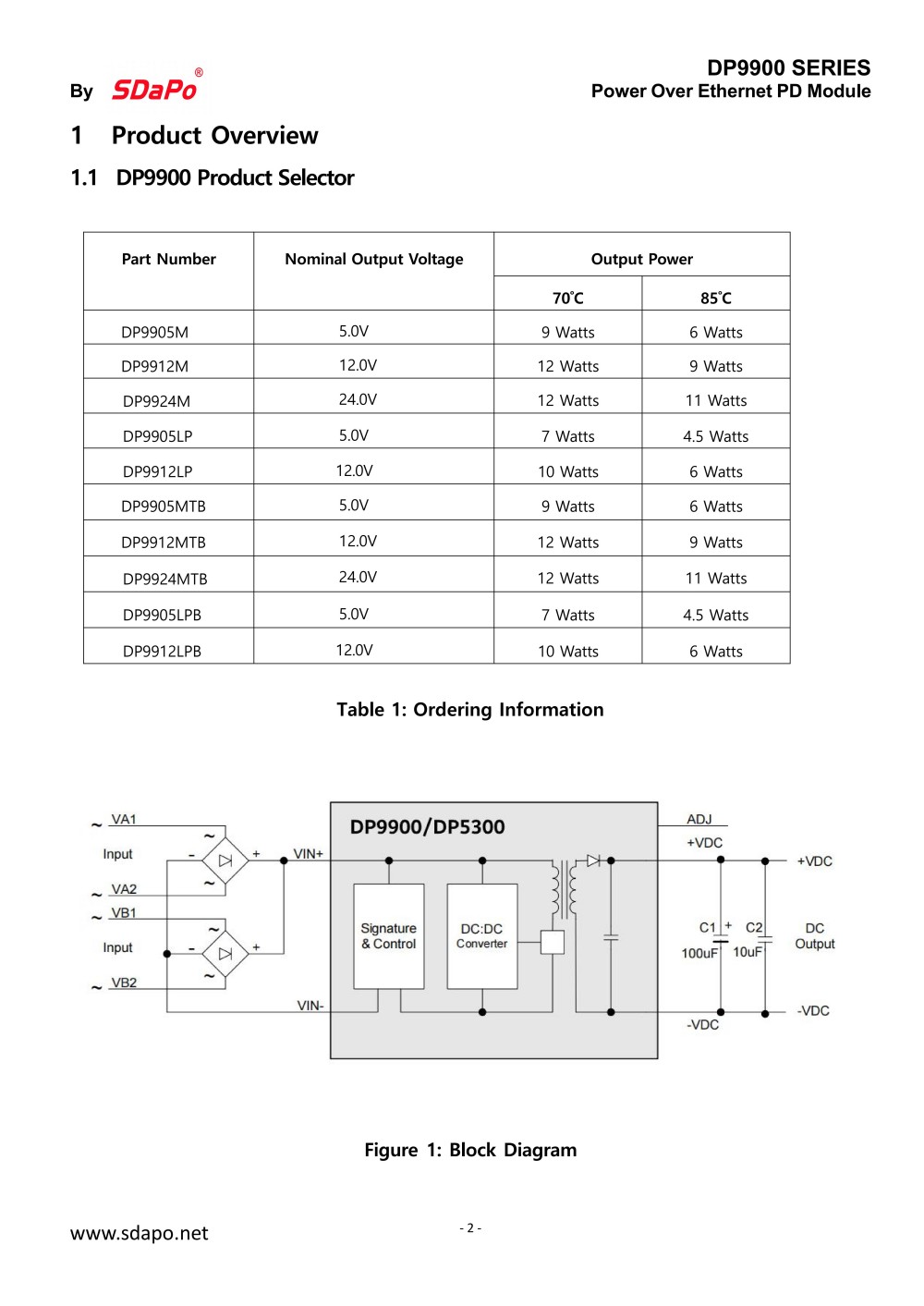

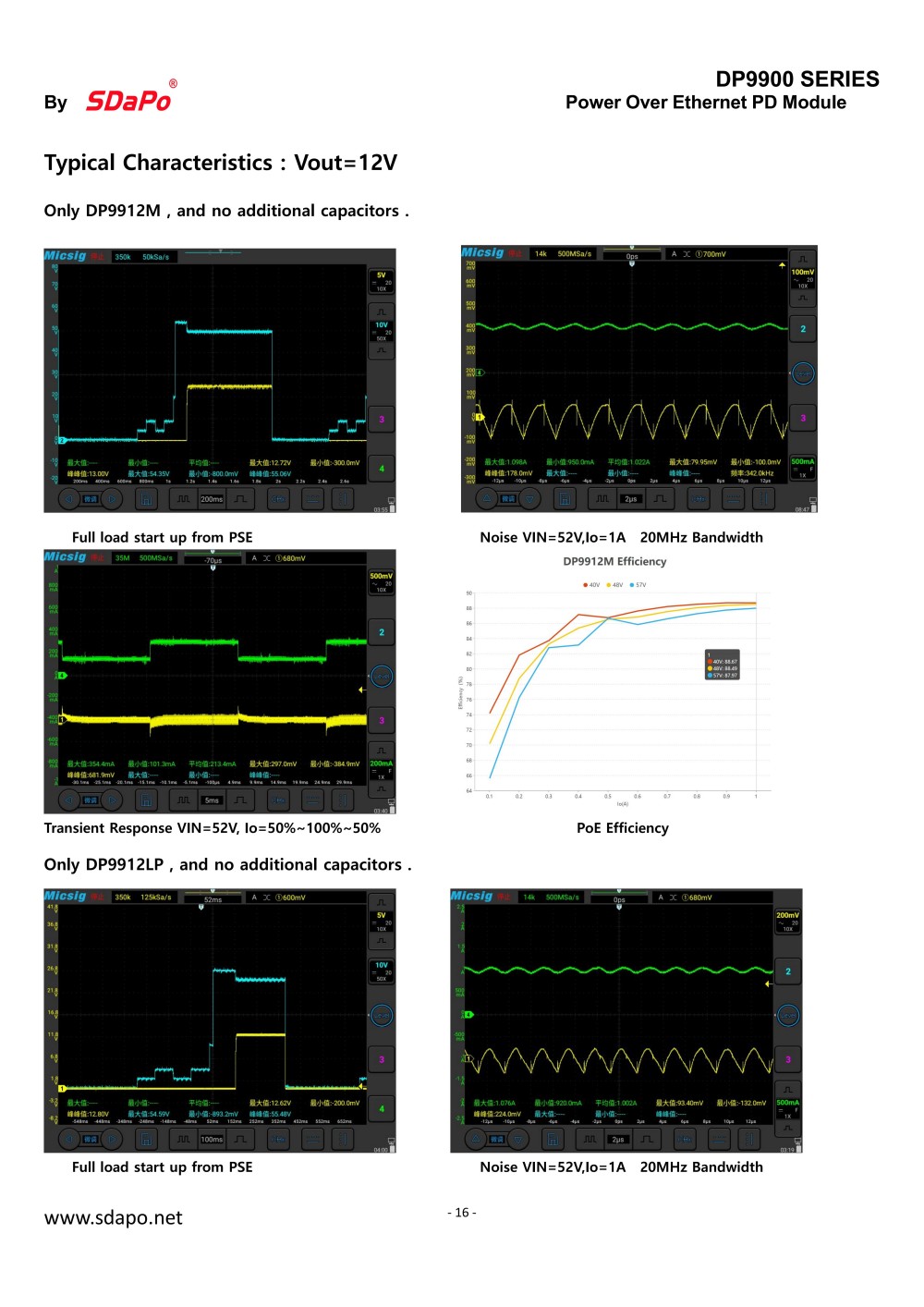

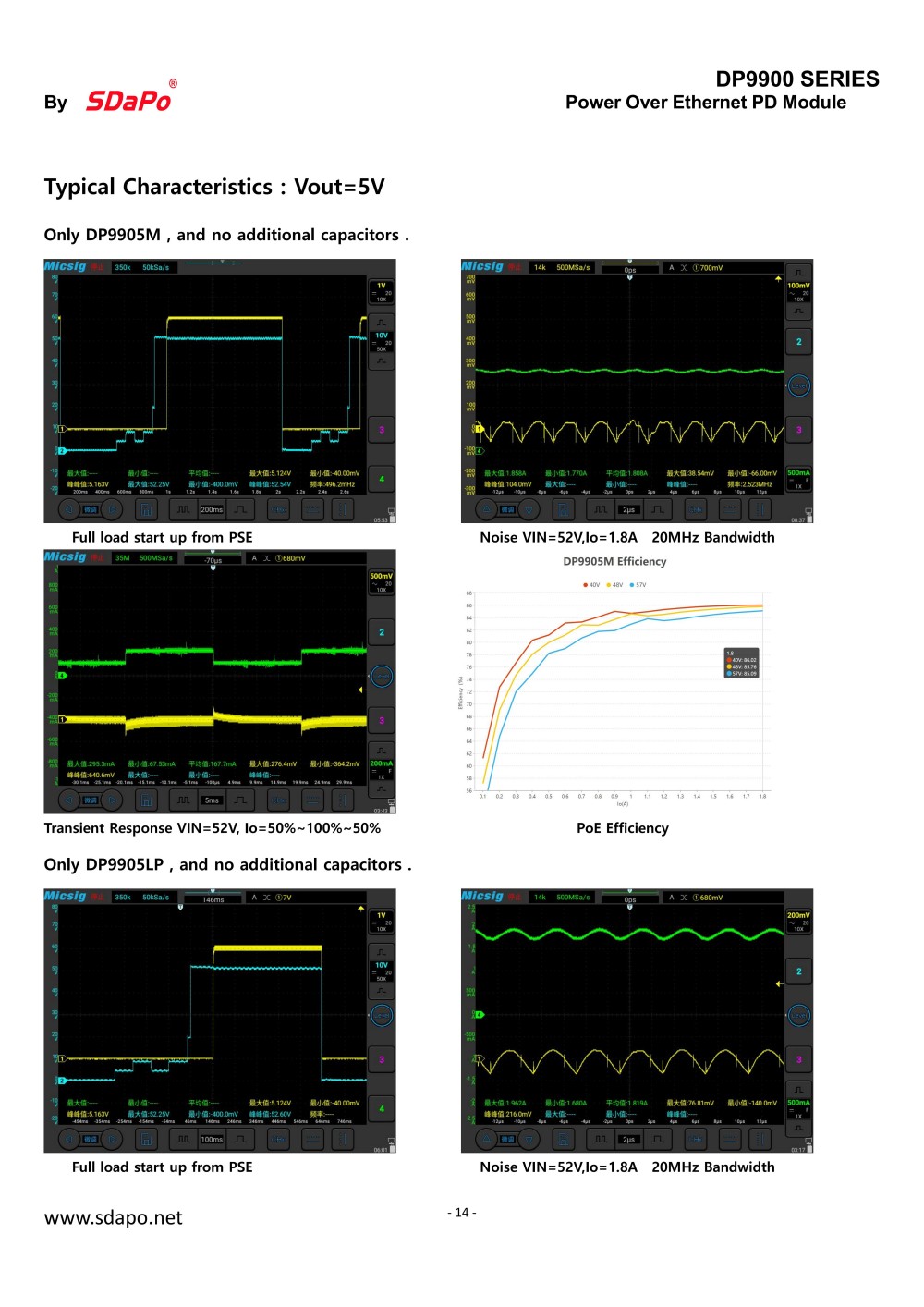

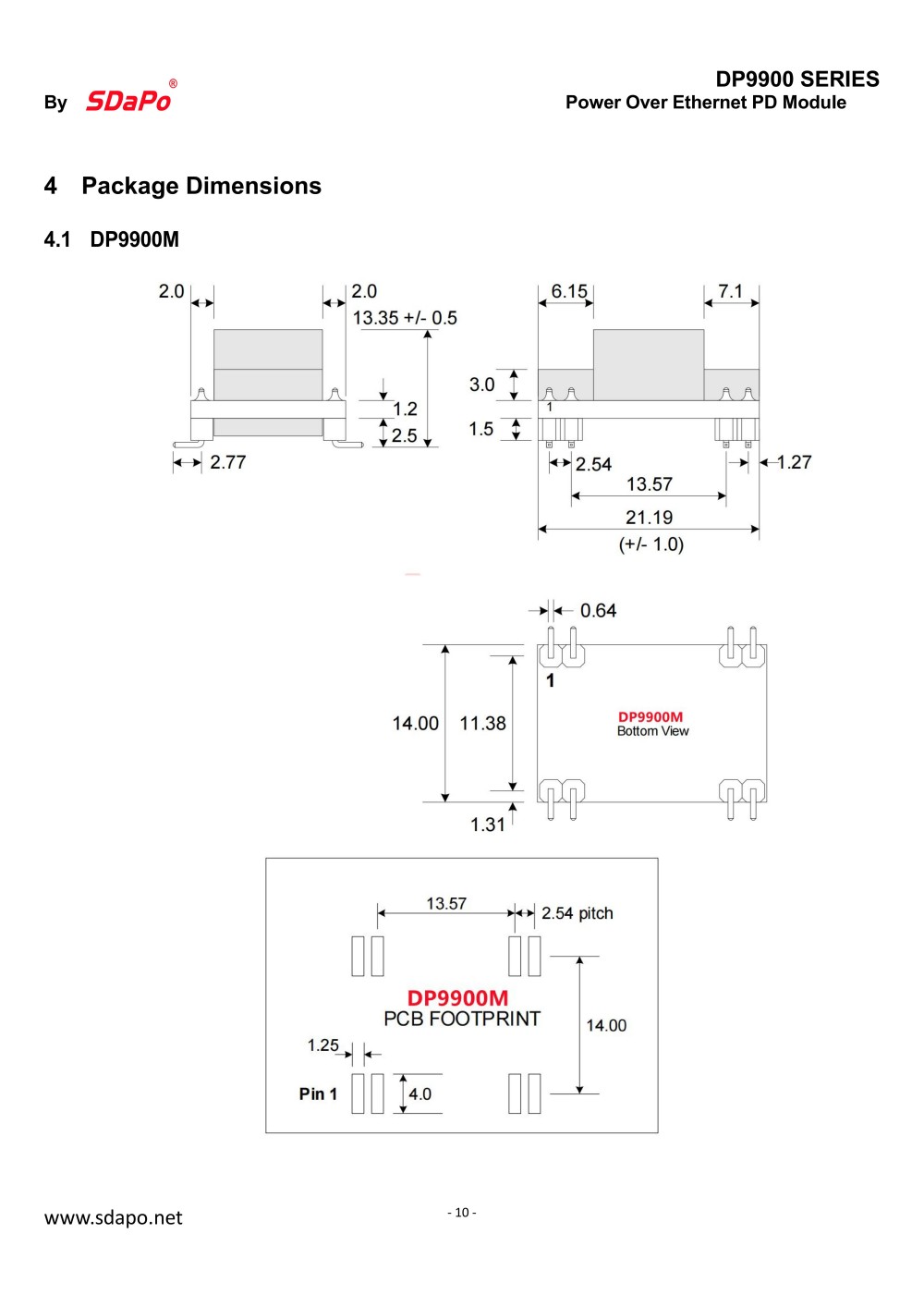

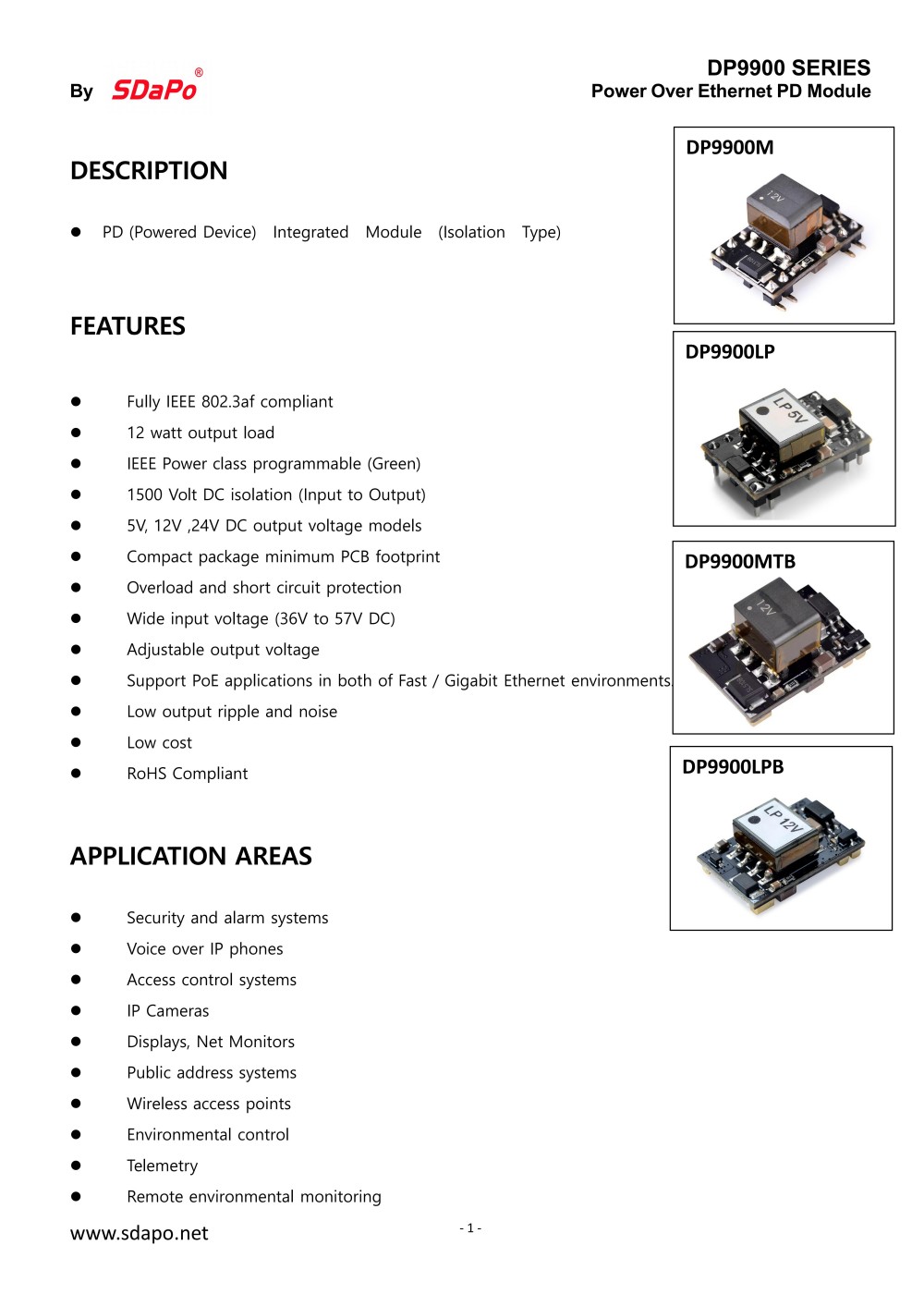

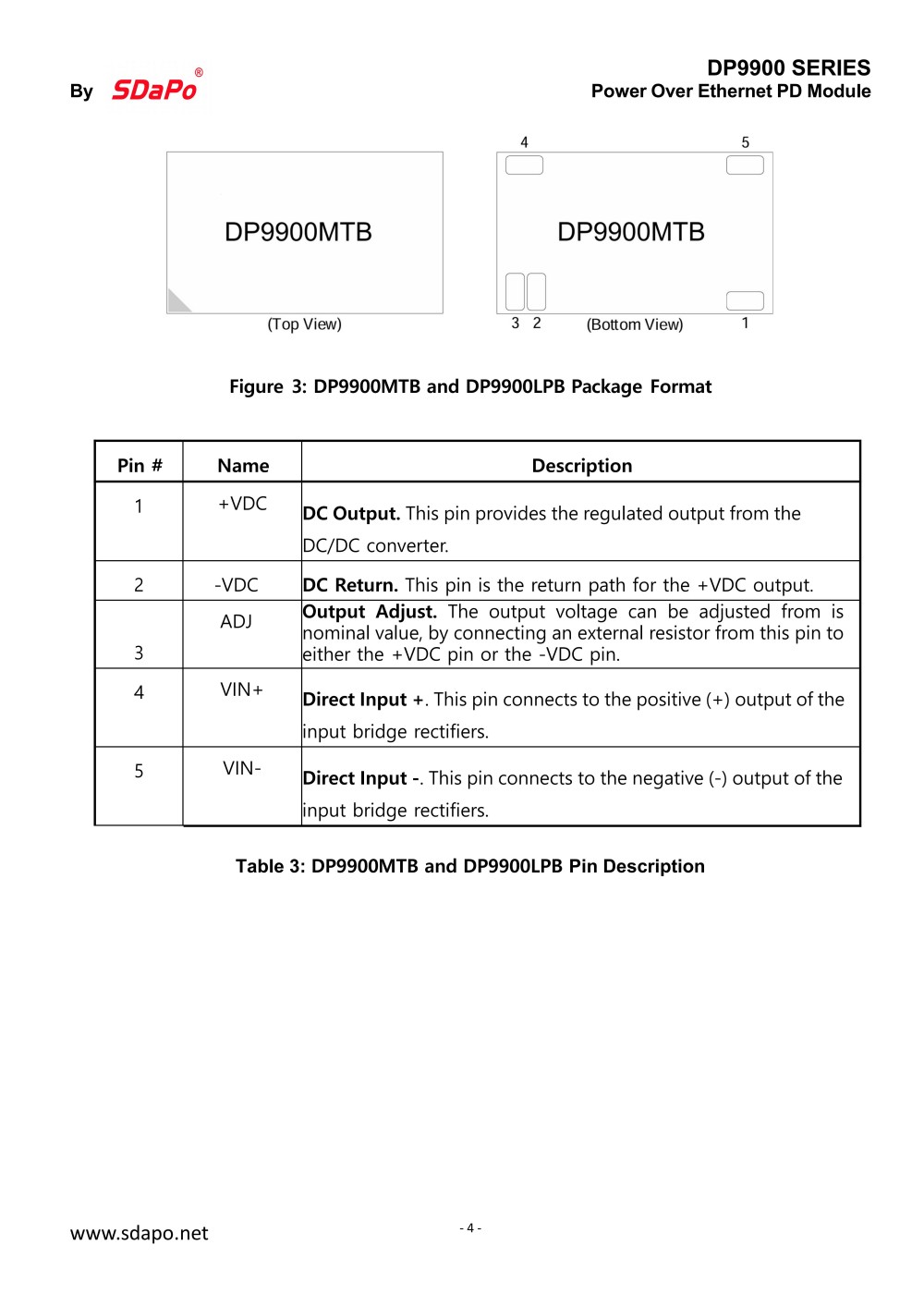

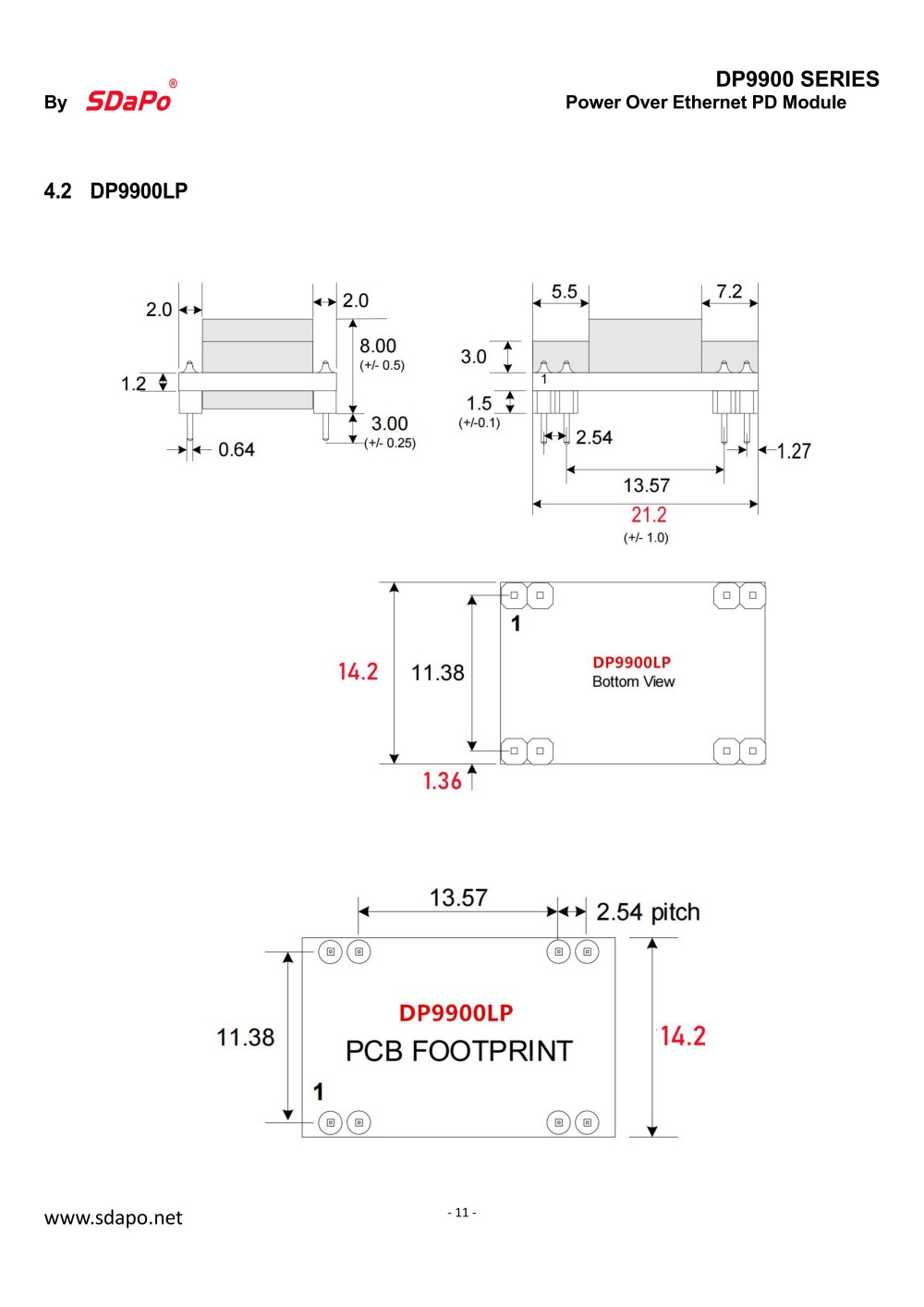

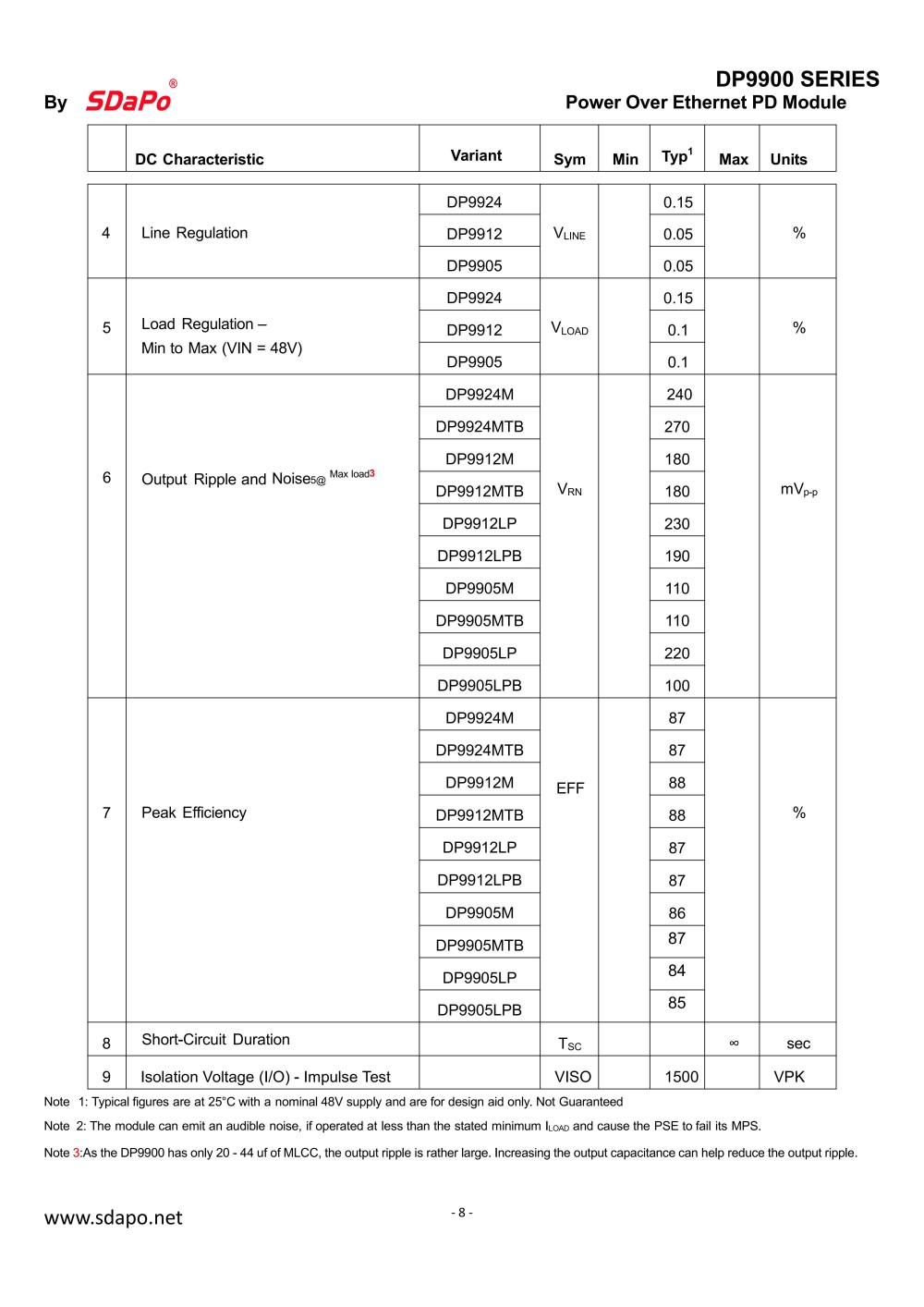

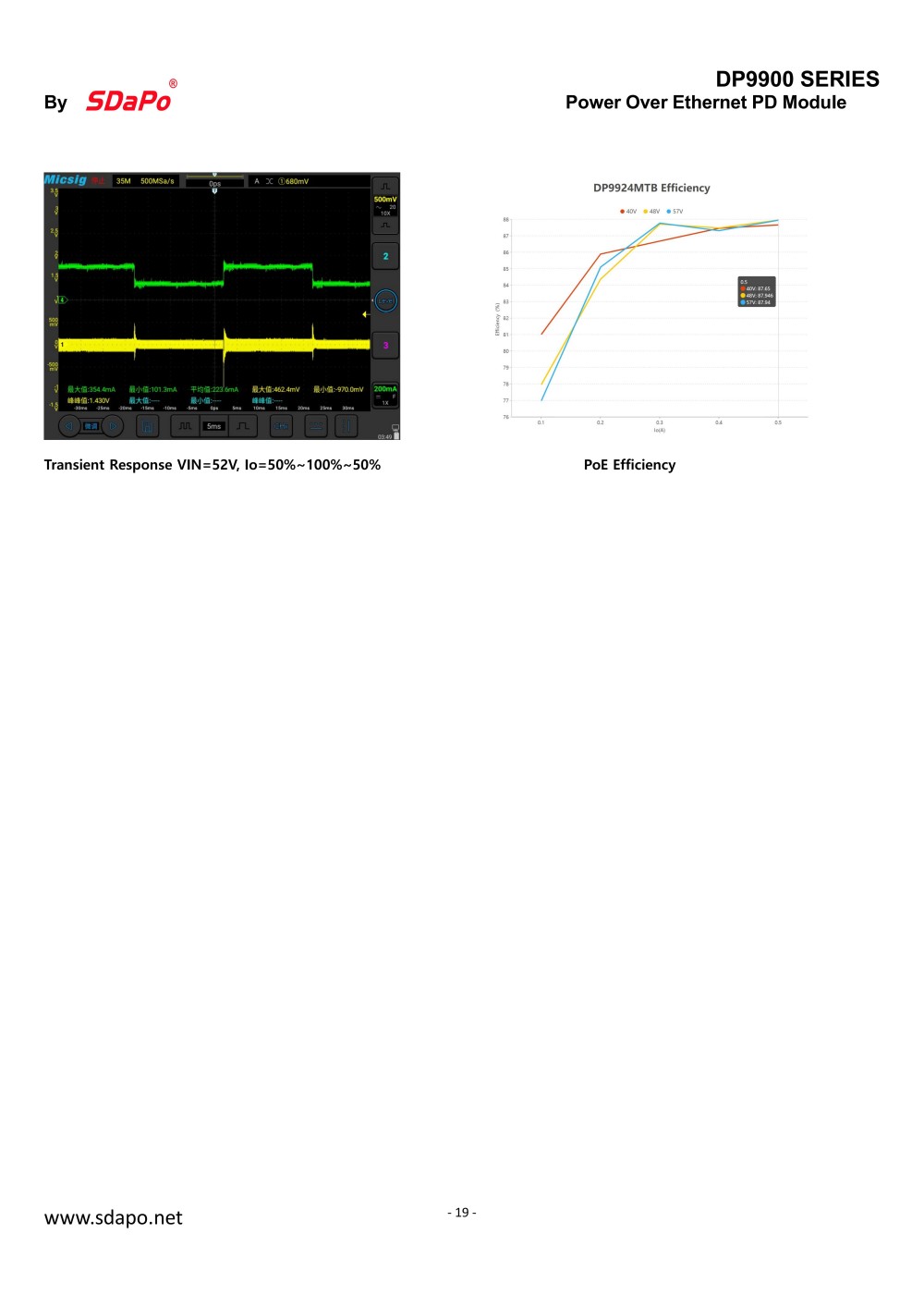

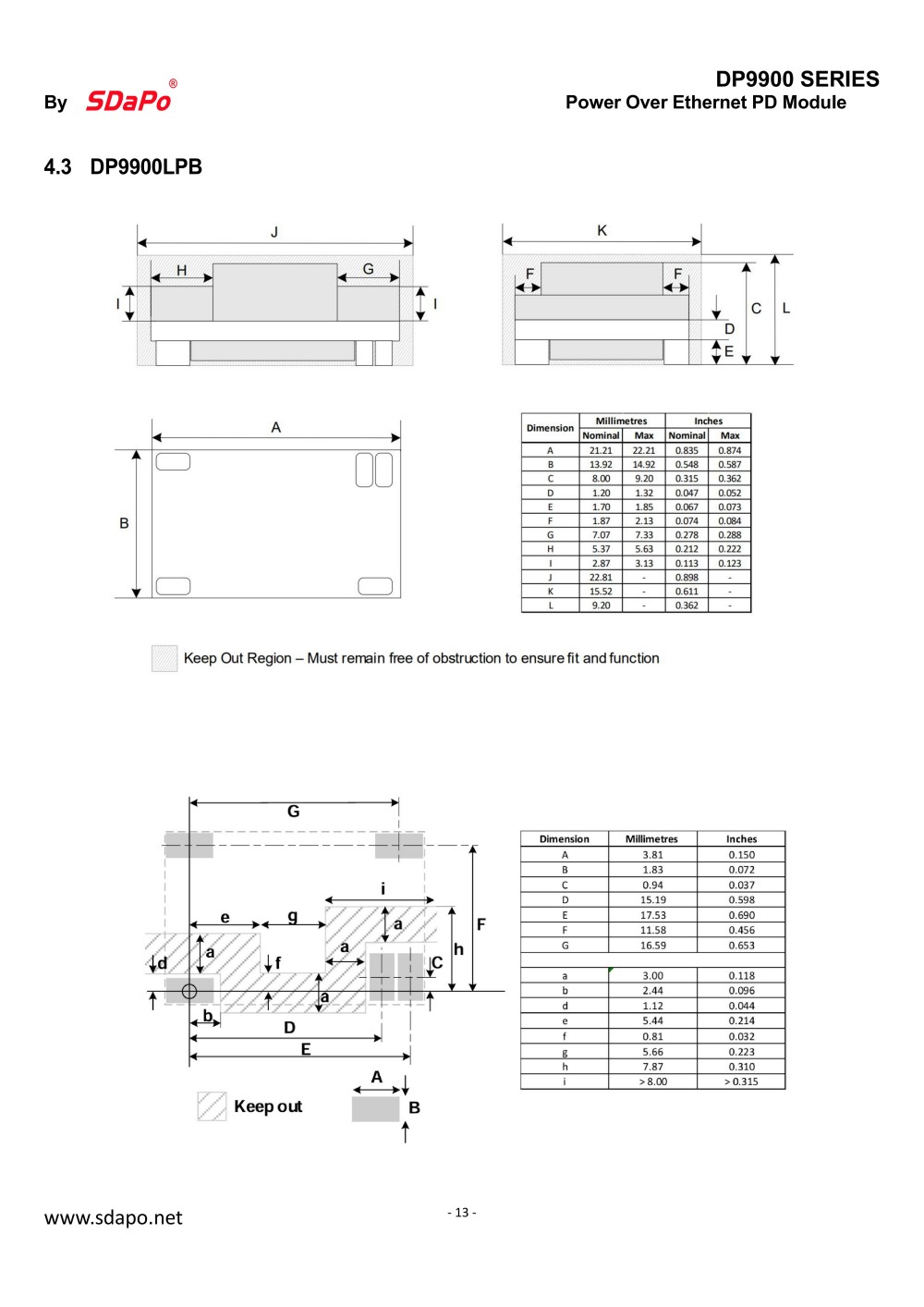

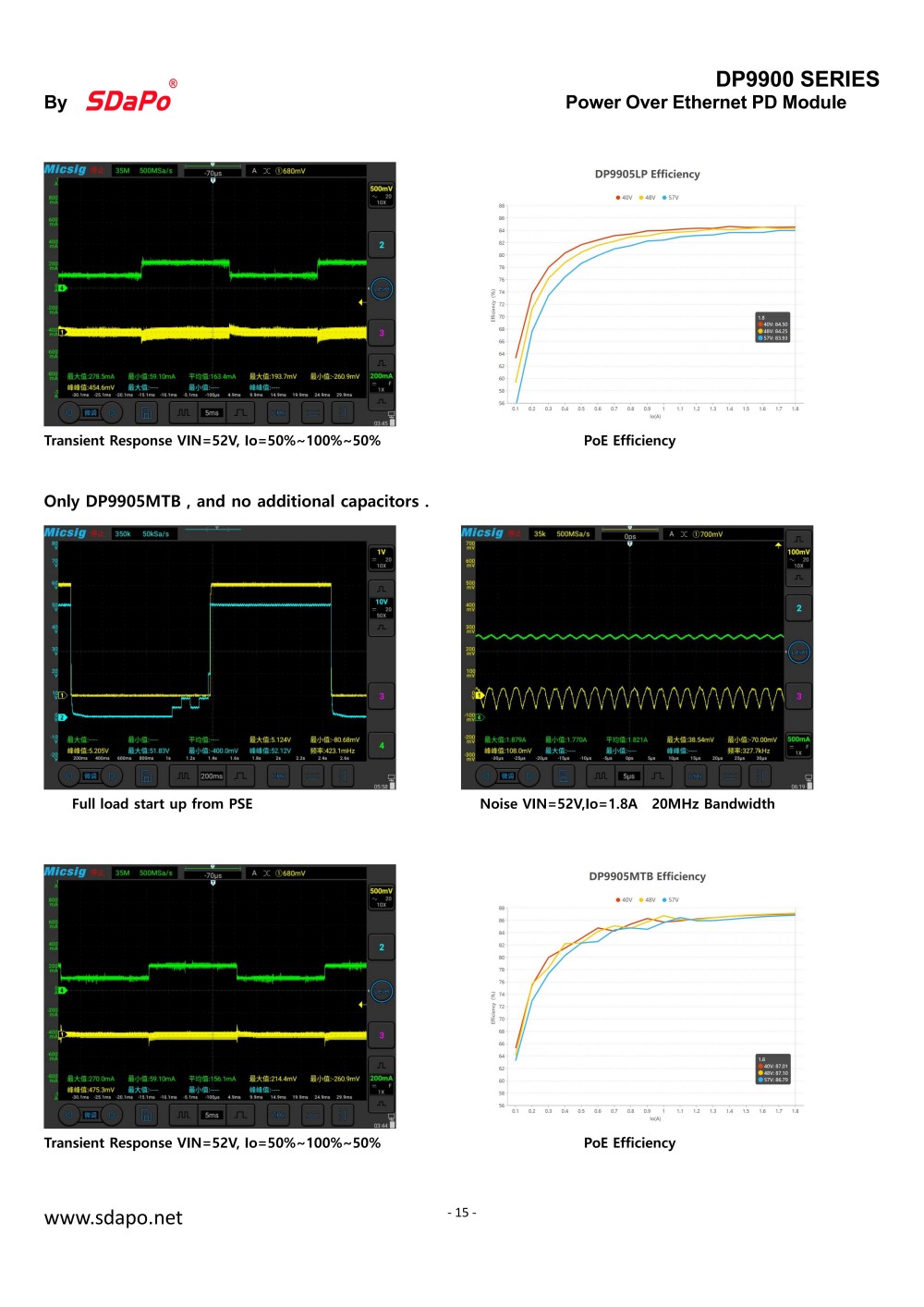

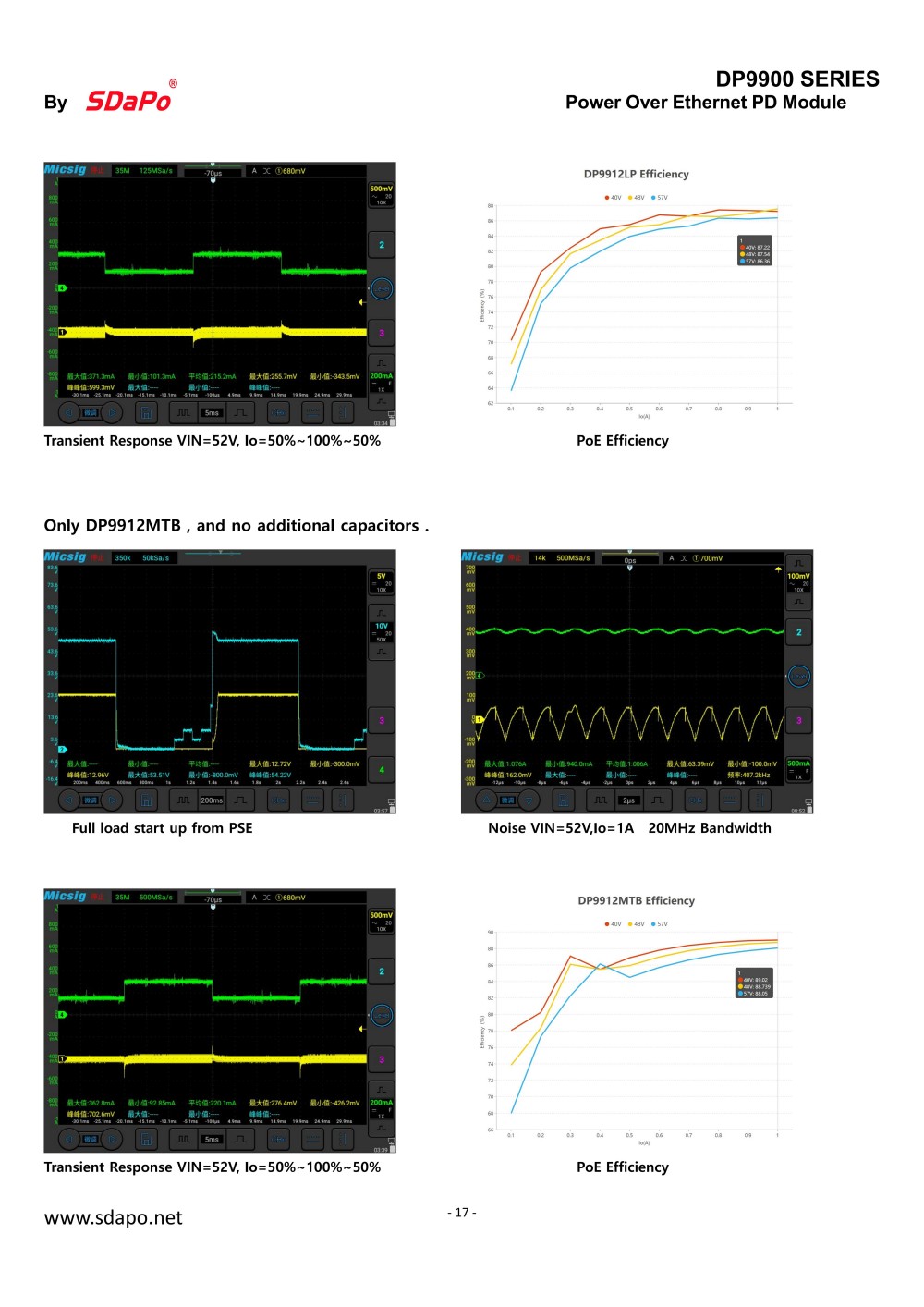

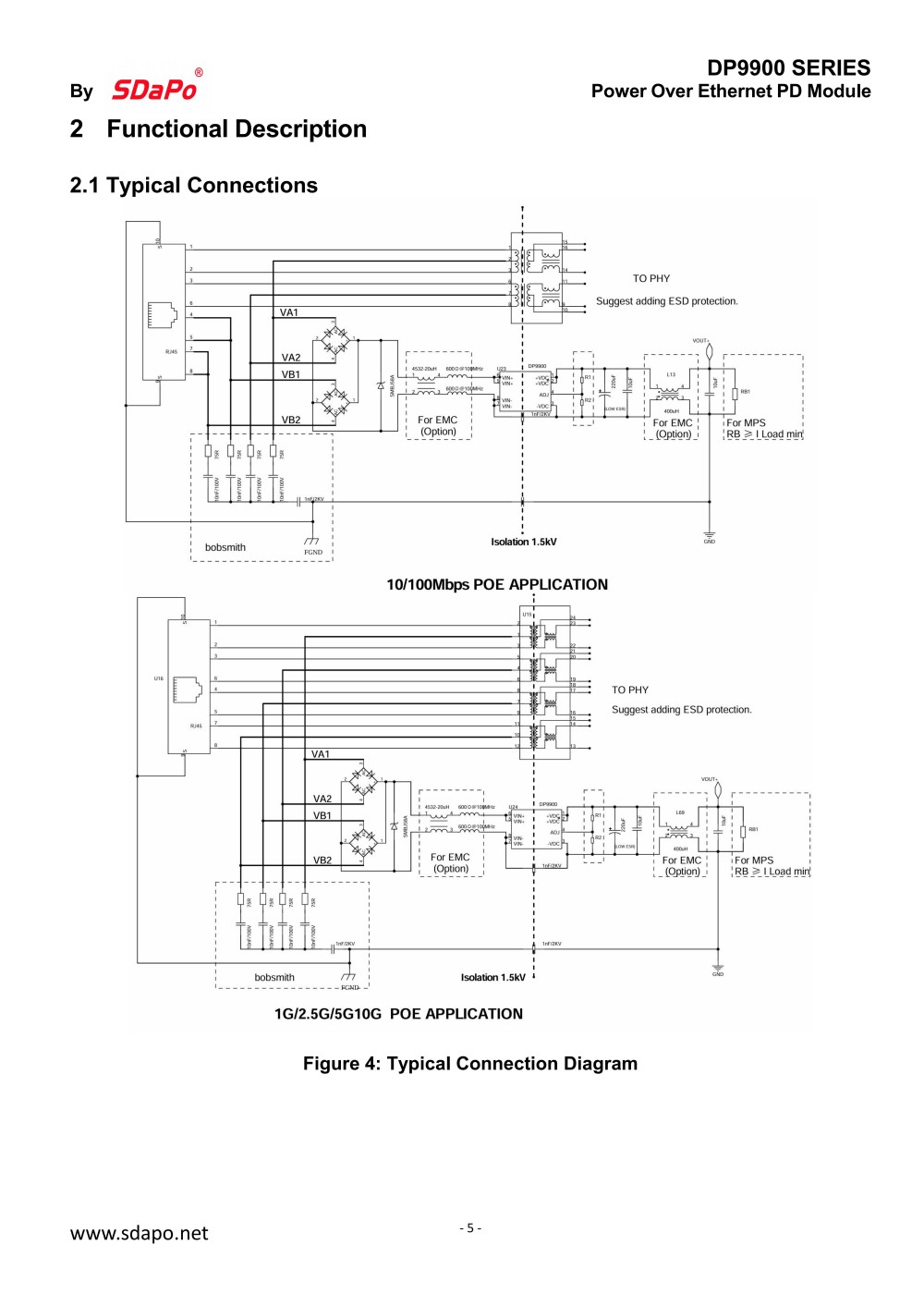

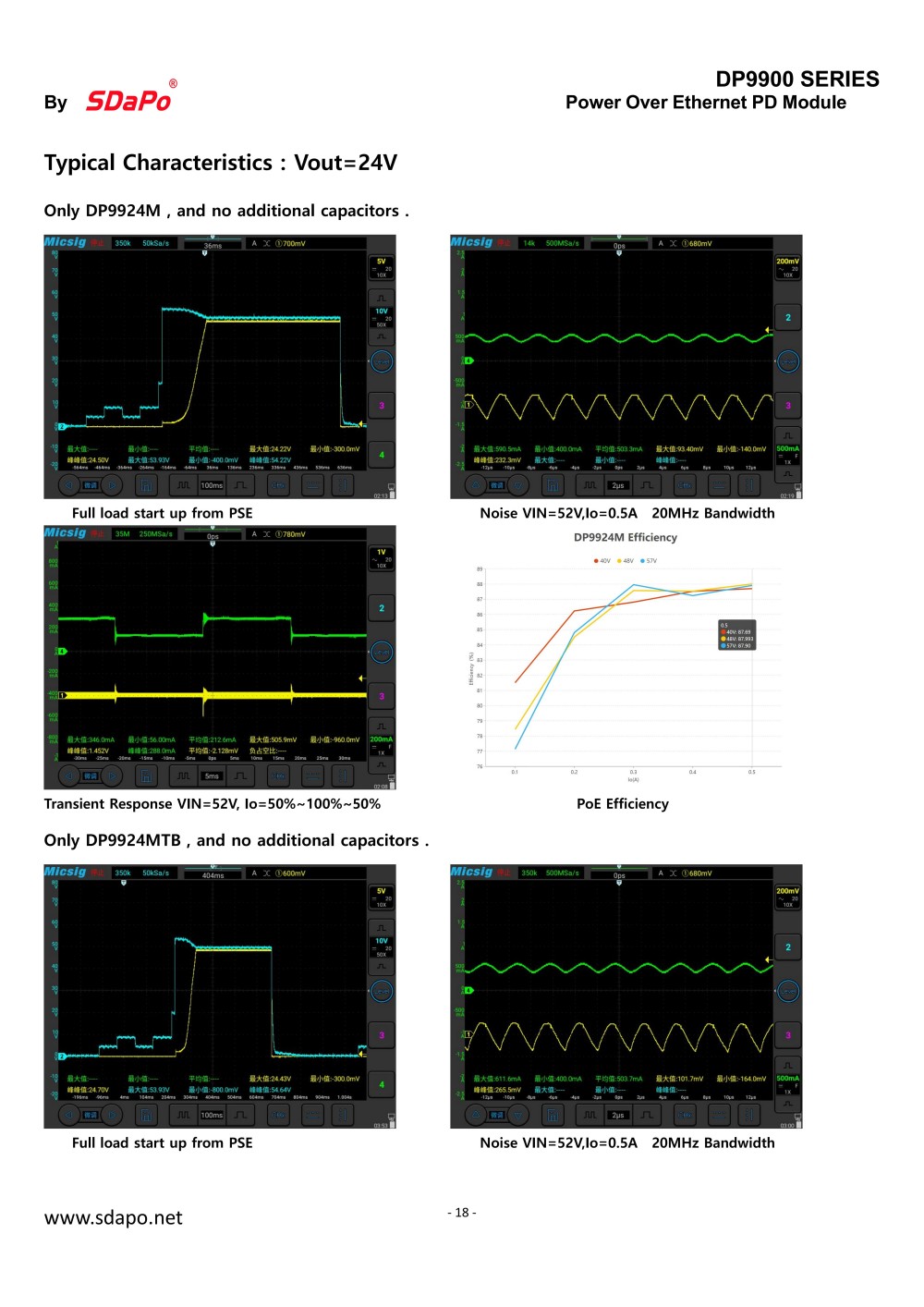

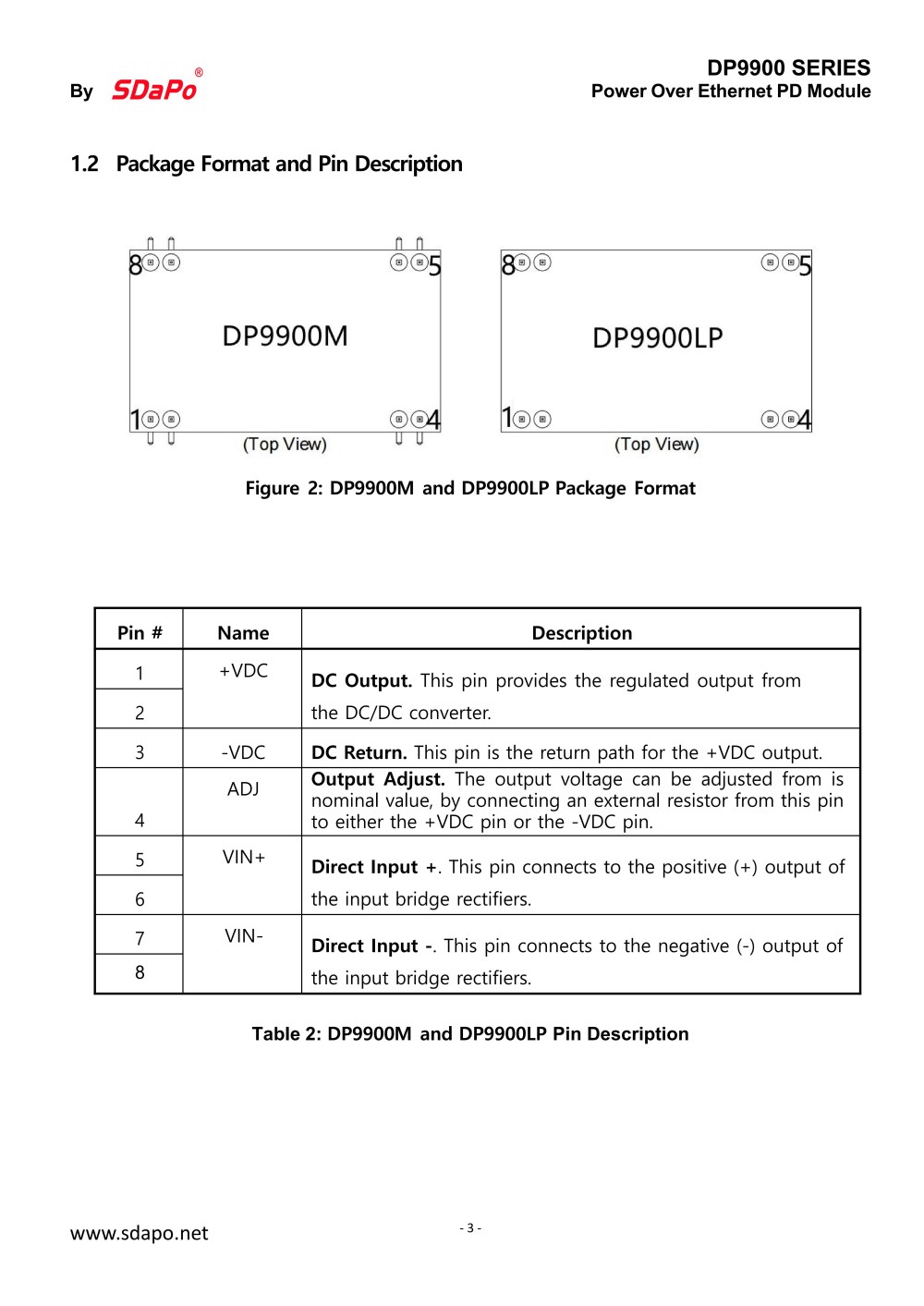

DP9900 202511Datasheet_01DP9900 202511Datasheet_02DP9900 202511Datasheet_03DP9900 202511Datasheet_04DP9900 202511Datasheet_05DP9900 202511Datasheet_06DP9900 202511Datasheet_07DP9900 202511Datasheet_08DP9900 202511Datasheet_09DP9900 202511Datasheet_10DP9900 202511Datasheet_11DP9900 202511Datasheet_12DP9900 202511Datasheet_13DP9900 202511Datasheet_14DP9900 202511Datasheet_15DP9900 202511Datasheet_16DP9900 202511Datasheet_17DP9900 202511Datasheet_18DP9900 202511Datasheet_19

download DP9900 202511 Datasheet.pdf

download 2501R39186E(RoHS Test Report).PDF

download 2501R25347E(REACH Test Report).PDF
