DP6100 30W PoE Module PSE Module

You are here: Home » Products » POE Module » PSE module » DP6100 30W PoE Module PSE Module

Factory direct sales Poe Module 26 x 14mm SDAPO DP6100

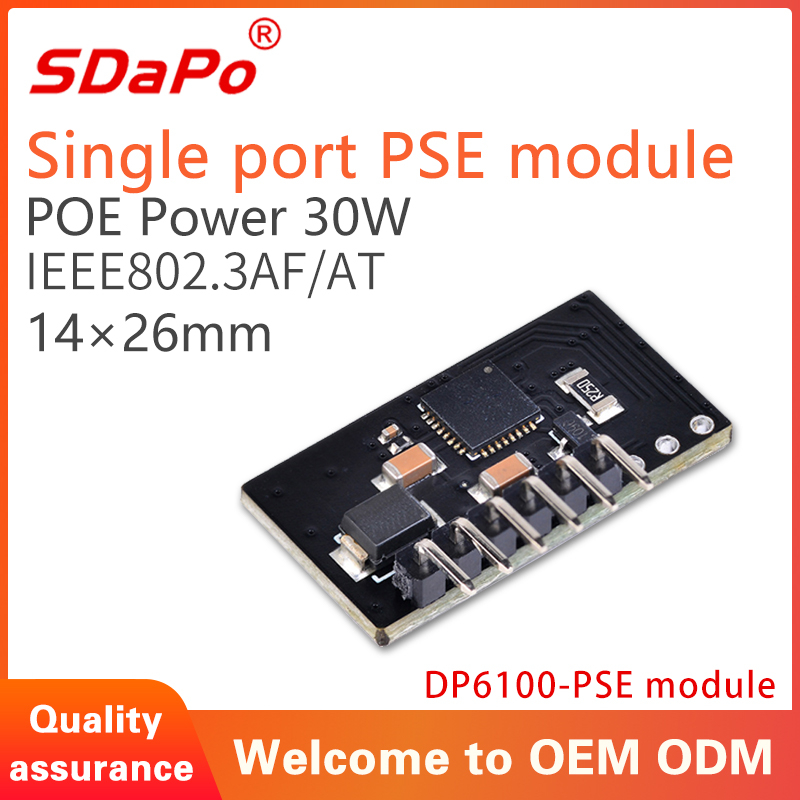

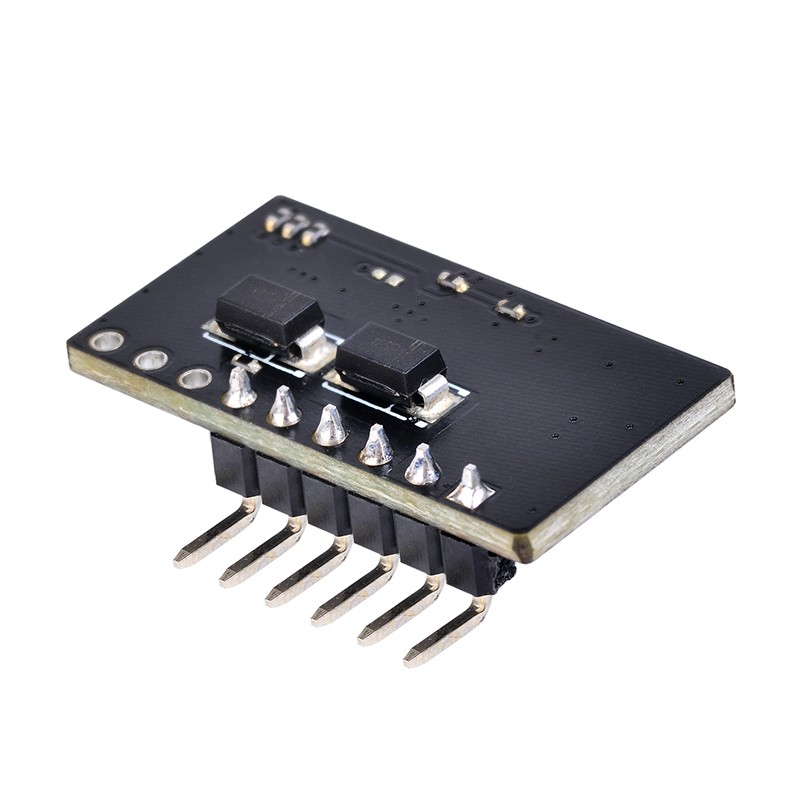

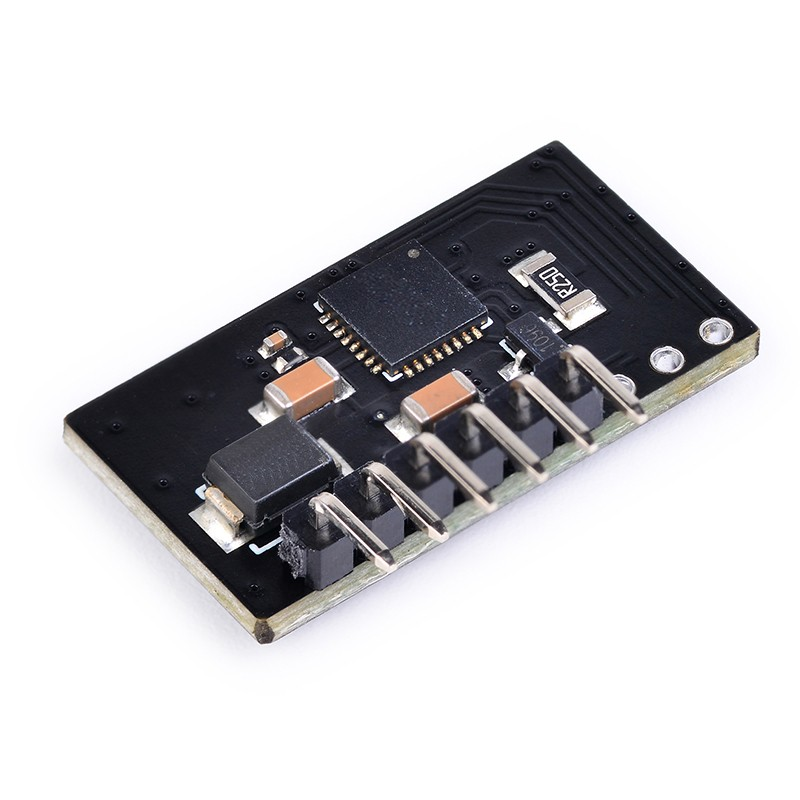

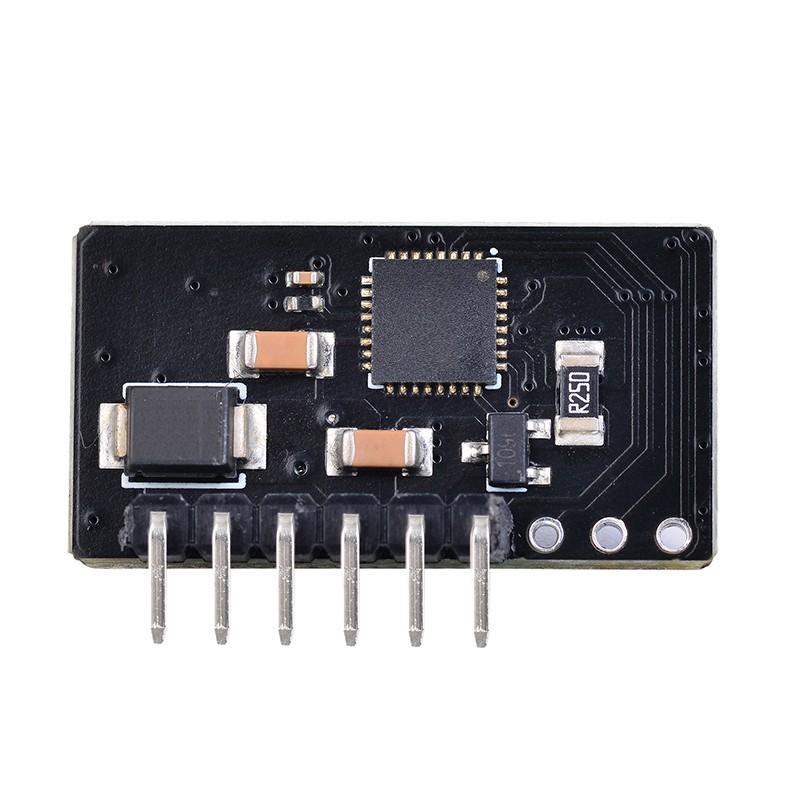

DP6100 30W PoE Module PSE Module

Name: DP6100 30W PoE Module PSE Module
Brand: SDaPo
SKU: 538629927
Rating: 5.0 (11 reviews)

- Compliant with IEEE802.3at Type 1 (af) & Type 2
- Small SIL package size - 26mm(L) X 14mm(H)
- Low Cost
- Output power up to 39W on the "S" version and 60W on the "HP version
- Minimal (low cost) external components required
- Over-current and short circuit protection
- Industrial Temperature Range
- Sdapo "design-in" assistance
- RoHS Compliant

Model:
DP6100
Brand:
SDaPo

Watts:	DP6100-30W
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

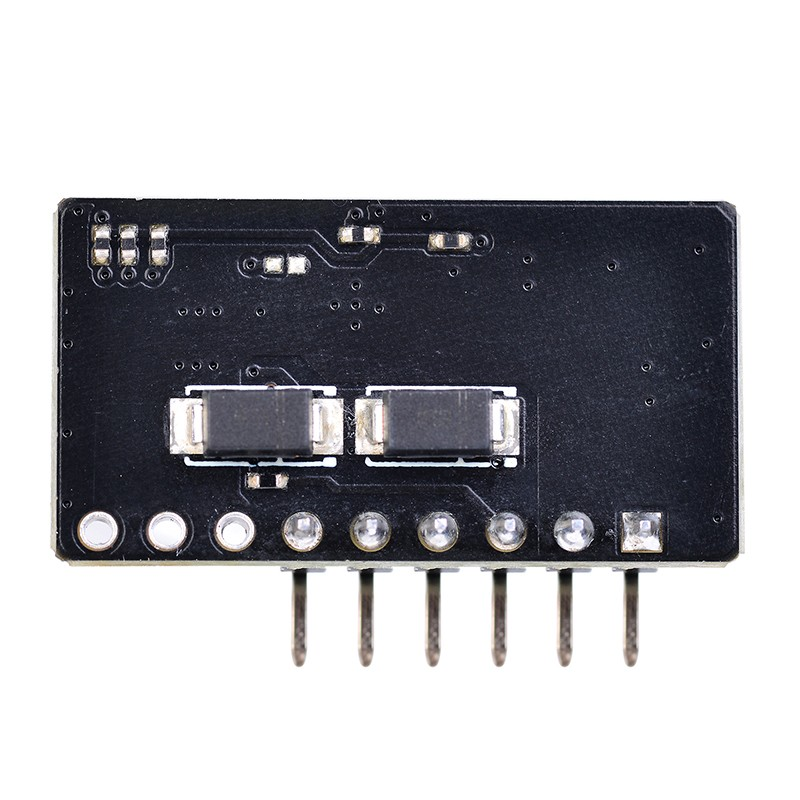

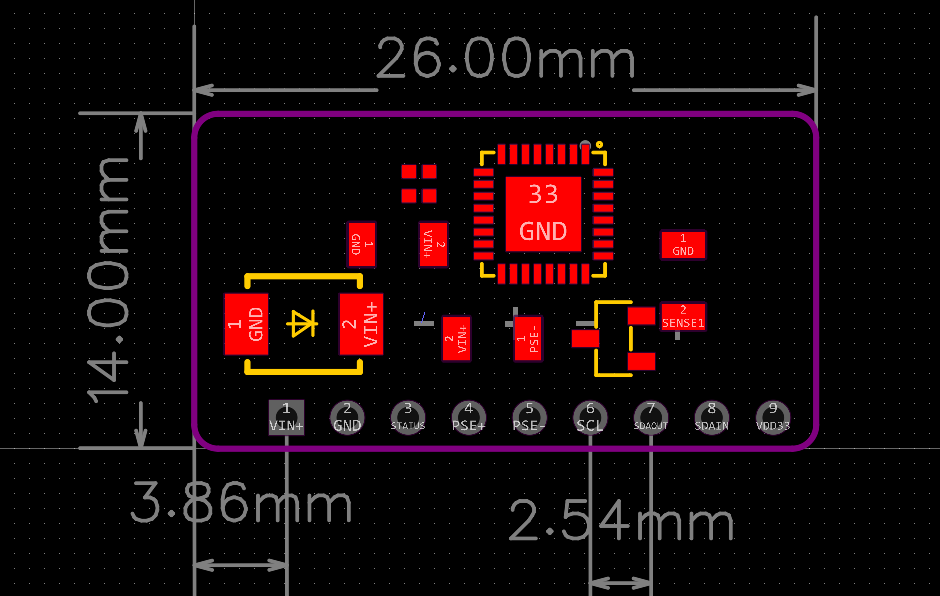

Pin Description

Pin #	Name	Description
1	VIN+	Main Power Supply. This pin connects to an isolated 44V to 57V supply; relative to the GND.
2	GND	GND. This pin is the return path for the isolated VIN+ power supply.
3	STATUS	Status Output. This output shows the status of the DP6100.
4	PSE+	Port Output. This output pin monitors the line and supplies power to valid powered device.
5	PSE-	Port Output Return. This pin is the return path for PSE+.
6,7,8,9	NC	No Connection.

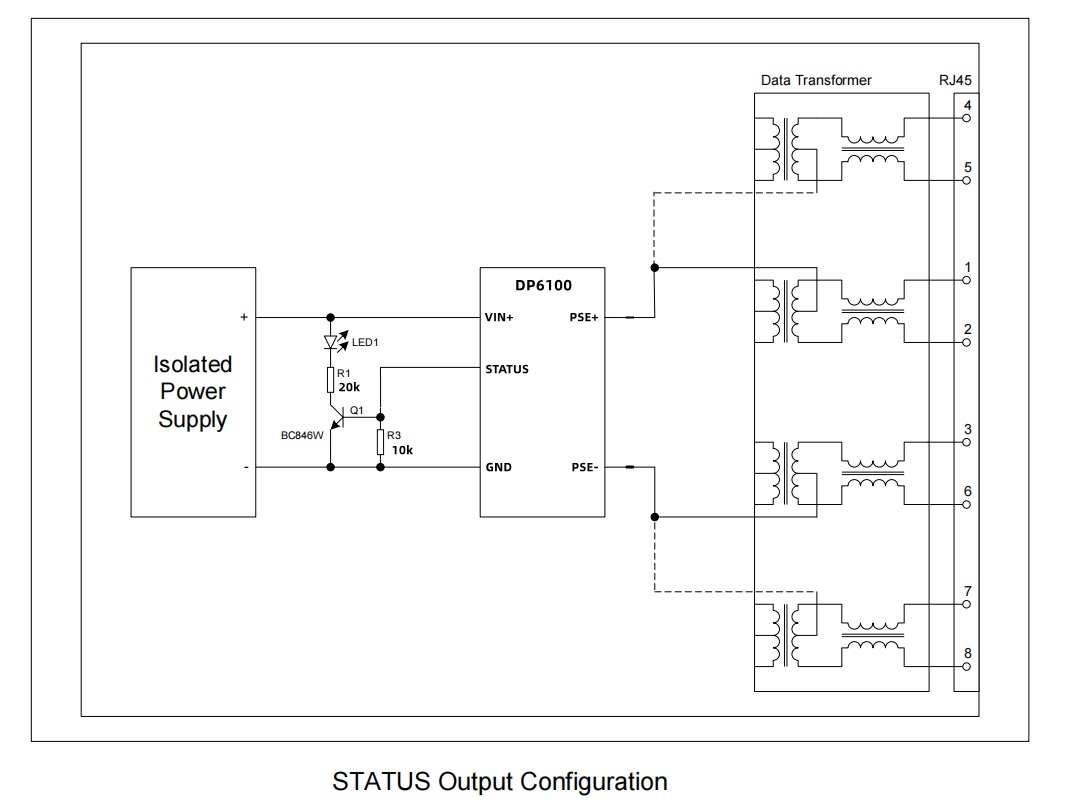

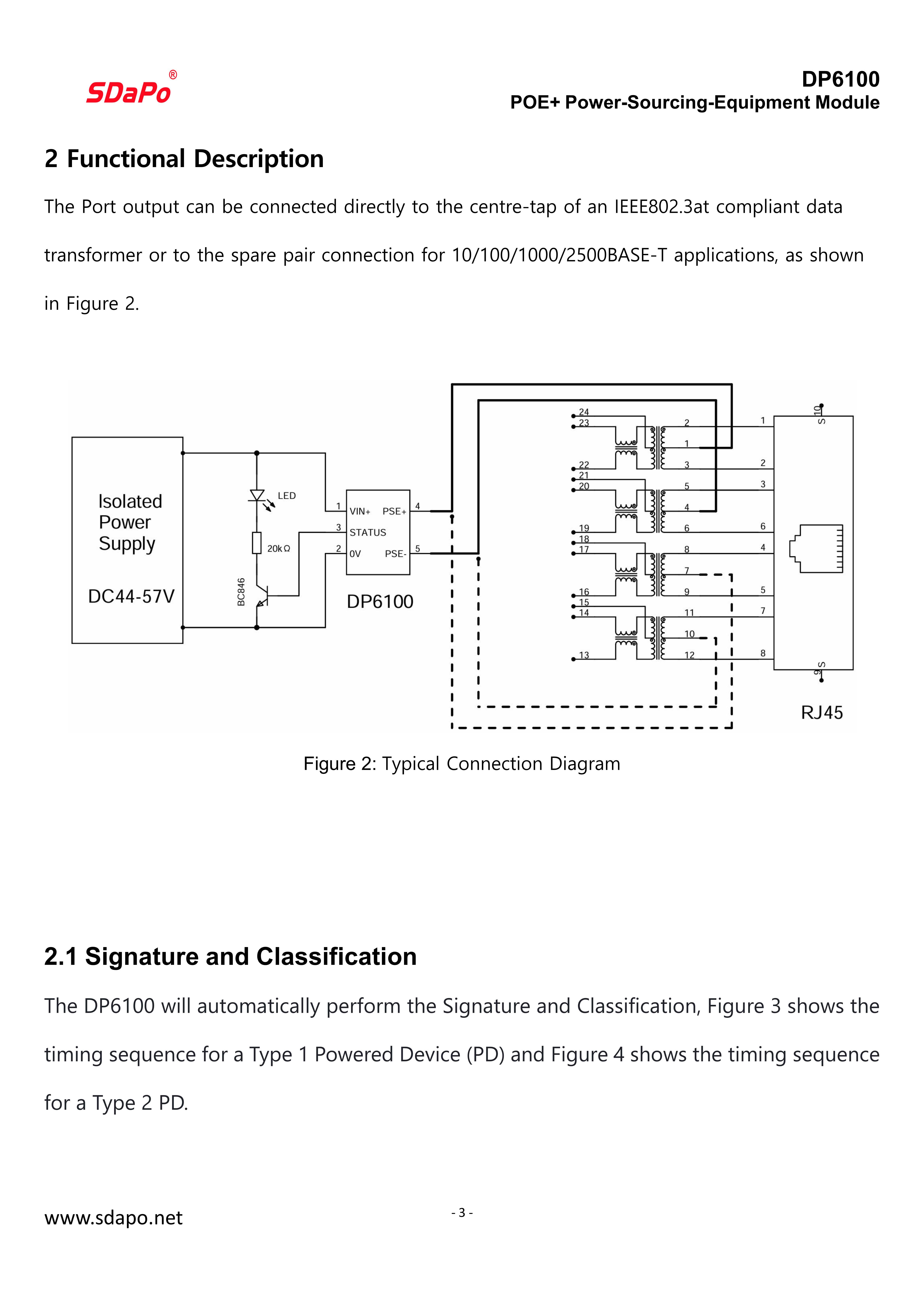

Typical Connection Diagram

DP6100 Parameter

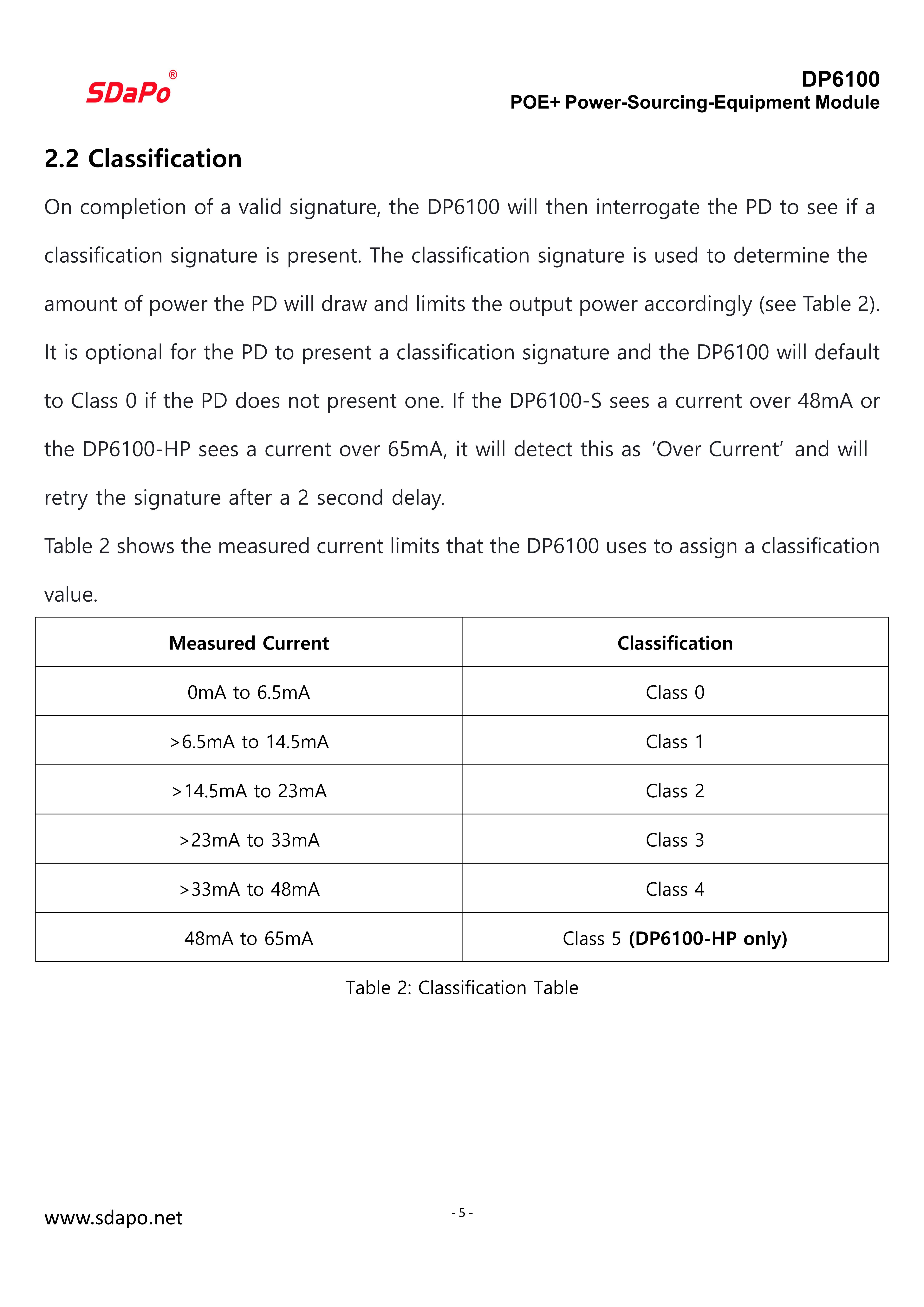

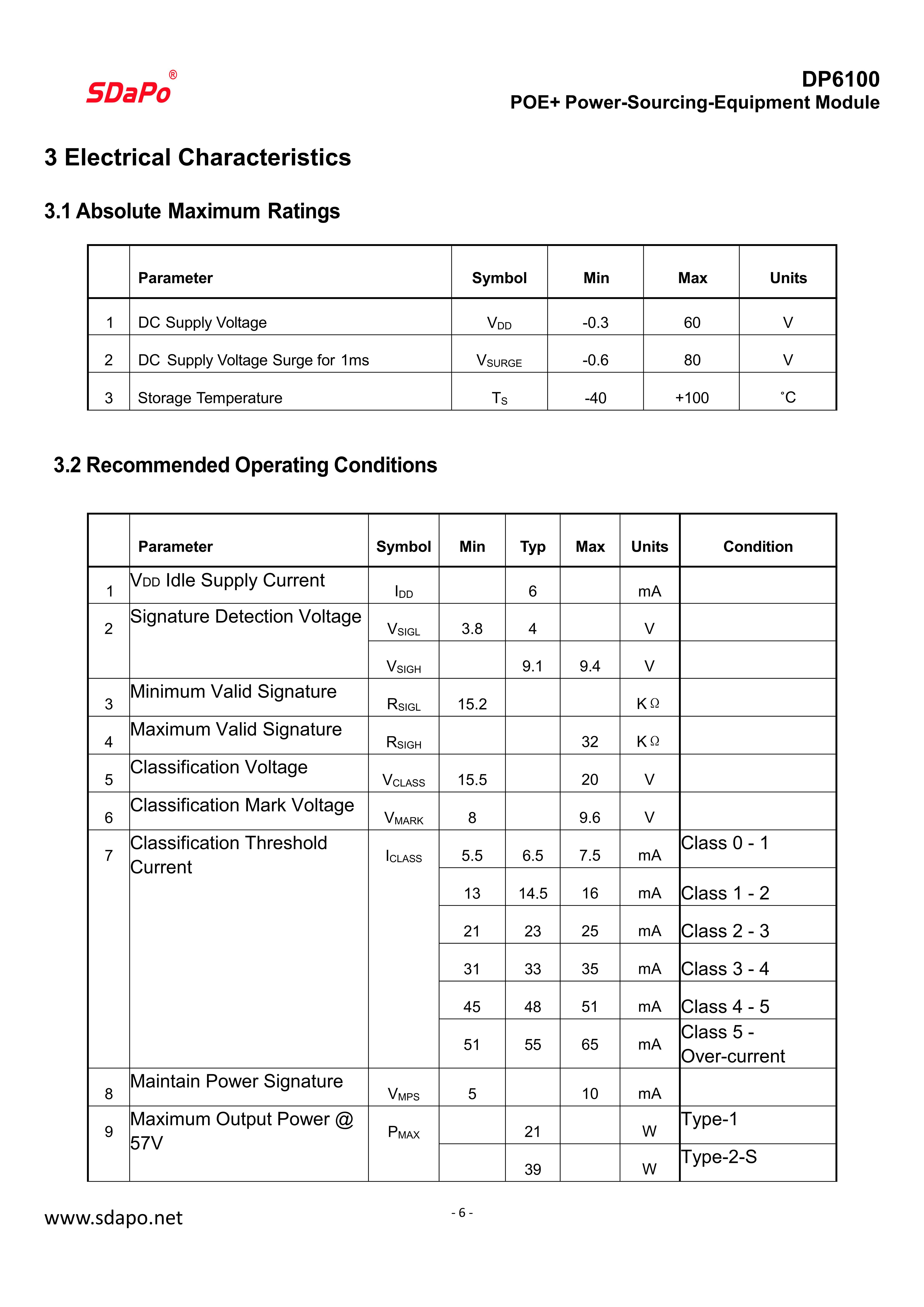

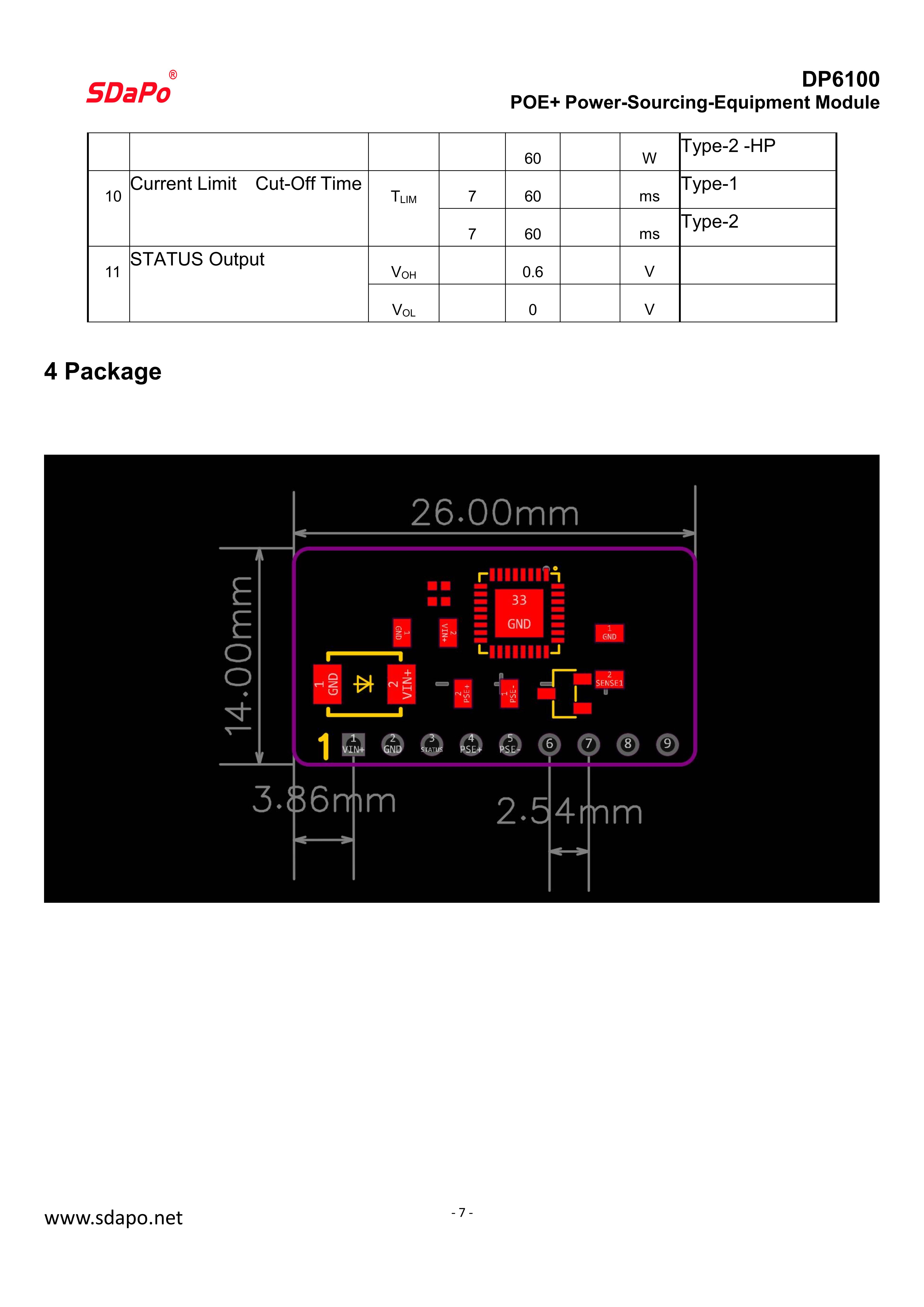

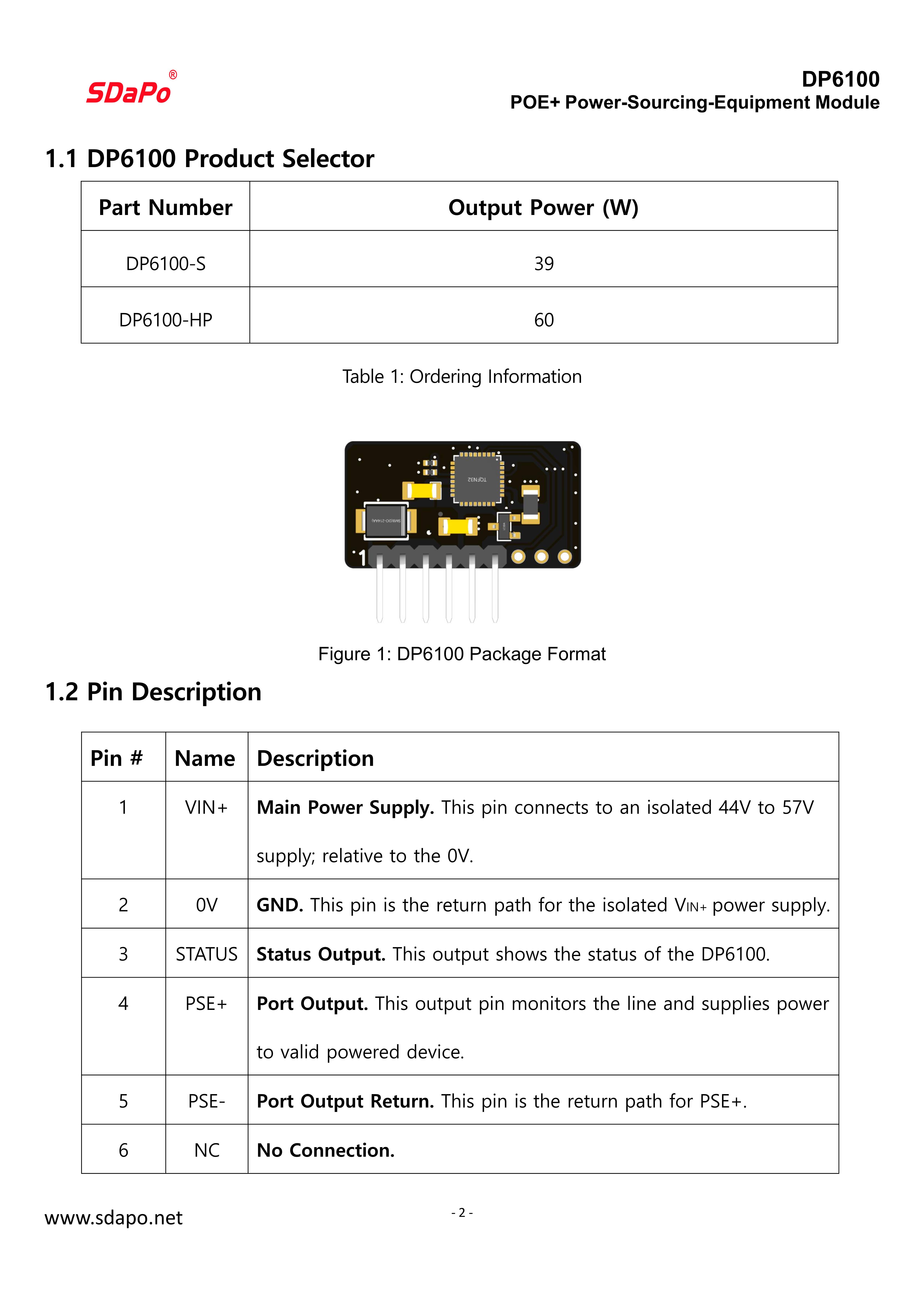

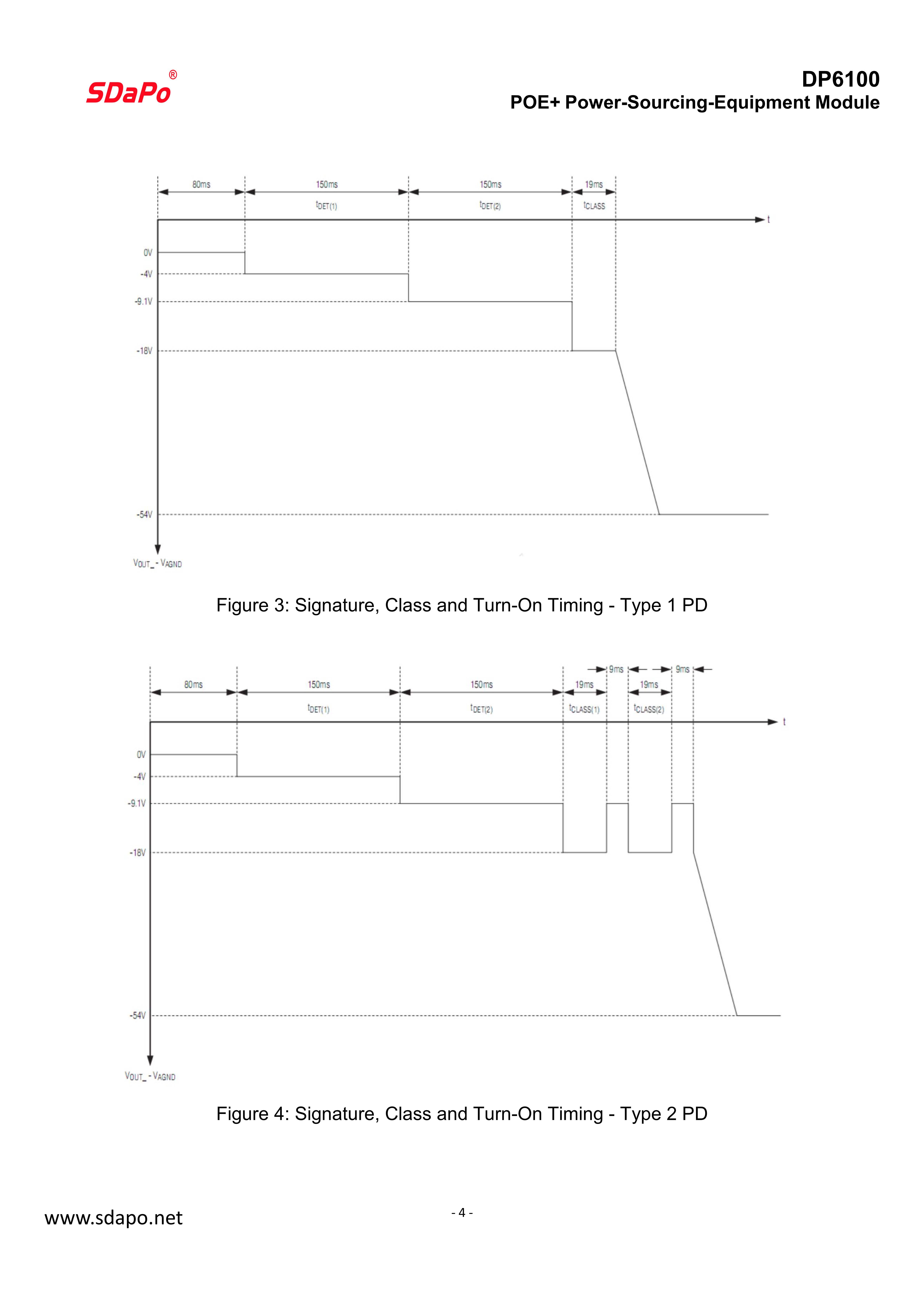

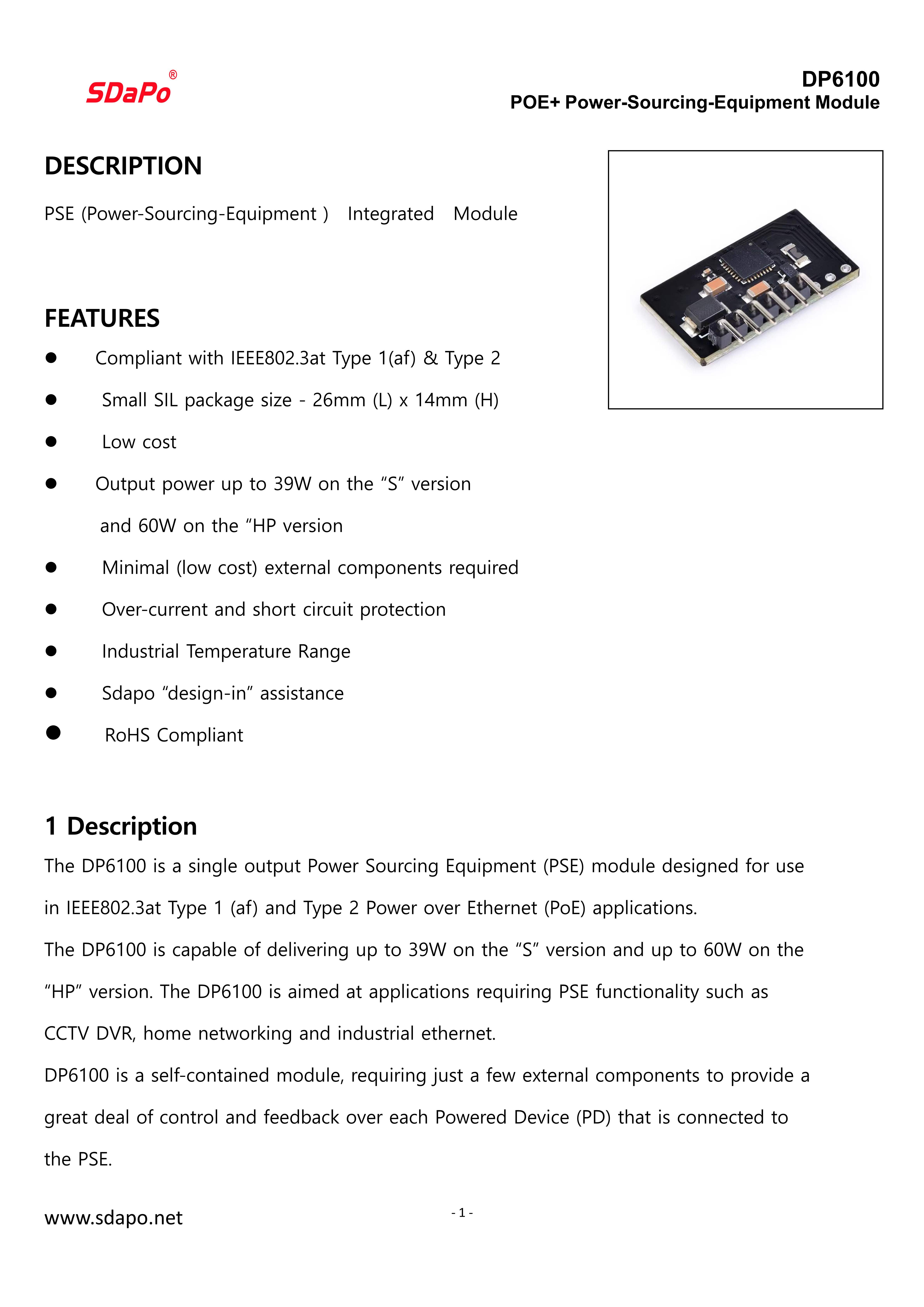

DP6100-最新调整到39瓦规格书20241226_1 DP6100-最新调整到39瓦规格书20241226_2 DP6100-最新调整到39瓦规格书20241226_3 DP6100-最新调整到39瓦规格书20241226_4 DP6100-最新调整到39瓦规格书20241226_5 DP6100-最新调整到39瓦规格书20241226_6 DP6100-最新调整到39瓦规格书20241226_7

DP6100 Datesheet

DP6100-最新调整到39瓦规格书20241226.pdf
