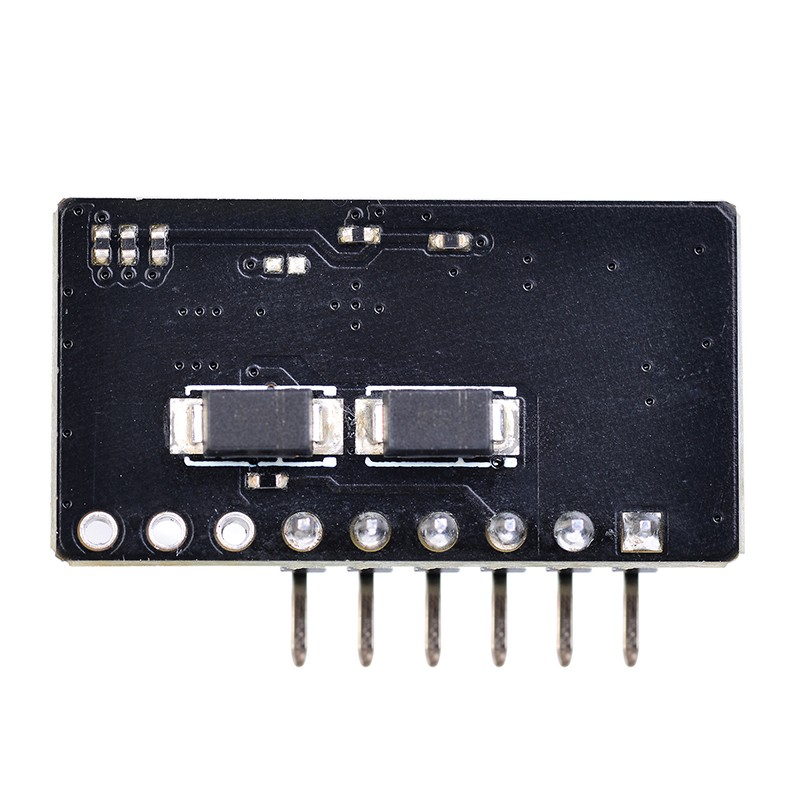

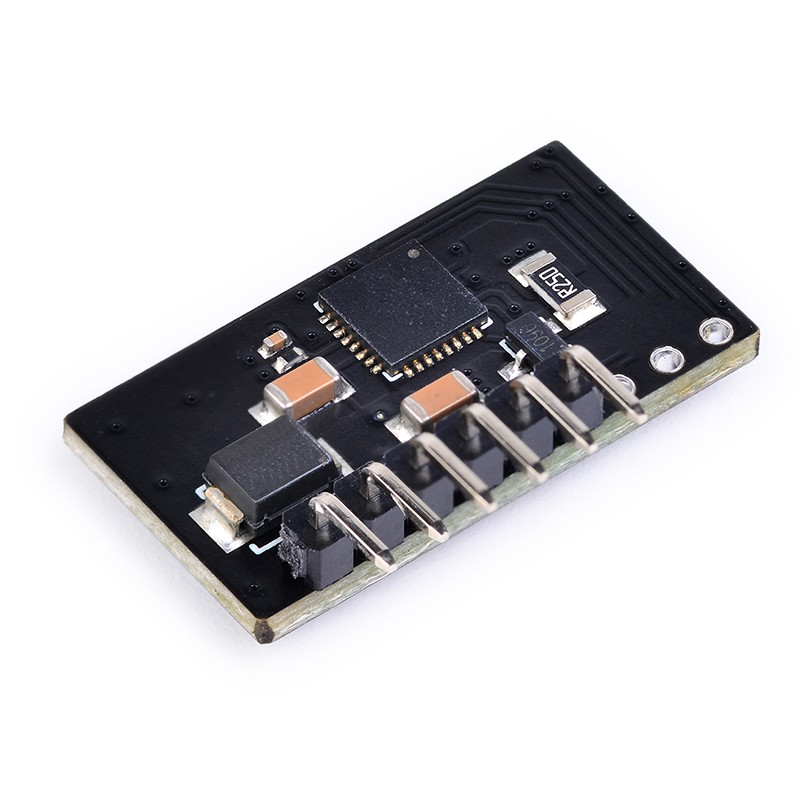

DP6100 39W PoE Module PSE Module

- Obsequium cum IEEE802.3at Type 1 (af) & Type 2

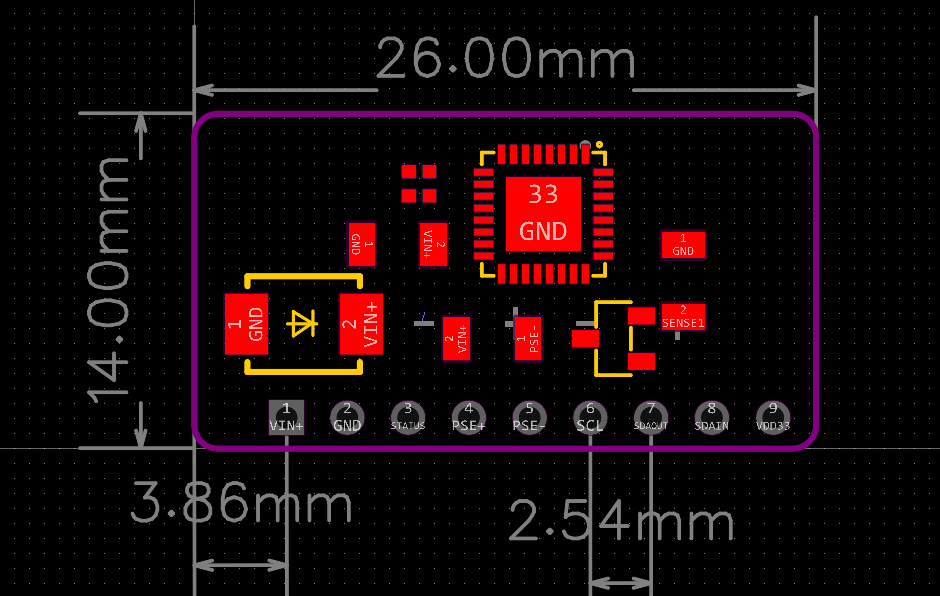

- Small SIL involucrum amplitudo - 26mm(L) X 14mm(H)
- Low Cost
- Output power up to 39W in 'S' versionis et 60W in 'HP versionis
- minimalis (low cost) externae partes requisitae
- Prae-currentes et breves ambitus tutelae
Industrialis Temperature Range - Sda
-H.S.
-

Exemplar:
DP6100
Notam:
SDaPo

:	DP6100-39W
Availability:

Quantity:



inquire Add to Basket

Grata es ut mos POE variae magnitudinis et connectoris et functionis modulos.

In at arcu eget metus suscipit consequat ac eget elit.

Post certum numerum modulorum (plerumque 5000 frusta nullo tempore limitata), sumptus r&d refugium esse potest.

Accipit 7-10 dies ad exempla producendum. Post specimen est idoneus, batch productionem.

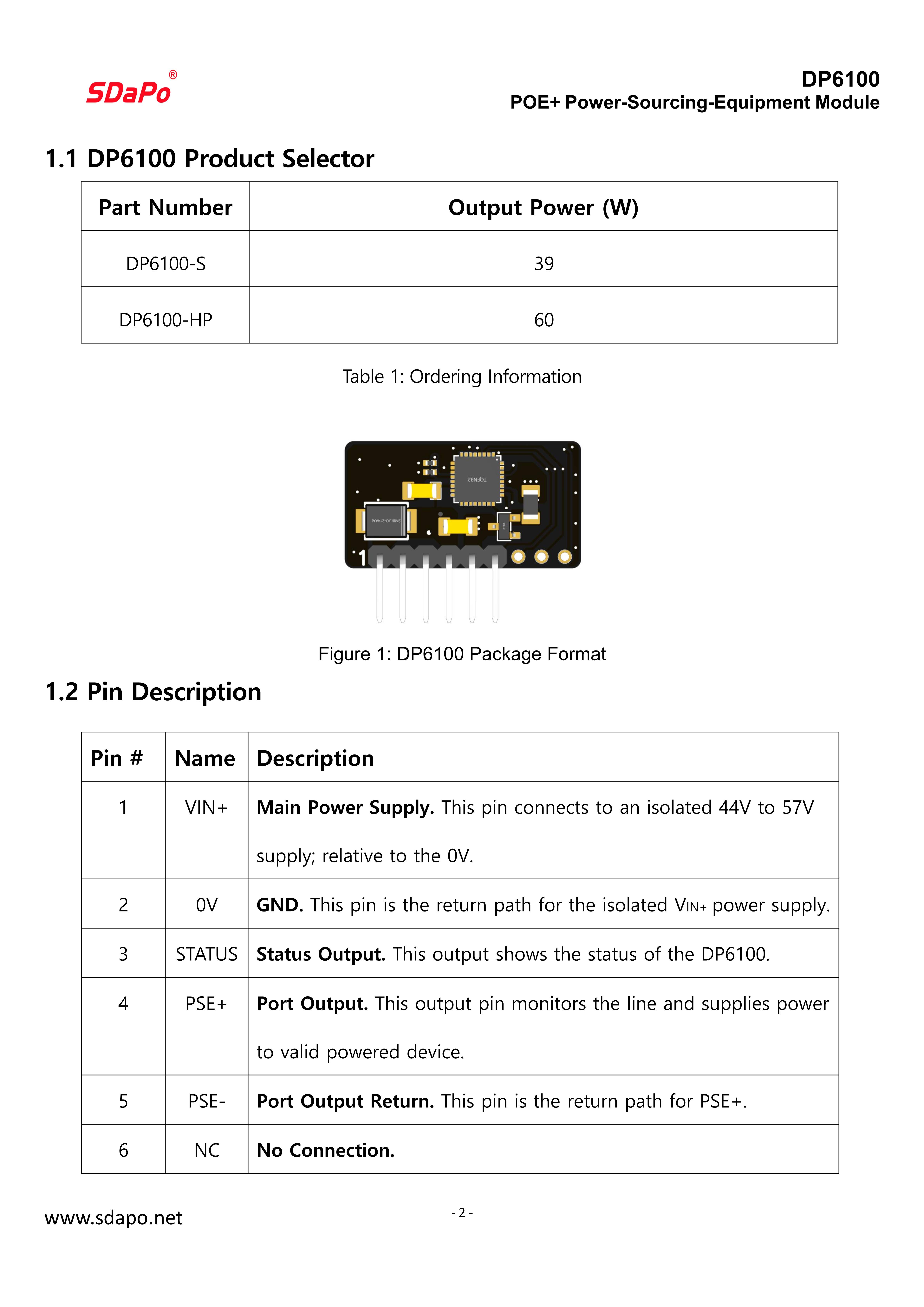

Pin Description

Pin #	Nomen	Descriptio
1	VIN+	Principalis Power. Haec paxillus solitario coniungitur 44V ad 57V copiam; ad GND.
2	GND	GND. Hoc clavum est semita reditus ad copiam virtutis VIN+ solitariae.
3	QUID	Status output. Hoc output ostendit statum DP6100.
4	PSE+	Portus output. Hoc clavum monitores output lineam praebet et potestatem ad machinam validam powered suppeditat.
5	PSE-	Portus Output Redi. Hoc clavum est semita reditus PSE+.
6,7,8,9	NC	No Connection.

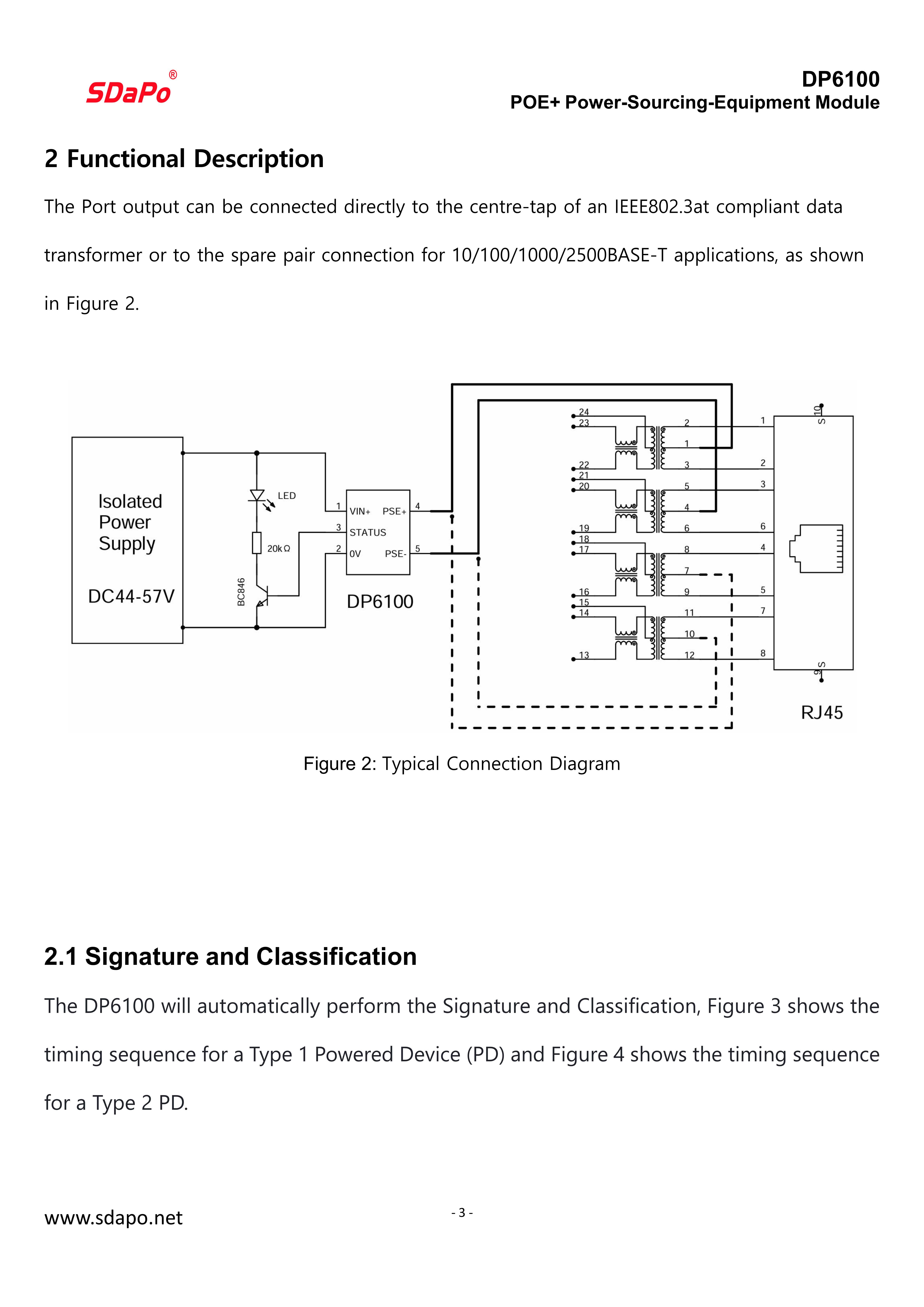

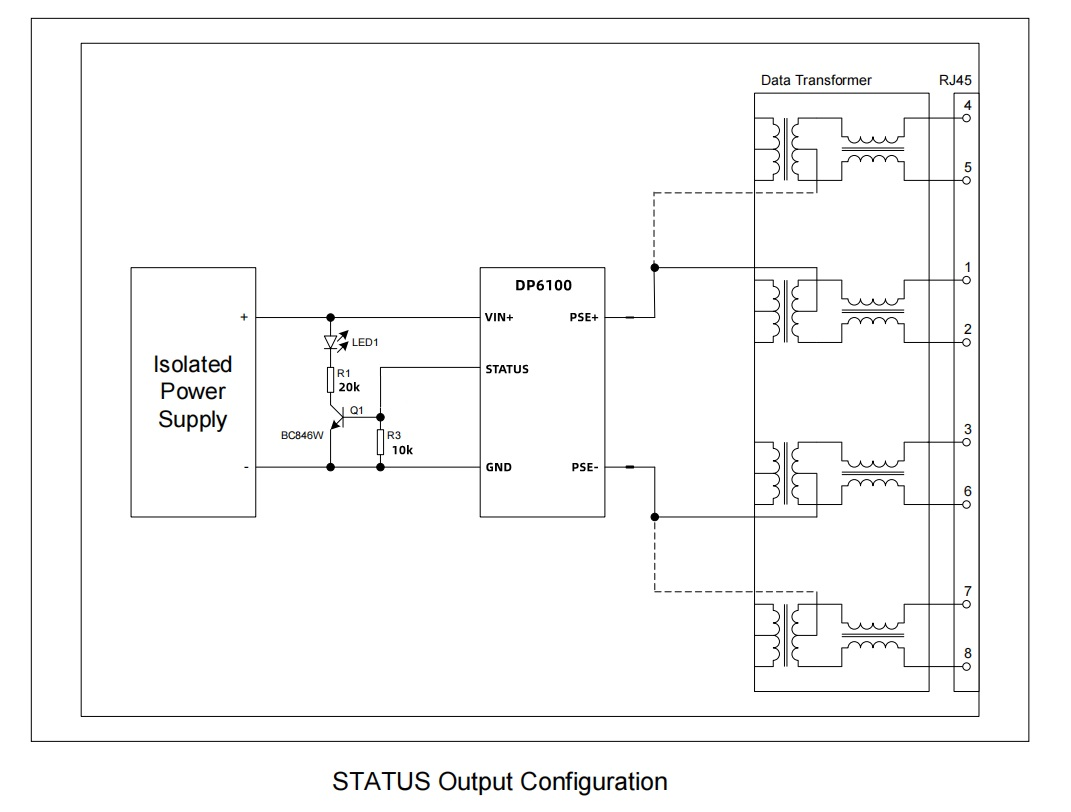

Typical Connection Diagram

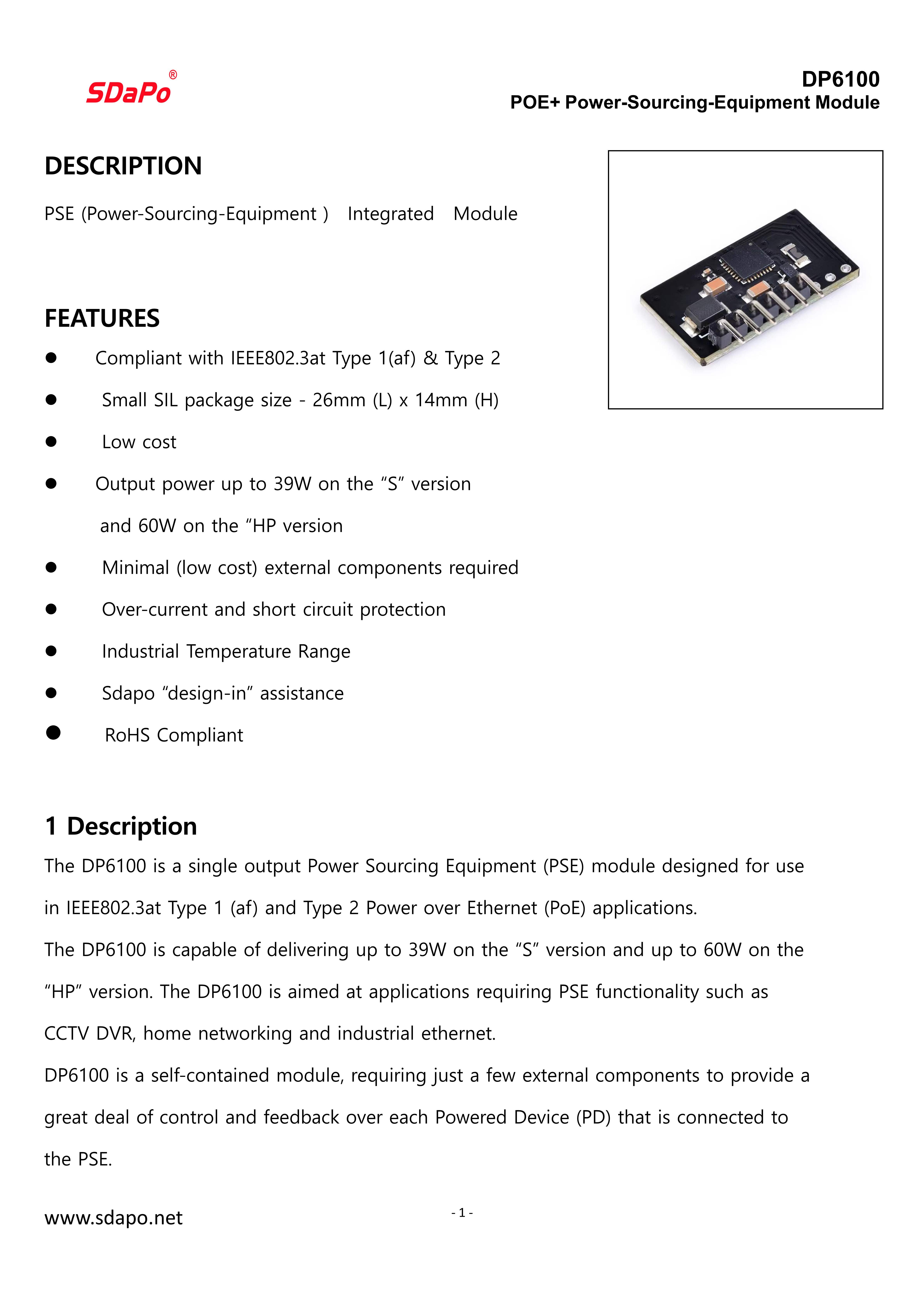

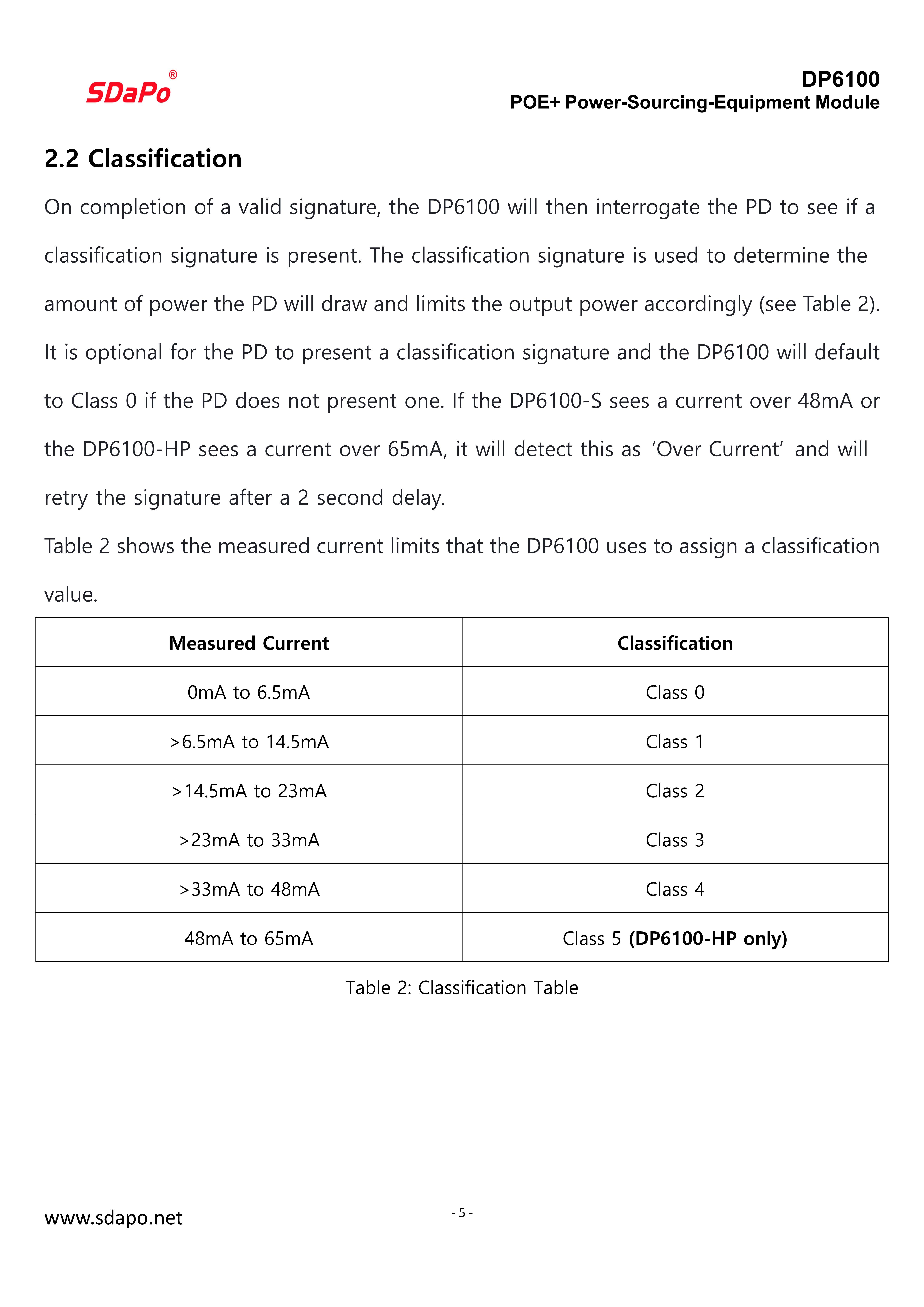

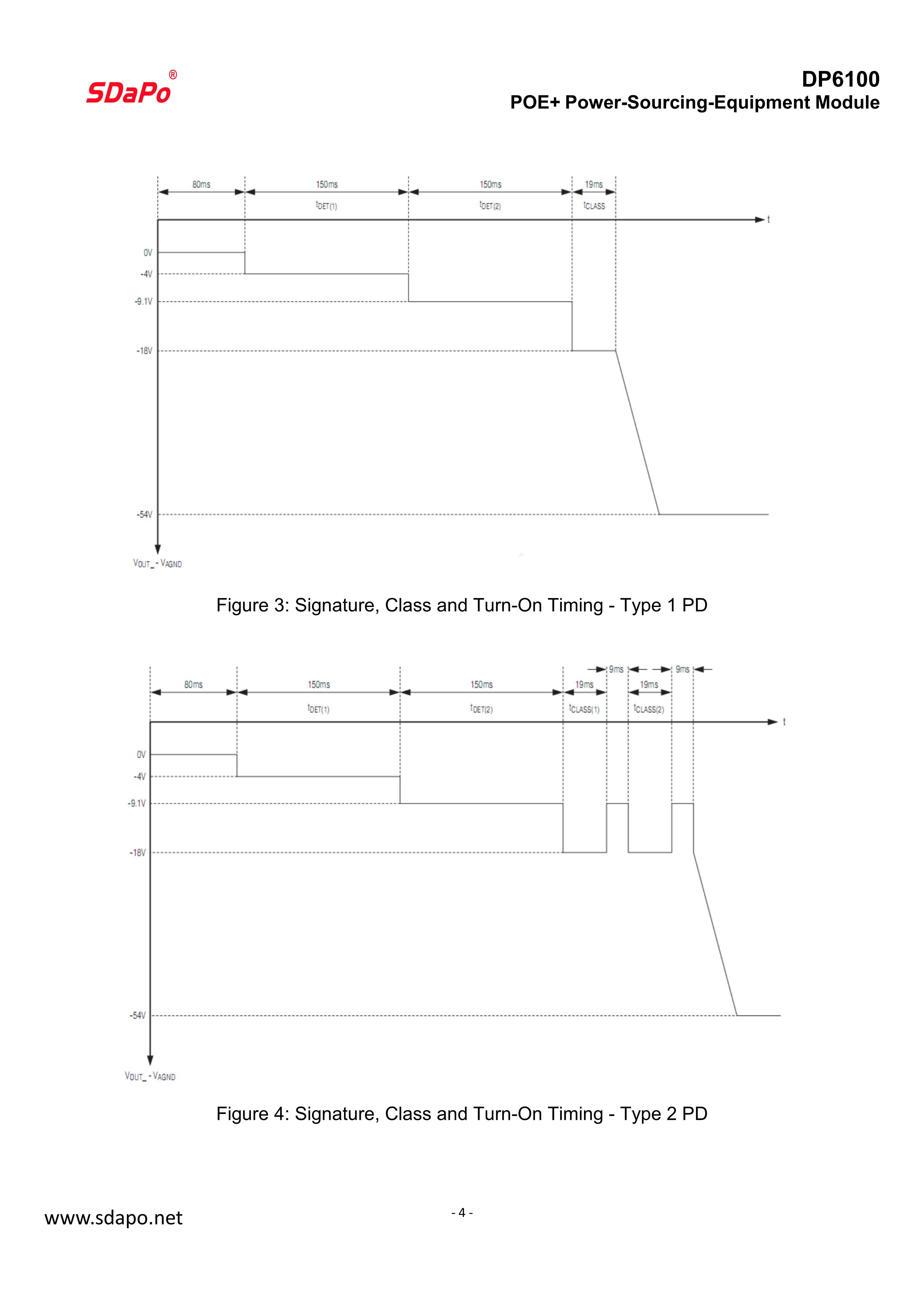

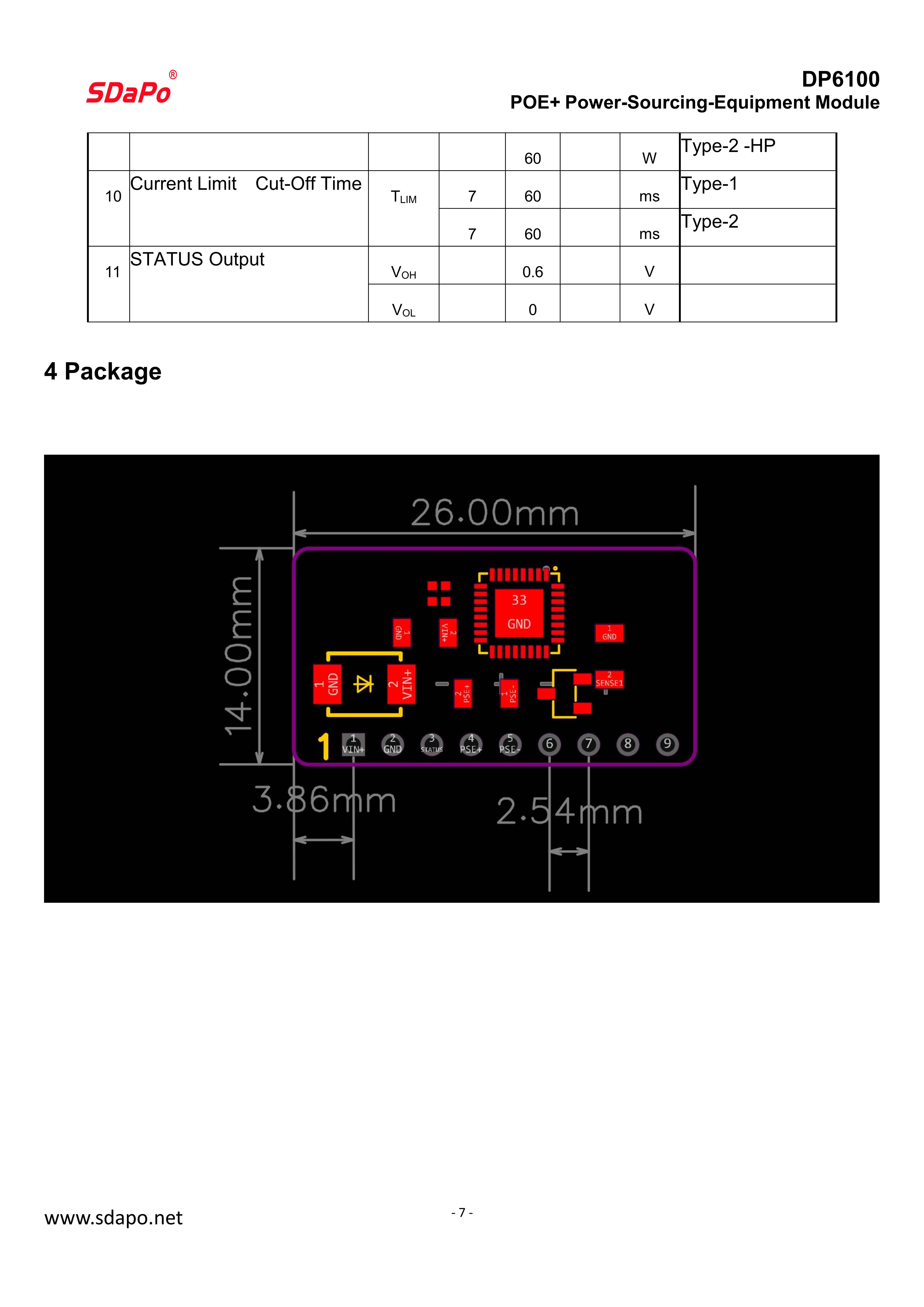

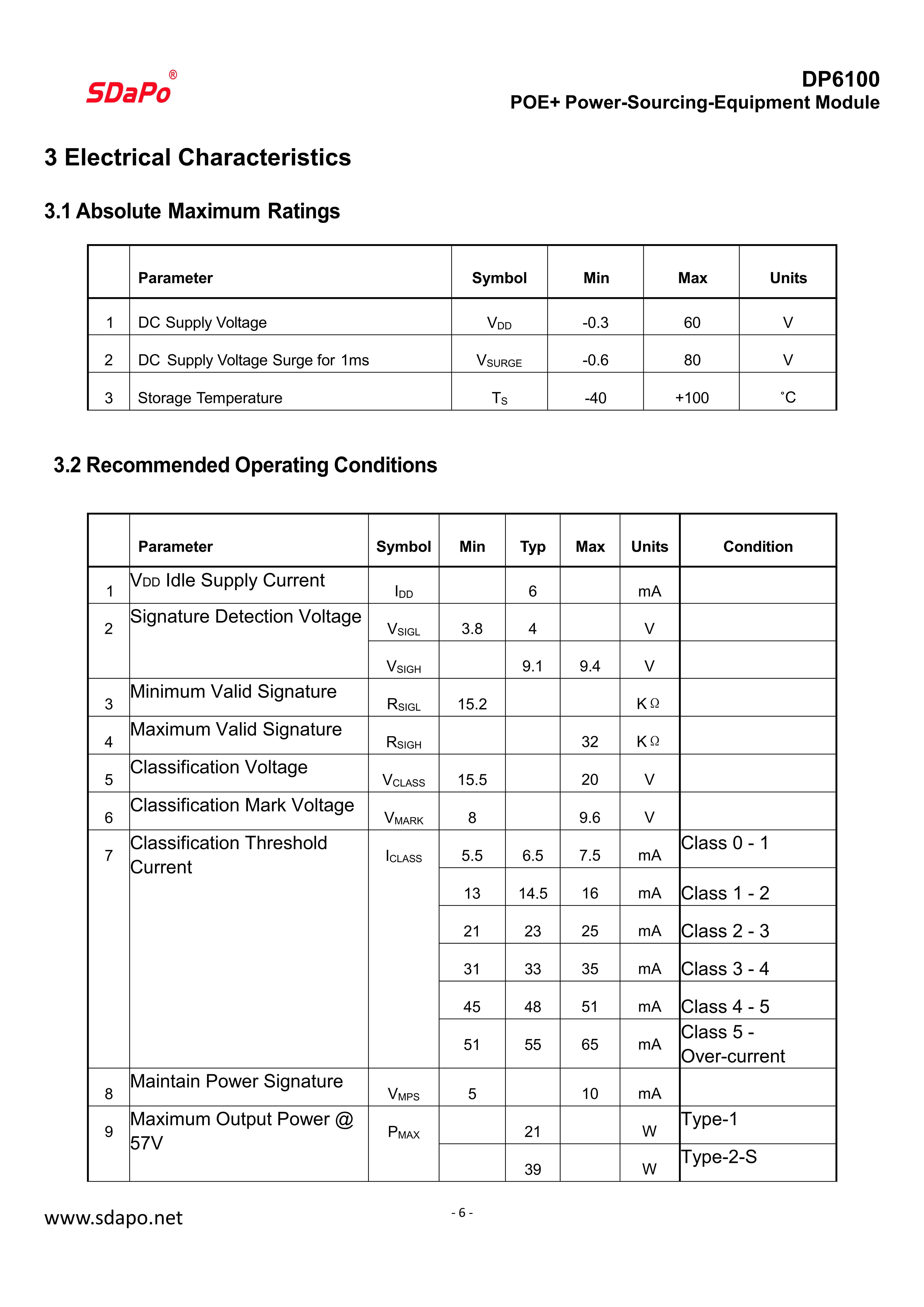

DP6100-最新调整到39瓦规格书20241226_1 DP6100-最新调整到39瓦规格书20241226_2 DP6100-最新调整到39瓦规格书20241226_3 DP6100-最新调整到39瓦规格书20241226_4 DP6100-最新调整到39瓦规格书20241226_5 DP6100-最新调整到39瓦规格书20241226_6 DP6100-最新调整到39瓦规格书20241226_7

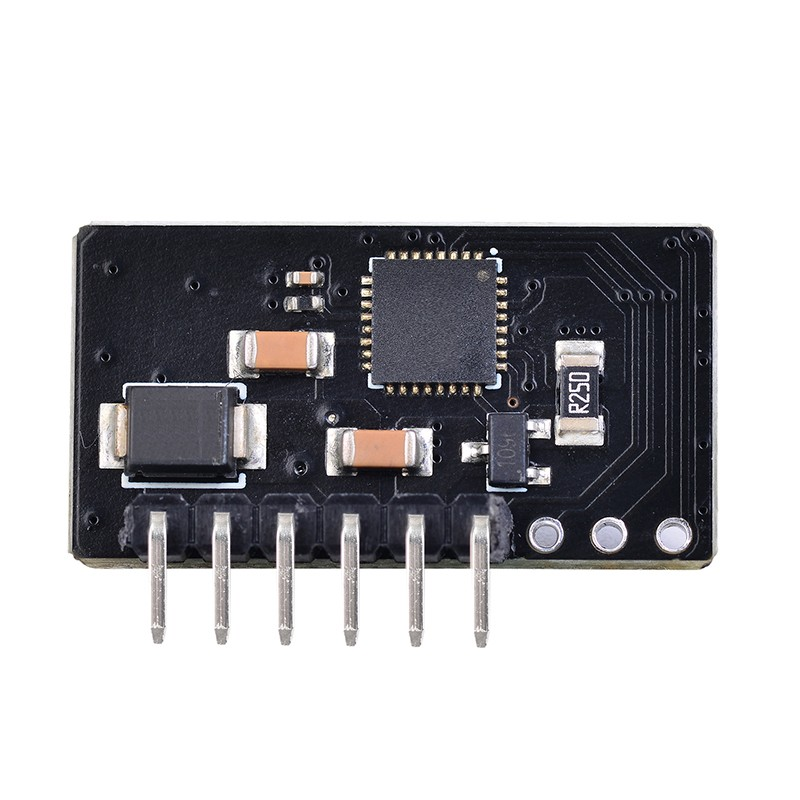

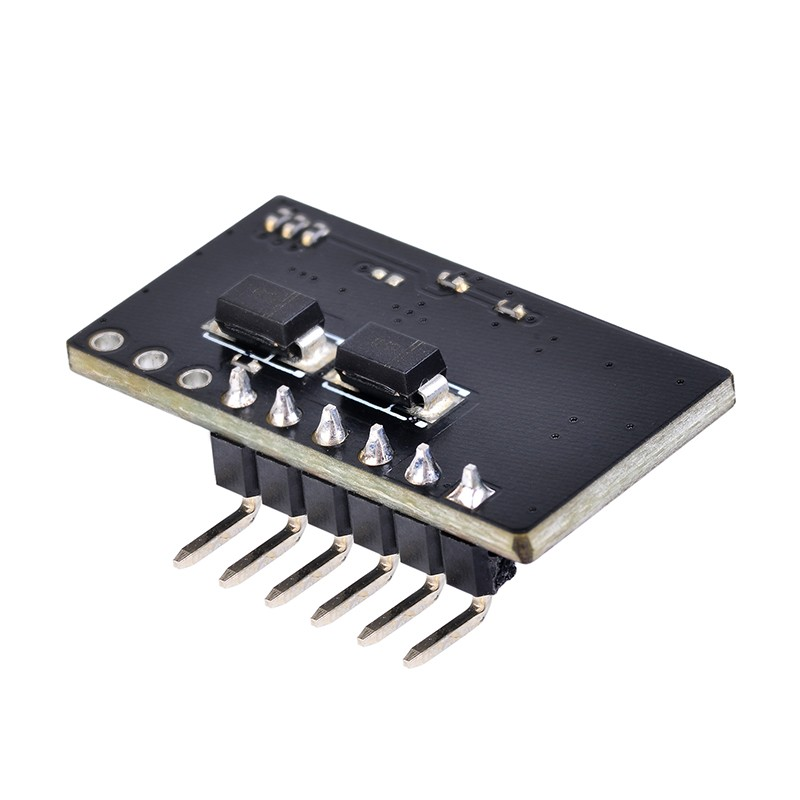

Poe Module 26 x 14mm SDAPO DP6100 DP6100 39W PoE PSE Module 39W PoE PSE OMNIBUS poe dolor moduli poe ethernet moduli 12v poe module poe virtutis moduli tabula 48v custom poe boards design poe modulus tabula poe modulus 24V
