1) 26 port switch with 24 port PoE ,1000Mbit *24 port 2) 2 Gigabit SFP port 3) Backbound Bandwidth: 52 Gbps 4) IEEE802.3at/af Standard 5) PoE Pin:1,2+/3,6- 6) PoE data & power transmission distance 100meter 7) Size: 440*220*44mm 8) total power:370W 9) for 8MP IPC 10) realtek

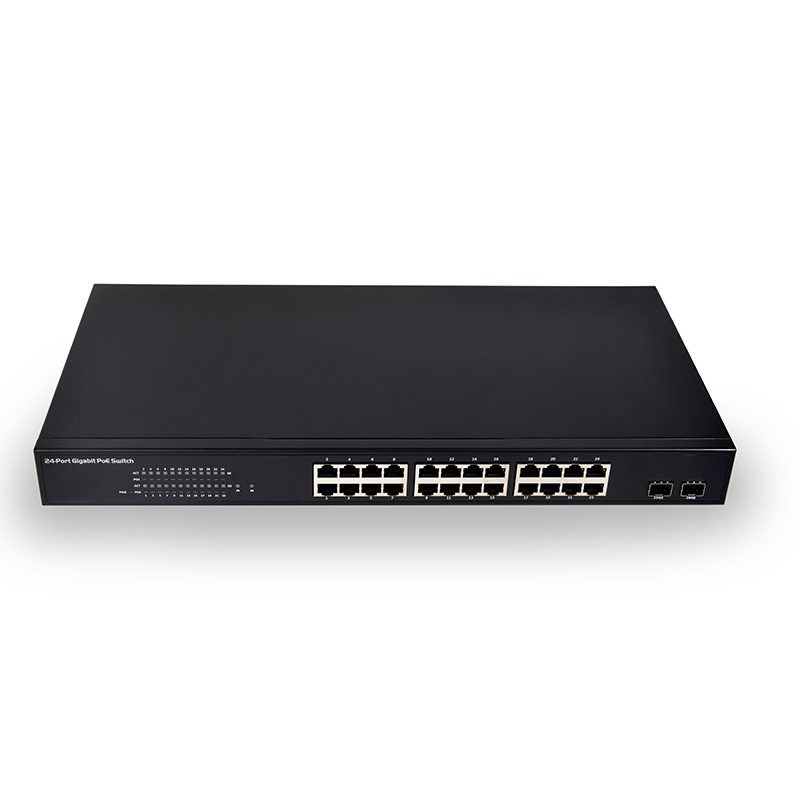

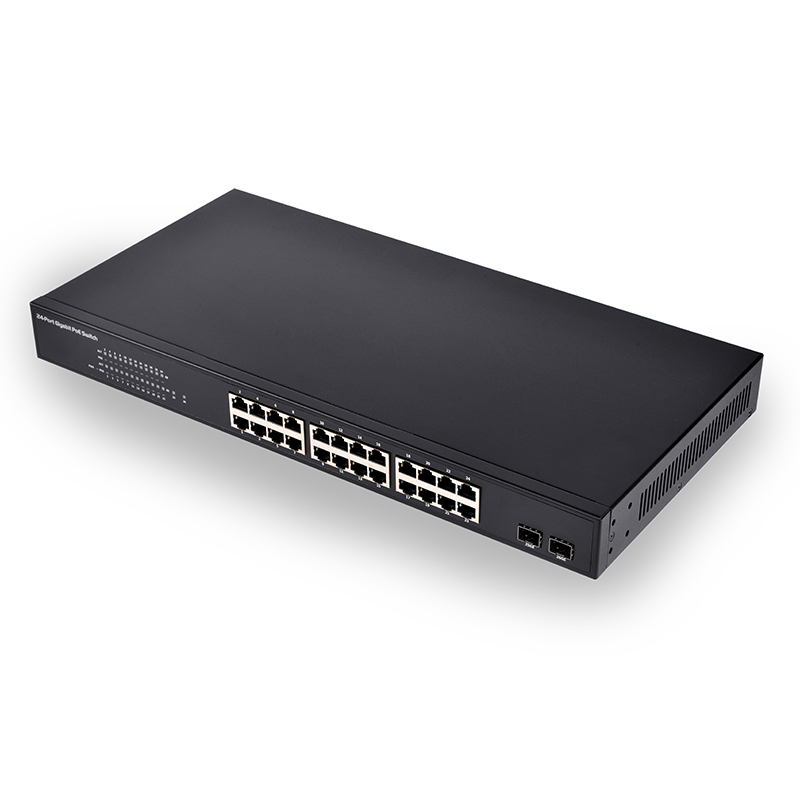

SDAPO PSE3224S ethernet 24port 350W poe switch for cctv
Hardware Specification
Copper Ports
24 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports with IEEE 802.3af/at PoE
SFP/mini-GBIC Slots
2 1000Base SX/LX/BX SFP interfaces
Switch Architecture
Store-and Forward
Switch Fabric
52Gbps / non-blocking
Switch Throughput
38.688Mpps@64 bytes
Address Table
8K entries
Share Data Buffer
4Mbytes
Flow Control
Back pressure for Half-Duplex IEEE 802.3x Pause Frame for Full-Duplex
LED
System: Power ,PoE In Use ( yellow) 10/100 LINK / ACT(Green), 1000 LINK ( yellow)
Standards Conformance
Standards Compliance
IEEE 802.3 10Base T IEEE 802.3u 100Base TX/100Base FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000Base T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet
Product Overview Modern business networks are used for increasingly diverse applications traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today's converged network often need to be supported not just in terms of data equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution. The 24 Port 10/100/1000Mbps PoE+ Switch offers advance switching controls and provides power to network devices using Ethernet cables. This scalable and cost effective solution allows a managed network to efficiently expand to previously unattainable levels. compatible to IEEE802.3af/at. It can power both existing 10/100Base T network devices Wi MAX and wireless IEEE 802.11n access points.
Ordering Information Part Number Description
High Performance Wire-Speed Switching
The PSE3224SL offers 24 10/100/1000Mbps RJ45 ports and 2 Gigabit SFP ports. The two Gigabit SFP ports can be for 1000Base SX/LX through SFP (Small Factor Pluggable) interface. PSE3224SL boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 48Gbps. Its two built in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.
Features
Up to 30W of Power on IEEE 802.3af /at Compatible With All IEEE 802.3af/at Safe: Low Power Devices Receive Only the Power TheyNeed Safe and Reliable Power to WLAN Access Points Automatic Detection and Protection of Non standardEthernet Terminals Supports 10/100/1000 Base T applications Compact Design Fits Easily in WLAN Access Plug-and Play no configuration required Internal power supply Easy installation and maintenance Save up to 83% power with Green Technology complies to IEEE 802.3af PoE standard and is backward
1) IEEE802.3af/at Standard 2) PoE Pin:1,2+/3,6- 3) Power:30 WattsMaximum 4) Input Power AC Input Voltage: 100~240VAC 5) PoE data & power transmission distance 100meter 6) Weight:350g (0.77lbs) 7) Size:39*62.7*145mm 8)support 1G/2.5G one port
- Fully Supports IEEE802.3af Compliant - Input Voltage Range 37V to 57V - Short Circuit, Over-temperature Protection and In-rush Current Limit - Default Class : 0 - High Efficientcy (86% min.12V@ Full Load) - Easy Installation and Low Cost - Included Input Bridge-Diodes - Low Output Ripple and Noise - Adjustable Output Voltage - 1500Vrms Isolation (Input-Output) - RoHS Compliant
- Fully IEEE 802.3af/at compliant - 24 watt output load - IEEE Power class programmable (Green) - 1500 Volt DC isolation (Input to Output) - 5V, 12V ,24V DC output voltage models - Compact package minimum PCB footprint - Minimal external components required - Overload and short circuit protection - Wide input voltage (36V to 57V DC) - Adjustable output voltage - Support PoE applications in both of Fast / Gigabit Ethernet environments. - Low output ripple and noise - Low cost
