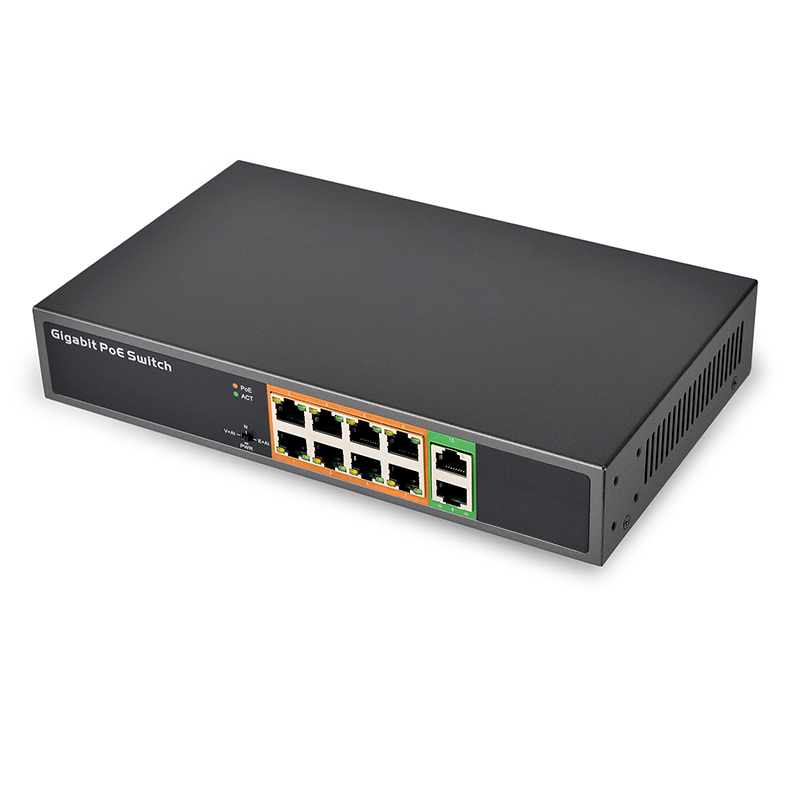

PSE1008G PSE0820GD 8 Port PoE Network Switch

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

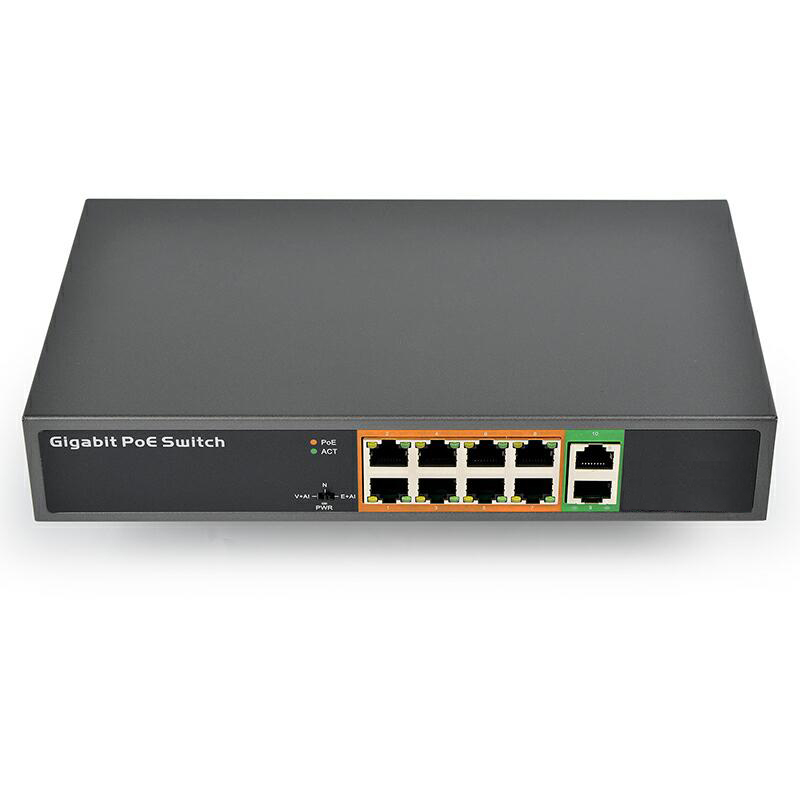

1) 10 port switch with 8 port PoE,All Gigabit
2) watchdog function-Automatic restart detection AI
3) E+AI:10Mbps VLAN with Watchdog
V+AI:10/100/1000Mbps VLAN with Watchdog
4)4KV lightning protection 10/700us
5) Backbound Bandwidth: 12 Gbps
6) IEEE802.3at/af Standard
7) PoE Pin:1,2+/3,6-
8) PoE data & power transmission distance 100meter
9) Size: 250*150*44mm
10) total power:150W
11) power inside
12)mounting not standard inside need add 5rmb for this
  • PSE1008G / PSE0820GD

  • SDaPo

Availability:
Quantity:

Product Description

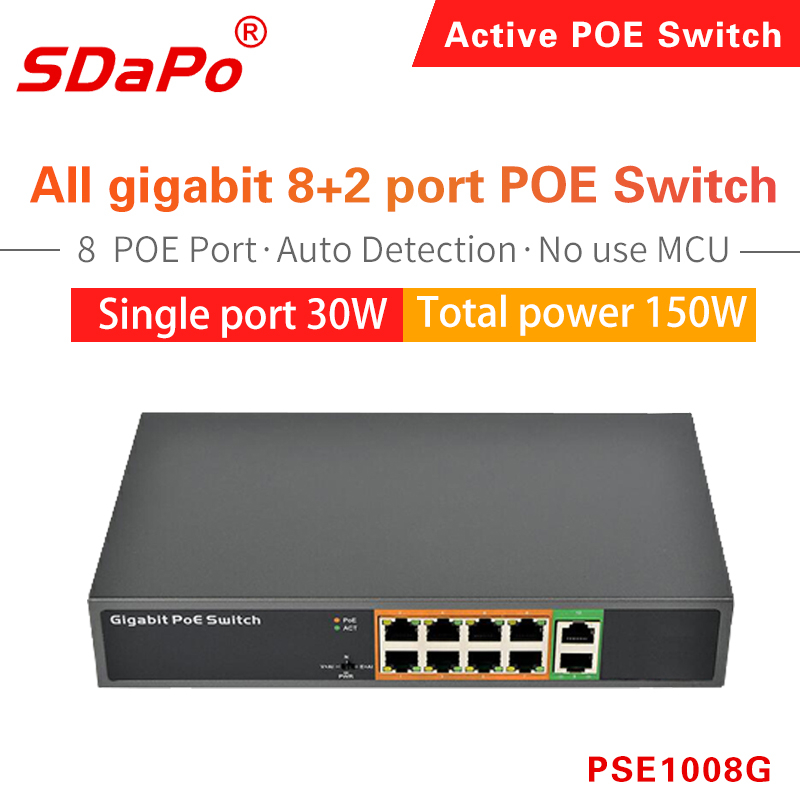

Shenzhen Sdapo 8+2 all gigabit poe switch 150W power IEEE802.3af/at PSE1008G poe network switch

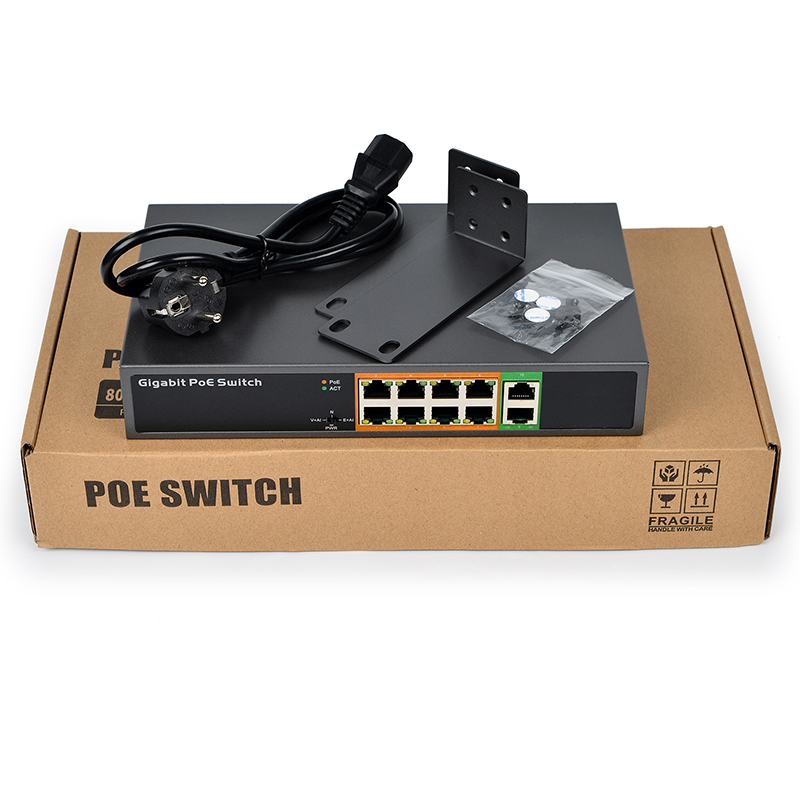

It will extra charge $ 0.75 for hanging ear if needed

Features

Up to 30W of Power on

IEEE 802.3af/at

Compatible With All IEEE 802.3af/at or Legacy

Safe: Low Power Devices Receive Only the Power They Need

Safe and Reliable Power to WLAN Access Points

Automatic Detection and Protection of Non–standard Ethernet Terminals

Supports 10/100/1000 Base-T applications

Compact Design Fits Easily in WLAN Access

Plug-and-Play no configuration required

Internal power supply

Easy installation and maintenance

Save up to 83% power with Green Technology

complies to IEEE 802.3af   PoE standard and is backward

Hardware Specification

1000Mbps Copper Ports

10* 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports

Switch Architecture

Store-and-Forward

Switch Fabric

20 Gbps / non-blocking

Switch Throughput

14.88Mpps @64Bytes

Address Table

8K entries

Flow Control

Back pressure for Half-Duplex

IEEE 802.3x Pause Frame for Full-Duplex

LED

Power (Green );POE(yellow)

1000Mbos (yellow) ;LINK / ACT (Green)

Reset Button

< 5 sec: System reboot

> 5 sec: Factory Default

Dimension (W x D x H)

250 x 150 x 44 mm, 1U height

Weight

1.6 kg

Power Requirement

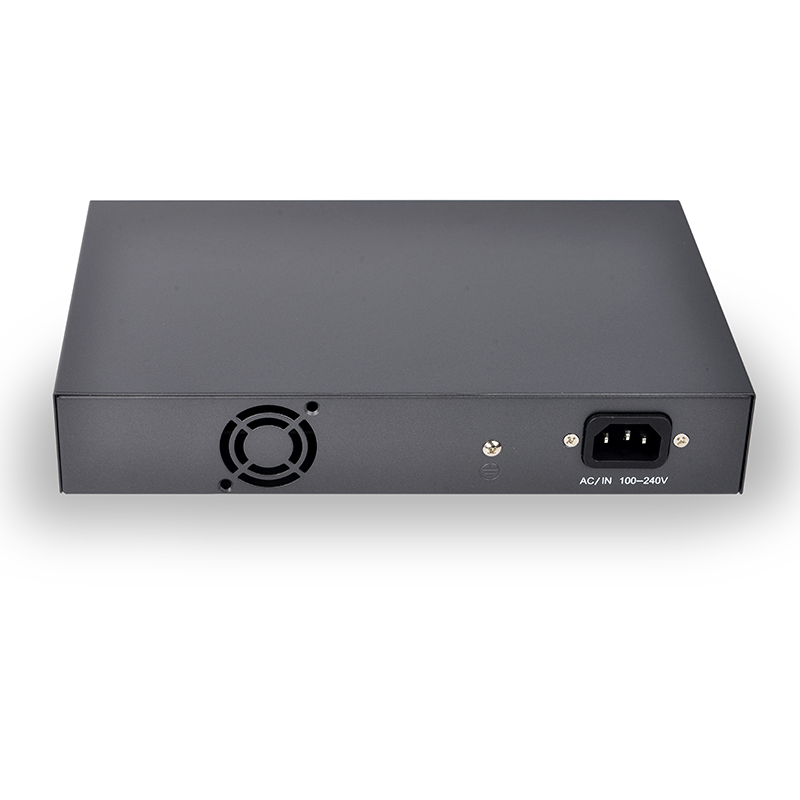

100~240V AC, 50-60 Hz

Power Consumption / Dissipation

150 Watts maximum /510  BTU/hr maximum
