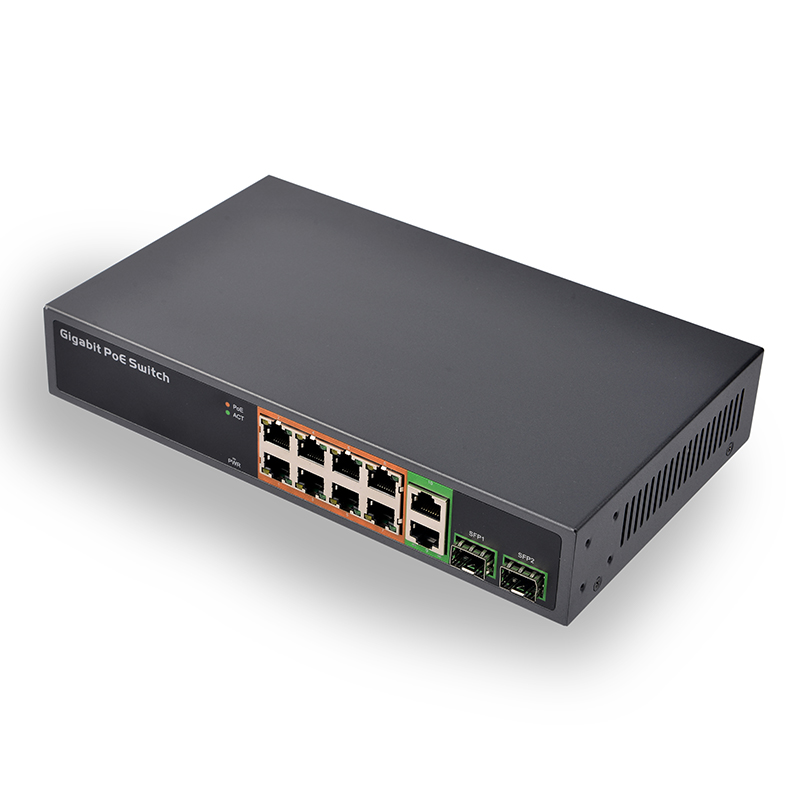

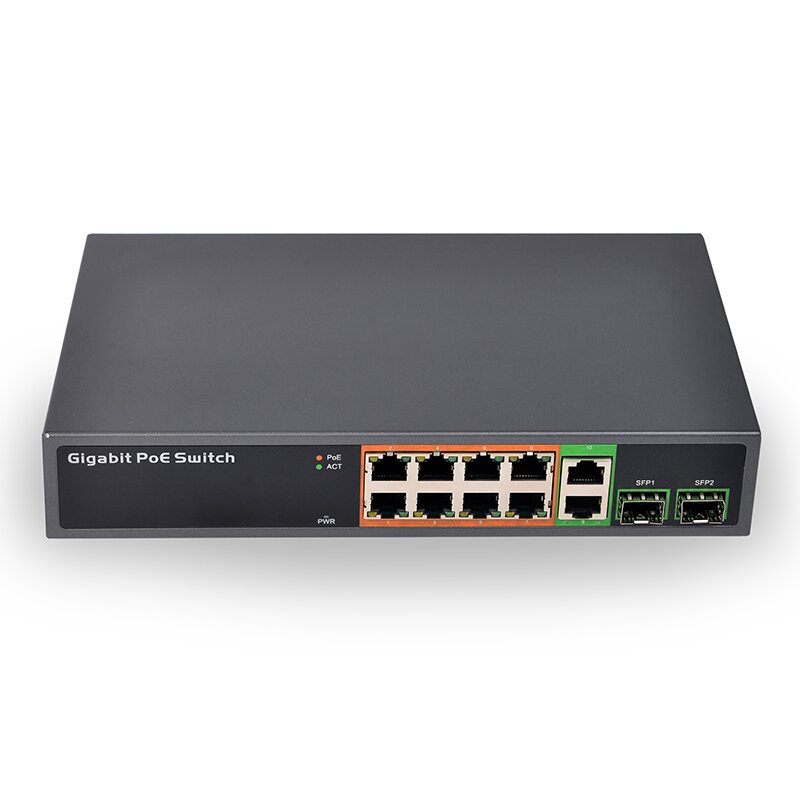

PSE1008GSR-AI PSE0822GD-AI 8 Port PoE Network Switch
Share to:
1) 10 port switch with 8 port PoE,All Gigabit 2)2 TP/SFP gigabit uplink not combo gigabit 3) watchdog function-Automatic restart detection AI 4) E+AI:10Mbps VLAN with Watchdog V+AI:10/100/1000Mbps VLAN with Watchdog 5)4KV lightning protection 10/700us 6) Backbound Bandwidth: 12 Gbps 7) IEEE802.3at/af Standard 8) PoE Pin:1,2+/3,6- 9)Normal:10/100/1000Mbps 100meter Extend:9,10-Port 10/100Mbps；1-8 Port 10Mbps 250meter 10) Size: 250*150*44mm 11) total power:150W 12) power inside 13)mounting not standard inside need add 5rmb for this
1) IEEE802.3af/at Standard 2) PoE Pin:1,2+/3,6- 3) Power:30 WattsMaximum 4) Input Power AC Input Voltage: 100~240VAC 5) PoE data & power transmission distance 100meter 6) Weight:350g (0.77lbs) 7) Size:39*62.7*145mm 8)support 1G/2.5G one port
- Fully Supports IEEE802.3af Compliant - Input Voltage Range 37V to 57V - Short Circuit, Over-temperature Protection and In-rush Current Limit - Default Class : 0 - High Efficientcy (86% min.12V@ Full Load) - Easy Installation and Low Cost - Included Input Bridge-Diodes - Low Output Ripple and Noise - Adjustable Output Voltage - 1500Vrms Isolation (Input-Output) - RoHS Compliant
- Fully IEEE 802.3af/at compliant - 24 watt output load - IEEE Power class programmable (Green) - 1500 Volt DC isolation (Input to Output) - 5V, 12V ,24V DC output voltage models - Compact package minimum PCB footprint - Minimal external components required - Overload and short circuit protection - Wide input voltage (36V to 57V DC) - Adjustable output voltage - Support PoE applications in both of Fast / Gigabit Ethernet environments. - Low output ripple and noise - Low cost
0
0
SDAPO Communication CO,. Lrd. is established in 2012, brand SDAPO. SDAPO is a specialized manufacturer of PoE(Power Over Ethernet) related products: such as PoE module, PoE injector, PoE splitter and PoE driver, PoE swtich, PoE cable, PoE extender and so on.
