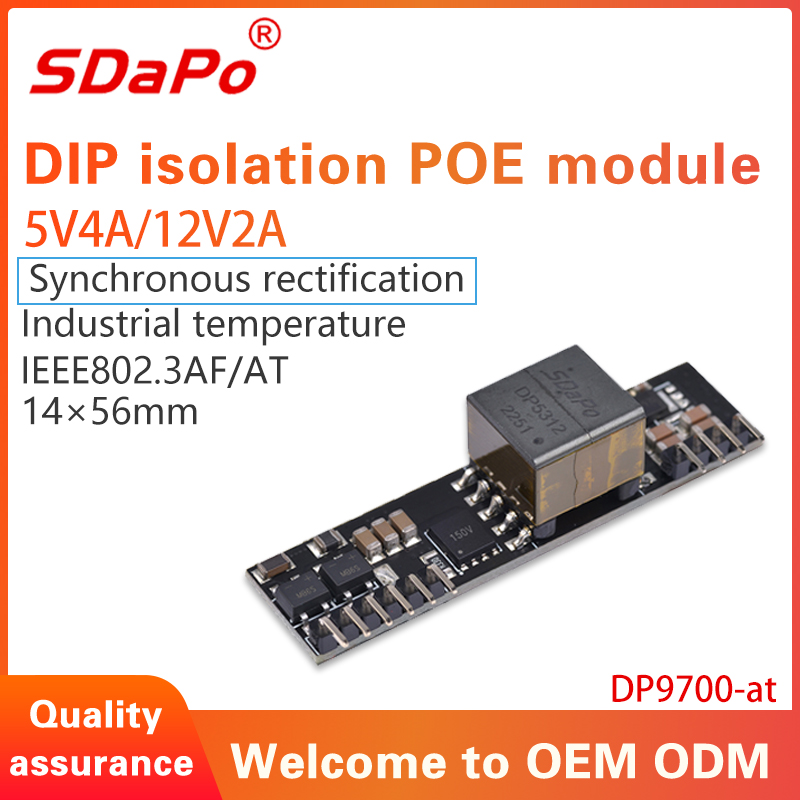

DP9700AT High-effect Version Synchronous Rectification 5V4A 12V2A PoE PD Module
You are here: Home » Products » POE Module » IEEE802.3at » DP9700AT High-effect Version Synchronous Rectification 5V4A 12V2A PoE PD Module

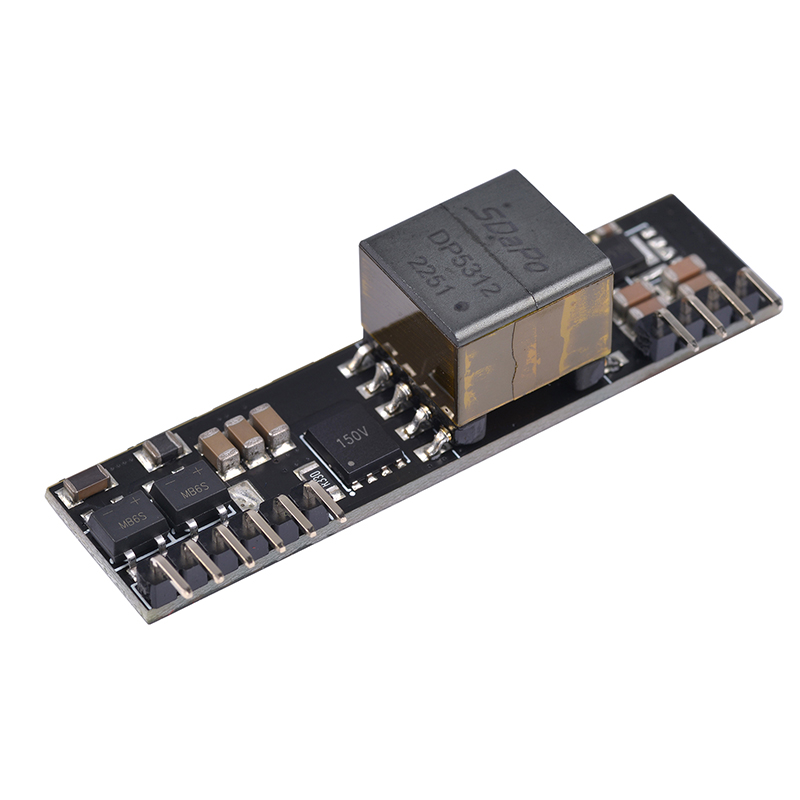

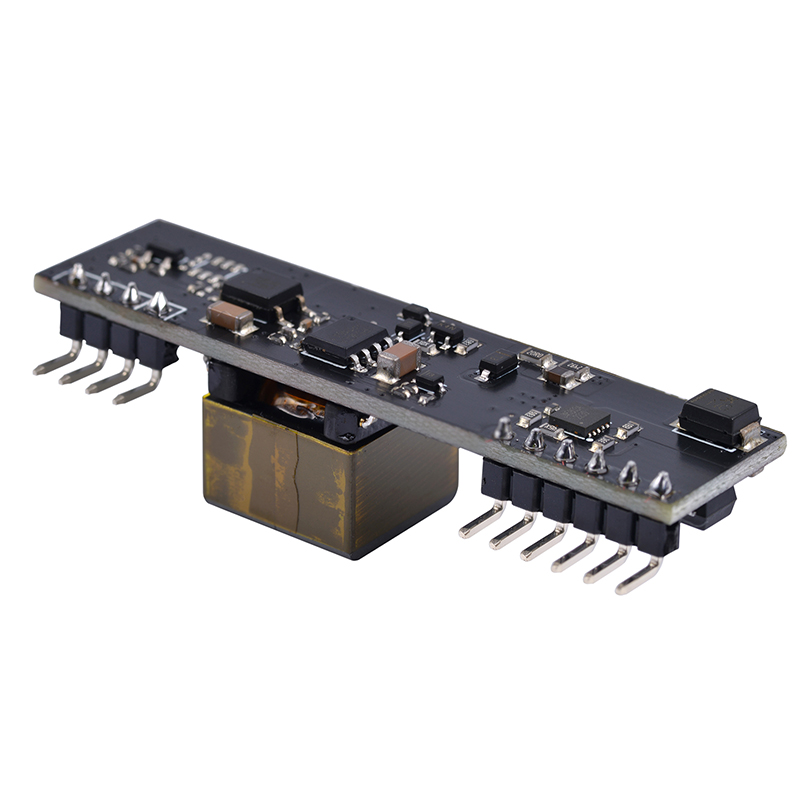

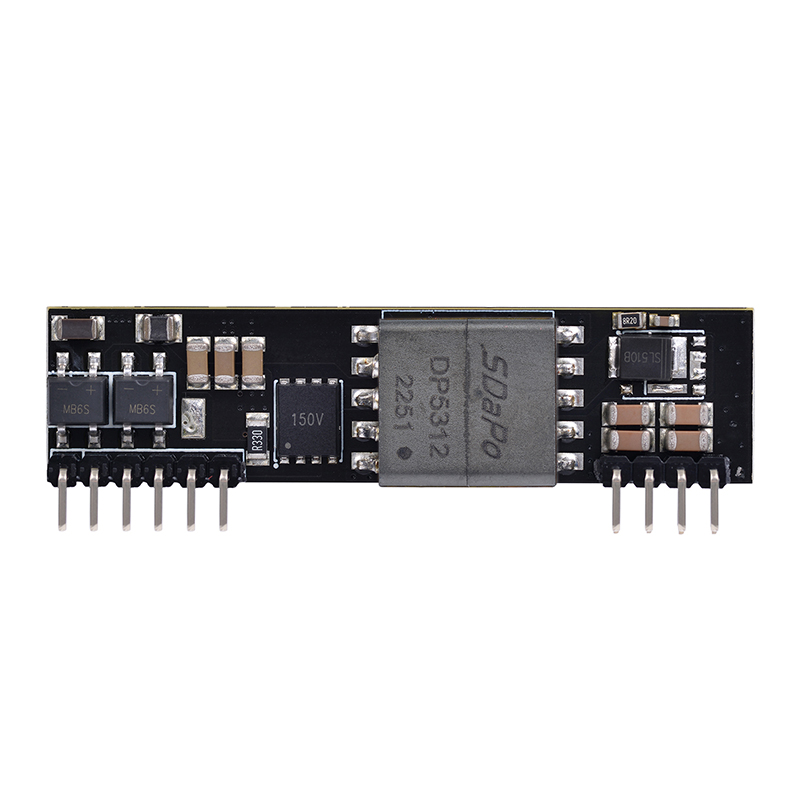

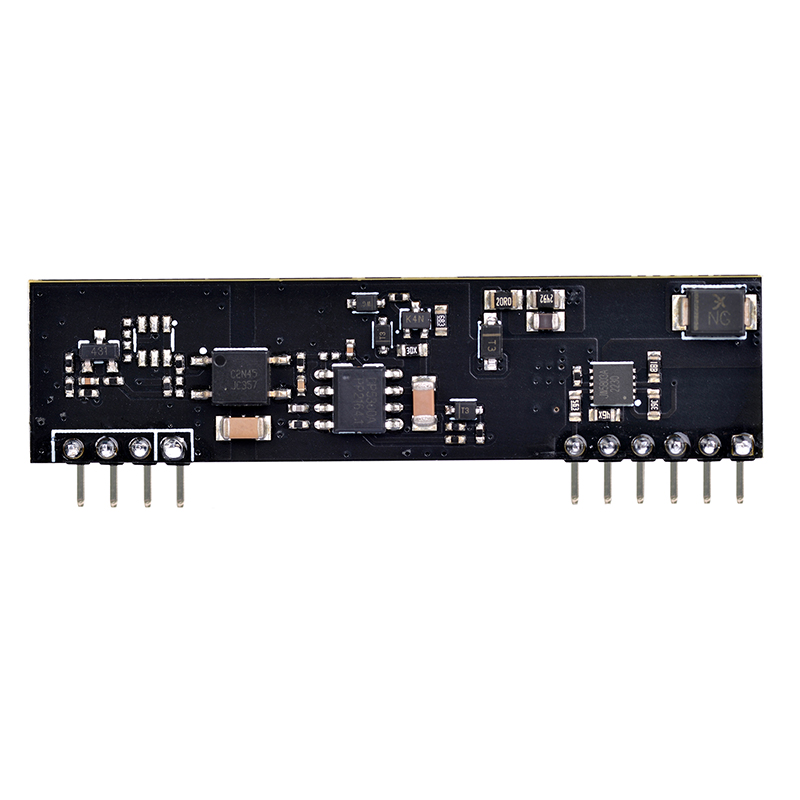

DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module
DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module
DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module
DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module
DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module
DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module DP9700AT Synchronous Rectification 5V4A 12V2A PoE PD Module

loading

DP9700AT High-effect Version Synchronous Rectification 5V4A 12V2A PoE PD Module

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

- EEE802.3af/at compliant.
- Low cost.
- Support PoE applications in both of Fast / Gigabit Ethernet environments.
- Support wide input voltage range 37Vdc to 57Vdc.
- Thermal cut off.
- Short circuit protection.
- Over current protection
- High DC/DC converting efficiency.
- Less external component one output decoupling capacitor.
- Isolation level 1.5KVrms.
- Enhanced surge protection
- Internal build in 2 channel bridge rectifiers

  • DP9700AT High-effect Synchronous Rectification

  • SDaPo

Output Vdc:
DP9700-at High-effect Synchronous rectification-5V/4A
DP9700-at High-effect Synchronous rectification-12V/2A
DP9700AT-5V3A
DP9700AT-12V2A
DP9700AT-24V1A
Availability:
Quantity:
Inquire Add to Basket

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

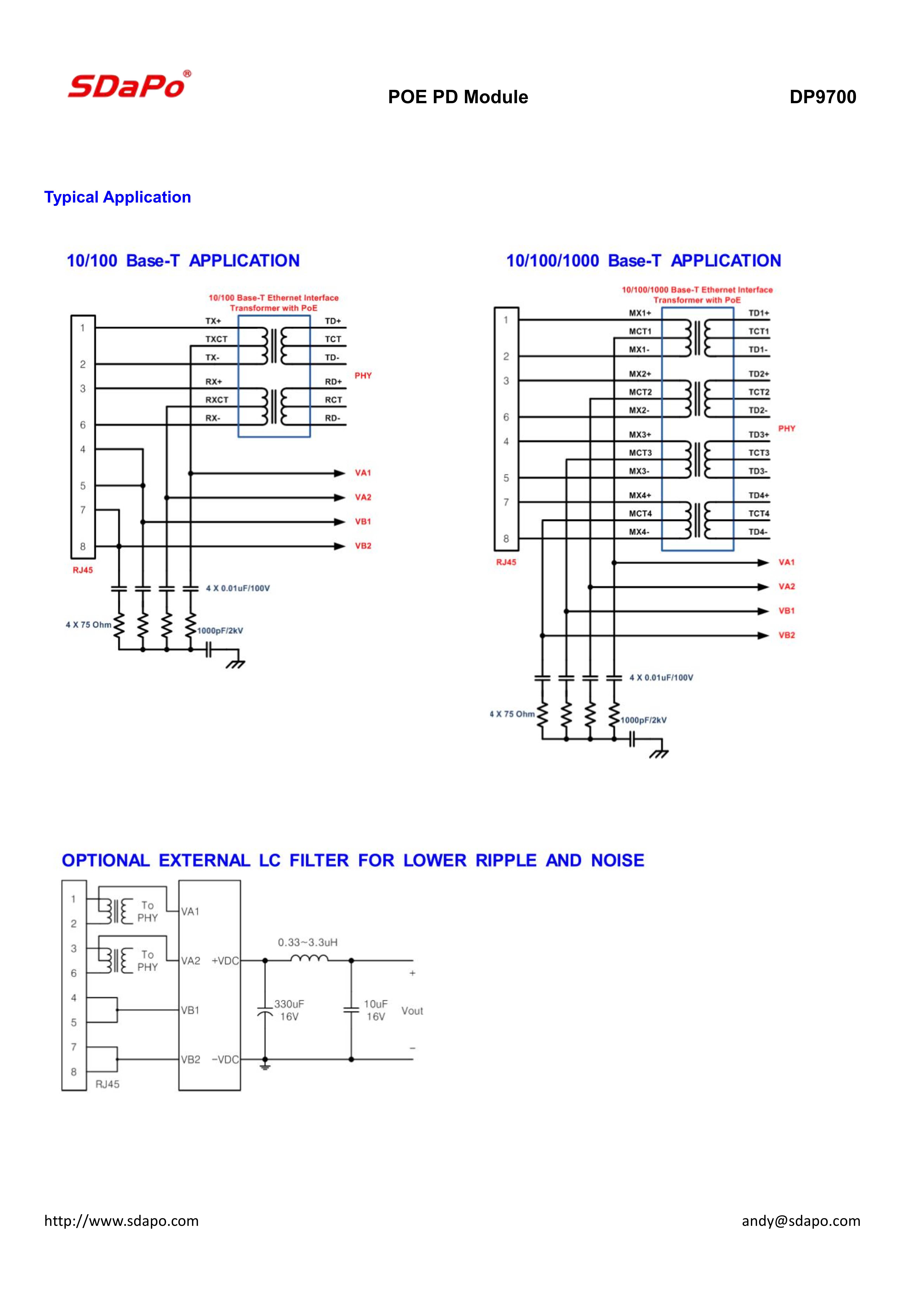

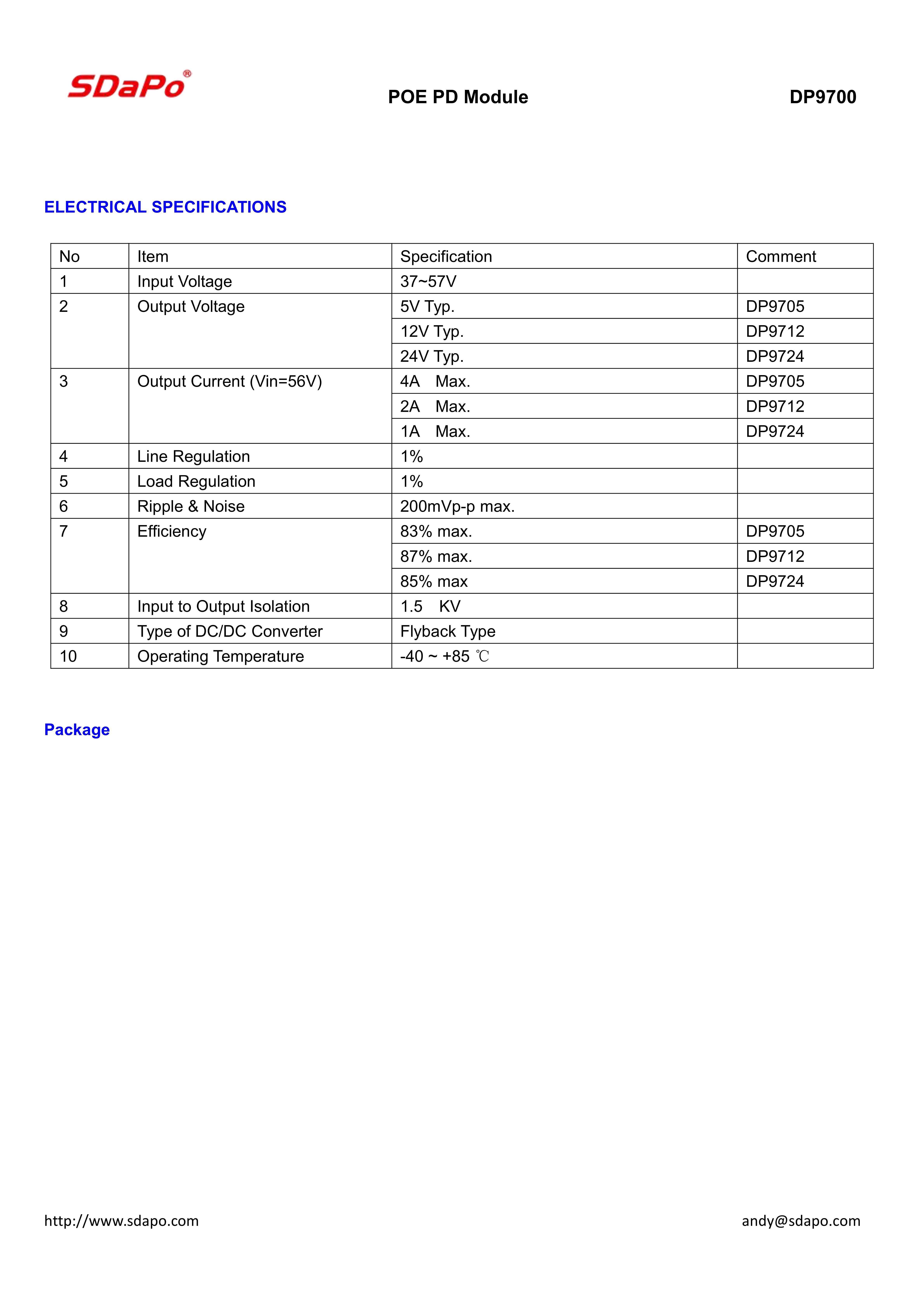

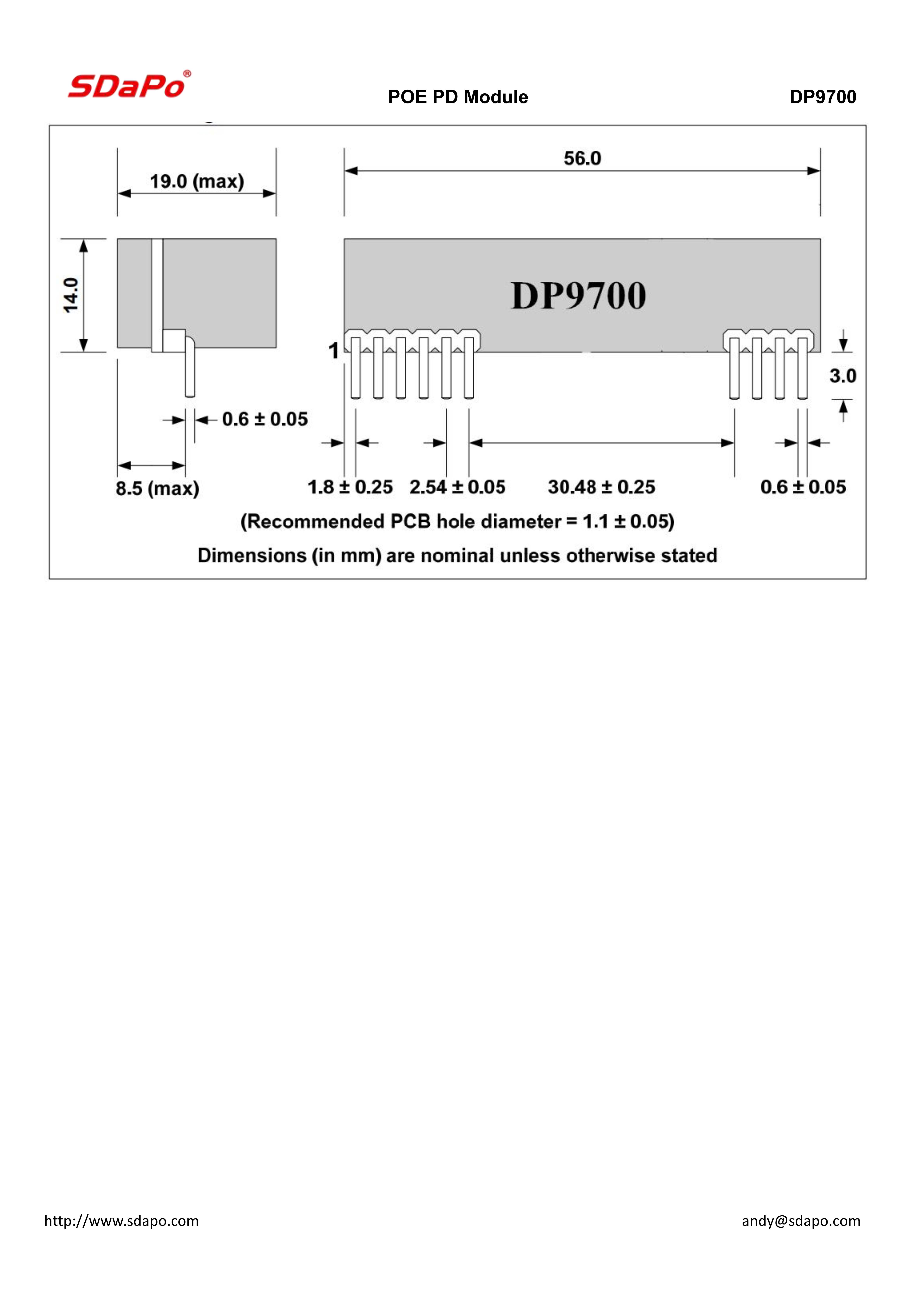

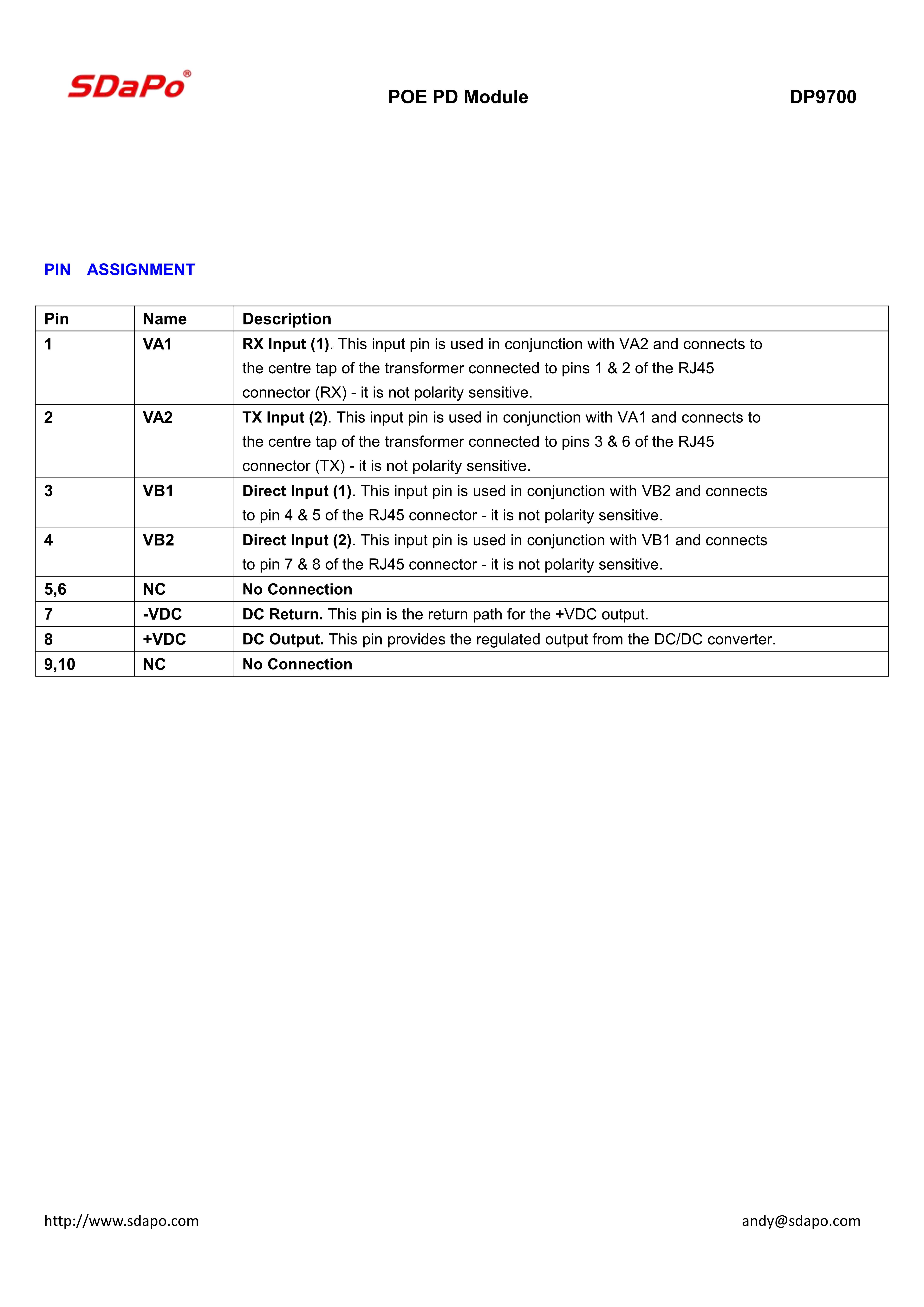

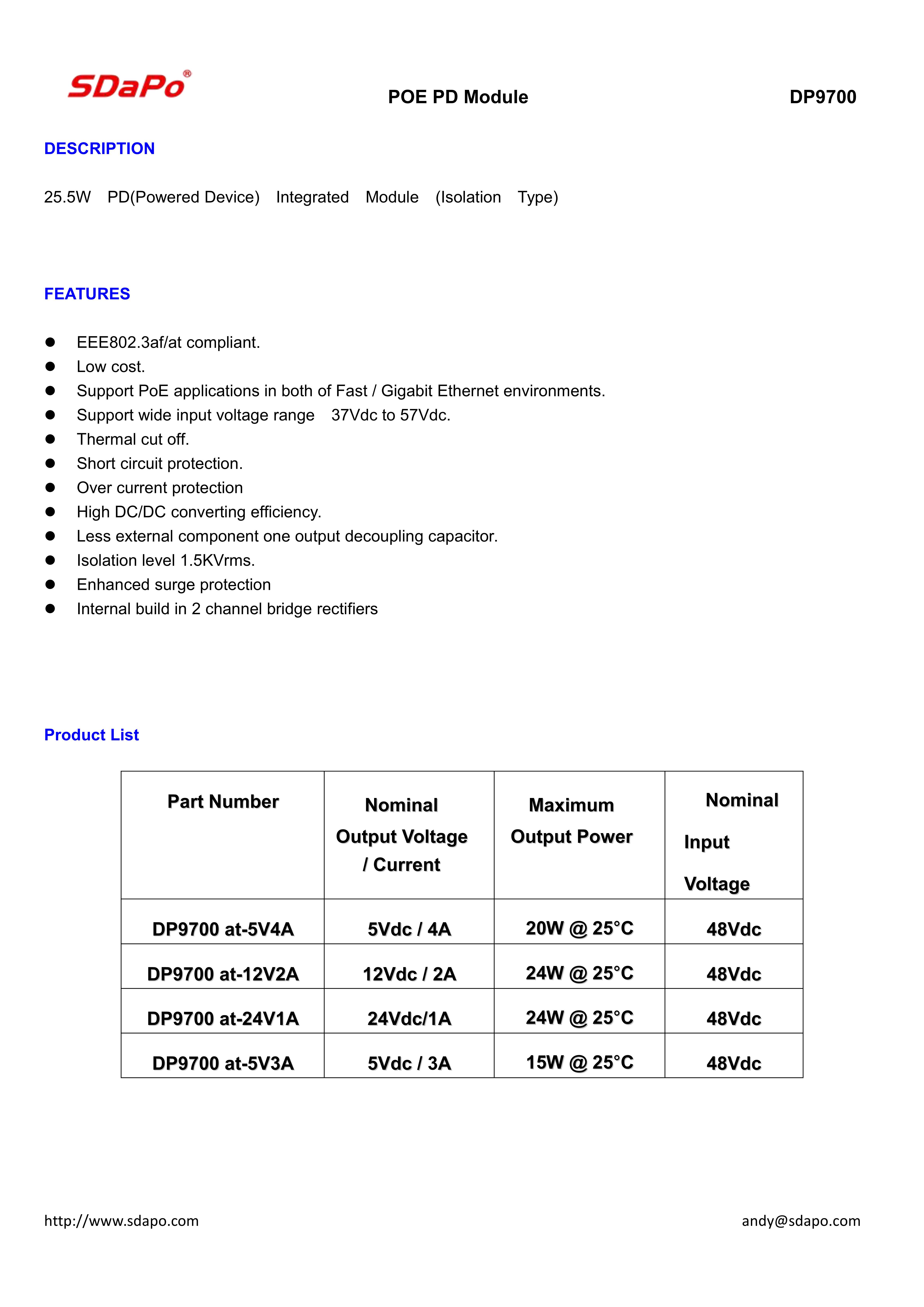

DP9700 AT 2BR_1DP9700 AT 2BR_2DP9700 AT 2BR_3DP9700 AT 2BR_4DP9700 AT 2BR_5


download DP9700 AT 2BR.pdf

download 2501R39186E(RoHS Test Report).PDF

download 2501R25347E(REACH Test Report).PDF


No.
 Part Number
 Nominal Output Voltage
 Output Power(25℃)
 PoE Standard Remarks
 Temperature Range
 PoE Modes
 Isolation Voltage
 Buy Sampls
1 DP9700-5V 5V 10W PoE Bridge Rectifier Industrial Mode A / Mode B 1.5kVrms Inquiry us
2 DP9700-12V 12V 12W PoE Bridge Rectifier Industrial Mode A / Mode B 1.5kVrms Inquiry us
3 DP9700-24V 24V 12W PoE Bridge Rectifier Industrial Mode A / Mode B 1.5kVrms Inquiry us
4 DP9700AT-5V 5V 15W PoE+ Bridge Rectifier Industrial Mode A / Mode B 1.5kVrms Inquiry us
5 DP9700AT-12V 12V 24W PoE+ Bridge Rectifier Industrial Mode A / Mode B 1.5kVrms Inquiry us
6 DP9700AT-24V 24V 24W PoE+ Bridge Rectifier Industrial Mode A / Mode B 1.5kVrms Inquiry us
7 DP9700AT-5V SR 5V 20W PoE+ Synchronous Rectification Industrial Mode A / Mode B 1.5kVrms Inquiry us
8 DP9700AT-12V SR 12V 24W PoE+ Synchronous Rectification Industrial Mode A / Mode B 1.5kVrms Inquiry us
