PSE2624GSR-AI PSE2422FGCD-AI 24port PoE Network Switch
You are here: Home » Products » POE Switch » 24 Port POE Switch » PSE2624GSR-AI PSE2422FGCD-AI 24port PoE Network Switch

PSE2624GSR-AI PSE2422FGCD-AI 24port PoE Network Switch

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

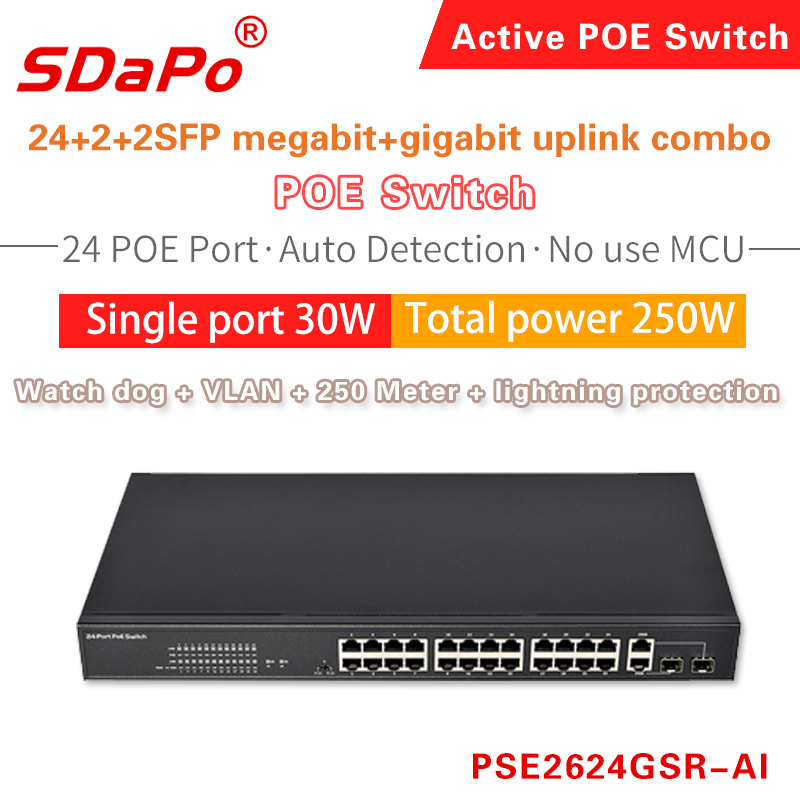

1) 26 port switch with 24 port PoE ,100Mbit *24 port
2) 2 Gigabit TP/SFP combo port
3) Backbound Bandwidth: 8.8 Gbps
4) IEEE802.3at/af Standard
5) PoE Pin:1,2+/3,6-
6) PoE data & power transmission distance 100meter
7) Size: 440*220*44mm
8) total power:250W
9) for 8MP IPC
10) realtek
11)watchdog+VLAN+250Meter+Lightning protection
  • PSE2624GSR-AI / PSE2422FGCD-AI

  • SDaPo

Availability:
Quantity:

Product Description

Watchdog -Automatic restart detection AI

250Meter -Long distance running

VLAN(10Mbps VLAN or 10/100Mbps VLAN with Watchdog)

Lightning protection 4KV



Product Overview

Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today's converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.
The 24 Port 10/100Mbps PoE+ Switch offers advance switching controls and provides power to network devices using Ethernet cables. This scalable and cost effective solution allows a managed network to efficiently expand to previously unattainable levels.
compatible to IEEE802.3af/at. It can power both existing
10/100Base-T network devices Wi-MAX and wireless
IEEE 802.11n access points.

Hardware Specification

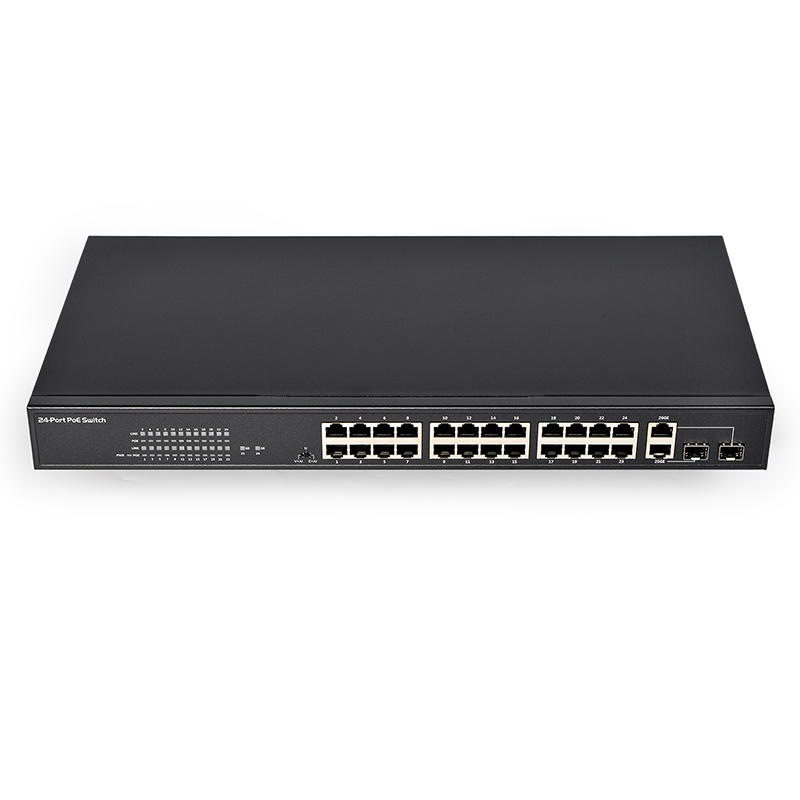

10/100Mbps Copper Ports

24 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports

1000Mbps Copper Ports

2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

2 1000Base-SX/LX, shared with Port-25~Port-26

Switch Architecture

Store-and-Forward

Switch Fabric

8.8Gbps / non-blocking

Switch Throughput

6.547Mpps @64Bytes

Address Table

8K entries

Share Data Buffer

512Kbytes

Maximum Frame Size

9K Bytes

Flow Control

Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex


LED


Power, PoE (yellow )
10/100 LINK / ACT (Green)
1000 ACT(Green);1000 LINK(yellow)


Reset Button

< 5 sec: System reboot

> 5 sec: Factory Default

Dimension (W x D x H)

440 x 220 x 44 mm, 1U height

Weight

4 kg

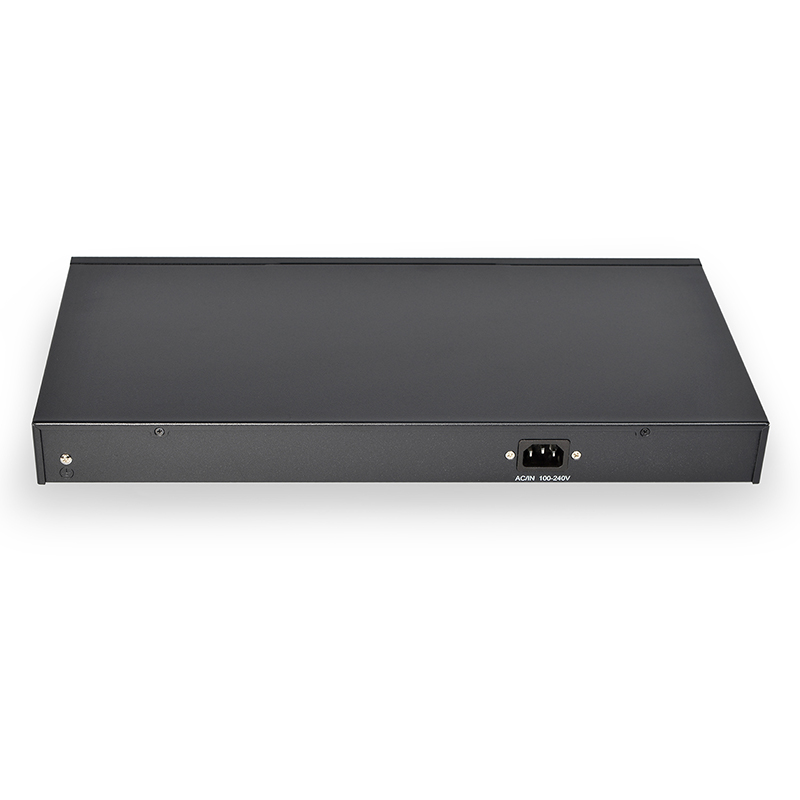

Power Requirement

100~240V AC, 50-60 Hz

Power Consumption / Dissipation

350 Watts maximum /1194 BTU/hr maximum

Power over Ethernet

PoE Standard

IEEE 802.3af/at Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 52V DC, 350mA~600ma . Max. 30 Watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

320 Watts

Max. number of Class 3 PD

24

High Performance Wire-Speed Switching

The PSE-2624GSR offers 24 10/100Mbps Fast Ethernet ports and 2 Gigabit TP/SFP combo ports. The two Gigabit TP/SFP combo ports
can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interface. PSE-2624GSR boasts a high performance switch architecture that is capable of providing non-blocking switch
fabric and wire-speed throughput as high as
8.8Gbps. Its two built-in GbE uplink ports also
offer incredible extensibility, flexibility and connectivity to the Core switch or Servers

Ordering Information
Part Number Description


PSE2624GSR: 24-Port 10/100Mbps /PoE +2 Gigabit
TP/SFP Combo Ports Poe Switch (350W)

Features

Up to 30W of Power on
IEEE 802.3af/at
Compatible With All IEEE 802.3af/at or Legacy
Safe: Low Power Devices Receive Only the Power TheyNeed
Safe and Reliable Power to WLAN Access Points
Automatic Detection and Protection of Non–standardEthernet Terminals
Supports 10/100 Base-T applications
Compact Design Fits Easily in WLAN Access
Plug-and-Play no configuration required
Internal power supply
Easy installation and maintenance
Save up to 83% power with Green Technology
complies to IEEE 802.3af PoE standard and is backward



Standards Conformance



Standards Compliance

IEEE802.3:10Base-T
IEEE802.3u: 100BaseTX
IEEE802.3z:1000Base-SX/LX
IEEE802.3ab:1000Base-T
IEEE802.3af/at:
Power over Ethernet

Environemmental

Operating

Temperature: 0 ~ 50 Degree
C Relative Humidity: 20 ~ 95%

Storage

Temperature: -10 ~ 70 Degree C
Relative Humidity: 20 ~ 95% (non-condensing)
