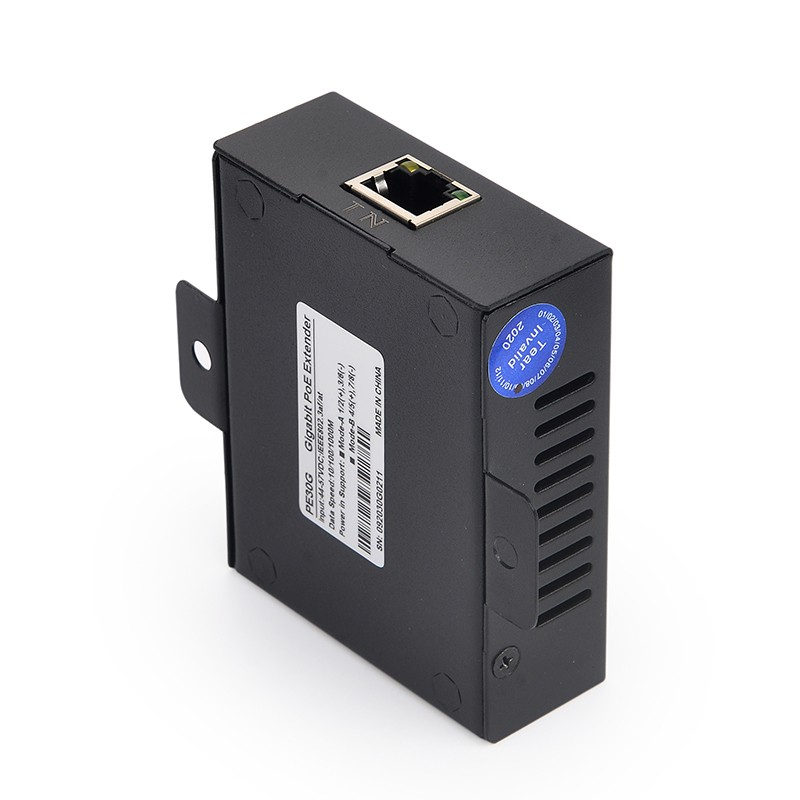

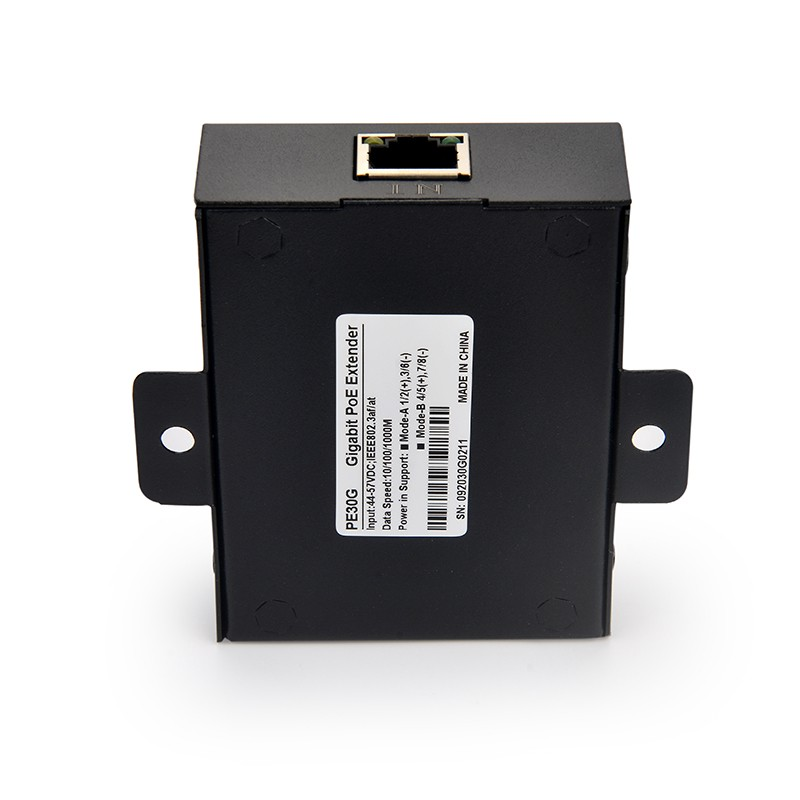

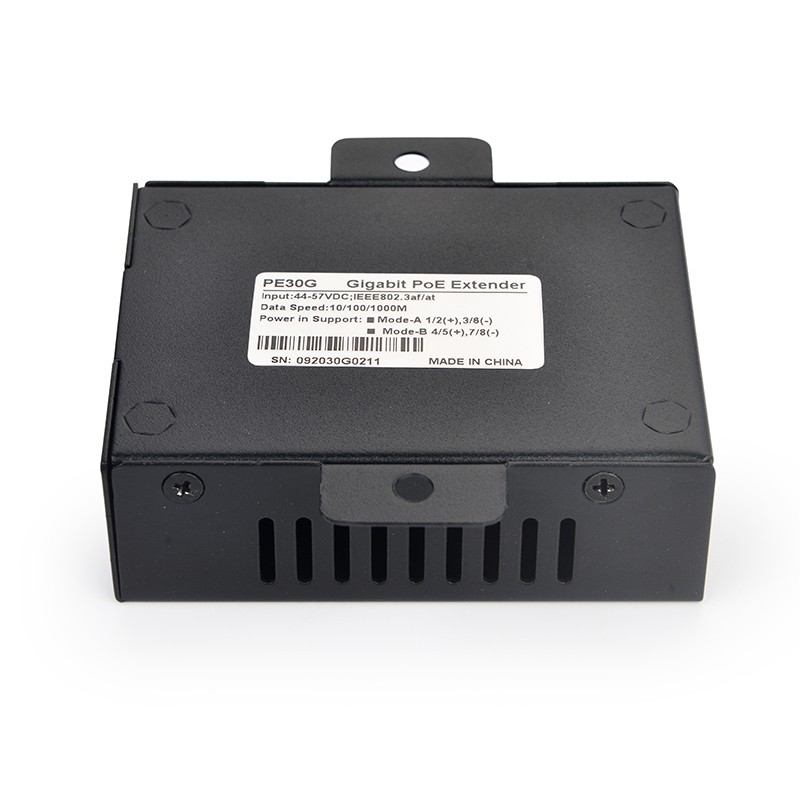

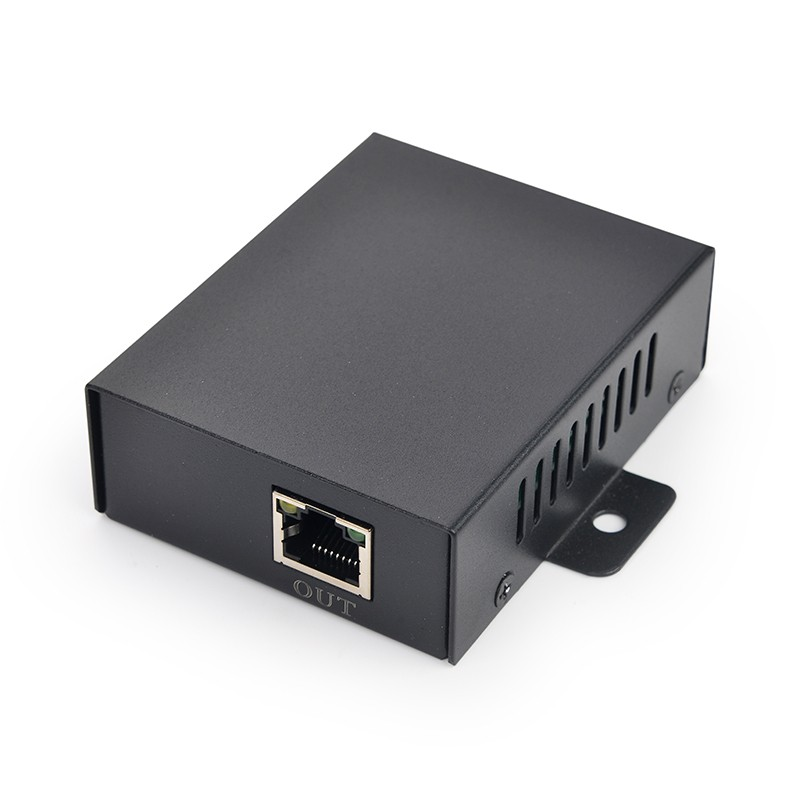

PE30G Gigabit PoE Extender

Name: PE30G Gigabit PoE Extender
Brand: SDaPo
Rating: 5.0 (76 reviews)

- 1000Mbit each port
- IEEE802.3at/af Standard
- PoE/IN:36-57V (30W)
- PoE/IN Pin:ModeA or ModeB
- PoE/OUT:44-57V(28W)
- PoE/OUT Pin:ModeA or ModeB
- Size：81*61*26mm
- Total power:30W

Model:
PE30G
Brand:
SDaPo

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Product Overview
Extends Power over Ethernet Installations to 200 Meters
PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards. The PoE Extender supports 10/100/1000Mbps data rates and delivers 802.3at power levels, up to 25.5W. The PoE Extender does not require local power and is powered via the PoE input.

Key Features
* Extended PoE installation range by additional100m
* Supports 10/100/1000Mbps datarates
* Provides 802.3af power levels when powered by 802.3afPSE and 802.3af PD
* Provides 802.3af power levels when powered by 802.3atPSE and 802.3af PD
* Provides 802.3atpower levels when powered by 802.3at PSE and 802.3at PD

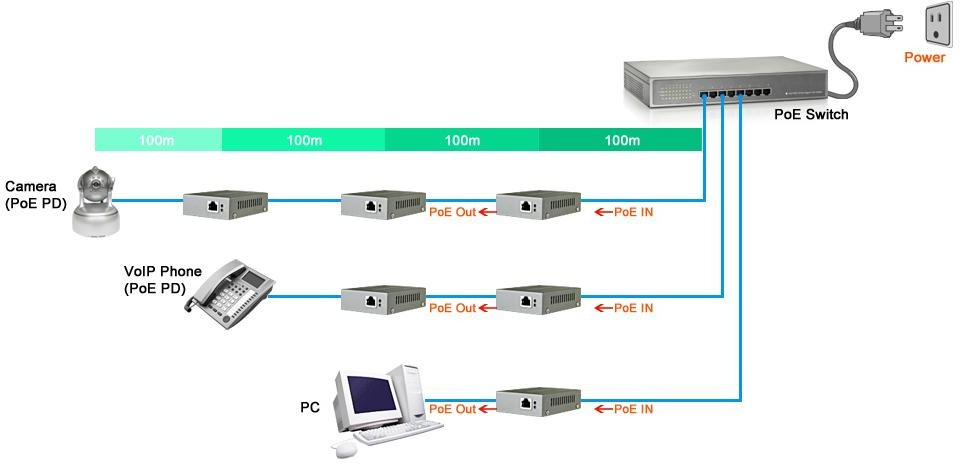

* Extenders can be cascaded to reach up to400m
* Cost effective installation - no need for localpower
* Plug and play installation - no configurationneeded

Works Well With
PoE Switch
PoE Injector

Technical Specification

Pass Through Data Rates	10/100/1000 Mbps
Power over Ethernet Output	Pin Assignment and Polarity: 3/6 (+), 1/2 (-) Output Power Voltage: 45-57Vdc
Input Power Requirements	PoE, supports alternatives A and B DC Input PoEVoltage: 46-57 Vdc Max Input Current: 0.7A
Indicators	System Indicator: DC Power Input/Output (Orange) Ethernet Data Input/Output (Green)
Regulatory Compliance	IEEE802.3at (PoE), WEEE Compliant
Dimensions: (L x W x H) / Weight	95 mm x 71.5 mm x 26.5 mm / 300g
Environmental Conditions	Operating Ambient Temp.: 32°to 104°F (0 to 40°C) (1G rate) 32° to 122°F (0 to 50°C) (10/100M rate) Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -4°to 158°F (-20°to 70°C) Storage Humidity: Maximum 95%, Non-condensing

Order Information
PoE Extender: PE30G

Package Contents
PE30G x 1

1000Mbit each port IEEE802.3at/af Standard gigabit poe extender SDAPO PE30G PE30G Gigabit PoE Extender
