DP9800M 5V 12V PoE PD Module

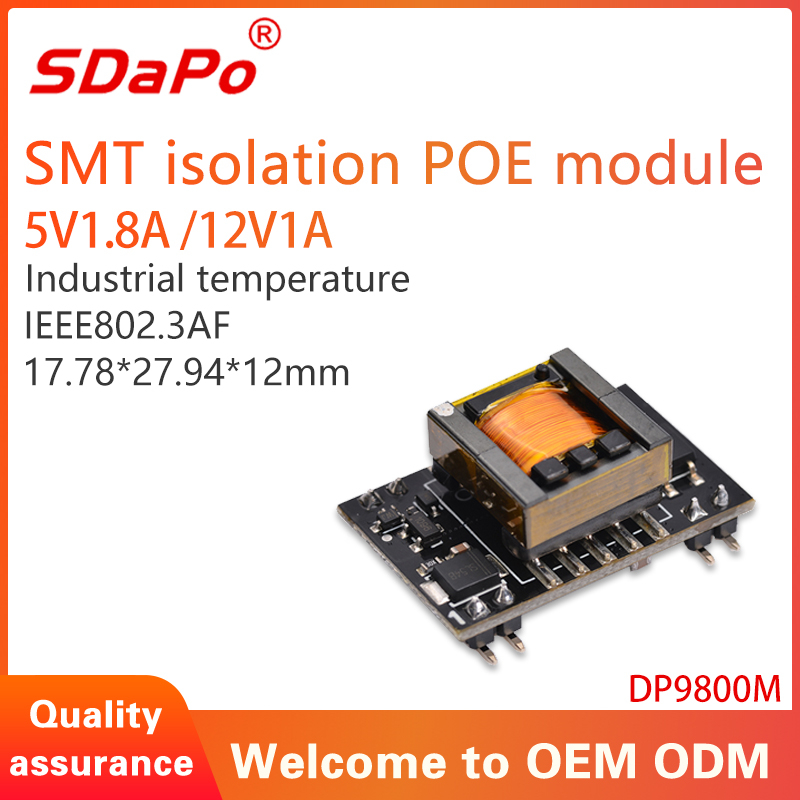

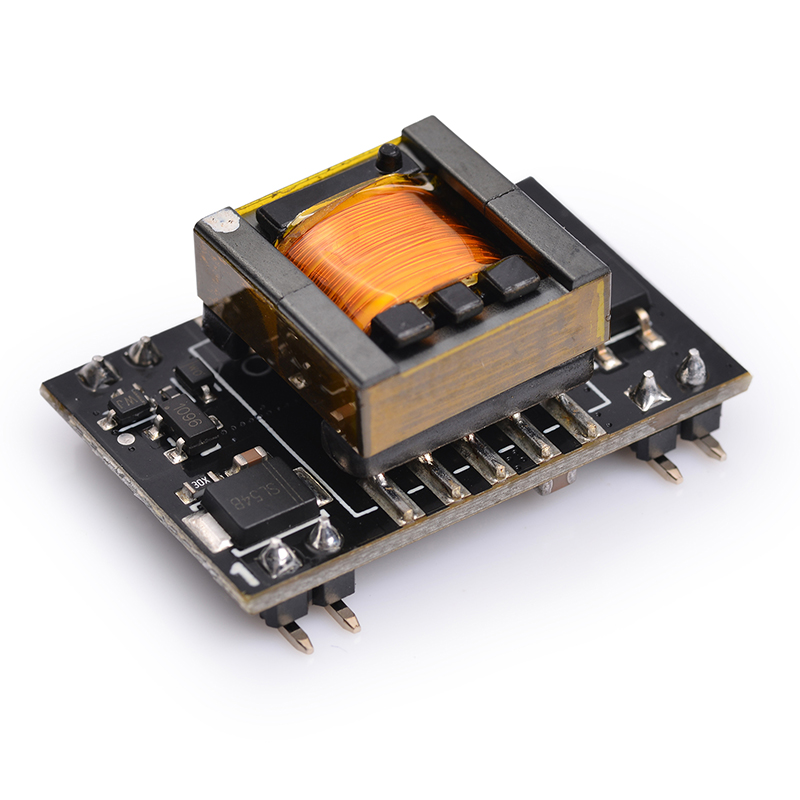

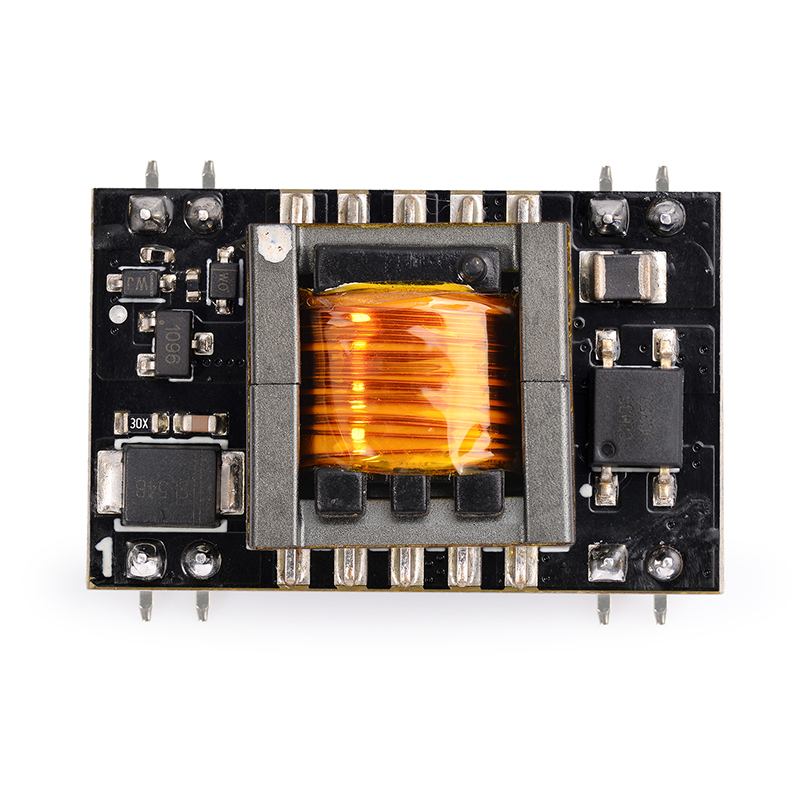

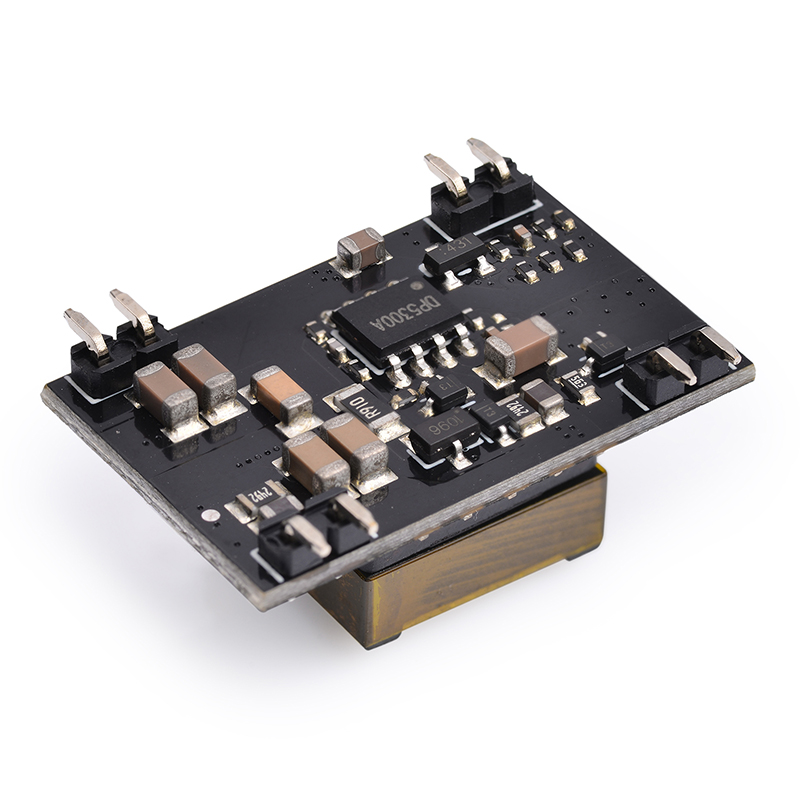

Name: DP9800M 5V 12V PoE PD Module
Brand: SDaPo
SKU: 597379927
Rating: 5.0 (42 reviews)

- Fully IEEE 802.3af compliant
- 12 watt output load
- IEEE Power class programmable (Green)
- 1500 Volt DC isolation (Input to Output)
- 5V, 12V DC output voltage models
- Compact package minimum PCB footprint
- Minimal external components required
- Overload and short circuit protection
- Wide input voltage (36V to 57V DC)
- Adjustable output voltage
- Support PoE applications in both of Fast / Gigabit Ethernet environments.
- Low output ripple and noise
- Low cost

Model:
DP9800M
Brand:
SDaPo

Output Vdc:	DP9800M-5V1.8A DP9800M-12V1A
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

DP9805 DP9800 IEEE802.3af compliant 5V 2A 13W Powered Device Integrated Isolation Type PoE Module From SDaPo

l Small SMT package

l IEEE802.3af compliant.

l Support PoE applications in both of Fast / Gigabit Ethernet environments.

l Support wide input voltage range 37Vdc to 57Vdc.

l Minimal external components required 18.5X28.5X13.4mm

l Thermal cut off.

l Short circuit protection.

l Over current protection

l Isolation level 1.5KVrms.

l Enhanced surge protection

Part Number

Nominal Output Voltage /

Current

Maximum Output Power

Nominal Input Voltage

Marking

DP9805

5Vdc / 2.1A

11W@25°C

48Vdc

DP9805

DP9800M Parameter

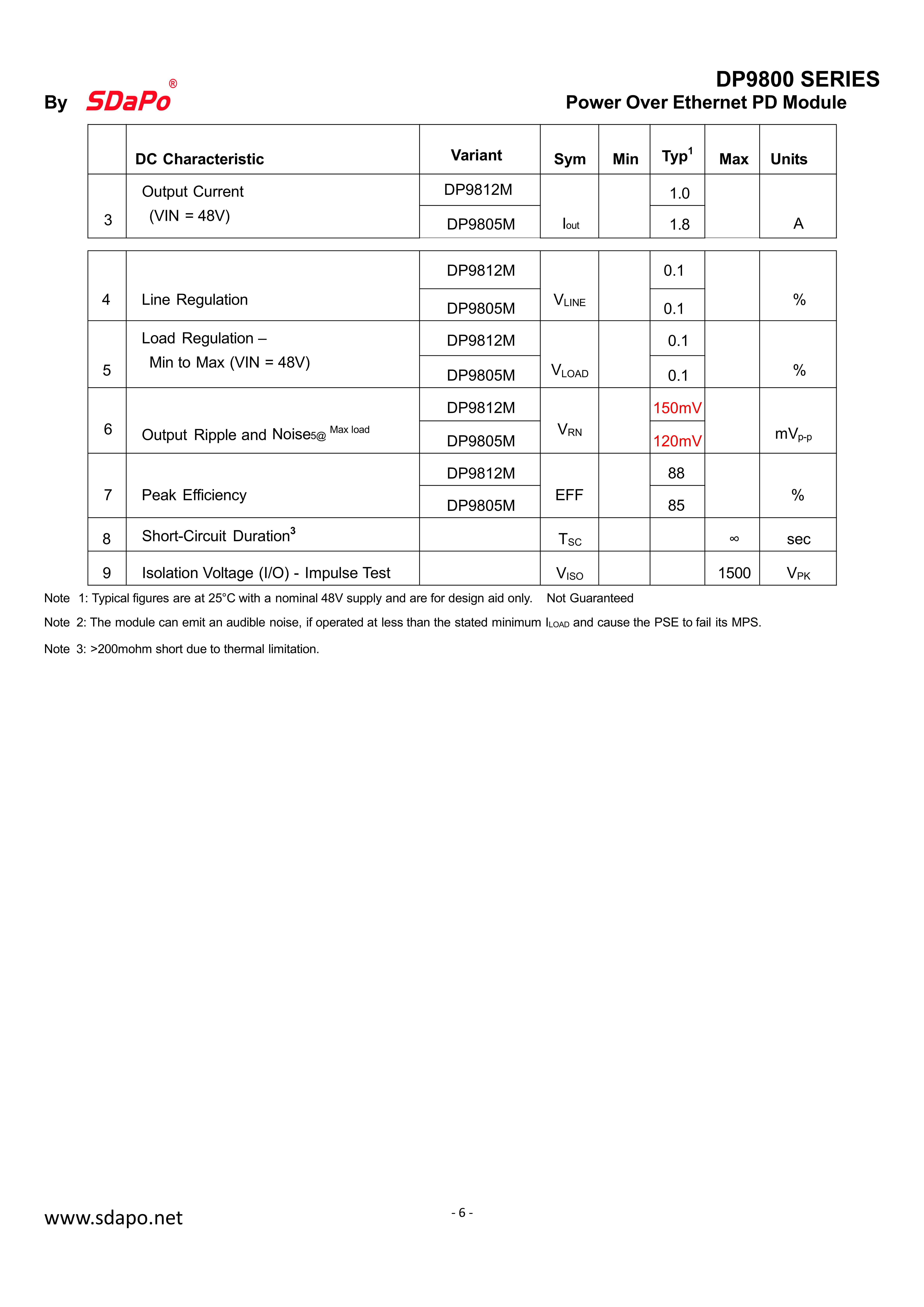

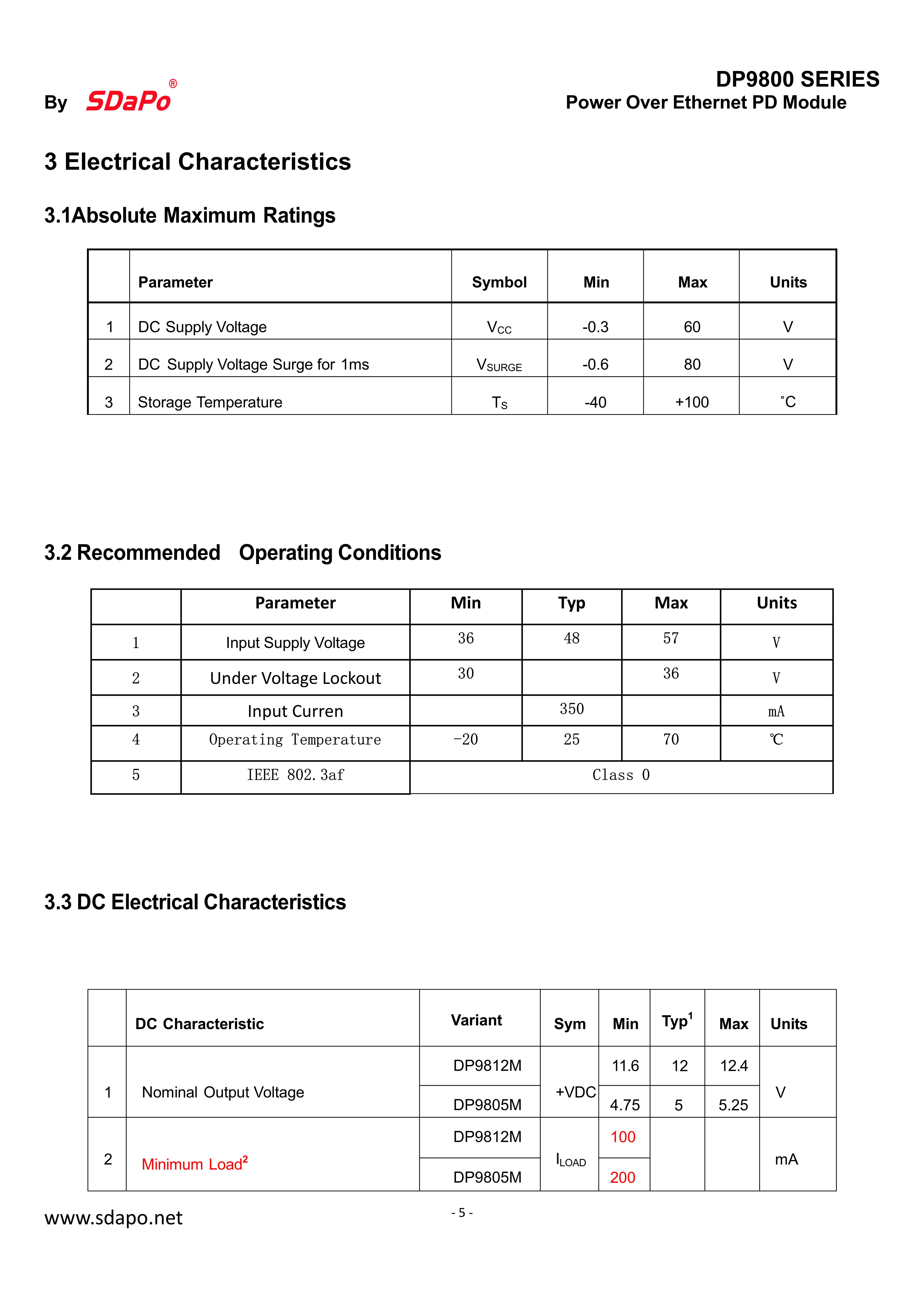

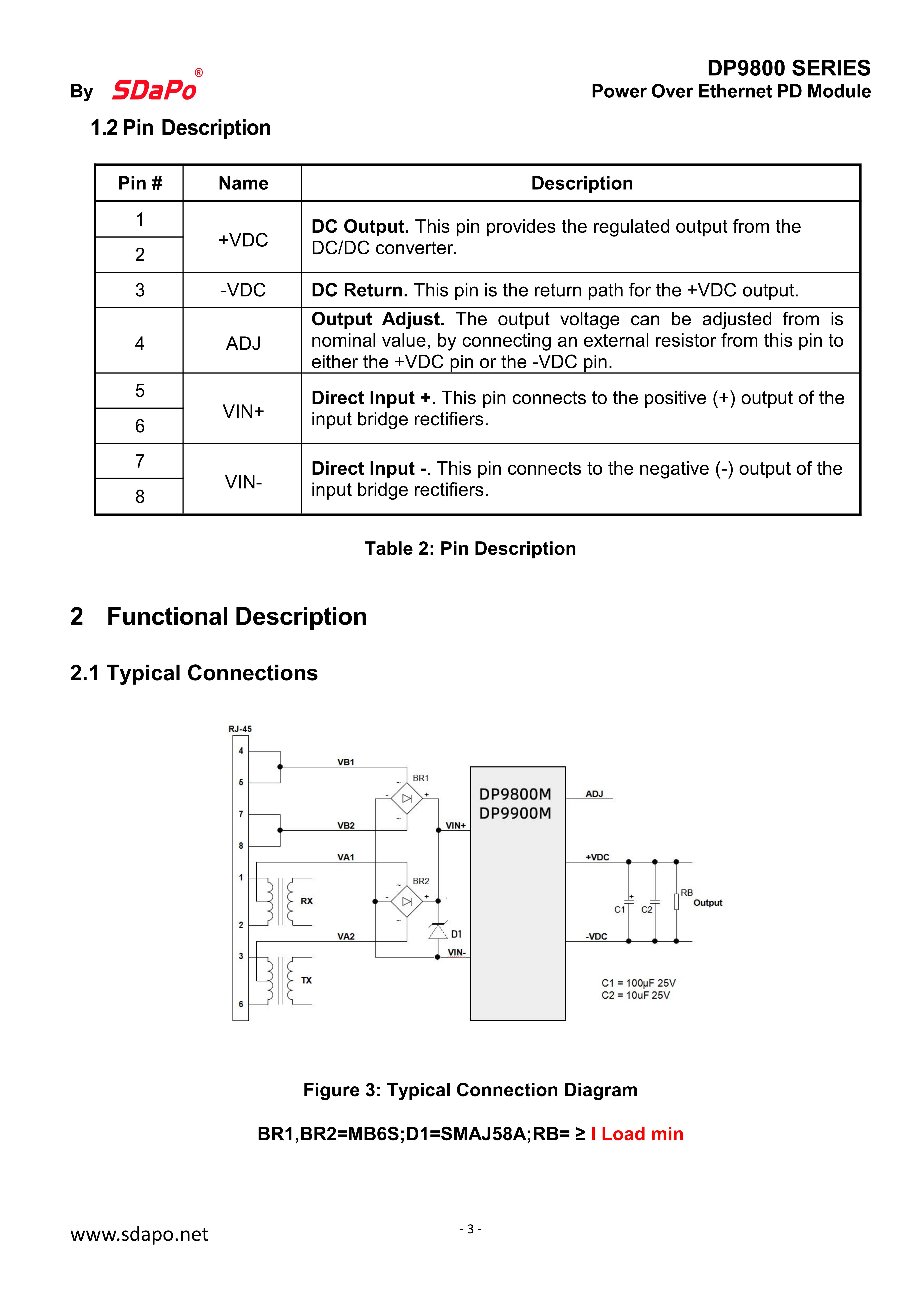

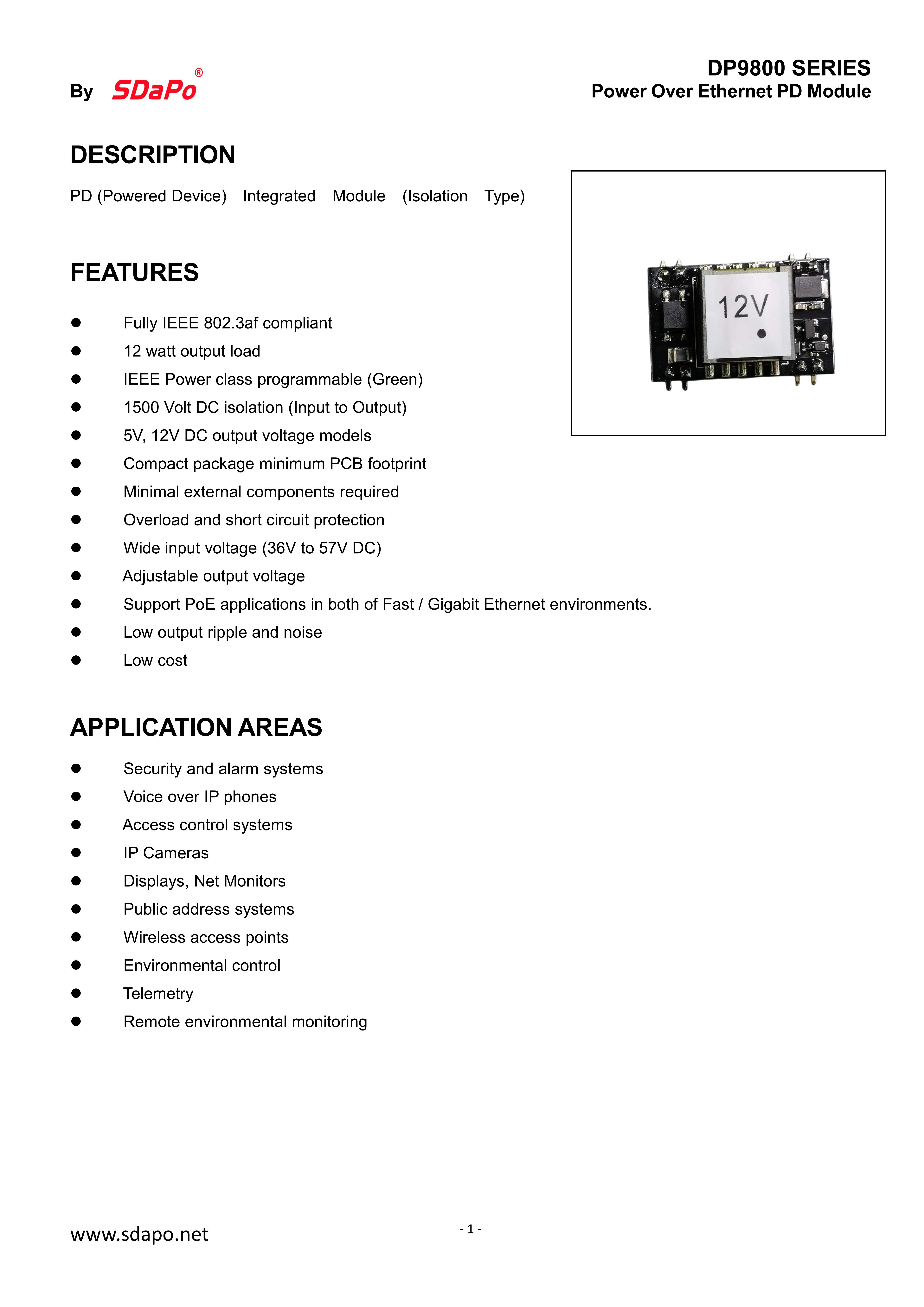

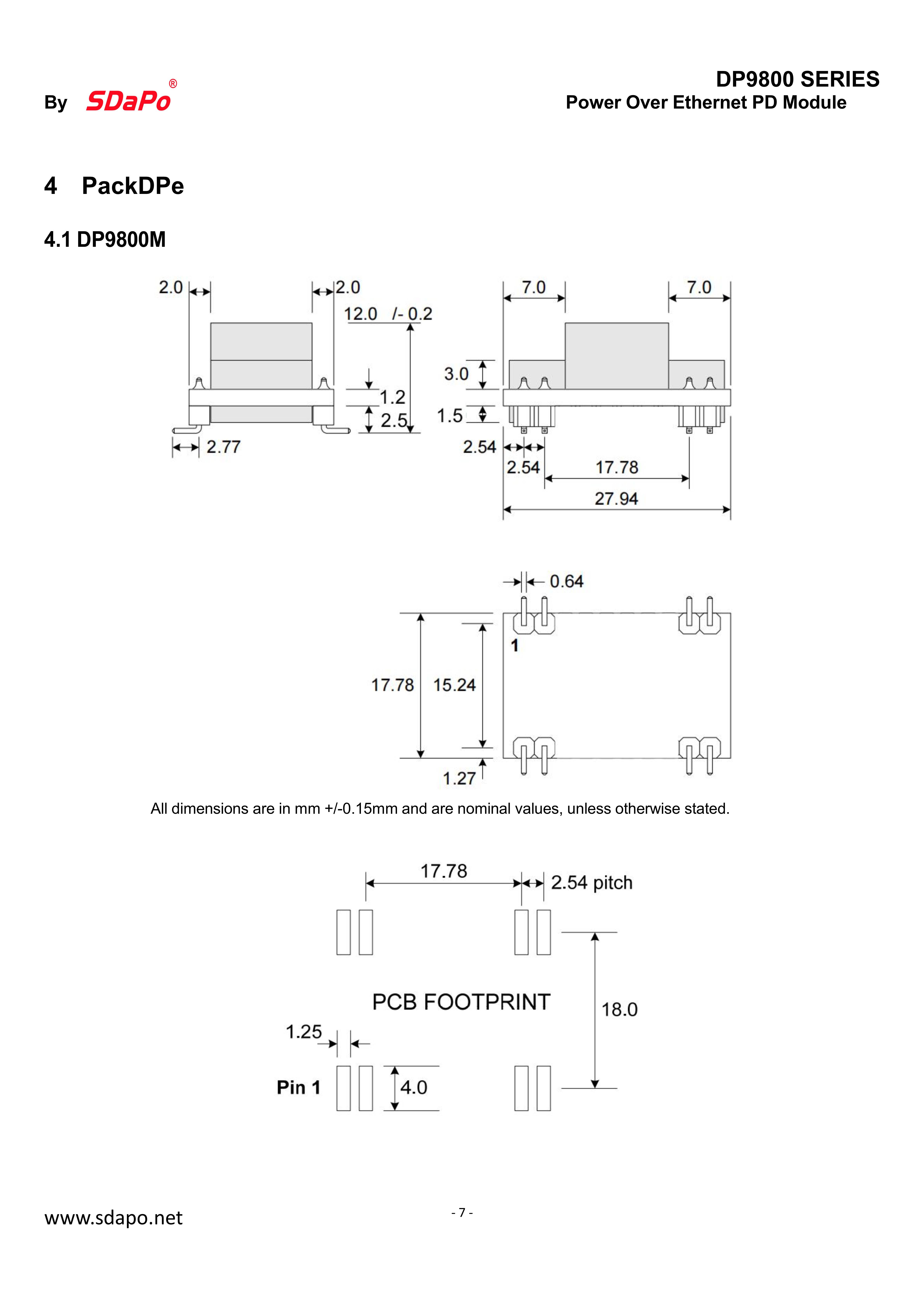

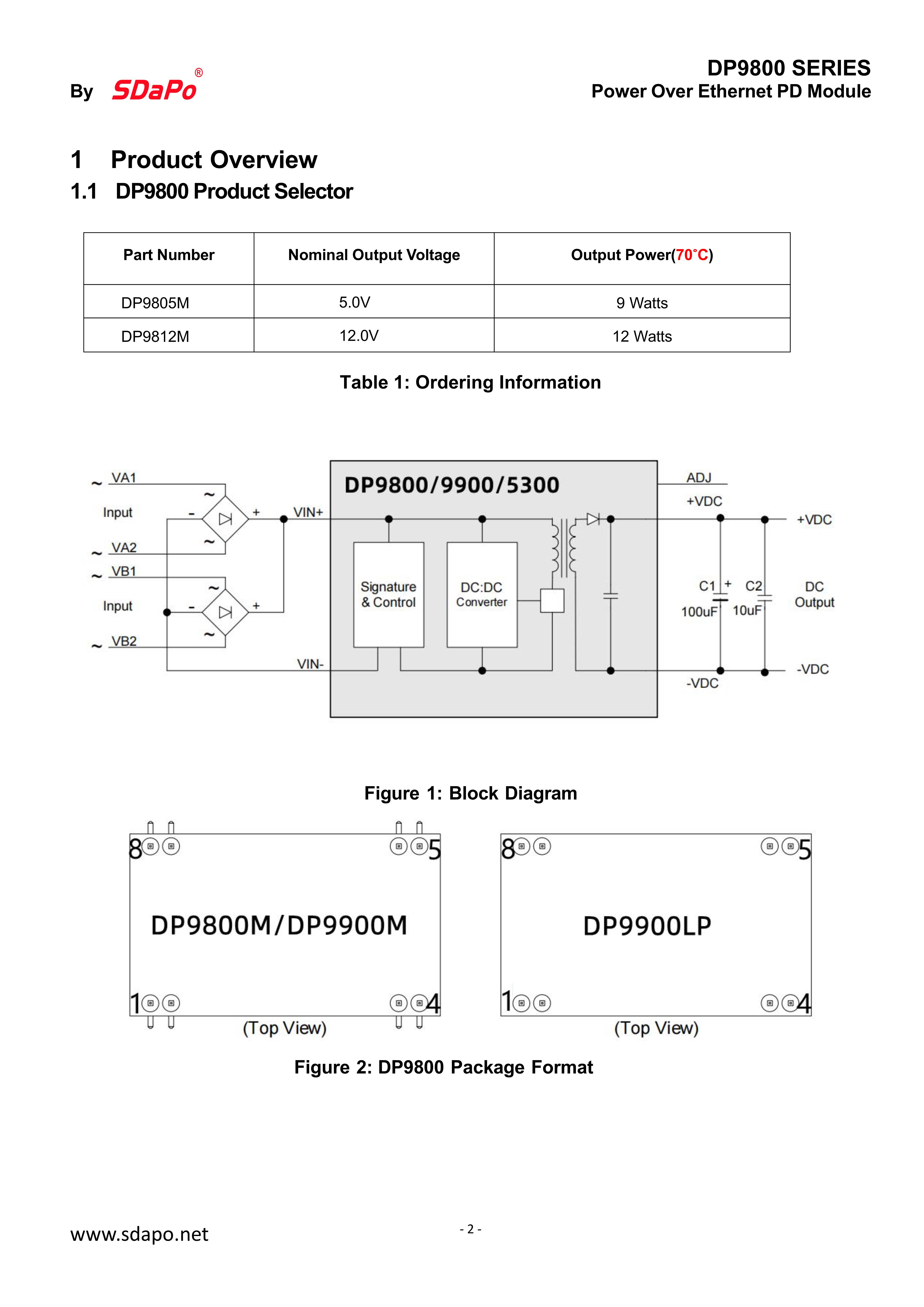

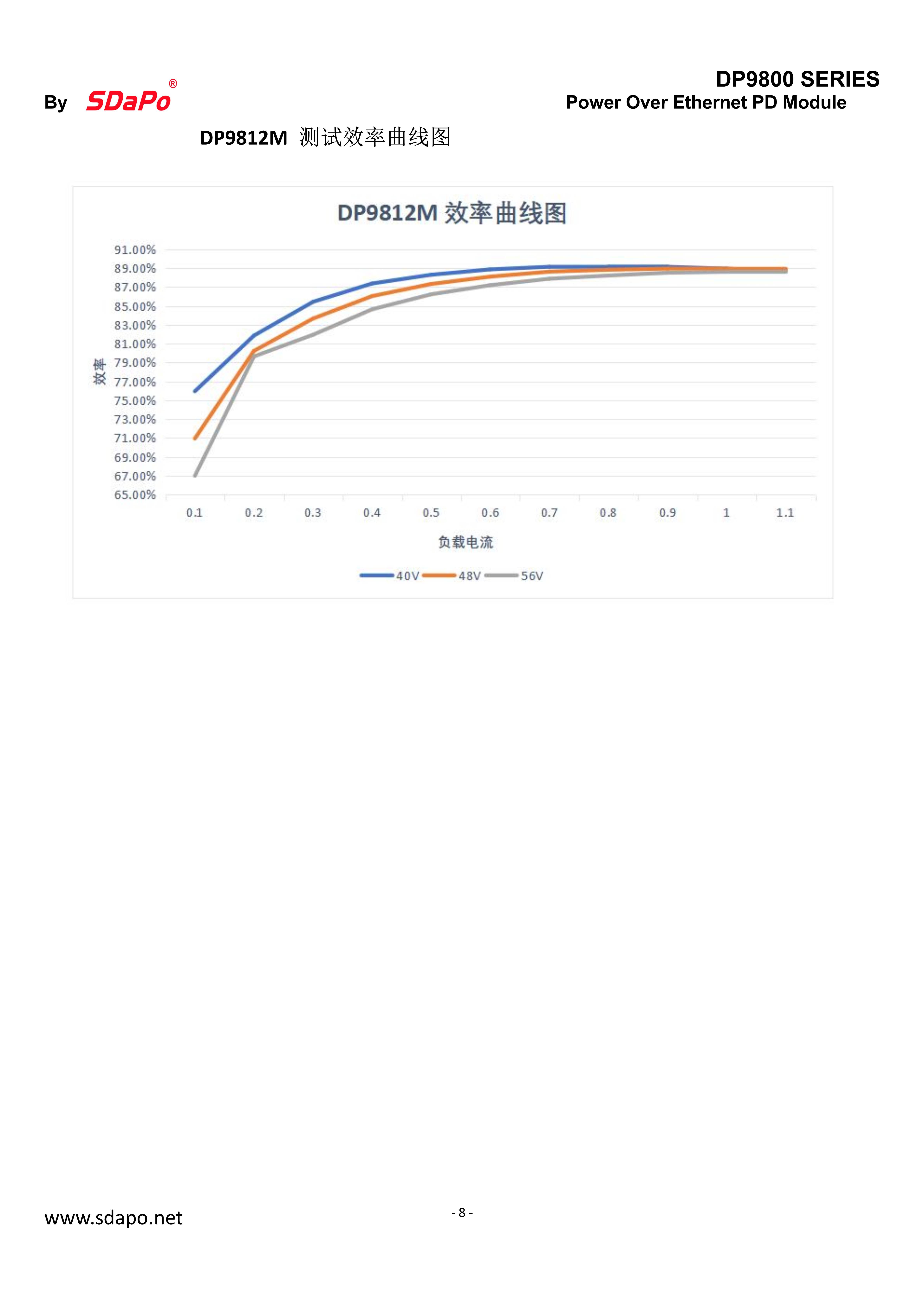

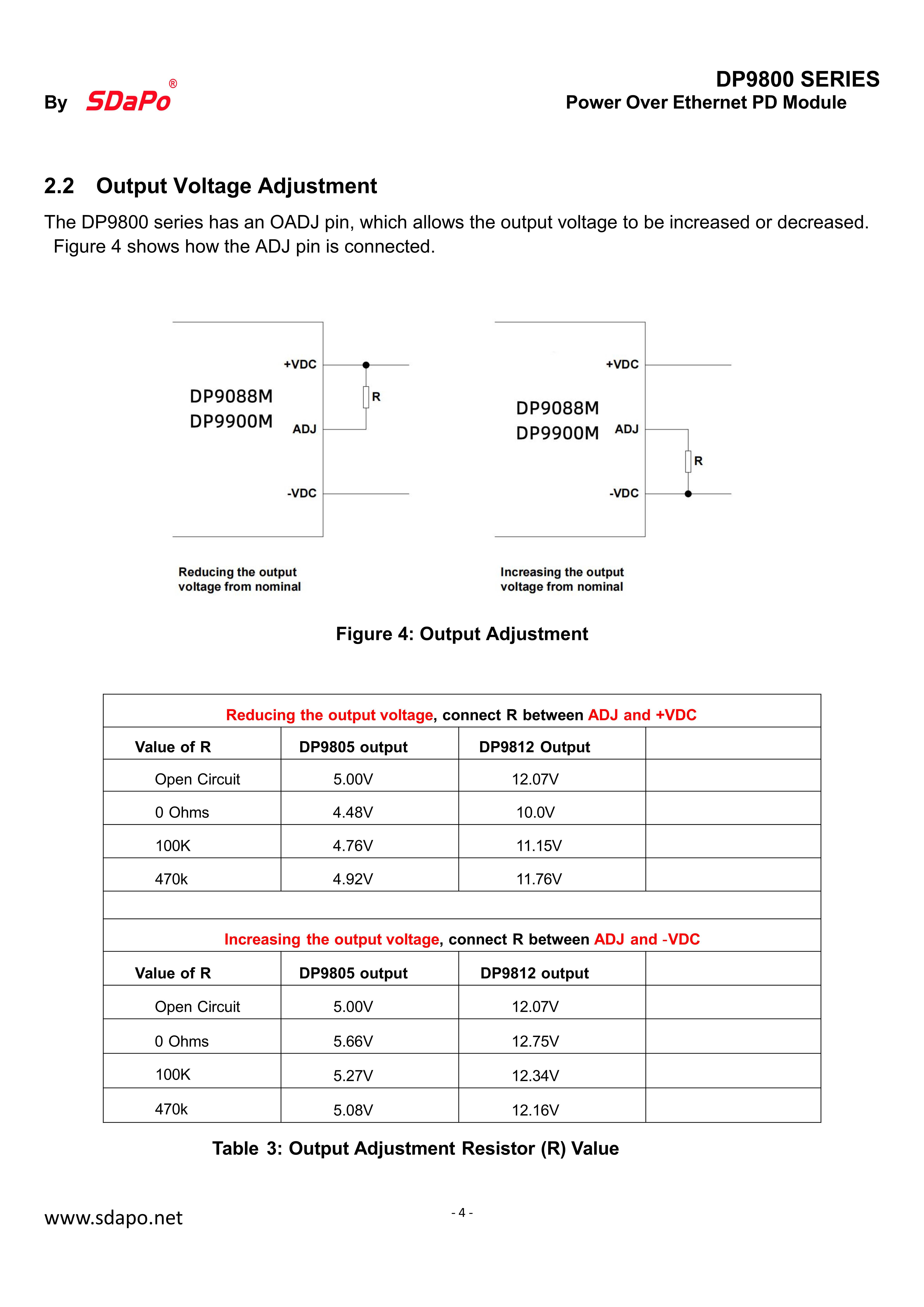

DP9800 Datasheet_1 DP9800 Datasheet_2 DP9800 Datasheet_3 DP9800 Datasheet_4 DP9800 Datasheet_5 DP9800 Datasheet_6 DP9800 Datasheet_7 DP9800 Datasheet_8

DP9800M Datesheet

DP9800 Datasheet.pdf

DP9805 DP9800 Integrated Isolation poe module DP9800M 5V 12V PoE PD Module
