Product Description

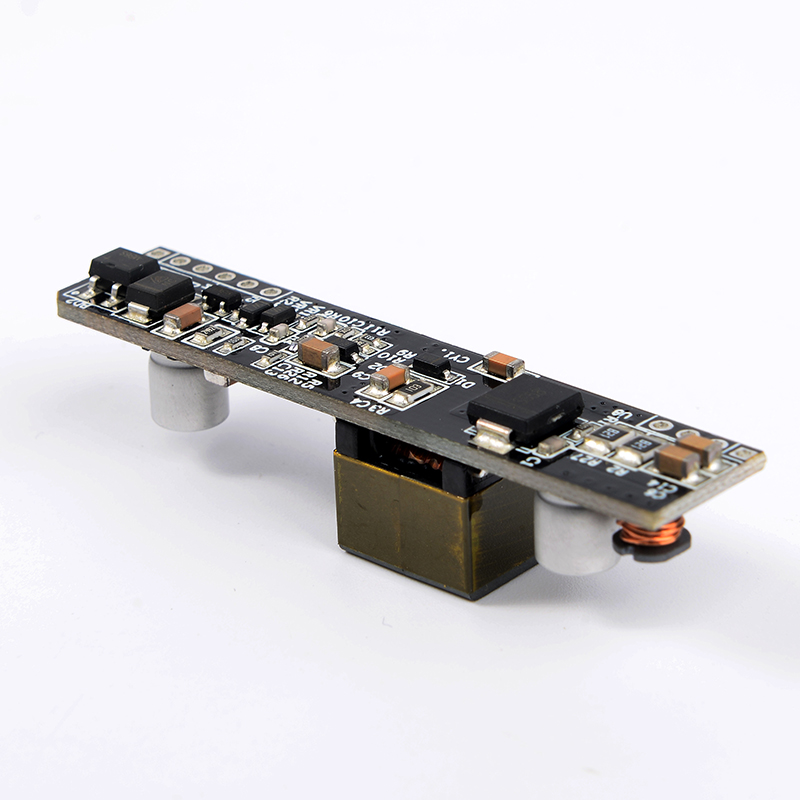

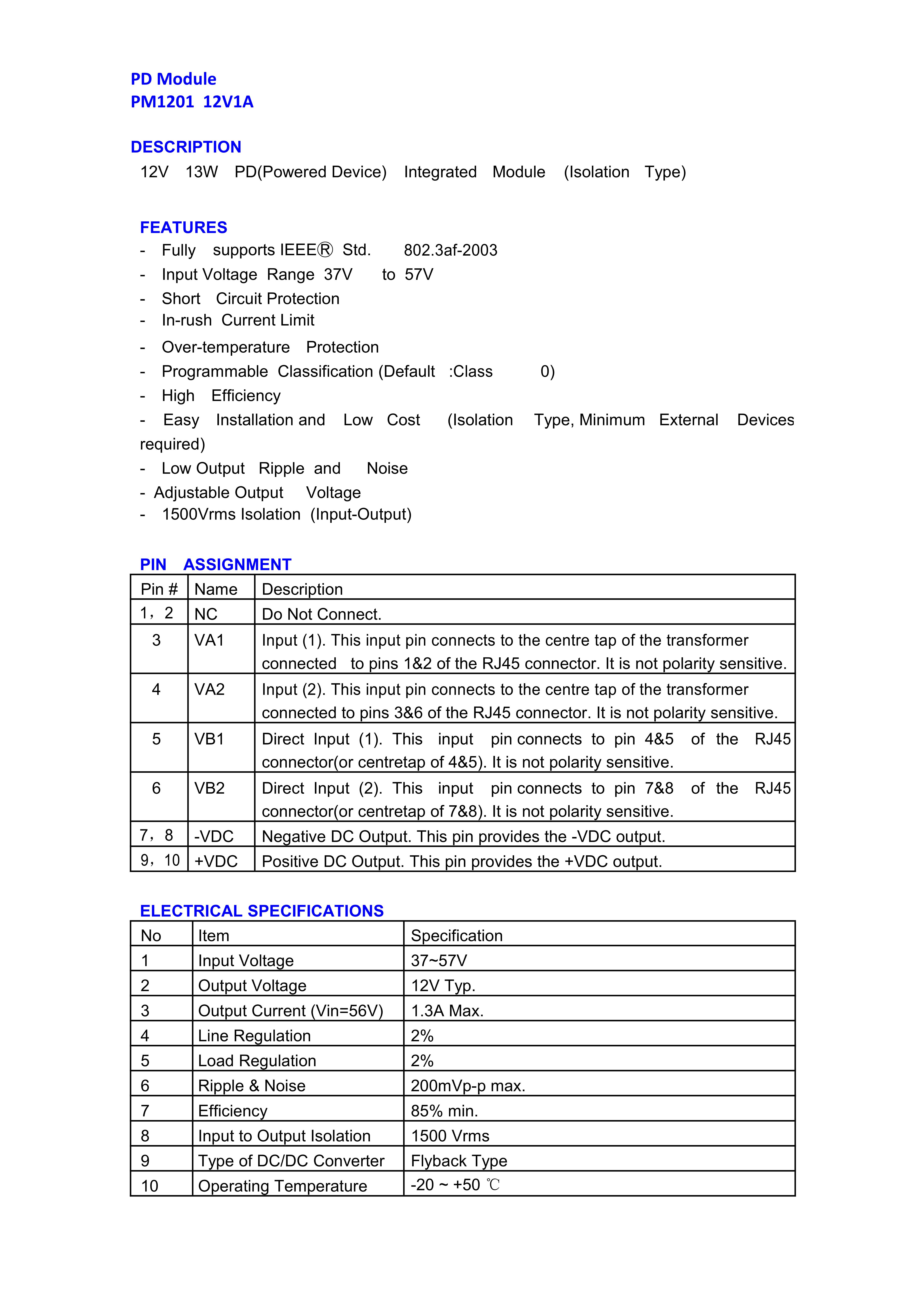

DESCRIPTION

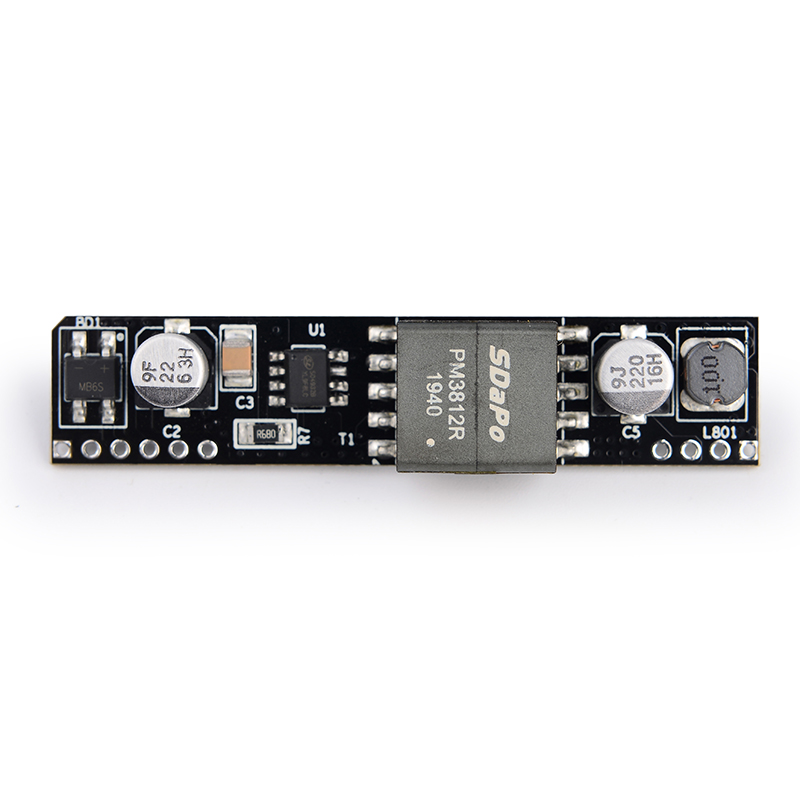

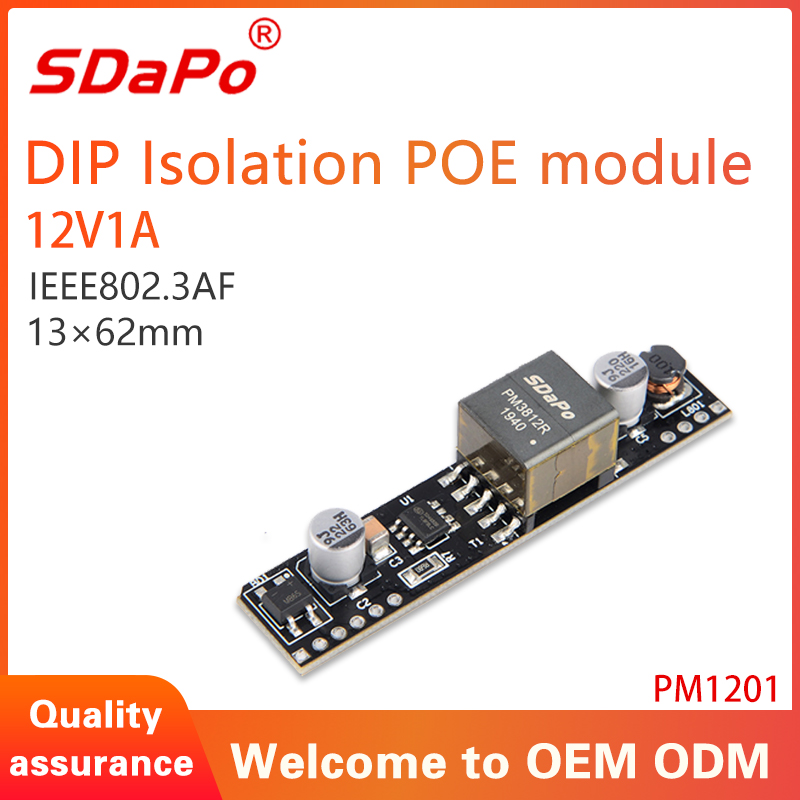

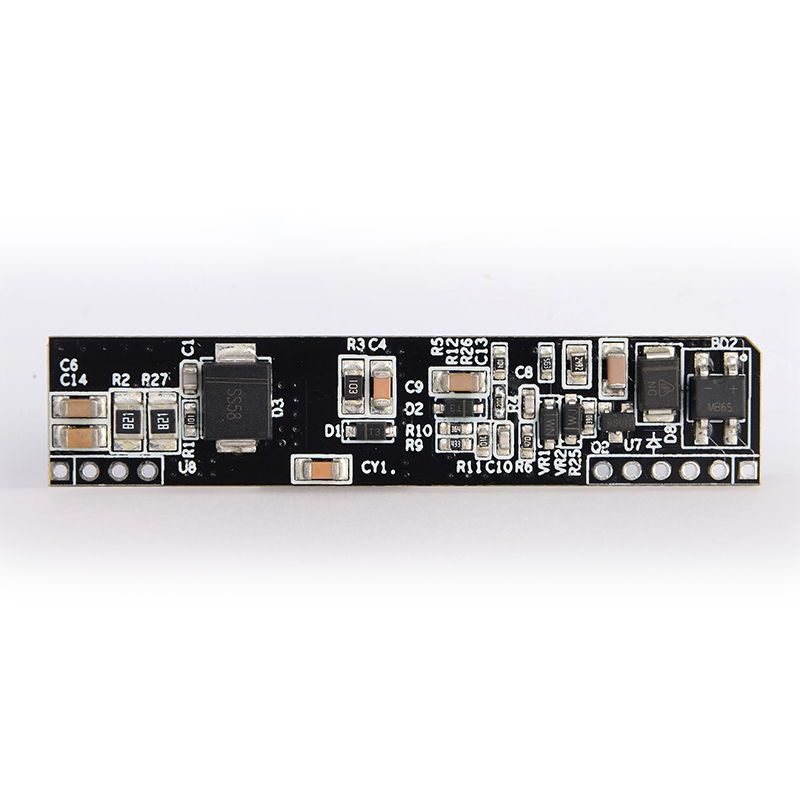

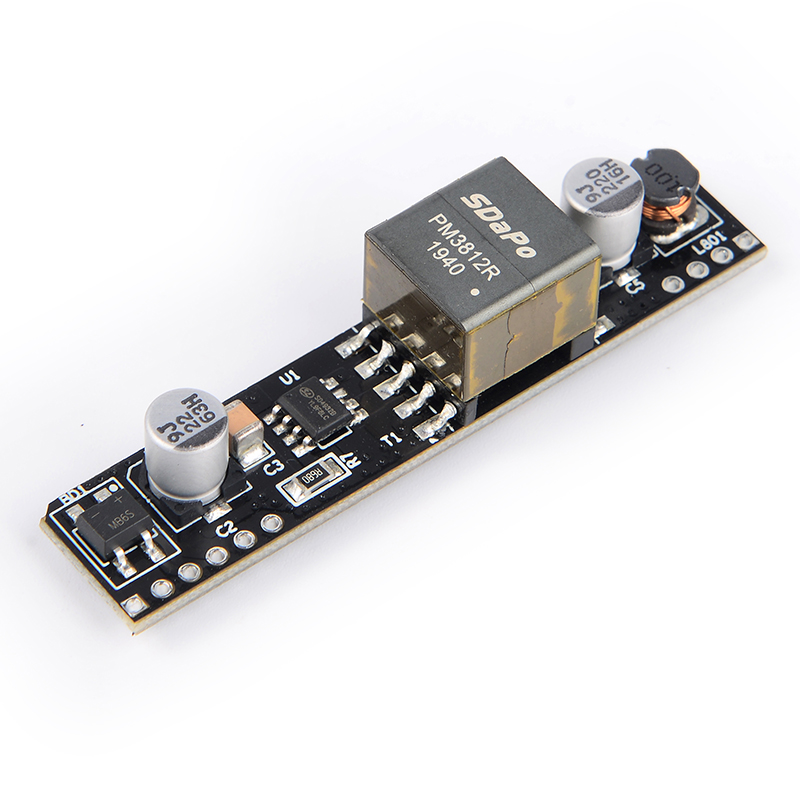

12V 13W PD(Powered Device) Integrated Module (Isolation Type)
FEATURES
-Fullysupports IEEE Std.802.3af-2003
-Input Voltage Range 37Vto 57V
-ShortCircuit Protection
-In-rush Current Limit
-Over-temperature Protection
-Programmable Classification (Default:Class0)
-High Efficiency
-Easy Installation and Low Cost(IsolationType, Minimum External Devicesrequired)
-Low Output Ripple and Noise
- Adjustable Output Voltage
-1500Vrms Isolation (Input-Output)

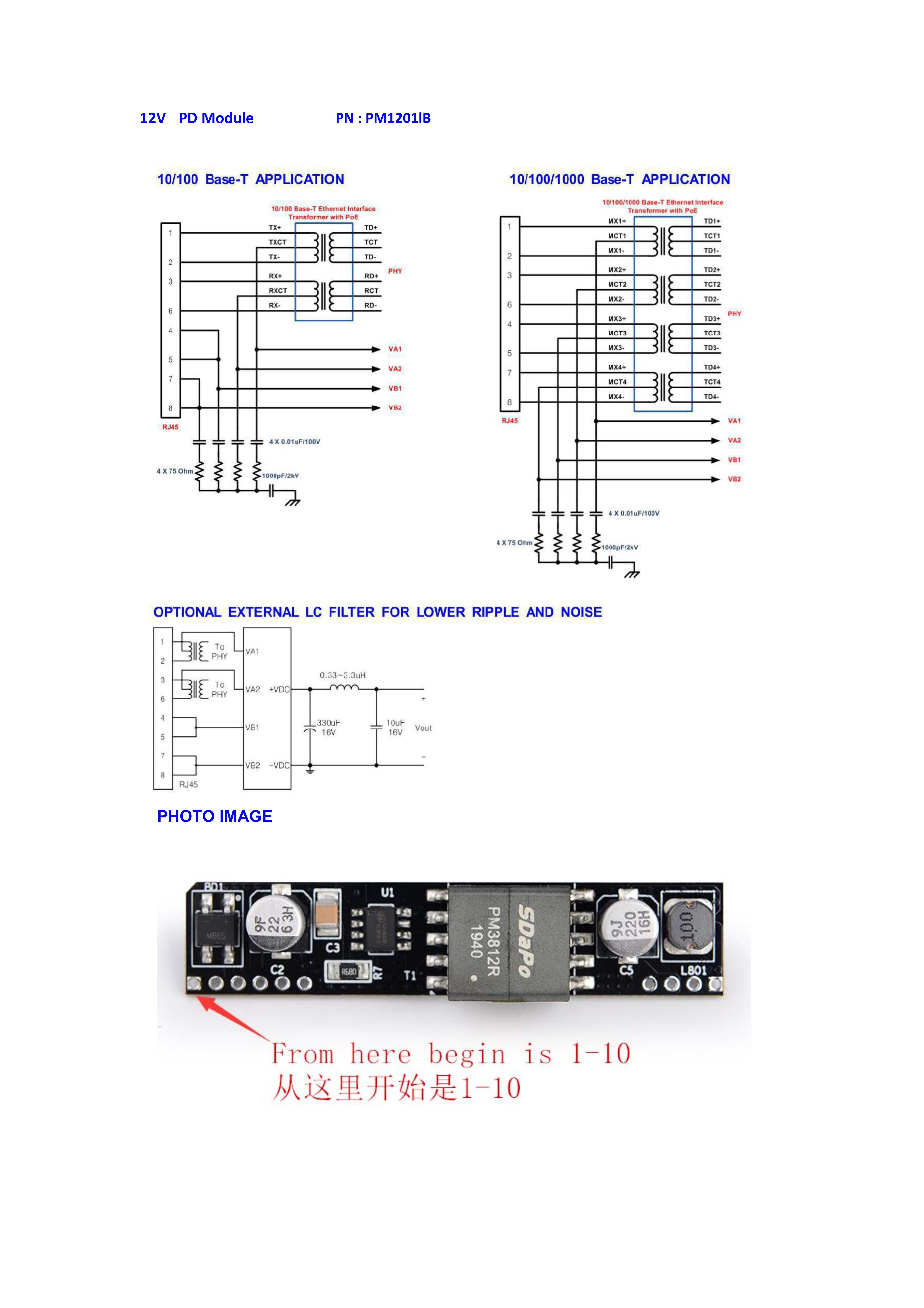

PIN ASSIGNMENT
Pin # | Name | Description |
1,2 | NC | Do Not Connect. |
| 3 | VA1 | Input (1). This input pin connects to the centre tap of the transformer connected to pins 1&2 of the RJ45 connector. It is not polarity sensitive. |
| 4 | VA2 | Input (2). This input pin connects to the centre tap of the transformer connected to pins 3&6 of the RJ45 connector. It is not polarity sensitive. |
| 5 | VB1 | Direct Input (1). This inputpin connects to pin 4&5 of the RJ45 connector(or centretap of 4&5). It is not polarity sensitive. |
| 6 | VB2 | Direct Input (2). This input pin connects to pin 7&8 of the RJ45 connector(or centretap of 7&8). It is not polarity sensitive. |
| 7,8 | -VDC | Negative DC Output. This pin provides the -VDC output. |
| 9,10 | +VDC | Positive DC Output. This pin provides the +VDC output. |
You are welcome to customize the POE modules of various sizes and appearances and function.
The layout is required to receive the initial research and development expenses.
After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.
After the sample is qualified, batch production.
ELECTRICAL SPECIFICATIONS
No | Item | Specification |
| 1 | Input Voltage | 37~57V |
| 2 | Output Voltage | 12V |
| 3 | Output Current (Vin=56V) | 1.3A Max. |
| 4 | Line Regulation | 2% |
| 5 | Load Regulation | 2% |
| 6 | Ripple & Noise | 200mVp-p max. |
| 7 | Efficiency | 85% min. |
| 8 | Input to Output Isolation | 1500 Vrms |
| 9 | Type of DC/DC Converter | Flyback Type |
| 10 | Operating Temperature | -20 ~ +50 ℃ |
You are welcome to customize the POE modules of various size and connector and function.
The layout is after receive the research and development fee.
After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.
It takes 7-10 days to produce samples.After the sample is qualified, batch production.
You are welcome to customize the POE modules of various size and connector and function.
The layout is after receive the research and development fee.
After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.
It takes 7-10 days to produce samples.After the sample is qualified, batch production.
Product Description
DESCRIPTION
12V 13W PD(Powered Device) Integrated Module (Isolation Type)
FEATURES
-Fullysupports IEEE Std.802.3af-2003
-Input Voltage Range 37Vto 57V
-ShortCircuit Protection
-In-rush Current Limit
-Over-temperature Protection
-Programmable Classification (Default:Class0)
-High Efficiency
-Easy Installation and Low Cost(IsolationType, Minimum External Devicesrequired)
-Low Output Ripple and Noise
- Adjustable Output Voltage
-1500Vrms Isolation (Input-Output)
PIN ASSIGNMENT
Pin # | Name | Description |
1,2 | NC | Do Not Connect. |
| 3 | VA1 | Input (1). This input pin connects to the centre tap of the transformer connected to pins 1&2 of the RJ45 connector. It is not polarity sensitive. |
| 4 | VA2 | Input (2). This input pin connects to the centre tap of the transformer connected to pins 3&6 of the RJ45 connector. It is not polarity sensitive. |
| 5 | VB1 | Direct Input (1). This inputpin connects to pin 4&5 of the RJ45 connector(or centretap of 4&5). It is not polarity sensitive. |
| 6 | VB2 | Direct Input (2). This input pin connects to pin 7&8 of the RJ45 connector(or centretap of 7&8). It is not polarity sensitive. |
| 7,8 | -VDC | Negative DC Output. This pin provides the -VDC output. |
| 9,10 | +VDC | Positive DC Output. This pin provides the +VDC output. |
You are welcome to customize the POE modules of various sizes and appearances and function.
The layout is required to receive the initial research and development expenses.
After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.
After the sample is qualified, batch production.
ELECTRICAL SPECIFICATIONS
No | Item | Specification |
| 1 | Input Voltage | 37~57V |
| 2 | Output Voltage | 12V |
| 3 | Output Current (Vin=56V) | 1.3A Max. |
| 4 | Line Regulation | 2% |
| 5 | Load Regulation | 2% |
| 6 | Ripple & Noise | 200mVp-p max. |
| 7 | Efficiency | 85% min. |
| 8 | Input to Output Isolation | 1500 Vrms |
| 9 | Type of DC/DC Converter | Flyback Type |
| 10 | Operating Temperature | -20 ~ +50 ℃ |
