PM3812R-HL 12V 1A PoE Module PD Module

You are here: Home » Products » POE Module » IEEE802.3af » PM3812R-HL 12V 1A PoE Module PD Module

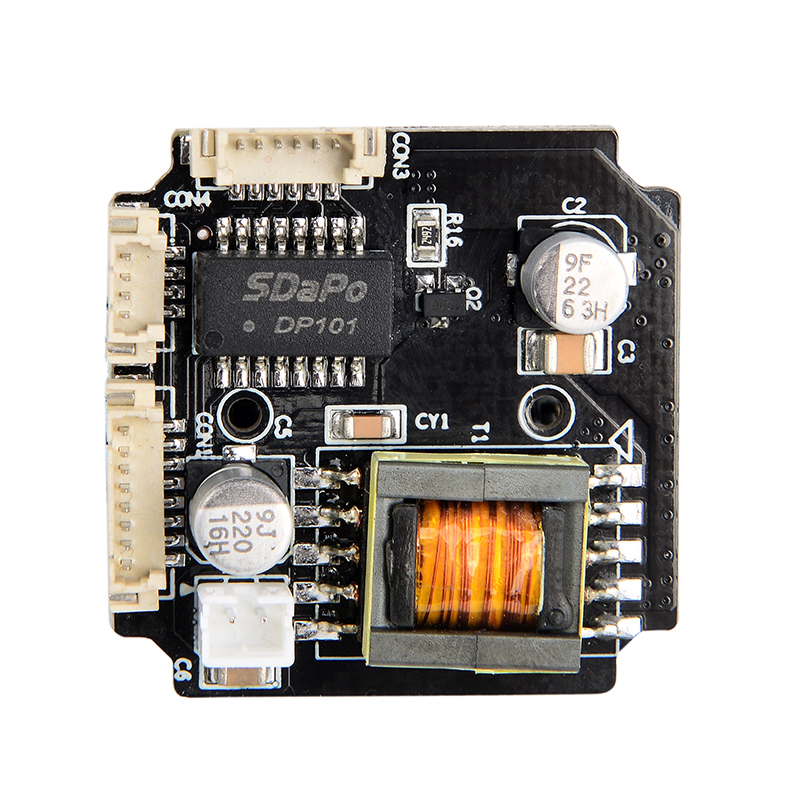

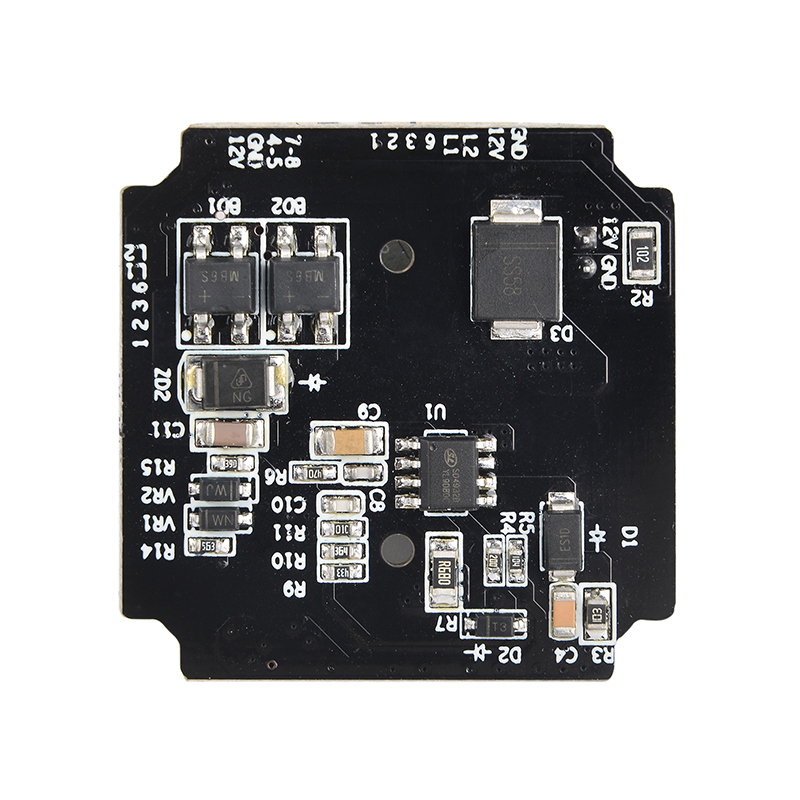

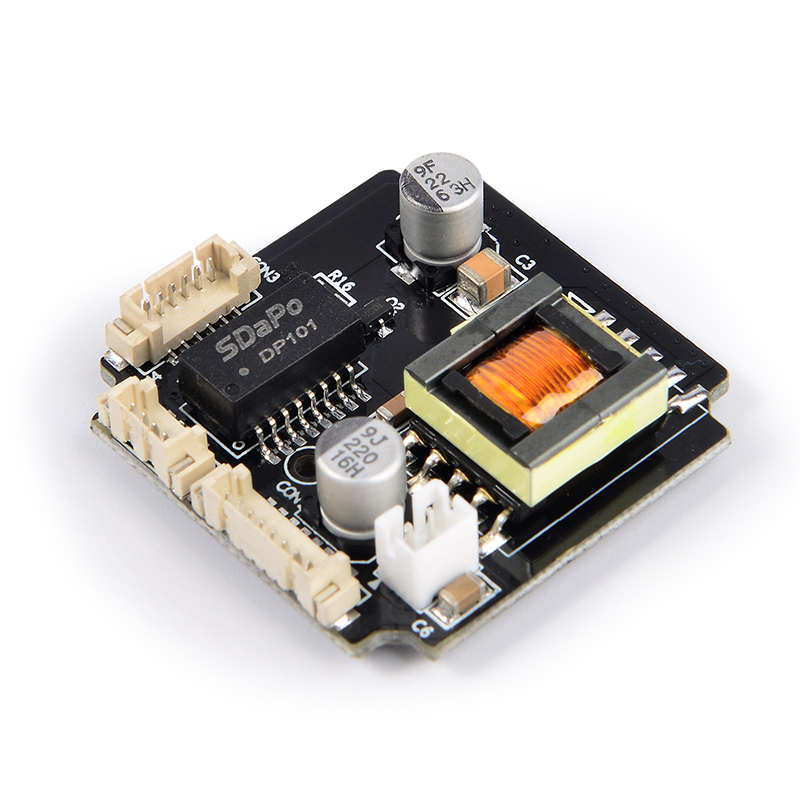

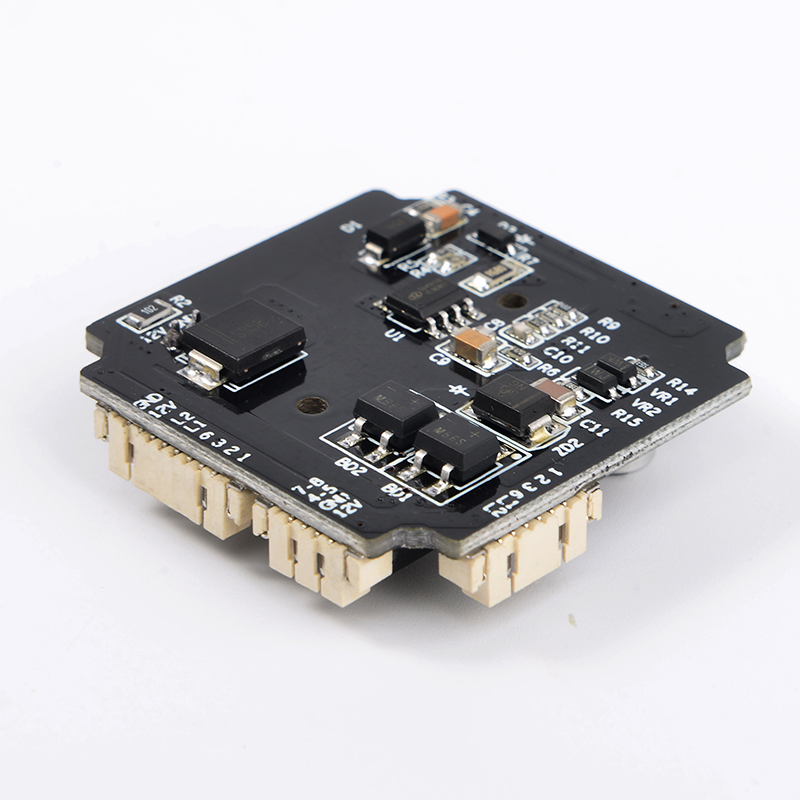

PM3812R-HL 12V 1A PoE Module PD Module

Name: PM3812R-HL 12V 1A PoE Module PD Module
Brand: SDaPo
SKU: 593279927
Rating: 5.0 (60 reviews)

- Specification:with IEEE802.3af standard
- Security:Has a perfect short circuit protection, 1500V high voltage isolation
- Size :38*38mm
- Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
- Use for min dome IP camera case.Ultrathin modules.The highest to lowest is only 9mm

Model:
PM3812R-HL
Brand:
SDaPo

Output Vdc:	PM3812R-HL-12V1A
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

SDaPo Manufacturer Top IEEE802.3af Standard PM3812R-HL 12V/1A ModeA or ModeB all IPC can use PoE Module

1.product features:

1.1 Specification:with IEEE802.3af standard

1.2 Security:Has a perfect short circuit protection, 1500V high voltage isolation

1.3 Size :38*38mm

1.4 Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

1.5 use for min dome IP camera case.Ultrathin modules.The highest to lowest is only 9mm

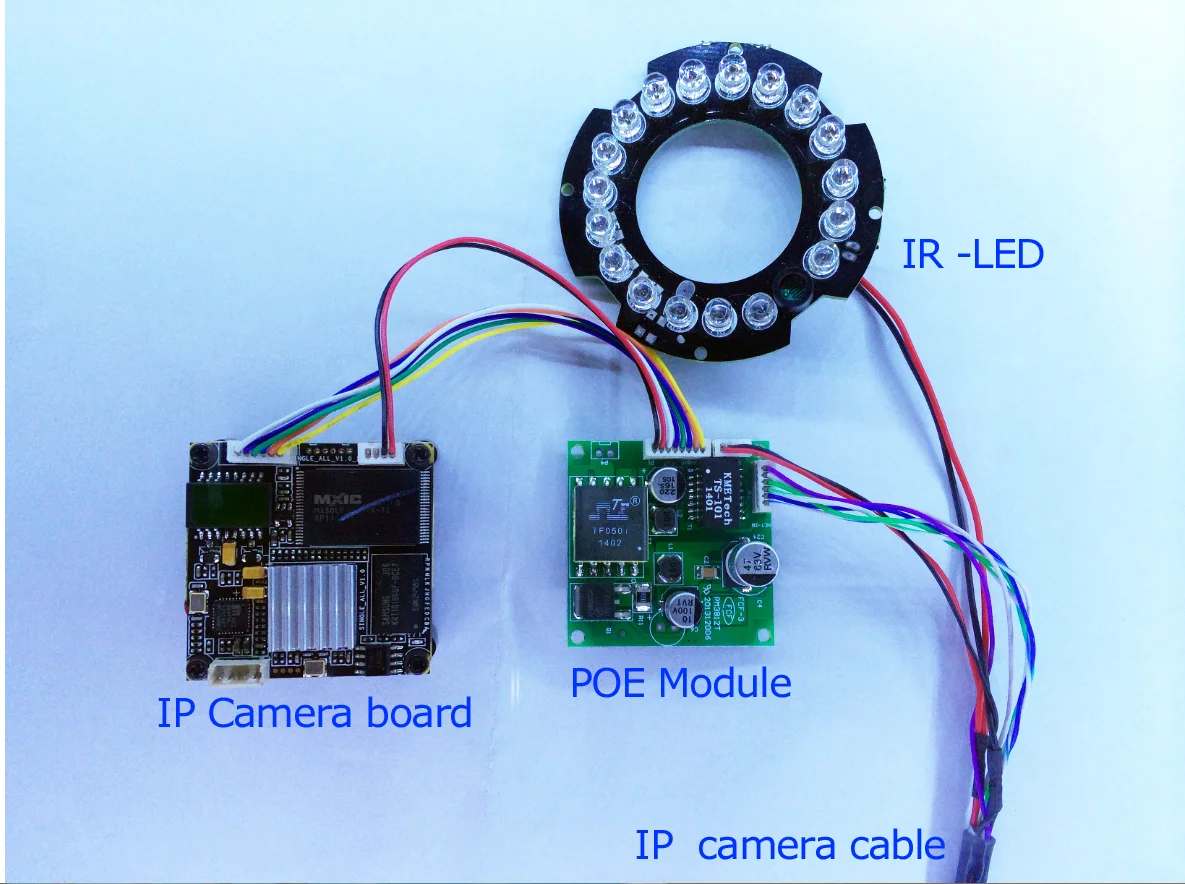

2. Applications:All IP Camera

3. The main parameters:

No.	Parameter	Symbol	Min	Typical values	Max	Unit
1	Input Voltage	Vin	37	48	57	V
2	output voltage	+VDC	11.8	12	12.3	V
3	output Current	PWR		1	1.08	A
4	Isolation Voltage	ISO	1.48	1.5	1.52	KV
5	Storage Temperature	Tj	-40	25	120	℃
6	Operating Temperature	Tstg	-20	25	65	℃

3.1 is typically 25 ℃, measured under the 48V power supply environment, only for reference design

3.2 Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments

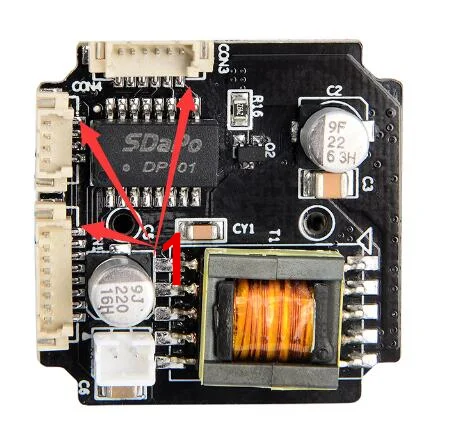

4. Interface Definition:

SDaPo Manufacturer Top IEEE802.3af Standard PM3812R-HL 12V/1A ModeA or ModeB all IPC can use PoE Module

<td valign="top" width="75" style="box-sizing: content-box; margin: 0px; padding: 0px; font-style: inherit; font-variant: inherit; font-stretch: inherit; line-height: inherit; font-family: inherit; float:

Top

P3:PoE Board output		P1:cable data input
1	RJ 6	1	RJ 6
2	RJ 3	2	RJ 3
3	RJ 2	3	RJ 2
4	RJ 1	4	RJ 1
5	LED2	5	LED2

POE Module min dome camera case use PM3812R-HL 12V 1A PoE PD Module
