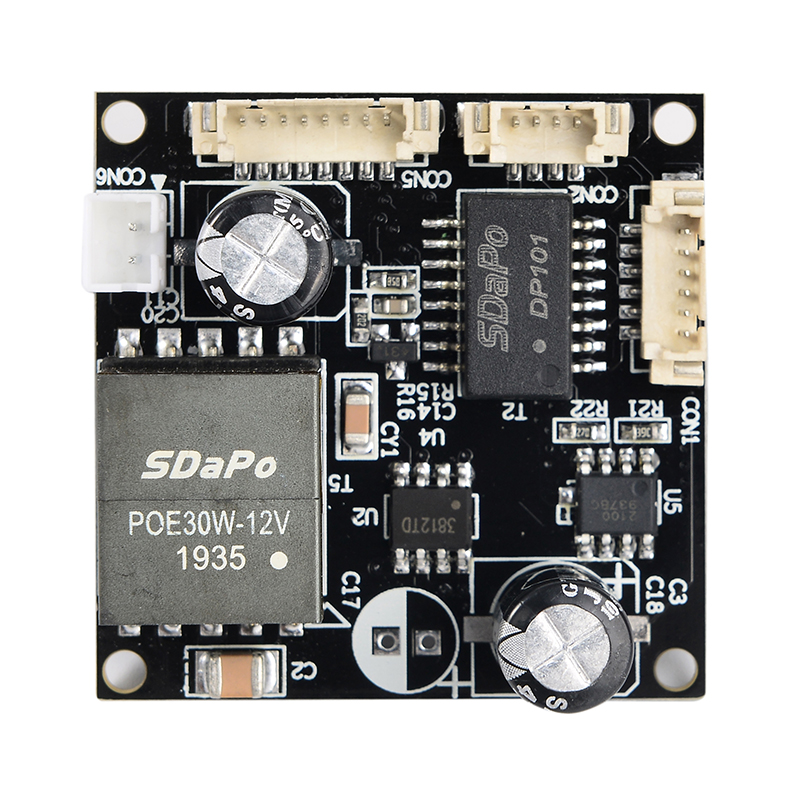

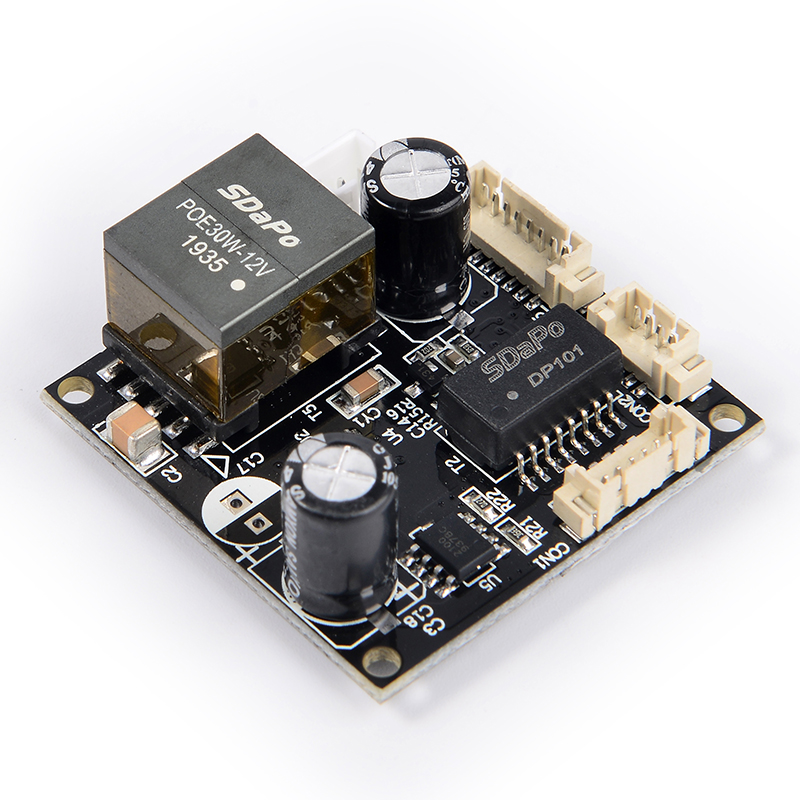

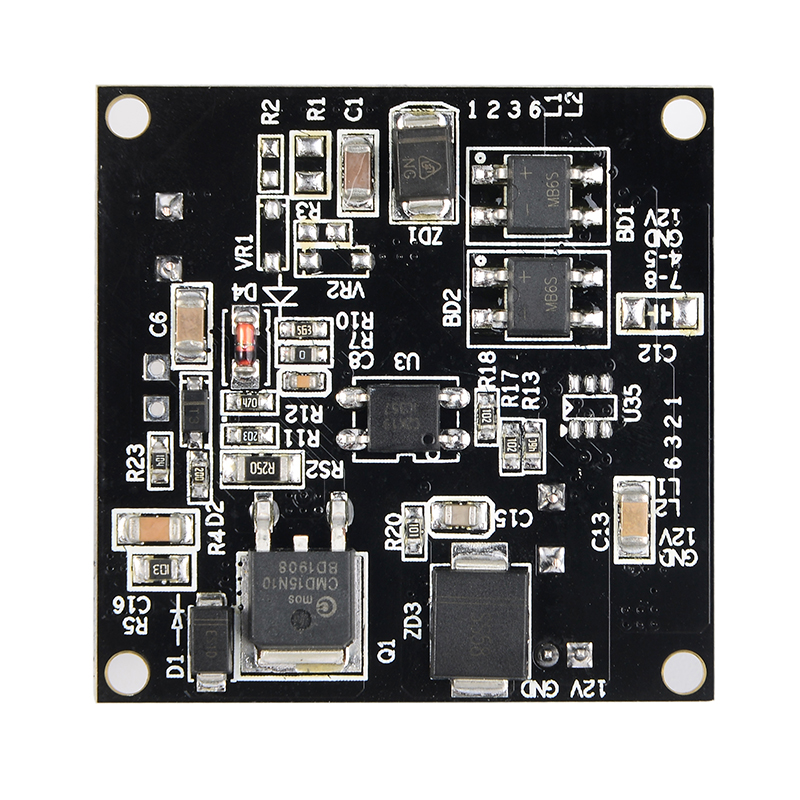

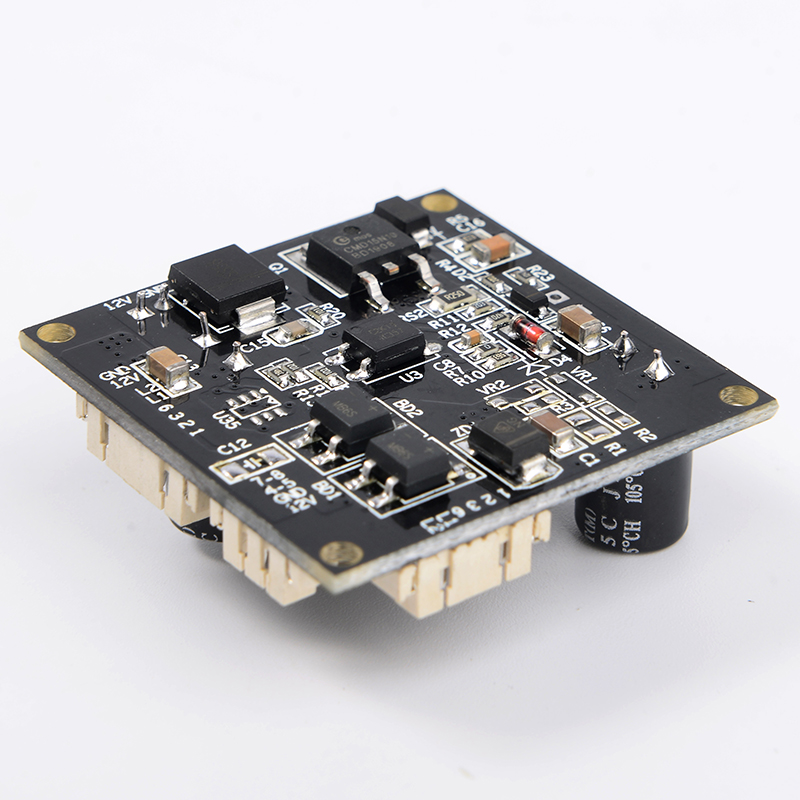

PM3812AT 12V2A PoE PD Module
PM3812AT 12V2A PoE PD Module PM3812AT 12V2A PoE PD Module
PM3812AT 12V2A PoE PD Module PM3812AT 12V2A PoE PD Module
PM3812AT 12V2A PoE PD Module PM3812AT 12V2A PoE PD Module
PM3812AT 12V2A PoE PD Module PM3812AT 12V2A PoE PD Module
PM3812AT 12V2A PoE PD Module PM3812AT 12V2A PoE PD Module

loading

PM3812AT 12V2A PoE Module PD Module

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

- Specification:with IEEE802.3af/at standard
- Security:Has a perfect short circuit protection, 1500V high voltage isolation
- Size :38*38mm
- Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

  • PM3812AT

  • SDaPo

Output Vdc:
Availability:
Quantity:

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

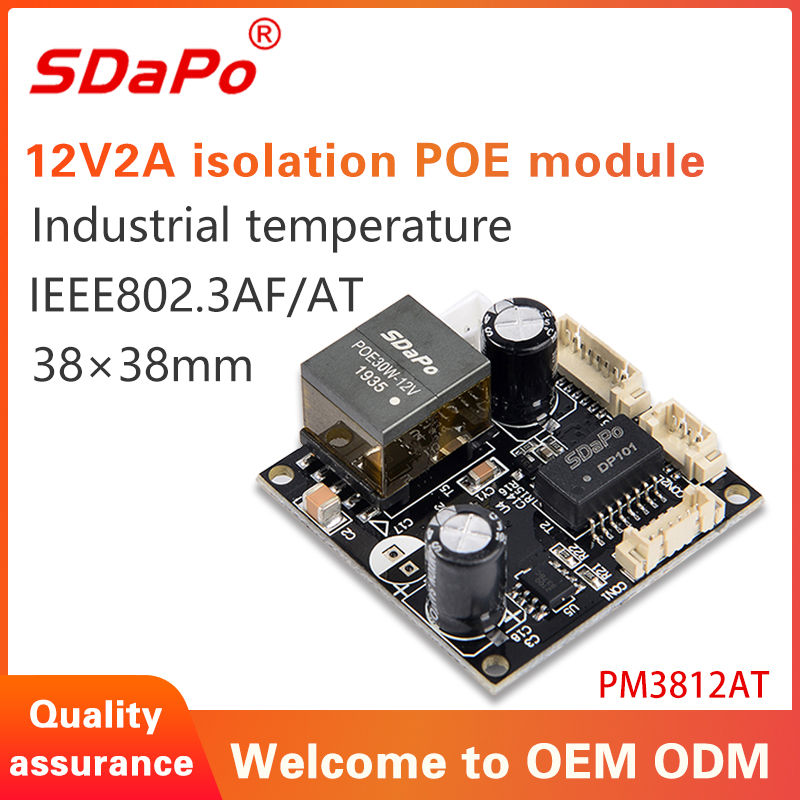

SDAPO PM3812AT  IEEE802 3af at Standard total power 25 5W module power supply

Product Description

product features

Specification:with IEEE802.3af/at standard

Security:Has a perfect short circuit protection, 1500V high voltage isolation

Size :38*38mm

4 Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

2. Applications:All IP Camera

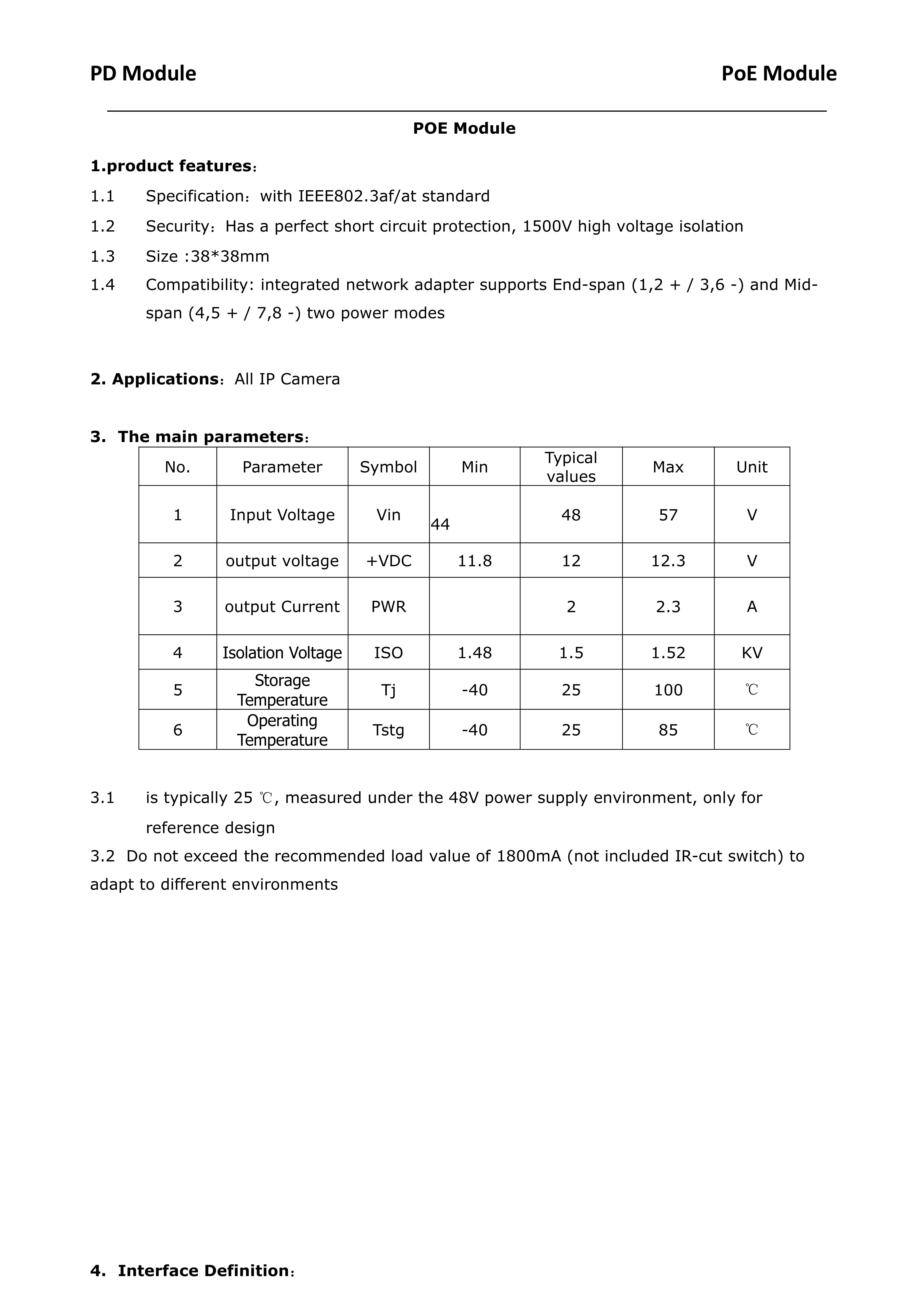

1.The main parameters

NO.

Parameter

Symbol

Min

Typical values

Max

Unit

1

Input Voltage

Vin

37 48 57 V
2

output voltage

+VDC 11.8 12 12.3 V
3

output Current

PWR
2 2.3 A
4

Isolation Voltage

ISO 1.48 1.5 1.52 KA
5

Storage Temperature

Tj -40 25 120

6

Operating Temperature

Tstg -40 25 85

3.1 is typically 25 ℃, measured under the 48V power supply environment, only for referencedesign

3.2 Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments

2.Product features:


-Specification:with IEEE802.3af standard
-Security:Has a perfect short circuit protection
-Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power mode

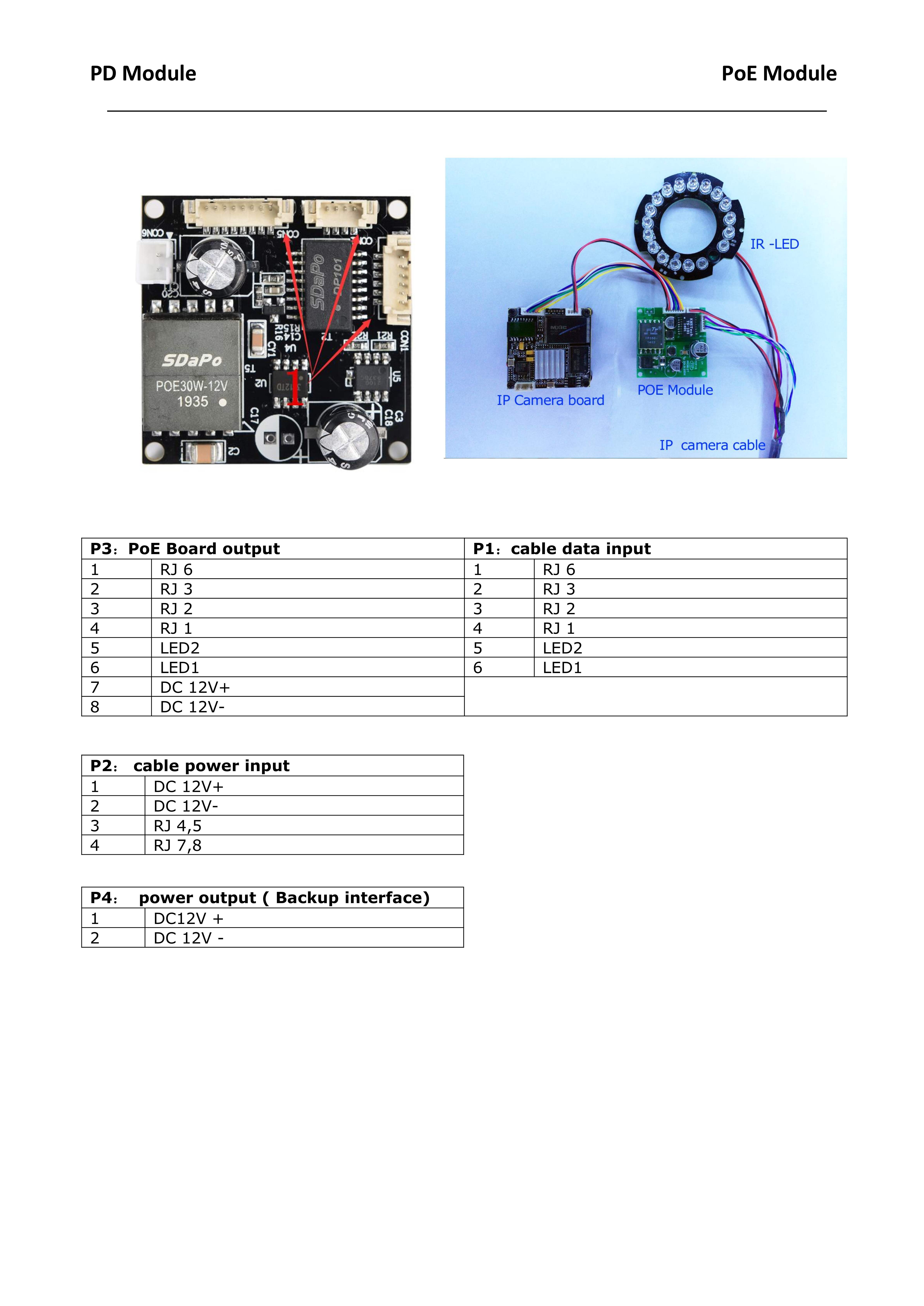

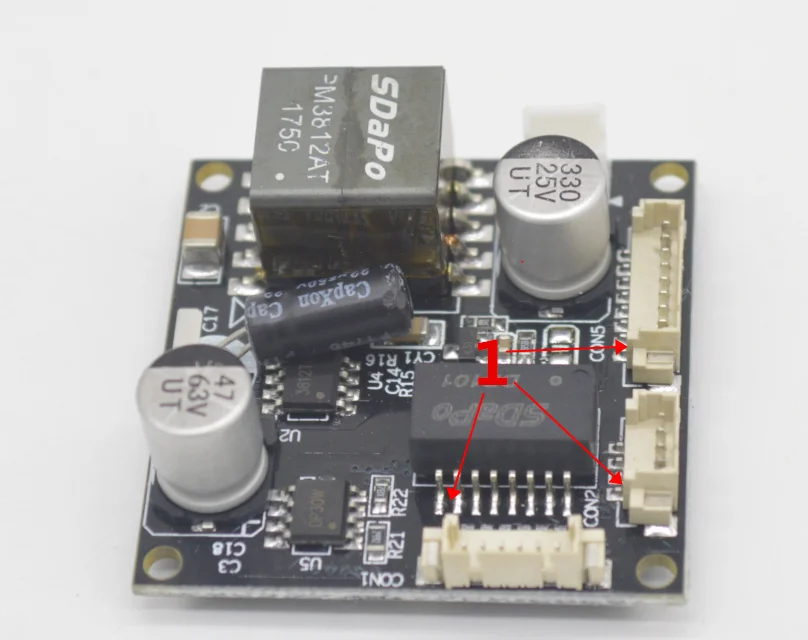

Interface Definition


1 2 3 4 5 6 7 8

P1:cable data input

RJ 6

RJ3 RJ2 RJ1 LED2 LED1

P2: cable power input

DC12V+

DC12V- RJ4,5 RJ7,8



P3:PoE Board output

RJ 6

R3 RJ2 RJ1 LED2 LED1 DC12V+ DC12V-

P4: power output ( Backup interface)

DC12V+ DC12V-





You are welcome to customize the POE modules of various sizes and appearances and function.
The layout is required to receive the initial research and development expenses.
After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.
After the sample is qualified, batch production.



PM3812AT Parameter

PM3812AT 英文版接线图_1 PM3812AT 英文版接线图_2

PM3812AT Datesheet
