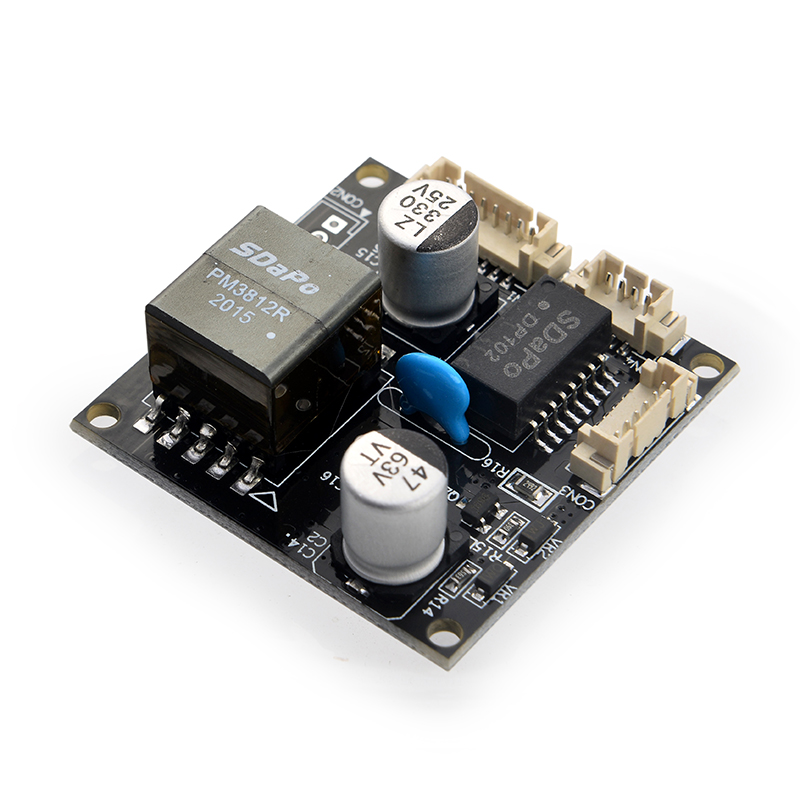

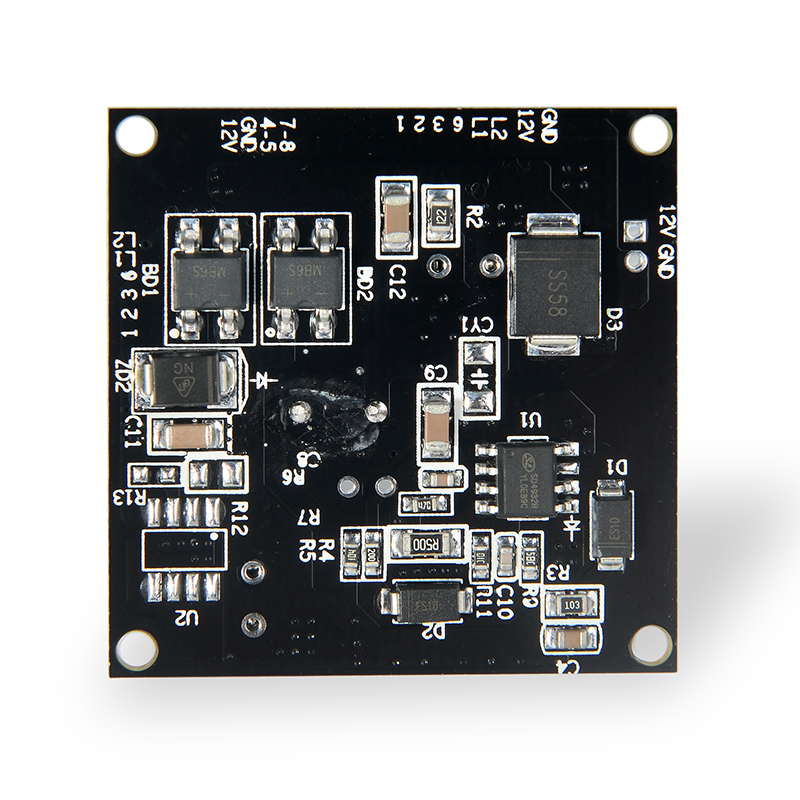

PM3812R V2.0 12V 1A PoE IP Camera 48V to 12V1A PoE Module PD Module

Name: PM3812R V2.0 12V 1A PoE IP Camera 48V to 12V1A PoE Module PD Module
Brand: SDaPo
SKU: 517279927
Rating: 5.0 (75 reviews)

- Specification：with IEEE802.3af standard
- Security：Has a perfect short circuit protection, 1500V high voltage isolation
- Size :38*38mm
- Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

Model:
PM3812R V2.0
Brand:
SDaPo

Output Vdc:	PM3812R V2.0-12V1A
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.
The layout is after receive the research and development fee.
After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.
It takes 7-10 days to produce samples.After the sample is qualified, batch production.1.product features

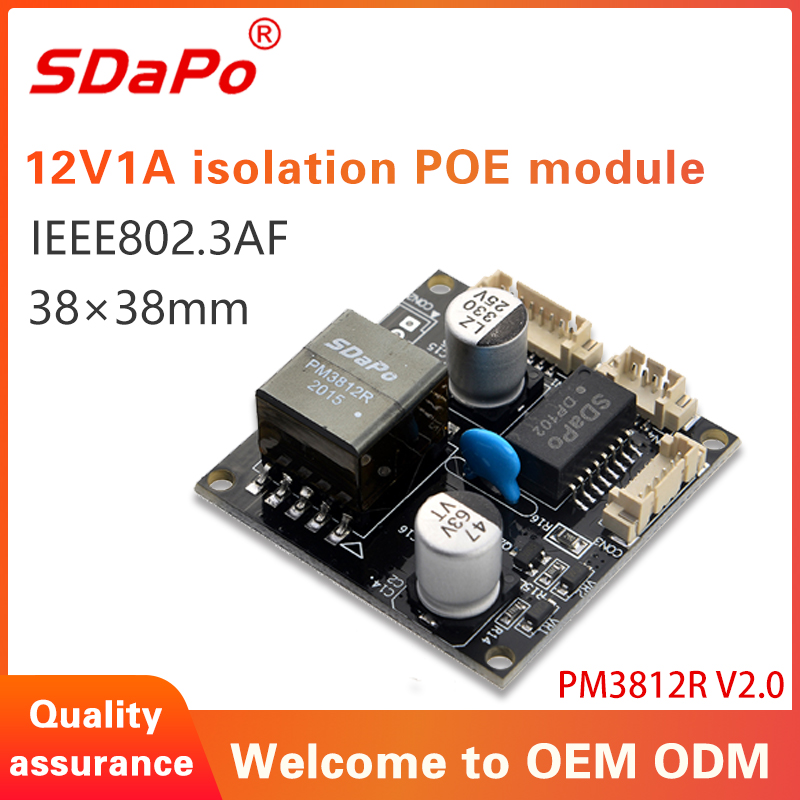

SDAPO PM3812R V2.0 PD poe ip camera module 48V to 12V1A

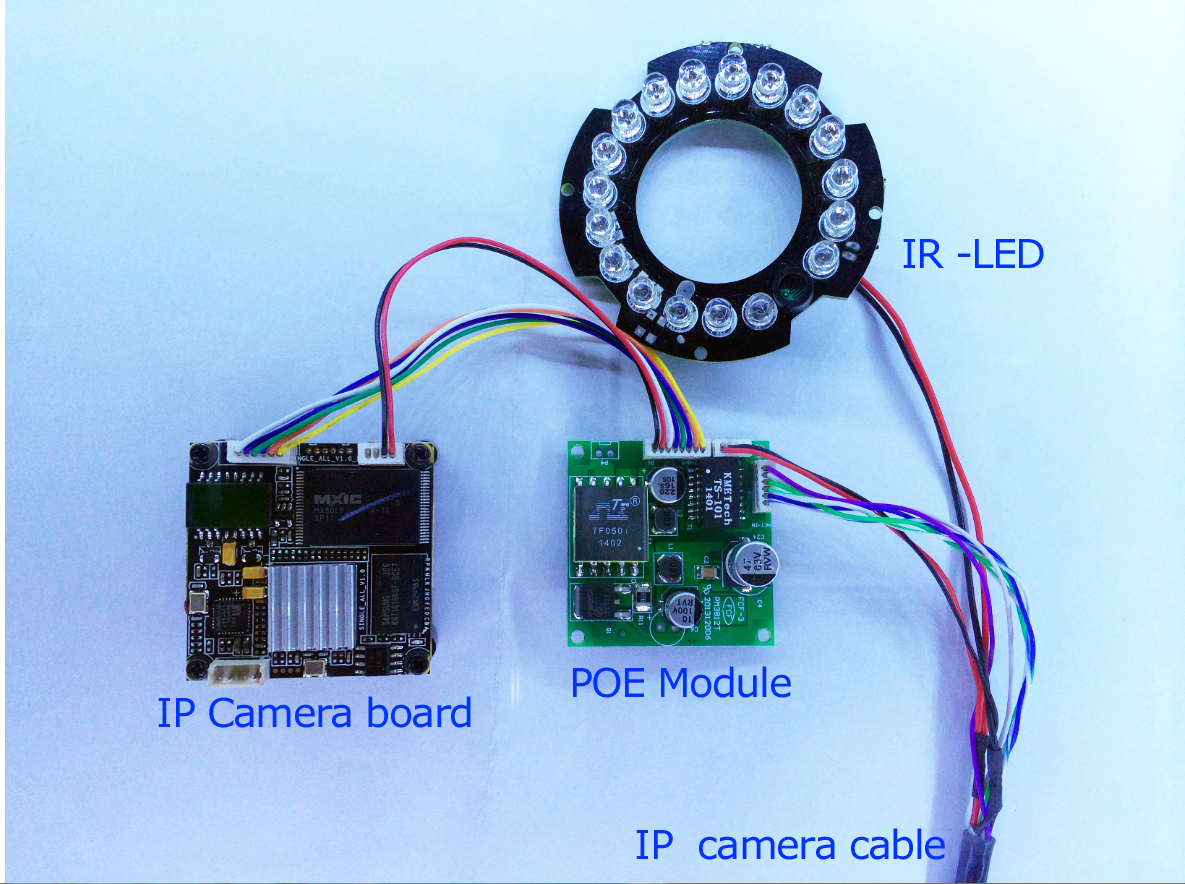

Applications:All IP Camera

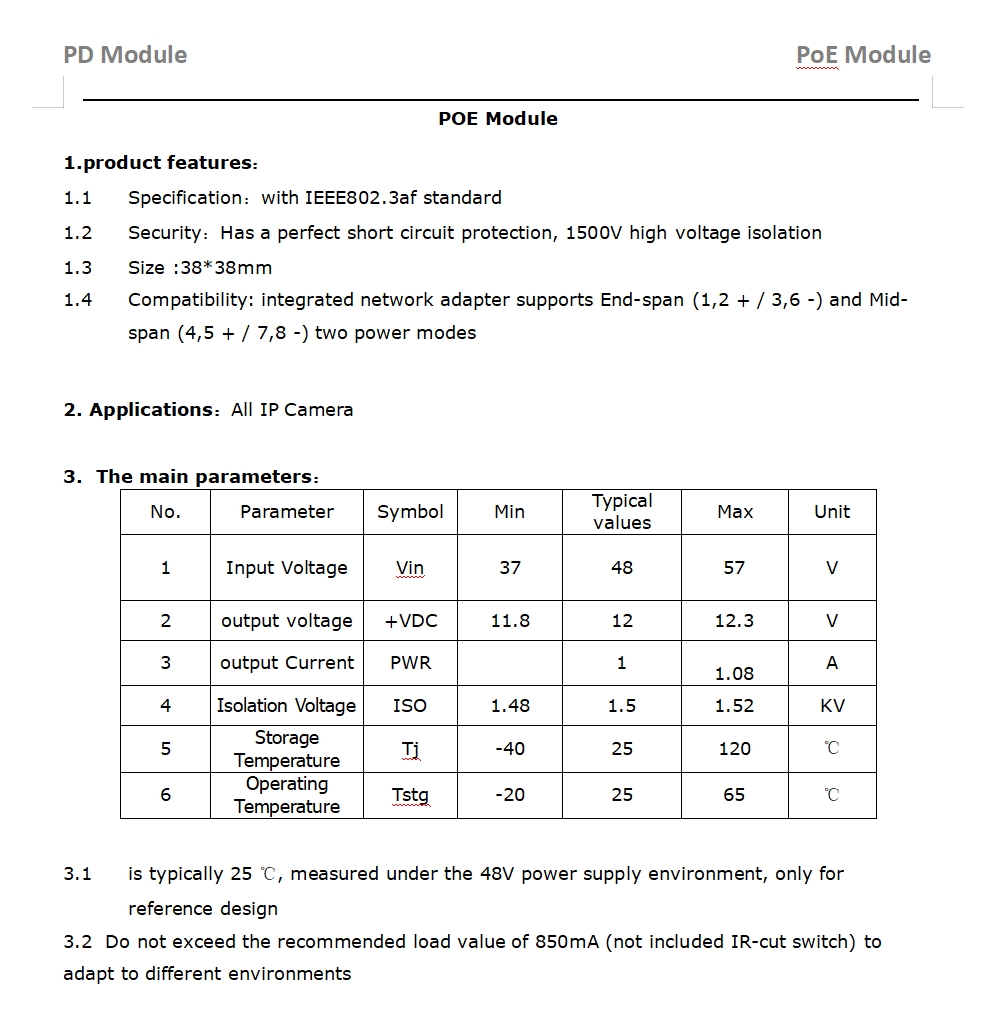

1.The main parameters

Parameter	Symbol	Min	Typical values	Max	Unit
Input Voltage	Vin	37	48	57	V
Output voltage	+VDC	11.8	12	12.3	V
Output Current	PWR		1	1.08	A
Isolation Voltage	ISO	1.48	1.5	1.52	KA
Storage Temperature	Tj	-40	25	120	℃
Operating Temperature	Tstg	-20	25	65	℃
(1) Is typically 25 ℃, measured under the 48V power supply environment, only for reference design (2) Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environmentsmodes

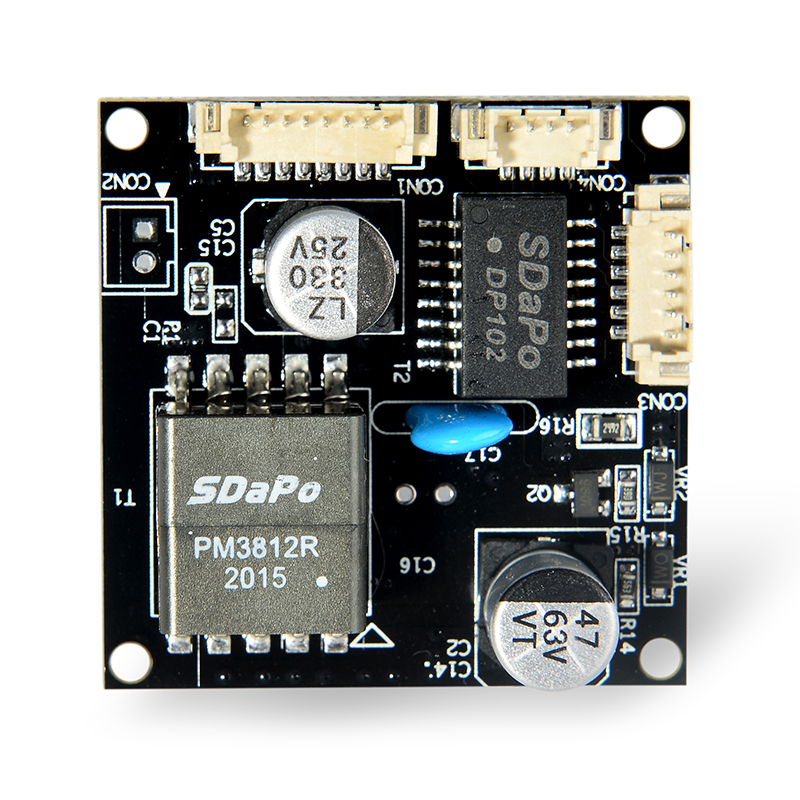

SDAPO PM3812R V2.0 PD poe ip camera module 48V to 12V1A poe module

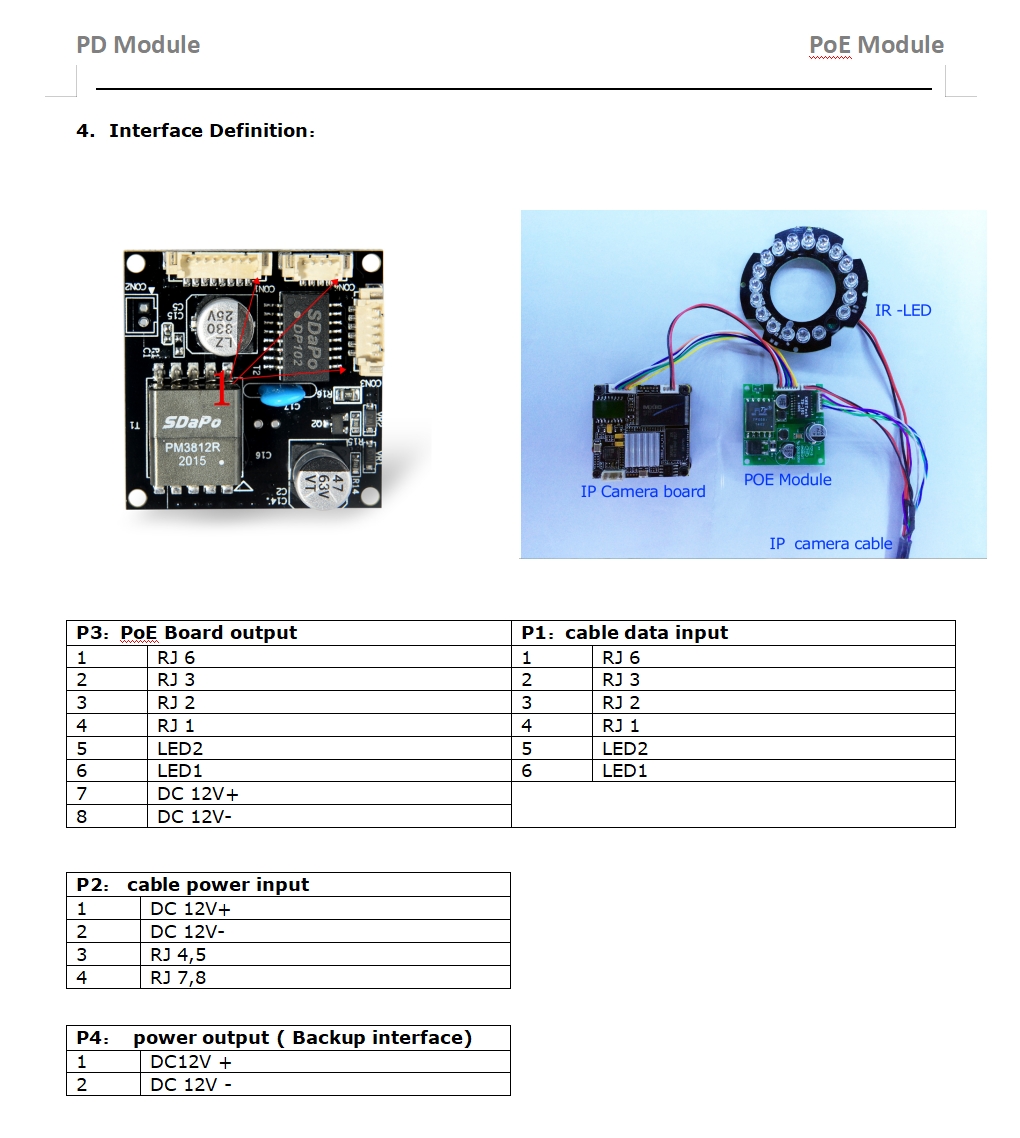

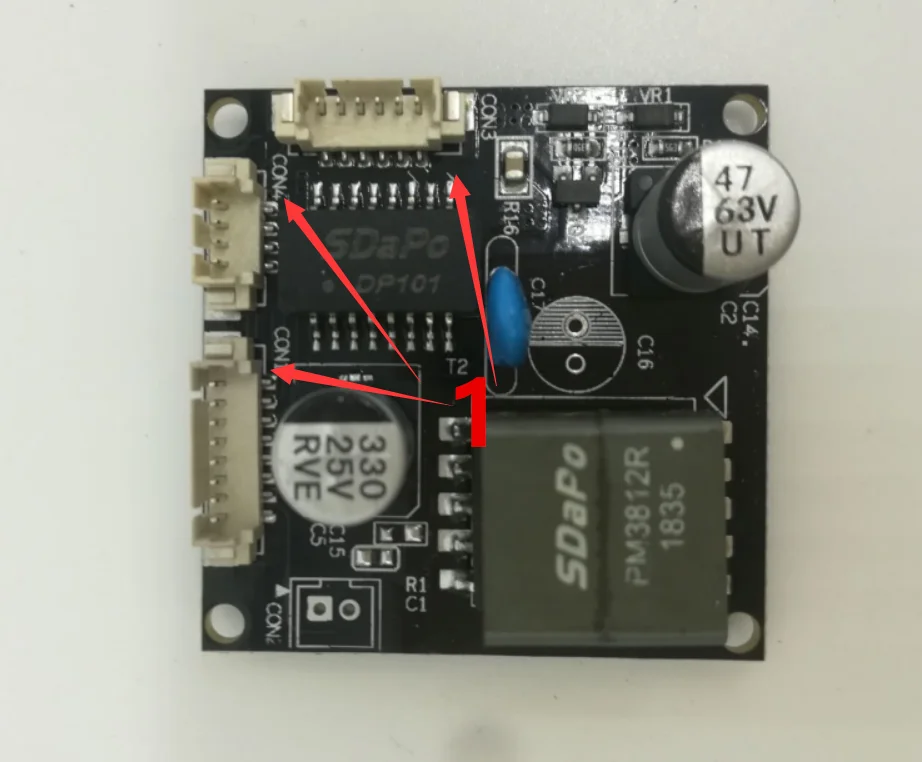

	1	2	3	4	5	6	7	8
P1:cable data input	RJ 6	RJ 3	RJ 2	RJ 1	LED2	LED1
P2: cable power input	DC 12V+	DC 12V-	RJ 4,5	RJ 7,8
P3:PoE Board output	RJ 6	RJ 3	RJ 2	RJ 1	LED2	LED1	LED1	DC 12V-
P4: poweroutput( Backupinterface)	DC12V +	DC 12V -

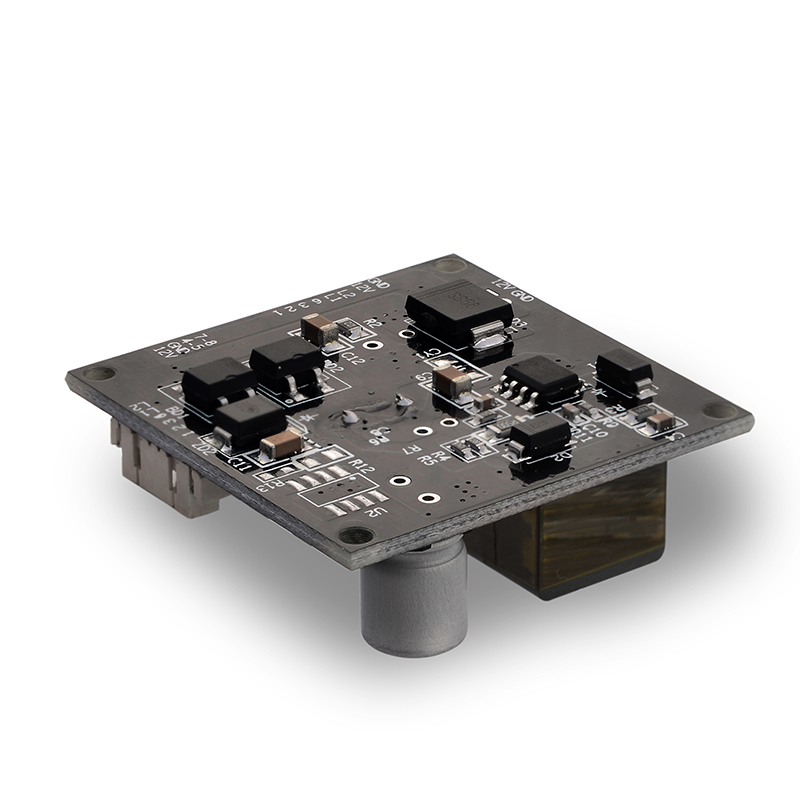

PM3812R V2.0 Parameter

PM3812R V2.0 Datesheet

poe board poe module 12V1A PM3812R V2.0 isolation poe module
