PM2401 Passive PoE 24V Only Support ModeB Module Power Supply

PM2401 Passive PoE 24V Only ModeB Power Supply PoE Module

Name: PM2401 Passive PoE 24V Only ModeB Power Supply PoE Module
Brand: SDaPo
SKU: 590429927
Rating: 5.0 (31 reviews)

- Specification:Short circuit protection
- Security:15-28V input to 12V
- Size :38*19mm

Model:
PM2401
Brand:
SDaPo

Output Vdc:	PM2401-12V1A
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

SDAPO PM2401 Passive POE 24V only support ModeB module power supply

Product Description

product features

Specification:Short circuit protection

Security:15-28V input to 12V

Size :38*19mm

Applications

24V POE power supply

The main parameters

NO.	Parameter	Symbol	Min	Typical values	Max	Unit
1	Input Voltage	Vin	12	24	30	V
2	output voltage	+VDC	11.8	12.3	12.8	V
3	output Current	PWR		1	2	A
4	Storage Temperature	Tj	-40	2.5	105	℃
5	Operating Temperature	Tstg	-20	2.5	70	℃
3.1 is typically 25 ℃, measured under the 24V power supply environment, only for reference design You are welcome to customize the POE modules of various sizes and appearances and function. The layout is required to receive the initial research and development expenses. After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted. After the sample is qualified, batch production

SDAPO PM2401 Passive POE 24V only support ModeB module power supply

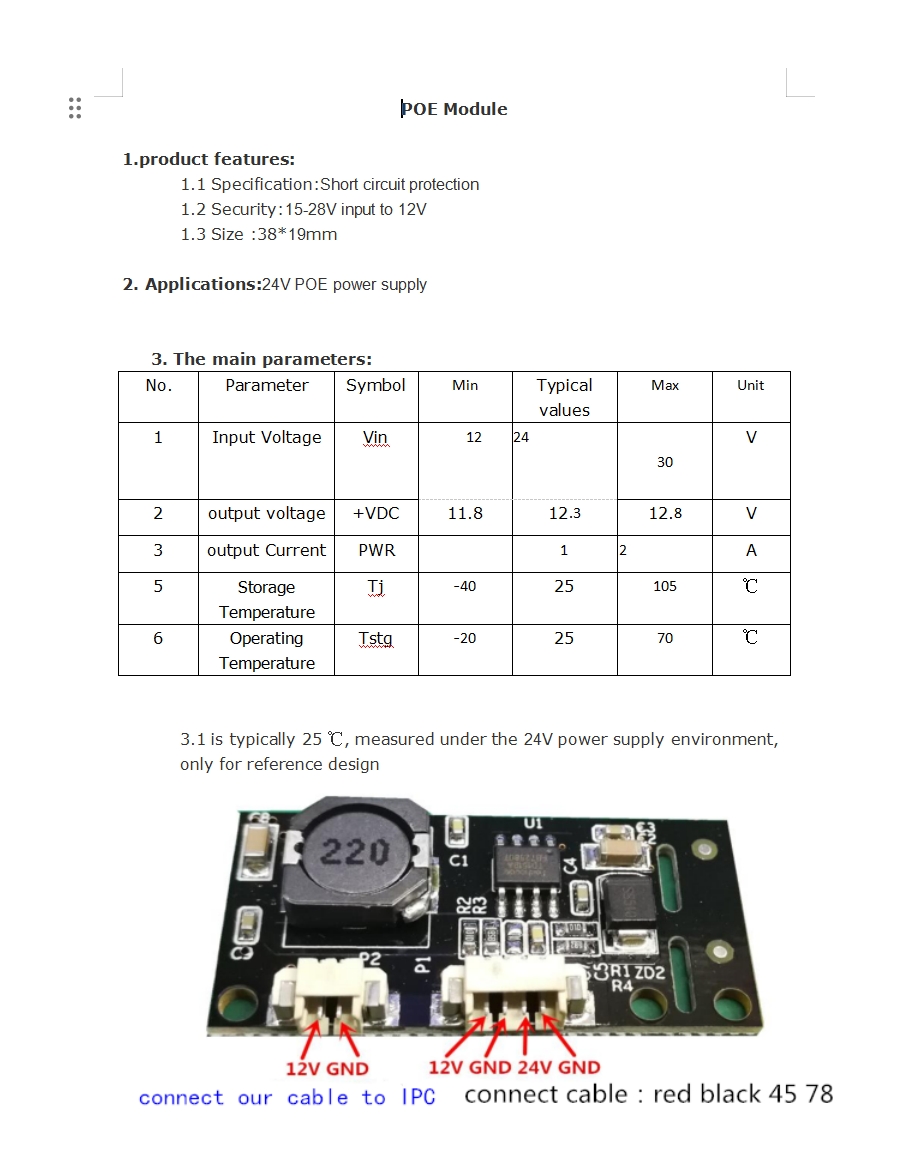

PM2401 Parameter

24V passvie poe module PM2401
