PM3812R 18W-GK 12V1.5A 18W PoE Module PD Module for IPC
You are here: Home » Products » POE Module » IEEE802.3at » PM3812R 18W-GK 12V1.5A 18W PoE Module PD Module for IPC

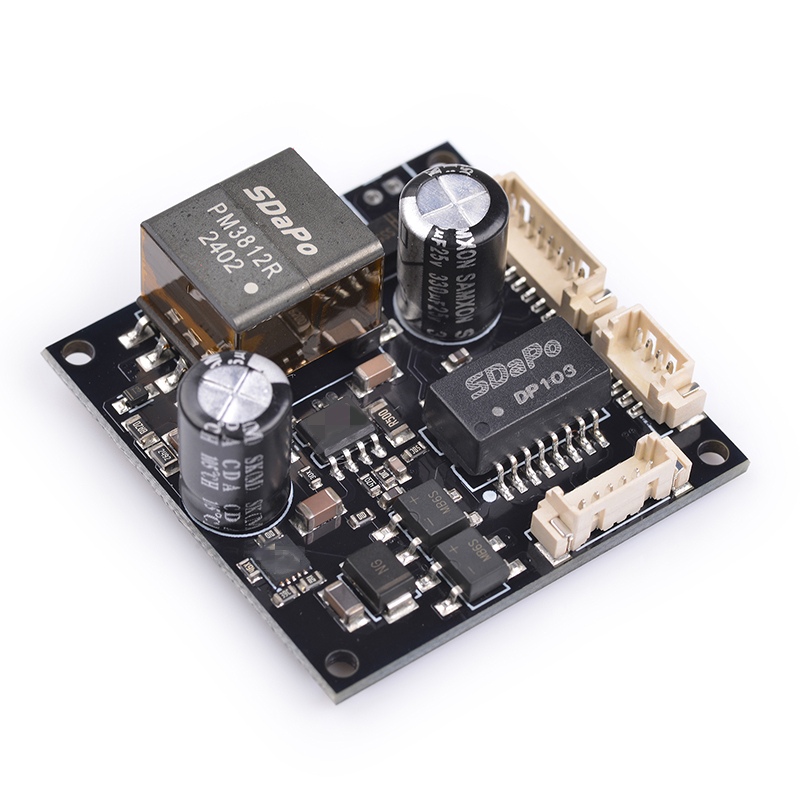

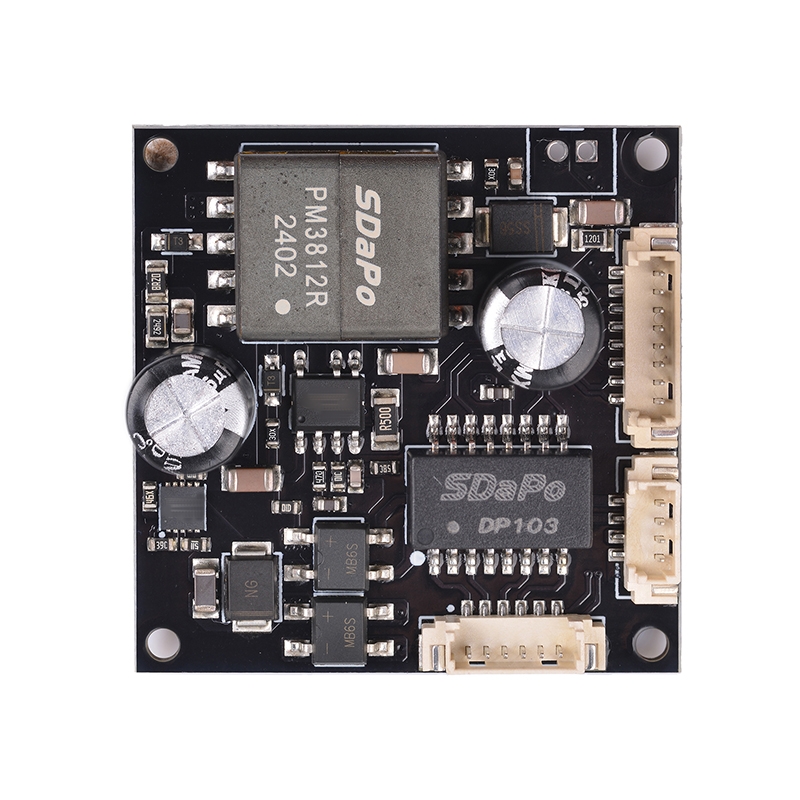

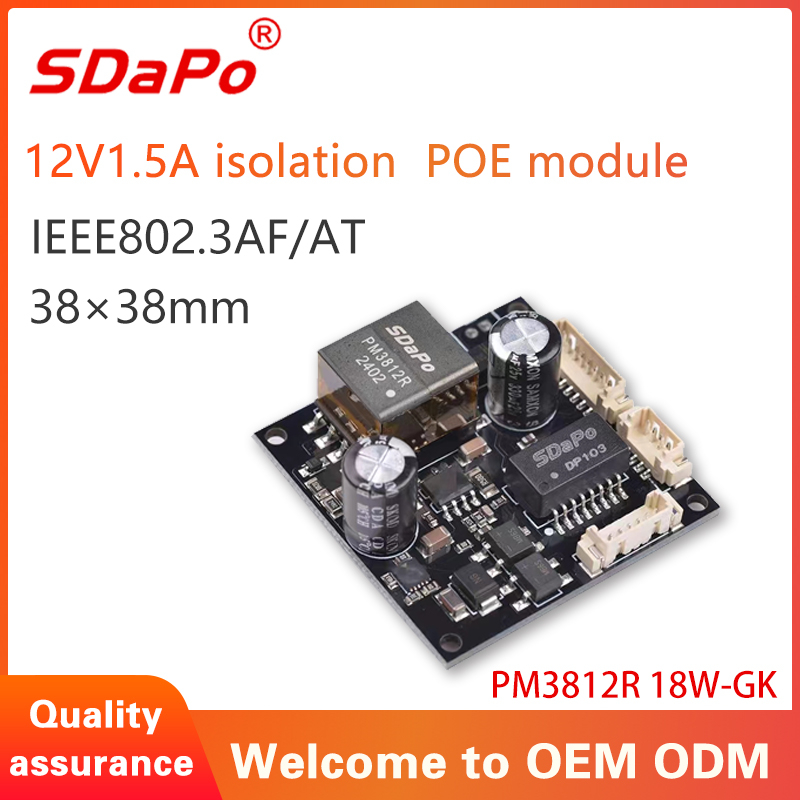

PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules
PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules
PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules
PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules
PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules
PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules PM3812R 18W-GK 12V1.5A 18W PoE Module for IPC Modules

loading

PM3812R 18W-GK 12V1.5A 18W PoE Module PD Module for IPC

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1) IEEE802.3af/at Standard
2) PoE/IN:44-57V(30W)
3) DC/OUT:12V/1.5A(18W)
4) ISO:1.5KV
5) ModeA or ModeB
6) Size: 38*38mm
7) total power:18W
8) all IPC can use
9)10M/100M transmission rate

  • PM3812R 18W-GK

  • SDaPo

Output Vdc:
PM3812R 18W-GK-12V1.5A
Availability:
Quantity:
Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

PM3812R18W 12V/1.5A 18W IEEE802.3af/at standard module 1500V high voltage isolation poe module suitable for all IPC modules

Product Description

1.product features

Specification:with IEEE802.3af standard

Security:Has a perfect short circuit protection, 1500V high voltage isolation

Size :38*38mm

Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

2. Applications:All IP Camera

1.The main parameters

Parameter

Symbol

Min

Typical values

Max

Unit

Input Voltage

Vin

 44 48 57

V

Output voltage

+VDC

 11.8 12 12.2 V

Output Current

PWR
1 1.8 A

Isolation Voltage

ISO

 1.48 1.5 1.52 KA

Storage Temperature

Tj

 -40 25 120

℃

Operating Temperature

Tstg

 -20 25 65

℃

(1) Is typically 25 ℃, measured under the 48V power supply environment, only for reference design
(2) Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environmentsmodes

PM3812R18W 12V/1.5A 18W IEEE802.3af/at standard module 1500V high voltage isolation poe module suitable for all IPC modules PM3812R18W 12V/1.5A 18W IEEE802.3af/at standard module 1500V high voltage isolation poe module suitable for all IPC modules

2


 1 2 3 4 5 6 7 8

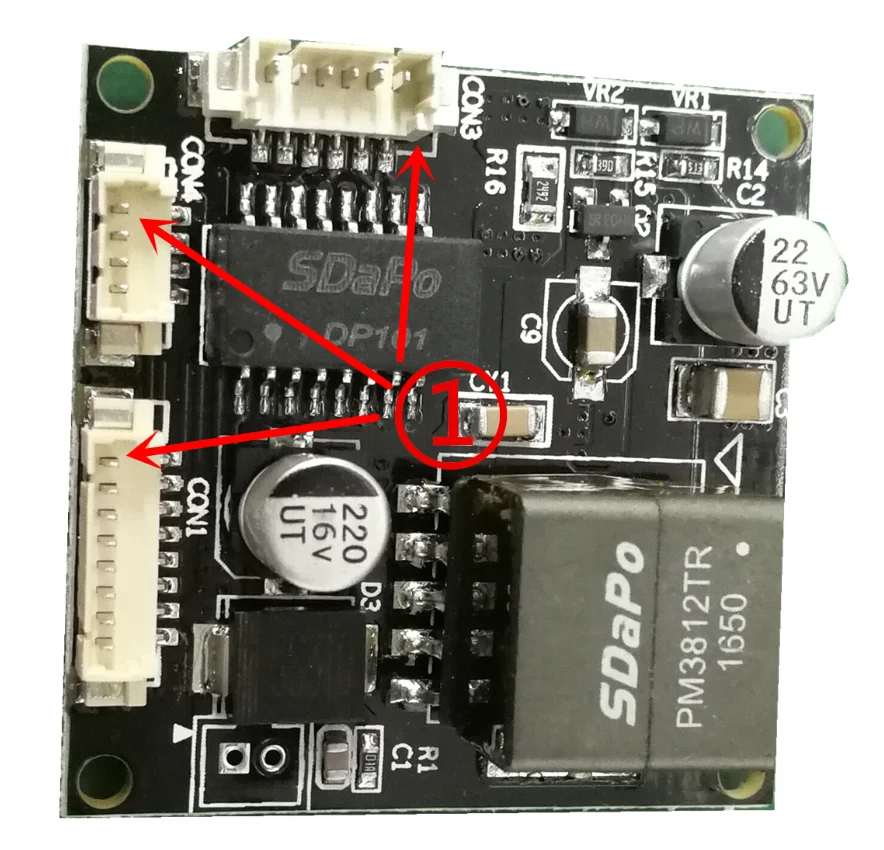

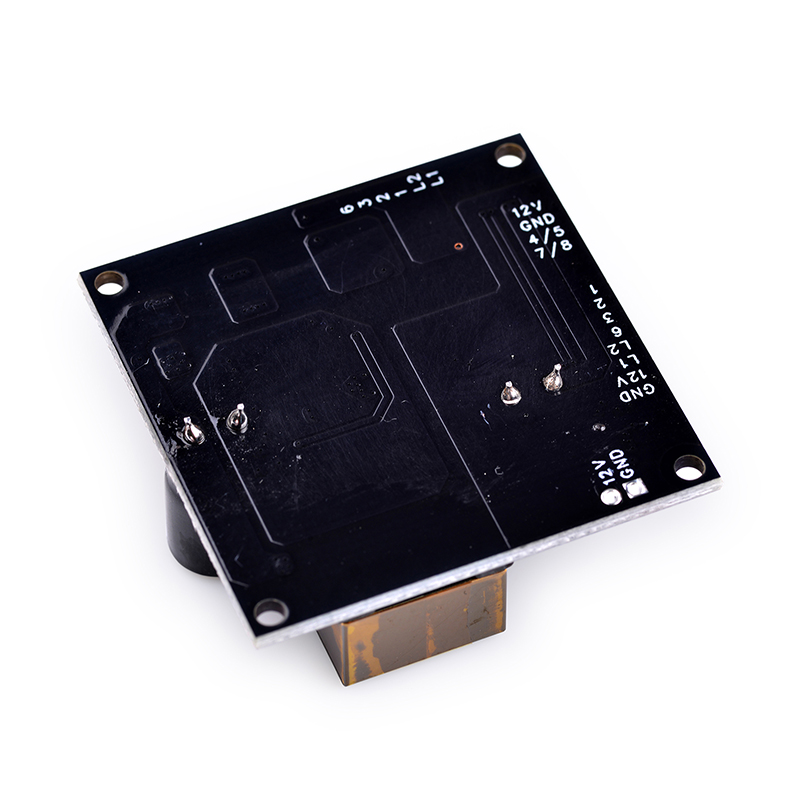

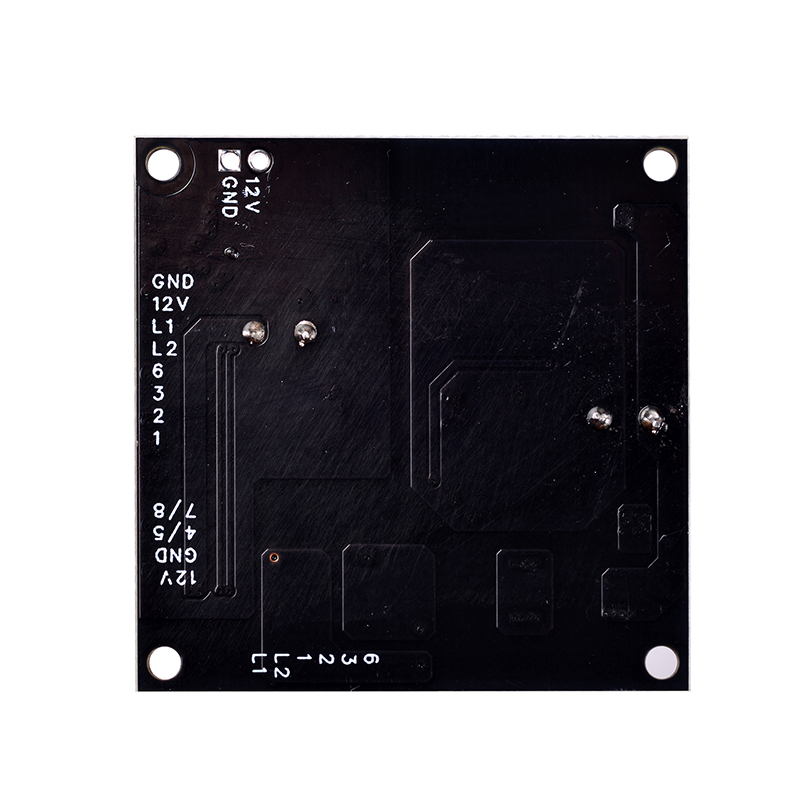

P1:cable data input RJ 6 RJ 3 RJ 2

RJ 1

 LED2 LED1

P2: cable power input DC 12V+ DC 12V- RJ 4,5 RJ 7,8



:PoE Board output RJ 6 RJ 3 RJ 2 RJ 1 LED2 LED1 DC 12V+ DC 12V-
P4:  poweroutput( Backupinterface) DC12V + DC 12V -






PM3812R 18W-GK Parameter

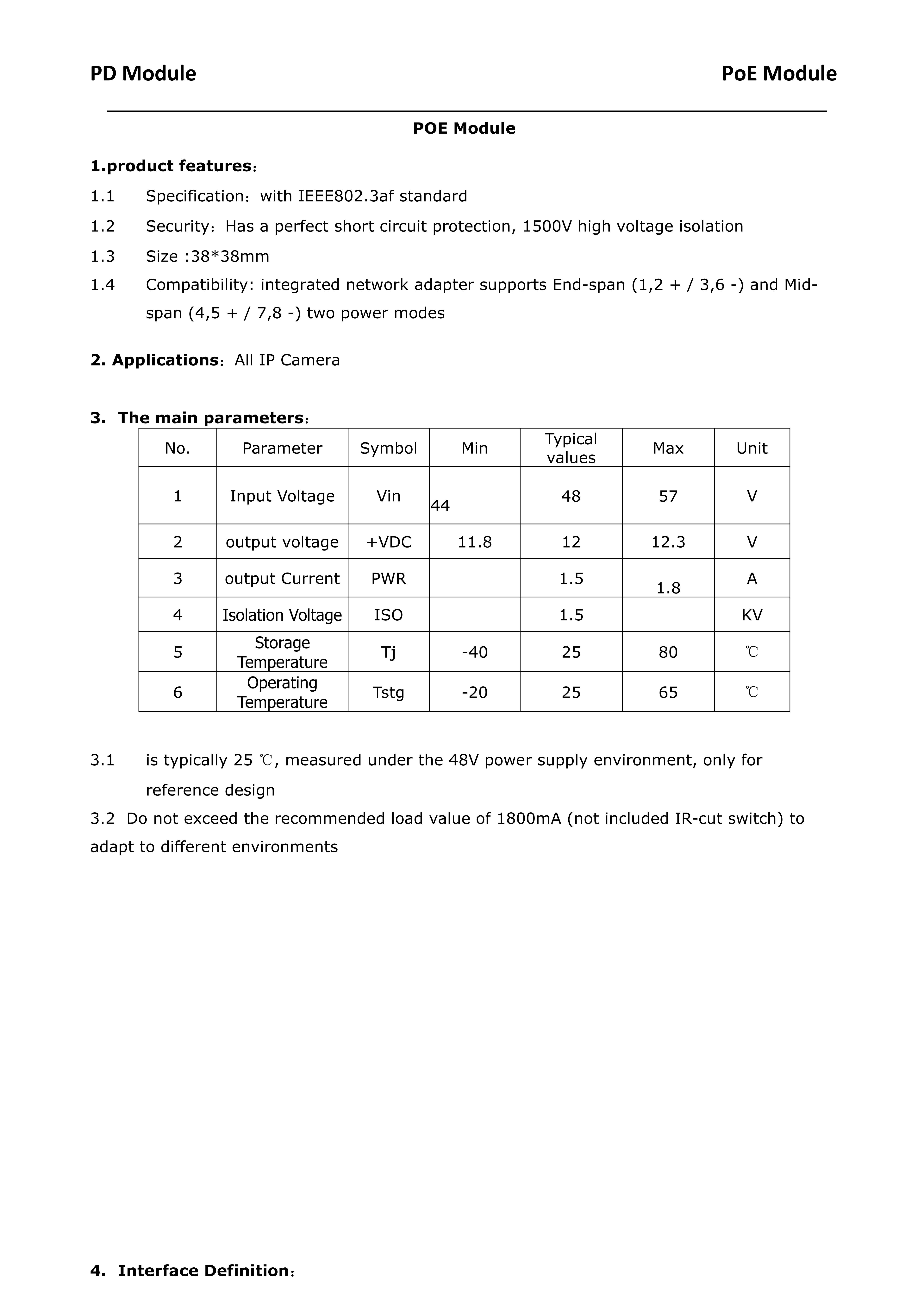

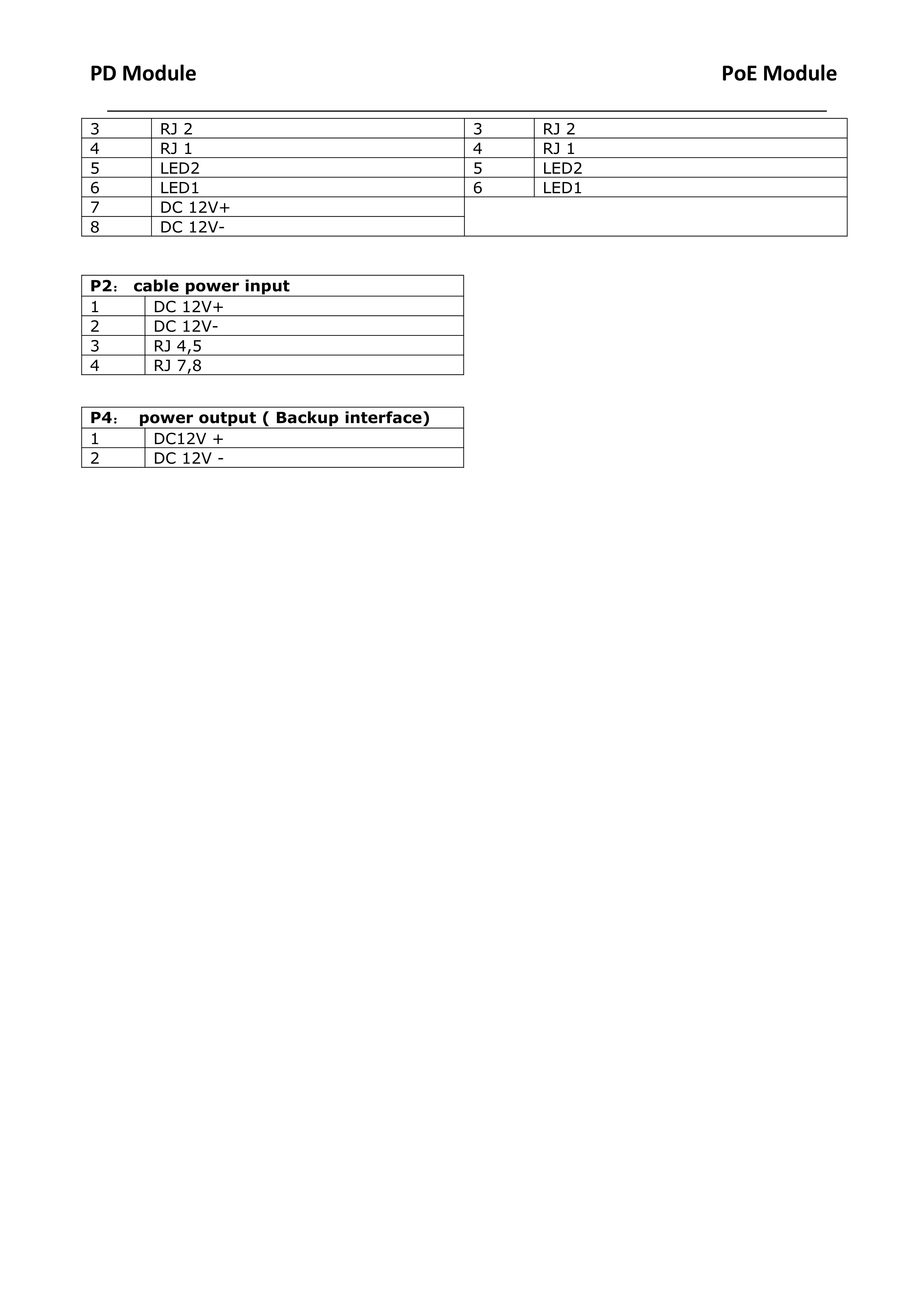

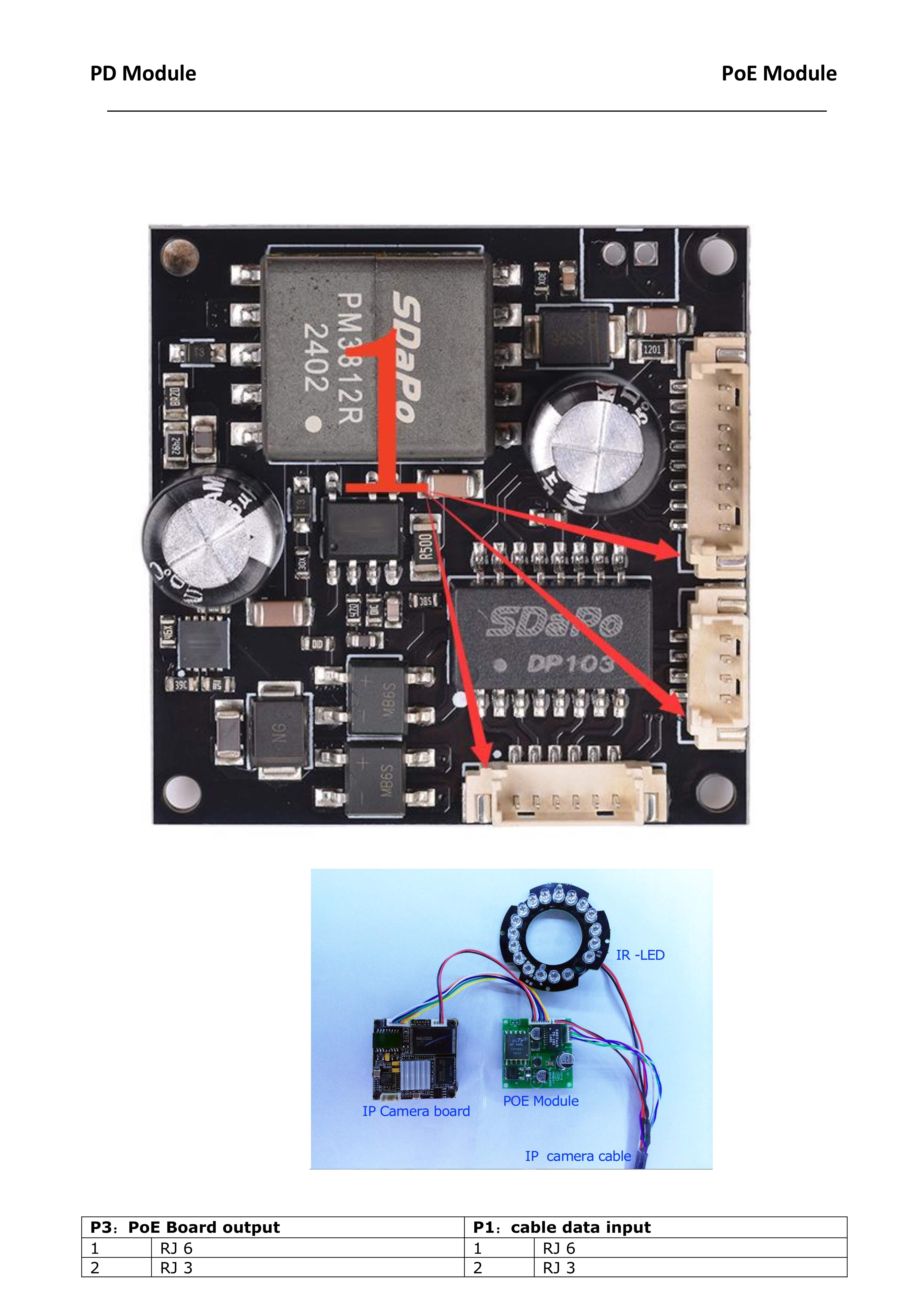

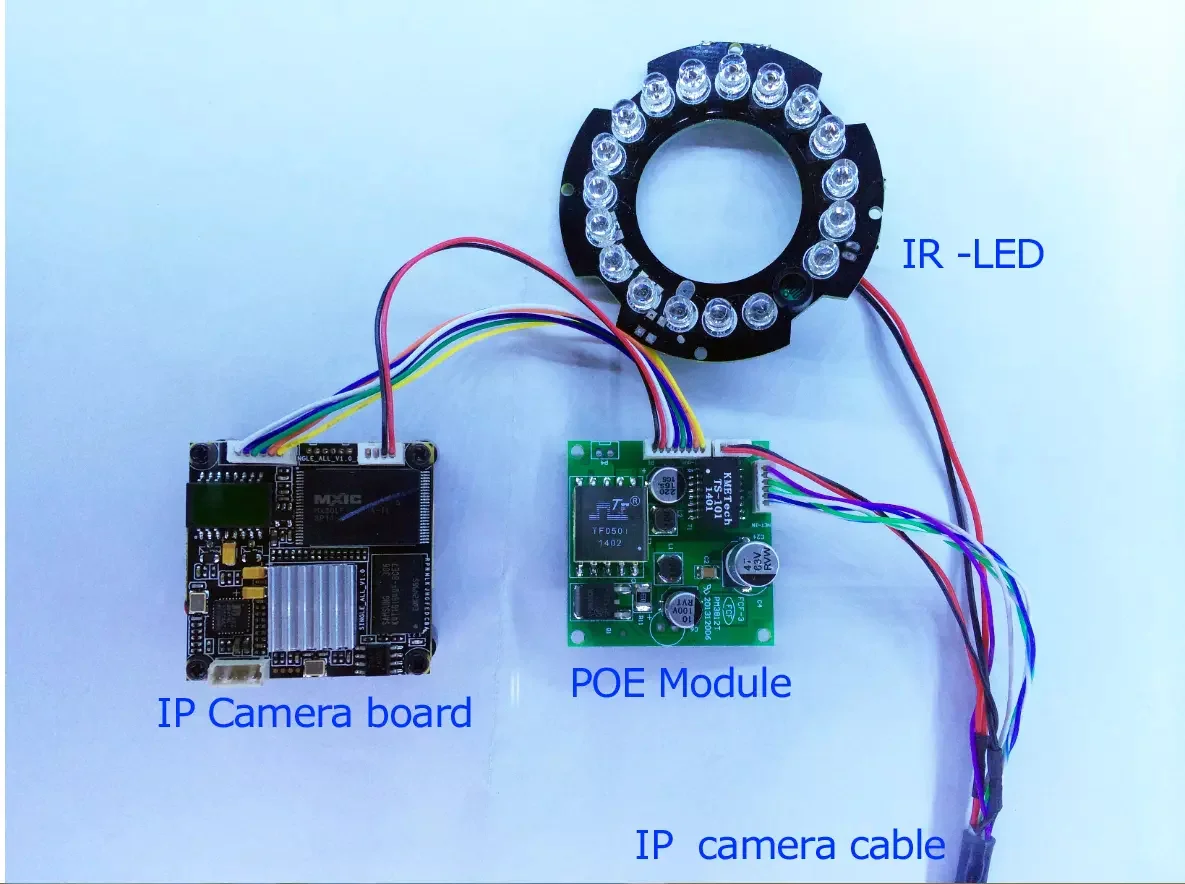

PM3812R 18W-GK POE Module Wiring Manual_1 PM3812R 18W-GK POE Module Wiring Manual_2 PM3812R 18W-GK POE Module Wiring Manual_3
