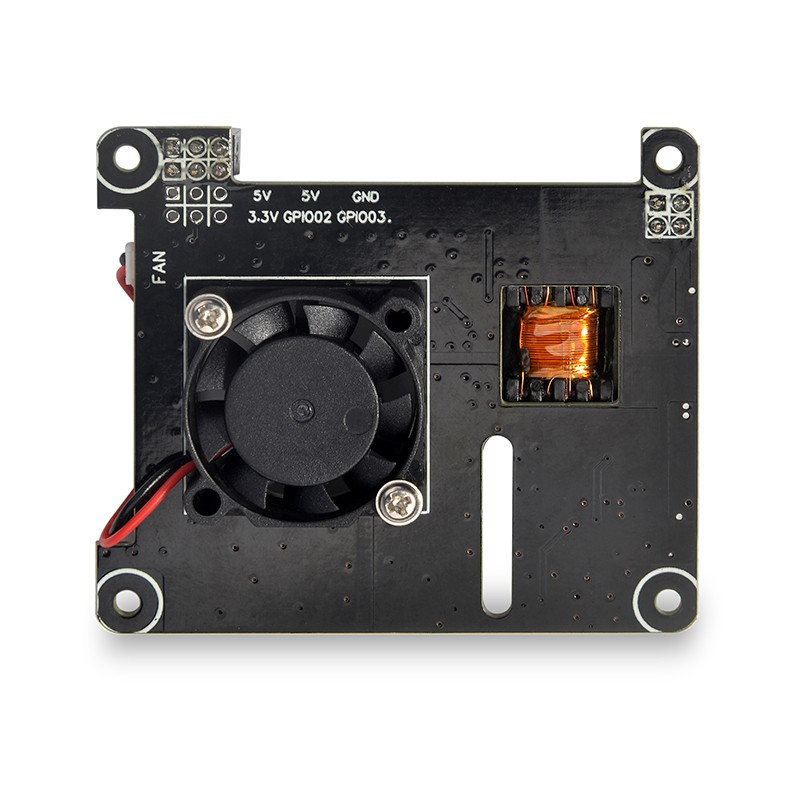

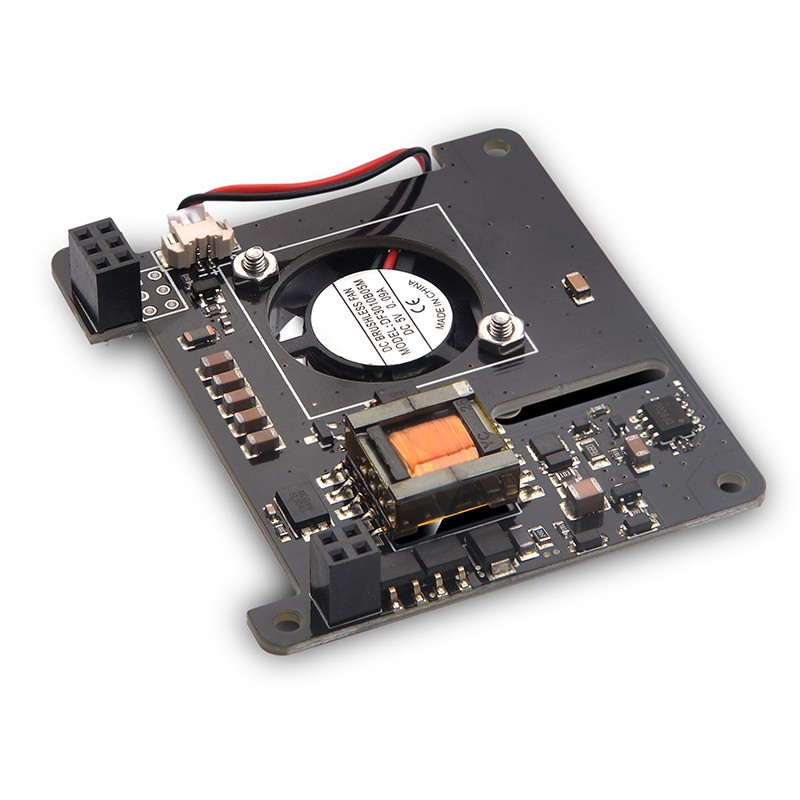

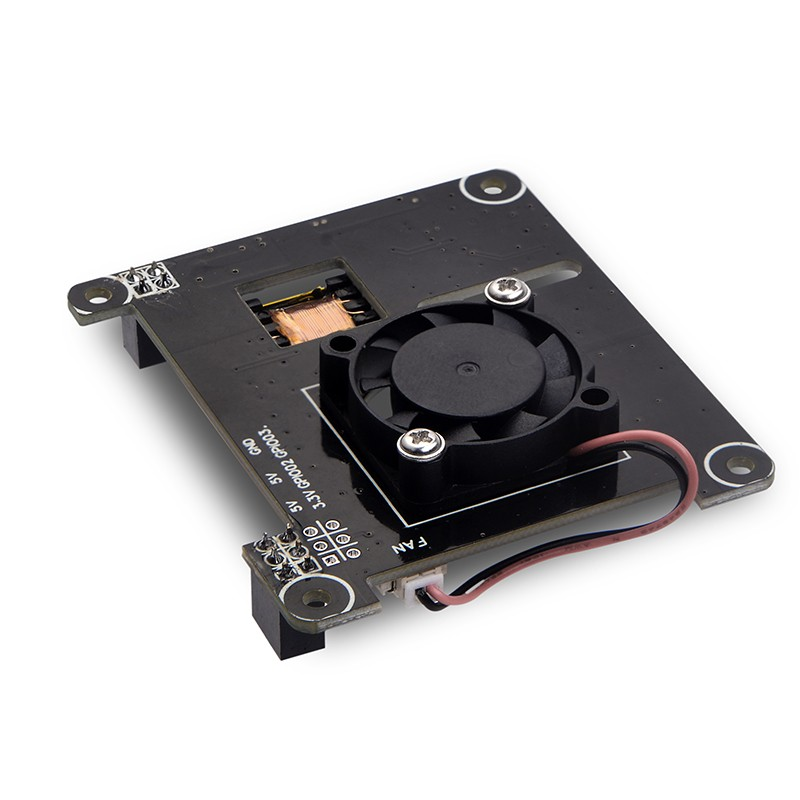

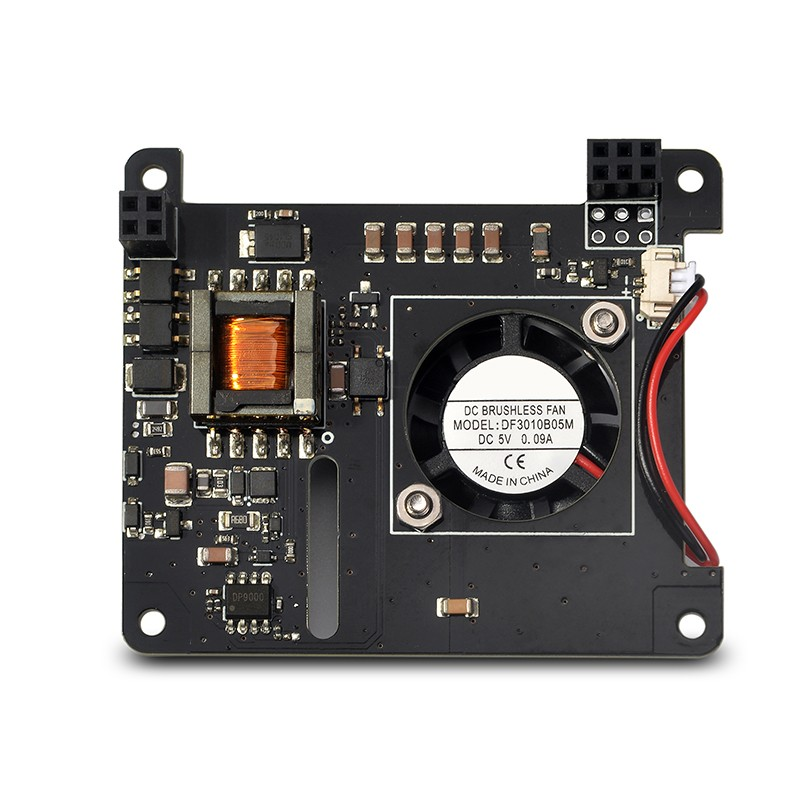

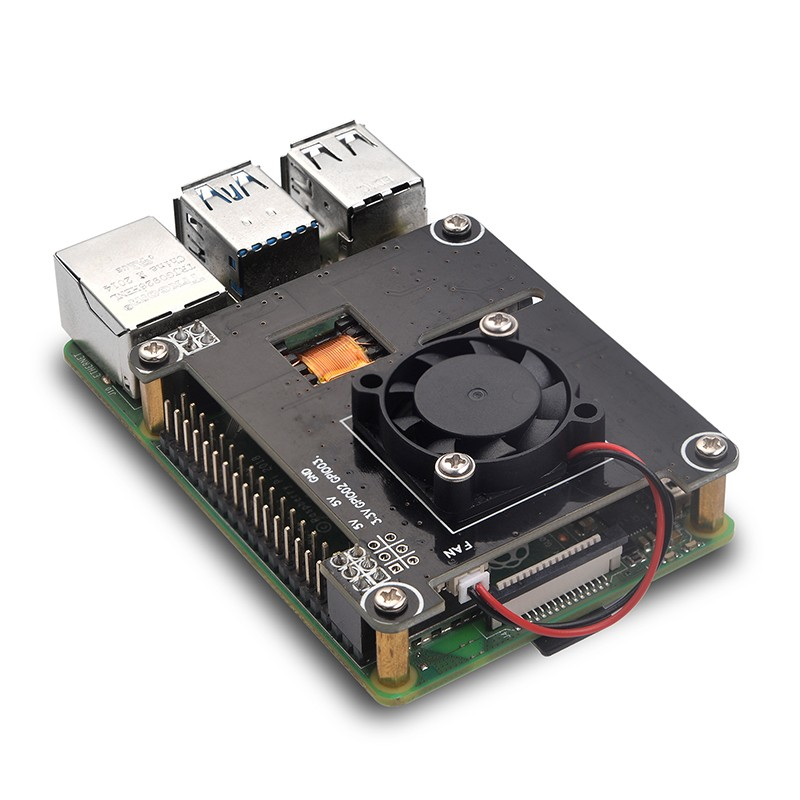

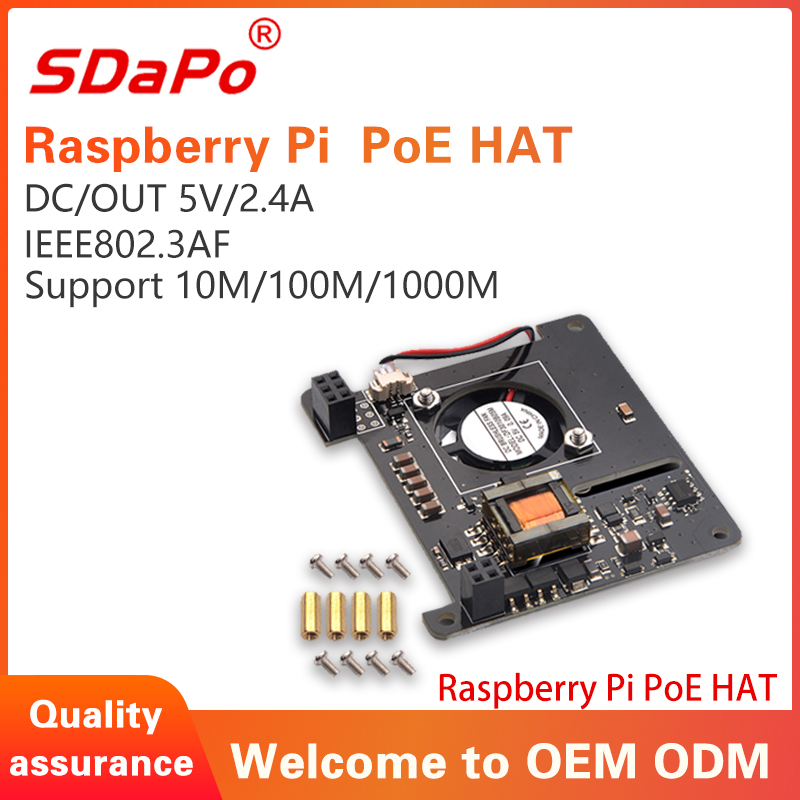

Raspberry Pi PoE HAT 5V 2.5A PoE Module PD Module

Name: Raspberry Pi PoE HAT 5V 2.5A PoE Module PD Module
Brand: SDaPo
SKU: 553379927
Rating: 5.0 (31 reviews)

- Fully supports IEEE802.3af
- Input Voltage Range 37V to 57V
- Support PoE applications in both of Fast / Gigabit Ethernet environments.
- Short Circuit Protection
- Over-temperature Protection
- Programmable Classification (Default:Class 0)
- High Efficiency
- Isolation level 1.5KVrms.
- Easy Installation and Low Cost (Isolation Type, Minimum External Devices required)
- Low Output Ripple and Noise
- 1500Vrms Isolation (Input-Output)

Model:
Raspberry Pi PoE HAT
Brand:
SDaPo

Output Vdc:	Raspberry Pi PoE HAT-5V2.4A
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

IEEE802.3af standard 5V 2.5A 1500V high voltage isolation Power over Ethernet poe module SDAPO Raspberry Pi PoE HAT

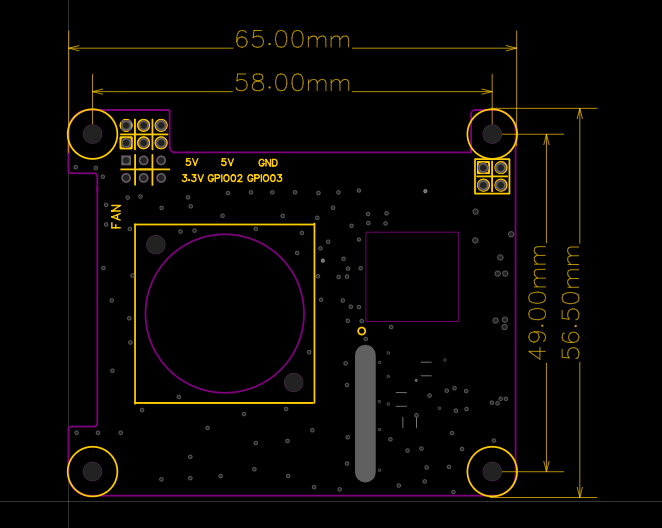

DESCRIPTION
5V, 2.5A PD(Powered Device) Integrated Module (Isolation Type)

Model	Input Voltage（after bridge）	Input Current	Output Voltage	Output Current	Efficiency	Ripple Output Noise
	V	mA	V	A	%	mV
Raspberry Pi PoE HAT	50.56	298	5.136	2.5	85.22%	140
	50.6	236	5.136	2	86.02%	110
	50.64	177	5.136	1.5	85.95%	95
	50.66	121	5.136	1	83.79%	75
	50.72	64	5.136	0.5	79.11%	55
	50.9	8	5.136	0	0.00%

No.	Parameter	Symbol	Min	Typical values	Max	Unit
1	Input Voltage	Vin	37	48	57	V
2	output voltage	+VDC	5	5.1	5.3	V
3	output Current	PWR	0.05	2	2.5	A
4	Isolation Voltage	VISO		1.5		KV
5	Ripple Output Noise	VRN		150		mVp-p
6	Storage Temperature	Tj	-40	25	85	℃
7	Operating Temperature	Tstg	-40	25	60	℃

Raspberry Pi PoE HAT Raspberry Pi PoE HAT 5V 2.5A PoE PD Module 5V 2.5A PoE PD Module
