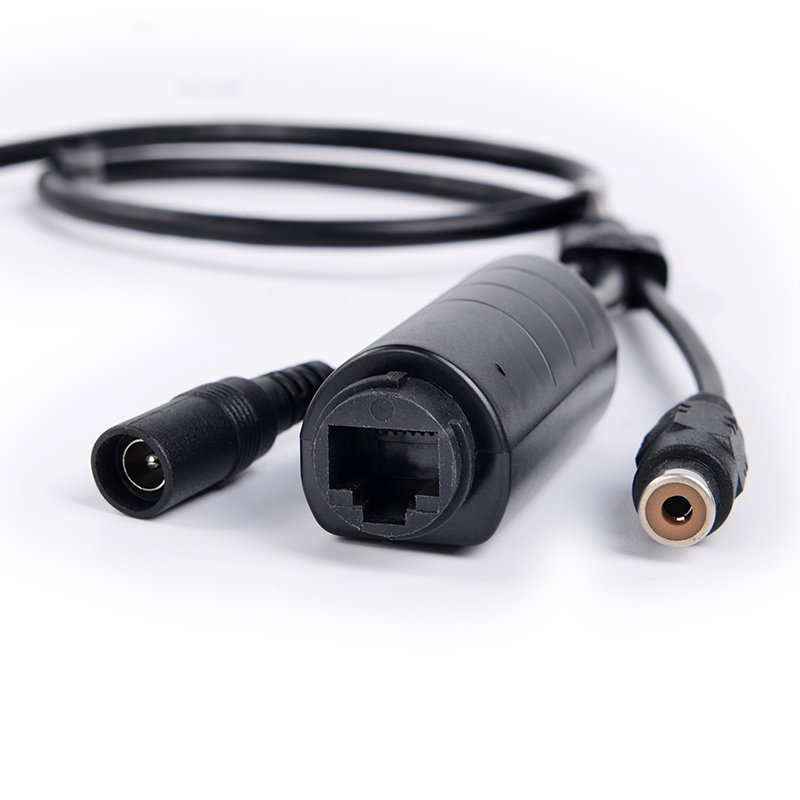

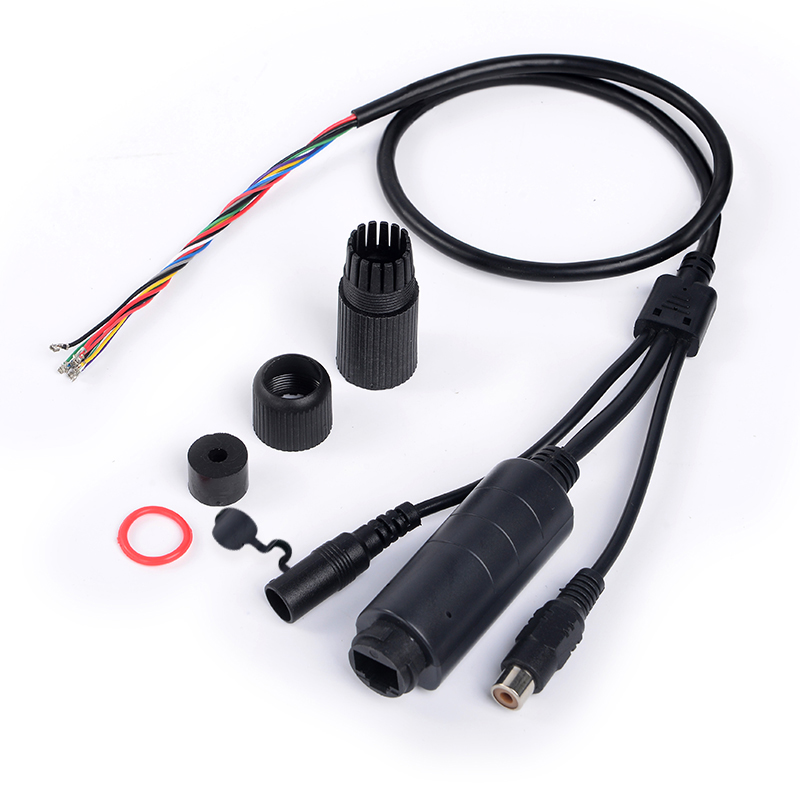

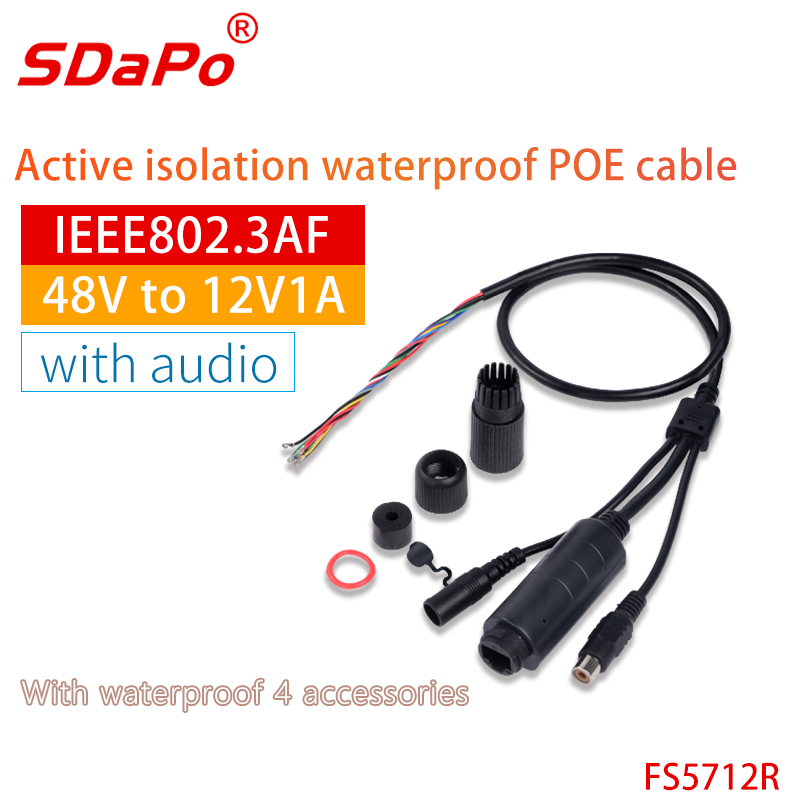

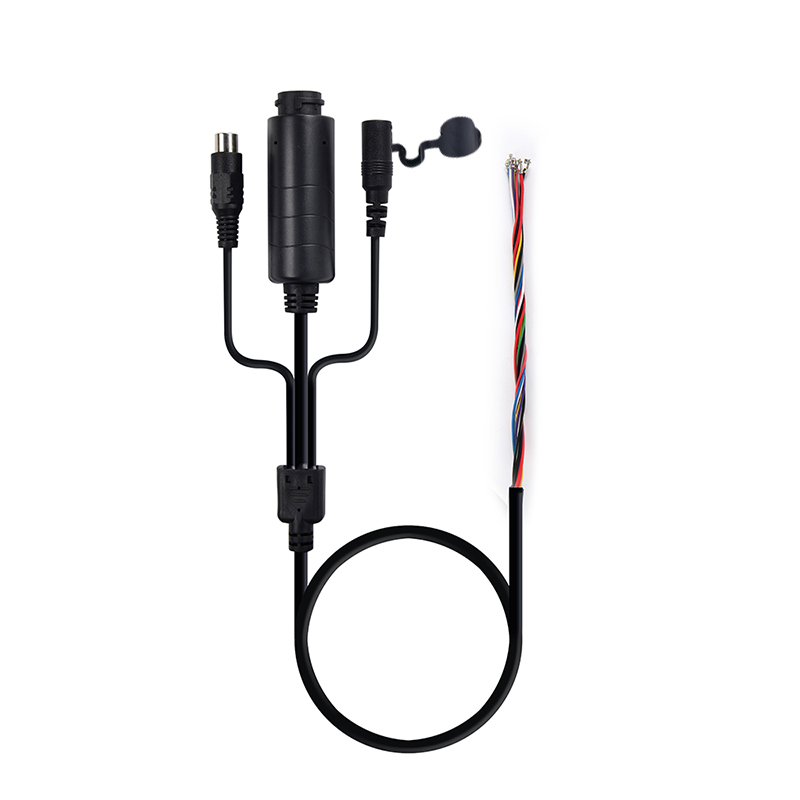

POE Cable WATERPROOF
SDAPO POE Cable waterproof IEEE802.3AF 12V1A
Security:Has a perfect short circuit protection, 1500V high voltage isolation
Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
Applications:All IP Camera
Product Description
POE Cable WATERPROOF
SDAPO POE Cable waterproof IEEE802.3AF 12V1A
Security:Has a perfect short circuit protection, 1500V high voltage isolation
Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
Applications:All IP Camera
The main parameters:
No. | Parameter | Symbol | Min | Typical values | Max | Unit |
1 | Input Voltage | Vin | 37 | 48 | 57 | V |
2 | output voltage | +VDC | 11.8 | 12.3 | 12.8 | V |
3 | output Current | PWR | 0.9 | 0.95 | A | |
4 | Isolation Voltage | Tj | -30 | 25 | 100 | ℃ |
5 | Storage Temperature | Tstg | -10 | 25 | 60 | ℃ |
6 | Operating Temperature | Vin | 37 | 48 | 57 | V |
Temperature is typically 25 ℃, measured under the 48V power supply environment, only for reference design
Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments
Cable colour | definition | |
green white(1.25) | Tx+ |
IPC signal |
green(1.25) | Tx- | |
blue white(1.25) | RX+ | |
blue(1.25) | RX- | |
purple(1.25) | <span style="box-sizing: content-box; margin: 0px; padding: 0px; bo
