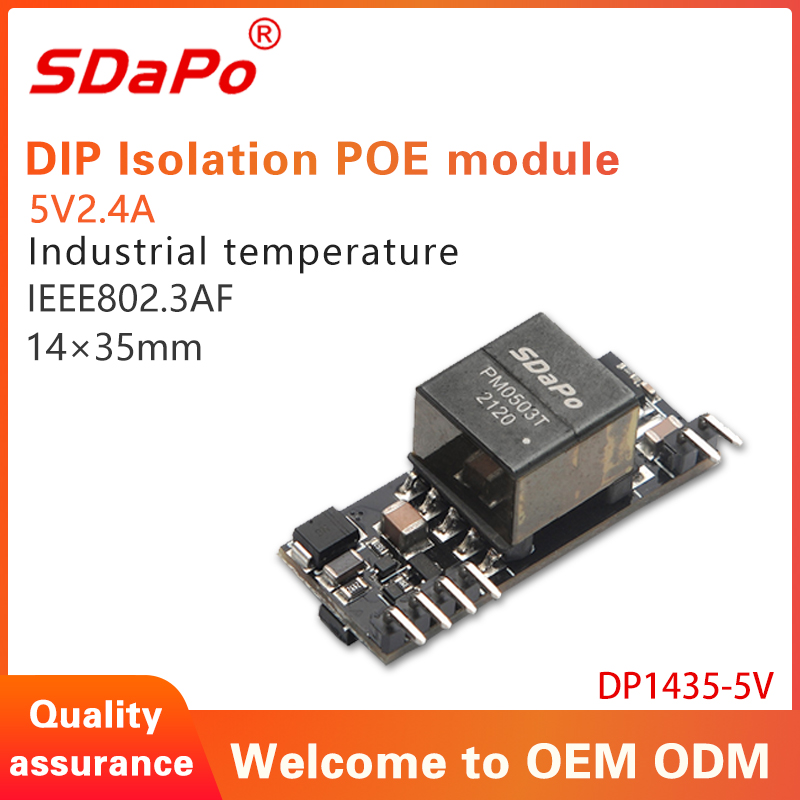

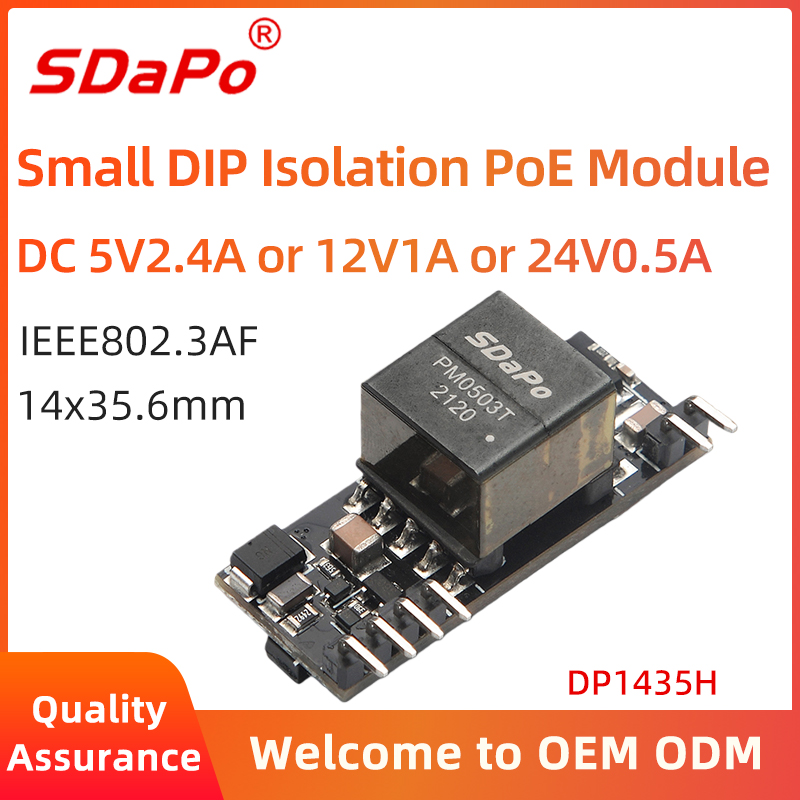

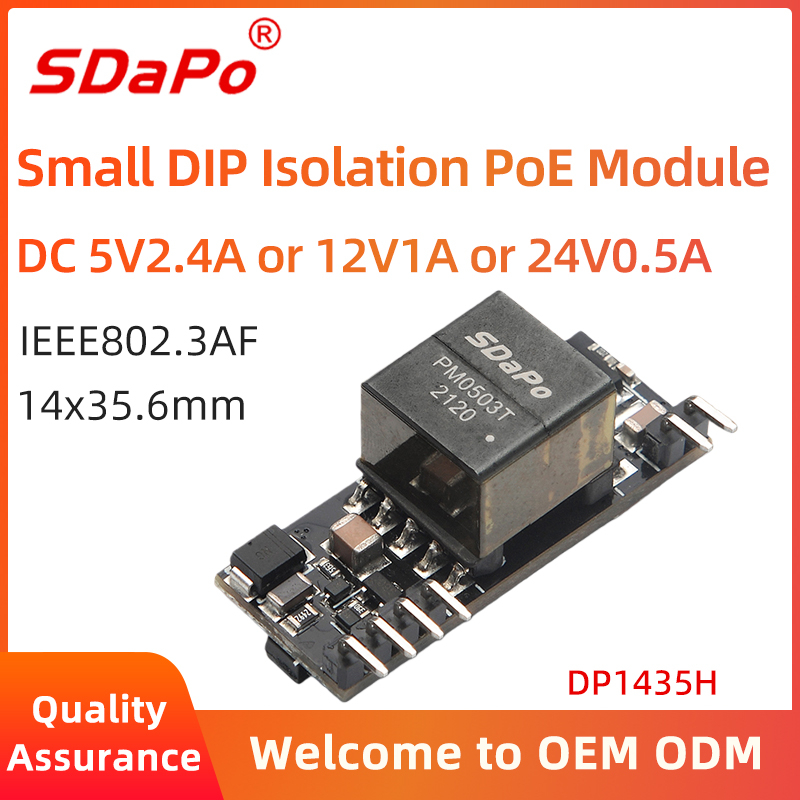

DP1435 5V PoE Module PD Module
You are here: Home » Products » POE Module » IEEE802.3af » DP1435 5V PoE Module PD Module

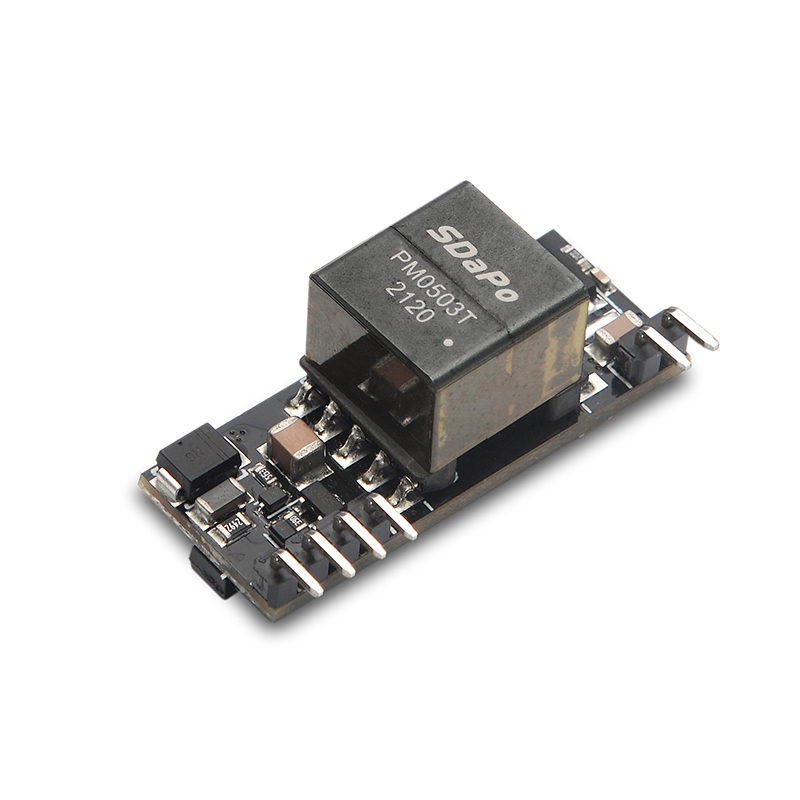

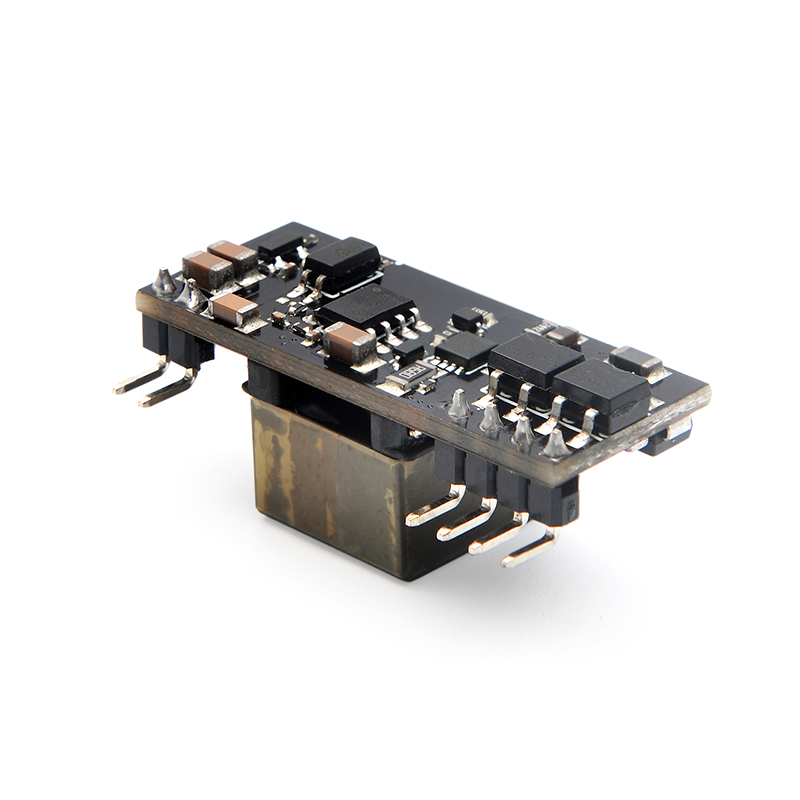

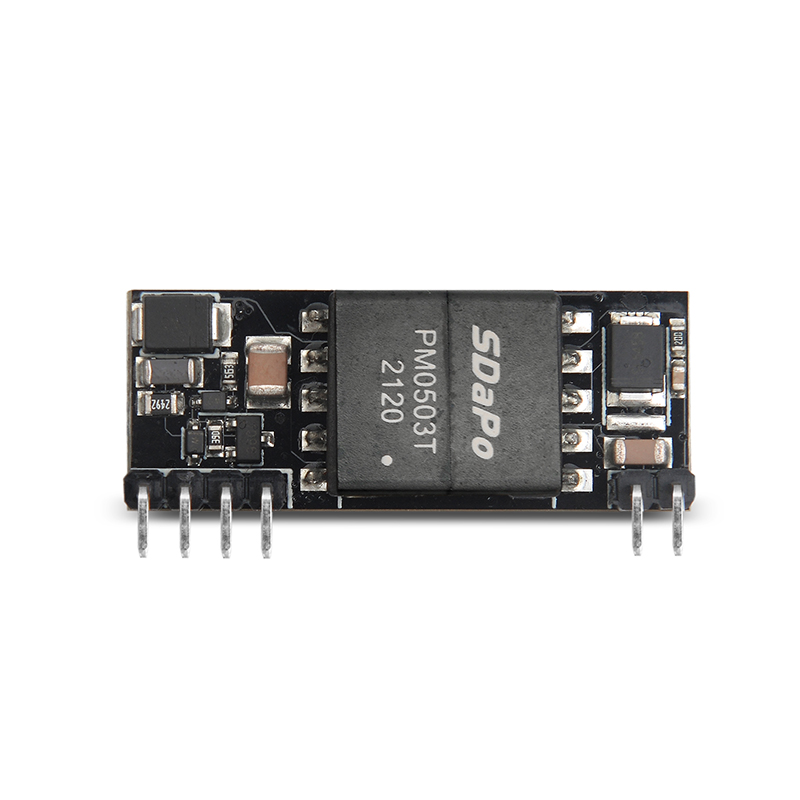

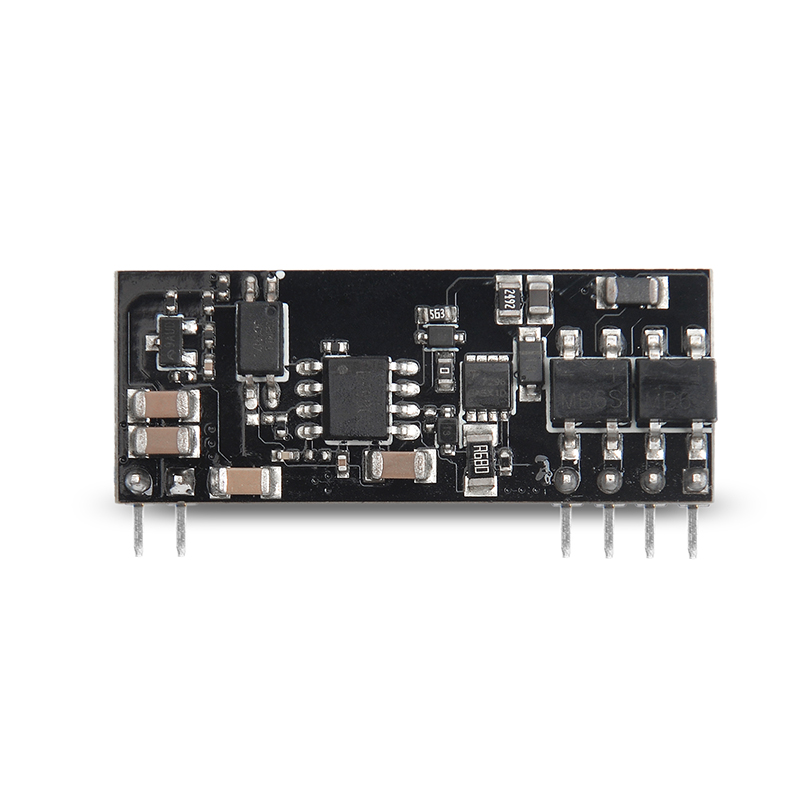

DP1435 5V PoE PD Module
DP1435 5V PoE PD Module DP1435 5V PoE PD Module
DP1435 5V PoE PD Module DP1435 5V PoE PD Module
DP1435 5V PoE PD Module DP1435 5V PoE PD Module
DP1435 5V PoE PD Module DP1435 5V PoE PD Module
DP1435 5V PoE PD Module DP1435 5V PoE PD Module

loading

DP1435 5V PoE Module PD Module

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
- Fully Supports IEEE802.3af Compliant
- Input Voltage Range 37V to 57V
- Short Circuit, Over-temperature Protection and In-rush Current Limit
- Default Class : 0
- High Efficientcy (86% min.12V@ Full Load)
- Easy Installation and Low Cost
- Included Input Bridge-Diodes
- Low Output Ripple and Noise
- Adjustable Output Voltage
- 1500Vrms Isolation (Input-Output)
- RoHS Compliant

  • DP1435

  • SDaPo

Output Vdc:
DP1435-5V2.4A
Availability:
Quantity:
Inquire Add to Basket

Product Description


You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

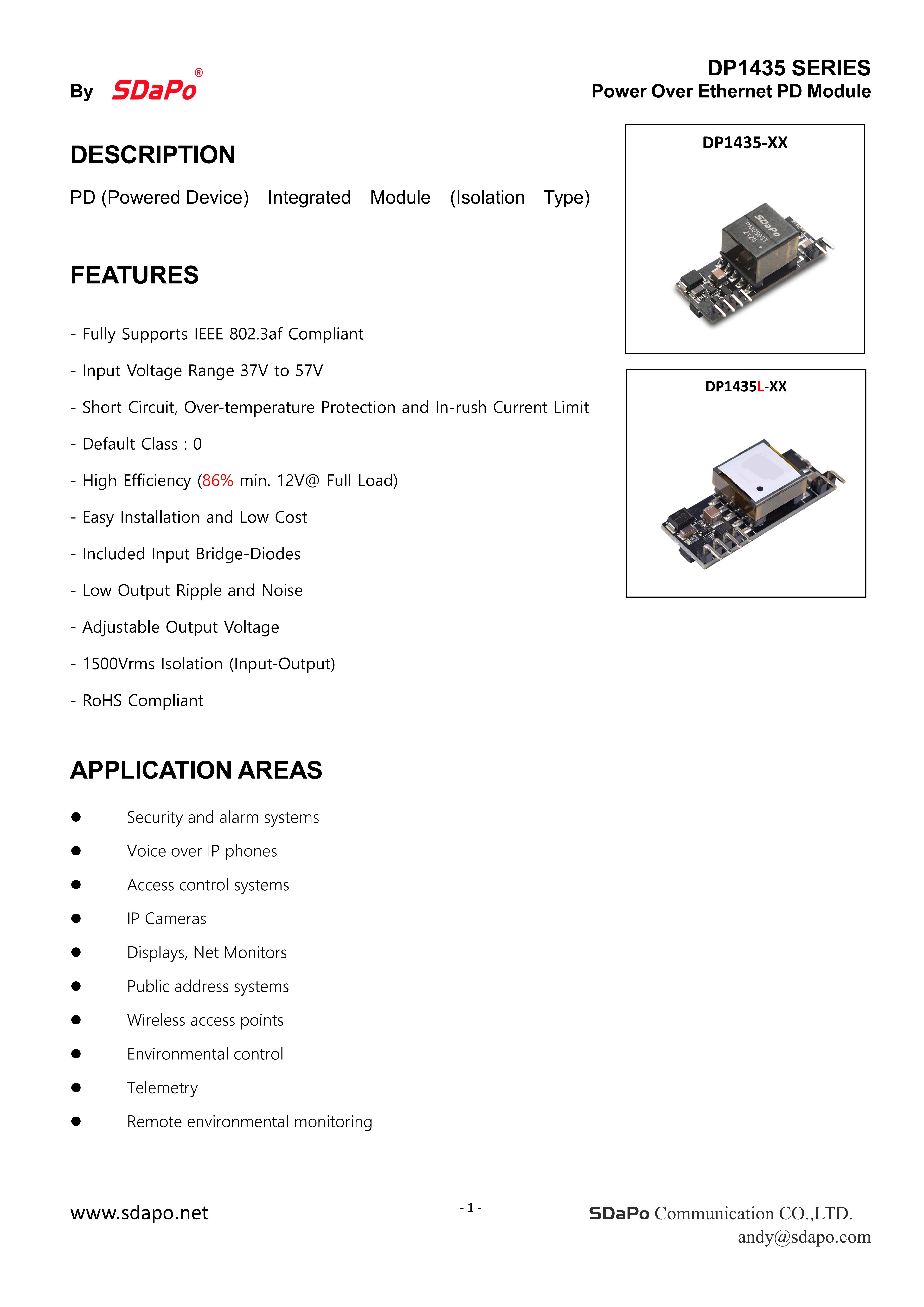

DESCRIPTION
13W PD(Powered Device) Integrated Module (Isolation Type)

FEATURES

* I3af compliant.
* Low cost.
* Support PoE applications in both of Fast / Gigabit Ethernet environments.
* Support wide input voltage range 37Vdc to 57
* Thermal cut off.
* Short circuit protection.
* Over current protection
* Programmable Classification (Default:Class 0)
* High DC/DC converting efficiency.
* Less external component one output decoupling capacitor.
* Isolation level 1.5KVrms.
* Enhanced surge protection
* Internal build in 2 channel bridge rectifiers

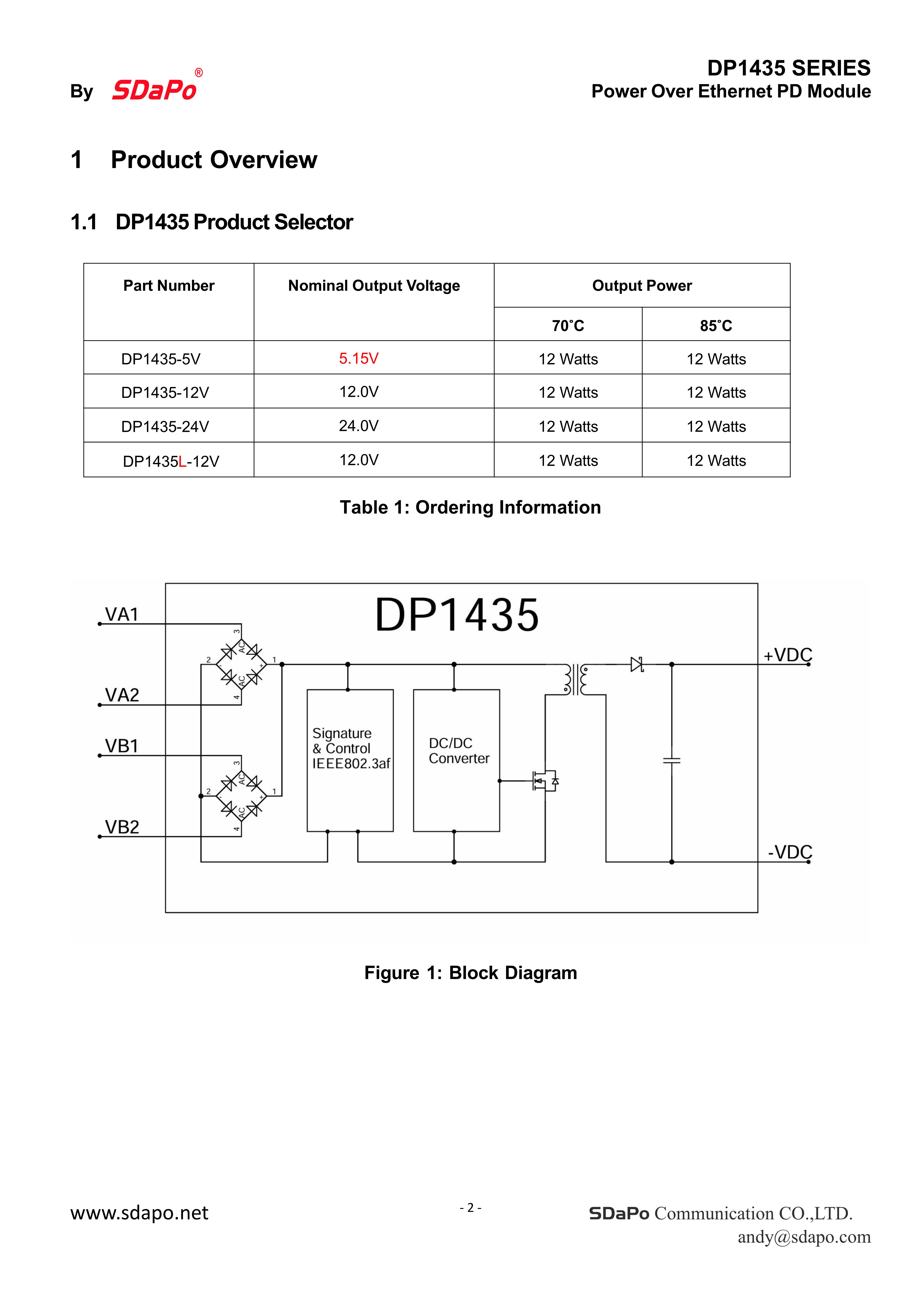

Product List

Part Number

Nominal Output Voltage/ Current

Maximum Output Power

Nominal Input Voltage

DP1435-12V

12Vdc / 1.1A

13W @ 25°C

48Vdc

DP1435-5V

5.15Vdc/2.4A

12.4W@25°C

48Vdc

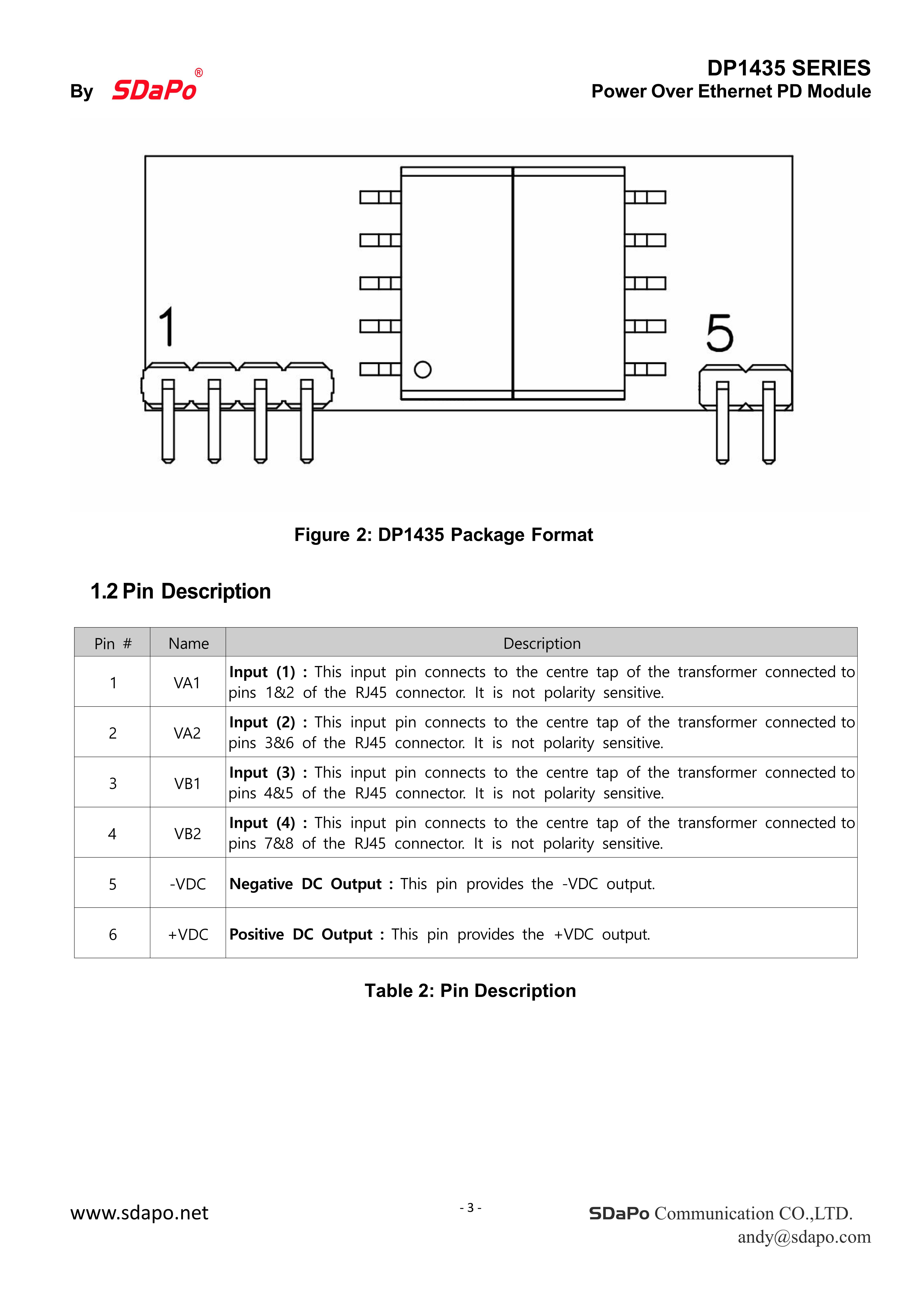

PIN ASSIGNMENT

Pin #

Name

Description

1

VA1

RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1
& 2 of the RJ45 connector (RX) - it is not polarity sensitive.

2

VA2

TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3
& 6 of the RJ45 connector (TX) - it is not polarity sensitive.

3

VB1

Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not
polarity sensitive.

4

VB2

Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not
polarity sensitive.

5

GND

DC Return. This pin is the return path for the +VDC output.

6

VOUT

DC Output. This pin provides the regulated output from the DC/DC converter.

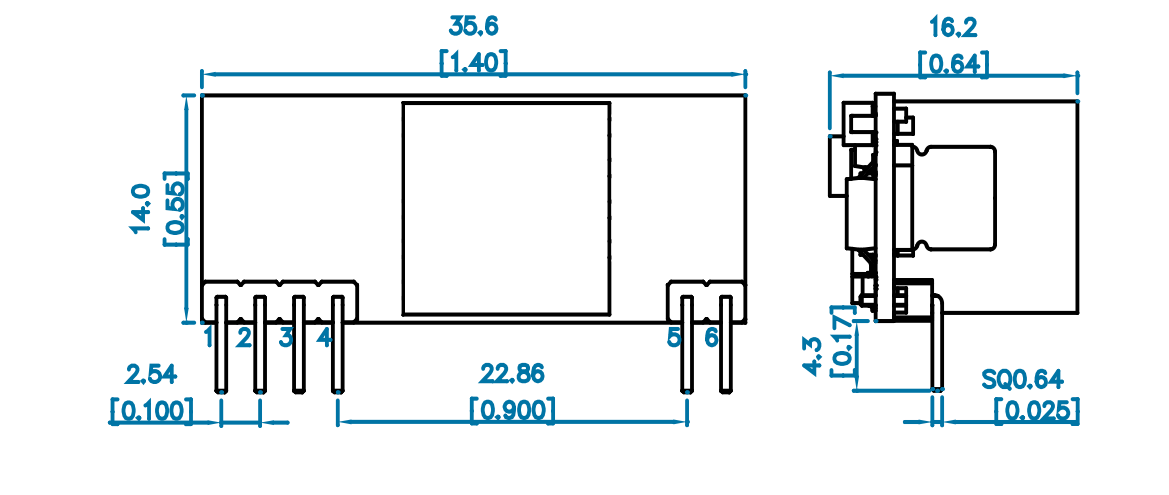

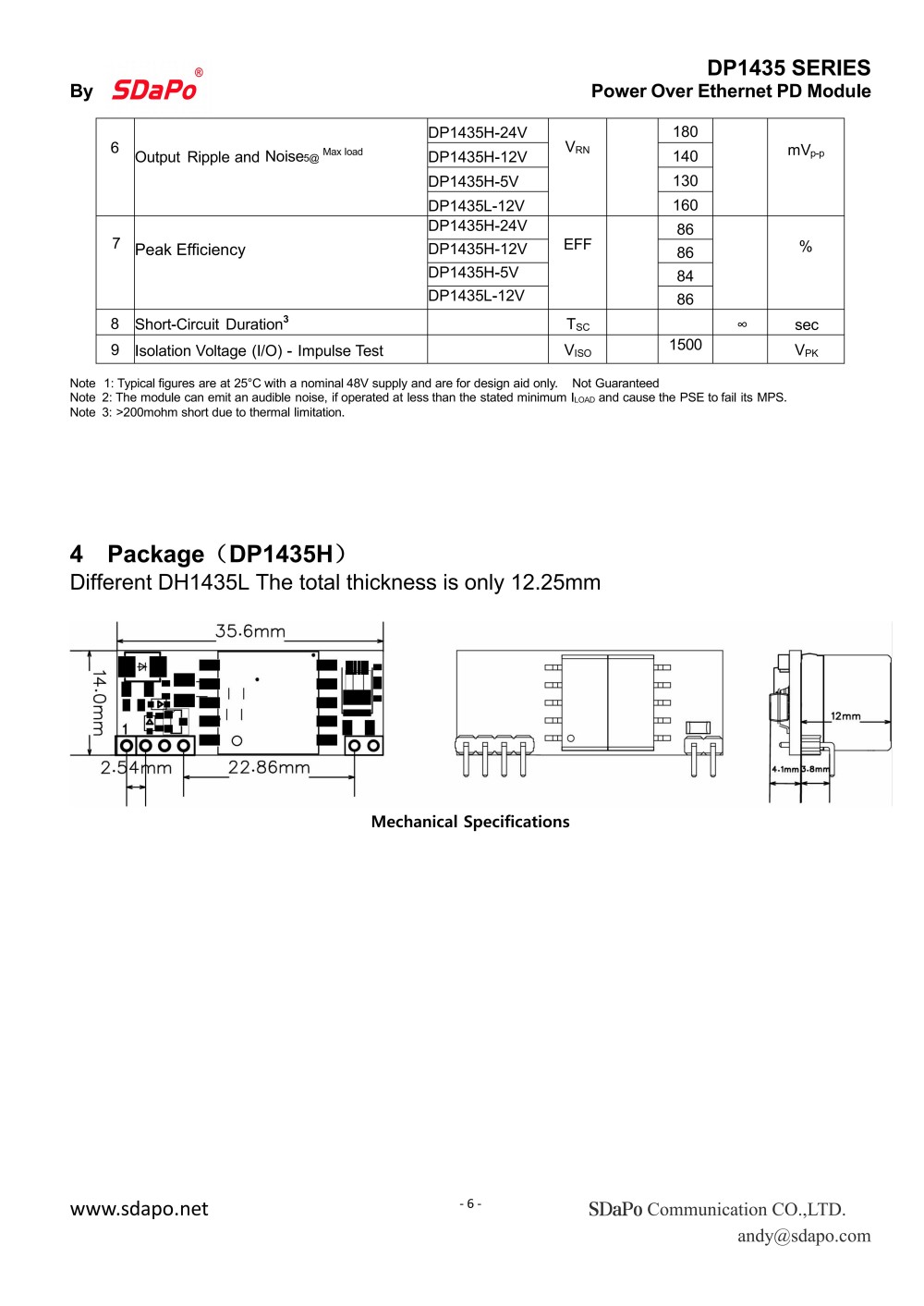

Package

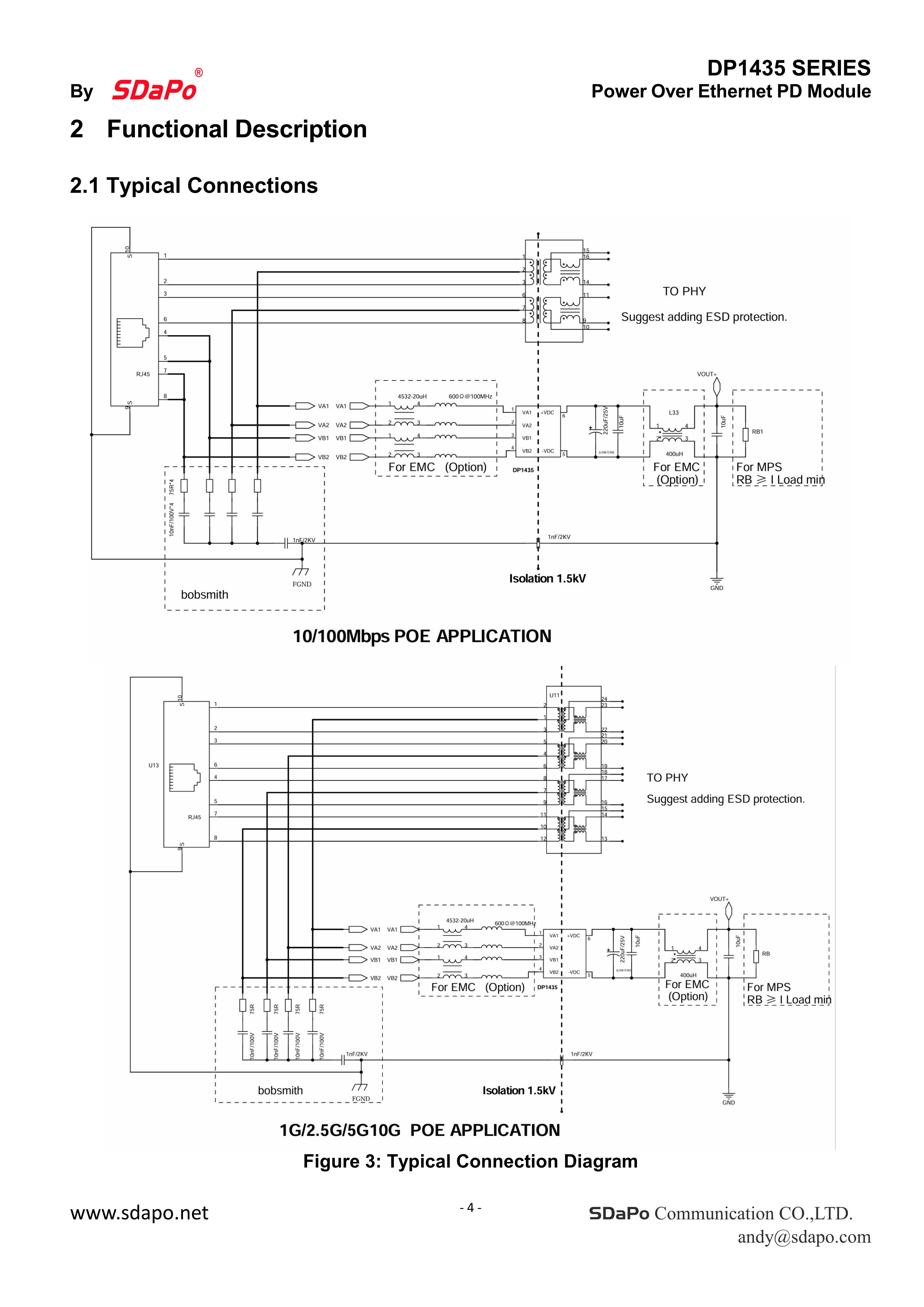

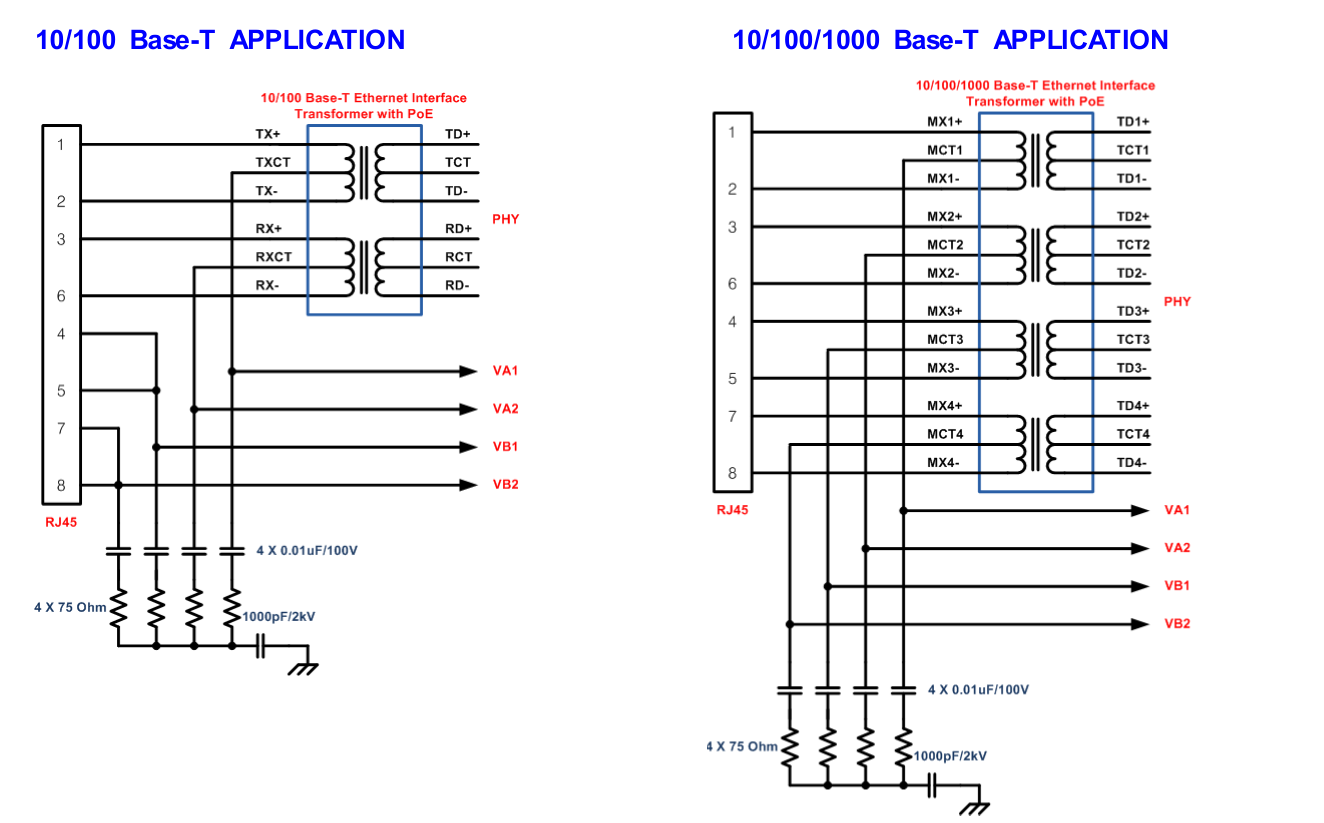

Typical Application

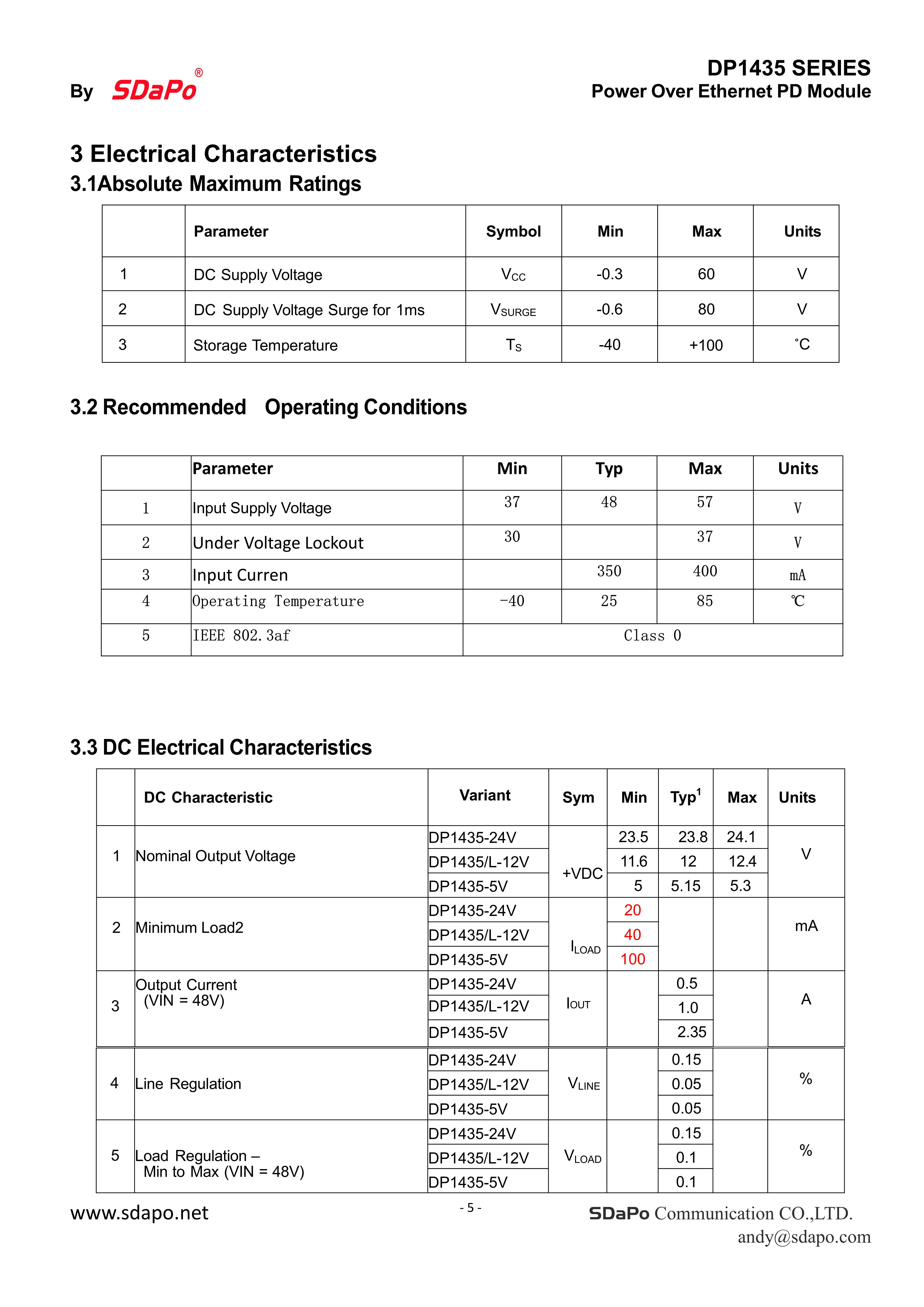

ELECTRICAL SPECIFICATIONS

No

Item

Specification

Comment

1

Input Voltage

37~57V

2

Output Voltage

12V Typ.

DP1435-12V


5.15V Typ.

DP1435-5V

3

Output Current (Vin=56V)

1ATyp.

1.3A Max.

DP1435-12V


2ATyp.

2.6A Max.

DP1435-5V

4

Line Regulation

5%

5

Load Regulation

5%

6

Ripple & Noise

200mVp-p max.

DP1435-12V


200mVp-p max.

DP1435-5V

7

Efficiency

87% max.

DP1435-12V


84% max.

DP1435-5V

8

Switching Frequency

180 KHz

DP1435-12V


250 KHz

DP1435-5V

9

Input to Output Isolation

1.5 KV

10

Type of DC/DC Converter

Flyback Type

11

Operating Temperature

-25 ~ +85 ℃

DP1435-12V


-40 ~ +85 ℃

DP1435-5V

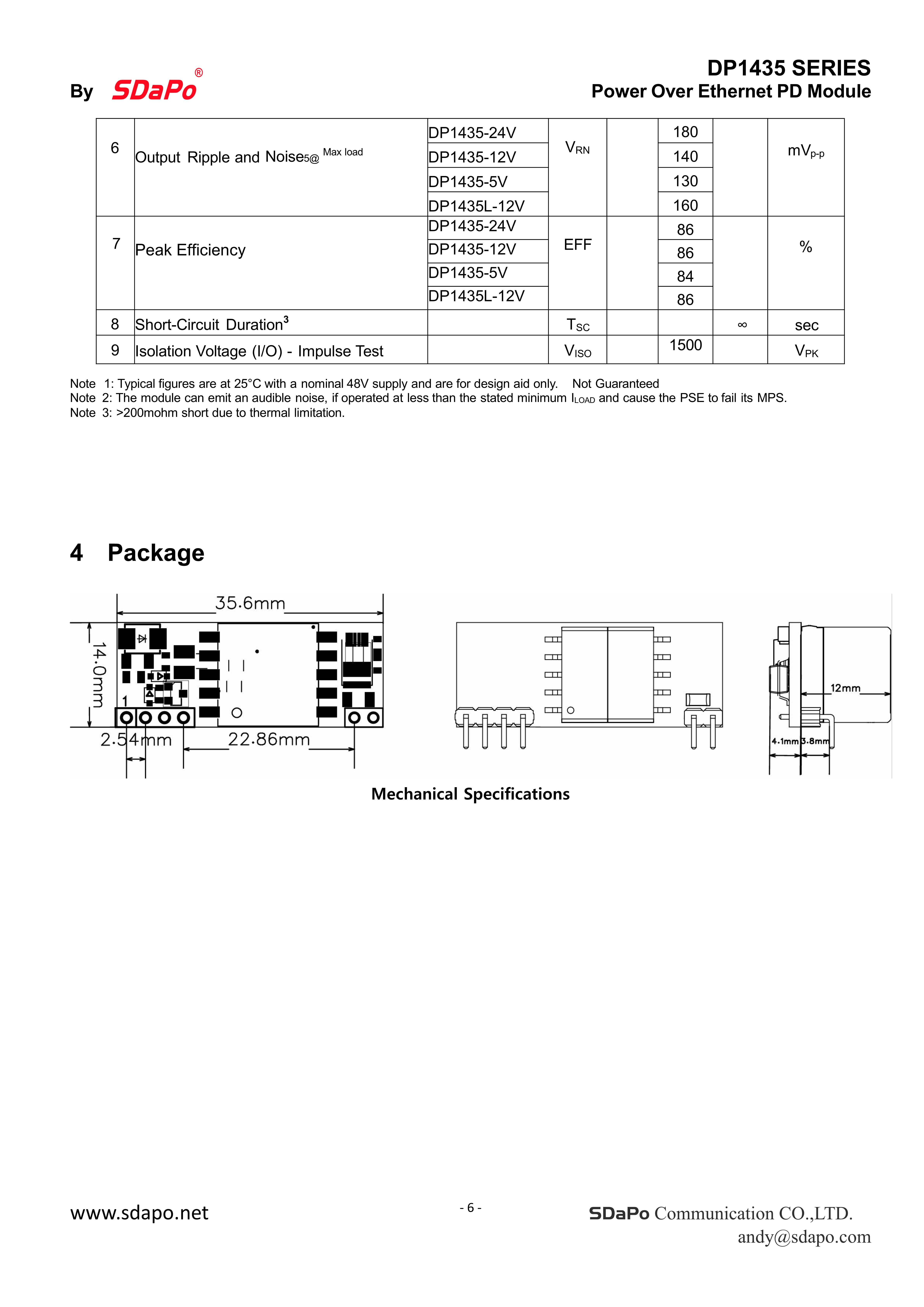

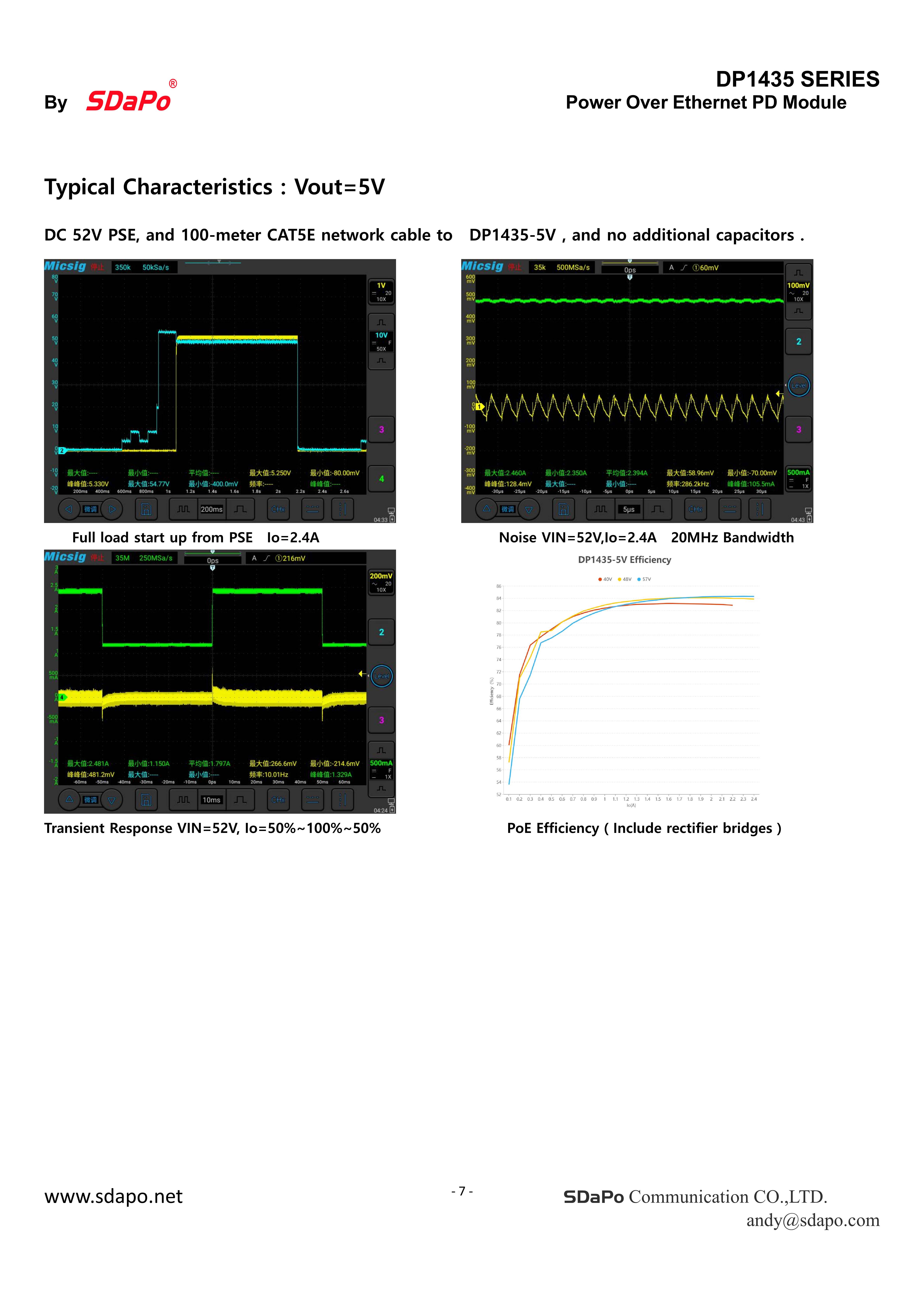

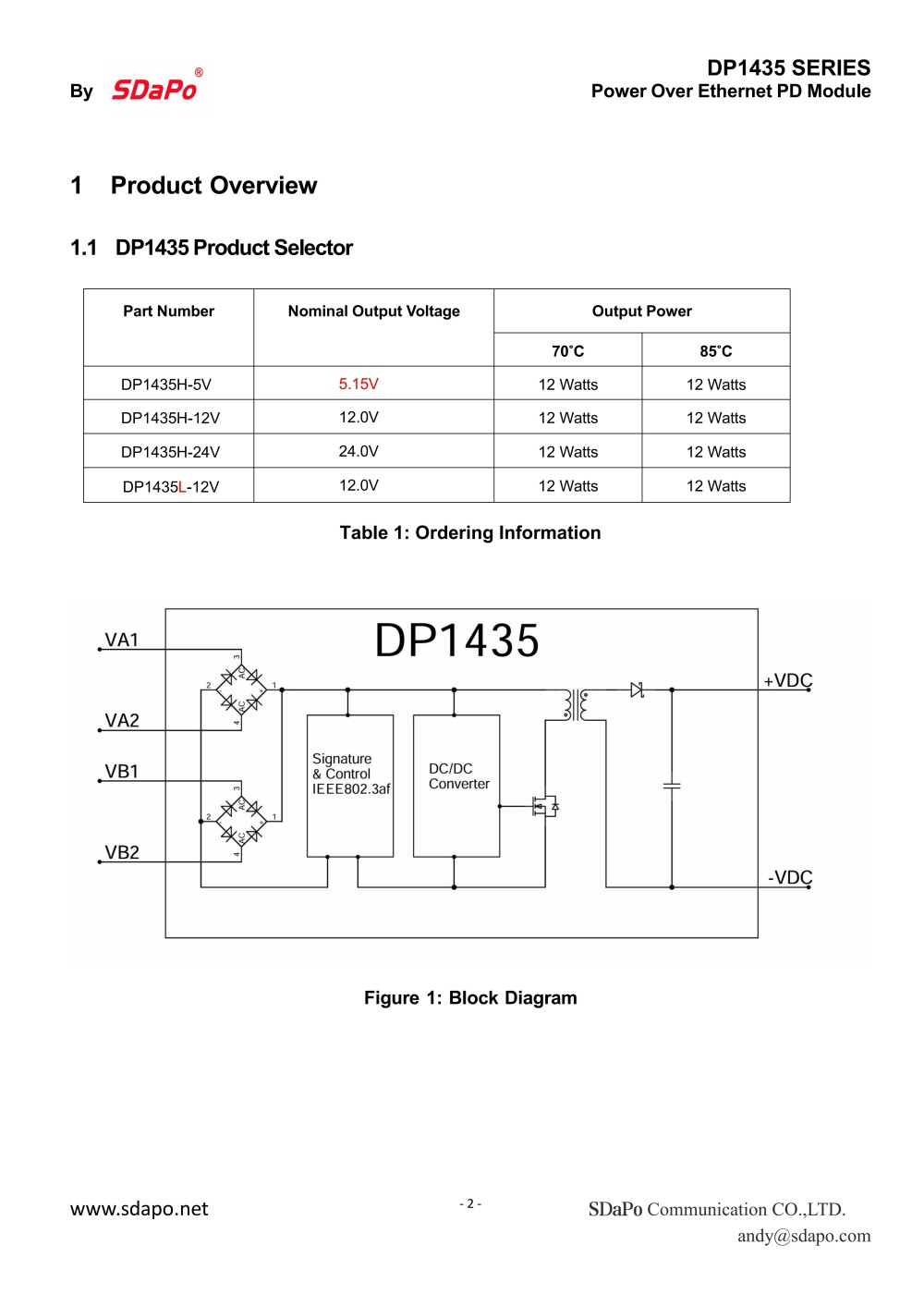

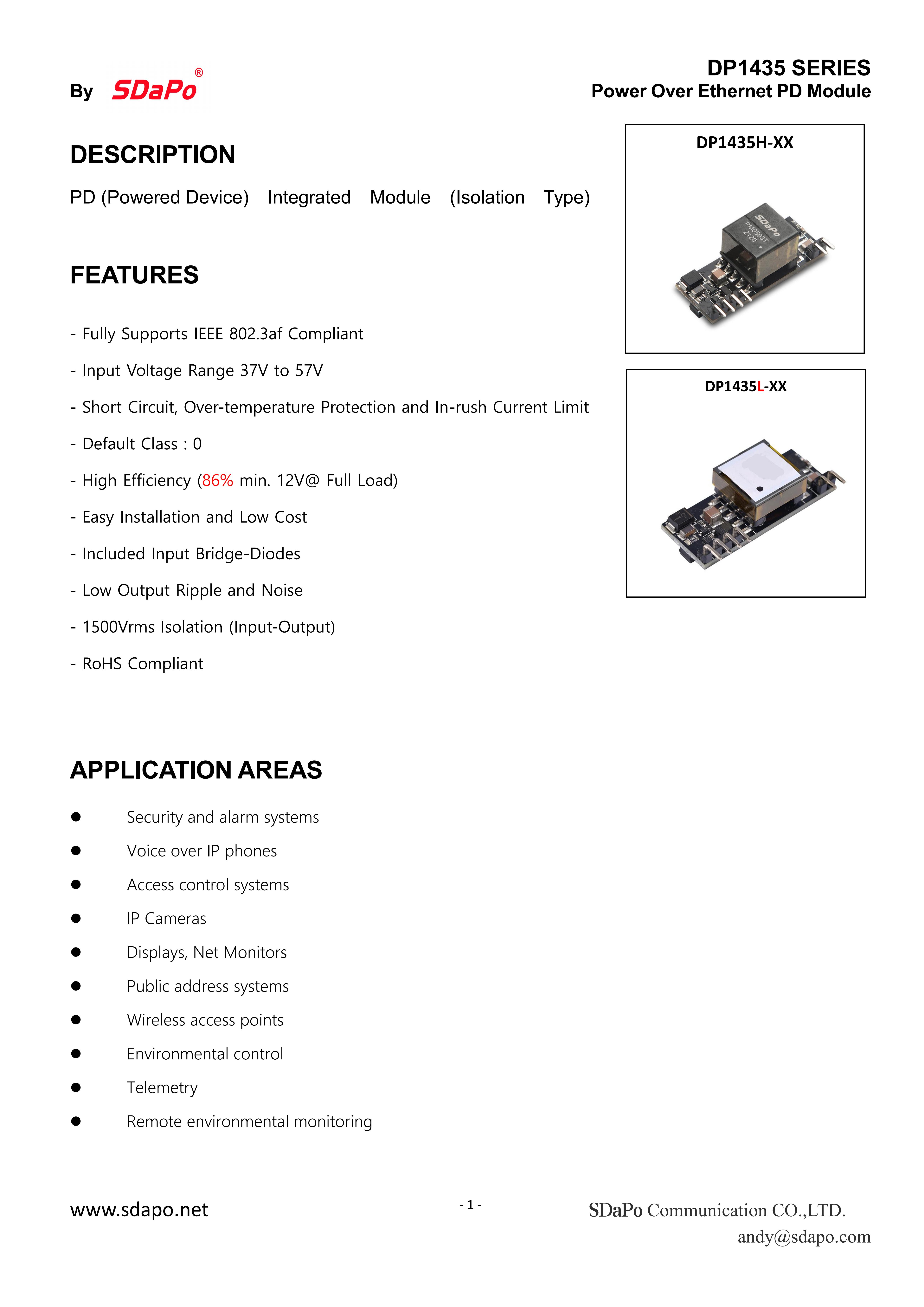

DP1435 Parameter

DP1435汇总规格书最新2025_1 DP1435汇总规格书最新2025_2 DP1435汇总规格书最新2025_3 DP1435汇总规格书最新2025_4 DP1435汇总规格书最新2025_5 DP1435汇总规格书最新2025_6 DP1435汇总规格书最新2025_7 DP1435汇总规格书最新2025_8 DP1435汇总规格书最新2025_9 DP1435汇总规格书最新2025_10

DP1435 Datesheet

download DP1435汇总规格书最新2025.pdf
