PM3812T V7S 12V 1A Industrial Temperature PoE PD Module

PM3812T V7S 12V 1A Industrial Temperature PoE Module PD Module

Name: PM3812T V7S 12V 1A Industrial Temperature PoE Module PD Module
Brand: SDaPo
SKU: 575079927
Rating: 5.0 (92 reviews)

1. Specification:with IEEE802.3af standard
2. Security:Has a perfect short circuit protection, 1500V high voltage isolation
3. Size :38*38mm

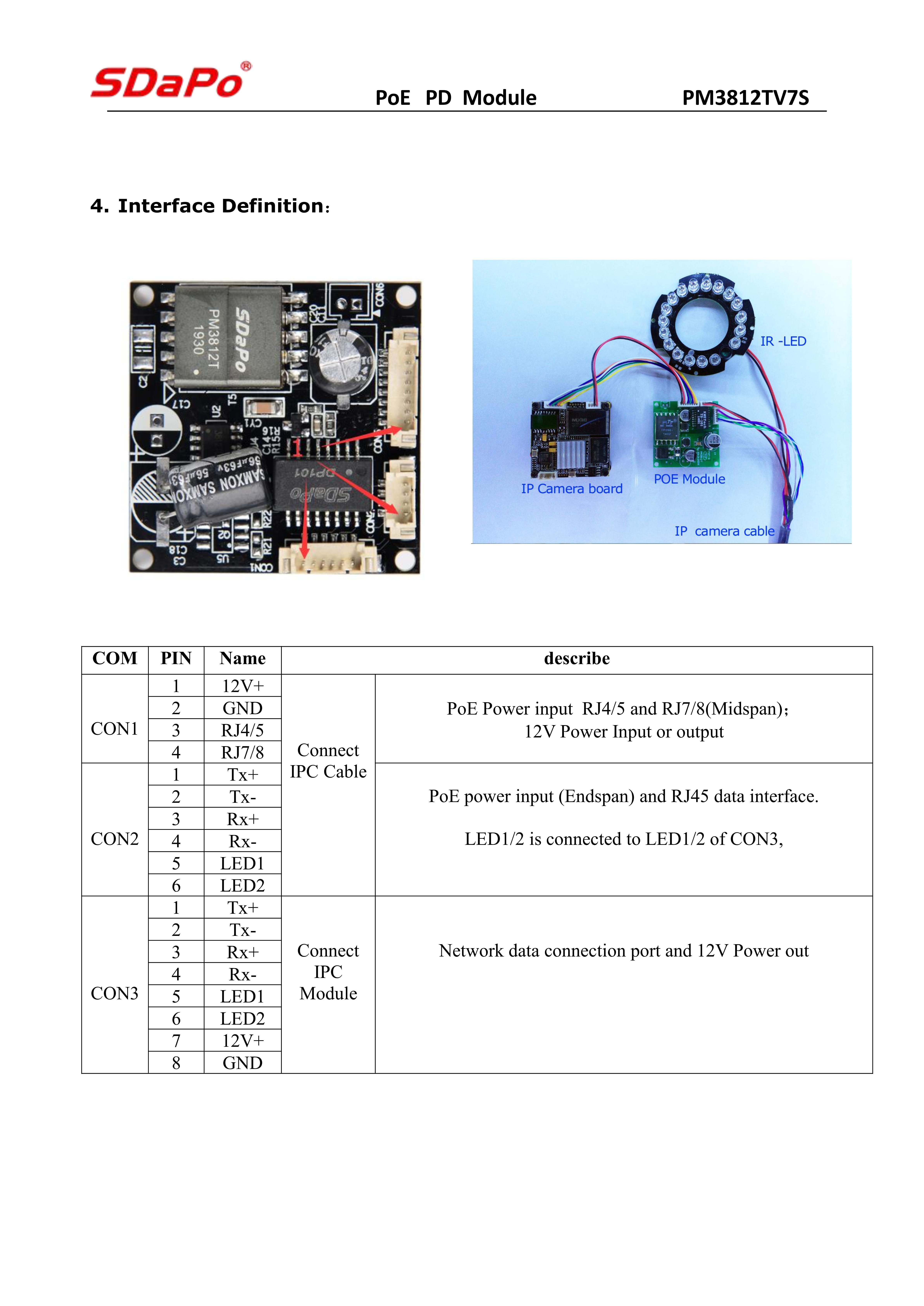

4. Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

Model:
PM3812T V7S Industrial temperature
Brand:
SDaPo

Output Vdc:	PM3812T V7S Industrial temperature-12V1A
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

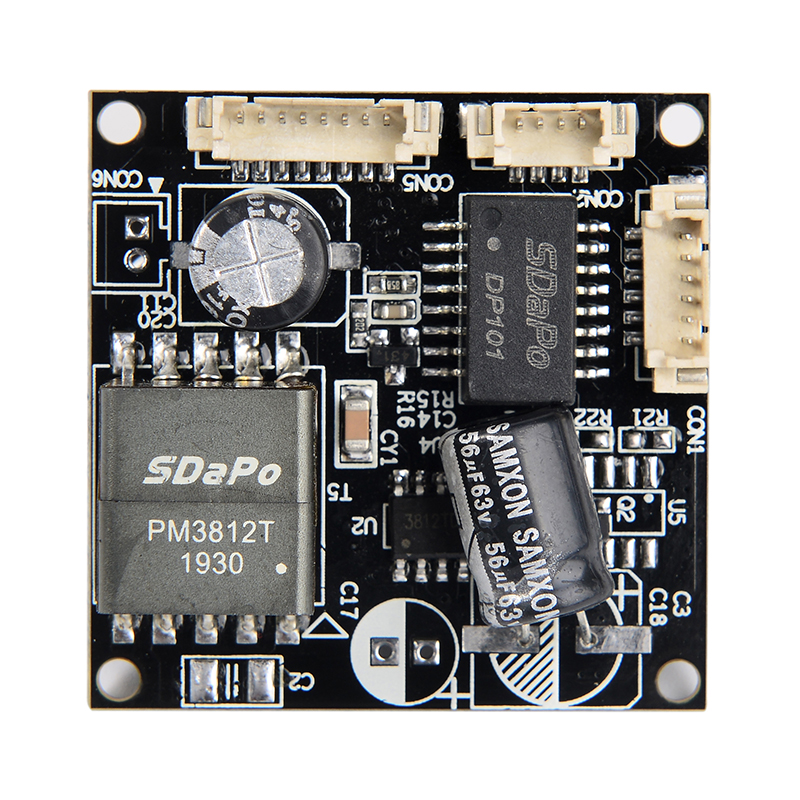

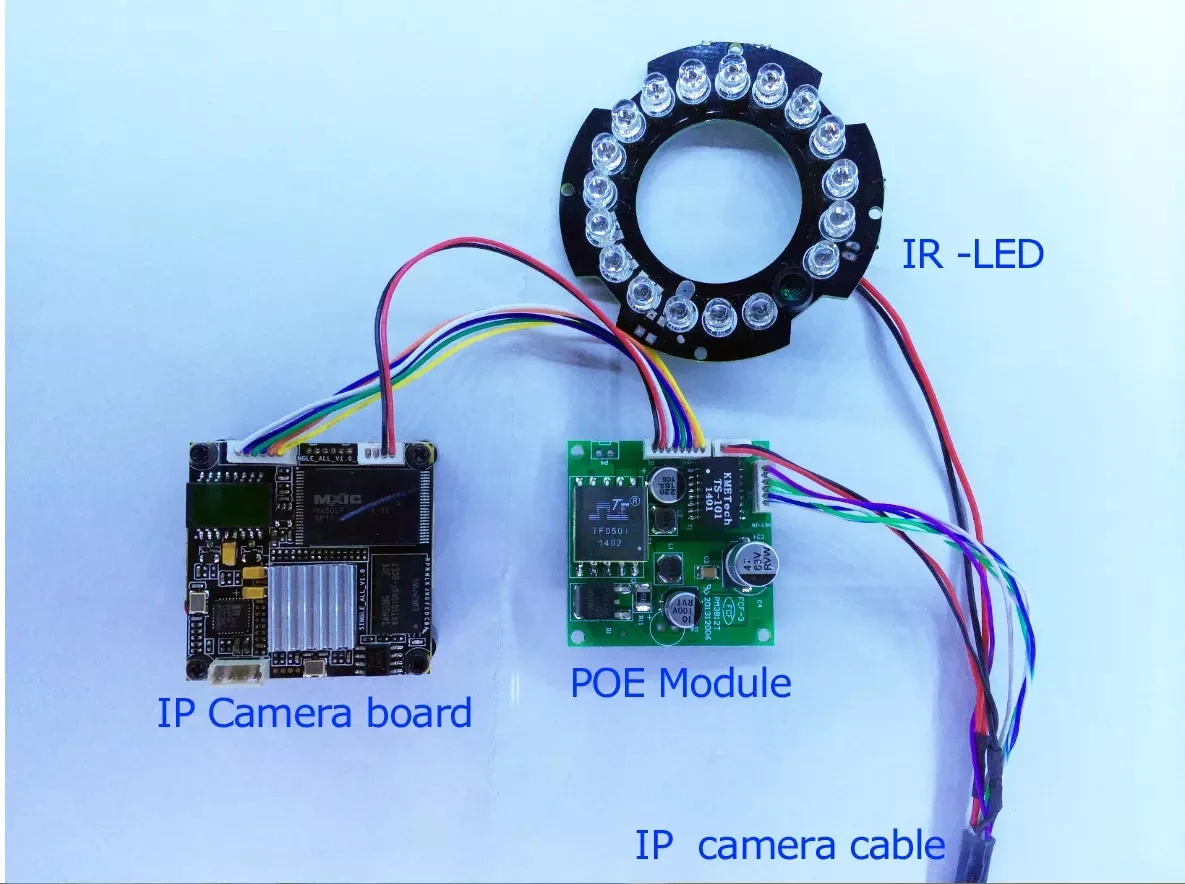

High Quality PM3812T V7S Industrial IEEE802 3af Standard 12V 1A Power 13W POE Module for IP Camera PCB Board

Product Description

Features:

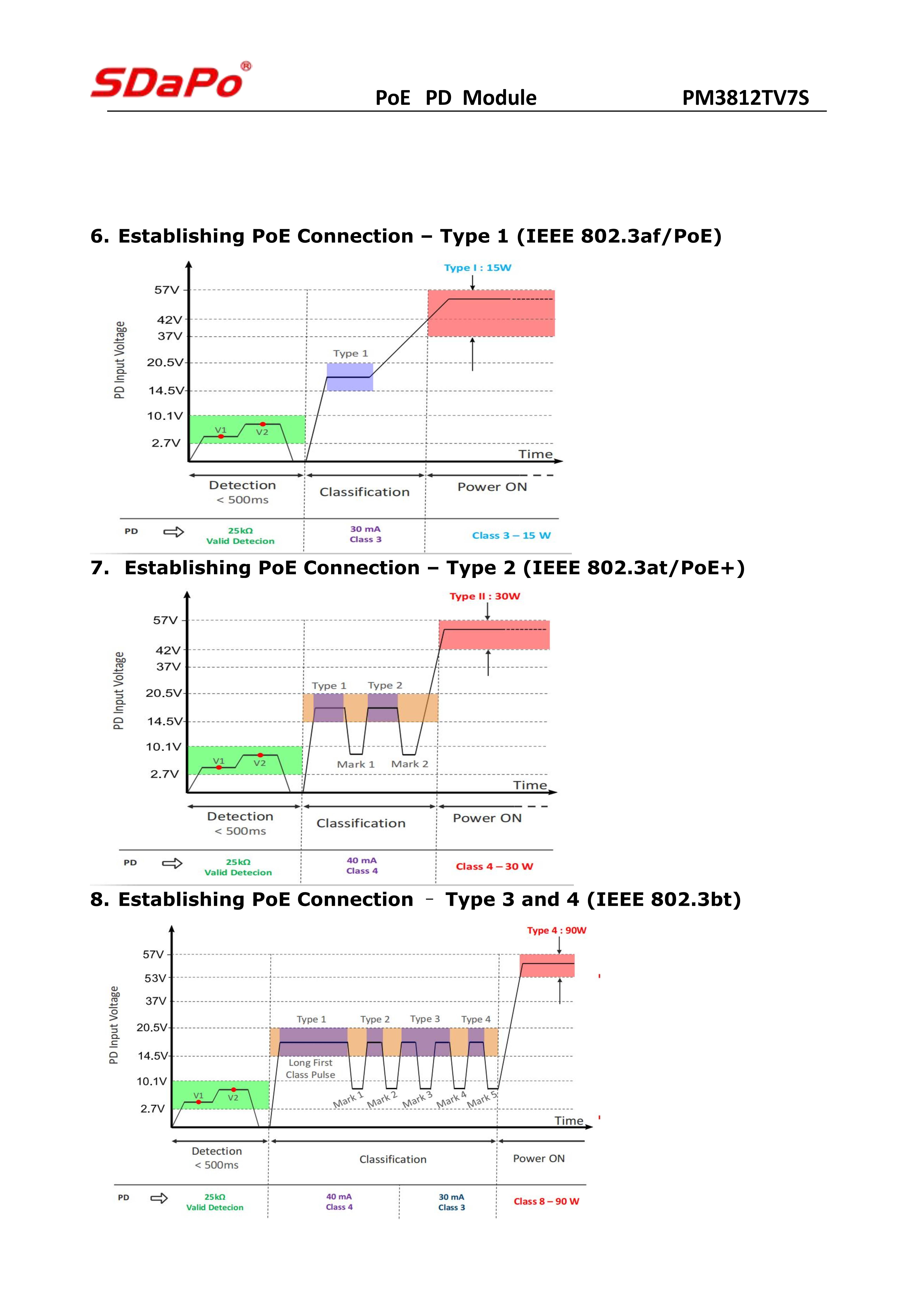

1. Specification:with IEEE802.3af standard

2. Security:Has a perfect short circuit protection, 1500V high voltage isolation

3. Size :38*38mm

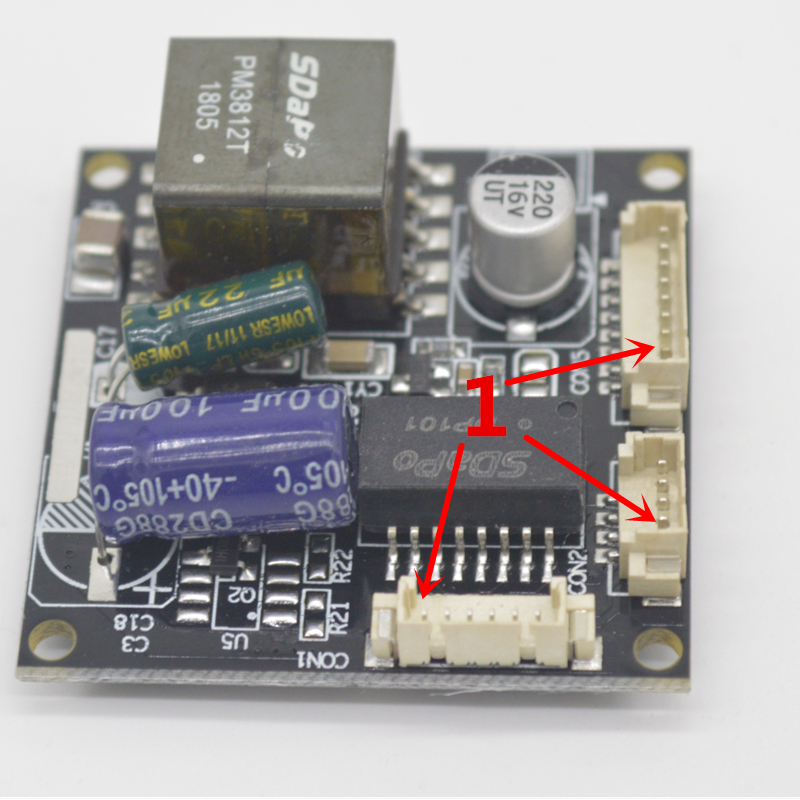

4. Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -)

and Mid-span (4,5 + / 7,8 -) two power modes

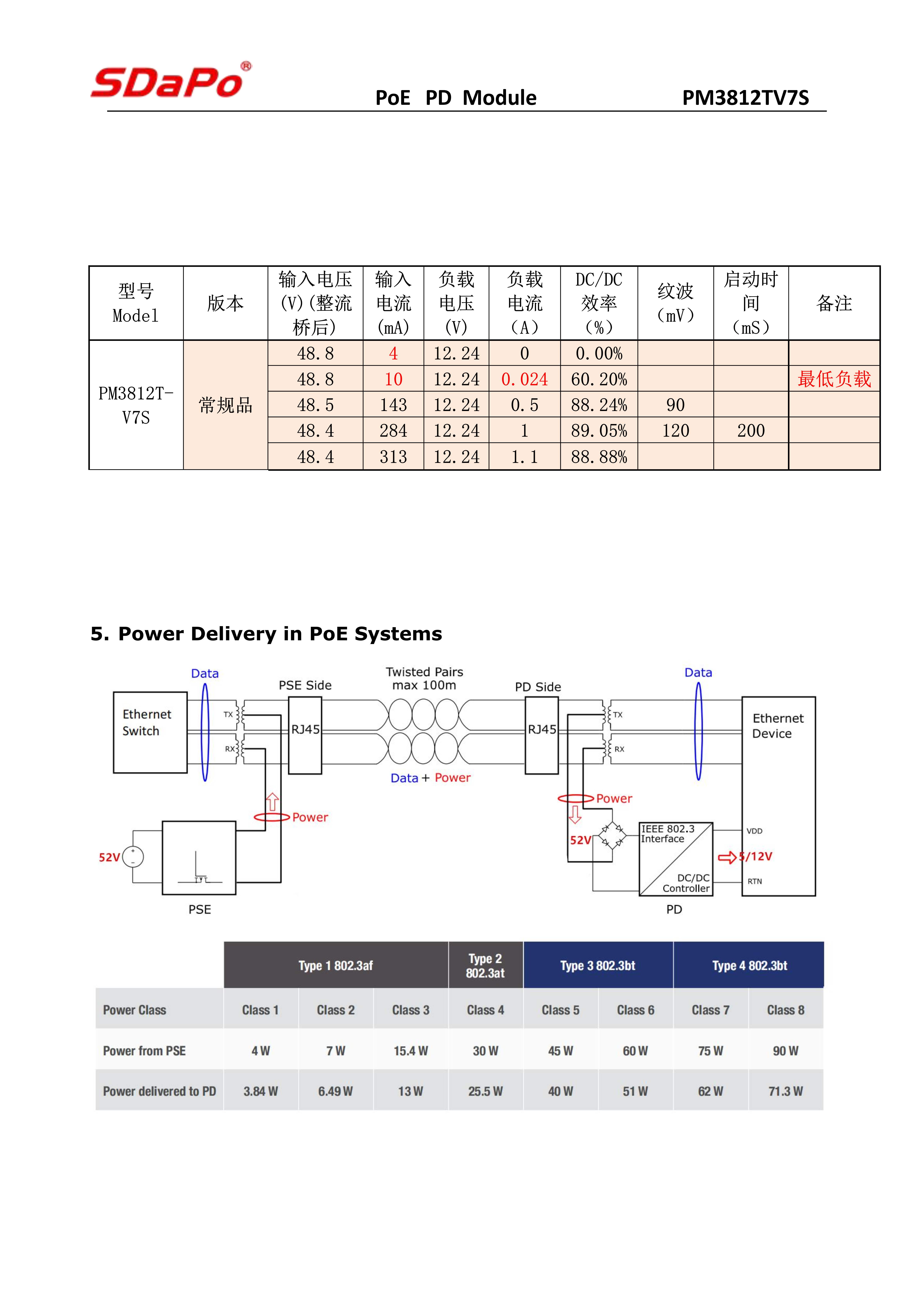

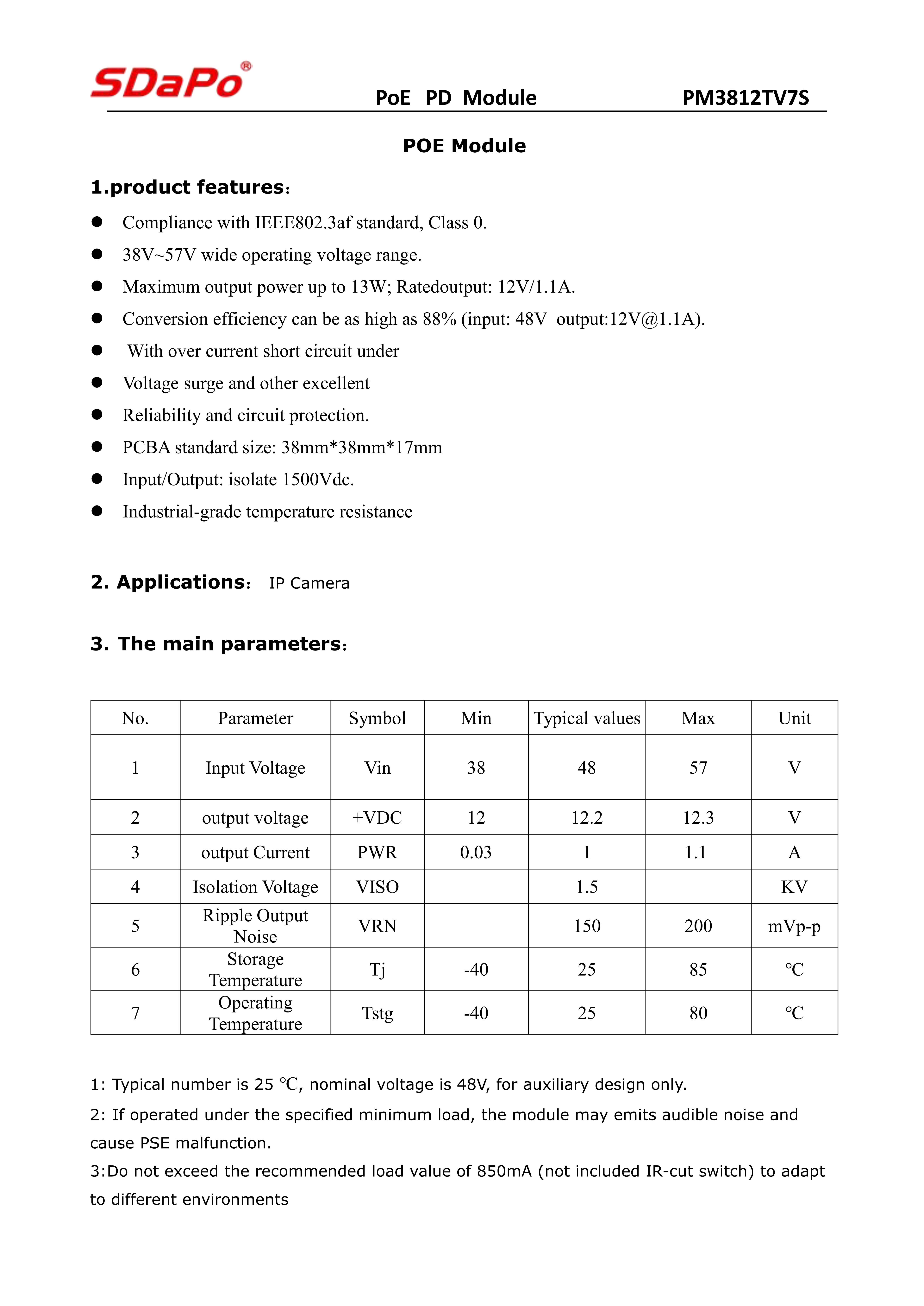

PM3812T V7S Parameter

poe module 12V1A PM3812T V7S Industrial temperature
