Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution. PoE technology conveniently eliminates the need to install networked devices, such as PSE1816GSR IP cameras and access points, near a power outlet, thereby reducing equipment and installation costs. compatible to IEEE802.3af/at. It can power both existing 10/100Base-T network devices Wi-MAX and wireless IEEE 802.11n access points.

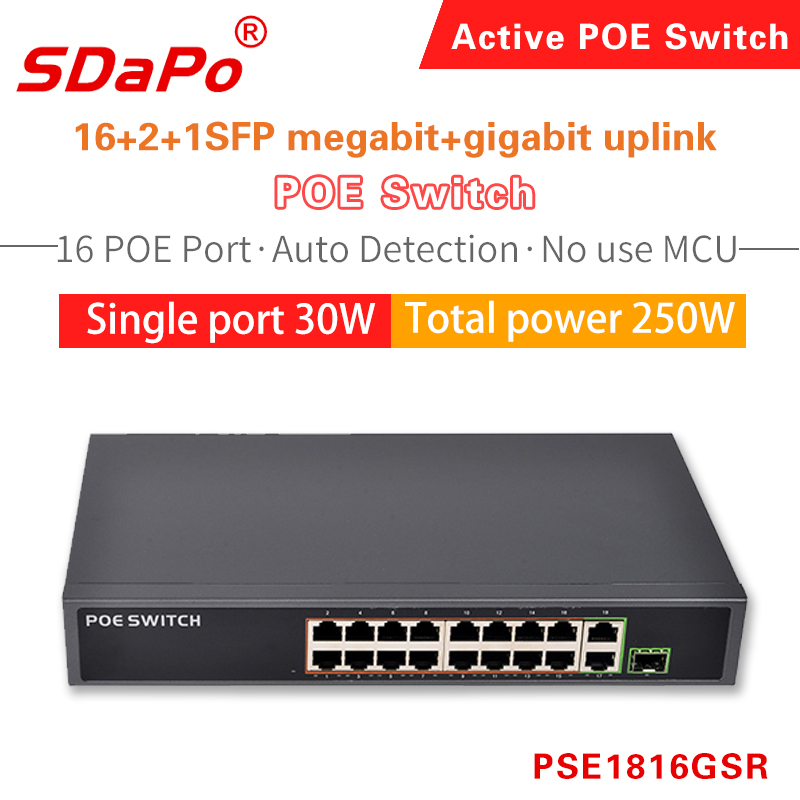

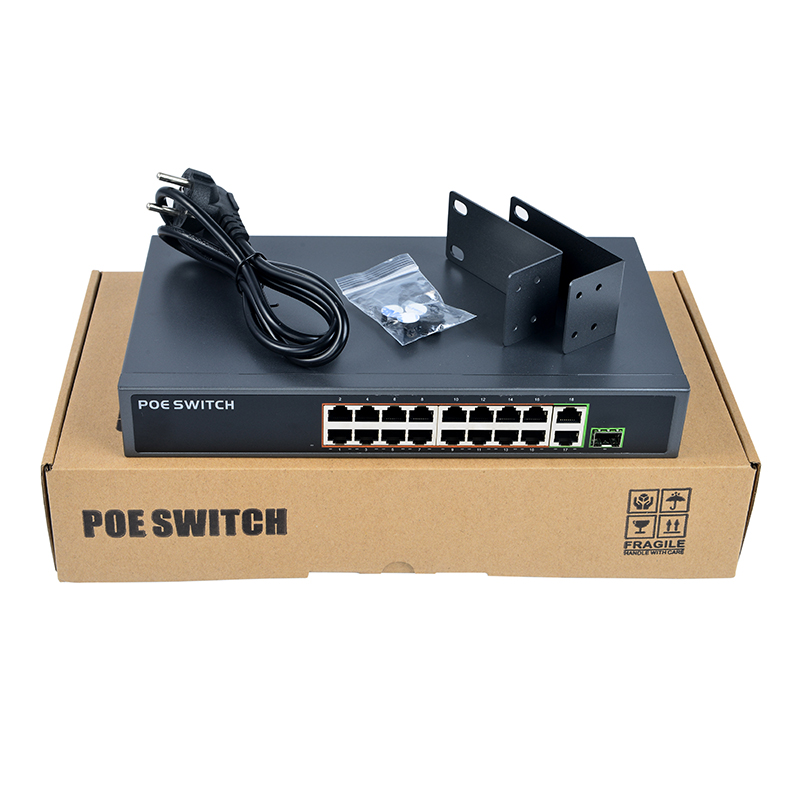

Ordering Information Part Number Description PSE1816GSR: 16-Port 10/100Mbps /PoE +2 Gigabit TP+1 SFP not Combo Ports Poe Switch (250W) Adaptive Extender 250M 1-16 port

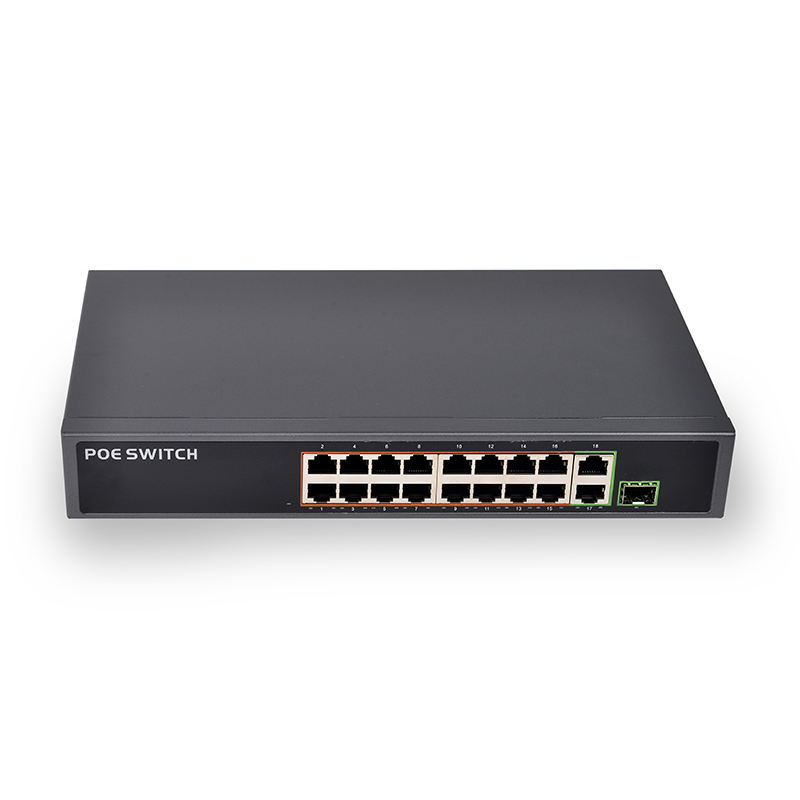

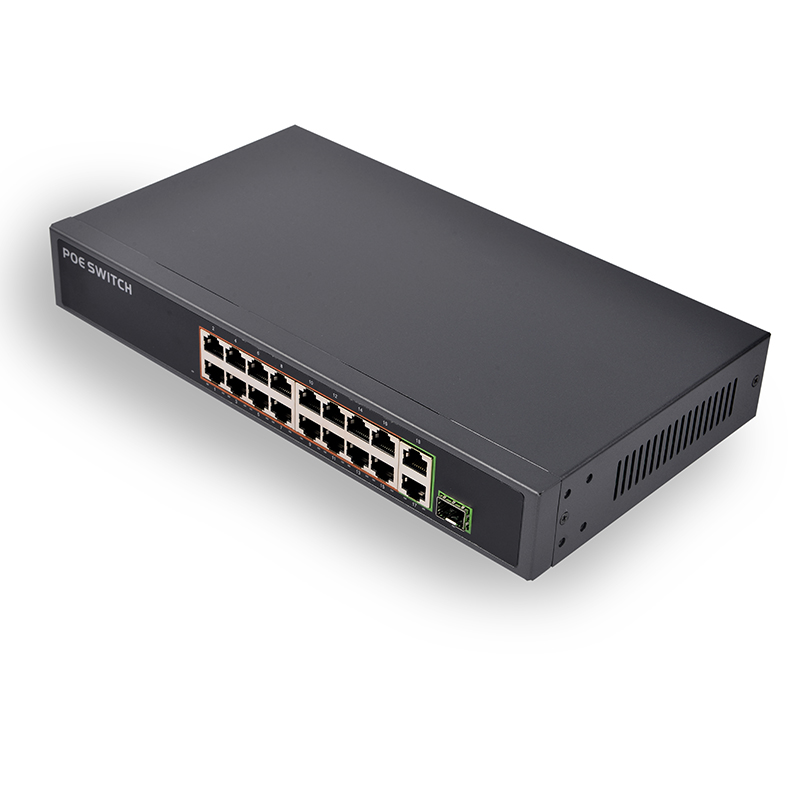

High Performance Wire-Speed Switching The PSE1816GSR offers 16 10/100Mbps Fast Ethernet ports and 2 Gigabit TP+1 SFP not combo ports. can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interface. PSE1816GSR boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 8.8Gbps. Its two built-in GE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.
Features
*Up to 30W of Power on *Extender 250M 1-16 port *IEEE 802.3af/at *Compatible With All IEEE 802.3af/at or Legacy *Safe: Low Power Devices Receive Only the Power They Need *Safe and Reliable Power to WLAN Access Points *Automatic Detection and Protection of Non–standard Ethernet Terminals *Supports 10/100 Base-T applications *Compact Design Fits Easily in WLAN Access *Plug-and-Play no configuration required *Internal power supply *Easy installation and maintenance *Save up to 83% power with Green Technology
*complies to IEEE 802.3af PoE standard and is backward
Hardware Specification
10/100Mbps Copper Ports
16 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports
1000Mbps Copper Ports
2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots
1 1000Base-SX/LX, shared with Port-17
Switch Architecture
Store-and-Forward
Switch Fabric
12.8Gbps / non-blocking
Switch Throughput
5.36Mpps @64Bytes
Address Table
8K entries
Share Data Buffer
512Kbytes
Maximum Frame Size
9K Bytes
Flow Control
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
LED
Power （yellow ）
10/100 LINK / ACT (Green)
1000 ACT(Green);1000 LINK(yellow)
Reset Button
< 5 sec: System reboot
> 5 sec: Factory Default
Dimension (W x D x H)
293 x 165 x 44 mm, 1U height
Weight
2kg

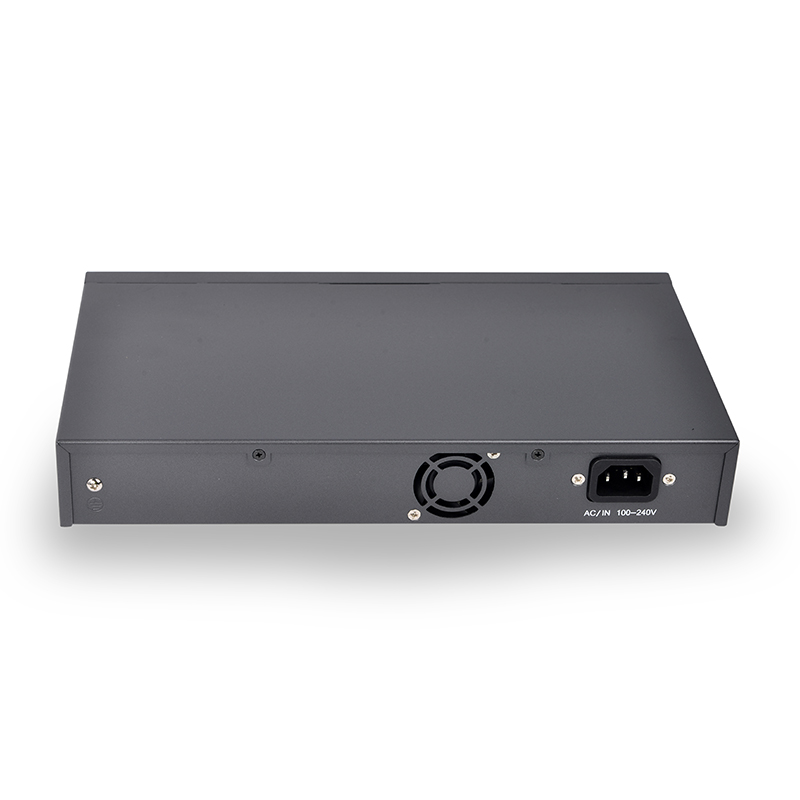

Power Requirement
100~160V AC, 50-60 Hz
Power Consumption / Dissipation
250Watts maximum /510 BTU/hr maximum
Power over Ethernet
PoE Standard
IEEE 802.3af/at Power over Ethernet / PSE
PoE Power Supply Type
End-Span
PoE Power Output
Per Port 52V DC, 350mA~600ma . Max. 30 Watts
Power Pin Assignment
1/2(+), 3/6(-)
PoE Power Budget
230 Watts
Max. number of Class 3 PD
15
Standards Conformance
Standards Compliance
IEEE802.3:10Base-T IEEE802.3u: 100BaseTX IEEE802.3z:1000Base-SX/LX IEEE802.3ab:1000Base-T IEEE802.3af/at: Power over Ethernet
1) IEEE802.3af/at Standard 2) PoE Pin:1,2+/3,6- 3) Power:30 WattsMaximum 4) Input Power AC Input Voltage: 100~240VAC 5) PoE data & power transmission distance 100meter 6) Weight:350g (0.77lbs) 7) Size:39*62.7*145mm 8)support 1G/2.5G one port
- Fully Supports IEEE802.3af Compliant - Input Voltage Range 37V to 57V - Short Circuit, Over-temperature Protection and In-rush Current Limit - Default Class : 0 - High Efficientcy (86% min.12V@ Full Load) - Easy Installation and Low Cost - Included Input Bridge-Diodes - Low Output Ripple and Noise - Adjustable Output Voltage - 1500Vrms Isolation (Input-Output) - RoHS Compliant
- Fully IEEE 802.3af/at compliant - 24 watt output load - IEEE Power class programmable (Green) - 1500 Volt DC isolation (Input to Output) - 5V, 12V ,24V DC output voltage models - Compact package minimum PCB footprint - Minimal external components required - Overload and short circuit protection - Wide input voltage (36V to 57V DC) - Adjustable output voltage - Support PoE applications in both of Fast / Gigabit Ethernet environments. - Low output ripple and noise - Low cost
