hot sales 5V4A IEEE802.3af/at Standard POE Module SDAPO DP5305

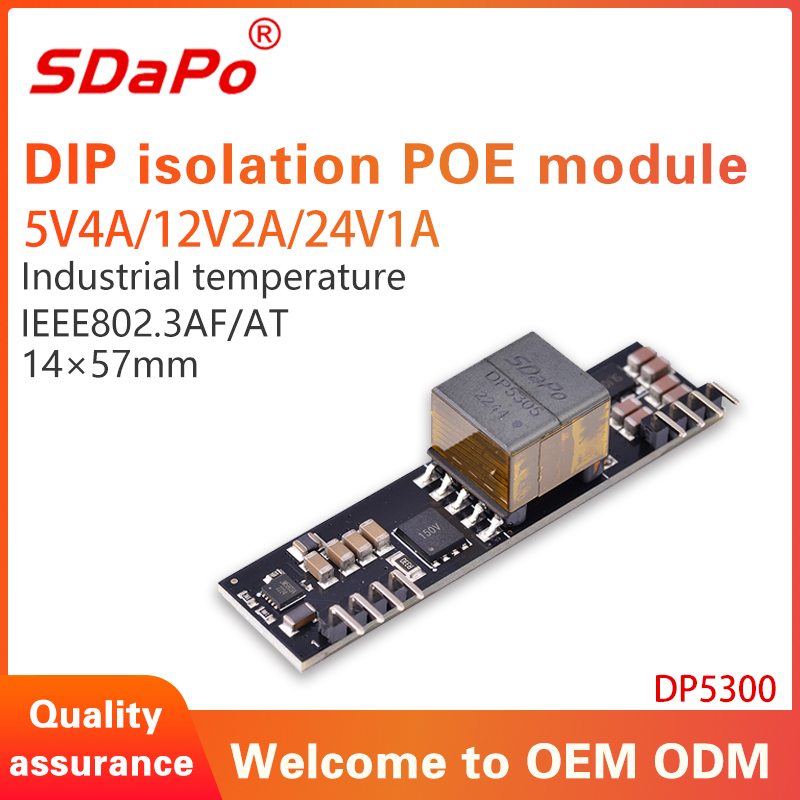

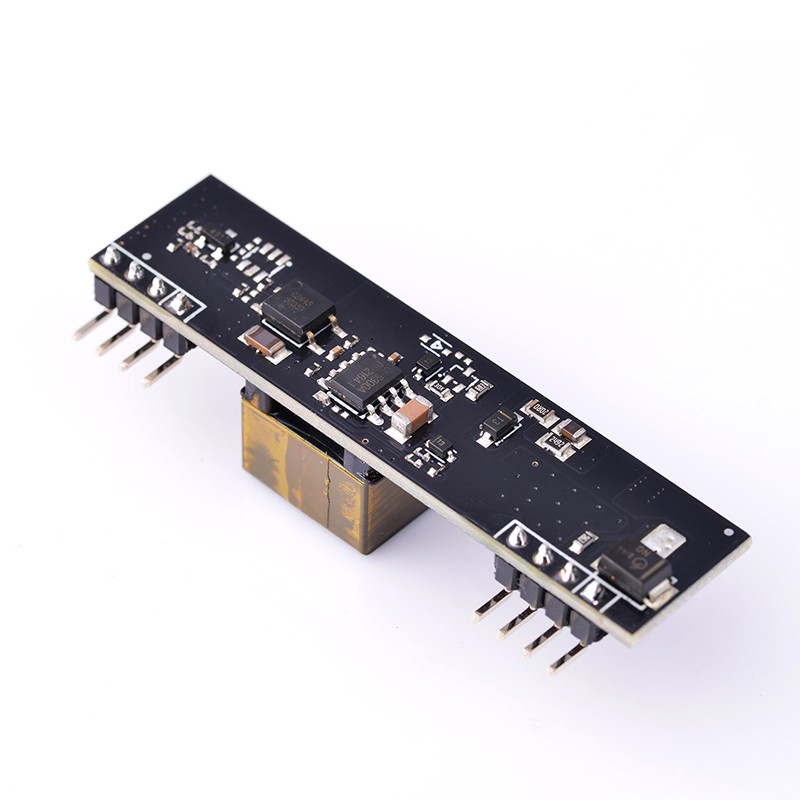

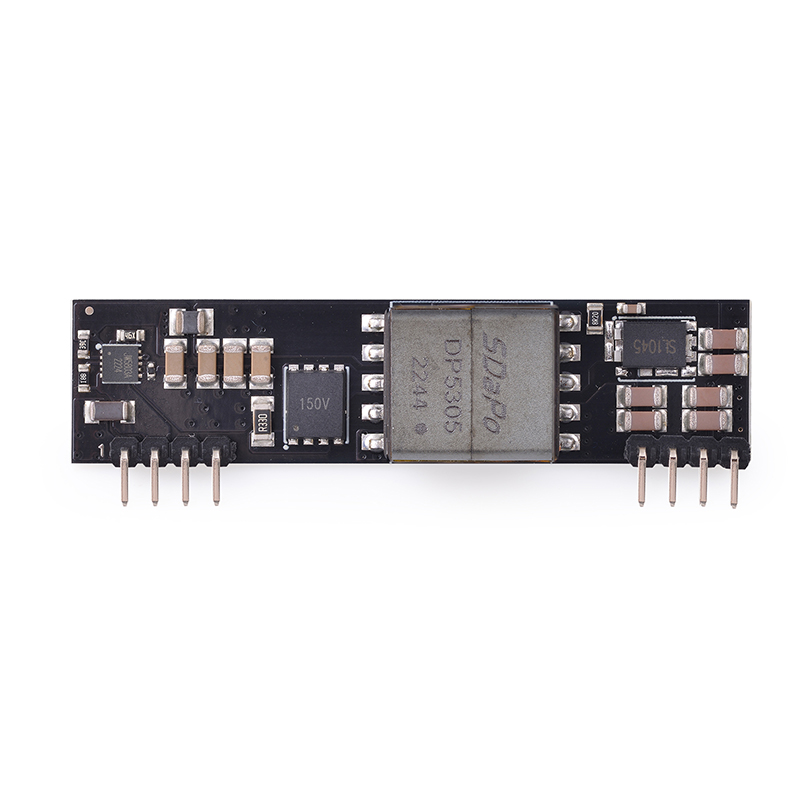

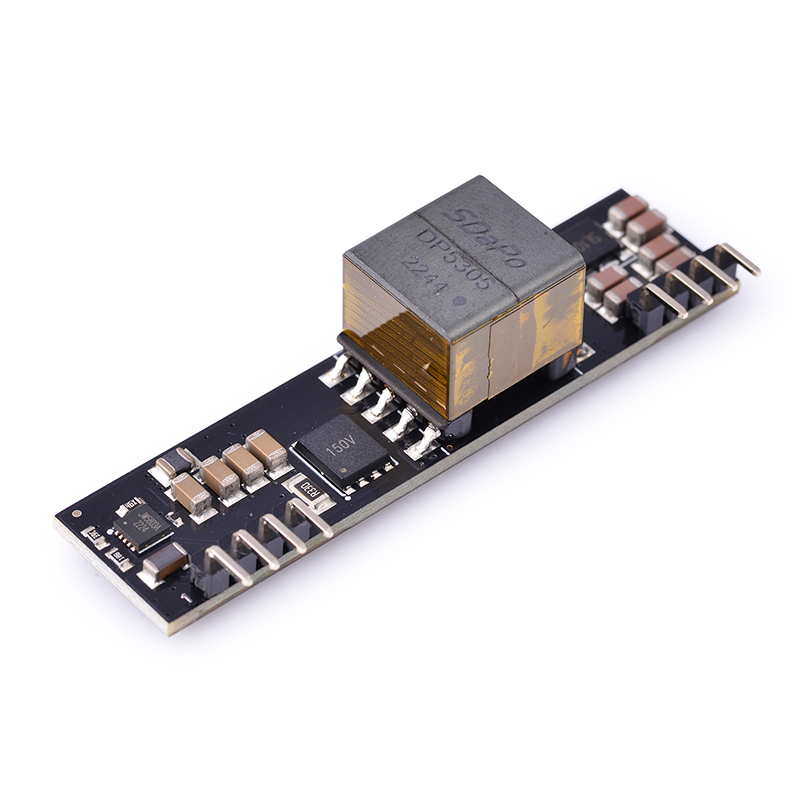

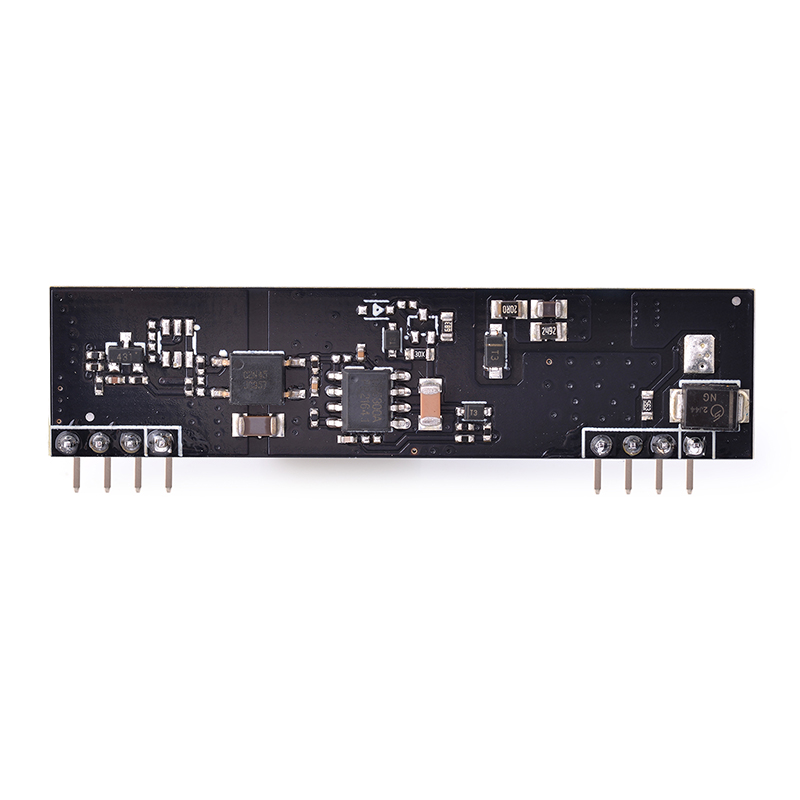

DP5300 5V4A 12V2A 24V1A PoE Module PD Module

Name: DP5300 5V4A 12V2A 24V1A PoE Module PD Module
Brand: SDaPo
SKU: 532349927
Rating: 5.0 (78 reviews)

- Fully supports IEEE802.3af/at

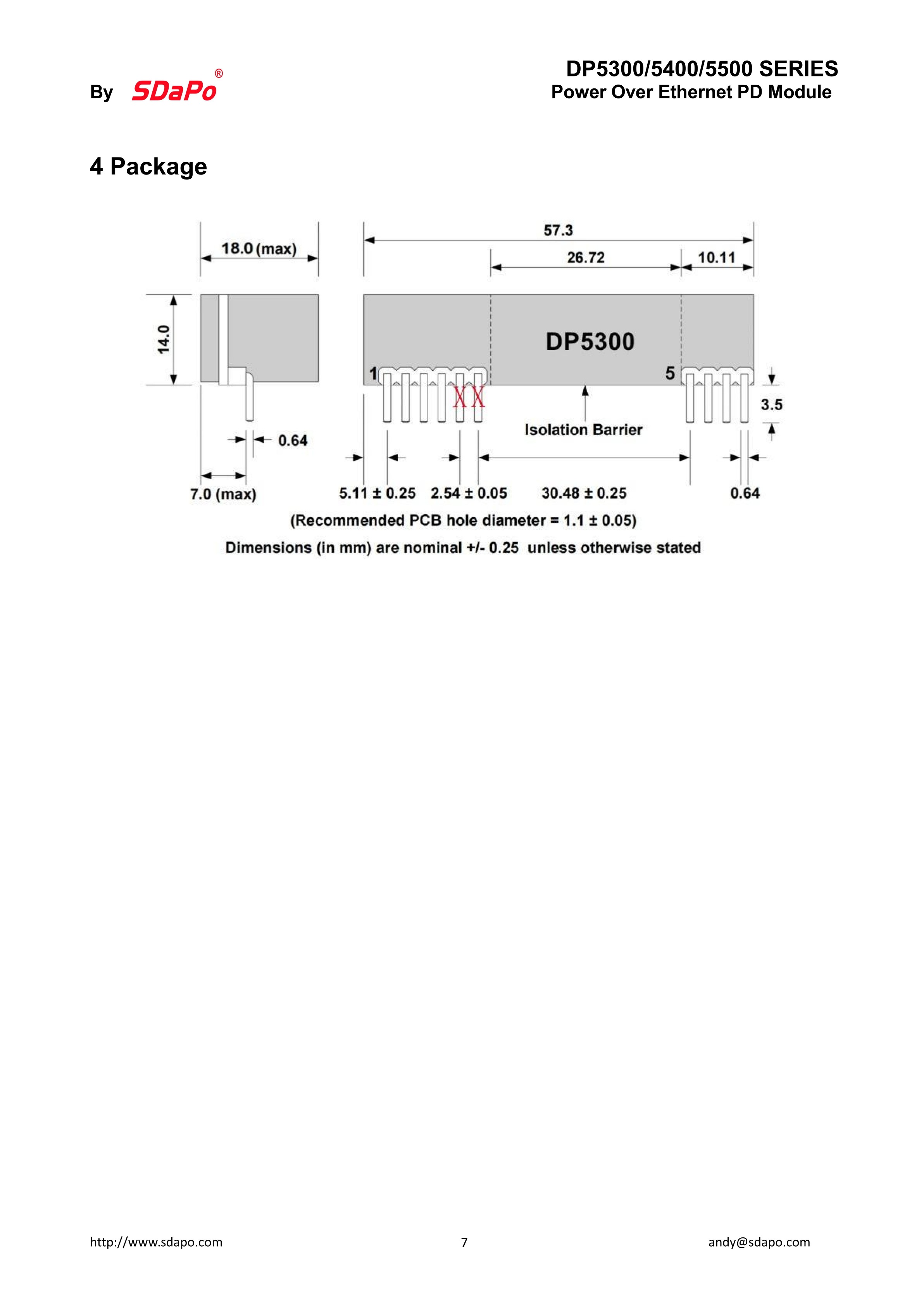

- Small Single In-Line (SIL) package size –57.3mm (L) x 14mm (H)
- Input Voltage Range 44V to 57V
- Support PoE applications in both of Fast / Gigabit Ethernet environments.
- Short Circuit Protection
- Over-temperature Protection
- Programmable Classification (Default:Class 4)
- High Efficiency
- Isolation level 1.5KVrms.
- Easy Installation and Low Cost (Isolation Type, Minimum External Devices required)
- Low Output Ripple and Noise

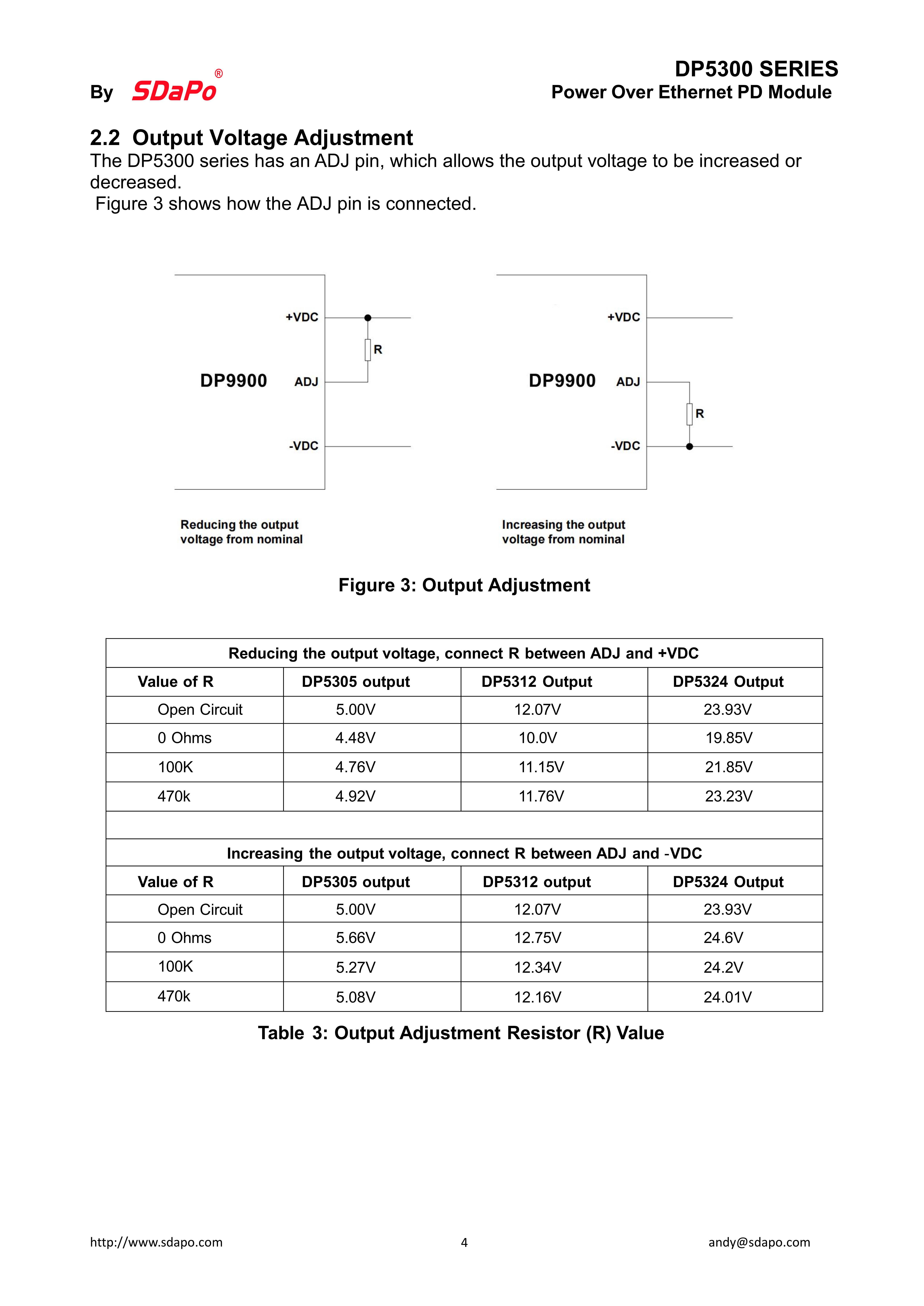

- Adjustable Output Voltage
- 1500Vrms Isolation (Input-Output)

Model:
DP5300
Brand:
SDaPo

Output Vdc:	DP5300-5V4A DP5300-12V2A DP5300-24V1A
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

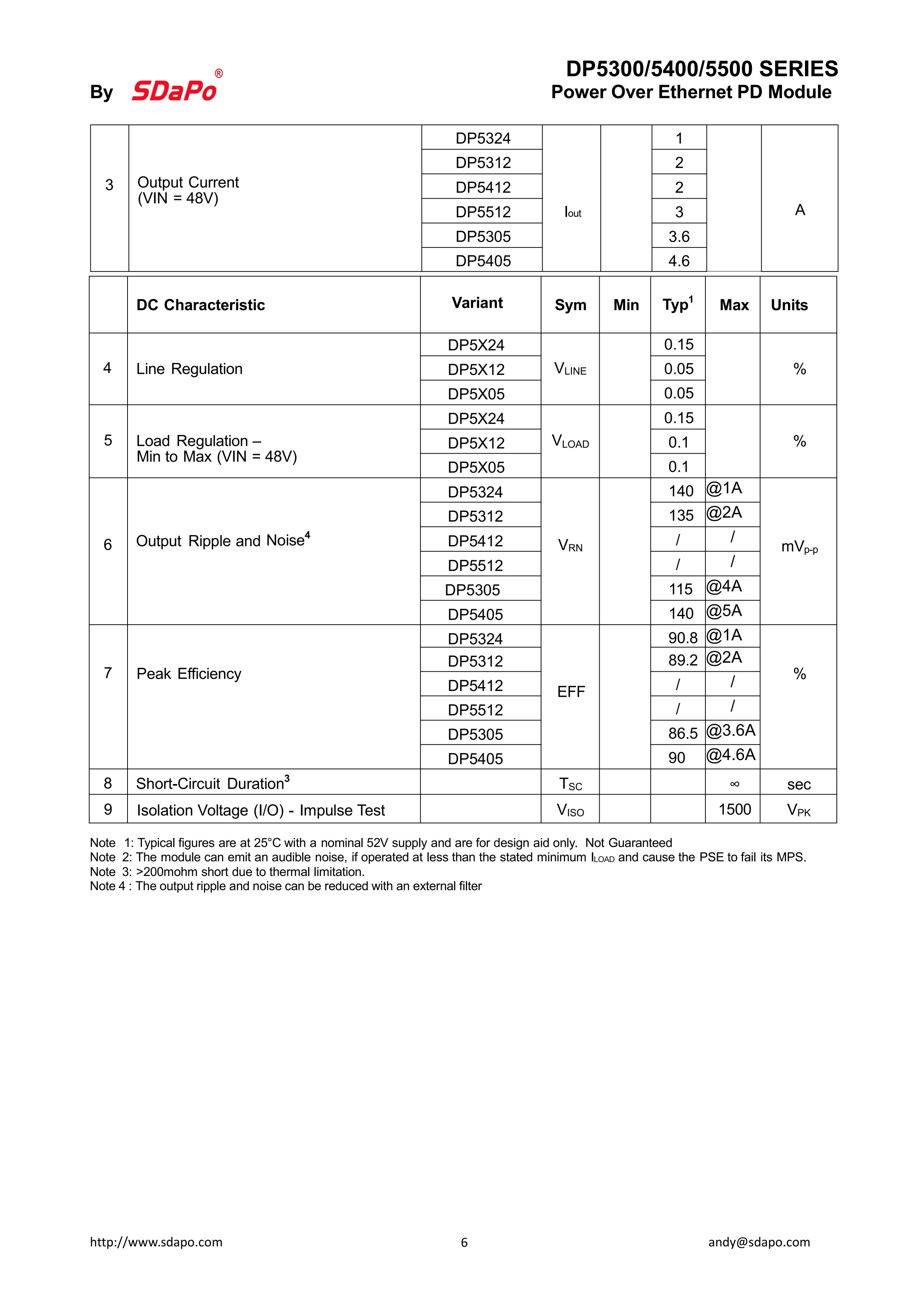

DP5300 Parameter

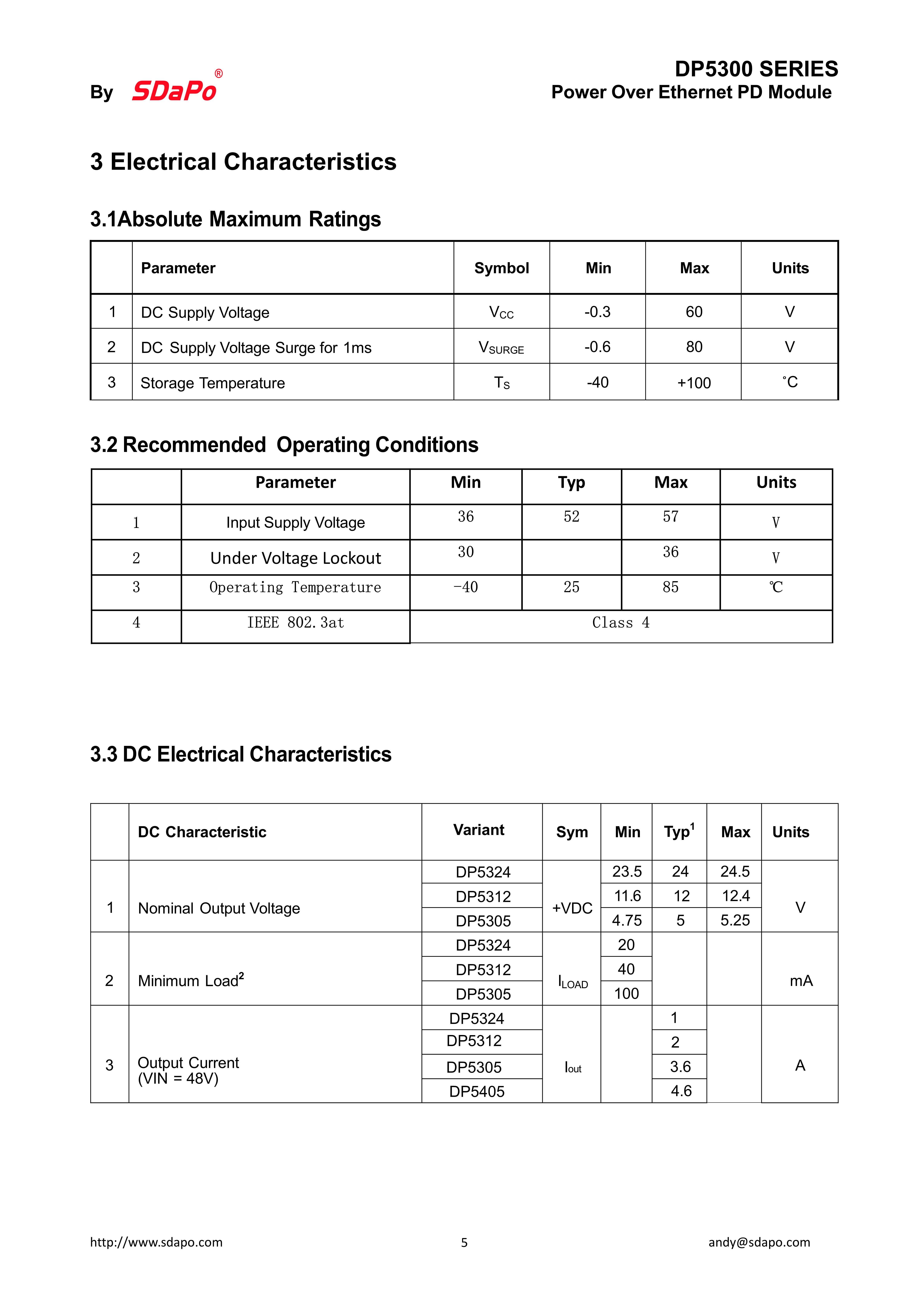

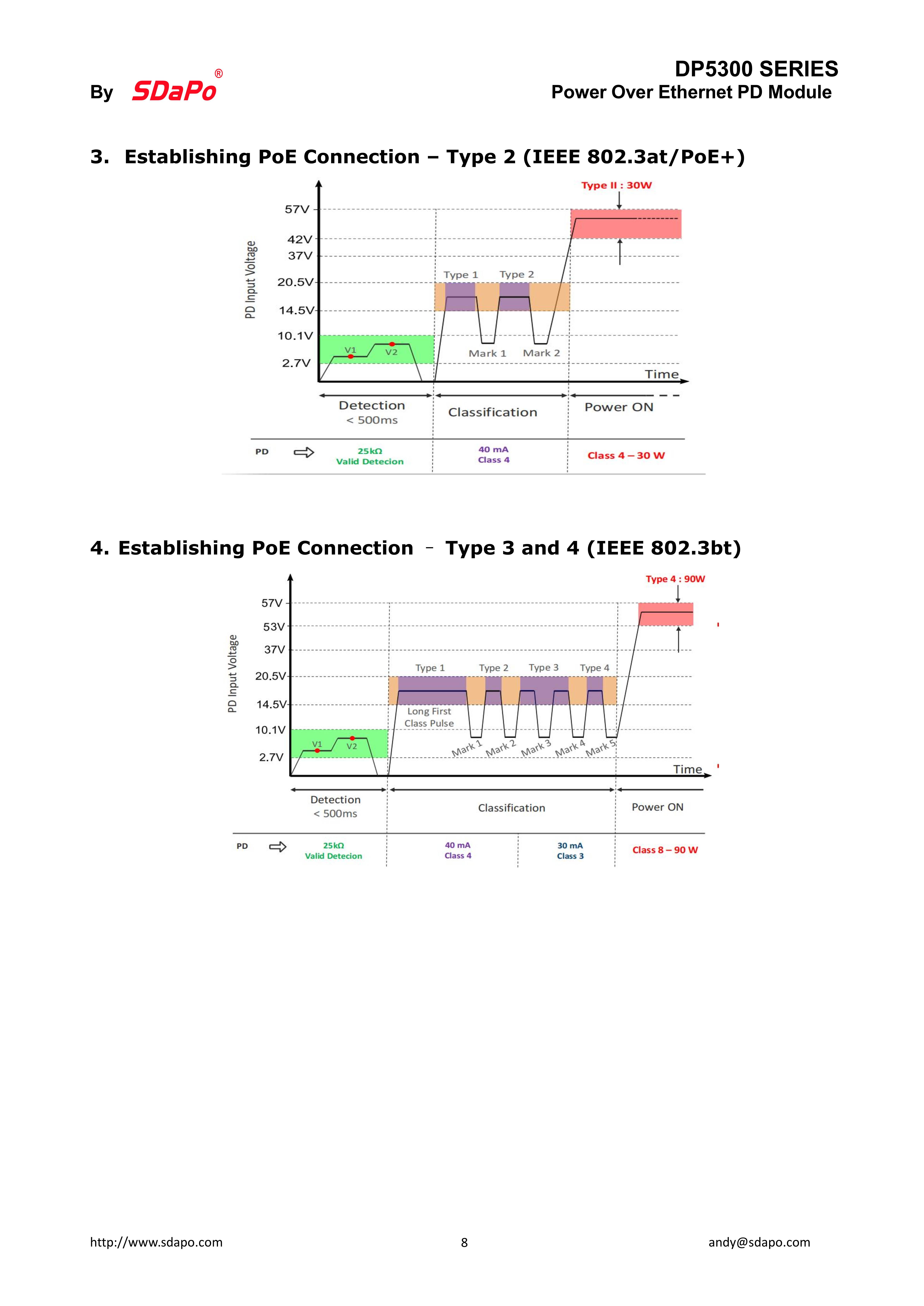

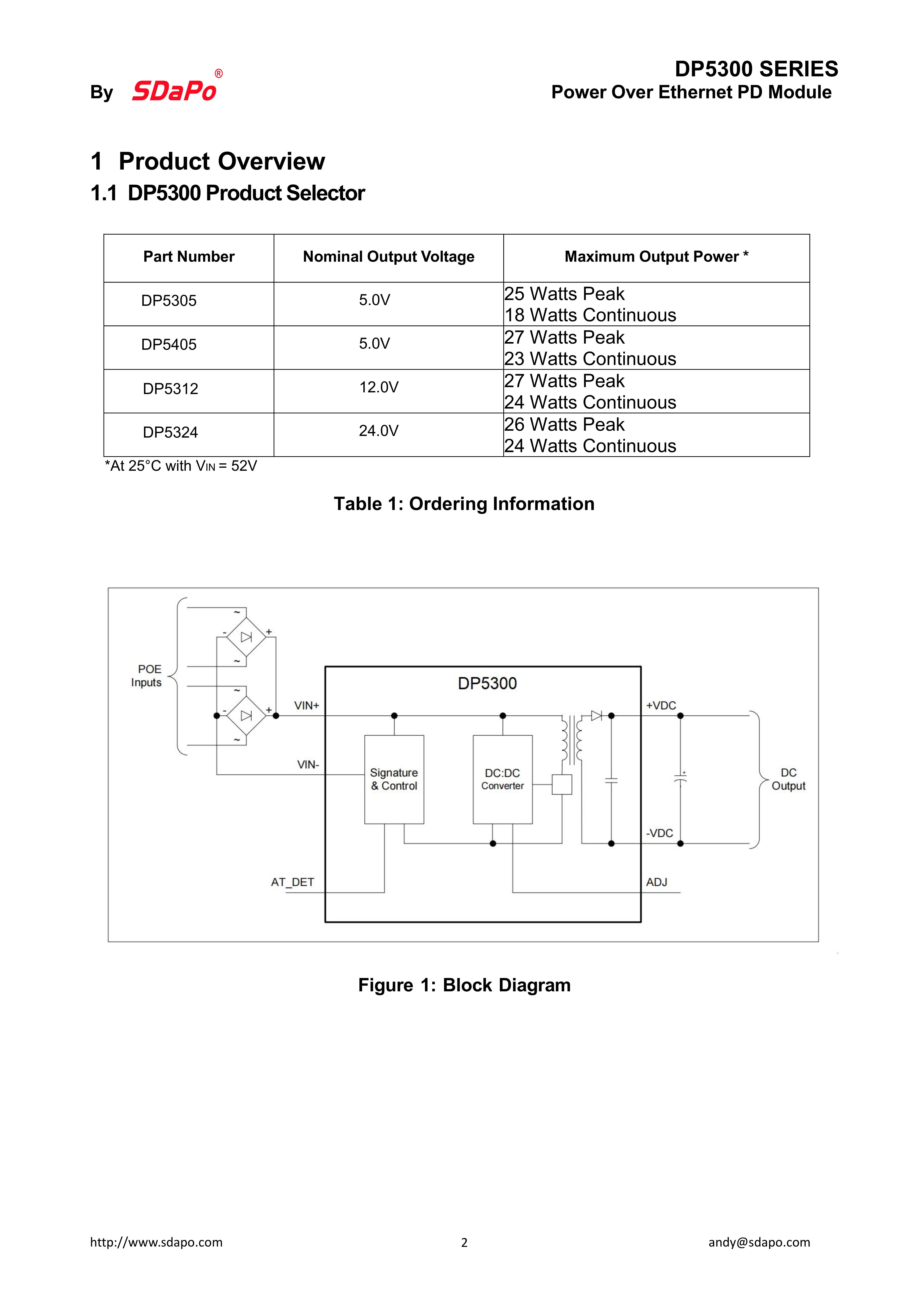

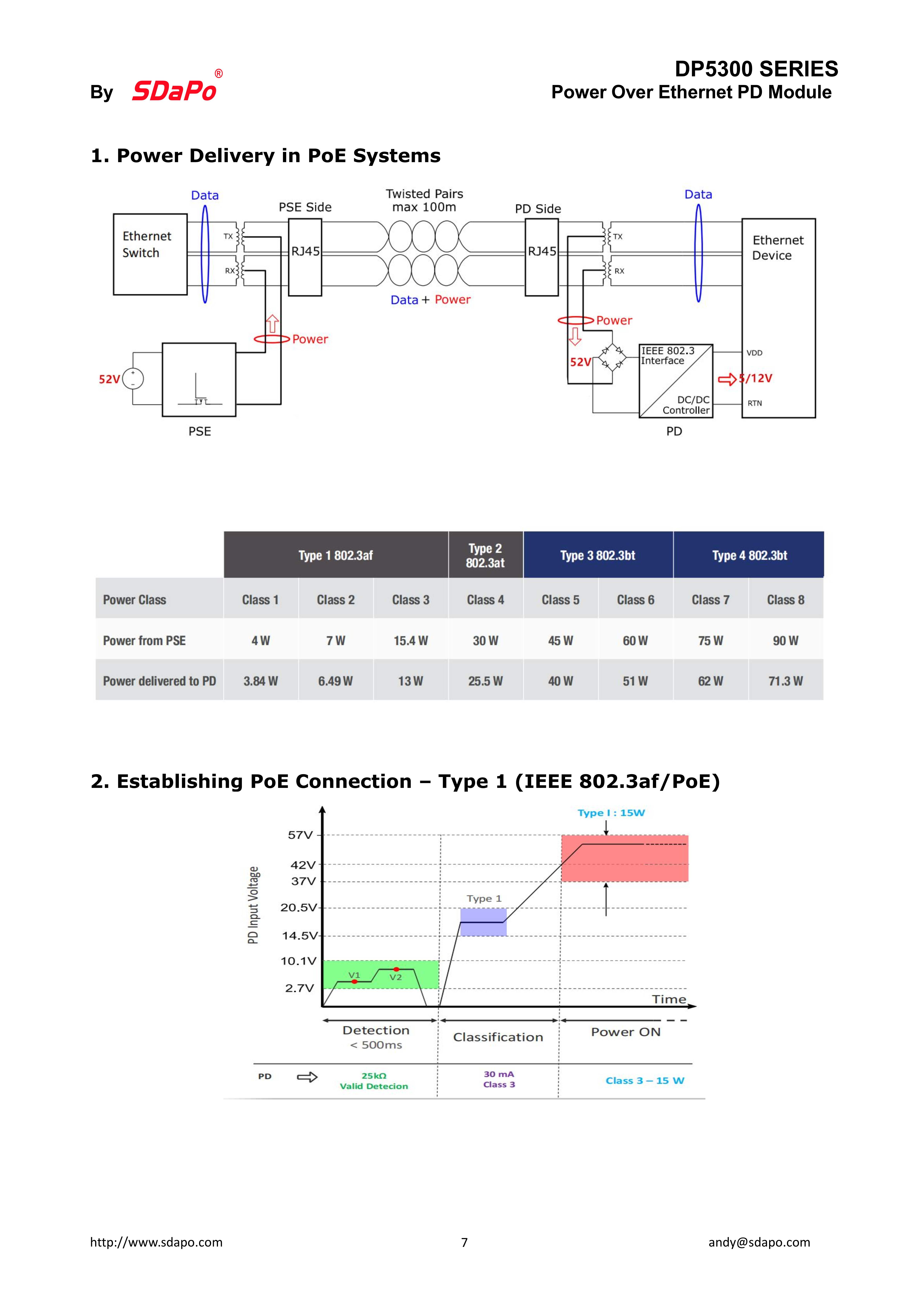

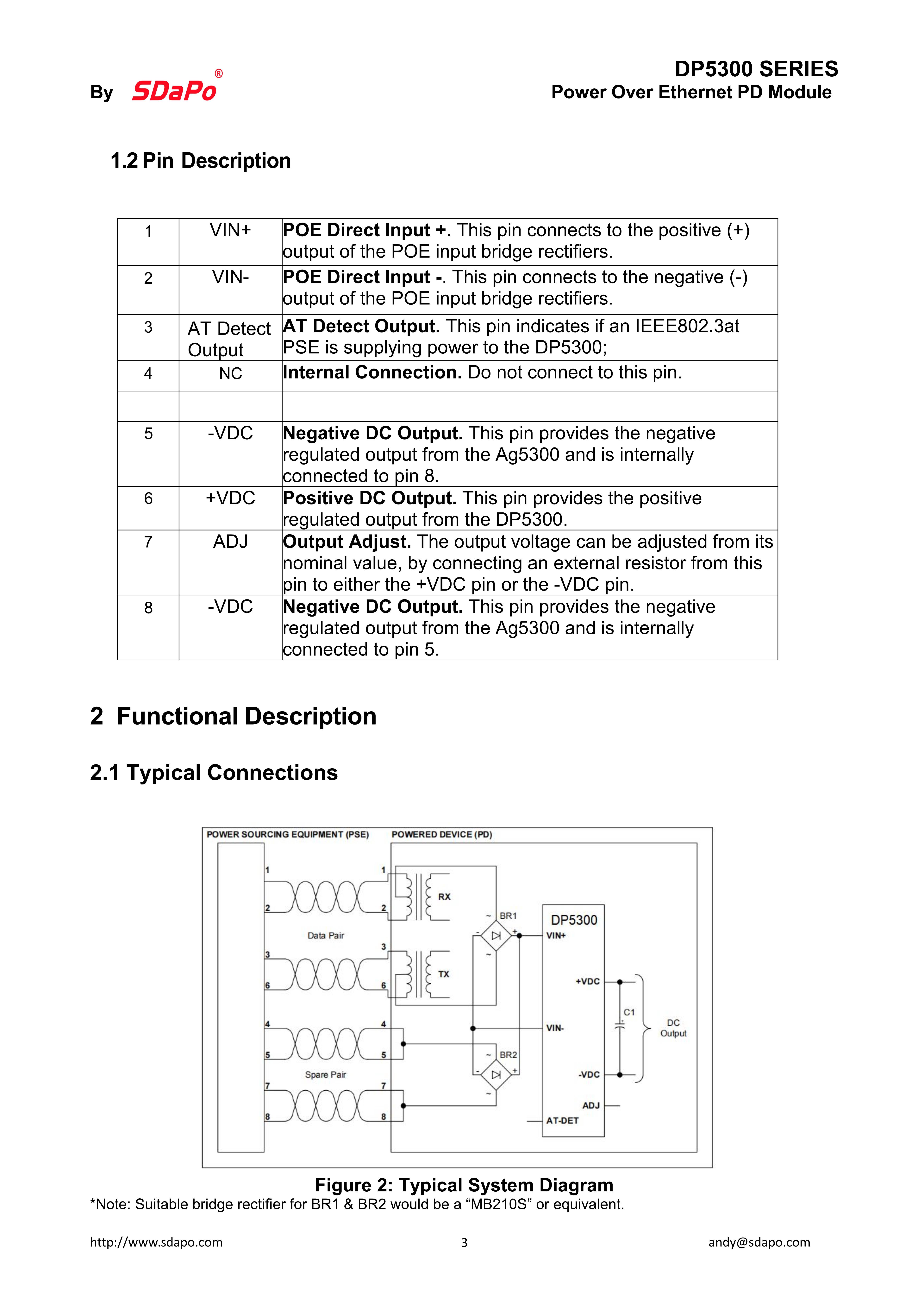

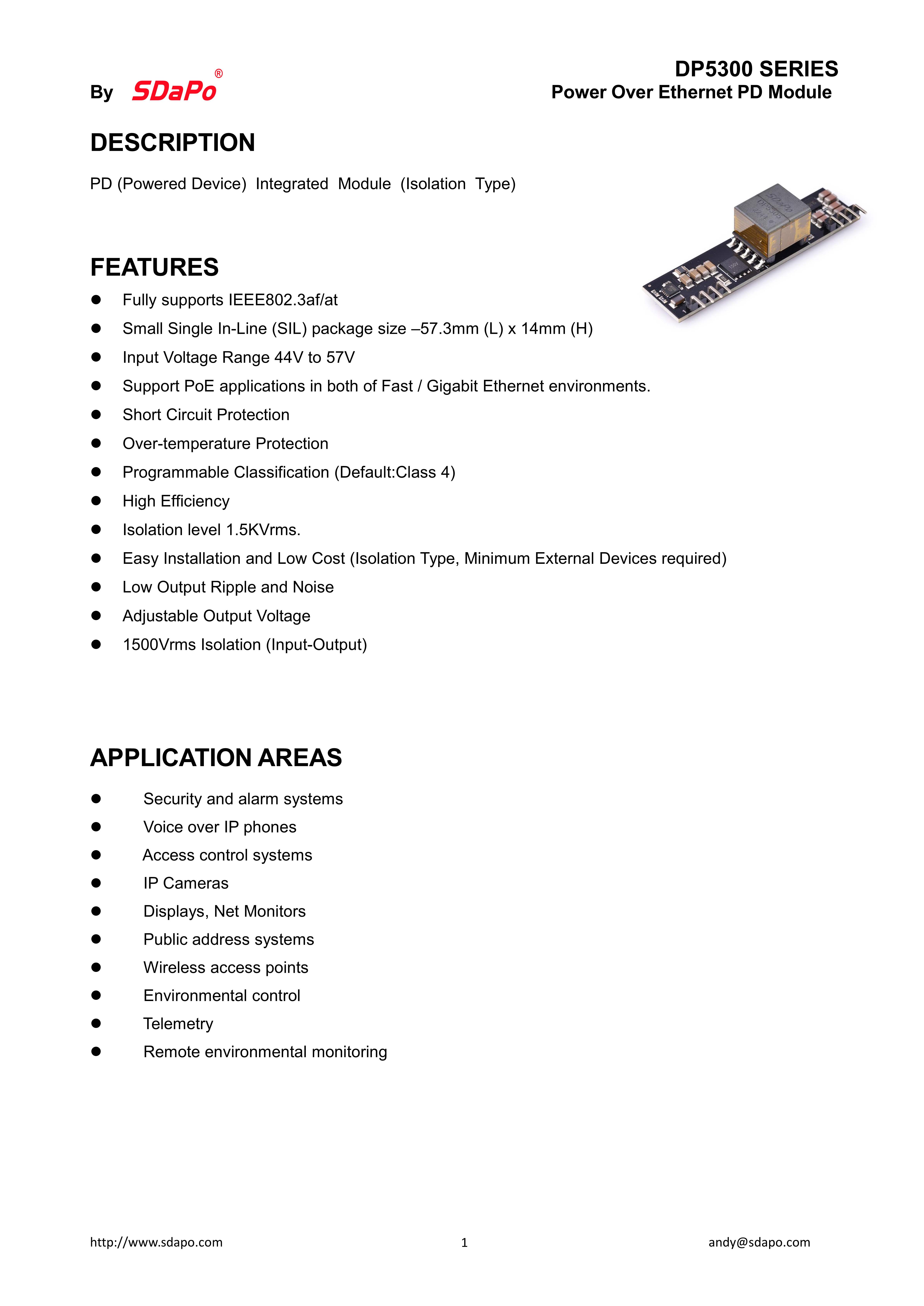

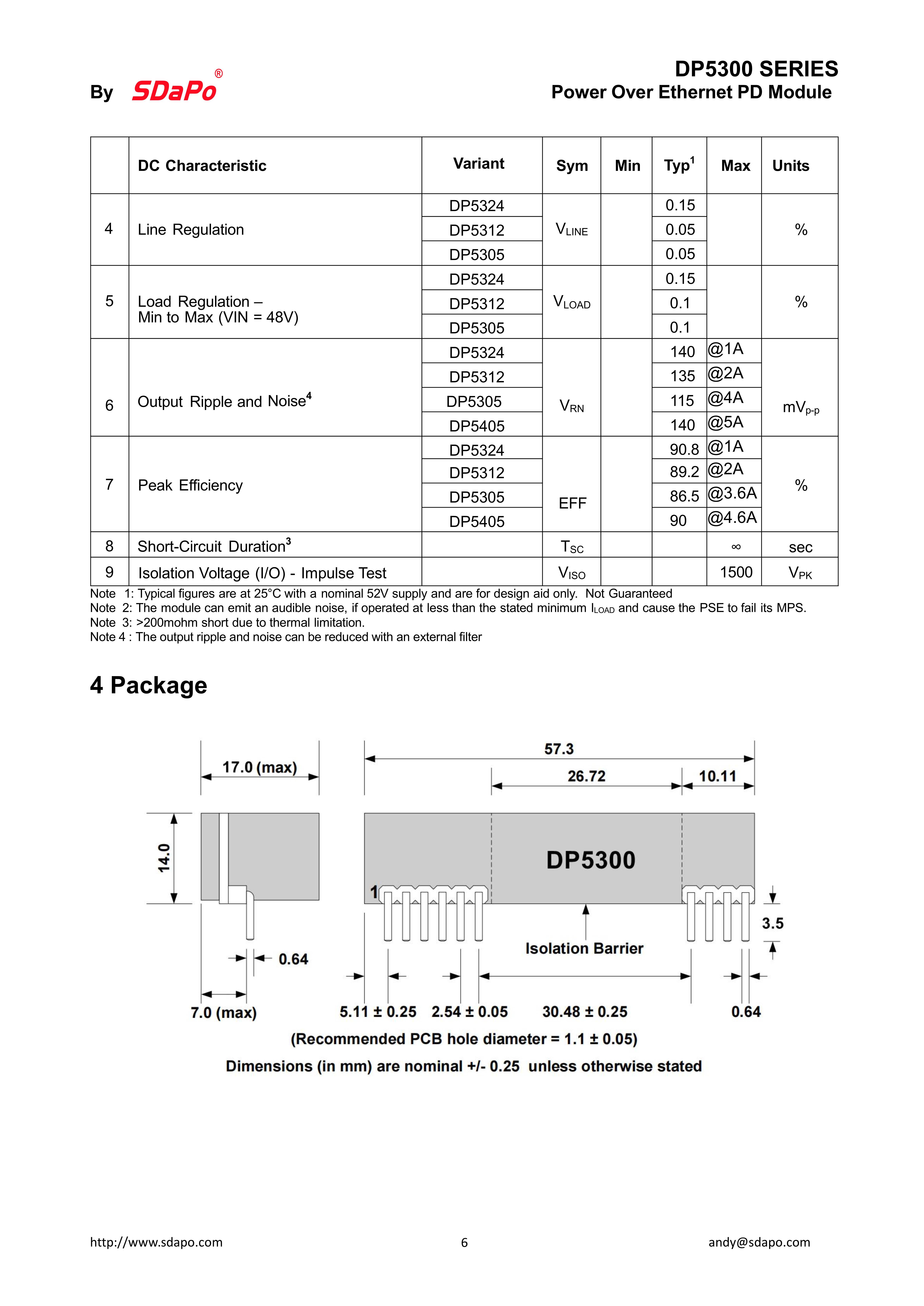

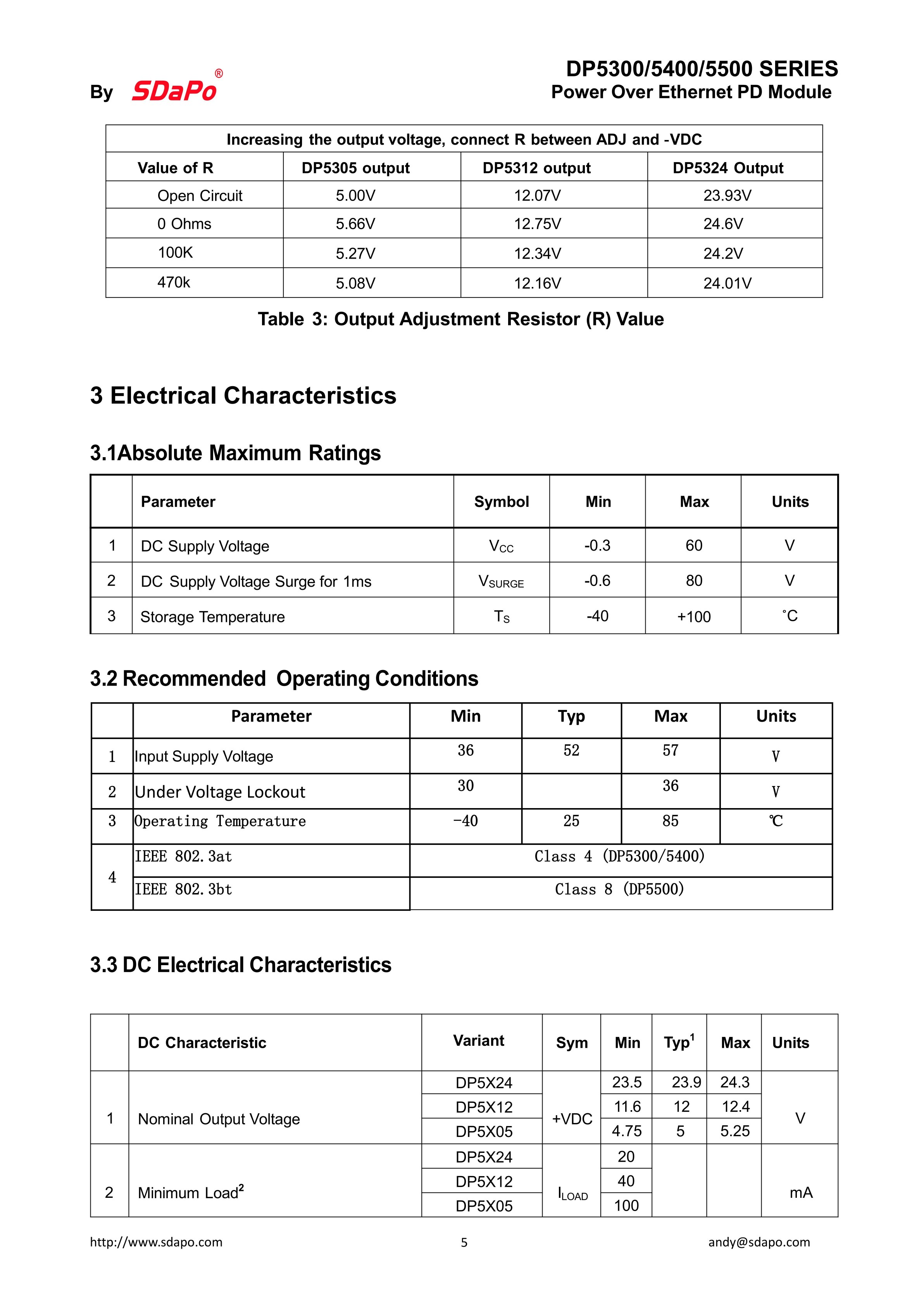

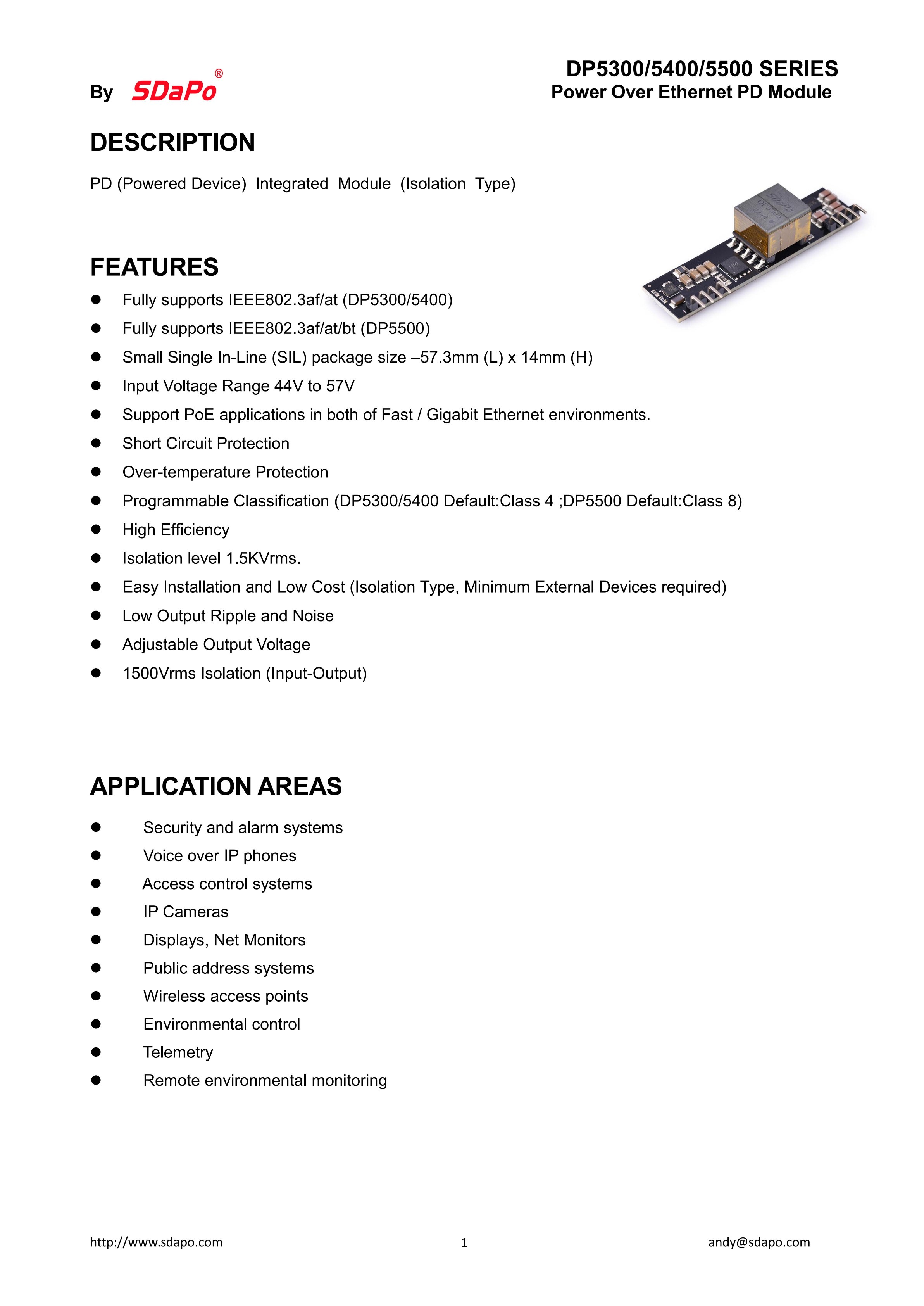

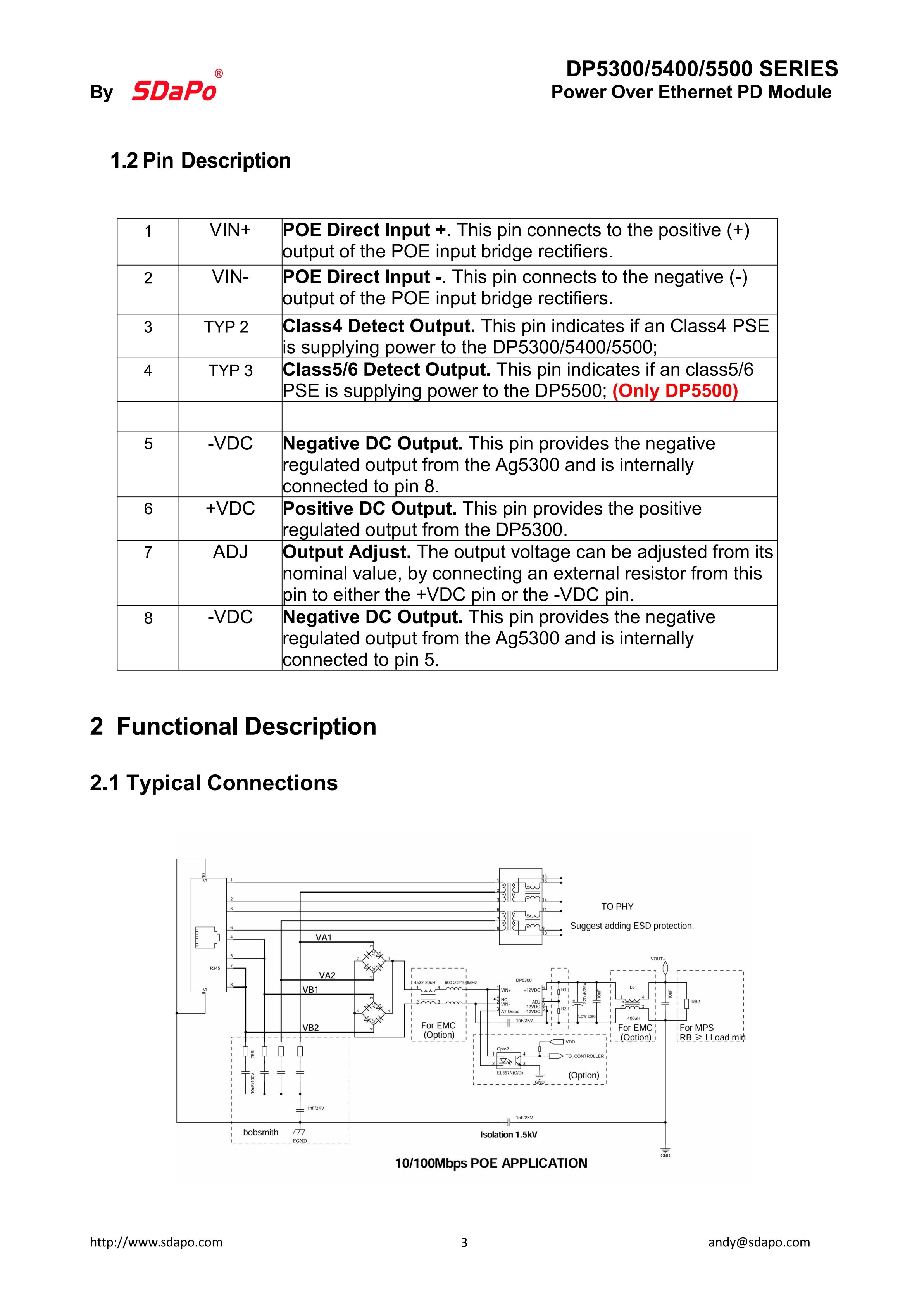

DP5300 Datesheet

DP5300更新.pdf

hot sales 5V4A IEEE802.3af/at Standard POE Module SDAPO DP5305 DP5300 5V4A 12V2A 24V1A POE PD Module DP5300 5V4A 12V2A 24V1A POE PD Module
