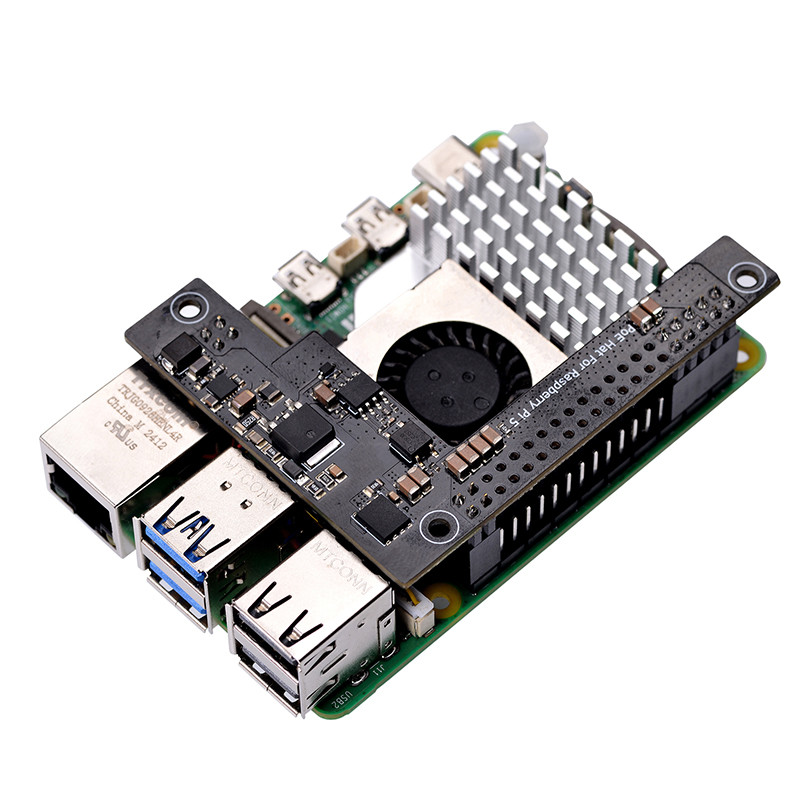

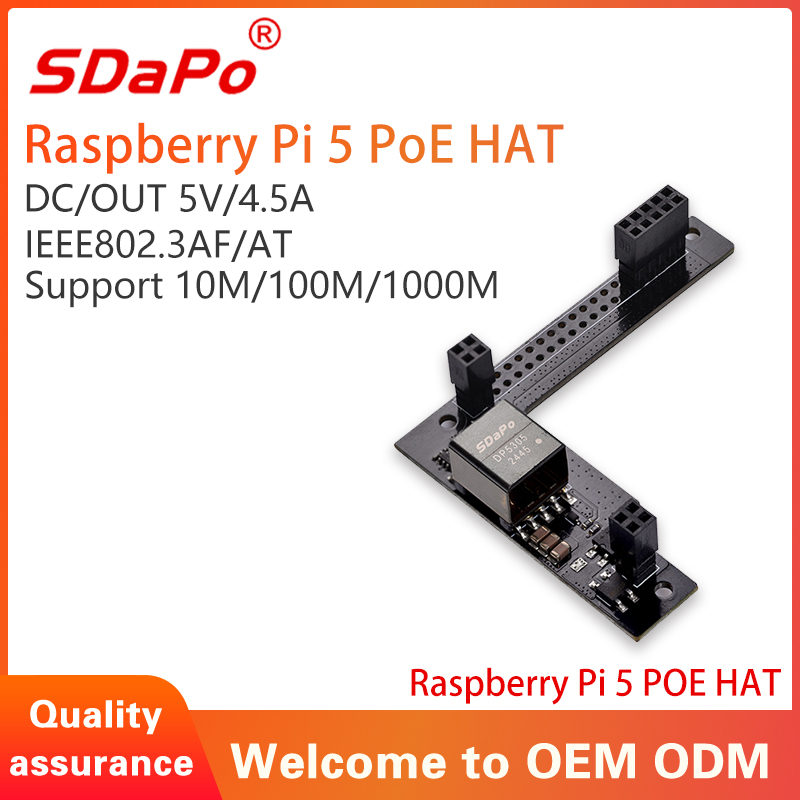

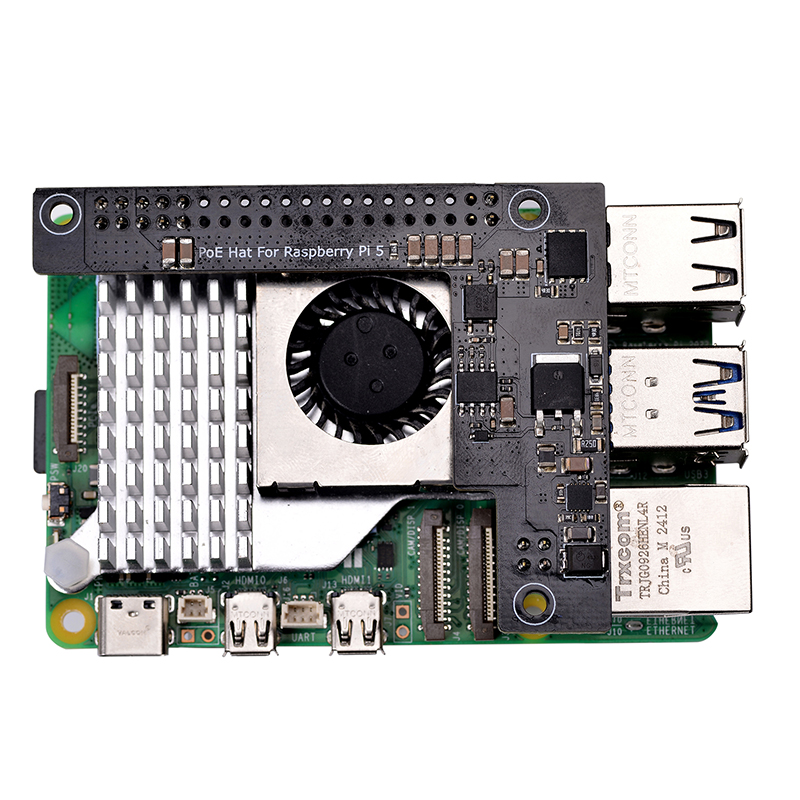

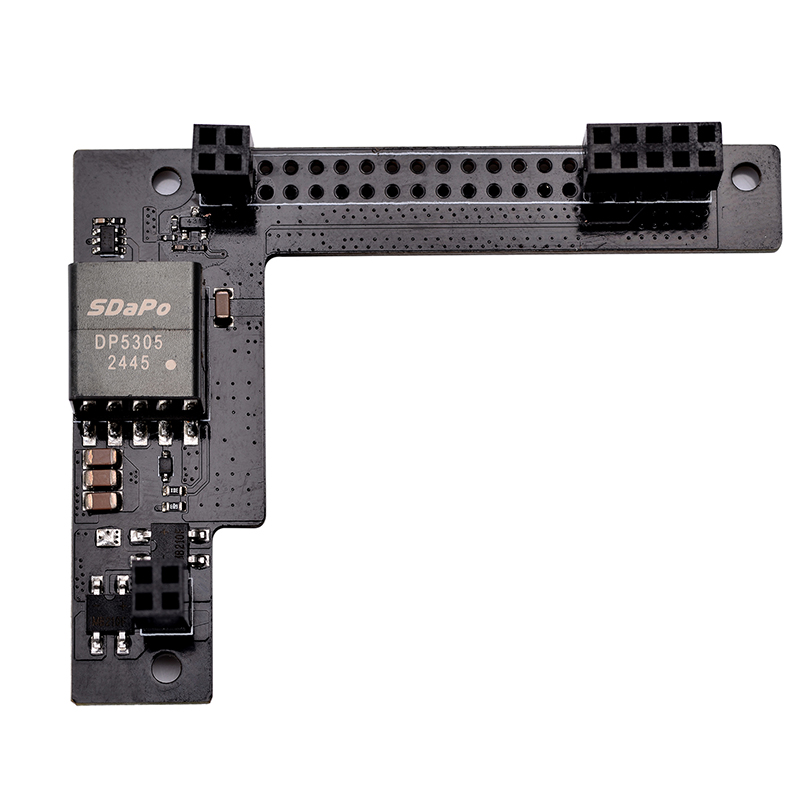

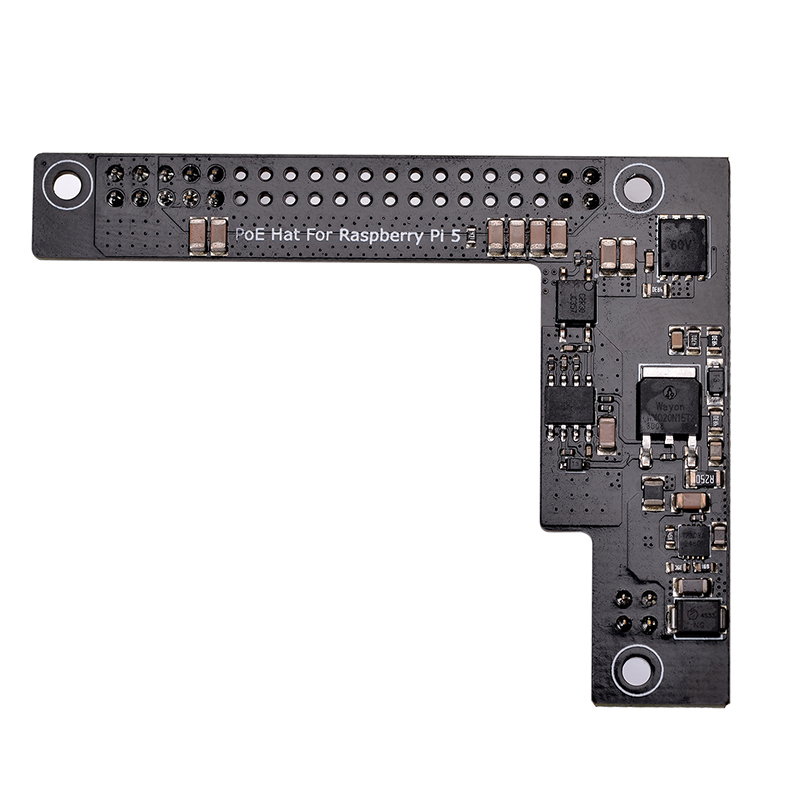

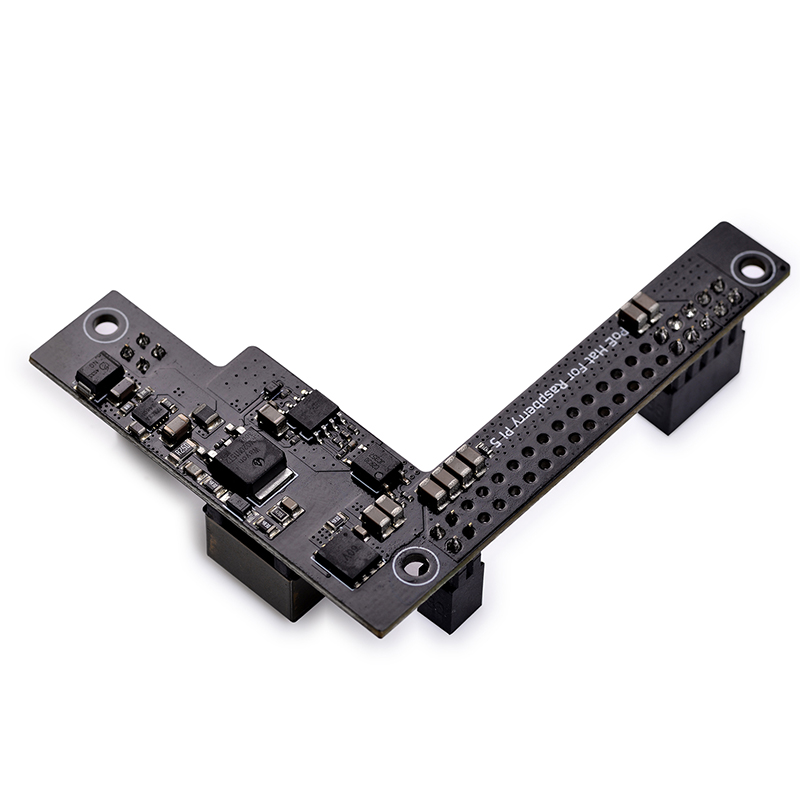

Raspberry Pi 5 PoE HAT 5V 4.5A PoE Board PD Module

You are here: Home » Products » POE Module » IEEE802.3at » Raspberry Pi 5 PoE HAT 5V 4.5A PoE Board PD Module

Raspberry Pi 5 PoE HAT 5V 4.5A PoE Board PD Module

Name: Raspberry Pi 5 PoE HAT 5V 4.5A PoE Board PD Module
Brand: SDaPo
SKU: 503219527
Rating: 5.0 (70 reviews)

1) IEEE802.3af/at Standard
2) PoE IN:37-57V
3) DC/OUT:5V/4.5A(22.5W)
4) ISO:1.5KV
5) Support Raspberry Pi 5
6) High Efficiency
7) ModeA or ModeB
8) support 10M/100M/1000M/10G etc.

Model:
Raspberry Pi 5 PoE HAT
Brand:
SDaPo

Output Vdc:	Raspberry Pi PoE HAT-5V4.5A
Availability:

Quantity:



Inquire Add to Basket

Product Description

You are welcome to customize the POE modules of various size and connector and function.

The layout is after receive the research and development fee.

After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.

It takes 7-10 days to produce samples.After the sample is qualified, batch production.

SDAPO Raspberry Pi 5 PoE+ HAT PoE Board IEEE 802.3af/at Compatible Gigabit Ethernet PoE Board Module

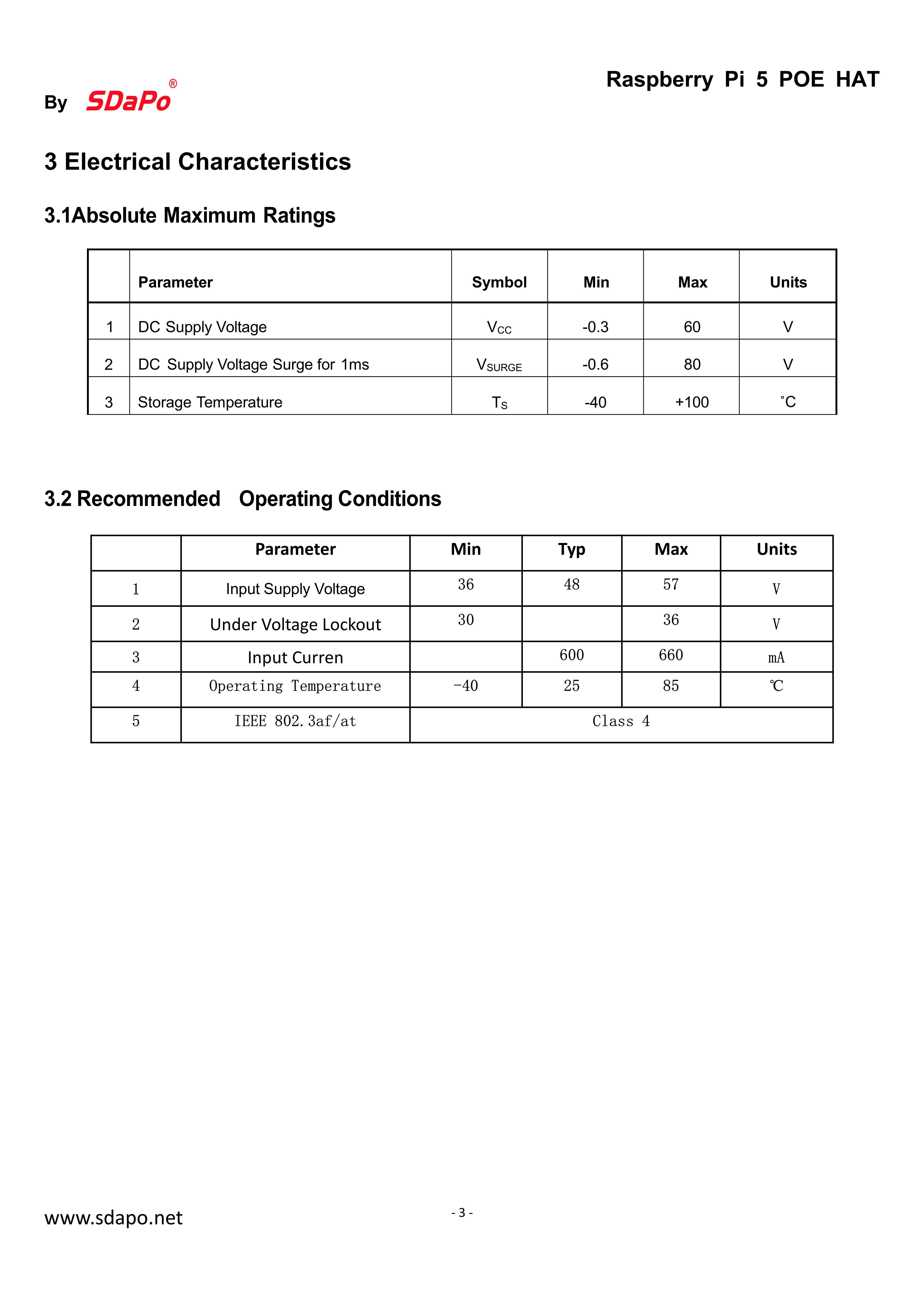

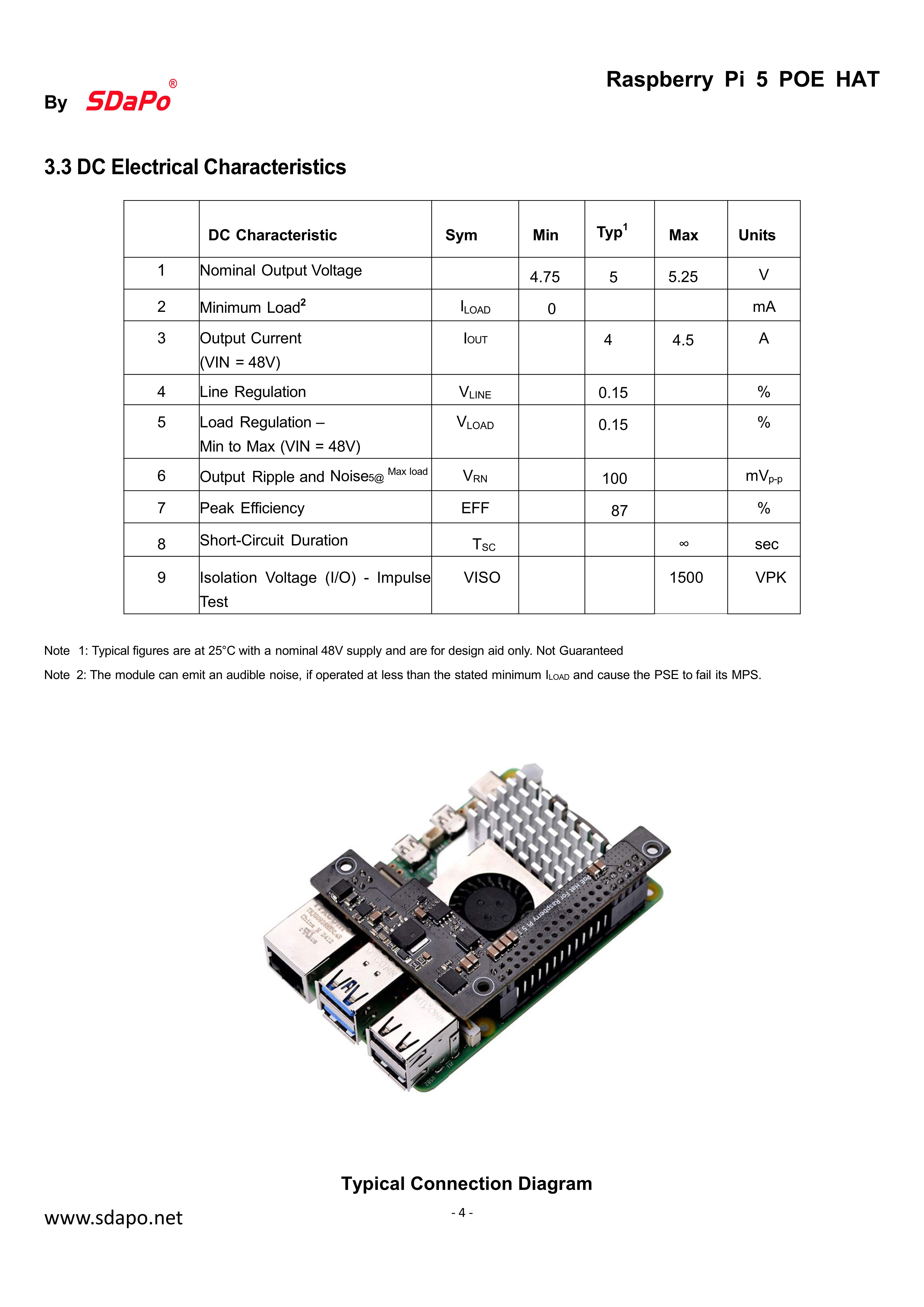

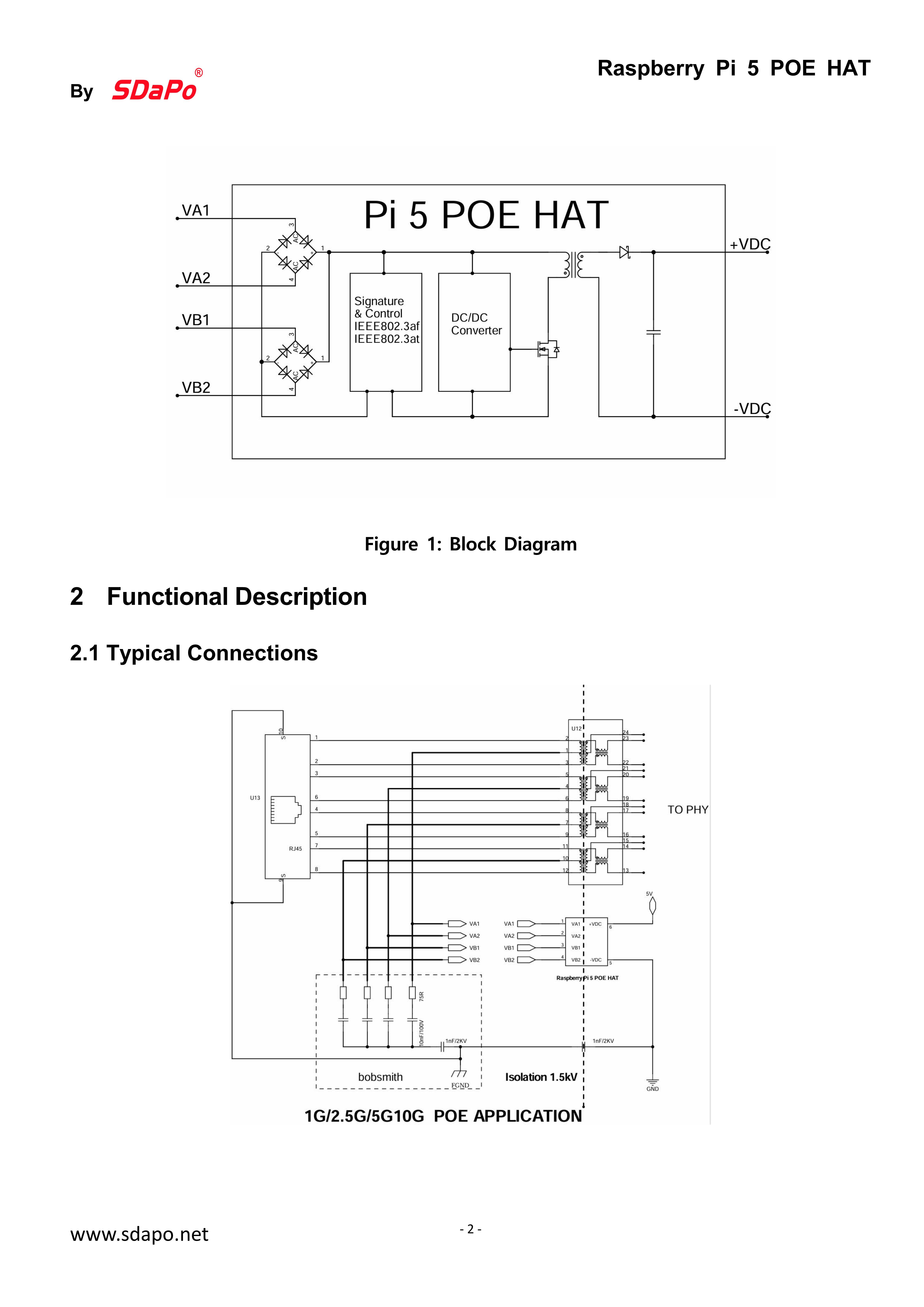

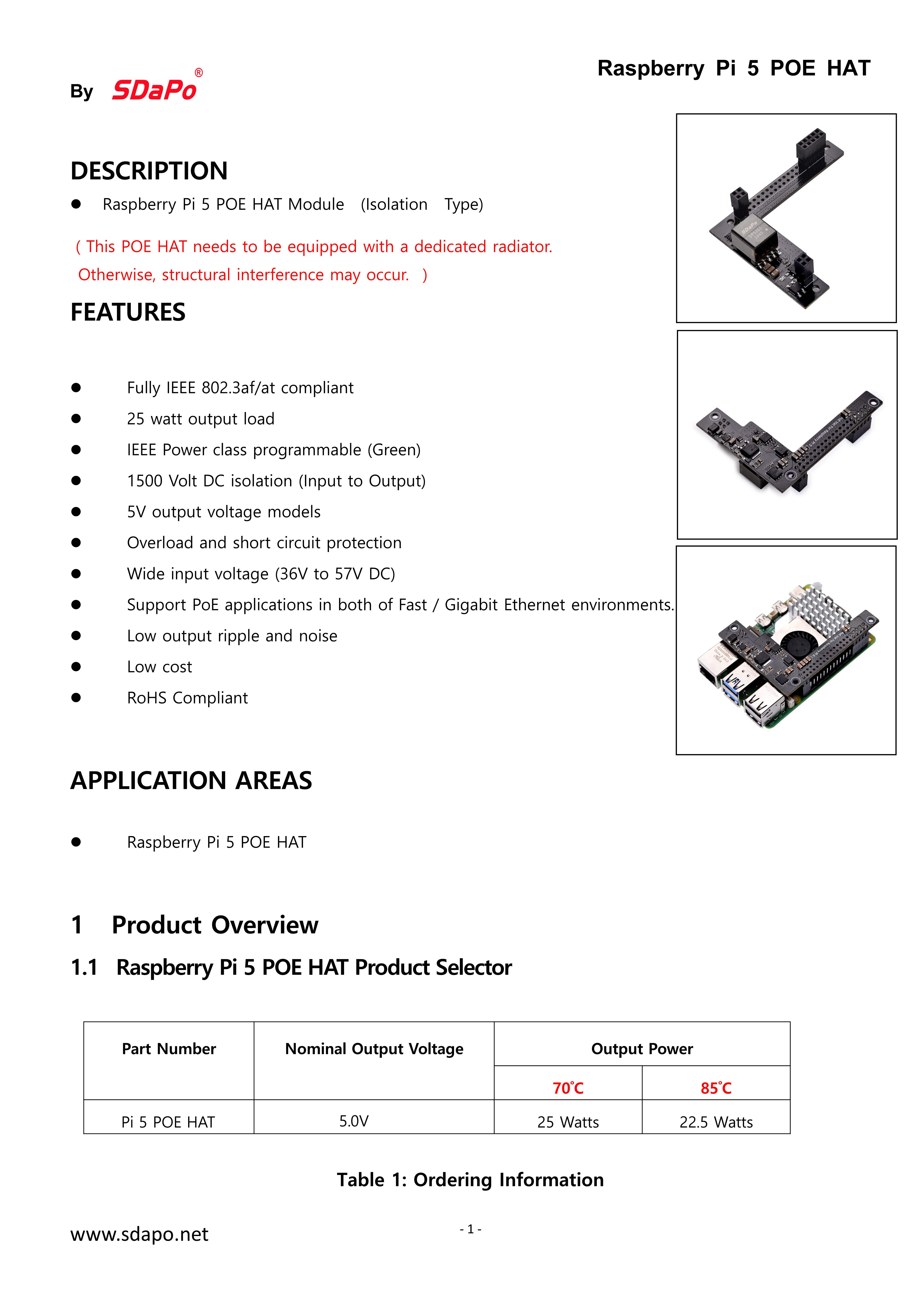

Datesheet

Datesheet Download

Raspberry Pi 5 POE HAT+ Datasheet.pdf

Raspberry Pi 5 PoE HAT Raspberry Pi PoE HAT 5V 4.5A PoE PD Module 5V 4.5A PoE PD Module
