Power over Ethernet (PoE) Technology Overview

Introduction to PoE

Power over Ethernet is a technology that enables the simultaneous transmission of electrical power and data over standard Ethernet cabling (typically CAT5e or higher).
Developed initially in 2000 and standardized as IEEE 802.3af in 2003, PoE eliminates the need for separate power cables, simplifying installation and reducing costs.

How PoE Works

PoE operates by injecting direct current (DC) power onto the Ethernet cable alongside the data signals.

This is achieved through:
Power Sourcing Equipment (PSE): Typically network switches or midspan injectors that provide power
Powered Devices (PDs): End devices that receive both power and data (e.g., IP cameras, VoIP phones)
Power Negotiation: The PSE detects compatible devices and determines their power requirements.

PoE Standards

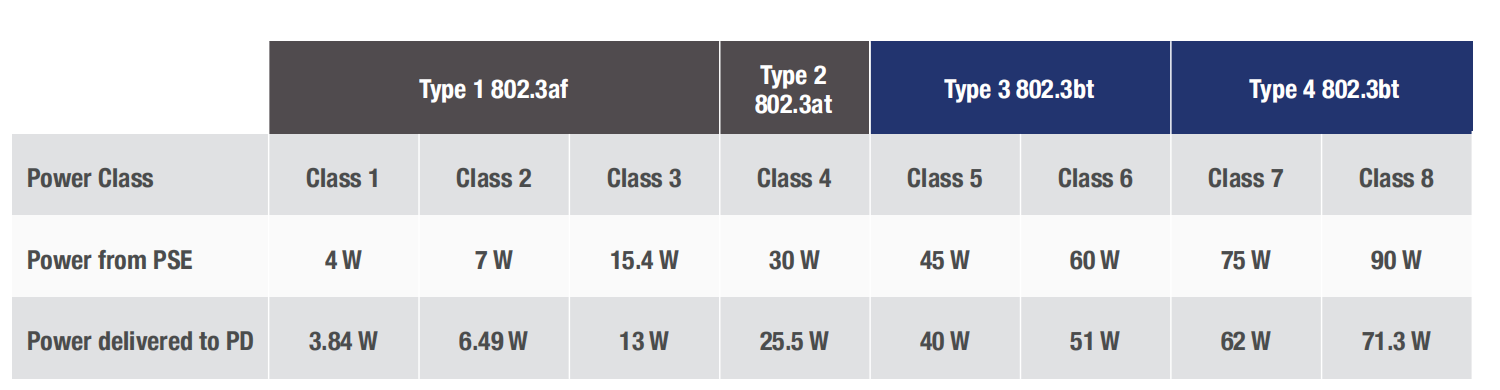

IEEE 802.3af (PoE): Delivers up to 15.4W per port
IEEE 802.3at (PoE+): Provides up to 30W per port
IEEE 802.3bt (PoE++): Offers up to 60W (Type 3) or 100W (Type 4)

Key Benefits of PoE

Simplified Installation: Reduces cable clutter by eliminating separate power cables
Cost Efficiency: Lowers installation and maintenance costs
Flexibility: Enables device placement without proximity to power outlets
Safety: Features built-in protection against overload and short circuits
Centralized Power Management: Allows remote power cycling and monitoring

Common Applications

IP surveillance cameras
VoIP phones
Wireless access points
Network switches
Digital signage
IoT devices
Building automation systems

Future of PoE Technology

The development of higher-power PoE standards continues to expand potential applications.
Emerging uses include:
PoE lighting systems
Advanced building management
Industrial automation
Smart retail solutions

Application reference of PoE module

SDaPo has many standard PSE and PD modules. For more module options, please visit the product list page.

The Features of SDaPo PoE Modules :

• Reasonable price and reliable quality

• Compliance with IEEE 802.3 AF/AT/BT standards

• CE/FCC/ROHS/REACH certificates and test reports

• Support SIFOS verification

What is the SIFOS test ?

The SIFOS PDA-604A is a professional-grade ‌Power over Ethernet (PoE) test instrument‌ designed for validating Powered Device (PD) compliance with IEEE 802.3 AF/AT/BT standards.

Key Capabilities:‌

  Automated protocol testing‌: Verifies critical PD parameters including classification validity, power switching thresholds, and MPS characteristics.
  Extended stress testing‌: Supports extreme conditions (28-57V input, up to 2A load) beyond commercial PSE limits, covering all 2/4-pair wiring configurations.
  High-resolution analysis‌: Captures transient currents at 200μsec resolution across 10Base-T to 10GBase-T networks.
  Future-ready‌: Fully compatible with Type-1/2/3/4 PDs including high-power 802.3bt devices (60W/90W).

‌Primary Applications:‌

   ‌R&D validation‌: Essential for PD chipset and network equipment manufacturers during design verification.
   ‌Certification testing‌: Generates standardized reports for IEEE compliance documentation.
   ‌Field troubleshooting‌: Diagnoses PoE deployment issues in IP cameras, wireless APs, and industrial IoT devices.

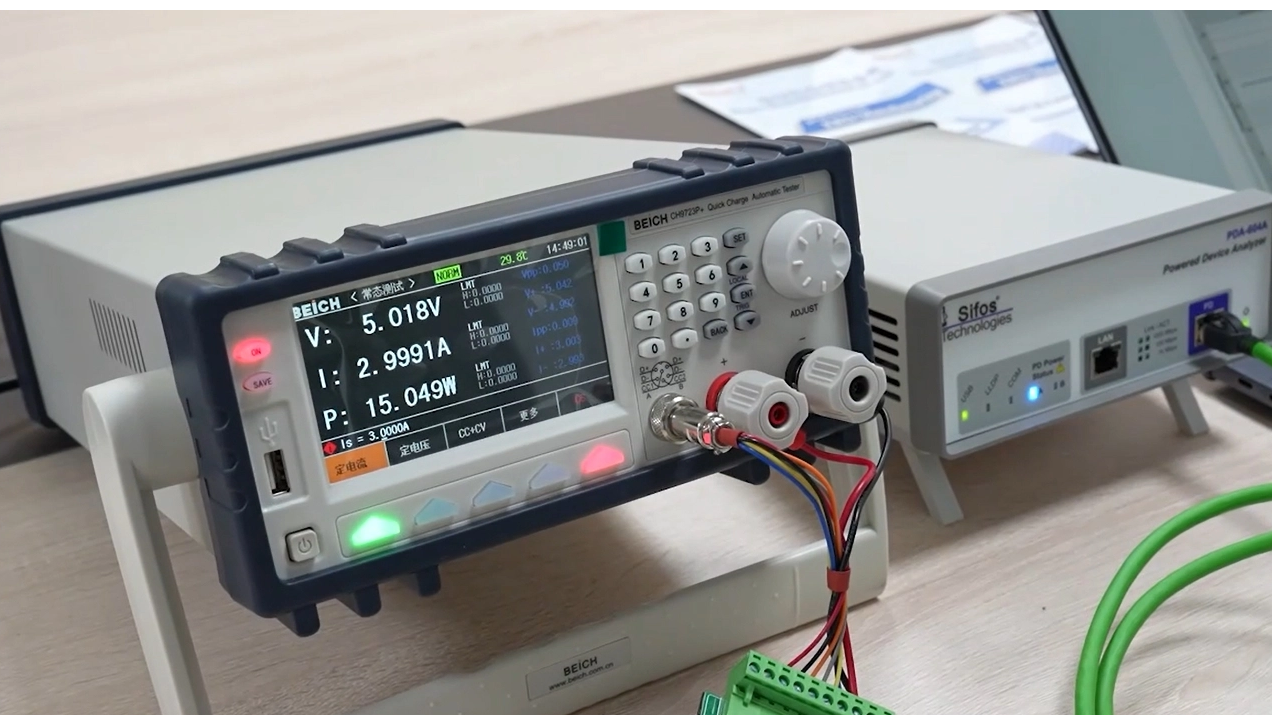

The SDaPo R&D team has SIFOS PDA-604A testing instruments. This makes customers more confident in the quality of the PoE modules supplied by SDaPo.

Conclusion

PoE technology has become an essential component of modern network infrastructure, offering a reliable and efficient power delivery solution that supports the growing ecosystem of networked devices.
As power requirements increase and new applications emerge, PoE will continue to evolve, further transforming how we power and connect devices in both enterprise and consumer environments.
