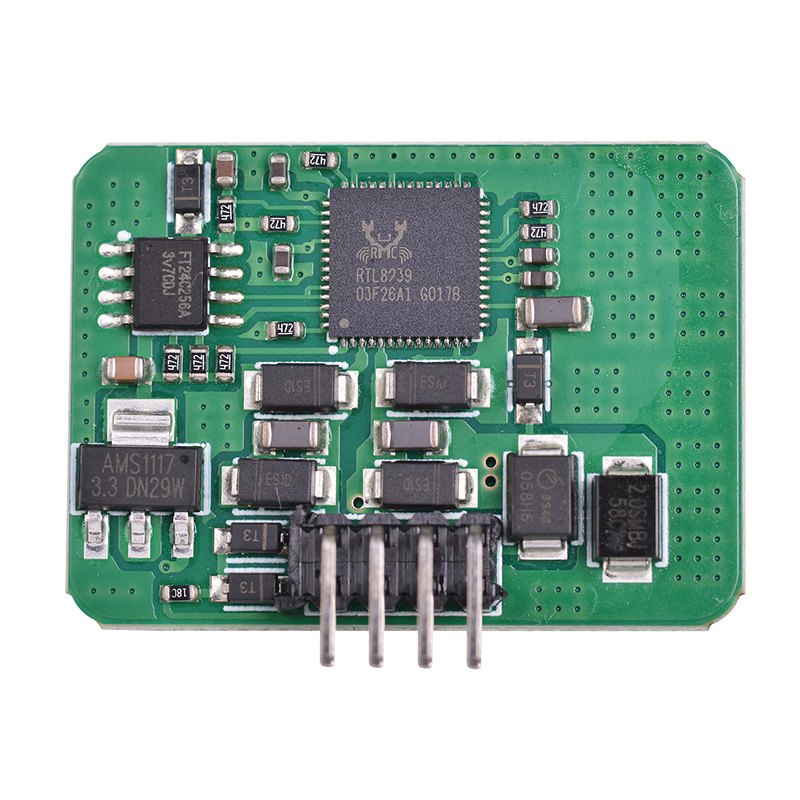

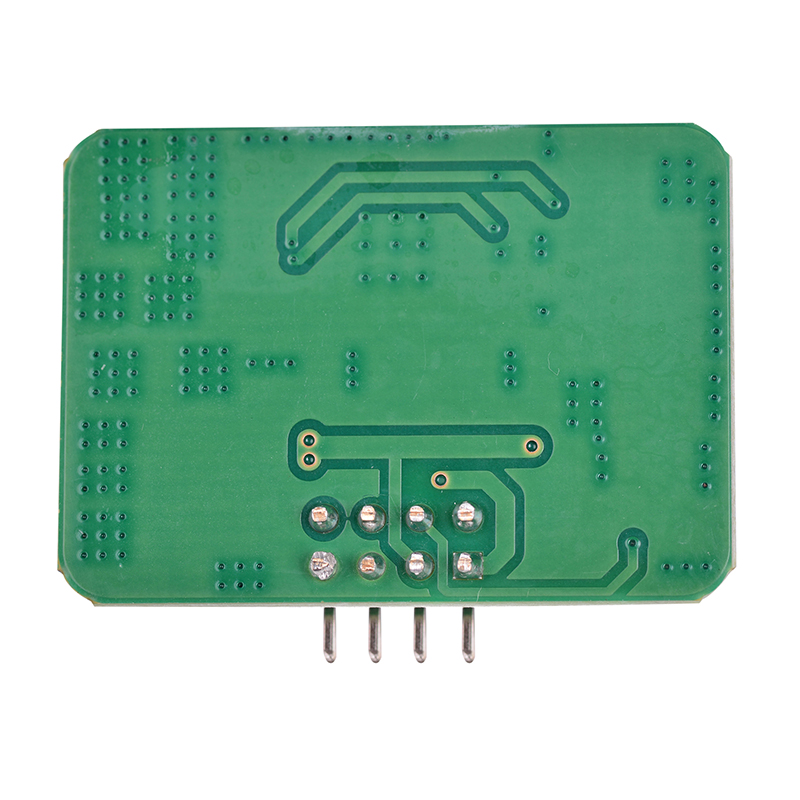

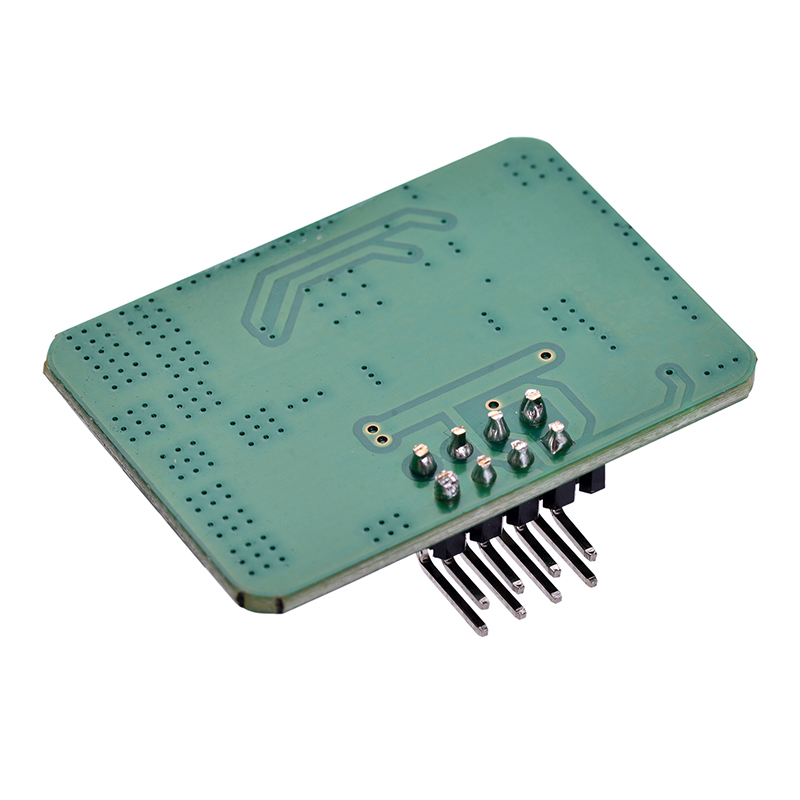

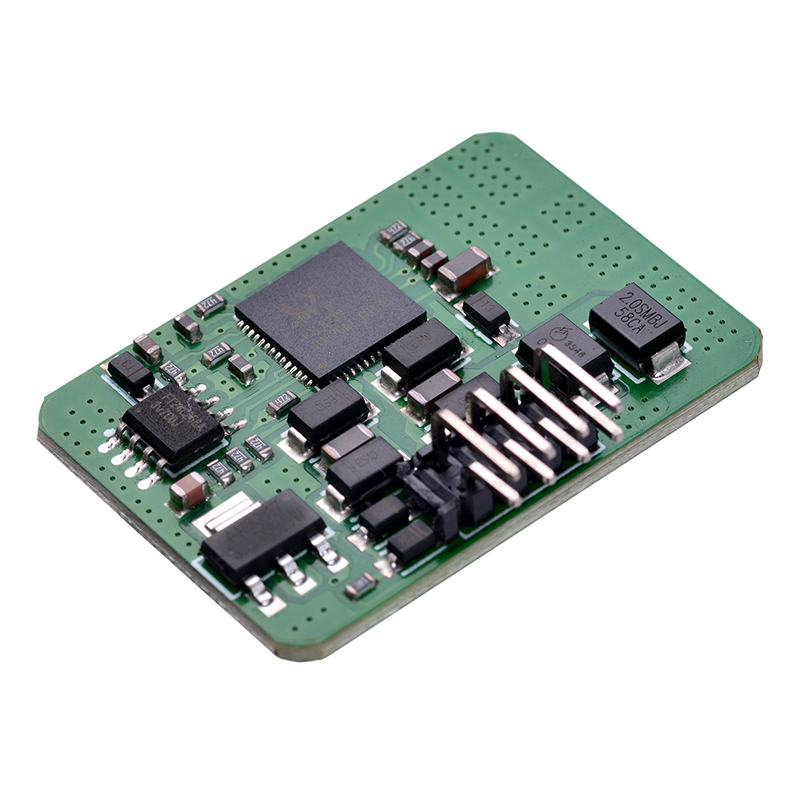

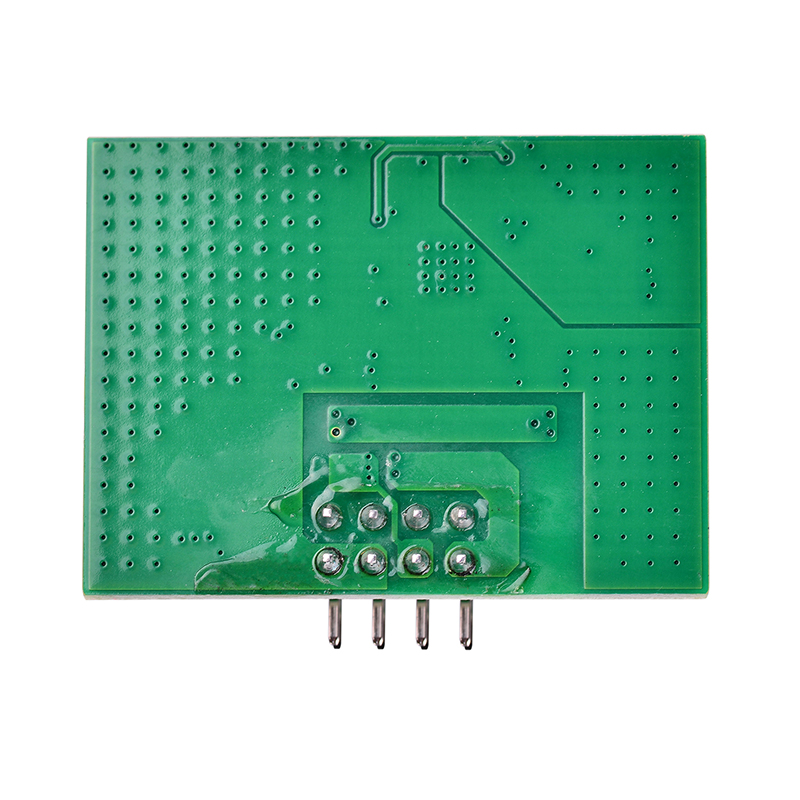

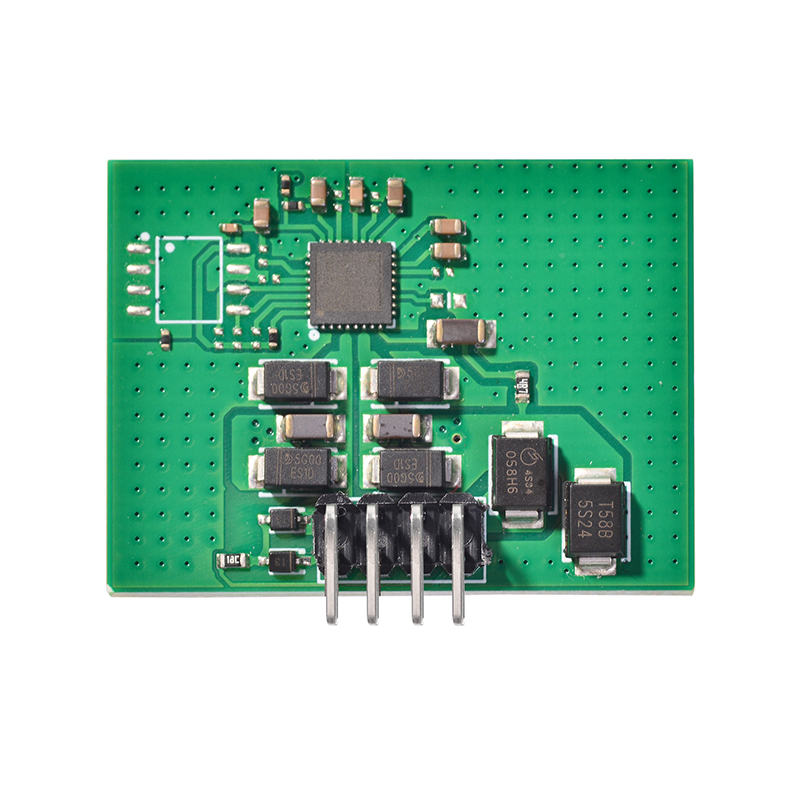

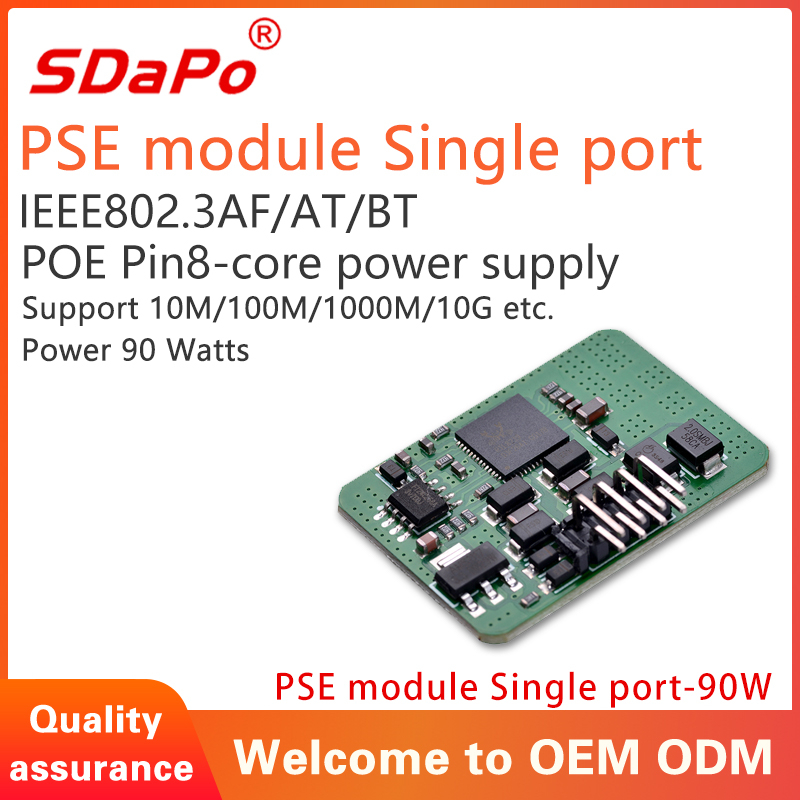

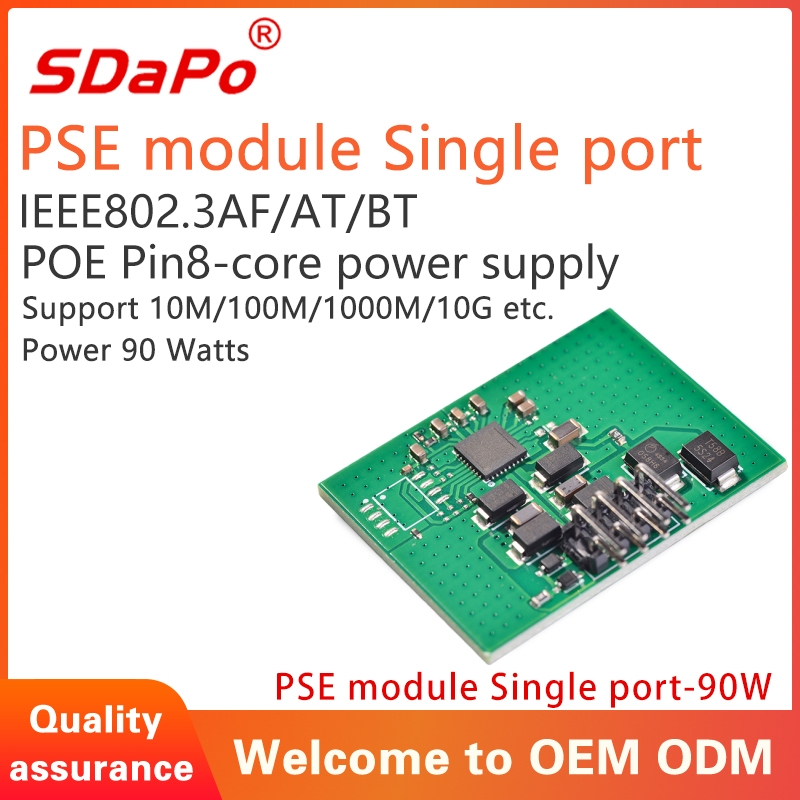

Product Description
You are welcome to customize the POE modules of various size and connector and function.
The layout is after receive the research and development fee.
After ordering a certain number of modules (usually 5000 pieces no time limited), the r&d cost can be refund.
It takes 7-10 days to produce samples.After the sample is qualified, batch production.

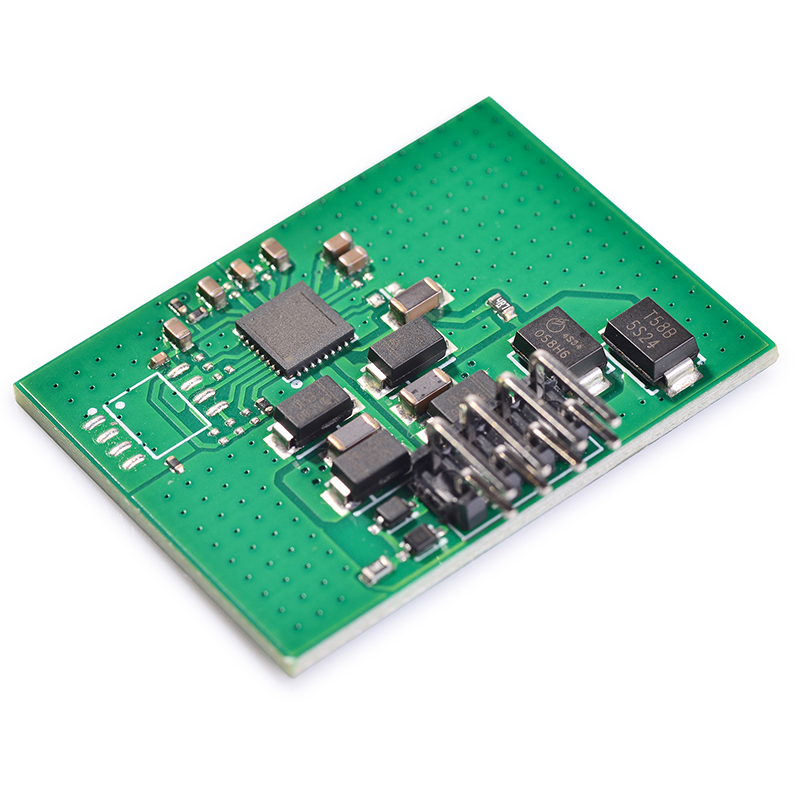

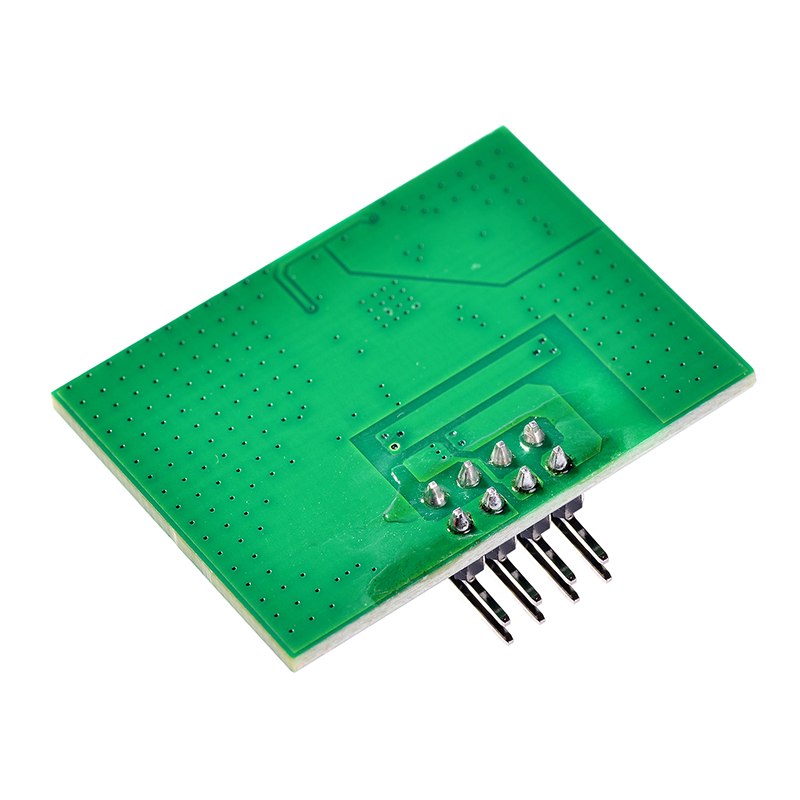

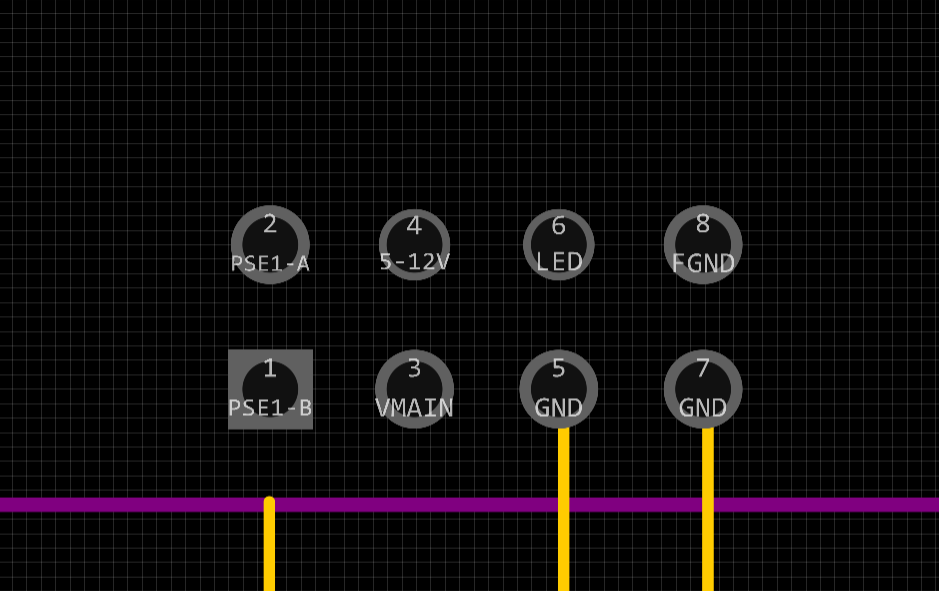

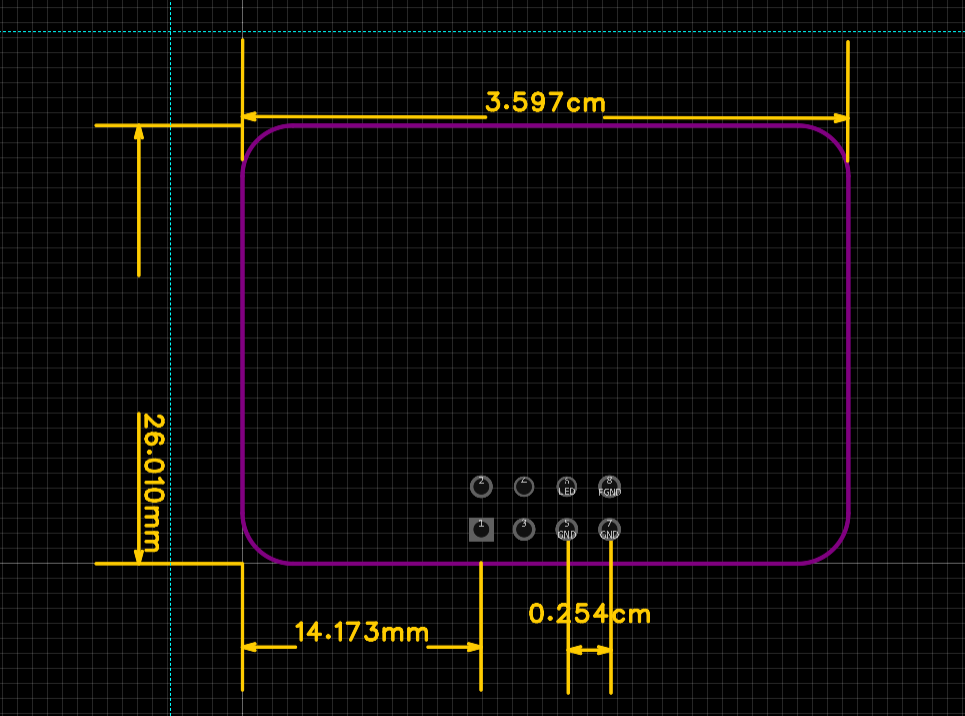

The size The pins definition

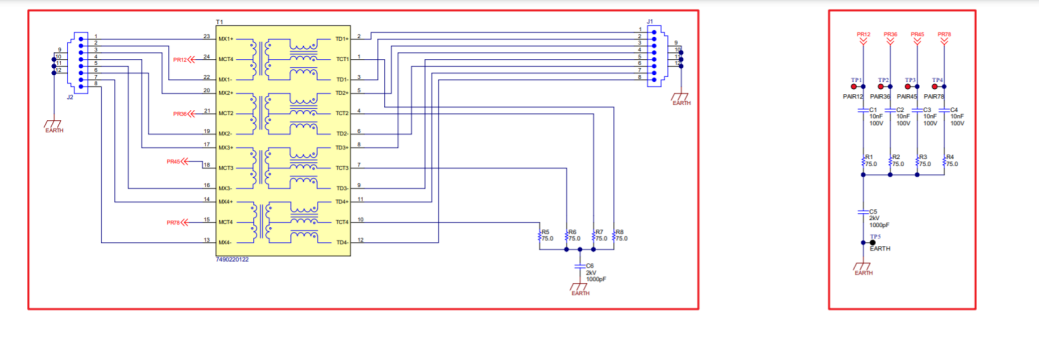

Reference design
Reference design Translation
1. T1 needs to select a 10G network transformer that supports POE++
2. The RJ45 and the Network filter must be layout in strict accordance with the differential signal
3. J2 is the PSE output port and J1 is the network input port
4. PR12，PR45 connect to VMAIN-54V PR36 connect to PSE1-A；PR78 connect to PSE1-B
5. Bobsmith circuit needs to be retained, EARTH connects to the FGND of PSE module
6. power motherboard needs 2 port output, 54V-56V and 5V-12V; Because the PSE module supports IEEE802.3bt and class8. It is recommended that the power of the PSE module be 54-56V and bigger than 90W
7. Power board 54V-56V connnect to PSE module VMAIN-54V
Power board 5V-12V connect to PSE module 5-12V input
Power board DC GND connect to PSE module GND
Power board input AC’’s PE GND connect to PSE FGND

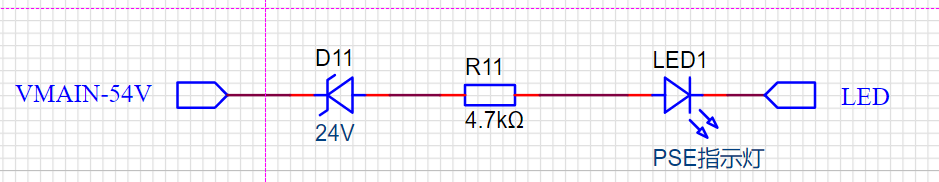

Power board 54-56V connect to 24V Voltage regulator tube then connect to 4.7K resistance then connect to LED then to PSE module’s LED
When PSE supply power ourisde .the LED1 Light up
